Siemens SIMATIC HMI OP37/Pro Technical Document

Preface, Contents
Product Description 1
Physical Installation 2
Electrical Installation 3
User-Specific Settings 4
Installing Expansion Modules and
Optional Equipment 5
Servicing/Maintenance 6
Appendices
Technical Data A
ESD Guidelines B
Siemens Worldwide C
Glossary, Index
Release 07/98
6AV6591-1DA01-0AB0
Operator Panel
OP37/Pro
Equipment Manual
SIMATIC HMI

ii
This manual contains notices which you should observe to ensure your own personal safety,
as well as to protect the product and connected equipment. These notices are highlighted in
the
manual by a warning triangle and are marked as follows according to the level of danger:
!Warning
indicates that death, severe personal injury or substantial property damage can result if
proper precautions are not taken.
!Caution
indicates that minor personal injury or property damage can result if proper precautions are
not taken.
Note
draws your attention to particularly important information on the product, handling the
product, or to a particular part of the documentation.
Equipment may be commissioned and operated only by qualified personnel . Qualified per-
sonnel
within the meaning of the safety notices in this manual are persons who are authorized
to commission, ground and identify equipment, systems and circuits in accordance with
safety engineering standards.
Note the following:
!Warning
The equipment may be used only for the applications stipulated in the catalog and in the
technical
description and only in conjunction with other equipment and components recom -
mended or approved by Siemens.
Startup
must not take place until it is established that the machine, which is to accommodate
this component, is in conformity with the guideline 89/392/EEC.
Faultless and safe operation of the product presupposes proper transportation, proper stor-
age, erection and installation as well as careful operation and maintenance.
SIMATIC is a registered trademark of Siemens AG.
Some of the other designations used in these documents are also registered trademarks; the
owner’s rights may be violated if they are used by third parties for their own purposes.
Editor and Publisher: A&D PT1
We have checked the contents of this manual for agreement with the
hardware and software described. Since deviations cannot be pre -
cluded
entirely , we cannot guarantee full agreement. However , the
data in this manual are reviewed regularly and any necessary cor -
rections
included in subsequent editions. Suggestions for improve -
ment
are welcomed.
Disclaimer of Liability
Copyright  Siemens AG 1996 All rights reserved
The reproduction, transmission or use of this document or its
contents is not permitted without express written authority.
Offenders will be liable for damages. All rights, including rights
created
by patent grant or registration of a utility model or design, are
reserved.
Siemens
AG
Bereich Automatisierungstechnik
Geschäftsgebiet Industrie-Automatisierung
Postfach 4848, D-90327 Nürnberg
 Siemens AG 1998
T echnical data subject to change.
Siemens Aktiengesellschaft Order-No. 6A V6591-1DA01-0AB0
Safety Guidelines
Qualified Personnel
Correct Usage
Trademarks
Impressum

i
OP37/Pro Equipment Manual
Release 7/98
Preface
This equipment manual contains precise information on the technical design of
operator panel OP37/Pro.
The OP37/Pro equipment manual contains the following chapters:
Chapters 1-3 contain information about the individual components of the
operator panel and describe its physical and electrical instal -
lation.
Chapters 4-5 describe the user -definable settings in the Setup program.
Chapter 6 provides information about servicing the operator panel.
The Appendix contains the technical data and the ESD guidelines.
The abbreviations used in the User’ s Guide for OP37/Pr o have the following
meanings:
DOS
Disk Operating System
ESD Electrostatic Sensitive Device
EM Equipment Manual
LCD Liquid Crystal Display
LED Light-Emitting Diode
MPI Multipoint Interface (SIMA TIC S7)
OP Operator Panel
PC Personal Computer
PCMCIA Personal Computer Memory Card International Association
PU Programming Unit
RAM Random Access Memory (main memory)
TFT Thin-film transistor
Purpose
Where to find what
Abbreviations

ii OP37/Pro
Equipment Manual
Release 7/98
In the event of technical queries, please get into touch with your point of con -
tact at the Siemens agency or branch which takes care of your af fairs. You will
find their addresses in Appendix C of this manual.
SIMATIC Customer Support Hotline
Available worldwide around the clock:
Johnson City
Nuremberg
Singapore
Simatic
Basic Hotline
Nuremberg
SIMATIC BASIC Hotline
Johnson City
SIMATIC BASIC Hotline Singapore SIMATIC BASIC Hotline
Local time: Mon-Fri 8:00 to 18:00
Tel.: [phone]
Fax: [phone]
E-mail: simatic.support@
nbgm.siemens.de
Local time: Mon-Fri 8:00 to 17:00
Tel.: [phone]
Fax: [phone]
E-mail: simatic.hotline@
sea.siemens.com
Local time: Mon-Fri 8:30 to 17:30
Tel.: [phone]
Fax: [phone]
E-mail: simatic@
singnet.com.sg
SIMATIC Premium Hotline
(chargeable,
SIMA TIC Card required)
Times: Mon-Fri 0:00 to 24:00
Tel.: [phone]
Fax: [phone]
Other Sources of
Assistance
Preface

iii
OP37/Pro Equipment Manual
Release 7/98
SIMATIC Customer Support Online Services
SIMATIC Customer Support offers you comprehensive additional information about
SIMA TIC products through its Online Services as follows:
Up-to-date general information is provided
– on the internet at http://www.ad.siemens.de/simatic
–
from the fax polling service on 08765-93 02 77 95 00
 Up-to-date product information and downloads for practical use can be found
– on the internet at http://www.ad.siemens.de/support/
html-00/
–
from the Bulletin Board System (BBS) in Nurember g ( SIMATIC
Customer Support Mailbox) on [phone].
For calling up the mailbox, you should use a modem with up to
V .34 (28.8 kBaud) capability and set the parameters as follows: 8, N, 1,
ANSI, or connect via ISDN (x.75, 64 kBit).
Preface

iv OP37/Pro
Equipment Manual
Release 7/98
Preface

v
OP37/Pro Equipment Manual
Release 7/98
Contents
1 Product Description 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 OP37/Pro Facilities 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Controls, Display and Indicators 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Physical Installation 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 OP37/Pro 2-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Unit Dimensions 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Labeling Function Keys 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Electrical Installation 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Connectors/Interfaces 3-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1.1 Connector Pin Assignment 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1.2 Setting Serial Interface IF1B 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Connection of Power Supply 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 User-Specific Settings 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 The Setup Program 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Installing Expansion Modules and Optional Equipment 5-1. . . . . . . . . . . . . . . . . . . .
5.1 AT Expansion Box and A T Cards 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Direct Key Module 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.1 Installing the Direct Key Module 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.2 Connection Elements and Adjusting Elements 5-6. . . . . . . . . . . . . . . . . . . . . . .
5.3 Interrupt Assignment 5-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Servicing/Maintenance 6-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Housing Components 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Replacing the Back-Lighting 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 Replacing the Floppy Disk Drive 6-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4 Backup Battery 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A Technical Data A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B ESD Guidelines B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C Siemens W orldwide C-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glossary
Index

6-10 OP37/Pro
Equipment Manual
Release 7/98
Servicing/Maintenance

1-1
OP37/Pro Equipment Manual
Release 7/98
Product Description
This opening chapter provides a brief overview of the OP37/Pro and its
 performance characteristics and
 controls, display and indicators.
Overview
1

1-2 OP37/Pro
Equipment Manual
Release 7/98
1.1 OP37/Pro Facilities
Operator panel OP37/Pro is suitable for sophisticated tasks in the field of “op -
erator control and monitoring”. I t i s d esigne d as a f itte d u nit fo r u s e d irectl y o n
th
e m achine.
Owing to its high degree of protection (IP65 on the front panel), the OP can
even be used in harsh industrial environments. The OP can be fitted in the fol -
lowing locations:
 control cabinets/desks
 19” cabinets/racks.
The following table presents an initial overview of the configuration of the
OP37/Pro. More precise information about the individual components is pro -
vided in the subsequent, more detailed chapters.
Overview: OP37/Pro configuration
Processor Pentium 166 MHz
Memory and disk
t
Second-level cache 512 Kbytes
y
storage (pipeline burst)
y
Hard disk 1.6 GB
System memory 16 MB
Floppy disk drive 3” drive (1.44 MB)
Software Operating system MS Windows 95
Executable system
software SIMATIC ProTool/Pro Runtime
Ports PLC, PC/PU Serial (see Chapter 3.1)
Printer serial/parallel (see Chapter 3.1)
Operation of external
MF2 keyboard Connection on front panel
Operation of external
PS/2 keyboard Connection on rear panel
Operation of external
PS/2 mouse Connection on rear panel
Slot for PCMCIA cards Slot A for type I, II; III
Slot B for type I, II
Display LCD color display 10“; TFT (actively driven) with backlighting
py
Resolution (pixels) 640 ×480
Number of colors 256
Area of application
of operator panel
Specifications
Product Description

1-3
OP37/Pro Equipment Manual
Release 7/98
Overview: OP37/Pro configuration
Sealed Keyboard System keys with perma-
nent functions 32 (4 with LED)
Function keys with pro-
grammable functions 36 (28 with LED)
Function key labeling System-specific using labeling strips
AT expansion box
Slots
ISA slots
AT expansion box
(ti)
Slots ISA slots
p
(option)
Plug
-
in AT cards
2/3
-
length 16
-
bit cards (ISA)
(option)
Pl
ug-
i
n
AT
car
d
s
2/3
-
l
engt
h
16
-
bi
t car
d
s
(ISA)
Direct key module
(option) Digital outputs, key-driven 16
Sp
ecial features: Hardware clock Yes
S
pec
i
a
l
f
ea
t
ures:
H
ar
d
ware c
l
oc
k
(buffered)
Y
es
(buffered)
Processor coolin
g
Heat
p
i
p
e: a tube that runs directl
y
from the heat sink on the
P
rocessor coo
li
ng
H
eat p
i
pe: a tu
b
e t
h
at runs
di
rect
l
y
f
rom t
h
e
h
eat s
i
n
k
on t
h
e
processor to the heat sink on the outer wall of the OP and di
-
processor to the heat sink on the outer wall of the OP and di-
scharges the heat via the OP outer wall Fully industry-compati-
scharges the heat via the OP outer wall. Fully industry-compati-
ble in contrast with fan cooling
ble in contrast with fan cooling.
Product Description

1-4 OP37/Pro
Equipment Manual
Release 7/98
1.2 Controls, Display and Indicators
Keyboard socket
Floppy disk drive
Function keys
Function keys
Operational status
indicators
System keys
Display
Figure 1-1 Arrangement of controls, display and indicators
Product Description

2-1
OP37/Pro Equipment Manual
Release 7/98
Physical Installation
This chapter provides information on the OP37/Pro with regard to
 Installing the operator panel
 Unit dimensions
 Function key labeling
Overview
2

2-2 OP37/Pro
Equipment Manual
Release 7/98
2.1 Installing the OP37/Pro
The OP37/Pro is suitable for installation in
 19” (48,26 cm) cabinets/racks,
 front panels of control cabinets and desks.
!Caution
 In order to prevent the operator panel overheating,
– the unit must not be exposed to direct sunlight (this also prevents the
keyboard sealing film fading)
– the vent slots on the unit casing must not be covered over when the unit
is in its installed position.
 When installing the OP37/Pro, take the following points into account:
– The temperature inside the OP rises when it is installed on a slant. The
angle of inclination must not exceed 25 ° (refer to Appendix A). If not
installing the unit vertically , reduce the maximum ambient temperature,
e.g. by means of additional heat removal facilities (fan).
– The operator panel must not be installed horizontally since the cooling
principle of the heat pipe would not work any more.
Note
The IP65 enclosure rating of the front panel is only guaranteed if
 the seal on the front panel of the OP is properly seated
 the OP is correctly installed using the screw clamps supplied.
If you want to change the labeling of the function keys, perform the steps prior
to installing the OP37/Pro as described in Section 2.3.
Plan suf ficient space so as to be able to open the OP37/Pro even when it is in -
stalled. For example, when you replace the back-lighting, it must be possible to
swing a plate (refer to Figure 6-3 on page 6-4) through 90  after opening the
OP.
The OP37/Pro has a depth of approximately 330 mm with swung-out plate, as
measured from the front panel.
Use the section bars of the cabinet or rack manufacturer concerned to mount
the OP37/Pro.
Mounting dimensions of the OP37/Pro for a standard 19” cabinet:
W idth: 19” (48.26 cm) height: 7 height modules
The OP/OP front panel is fixed to the frame sections by means of four screws.
Mounting location
and installation
conditions
Before installation
Mounting in 19”
cabinets/rack
Phaysical Installation

2-3
OP37/Pro Equipment Manual
Release 7/98
To install the unit, proceed as follows:
1. Make a mounting cutout in the front panel having a size of
436-1.5 x 295
-1.5
(width x height in mm).
The front panel must not be thicker than 16 mm. You will find details of the
useful depth in the T
echnical Data contained in the appendix.
2. Insert the operator panel in the prepared cutout from the front. T ake suit -
able precautions to prevent the OP from falling out of the front panel until
it has been properly secured.
3. Securely attach the OP to the front panel using the six screw clamps
1
supplied. Figure 2-1 shows the positions for the screw clamps.
1
1
1
1
1
1
Figure 2-1 Positions for the screw clamps
The screw clamps should be hooked into the OP casing and then the stud
screws tightened against the front panel from the back (see Figure 2-2).
Rear panel of OP
Stud screws
Allen key
Screw clamp
Figure 2-2 Locating and tightening the screw clamps
Installing in
control
cabinets/desks
Phaysical Installation

2-4 OP37/Pro
Equipment Manual
Release 7/98
2.2 Unit Dimensions
Note the dif ferent device dimensions contained in the following drawings
when installing the OP37/Pro.
DKM
Floppy drive
482.6
11.3
310
293
8
88
465.9
235
Details of drilled hole:
6.8
10.3
SIMATIC OP37/PRO
138
AT Expansion slot
Options
Side view:
Front view:
37.65
37.65
Mounting cutout, width: 436
-1.5
Mounting cutout, height: 295
-1.5
Figure 2-3 Dimensions of OP37/Pro (in mm)
Phaysical Installation

2-5
OP37/Pro Equipment Manual
Release 7/98
2.3 Labeling Function Keys
When the unit is supplied, the operator panel function keys are labeled as fol -
lows:
 F1 to F20 and
 K1 to K16.
A set of unlabeled strips is included with the OP . This means that you can pre -
pare labels for the OP specifically for your system.
T o replace the labeling strips proceed as follows:
1. Place the unit face down.
!Caution
Make sure the OP is disconnected from the power supply .

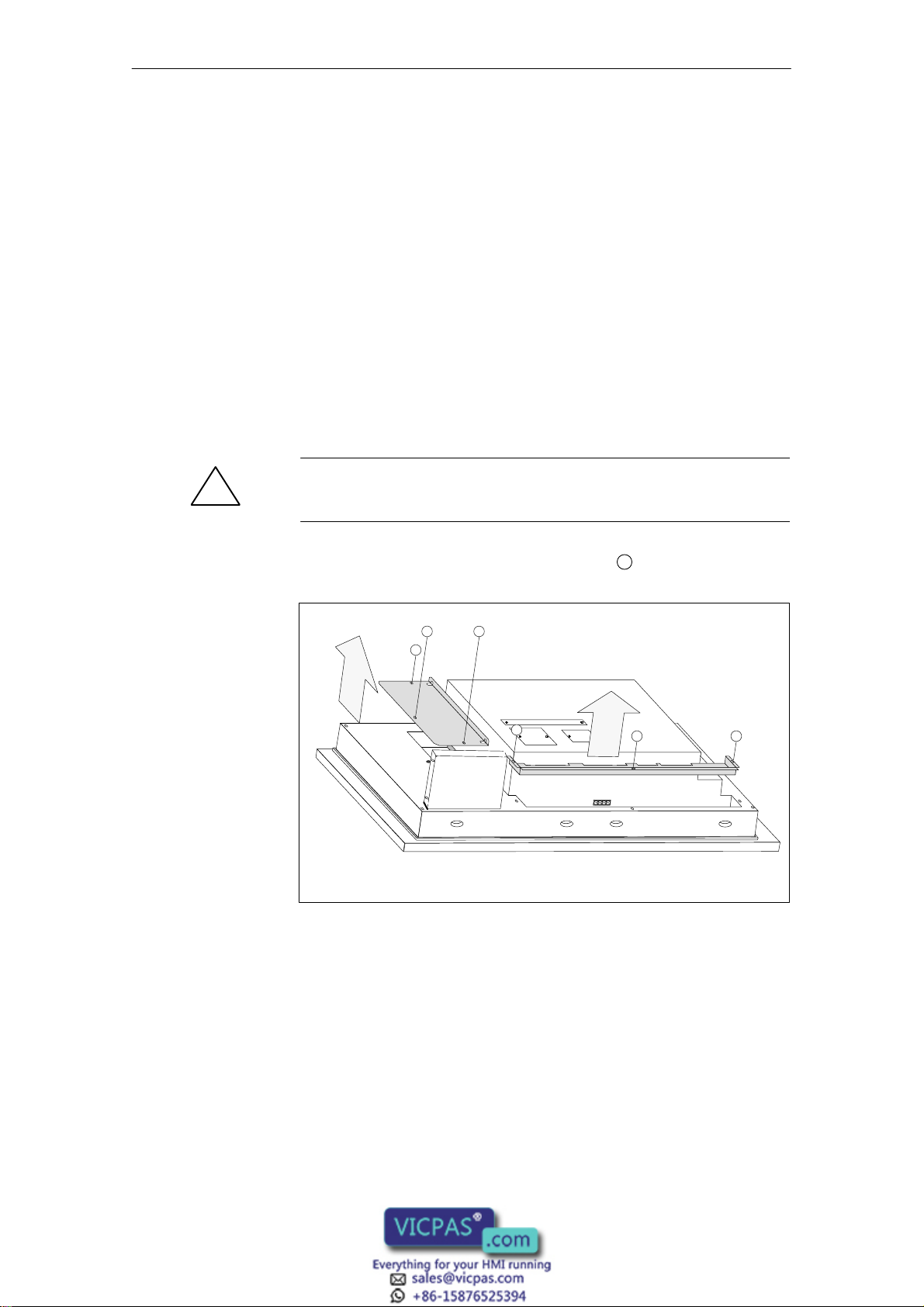

2. W ith reference to Figure 2-4, release the rivets
1.


 


Figure 2-4 Release rivets
3. Remove the covers.
Labeling when
supplied
Replacing labeling
strips
Phaysical Installation

2-6 OP37/Pro
Equipment Manual
Release 7/98
4. Insert the strips
2
– with the labeling facing downwards – into the slits on
the front panel (refer to Figure 2-5).
2
2 2
Figure 2-5 Inserting the labeling strips
Note
The
lettering on the labeling strips must be completely smudge-proof be -
fore they are inserted. If the keyboard sealing film is soiled on the inside it
can not be cleaned and can only be replaced at the factory .
5. Screw the covers back on after inserting the labeling strips.
Phaysical Installation

3-1
OP37/Pro Equipment Manual
Release 7/98
Electrical Installation
The basis for trouble-free operation is electromagnetic-compatible PLC design
and the use of interference-free cables.
The guidelines for the interference-free installation of your PLC apply to the
electrical installation of your operator panel too.
!Caution
 All signal links must use shielded wiring only .
 All connectors must be secured by screws or catches.
 Signal lines must not share a common cable duct with high-power cables.
Figure 3-1 shows some of the configuration options for OP , PLC and peripher -
als.
IF2 IF3
PLC
Printer
PLC
OP37/Pro
Power supply
IF1 A IF1 B
serial parallel
LPT
Printer
Figure 3-1 Configuration options
Detailed information on electrical connections is given in the later chapters.
General notes on
installation
Configuration
options
3

3-2 OP37/Pro
Equipment Manual
Release 7/98

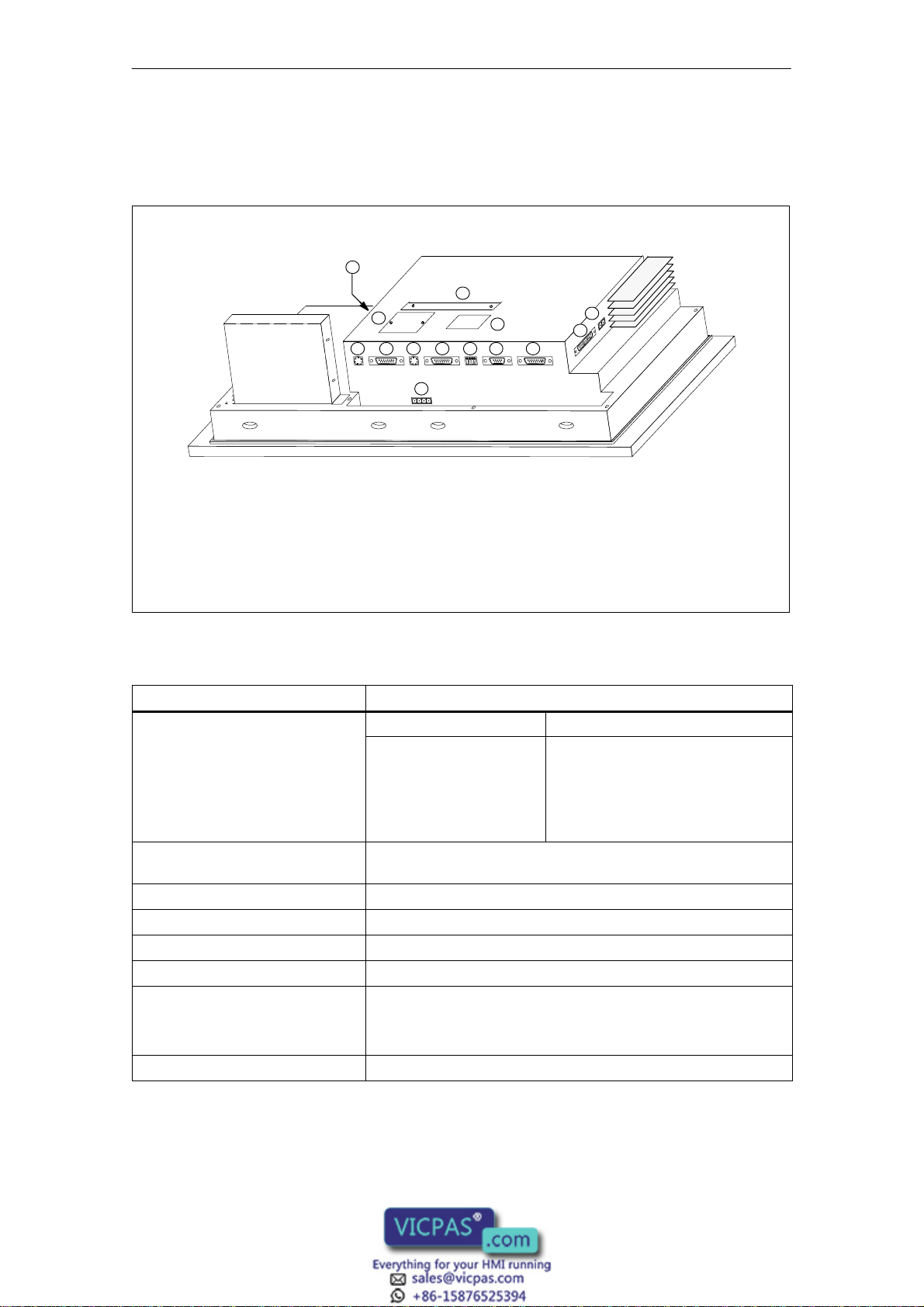

3.1 Connectors/Interfaces
8= Connection for 24 V DC power supply , relay output (not usable)
9 = Parallel interface LPT1
10 = Battery compartment
11 = Interface for direct key module
12 = Connection for A T expansion box
13 = PCMCIA slot A and slot B (not visible in diagram)
14= Relay output for temperature monitoring
1 = Connection for PS/2 keyboard
2 = Serial interface IF1 A
3 = Connection for PS/2 mouse
4 = Serial interface IF2
5 = DIP switches
6 = Serial interface IF1 B
7 = Serial interface IF3
1256
8
10
11
13
347
12
9
14
Figure 3-2 Connections and interfaces
Designation Description
Serial interfaces Level Usage
IF1 A
IF2
IF1 B
IF3
V.24/TTY (active/passive)
V.24/TTY (active/passive)
RS422/RS485 (floating)
TTY (passive)
/RS422/RS485
PLC
PC, PU, printer
PLC
Use optional
DIP switches For setting the IF1 B serial interface (refer to Figure 3-2, item 6). The
DIP switch settings are described in Section 3.1.2.
Parallel interface LPT1 For parallel printer
Interface for PS/2 keyboard On rear panel
Interface for PS/2 mouse On rear panel
Interface for MF2 keyboard On front panel
Options
– AT expansion box;
– Direct key module
For accommodating two 2/3-length ISA AT cards;
16 digital outputs for key operation without communication-related delays
PCMCIA slot A and slot B
PCMCIA cards
PCMCIA slot A and slot B PCMCIA cards
Electrical Installation
