Siemens SITRANS F User manual

SITRANS F
Ultrasonic Flowmeters
SITRANS F US Clamp-on
Communications Module
Hardware Installation Instructions
03/2015
A5E32586525
-AE
Introduction
1
F US Clamp-on
Communications Module Kit
2
F US Clamp-on
Communications Module Kit
Installation
3
BACnet Communications
4
BACnet Protocol
Implementation
Conformance Statement
5

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: A5E32586525
Ⓟ
03/2015 Subject to change
Copyright © Siemens AG 2015.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury
may
result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance a
re required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 3
Table of contents
1 Introduction............................................................................................................................................. 5
2 F US Clamp-on Communications Module Kit........................................................................................... 7
3 F US Clamp-on Communications Module Kit Installation ......................................................................... 9
4 BACnet Communications ...................................................................................................................... 19
5 BACnet Protocol Implementation Conformance Statement .................................................................... 23
Tables
Table 3- 1 Profile Selection: 1 - 46................................................................................................................16
Figures
Figure 3-1 New Communications Module Installation...................................................................................11
Figure 3-2 SITRANS F US Clamp-on Communications Module A5E31949269...........................................12
Figure 3-3 New Communications Module Installation...................................................................................13
Figure 3-4 SITRANS F US Clamp-on Communications Module A5E31949269...........................................14
Figure 3-5 DIP Switches SW1-A and SW2-B................................................................................................15
Figure 4-1 Typical F US Clamp-on Flow Meter BACnet Application.............................................................19

Table of contents
SITRANS F US Clamp-on Communications Module
4Hardware Installation Instructions, 03/2015, A5E32586525-AE

SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 5
Introduction
1
These SITRANS F US Clamp-on Communications Module installation instructions are for
Siemens SITRANS F US clamp-on ultrasonic flow meters.
The instructions are aimed at persons that mechanically install the device, connect it
electronically, configure the parameters and commission it as well as service and
maintenance engineers.
Note
It is the responsibility of the customer that the instructions and directions provided are read,
understood and followed by the relevant personnel before installing the device.
Note
For complete Safety Considerations and Ratings, refer to the Operating
Instructions manual
included with the unit.

Introduction
SITRANS F US Clamp-on Communications Module
6Hardware Installation Instructions, 03/2015, A5E32586525-AE

SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 7
F US Clamp-on Communications Module Kit
2
The following parts are supplied:
●SITRANS F US Clamp-on Communications Module A5E31949269
●Four captive screws
●Four captive standoffs
●6-position connector

F US Clamp-on Communications Module Kit
SITRANS F US Clamp-on Communications Module
8Hardware Installation Instructions, 03/2015, A5E32586525-AE

SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 9
F US Clamp-on Communications Module Kit
Installation
3
These Communications Module kit installation instructions address the three types of
installation procedures for the flow meter:
1. Flow meters purchased with the correct MLFB number that includes the Communications
Module will be supplied with the proper mounting kit and require no installation of the
Communications Module.
Refer to page 10 for installation procedure.
2.
Fielded flow meters with no previous Communications Module installed
.
Procedure requires installation of Communications Module with the necessary mounting
kit:
Mounting Kit
Meter Type
Meter Configuration
1015N-5M-MK1 1010N/DN 1010N-2 I/O Module with
1010N-5 Analog Input Module
installed
1010N-7 Expanded I/O Module
with 1010N-5 Analog Input
Module installed
1015N-5M-MK2 1010N/DN 1010N-2 I/O Module only in-
stalled
1010N-7 Expanded I/O Module
only installed
1015N-5M-MK3 1010MN 1010N-8M I/O Module with
1010N-2M Module installed
3.
Fielded flow meters with existing Communications Module.
Required installation procedures include:
●Removal of the existing communications module
●Installation of Communications Module (no mounting kit necessary)

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
10 Hardware Installation Instructions, 03/2015, A5E32586525-AE
WARNING
Hazardous Voltage
May cause death or serious personal injury.
Disconnect power before working on this product.
NOTICE
Electrostatic Discharge, All Electronic Assemblies
Take precautions against static discharge when handling circuit boards. Semiconductor
devices must be protected from electrostatic discharge. A properly grounded conductive
wrist strap must be worn whenever a circuit board assembly is handled or touched.
Note
For proper installation, mounting, wiring, and menu configuration of the flow meter please
refer to the appropriate Operating Instructions manual.
New Communications Module Installation
This installation procedure is for flow meters with an I/O Module installed but no Modbus
Communications Module previously installed. Mounting kits are also required for this
installation.
1. Disconnect power to the unit.
2. Open the flow meter cover by releasing the side cover latch ③.
3. Loosen the I/O Module cover captive screw ②and remove the cover, screw and
standoff.

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 11
①
Flow Meter
④
Power Connector location
②
I/O Module cover, cover screw,
standoff
⑤
I/O Module
③
Flow Meter Cover Latch
⑥
I/O Module captive mounting screws
Figure 3-1 New Communications Module Installation
4. Remove the four mounting screws and standoffs ⑥that secure the I/O Module ⑤and
discard.
5. Install the new standoffs supplied in the mounting kit in the vacant positions.

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
12 Hardware Installation Instructions, 03/2015, A5E32586525-AE
6. Place the Communications Module over the I/O Module and align connector J3 with P1 of
the I/O Module (figure 3-2).

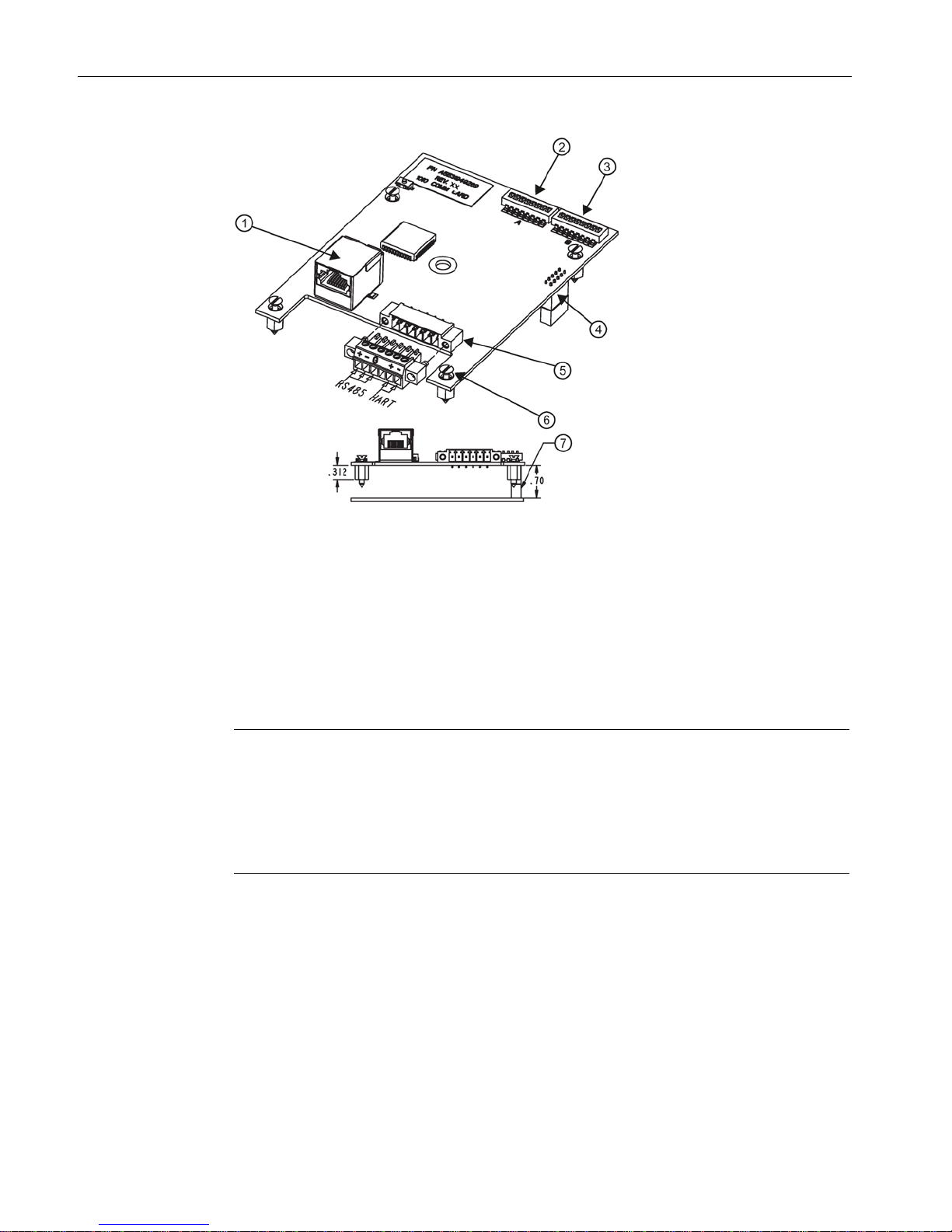

①
Ethernet Connector J5
⑤
RS-485 Connector J1
②
SW1
⑥
Captive Screw and Standoff
③
SW2
⑦
Standoff
④
J3
Figure 3-2 SITRANS F US Clamp-on Communications Module A5E31949269
7. Gently press the Communications Module down to connect it to the I/O Module.
8. Tighten the captive screws to secure the Communications Module and I/O Module.
9. If using Ethernet IP, connect the Ethernet connector.
Note
Ethernet Web Utility Discovery.zip
This Web utility is used to locate communications modules on the same network.
The web utility can be found at
http://www.fieldserver.com/techsupport/utility/
downloads.php
(
http://www.fieldserver.com/techsupport/utility/downloads.php. //
XmlEditor.InternalXmlClipboar
d:6489c307-3482-c2fd-cc08-262dd24d5093).
(Discovery.zip)
The default IP address is: 192.168.0.2
10.If using RS485, connect RS-485 connector to J1.
11.Referring back to figure 3-1, after Communications Module installation is complete, place
the new Communications Module cover supplied in the mounting kit over the board and
tighten the captive screw ②.
12.Close the flow meter cover and secure the side latch.

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 13
Field Upgrade with New Communications Module
This installation procedure is intended for flow meters that are to be upgraded from the
1015N-5M Modbus Communications Module to the new Communications Module.
1. Disconnect power to the unit.
2. Open the flow meter cover by releasing the side cover latch ③.
①
Flow Meter
⑤
Modbus Communications Module cover
②
Modbus Communications Module
cover screw and standoff
⑥
Modbus Communications Module
③
Flow Meter Cover Latch
⑦
I/O Module
④
Power Connector location
⑧
captive screws
Figure 3-3 New Communications Module Installation
3. Loosen the I/O Module cover captive screw ②and remove the cover ⑤.
4. Loosen the four mounting screws and standoffs ⑧that secure the Modbus
Communications Module.
5. Remove the Modbus Communications Module ⑥.
6. Install the new standoffs supplied in the mounting kit in the vacant positions.
7. Place the Communications Module over the I/O Module and align connector J3 with P1 of
the I/O Module (figure 3-4).

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
14 Hardware Installation Instructions, 03/2015, A5E32586525-AE
①
Ethernet Connector J5
⑤
RS-485 Connector J1
②
SW1
⑥
Captive Screw and Standoff
③
SW2
⑦
Standoff
④
J3
Figure 3-4 SITRANS F US Clamp-on Communications Module A5E31949269
8. Gently press the Communications Module down to connect it to the I/O Module.
9. Tighten the captive screws to secure the Communications Module and the I/O Module.
10.If using Ethernet IP, connect the Ethernet connector.
Note
Ethernet Web Utility Discovery.zip
This Web utility is used to locate communications modules on the same network.
The web utility can be found at
http://www.fieldserver.com/techsupport/utility/downloads.php. (Discovery.zip)
The default IP address is: 192.168.0.2
11.If using RS485, connect RS-485 connector to J1.
12.After Communications Module installation is complete, replace the Communications
Module cover and tighten the captive screw.
13.Close the flow meter cover and secure the side latch.

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 15
RS-485 Connector J1
Pin
Signal
Description
J1-1
RS-485+
Signal +
J1-2 RS-485- Signal -
J1-3
RS-485 GND
Ground
J1-4
N/A
No Connection
J1-5
N/A
No Connection
J1-6
N/A
No Connection
DIP Switch Settings - SW1 (A) & SW2 (B)
Figure 3-5 DIP Switches SW1-A and SW2-B
Address Selection: A1-A6
These switches enable setting of the physical address on the RS485 network.
Switch Code: A1=1, A2=2, A3=4, A4=8, A5=16, A6=32
For example, to set address to equal 44 set switches to:
A1 Off, A2 Off, A3 On, A4 On, A5 Off, A6 On
Baud Rate Selection: A7-A8
9600
A7 OFF
A8 OFF
19200
A7 ON
A8 OFF
38400
A7 OFF
A8 ON
76800
A7 ON
A8 ON
Profile Selection: B1-B6
See selection table 3-1.
Protocol Selection: B7-B8
Modbus RTU/Modbus TCP/IP
B7 OFF
B8 OFF
BACnet IP/BACnet MSTP
B7 ON
B8 OFF19200
Ethernet /IP
B7 OFF
B8 ON
N2 Metasys
B7 ON
B8 ON

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
16 Hardware Installation Instructions, 03/2015, A5E32586525-AE
Note
HART
is active at all times
Note
When using the WEB utility there are parameters under View/Data Arrays/ that identify the
position of the DIP switches:
•
DA-DIP: All 16 positions of switches A & B are identified in decimal form
•
DA-DIP_A: All 8 positions of switch A are identified in decimal form
•
DA-DIP_B: Positions 1-4 of switch B are identified in decimal form
•
DA-DIP_S: Positions 5-8 of switch B are identified in decimal form
Note
Flow Meter Firmware Version
The flow meter firmware version is listed in the meter menu: Meter Facilities/System/Op
System PN.
Table 3- 1 Profile Selection: 1 - 46
Profile Selection
B1
B2
B3
B4
B5
B6
Profile
Flow Meter Firmware Version & Configuration
Off
Off
Off
Off
Off
Off
profile 1
5N01-5.04.05 CH1: Clamp-On
On
Off
Off
Off
Off
Off
profile 2
5N01-5.04.05 CH1: Reflexor
On
On
On
On
Off
Off
profile 3
5N02-5.04.05 CH1: Clamp-On
On
On
Off
Off
Off
Off
profile 4
5N02-5.04.05 CH1: Reflexor
Off
Off
On
Off
Off
Off
profile 5
5N03-5.04.05 CH1: Clamp-On CH2: Clamp-On
On
Off
On
Off
Off
Off
profile 6
5N03-5.04.05 CH1: Reflexor CH2: Reflexor
Off On On Off Off Off profile 7 5N03-5.04.05 CH1: Clamp_on CH2: Reflexor
On
On
On
Off
Off
Off
profile 8
5N03-5.04.05 DP: Clamp-On
Off
Off
Off
On
Off
Off
profile 9
5N03-5.04.05 CH1+2: Clamp-On
On
Off
Off
On
Off
Off
profile 10
5N03-5.04.05 CH1-2: Clamp-On
Off
On
Off
On
Off
Off
profile 11
5N04-5.04.05 CH1: Clamp-On CH2: Clamp-On
On
On
Off
On
Off
Off
profile 12
5N04-5.04.05 CH1: Reflexor CH2: Reflexor
Off
Off
On
On
Off
Off
profile 13
5N04-5.04.05 CH1: Clamp-On CH2: Reflexor
On
Off
On
On
Off
On
profile 14
5N04-5.04.05 DP: Clamp-On
Off
On
On
On
Off
Off
profile 15
5N04-5.04.05 CH1+2: Clamp-On
On
On
On
On
Off
Off
profile 16
5N04-5.04.05 CH1-2: Clamp-On
Off
Off
Off
Off
On
Off
profile 17
5MN01-5.04.05 4 Channel Flow: Clamp-On
On
Off
Off
Off
On
Off
profile 18
5MN01-5.04.05 CH5: Clamp-On
Off
On
Off
Off
On
Off
profile 19
5MN01-5.04.05 Quad Path: Clamp-On
On
On
Off
Off
On
Off
profile 20
5MN02-5.04.05 4 Channel Flow: Clamp-On

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 17
Off
Off
On
Off
On
Off
profile 21
5MN02-5.04.05 CH5: Clamp-On
On
Off
On
Off
On
Off
profile 22
5MN02-5.04.05 QP: Clamp-On
Off
On
On
Off
On
Off
profile 23
5EN02-5.04.05 Ch1: Clamp-On
On
On
On
Off
On
Off
profile 24
5EN02-5.04.05 Ch1: Reflexor
Off Off Off On On Off profile 25 5EN03-5.04.05 Ch1: Clamp-On Ch2: Clamp-On
On
Off
Off
On
On
Off
profile 26
5EN03-5.04.05 Ch1:Reflexor Ch2: Reflexor
Off
On
Off
On
On
Off
profile 27
5EN03-5.04.05 Ch1: Clamp-On Ch2: Reflexor
On
On
Off
On
On
Off
profile 28
5EN03-5.04.05 DP: Clamp-On
Off
Off
On
On
On
Off
profile 29
5EN03-5.04.05 Ch1+2: Clamp-On
On
Off
On
On
On
Off
profile 30
5EN04-5.04.05 Ch1: Clamp-On Ch2: Clamp-On
Off
On
On
On
On
Off
profile 31
5EN04-5.04.05 Ch1: Reflexor Ch2: Reflexor
On
On
On
On
On
Off
profile 32
5EN04-5.04.05 Ch1: Clamp On Ch2: Reflexor
Off
Off
Off
Off
Off
On
profile 33
5EN04-5.04.05 Ch1+2: Clamp-On
On
Off
Off
Off
Off
On
profile 34
5EN04-5.04.05 DP: Clamp-On
Off
On
Off
Off
Off
On
profile 35
5PVN01-5.04.05 CH1: Clamp-On
On
On
Off
Off
Off
On
profile 36
5PVN02-5.04.05 DP: Clamp-On
Off
Off
On
Off
Off
On
profile 37
5PVN03-5.04.05 DP: Clamp-On
On
Off
On
Off
Off
On
profile 38
5BN01-5.04.05 CH1: Clamp-On
Off
On
On
Off
Off
On
profile 39
5BN02-5.04.05 CH1: Clamp-On CH2: Clamp-O
On
On
On
Off
Off
On
profile 40
5DVN02-5.04.05 DP: Clamp-On
Off
Off
Off
On
Off
On
profile 41
5DVN03-5.04.05 DP: Clamp-On
On
Off
Off
On
Off
On
profile 42
5DVN04-5.04.05 QP: Clamp-On
Off
On
Off
On
Off
On
profile 43
5GN03-5.04.05 CH1: Clamp-On
On On Off On Off On profile 44 5GN04-5.04.05 DP: Clamp-On
Off
Off
On
On
Off
On
profile 45
5GN05-5.04.05 DP: Clamp-On
On
Off
On
On
Off
On
profile 46
5GN07-5.04.05 QP: Clamp-On

F US Clamp-on Communications Module Kit Installation
SITRANS F US Clamp-on Communications Module
18 Hardware Installation Instructions, 03/2015, A5E32586525-AE

SITRANS F US Clamp-on Communications Module
Hardware Installation Instructions, 03/2015, A5E32586525-AE 19
BACnet Communications
4
Introduction
The Siemens SITRANS F US Clamp-on Flow Meters can be furnished with the Part Number
A5E31949269 optional communications module card that provides BACnet communications
over Ethernet or MSTP RS485.
BACnet is a standard communication protocol for
B
uilding
A
utomation and
C
ontrol
Net
works
developed by the American Society of Heating, Refrigerating and Air-Conditioning Engineers
(ASHRAE). BACnet provides the communication infrastructure needed to integrate products
made by different vendors. BACnet communication is based on standard objects. Each
BACnet Device includes a Device Object and other optional objects within the device. Each
object has associated properties.
The A5E31949269 functions as a BACnet master device on an Ethernet or MSTP RS485
network. A typical illustration of how this might be configured in a plant network is shown in
the figure below.
Figure 4-1 Typical F US Clamp-on Flow Meter BACnet Application

BACnet Communications
SITRANS F US Clamp-on Communications Module
20 Hardware Installation Instructions, 03/2015, A5E32586525-AE
Device Object
Property Identifier
Description and/or Example Value
R/W
Object_Identifier
BACnetObjectIdentifier
W
Object_Name
{defined by profile selection}
R
Object_Type
DEVICE (8)
R
System_Status OPERATIONAL (0) R
Vendor_Name
Siemens Industry, Inc.
R
Vendor_Identifier
313
R
Model_Name
Siemens Option Card
R
Firmware_Revision
2.04.04a (or later)
R
Application_Software_Version
6.11b (A)
R
Protocol_Version
1
R
Protocol_Revision
4
R
Protocol_Services_Supported
0000010000001011110010000000000011100000
R
Proto-
col_Object_Types_Supported
Device , Analog Input, Binary Input R
Object_List
{defined by profile selection}
R
Max_APDU_Length_Accepted
1458
R
Segmentation_Supported
3 – no segmentation
R
Local_Time
10:36:13
R
Local_Date
1/21/2013
R
APDU_Timeout
10000
R
Number_Of_ADPU_Retries
3
R
Device_Address_Binding {} R
Database_Revision
49
R
Active COV Subscriptions
{}
R
UTC Offset
0
R
Description
-
R
Location
-
R
Analog Input Object
Property Identifier
Description and/or Example Value
Object_Identifier
Unique Identifier (e.g. 8388608)
R
Object_Name
{see Profile List} (e.g. C1_Ins_Flow_Rate)
R
Object_Type
0 - Analog Input
R
Present_Value
REAL (e.g. 402.3467)
R
Description
Character String (e.g. GAL/MIN)
R
Status_Flags IN_ALARM,FAULT,OVERRIDDEN,OUT_OF_SERVICE
(e.g. 0000)
R
Event_State
0 - Normal
R
Out_Of_Service
0 - False
R
Reliability
0
R
