Siemens SITOP PSU8200 User manual

SITOP PSU8200 1ph
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SITOP power supply
SITOP PSU8200 1ph
Manual
SITOP PSU8200 24 V/5 A
6EP3333
-8SB00-0AY0
SITOP PSU8200 24 V/10 A
6EP3334
-8SB00-0AY0
SITOP PSU8200 24 V/20 A
6EP1336-3BA10
11.2014
C98130
-A7633-A1-3-7629
Overview
Safety instructions
1
Description, device design,
dimension drawing
2
Mounting/removal
3
Mounting position, mounting
clearances
4
Installation
5
Technical data
6
Safety, approvals, EMC
7
Ambient conditions
8
Applications
9
Environment
10
Service & Support
11

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
C98130-A7633-A1-3-7629
Ⓟ
12/2014 Subject to change
Copyright © Siemens AG 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 3
Overview
1-phase SITOP PSU8200 power supplies from the SITOP modular product line are high-
performance, regulated technology power supplies for automated systems and machines.
In addition to the basic functions required, these low-profile power supply units have an
outstanding overload behavior.
The key benefits of the product include:
●Suitable for connecting to almost any 1-phase line supply around the world
●AC and DC input voltages possible (only for 6EP1336-3BA10)
●Output voltage can be adjusted in the range 24..28.8 V
●Power boost during operation with 300% rated current for 25 ms
●Extra-Power with 1.5x rated current for 5 seconds for switching on loads with a high
inrush current
●Especially low width without requiring any lateral mounting clearances
●Ambient temperature -25 ...+70° C (derating from +60° C)
●Selectable short-circuit response (constant current or latching shutdown)
●A soft characteristic can be selected for a parallel connection (for uniform load distribution
of power supply units of the same type)

Overview
SITOP PSU8200 1ph
4Manual, 11.2014, C98130-A7633-A1-3-7629
●Display of the operating state using 3 LEDs
●"24 V O.K." signaling contact
●Remote "ON/OFF" contact for switching the power supply output in a no current condition
(only for 6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0)
●To increase the system availability, these reliable power supplies can be expanded using
SITOP supplementary modules (redundancy module, selectivity module, buffer module),
as well as SITOP DC-UPS modules
Ordering data
The following device versions are available:
Regulated power supply unit SITOP PSU·8200 1ph
Type
Order number
120/230 VAC input,
24 V / 5 A output
6EP3333-8SB00-0AY0
120/230 VAC input,
24 V / 10 A output
6EP3334-8SB00-0AY0
Input, 1 and 2-phase AC or DC,
Output 24 V DC / 20 A
6EP1336-3BA10
Accessories
Type
Order number
Device identification labels 20 mm × 7 mm, Ti grey
3RT2900-1SB20

SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 5
Table of contents
Overview................................................................................................................................................. 3
1 Safety instructions................................................................................................................................... 7
2 Description, device design, dimension drawing........................................................................................ 9
2.1 Device description.....................................................................................................................9
2.2 Connections and terminal designation....................................................................................11
2.3 Potentiometer..........................................................................................................................13
2.4 Status displays and signaling .................................................................................................14
2.5 Change-over switch ................................................................................................................16
2.6 Remote contact.......................................................................................................................18
2.7 Block diagram .........................................................................................................................19
2.8 Dimensions and weight...........................................................................................................21
3 Mounting/removal ................................................................................................................................. 23
4 Mounting position, mounting clearances................................................................................................ 25
4.1 Standard mounting position ....................................................................................................25
4.2 Other mounting positions........................................................................................................27
4.2.1 6EP3333-8SB00-0AY0 ...........................................................................................................27
4.2.2 6EP3334-8SB00-0AY0 ...........................................................................................................29
4.2.3 6EP1336-3BA10 .....................................................................................................................31
5 Installation ............................................................................................................................................ 33
5.1 Line-side connection ...............................................................................................................33
5.2 Output-side connection...........................................................................................................35
6 Technical data ...................................................................................................................................... 37
6.1 Input ........................................................................................................................................37
6.2 Output .....................................................................................................................................39
6.3 Efficiency.................................................................................................................................44
6.4 Closed-loop control .................................................................................................................45
6.5 Protection and monitoring.......................................................................................................46
6.6 MTBF ......................................................................................................................................46
6.7 Mechanical system .................................................................................................................46
6.8 Accessories.............................................................................................................................47
6.9 Dimension drawing .................................................................................................................47

Table of contents
SITOP PSU8200 1ph
6Manual, 11.2014, C98130-A7633-A1-3-7629
7 Safety, approvals, EMC ........................................................................................................................ 49
7.1 Safety ..................................................................................................................................... 49
7.2 Test voltage............................................................................................................................ 50
7.3 Approvals ............................................................................................................................... 51
7.4 EMC ....................................................................................................................................... 52
8 Ambient conditions................................................................................................................................ 53
9 Applications .......................................................................................................................................... 55
9.1 Parallel connection to increase power rating ......................................................................... 55
9.2 Parallel connection for redundancy ....................................................................................... 57
9.3 Series connection for increased voltage................................................................................ 58
9.4 Overload protection in the 24 V output circuit........................................................................ 59
9.5 Protection against short-time voltage dips............................................................................. 60
9.6 Protecting against longer power failures................................................................................ 61
10 Environment ......................................................................................................................................... 63
11 Service & Support ................................................................................................................................. 65

SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 7
Safety instructions
1
WARNING
Correct handling of the devices
When operating electrical devices, it is inevitable that certain components will carry
dangerous voltages.
Therefore, failure to handle the units properly can result in death or serious physical injury
as well as extensive property damage.
Only appropriately qualified personnel may work on or in the vicinity of this equipment.
Perfect, safe, and reliable operation of this equipment is dependent on proper
transportation, storage, installation and mounting.
Before installation or maintenance work can begin, the system's main switch must be
switched off and measures taken to prevent it being switched on again.
If this instruction is not observed, touching live parts can result in death or serious injury.

Safety instructions
SITOP PSU8200 1ph
8Manual, 11.2014, C98130-A7633-A1-3-7629

SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 9
Description, device design, dimension drawing
2
2.1
Device description
SITOP PSU8200 1 ph is a primary-clocked power supply for connection to a 1-phase AC line
supply. An electronically regulated DC voltage that can be set via a potentiometer is
available at the output of the device. The output of the device is isolated, no-load proof and
short-circuit proof. The LED displays indicate the operating state. The operating state of the
device can be processed via the signaling contact. The device can be switched ON/OFF
remotely using a remote contact.
①
Line input
②
DC output
③
Potentiometer 24 ... 28.8 V
④
Pilot lamps (24 V OK, OVERLOAD, SHUTDOWN)
⑤
Signaling contact, remote contact
⑥
A/B selector switch
⑦
Natural convection
⑧
DIN rail slider
⑨
Clearance above/below

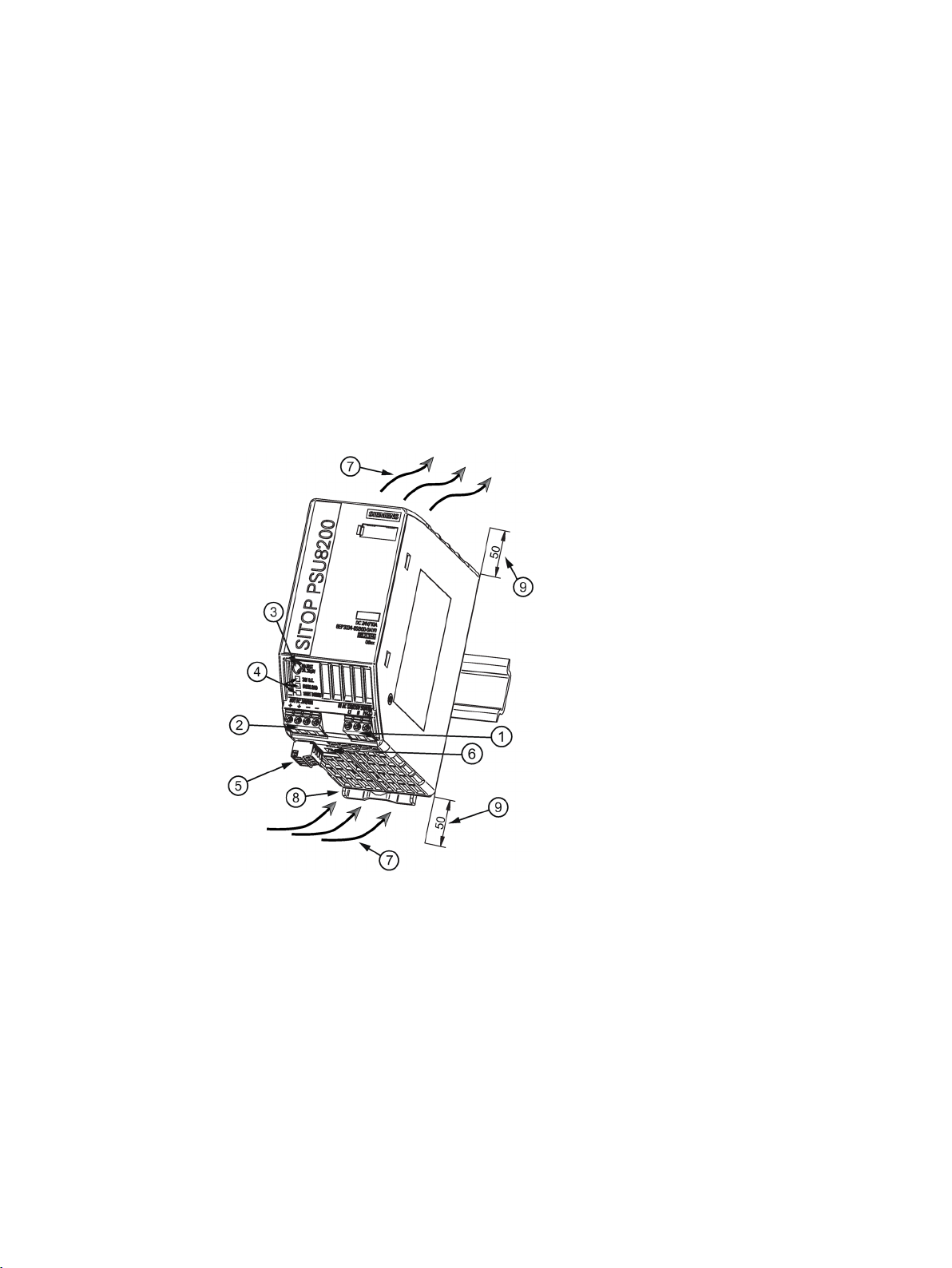

Figure 2-1 Design (example: 6EP3334-8SB00-0AY0)

Description, device design, dimension drawing
2.1 Device description
SITOP PSU8200 1ph
10 Manual, 11.2014, C98130-A7633-A1-3-7629
SITOP PSU8200 20A 1ph is a primary-clocked power supply for connection to a 1-phase/2-
phase AC line supply or a DC supply. An electronically regulated DC voltage that can be set
via a potentiometer is available at the output of the device. The output of the device is
isolated, no-load proof and short-circuit proof. The LED displays indicate the operating state.
The operating state of the device can be processed via the signaling contact.
①
Line input
②
DC output
③
Potentiometer 24 ... 28.8 V
④
Pilot lamps (24 V OK, OVERLOAD, SHUTDOWN)
⑤
Signaling contact, remote contact
⑥
A/B selector switch
⑦
Natural convection
⑧
DIN rail slider
⑨
Clearance above/below
Figure 2-2 Design 6EP1336-3BA10

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 11
2.2
Connections and terminal designation
The line input terminals ①can be used to establish the connection to the supply voltage.
The output terminals ②are used to connect to the loads to be supplied (see also Section
Installation (Page 33)).
Connections and terminal designations for 6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0

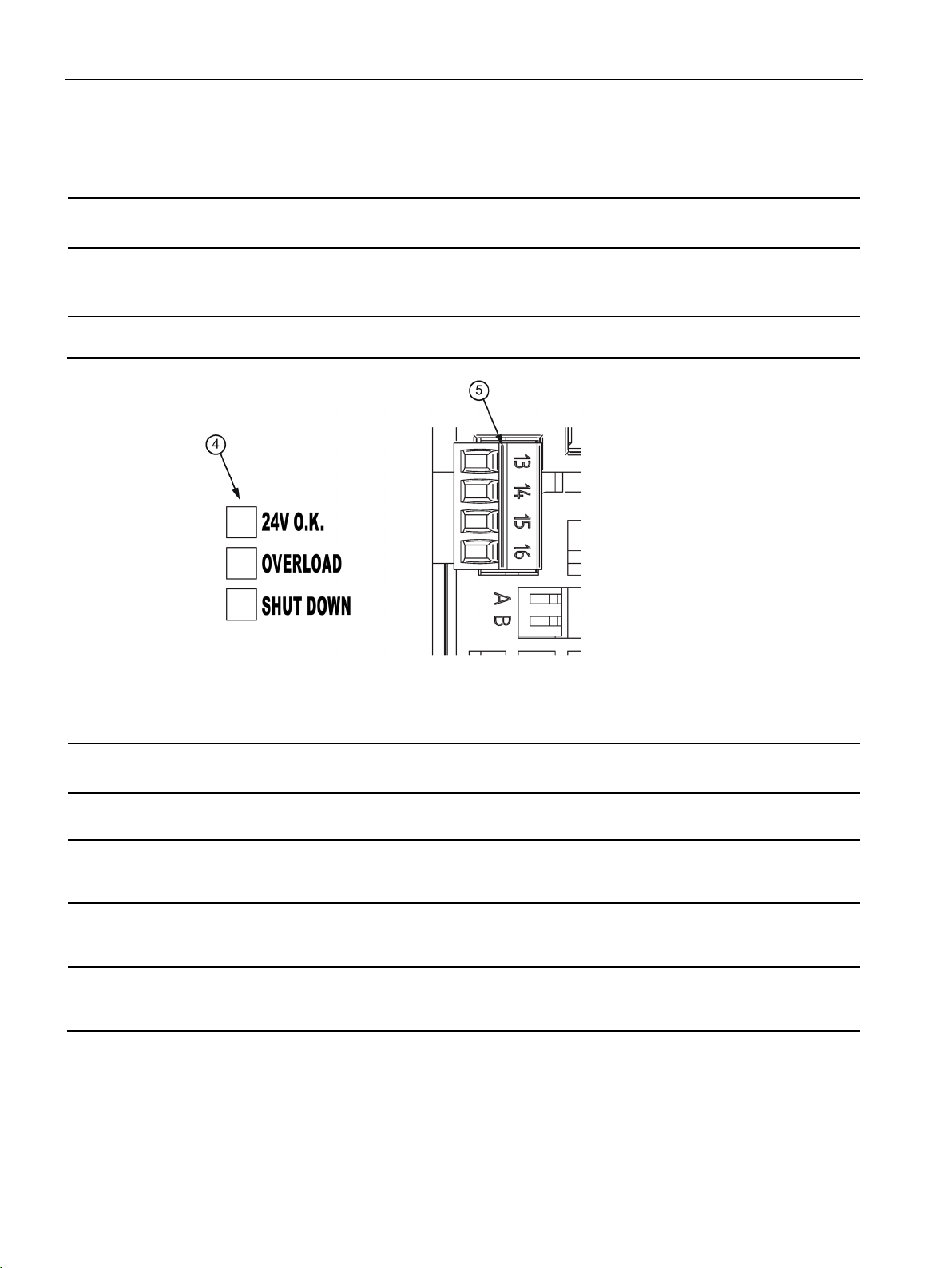

①
Line input L1, N, PE One screw terminal each
②
output "+" 2 screw terminals
②
output "–" 2 screw terminals
⑤
signaling contacts 13, 14 One screw terminal each
⑤
remote contacts 15, 16 One screw terminal each
*1)
Do not subject the end stop to higher loads

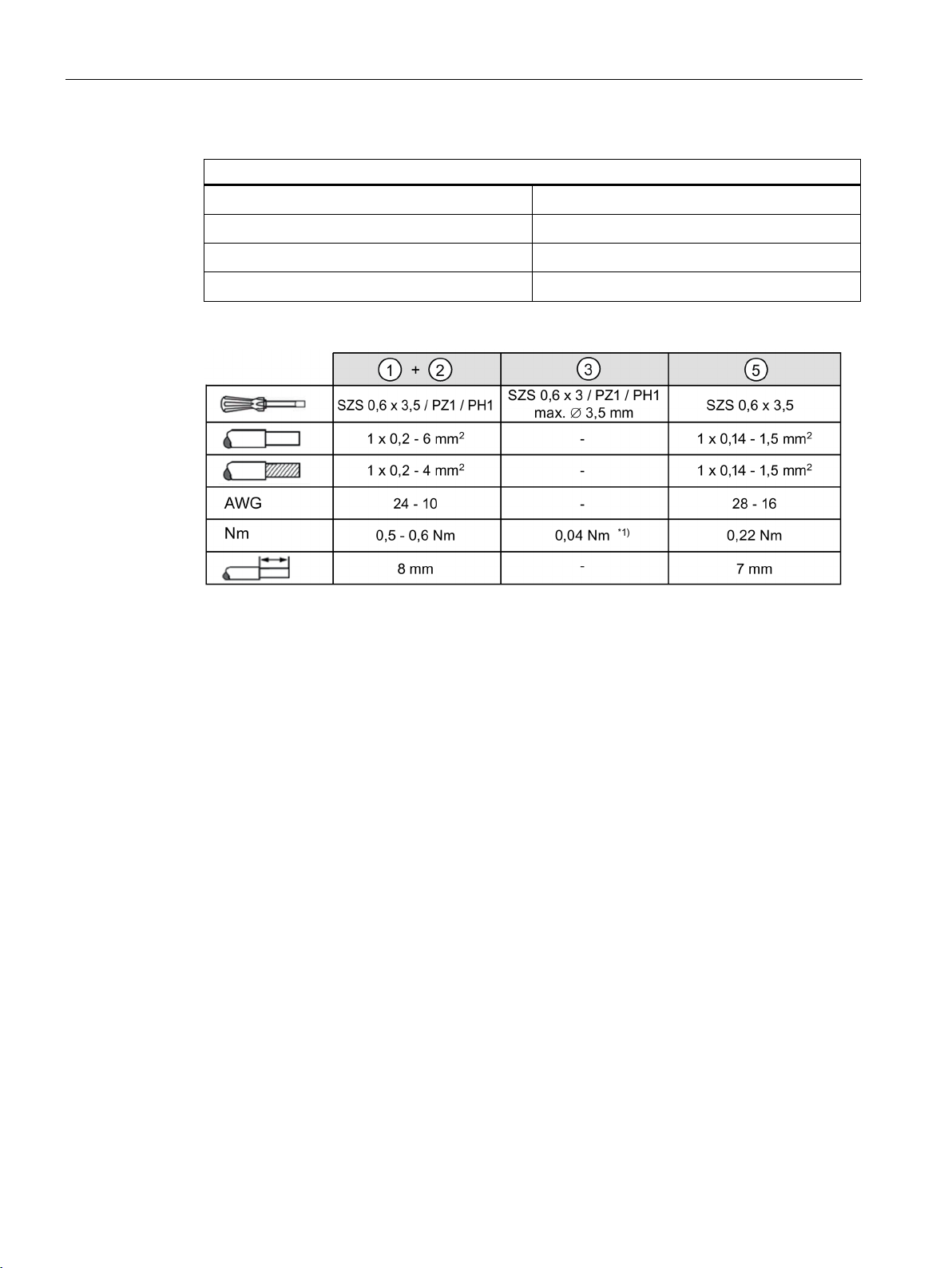

Figure 2-3 Terminal data for 6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP PSU8200 1ph
12 Manual, 11.2014, C98130-A7633-A1-3-7629
Connections and terminal designations for the 6EP1336-3BA10
①
Line input L1, N, PE One screw terminal each
②
output "+" 2 screw terminals
②
output "–" 2 screw terminals
③
signaling contacts 13, 14 One screw terminal each
*1)
Do not subject the end stop to higher loads
Figure 2-4 Terminal data for 6EP1336-3BA10

Description, device design, dimension drawing
2.3 Potentiometer
SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 13
2.3
Potentiometer
The potentiometer ③on the front of the device is used to adjust the output voltage. The
output voltage is set to 24 V in the factory, and can be adjusted in the range 24 ... 28.8 V; for
example, to compensate voltage drops across long supply lines to the connected load.

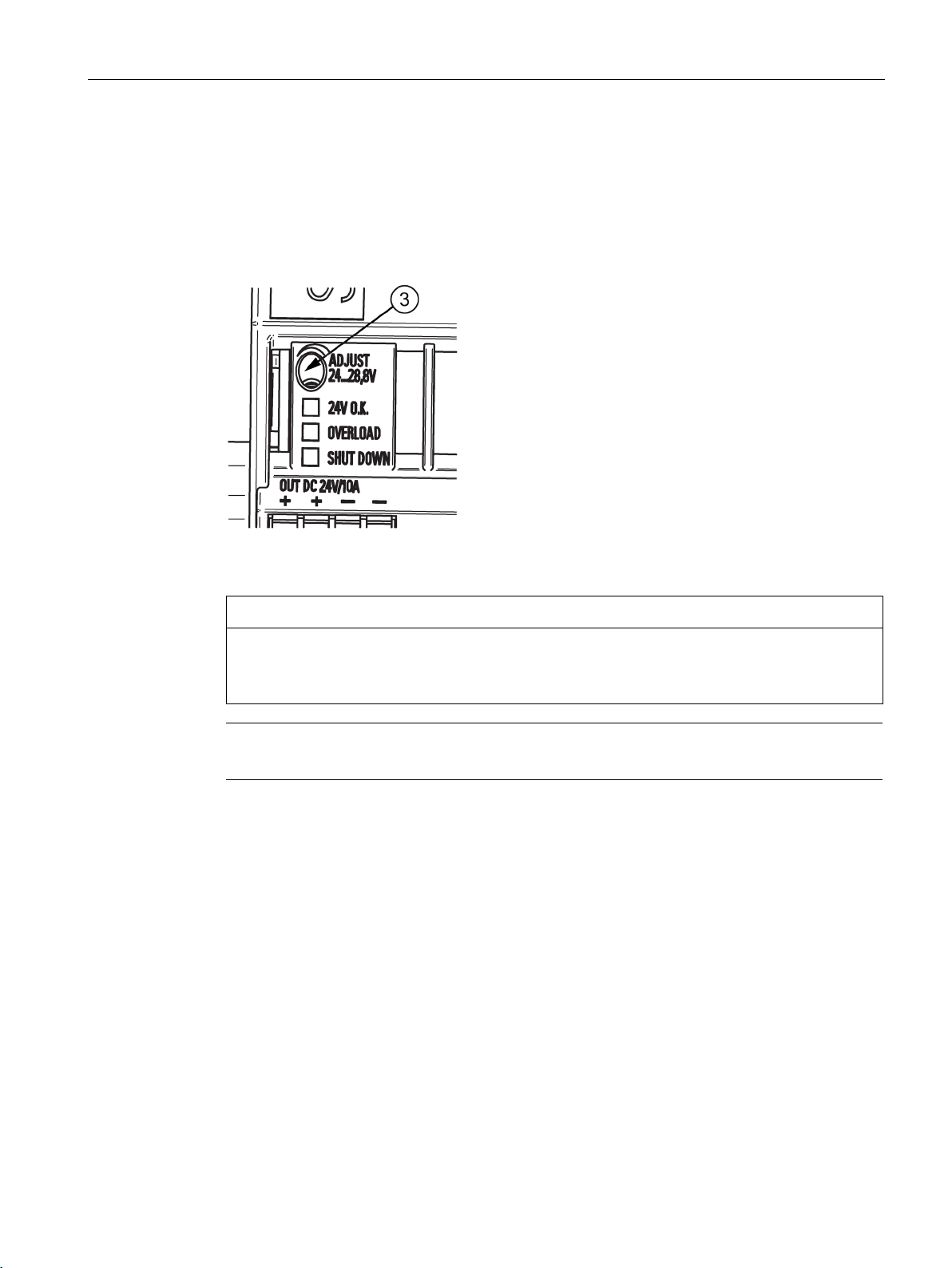

Figure 2-5 Potentiometer (example: 6EP3334-8SB00-0AY0)
NOTICE
Thermal overload possible
When adjusting the output voltage to >24 V, the output current must be derated by 4 %/V,
or the permissible ambient temperature must be taken into account with 3° C/V.
Note
It is o
nly permissible to use an insulated screwdriver when actuating the potentiometer.
For information on actuating the potentiometer (screwdriver, torque), see Figure 2-4
Terminal data for 6EP1336-3BA10 (Page 12). and Figure 2-3 Terminal data for
6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0 (Page 11)

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU8200 1ph
14 Manual, 11.2014, C98130-A7633-A1-3-7629
2.4
Status displays and signaling
6EP3333-8SB00-0AY0 (24 V/5 A)
6EP3334-8SB00-0AY0 (24 V/10 A)
Operating display
④
LED green for "24 V O.K."
Yellow LED for overload in "constant current" mode
Red LED for latching shutdown in "shut down" mode
Signaling contacts (13, 14)
⑤
Relay contact (NO contact, contact rating 30 V AC / 0.5 A, 60 V DC / 0.3 A,
30 V DC / 1 A) for "24 V O.K.".
Figure 2-6 Operating display and signaling contact for 6EP3333-8SB00-0AY0 and
6EP3334-8SB00-0AY0
Signaling
6EP3333-8SB00-0AY0 (24 V/5 A)
6EP3334-8SB00-0AY0 (24 V/10 A)
Green LED lit
Signaling contact, contacts 13-14 closed
Normal operation, output voltage >20 V ±0.5 V
LED off
Signaling contact, contacts 13-14 open
(quiescent position)
No supply voltage
Yellow LED lit
Signaling contact, contacts 13-14 open
(quiescent position)
Overload, output voltage <20 V ±0.5 V (only in "constant current" mode)
Red LED lit
Signaling contact, contacts 13-14 open
(quiescent position)
Latching shut down or remote OFF

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 15
6EP1336-3BA10 (24 V/20 A)
Operating display
④
LED green, lit for "24 V O.K."
Yellow LED lit for overload condition (Ua <20 V ±0.5 V)
Red LED lit for latching shutdown as a result of overload
(only for selector switch B in the "ON" position)
Signaling contact ⑤Relay contact (NO contact, contact rating 30 V AC/0.5 A, 30 V DC/1 A) for
"24 V O.K."
Figure 2-7 Operating display and signaling contact
for 6EP1336-3BA10
Signaling
6EP1336-3BA10 (24 V/20 A)
LED green (4.1) off
Signaling contact (5), contacts 13-14 open
(quiescent position)
No supply voltage
Green LED (4.1) lit
Signaling contact (5), contacts 13-14 closed
Normal operation, output voltage >20 V ±0.5 V
Yellow LED (4.2) lit
Signaling contact (5), contacts 13-14 open
(quiescent position)
Overload (Ua<20 V ±0.5 V)
Red LED (4.3) lit
Signaling contact (5), contacts 13-14 open
(quiescent position)
Latching shutdown due to overload

Description, device design, dimension drawing
2.5 Change-over switch
SITOP PSU8200 1ph
16 Manual, 11.2014, C98130-A7633-A1-3-7629
2.5
Change-over switch

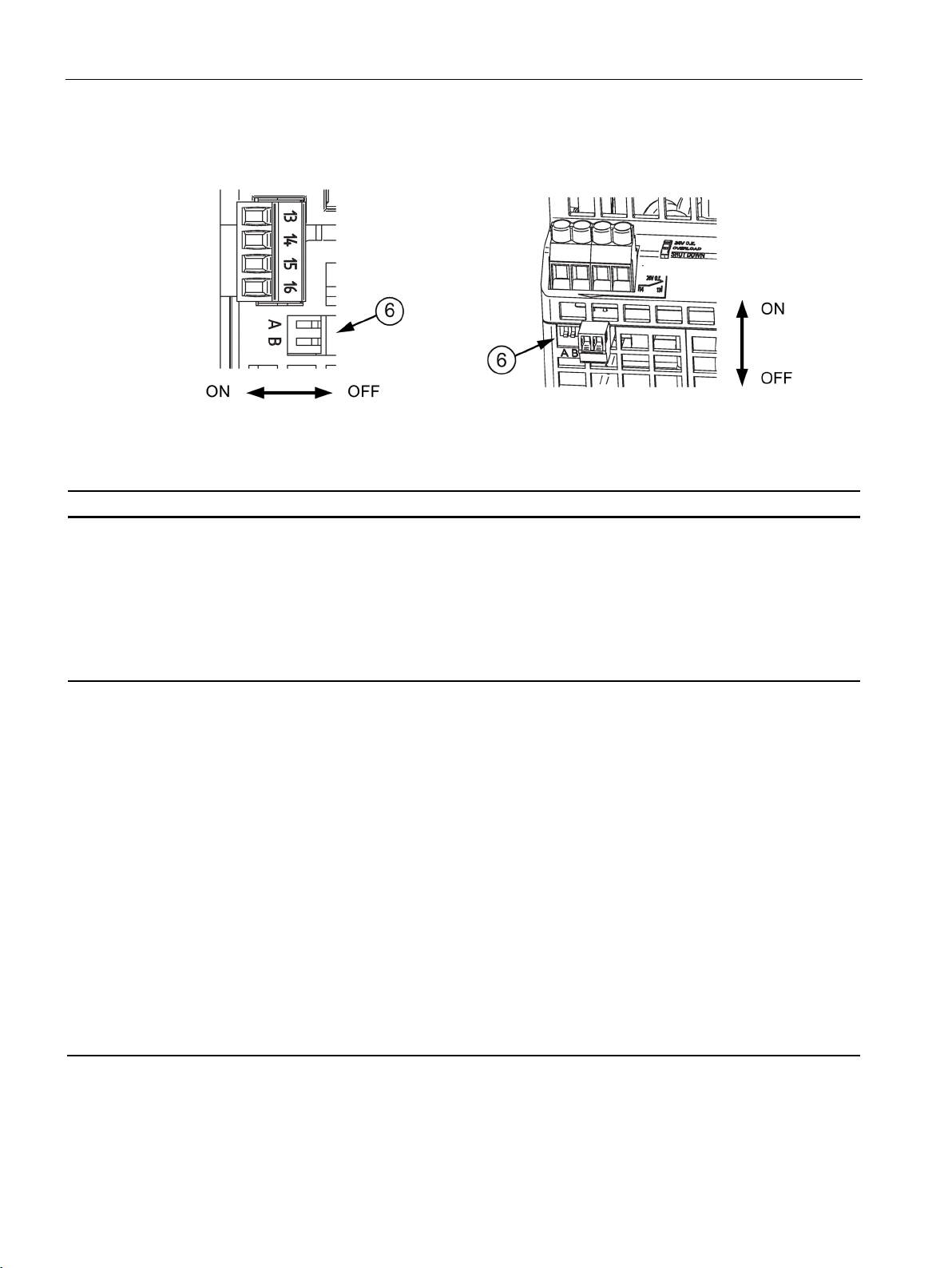

Figure 2-8 Selector switch
The two switches A and B are used to influence the output characteristic curve:
Switch
ON
OFF
A
influences the output
characteristic in the
load range
Parallel operation:
'Soft' characteristic curve (see, e.g. Figure 6-6 Output
characteristic curve 6EP3333-8SB00-0AY0 parallel
operation (Page 42)) for the parallel operation of two
or more devices: The output voltage falls with increas-
ing output current (namely, also for the overcurrent
pulse!).
This means that for full output current the highest
output voltage can normally no longer be attained.
Single operation:
Delivery state
"Hard" characteristic curve (see, e.g.
Figure 6-3 Output characteristic curve
6EP3333-8SB00-0AY0 stand-alone op-
eration (Page 41)) for normal operation
(single operation): The output voltage is
independent of the output current.
B
influences the output
characteristic in the
overload range
Latching shutdown:
If the output current rises above the rated value and
above the current limit, the device reduces the output
voltage (see, e.g. Figure 6-9 Output characteristic
curve 6EP3333-8SB00-0AY0 latching shutdown
(Page 43)). If the output voltage falls below 20 V, the
device shuts down latching, the red LED lights up.
This limit voltage of 20 V is independent of the set
output voltage. The "Short-term overload current"
feature is not available in this operating mode.
6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0
are reset using power supply OFF for a minimum of
60 s or remote OFF and ON at the remote contact.
6EP1336-3BA10 is reset by switching the power sup-
ply OFF for at least 5 s.
To also guarantee that large capacitances can be
charged at the output in this operating mode, a non-
latching shutdown is not performed during the first
10 s after power ON or remote ON. During these first
10 s, the device responds for overload as if the switch
is OFF.
Constant current:
Delivery state
If the output current rises above the rated
value and above the current limit, the
device reduces the output voltage. The
yellow LED lights up if the output voltage
falls below 20 V.

Description, device design, dimension drawing
2.5 Change-over switch
SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 17
Delivery state: A-OFF; B-OFF
Note
Selector switches may o
nly be activated when the device is switched off.

Description, device design, dimension drawing
2.6 Remote contact
SITOP PSU8200 1ph
18 Manual, 11.2014, C98130-A7633-A1-3-7629
2.6
Remote contact
6EP3333-8SB00-0AY0 (24 V/5 A)
6EP3334-8SB00-0AY0 (24 V/10 A)
Remote contacts (15, 16)
⑤
Non-isolated input for remote ON/OFF switching of the power supply.
Function: The device is remotely switched off when contacts 15, 16 are short-circuited
(R < 8 kΩ). If the power supply is shut down and latched in the "latching shutdown" mode
as a result of an overload, then it can be restarted using remote OFF followed by remote
ON.
Figure 2-9 Remote contact for 6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0

Description, device design, dimension drawing
2.7 Block diagram
SITOP PSU8200 1ph
Manual, 11.2014, C98130-A7633-A1-3-7629 19
2.7
Block diagram

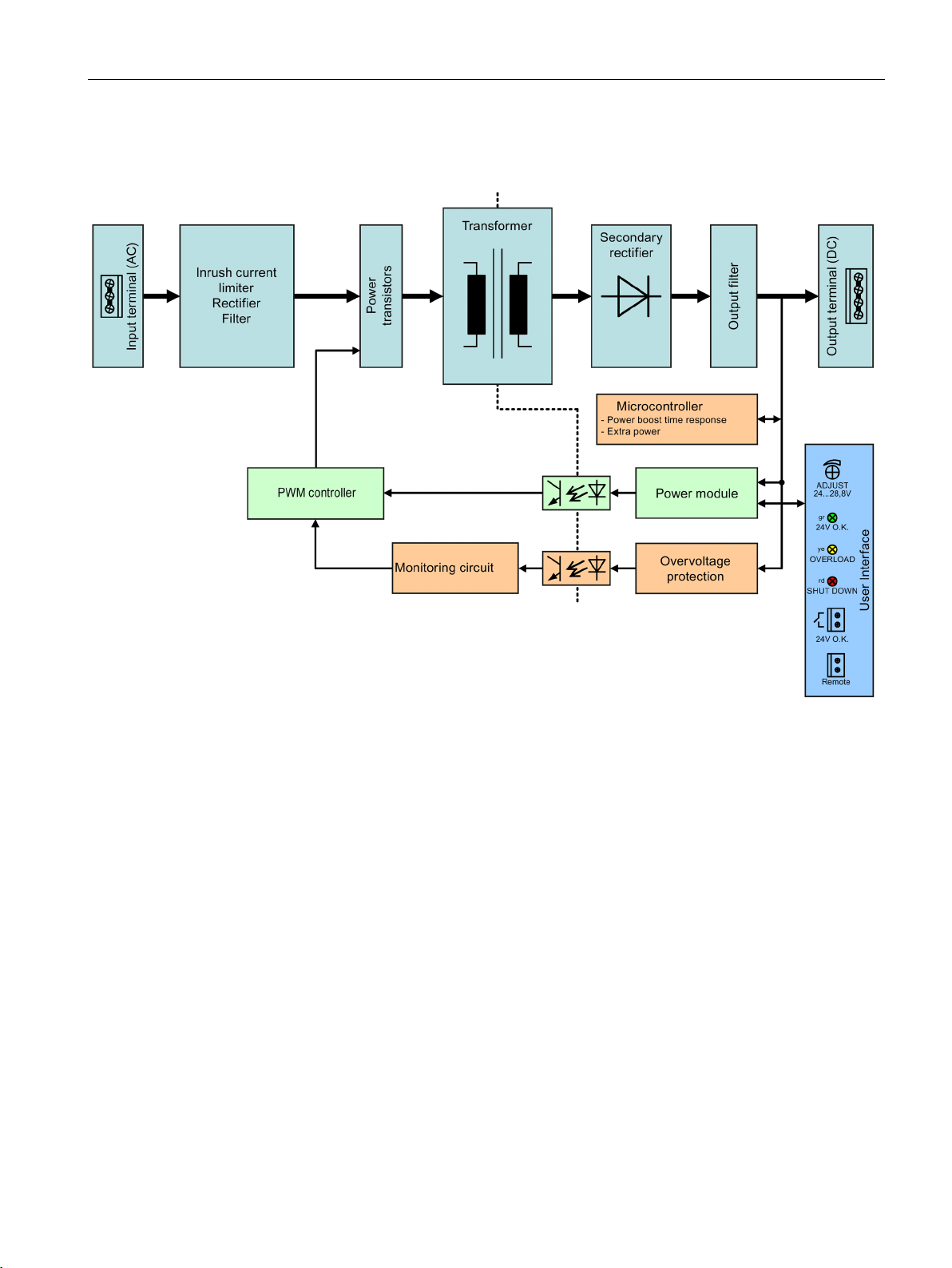

Figure 2-10 Block diagram for 6EP3333-8SB00-0AY0 and 6EP3334-8SB00-0AY0

Description, device design, dimension drawing
2.7 Block diagram
SITOP PSU8200 1ph
20 Manual, 11.2014, C98130-A7633-A1-3-7629

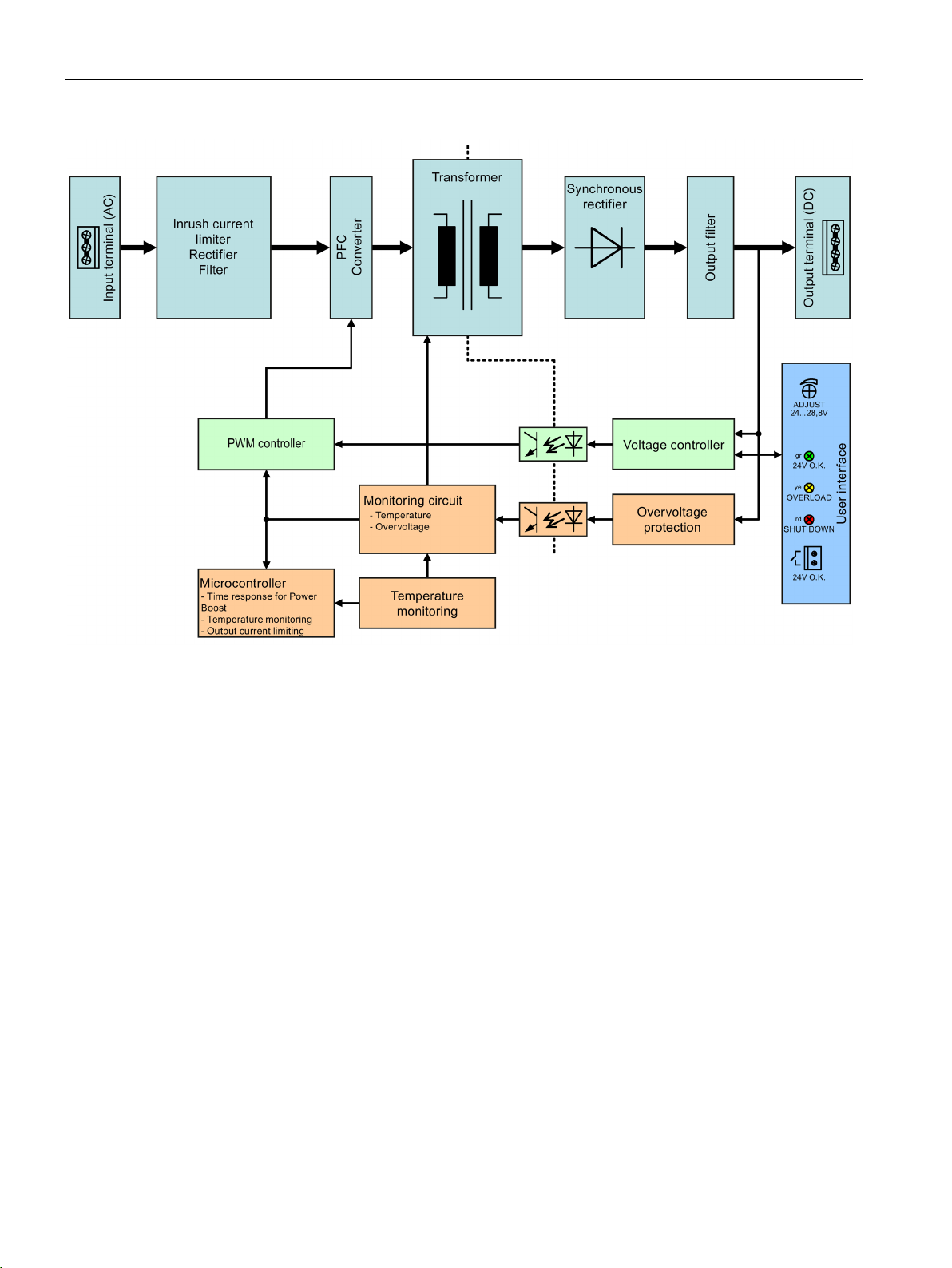

Figure 2-11 Block diagram for 6EP1336-3BA10
