Sierra InnovaMass 240i Series User manual

InnovaMass®240i/241i
HART®
Preliminary Instruction Manual
HART Specification for Models: 240i and 241i
Volumetric & Multivariable Mass Vortex Flow Meter
Part Number: IM-24i-HART, V1 December 2015

2
GLOBAL SUPPORT LOCATIONS: WE ARE HERE TO HELP!
CORPORATE HEADQUARTERS
5 Harris Court, Building L Monterey, CA 93940
Phone [phone] [phone] Fax [phone]
www.sierrainstruments.com
EUROPE HEADQUARTERS
Bijlmansweid 2 1934RE Egmond aan den Hoef
The Netherlands
Phone [phone] Fax [phone]
ASIA HEADQUARTERS
Second Floor Building 5, Senpu Industrial Park
25 Hangdu Road Hangtou Town
Pu Dong New District, Shanghai, P.R. China
Postal Code 201316
Phone: + 8621 5879 8521 Fax: [phone]
IMPORTANT CUSTOMER NOTICE- OXYGEN SERVICE
Unless you have specifically ordered Sierra’s optional O2cleaning, this flow meter may not be fit for
oxygen service. Sierra Instruments, Inc., is not liable for any damage or personal injury, whatsoever,
resulting from the use of Sierra Instruments standard mass flow meters for oxygen gas. You are
responsible for cleaning the mass flow meter to the degree required for your oxygen flow application.
However, some models can only be properly cleaned during the manufacturing process.
© COPYRIGHT SIERRA INSTRUMENTS 2015
No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval
system, or translated into any human or computer language, in any form or by any means, electronic,
mechanical, manual, or otherwise, or disclosed to third parties without the express written permission of
Sierra Instruments. The information contained in this manual is subject to change without notice.
TRADEMARKS
InnovaMass®, qTherm®, Dial-a-Gas™, Dial-a-Pipe™, and MassBalance™ are trademarks of Sierra
Instruments, Inc. Other product and company names listed in this manual are trademarks or trade
names of their respective manufacturers.

3
Warnings and Cautions
Note and Safety Information
We use caution and warning statements throughout this book to draw your
attention to important information.
Warning!
Caution!
This statement appears with
information that is important to
protect people and equipment from
damage. Pay very close attention to
all warnings that apply to your
application.
This statement appears with
information that is important for
protecting your equipment and
performance. Read and follow all
cautions that apply to your application.
Warning!
Consult the flow meter nameplate for specific flow meter approvals before any hazardous location
installation.
Hot tapping must be performed by a trained professional. U.S. regulations often require a hot tap permit.
The manufacturer of the hot tap equipment and/or the contractor performing the hot tap is responsible
for providing proof of such a permit.
All flow meter connections, isolation valves and fittings for cold/hot tapping must have the same or
higher pressure rating as the main pipeline.
For insertion flow meter installations, an insertion tool must be used for any installation where a flow
meter is inserted under pressure greater than 50 psig.
To avoid serious injury, DO NOT loosen a compression fitting under pressure.
To avoid potential electric shock, follow National Electric Code or your local code when wiring this unit
to a power source. Failure to do so could result in injury or death. All AC power connections must be in
accordance with published CE directives. All wiring procedures must be performed with the power off.
Before attempting any flow meter repair, verify that the line is not pressurized. Always remove main
power before disassembling any part of the mass flow meter.

4
Caution!
Calibration must be performed by qualified personnel. Sierra strongly recommends that you return your
flow meter to the factory for calibration.
In order to achieve accurate and repeatable performance, the flow meter must be installed with the
specified minimum length of straight pipe upstream and downstream of the flow meter’s sensor head.
When using toxic or corrosive gases, purge the line with inert gas for a minimum of four hours at full gas
flow before installing the flow meter.
For insertion flow meter installations, the sensor alignment pointer must point downstream in the
direction of flow.
The AC wire insulation temperature rating must meet or exceed 85°C (185°F)
Receipt of System Components
When receiving a Sierra mass flow meter, carefully check the outside packing carton
for damage incurred in shipment. If the carton is damaged, notify the local carrier
and submit a report to the factory or distributor. Remove the packing slip and
check that all ordered components are present. Make sure any spare parts or
accessories are not discarded with the packing material. Do not return any
equipment to the factory without first contacting Sierra Customer Service .
Technical Assistance
If you encounter a problem with your flow meter, review the configuration
information for each step of the installation, operation, and setup procedures.
Verify that your settings and adjustments are consistent with factory
recommendations. Installation and troubleshooting information can be found in
the Chapter 6 of this manual.
If the problem persists after following the troubleshooting procedures outlined in
Chapter 6 of this manual, contact Sierra Instruments by fax or by E-mail (see
inside front cover). For urgent phone support you may call [phone] or
[phone] between 8:00 a.m. and 5:00 p.m. PST. In Europe, contact Sierra
Instruments Europe at [phone] . In the Asia-Pacific region, contact Sierra
Instruments Asia at + 8621 5879 8521. When contacting Technical Support, make
sure to include this information:
 The flow range, serial number, and Sierra order number (all
marked on the meter nameplate)
 The software version (visible at start up)
 The problem you are encountering and any corrective action taken
 Application information (gas, pressure, temperature and piping
configuration)

5
Table of Contents
Chapter 1 Introduction............................................................................................................6
Device Description Identification..........................................................................................7
Commands............................................................................................................................11
Appendix A: Capability Checklist.......................................................................................45
Appendix B: Default Configuration....................................................................................45

6
Chapter 1 Introduction
240i/241i HART Introduction
This document describes the function and operation of the optional HART interface for the
Sierra Instruments flow meter. The InnovaMass 240i/241i complies with HART Protocol
Revision 7.4. This document specifies all the device specific features and documents HART
Protocol implementation details (e.g., the engineering unit codes supported). The
functionality of the InnovaMass (field device) is described sufficiently to allow its proper
application in a process and its complete support in HART capable host applications.
This manual is designed to complement other documentation (e.g., the InnovaMass 240i/241i
product manual) by providing a complete, unambiguous description of the InnovaMass
240i/241i from a HART Communication perspective. It is also intended to be a technical
reference for HART capable host application developers, system integrators and
knowledgeable end users. This manual provides functional specifications used during Field
Device configuration, maintenance and testing. This document assumes the reader is familiar
with HART Protocol requirements and terminology.
Note
In this manual 240i/241i HART refers to product models 240i and 241i.
Abbreviations and Definitions
Abbreviation
Definition
ADC
Analog to Digital Converter
CPU
Central Processing Unit (of microprocessor)
DAC
Digital to Analog Converter
EEPROM
Electrically-Erasable Read-Only Memory
ROM
Read-Only Memory
References
To access references used to create this manual, see below:
HART Smart Communications Protocol Specification (HCF_SPEC-13) is
available from http://hartcomm.org .
InnovaMass 240i/241i product instruction manual is available for
download at www.sierrainstruments.com.

7
Device Description Identification
Manufacturer Name:
Sierra Instruments
Model Name(s):
Sierra i Series
Manufacture ID Code:
165
(0x00A5)
Device Type Code:
42367
(0xA57F)
HART Protocol Revision
7.4
Device Revision:
2
Number of Device
Variables
4
Physical Layers
Supported
FSK
Physical Device
Category
InnovaMass® 240i/241i Air Mass Flow Meters
Process Interface
Sensor Input
The InnovaMass 240i/241i HART can have up to 3 three internal sensors —a piezo
electric Vortex shedding sensor, a precision platinum temperature sensors and one
absolute pressure transducer sensor.
Host Interface
4-20 mA Flow Out:
The active two-wire 4-20 mA current loop is connected on the (+) and (-) wires. HART
communication is supported on this loop. At least one 250 ohm resistor will needed in the
loop to access the HART signal.
The InnovaMass is powered from 24 VDC +/- 10% (1.1A load, maximum)
Figure 1. InnovaMass 240i/241i HART
Local Interfaces, Jumpers, and Switches
Local Controls and Displays
The InnovaMass 240i/241i is a Volumetric & Multivariable mass vortex flow meter with a
local display and a pushbutton keypad.

8
Device Description Files
The 240i/241i Series meters support two Device Description (DD) Files: PC interface
programs and 475 Field Communicators.
The following DD files are for using PC interface programs
0201.fm8
0201.im8
0201.sym
shapes.txt
The following DD files are for using 475 Field Communicator
00A5A57F0201.hdd
00A5A57F0201.hhd
You will need the “Field Communicator Easy Upgrade Utility” software in order to load the
device description files into 475 Field Communicator.
Figure 19: Screen shot of the “Field Communicator Easy Upgrade Utility” Software

9

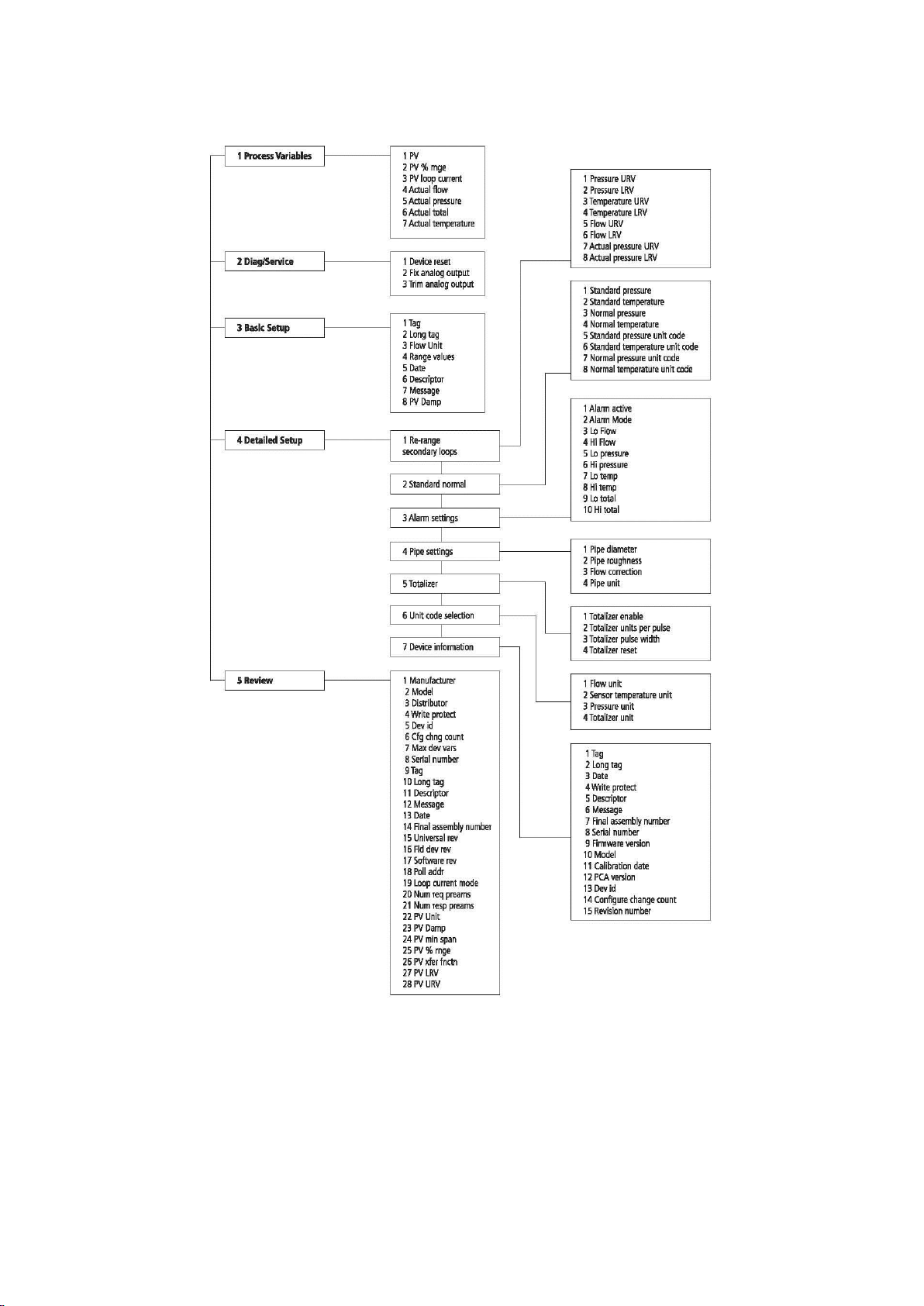

240i/241i Series HART Device Menu Tree

10
Device Variables
As with most HART devices, InnovaMass has four dynamic variables, PV, SV, TV, and QV.
Device Variables
Hart
Commands
Variable Name
Classification
Code
Units
0
Actual flow (or velocity)
72
As configured
1
Actual temperature
64
°F, °C,°K,°R
2
Actual pressure
65
As configured
3
Actual total
71
Volume/mass units
244
% Of full flow rate
00
Percentage
245
Loop current
84
Milliamps
246
PV
66, 67, 72
Flow rate/Velocity
247
SV
64
Temperature
248
TV
65
Pressure
249
QV
68, 71
Totalizer
Table 11: Dynamic Variables
Device Status
Bit 0 (PV out of limits) is set if the PV value is exceeding the sensor limits.
Bit 1 (non-PV out of limits) is set if the temperature or voltage measurements value is
exceeding their sensor limits
Bit 2 (analog output saturated) is set if the loop current tries to exceed the over and under
range limits of 3.8 and 20.5 mA. The digital value will continue,until the sensor limit is
reached.
Bit 3 (analog output fixed) is set if the device is in multi-drop mode or in fixed current mode
for testing purposes.
Bit 4 (more status available) is set whenever any alarm or failure is detected. Command #48
gives further detail (see Table 12).
Bit 5 (cold start) is set at power-up.
Bit 6 is not used
Bit 7 (field device malfunction) is set when there is a permanent failure of the device. See
Table 12
Extended Device Status
Extended device status is not used with the InnovaMass 240i/241i HART.
Additional Device Status (Command #48)
Command #48 returns 8 bytes of data, with the following status information shown in the
table below. Note: "Not used" bits are always set to 0.

11
Byte
Bit
Meaning
Class
Device Status
Bits Set
0
Alarm
status
0
Velocity and temperature sensors
comparable reading
Error
4, 7
1
Pressure warning
Error
4, 7
2-7
Not used
N/A
N/A
1
0-7
Not used
N/A
N/A
2
0-7
Not used
N/A
N/A
3
0-7
Not used
N/A
N/A
4
0-7
Not used
N/A
N/A
5
1
Non-volatile memory defect
N/A
N/A
6
2
Not used
N/A
N/A
3
Watchdog reset executed
N/A
N/A
4
Power supply out of range
N/A
N/A
5
Not used
N/A
N/A
7
6
Not used
N/A
N/A
8
7
Not used
N/A
N/A
Table 12: Additional Device Status
Commands
Universal Commands
No special arrangements.
Common-Practice Commands
Supported Commands
The following common-practice commands shown in the table below are implemented in the
InnovaMass 240i/241i HART device:
Command
Description
34
Write damping value
35
Write PV range values
38
Reset “config change” flag only
40
Enter/exit fixed current mode
41
None
42
Perform master reset
43
Write PV units index
44
Trim DAC zero
45
Trim DAC gain
53
Write device variable units
59
Write number of response preambles
66
Enter/exit fixed analog output mode (For DAC calibration of pressure and temperature)
67
Trim analog output zero
68
Trim analog output gain
Table 13: Common-practice Commands

12
Burst Mode
The InnovaMass does not support burst mode.
Catch Device Variable
The InnovaMass does not support catch device variable.
Device-Specific Commands
The following device-specific commands are implemented in the InnovaMass 240i/241i
HART.
Command #130: Read Gas Name
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0-15
ASCII
Gas name
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #131: Read Gas Index
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Gas index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined

13
Command #132: Write Gas Index
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Gas index
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Gas index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #133 Read Flow Unit Index (PV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Flow unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #134: Write Flow Unit Index (PV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Flow unit index

14
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Flow unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #135 Read Total Unit Index (QV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Totalizer unit index, see flow units index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #136: Write Total Unit Index (QV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Totalizer unit index, see flow units index
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Totalizer unit index, see flow units index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors

15
Code
Class
Description
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #137 Read Temperature Unit Index (SV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Temperature unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #138: Write Temperature Unit Index (SV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Temperature unit index
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Temperature unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined

16
Code
Class
Description
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #139 Read Pressure Unit Index (TV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Pressure unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #140: Write Pressure Unit Index (TV)
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Pressure unit index
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Pressure unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined

17
Command #150: Write Standard Temperature Value
Request Data Bytes
Byte
Format
Description
0-3
Float
Standard temperature value
Response Data Bytes
Byte
Format
Description
0-3
Float
Standard temperature value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
3
Error
Passed parameter too large
4
Error
Passed parameter too small
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #151: Read Standard Temperature
Request Data Bytes
Byte
Format
Description
None
N/A
NA
Response Data Bytes
Byte
Format
Description
0-3
Float
Standard temperature value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #152 Read Standard Temperature Unit Index
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard temperature unit index, 0=°F, 1=°C, 2=°K, 3=°R

18
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #153: Write Standard Temperature Unit Index
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard temperature unit index, 0=°F, 1=°C, 2=°K, 3=°R
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard temperature index, 0=°F, 1=°C, 2=°K, 3=°R
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #154: Write Standard Pressure Value
Request Data Bytes
Byte
Format
Description
0-3
Float
Standard pressure value
Response Data Bytes
Byte
Format
Description
0-3
Float
Standard Pressure value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
3
Error
Passed parameter too large
4
Error
Passed parameter too small
5
Error
Too few data bytes
6-127
N/A
Undefined

19
Command #155: Read Standard Pressure
Request Data Bytes
Byte
Format
Description
None
N/A
NA
Response Data Bytes
Byte
Format
Description
0-3
Float
Standard Pressure value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #156 Read Standard Pressure Unit Index
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
None
N/A
N/A
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard pressure unit index
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
Command #157: Write Standard Pressure Unit Index
See “Tables” section starting on page 86 to view indexes.
Request Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard pressure unit index
Response Data Bytes
Byte
Format
Description
0 - 1
Enum
Standard pressure unit index

20
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
2
Error
Invalid selection
3-4
N/A
Undefined
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #160: Write Normal Temperature Value
Request Data Bytes
Byte
Format
Description
0-3
Float
Normal temperature value
Response Data Bytes
Byte
Format
Description
0-3
Float
Normal temperature value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-2
N/A
Undefined
3
Error
Passed parameter too large
4
Error
Passed parameter too small
5
Error
Too few data bytes
6-127
N/A
Undefined
Command #161: Read Normal Temperature Value
Request Data Bytes
Byte
Format
Description
None
N/A
NA
Response Data Bytes
Byte
Format
Description
0-3
Float
Normal temperature value
Command Specific Response Codes
Code
Class
Description
0
Success
No command-specific errors
1-127
N/A
Undefined
