SIGLENT SDS1202X-U Series User manual

SDS1000X-E Series
Super Phosphor
Oscilloscope
Quick Start
SDS1000X-USeries
July,2020

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -I
SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved.
Declaration
SIGLENT products are protected by patent law in and outside of P.R.C.
SIGLENT reserves the right to modify or change parts of or all the specications or pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
Any way of copying, extracting or translating the contents of this manual is not allowed without the permission of SIGLENT.
Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD.
Copyright
Information
SIGLENT TECHNOLOGIES CO., LTD.
Address: Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China.
Tel:[phone]
E-mail:[email protected]
Http://www.siglent.com

II- SDS1000X-E & SDS1000X-U Series Digital Oscilloscope
Carefully read the following safety precautions to avoid any personal injury
or damage to the instrument and any products connected to it. To avoid
potential hazards, please use the instrument as specied.
Use Proper Power Cord
Only the power cord designed for the instrument and authorized by local
country could be used.
Ground the Instrument
The instrument is grounded through the protective earth conductor of the
power cord. To avoid electric shock, please make sure the instrument is
grounded correctly before connecting its input or output terminals.
Connect the Signal Wire Correctly
The potential of the signal wire ground is equal to the earth, so do not
connect the signal wire to a high voltage.
Look Over All Terminals’ Ratings
To avoid re or electric shock, please look over all ratings and sign instruction
of the instrument. Before connecting the instrument, please read the manual
carefully to gain more information about the ratings.
Use Proper Overvoltage Protection
Make sure that no overvoltage (such as that caused by a thunderstorm) can
reach the product, or else the operator might expose to danger of electrical
shock.
Electrostatic Prevention
Operate in an electrostatic discharge protective area environment to avoid
damages induced by static discharge. Always ground both the internal and
external conductors of the cable to release static before connecting.
Keep Well Ventilation
Inadequate ventilation may cause increasing of temperature, which may
eventually damage the instrument. So keep well ventilation and inspect the
intake and fan regularly.
Avoid Circuit or Components Exposed
Do not touch exposed contacts or components when the power is on.
Use Only the Specied Fuse
Do Not Operate Without Covers
Do not operate the instrument with covers or panels removed.
General
Safety
Summary

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -III
Warning Hazardous
Voltage
Protective
Earth Ground
Earth
Ground
Chassis
Ground
Symbols on the product. These symbols may appear on the product:
Safety Terms and Symbols
Terms on the product. These terms may appear on the product:
DANGER
WARNING
CAUTION
General Care and Cleaning
Care
Do not store or leave the instrument in direct sunshine for long periods of
time.
Notice:
To avoid damages to the instrument or probe, please do not leave them in
fog, liquid, or solvent.
Cleaning
Please perform the following steps to clean the instrument and probe
regularly according to its operating conditions.
1. Disconnect the instrument from all power sources, and then clean it with
a soft wet cloth.
2. Clean the loose dust on the outside of the instrument and probe with a
soft cloth. When cleaning the LCD, take care to avoid scratching it.
Notice:
To avoid damages to the surface of the instrument and probe, please do not
use any corrosive liquid or chemical cleanser.
Make sure that the instrument is completely dry before restarting it to avoid
short circuits or personal injuries.
Indicates direct injuries or hazards that may happen.
Indicates potential injuries or hazards that may happen.
Indicates potential damages to the instrument or other property
that may happen.

1-SDS1000X-E & SDS1000X-U Series Digital Oscilloscope
Contents
Copyright Information............................................................................................................................................
General Safety Summary........................................................................................................................................
Quick start............................................................................................................................................................
The Front Panel ....................................................................................................................................................
The Rear Panel......................................................................................................................................................
Front Panel Overview.............................................................................................................................................
User Interface.......................................................................................................................................................
Using Security Lock................................................................................................................................................
Troubleshooting.....................................................................................................................................................
Contact SIGLENT...................................................................................................................................................
I
II
2
6
9
12
20
22
23
25

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -2
Quick Start
General Inspection
1. Inspect the shipping container
Keep the damaged shipping container or
cushioning material until the contents of the
shipment have been completely checked and
the instrument has passed both electrical and
mechanical tests.
The consigner or carrier will be responsible
for damages to the instrument resulting from
shipment. SIGLENT would not provide free
maintenance or replacement if the instrument
has been damaged in shipment.
2. Inspect the instrument
If there are instruments found damaged,
defective or failure in electrical and mechanical
tests, please contact SIGLENT.
3. Check the accessories
Please check the accessories according to the
packing list. If the accessories are incomplete
or damaged, please contact your SIGLENT sales
representative.
Figure 1 2-Channel Scope Front View Figure 2 4-Channel Scope Front View
Figure 4 4-Channel Scope Top View
Figure 3 2-Channel Scope Top View

3- SDS1000X-E & SDS1000X-U Series Digital Oscilloscope
Quick Start
Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the
oscilloscope upwards for stable placement as well as easier operation and
observation of the instrument.
Connect to AC Power Supply
The oscilloscope accept 100-240V, 50/60/440Hz AC power supply. Please
use the power cord provided as accessories to connect the instrument to the
power source as shown in the gure below.
Note: If at any time the fuse requires replacement, please replace only
with a fuse of the same rating as the original. If there are questions, please
contact Siglent directly.
Power
Socket
Before adjusting After adjusting To Connect to Power Supply(2-
Channel Scope)
To Connect to Power Supply(4-
Channel Scope)
Power
Socket

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -4
Power-on Inspection
When the scope is energized, turn on the power switch at the lower left corner on the front panel. During the start-up
process, the instrument performs a series of self-test items and you can hear the sound of relay switching. After the
self-test completed, the User Interface displays immediately.
Connect the Probe
SIGLENT provides passive probe for the SDS1000X-E and SDS1000X-U series oscilloscope. Please refer to
corresponding Probe User Manual for detailed technical information.
Connect the probe:
1.Connect the BNC terminal of the probe to one of the channel BNC connector of the front panel.
2.Connect the probe tip to the circuit point to test and the ground alligator clip of the probe to the ground terminal of
the circuit.
Functional Inspection
1. Press to reset the oscilloscope to its factory default setup.
2. Connect the ground alligator clip of the probe to the Ground Terminal on the front panel.
3. Use the probe to connect the CH1 Input Terminal and the Compensation Signal Output Terminal on the front
panel.
4. Press
5. Observe the waveform on the screen. In normal condition, the display should be a square waveform as shown
in the photo to the right.
6. Test the other channels in the same method. If the actual square waveforms does not match that in the photo
shown, please perform “Probe Compensation”.
Note: To avoid electric shock when using the probe, rst please make certain that the insulated wire of the probe
is in good condition, and do not touch the metallic part of the probe when it is connected to a high voltage.
Quick Start
Compensation Signal
Output Terminal
Ground
Terminal
Compensation Signal
Output Terminal
Ground Terminal
2-channel scope
4-channel scope

5- SDS1000X-E & SDS1000X-U Series Digital Oscilloscope
Probe Compensation
You should properly compensate the probe at rst use of it. Non-compensated or inadequate compensated probe may cause inaccurate measurement. The
following steps are about probe compensation:
1. Perform step 1, 2 , 3 and 4 of “Functional Inspection”.

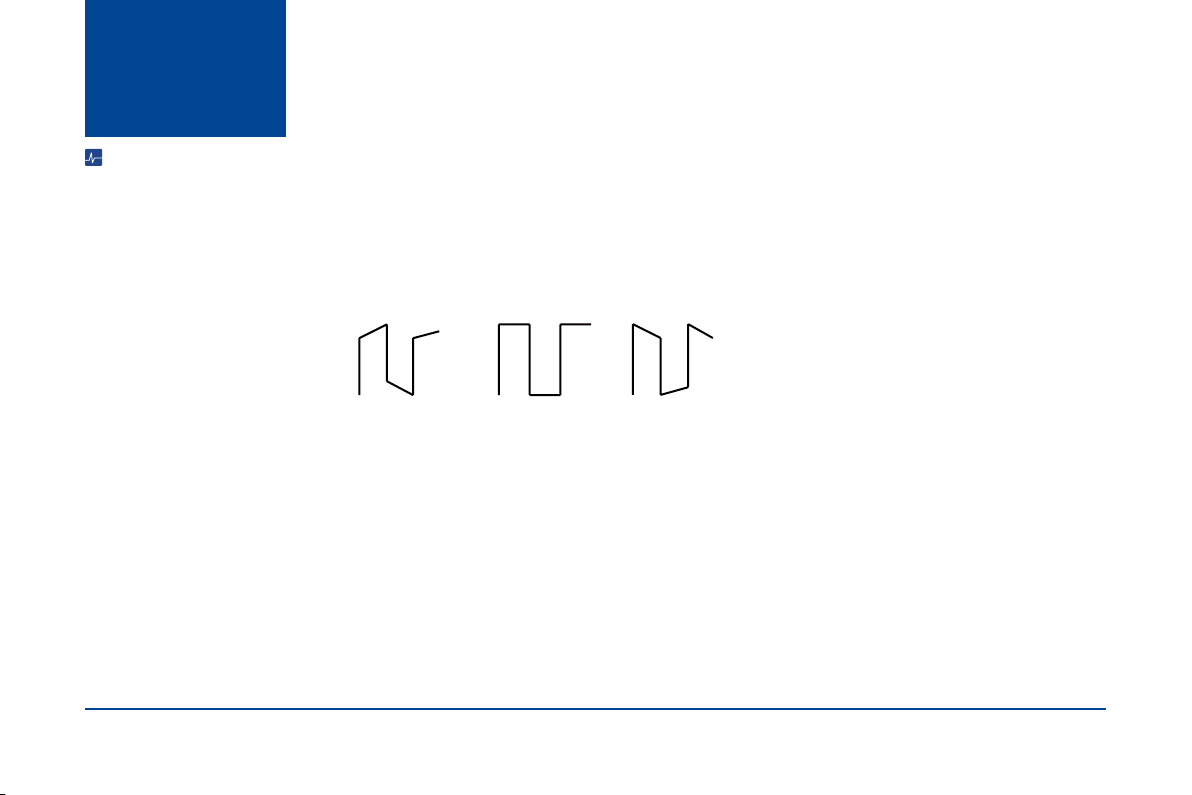

2. Check the displayed waveforms and compare them with the following gure.
3. Use a nonmetallic driver to adjust the low-frequency compensation adjustment hole on the probe until the waveform changes to be correct as the gure above.
Quick Start
Under
Compensated
Compensated
Correctly
Over
Compensated

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -6
SDS1004X-E
Front Panel
23
54
11 12
13
910
14
18 19 20 21
16 17 15
67
1
8

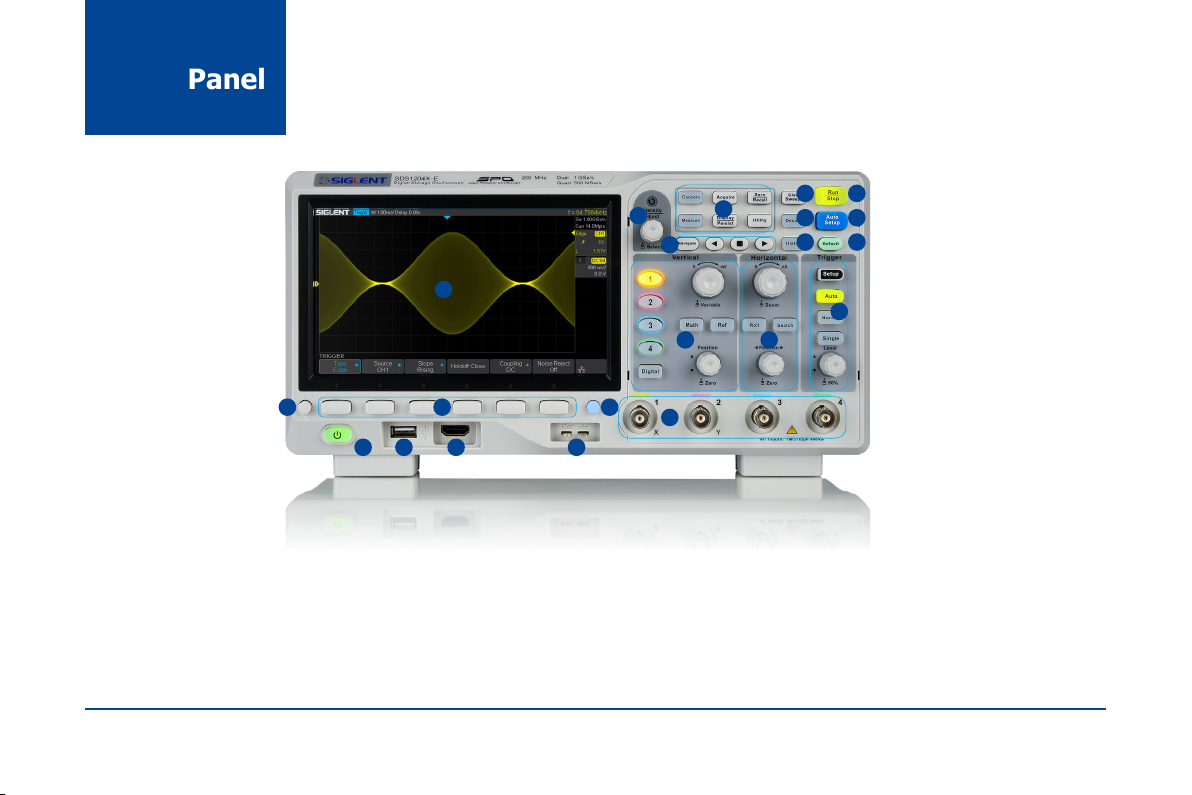

1. LCD Display
2. Universal Knob
3. Common Function Menus
4. Clear Sweeps
5. Run/Stop
6. Decode
7. Auto Setup
8. Navigate
9. History
10. Default
11. Vertical Control, Math, REF and Digital
12. Horizontal Control
13. Trigger Control
14. Menu on/off
15. Menu Softkey
16. One- Button shortcut for Save
17. Analog Channel
18. Power Button
19. USB Host
20. SBUS Digital Inputs ①
21. Probe Compensation/ Ground Terminal
①WARNING: Non-standard HDMI interface, Siglent device ONLY, or you will damage your devices.

7- SDS1000X-E & SDS1000X-USeries Digital Oscilloscope
1.User Interface
2.Universal Knob
3.Function Menus
4.Run/Stop
5.Auto Setup
6.Trigger Control
7.Horizontal Control
8.Channel Vertical Control
9.Probe Compensation
10.Analog Channel Inputs
11.USB Host
12.Function Menu Softkeys
13.Menu On/Off
14.Power On/Off
23
5
4
8
9
10
13
14
11
12
6
7
1
SDS1002X-E
Front Panel

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -8
SDS1000X-U
Front Panel
23
54
11 12
13
910
14
18 19 20
16 17 15
67
1
8
1. LCD Display
2. Universal Knob
3. Common Function Menus
4. Clear Sweeps
5. Run/Stop
6. Decode
7. Auto Setup
15. Menu Softkey
16. One- Button shortcut for Save
17. Analog Channel
18. Power Button
19. USB Host
20. Probe Compensation/ Ground Terminal
8.Navigate
9.History
10. Default
11. Vertical Control, Math and REF
12. Horizontal Control
13. Trigger Control
14. Menu on/off

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -9
1
2
3
4
6
7
5
1.Handle
Pull up the handle vertically for easy carrying of the
instrument. When you do not need the handle, press it
down.
2.LAN Interface
The instrument can be connected to network via this
interface to perform remote control.
3.USB Device
The oscilloscope support SCPI remote control commands,
user can control the oscilloscope through this interface
4.USB Host
5.Safety Lock Hole
You can lock the instrument to a xed location using the
security lock (please buy it yourself) via the lock hole.
6.AC Power Socket
AC power input terminal. The power requirements of this
oscilloscope are 100-240 V, 50/60/400 Hz. Use the power
cord provided with the instrument to connect it to AC
power.
7.Pass/Fail or Trigger Out
The BNC port can output a signal that reects the current
waveform capture rate of the oscilloscope at each trigger or
a pass/fail test pulse.
SDS1004X-E
Rear Panel

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -10
SDS1002X-E
Rear Panel
1. Handle
Pull up the handle vertically for easy carrying; press it down
if you do not need the handle.
2.Safety Lock Hole
You could lock the instrument in afixed location using a
security lock (please buy it yourself ) via the lock hole
3. LAN Interface
The instrument can be connected to network via this
interface to perform remote control
4. Pass/Fail or Trig Out Output
Via this interface the oscilloscope can output a signal that
can reflect the current capture rate of the instrument at
each trigger or a Pass/Fail pulse.
5.USB Device
The oscilloscope support SCPI remote control commands,
User can control the oscilloscope through this interface
1
2
3
4
5

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -11
1.Handle
Pull up the handle vertically for easy carrying of the
instrument. When you do not need the handle, press it
down.
2.LAN Interface
Theinstrument can beconnected to network via this
interface to perform remote control.
3.USB Device
Theoscilloscope support SCPI remote control commands,
user can control the oscilloscope through this interface
4.Pass/Fail or Trigger Out
The BNC port can output a signal that reflects the current
waveform capture rate of the oscilloscope at each trigger
or a pass/fail test pulse.
5.Safety Lock Hole
You can lock the instrument to a ixed location using
the security lock (please buy it yourself) via the lock hole.
6.AC Power Socket
AC power input terminal. The power requirements of
this oscilloscope are 100-240 V,50/60/400 Hz. Use the
power cord provided with the instrument to connect
it to AC power.
SDS1000X-U
Rear Panel
1
2
3
6
4
5

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -12

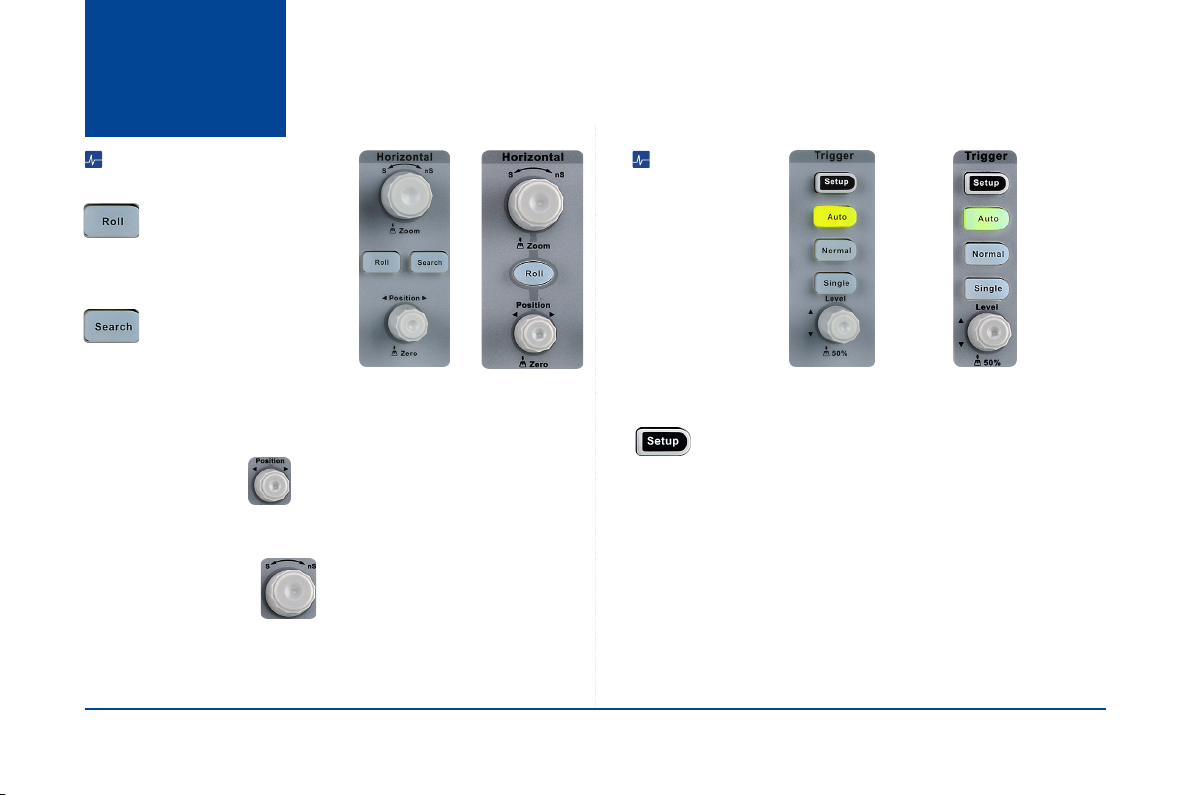

Horizontal POSITION Sets the horizontal location of the trigger
event on the display. The waveform will move left or right when you turn
the knob. Meanwhile, the Delay value will increase or decrease as the
waveform moves. Press down the knob to reset the trigger delay to zero.
Horizontal Time Base Set the timebase Turn it clockwise
or aticlock wise to reduce or increase the timebase. The wave will be
expanded or compressed when the timebase changes. Press down the knob
to enter into the Zoom.
Press the button to open trigger menu.This oscilloscope provides
various trigger types: Edge, Slope,Pulse, Video, Window,Interval, DropOut,
Runt, Pattern and Serial Bus (IIC/SPI/UART/RS232/CAN/LIN)
We will introduce Video, Interval, Runt, Pattern and Serial Bus trigger in the
following
HDTV Video Trigger
The oscilloscope supports analog video signal (NTSC/PAL) trigger and
HDTV signal trigger. In video trigger, you can select custom to set any
line and field
Front Panel
Overview
Horizontal Control Trigger Control
4-channel scope 4-channel scope2-channel scope 2-channel scope
Quickly enter into the Roll
mode.
The timebase range is from 50
ms/div to 100 s/div.
Enable or disable search
function. This function can
search for the events that users
specify in the acquired data, the
results are displayed with white
triangle symbol.

13-SDS1000X-E & SDS1000X-USeries Digital Oscilloscope
Interval Trigger
The time interval from the rising edge (or falling edge) of input signal passes
through the trigger level to the next rising edge(or falling edge) passes
through the trigger level and the currently set time satisfy the Limit Range (
＜=, ＞= , [ --.--], --] [--) selected
In the gure below, the time interval between two continuous rising edge and
the currently set time satisfy the limit range ([ --.--])
Runt Trigger
Runt trigger includes positive runt trigger and negative runt trigger.This mode
is used to trigger pulses that pass through one trigger level but fails to pass
through the other trigger level as shown in the gure below.
High Level
Low Level
Positive runt pulse
Negative runt pulse
In the gure below, the trigger signal are positive runt pulse.

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -14
Pattern Trigger
Identify a trigger condition by looking for a specied pattern. This pattern
is a logical combination (AND/OR/NAND/NOR) of the two channels. Each
channel can be set a value among High, Low or Invalid.
In the gure below, the selected logic is “NAND”, channel 1 is set to
“Low”,channel 2 is set to “High”.
IIC Trigger
After setting the serial 1 or 2 to IIC type in trigger menu, you can use
universal knob to set to trigger on start/stop condition, restart, no
ack,EEPROM, or on the read/write frame with specic device address and
data value. During IIC trigger settings, it is essential to set source channel
previously in decode menu.
In the gure below,the trigger condition is set to “Start”, channel 1 is set as
Clock signal, channel 2 is set as Data signal

15-SDS1000X-E & SDS1000X-U Series Digital Oscilloscope
SPI Trigger
After setting the serial trigger to SPI type in trigger menu, you can select to trigger on MISO data or MOSI data. The data length are variable to set from 4 to 96.
UART/RS232 Trigger
After setting the serial trigger to UART/RS232 type in trigger menu, you can select to trigger on start , stop, checksum error or data. The data width are variable to
set from 5 to 8bits.
CAN Trigger
After setting the serial trigger to CAN type in trigger menu, you can select to trigger on start, remote, ID, ID+DATA or Error of CAN-H or CAN-L signal.
LIN Trigger
After setting the serial trigger to LIN type in trigger menu, you can select to trigger on Start, ID, ID+DATA or Data Error.
Notes: For more trigger types and corresponding operation information, please refer to the trigger chapter of SDS1000X-E & SDS1000X-U User Manual.
Press the button to set to Auto trigger mode.
Press the button to set to Normal trigger mode.
Press the button to set to Single trigger mode.
Level Set the trigger level. Turn it clockwise or anticlockwise to make the level move up or down. In the meanwhile, the level value displayed at the
upper right of the screen will increase or decrease. Press it down to quickly reset the trigger level to the 50% of waveforms.

SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -16
Analog input channels. The four channels are marked by different
colors which are also used to mark both the waveforms on the screen and the
channel input connectors.
Press channel button to open the corresponding channel and press again to
turn it off.
Vertical POSITION Set the vertical offset of current waveform.
Turn clockwise to increase the offset while turn anticlockwise to decrease the
offset.
During the modication, the waveform will move up and down and the offset
message at the lower part of the screen will change along. Press down the
knob to quickly reset the offset to zero
Vertical Scale: Set the vertical scale of current waveform.
Turn clockwise to decrease the scale and while turn anticlockwise to increase
it. During the modication, the ‘amplitude’ of the waveform will enlarge or
reduce and the scale message at the right side of the screen will also change.
Press down the knob to quickly switch the vertical scale adjustment modes
between “Coarse” and “Fine”.
Vertical Control
Press the button to open math operation menu under which
the operation of adding, subtracting, multiplying, dividing, FFT,
integral, differential and square root are supported.
Press the button to enable the reference waveform function,
thus to compare the current waveform with the reference
waveform to decide circuit failures.
Press the button to open the digital channel function menu
(Optional function). The SDS1000X-E (4-channel scope) supports
16 digital channels.
SDS1000X-E 4-channel scope SDS1000X-E 2-channel scope SDS1000X-U scope
