SIGMA TEK SE 052 User manual

SE 052
S-DIAS Splitter Ethernet
Technical Manual
Date of creation: 02.08.2019
Version date: 02.08.2019
Article number: 20-023-052-E

Publisher: SIGMATEK GmbH & Co KG
A-5112 Lamprechtshausen
Tel.: [phone]
Fax: [phone]
Email: [email protected]
WWW.SIGMATEK-AUTOMATION.COM
Copyright © 2019
SIGMATEK GmbH & Co KG
Translation from German
All rights reserved. No part of this work may be reproduced, edited using an electronic system, duplicated or
distributed in any form (print, photocopy, microfilm or in any other process) without express permission.
We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible
for technical or printing errors in this handbook and assumes no responsibility for damages that occur through its
use.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 1
S-DIAS Splitter Ethernet SE 052
with 5 Ethernet interfaces (Tyco Mini I/O)
The S-DIAS SE 052 Ethernet splitter connects multiple network
segments via 5 ports. Incoming data packets to an Ethernet port
are distributed to the other ports. The splitter module is installed in
a double-wide S-DIAS housing. The current is supplied from the
top over a 4-pin Phoenix connector.

SE 052 S-DIAS SPLITTER ETHERNET
Page 2 02.08.2019
Contents
1Introduction............................................................................. 4
1.1 Target Group/Purpose of this Manual ........................................4
1.2 Contents of Delivery.....................................................................4
2Basic Safety Guidelines......................................................... 5
2.1 Symbols Used...............................................................................5
2.2 Disclaimer......................................................................................6
2.3 General Safety Guidelines...........................................................7
3Residual Risks ........................................................................ 8
3.1 Guidelines......................................................................................8
3.1.1 EU Declaration of Conformity..............................................................8
4Technical Data ........................................................................ 9
4.1 Performance Data.........................................................................9
4.2 Standard Configuration................................................................9
4.3 Electrical Requirements...............................................................9
4.4 Miscellaneous .............................................................................10
4.5 Environmental Conditions.........................................................10
5Mechanical Dimensions........................................................11
6ESD Protection.......................................................................12
7Connector Layout..................................................................13
7.1 Front View....................................................................................13

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 3
7.1.1 Status LEDs...................................................................................... 13
7.1.2 Connectors........................................................................................ 14
7.2 Top View ......................................................................................14
7.3 Applicable Connectors...............................................................15
7.4 Applicable Connector Cables....................................................16
7.5 Label Field ...................................................................................17
8Shielding................................................................................18
9Strain Relief ...........................................................................19
10 Transport/Storage.................................................................20
11 Mounting................................................................................21
12 Maintenance...........................................................................23
12.1 Service .........................................................................................23
12.2 Repair...........................................................................................23
13 Disposal .................................................................................24

SE 052 S-DIAS SPLITTER ETHERNET
Page 4 02.08.2019
1 Introduction
1.1 Target Group/Purpose of this Manual
This manual contains all information required for operating the SE 052.
This manual is intended for:
•Project planners
•Technicians
•Commissioning engineers
•Machine operators
•Maintenance/test technicians
General knowledge of automation technology is required.
Further help and training information, as well as the appropriate accessories can be found
on our website www.sigmatek-automation.com
Our support team is happily available to answer your questions.
Please see our website for our hotline number and business hours.
1.2 Contents of Delivery
1x SE 052
1x opposing connector
This document can be downloaded from our website.
Additional documents may be included with delivery.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 5
2 Basic Safety Guidelines
2.1 Symbols Used
The following symbols are used in the operator documentation for warning and danger
messages, as well as informational notes:
DANGER
Identifies an immediate danger with high risk, which will lead to immediate
death or serious injury if not avoided.
Identifie un danger immédiat avec un risque élevé, entraînant le décès
immédiat ou des blessures graves s’il n’est pas évité
WARNING
Identifies a possible danger with a mid-level risk, which can lead to death or
(serious) injury if not avoided.
Indique un danger possible d’un risque moyen de décès ou de (graves)
blessures si les consignes de sécurité ne sont pas respectées
CAUTION
Identifies a low risk danger, which can lead to injury or property damage if
not avoided.
Indique un danger avec un niveau de risque faible des blessures légères ou
des dommages matériels si les consignes de sécurité ne sont pas
respectées
Provides user tips, informs of special features and identifies especially
important information in the text.
Fournit des conseils d’utilisation, informe sur les fonctions particulaires et
souligne les informations particulièrement importantes dans le texte.
Danger for ESD-sensitive components.
Les signes de danger pour les composants sensibles aux décharges
électrostatiques.

SE 052 S-DIAS SPLITTER ETHERNET
Page 6 02.08.2019
2.2 Disclaimer
The contents of this document were prepared with the greatest care.
However, deviations cannot be ruled out. This document is regularly
checked and required corrections are included in the subsequent versions.
The machine manufacturer is responsible for the proper assembly, as well
as device configuration. The machine operator is responsible for safe
handling, as well as proper operation.
The current document can be found on our website. If necessary, contact
our support.
Subject to technical changes, which improve the performance of the
devices. The following documentation is purely a product description. It
does not guarantee properties under the warranty.
Please thoroughly read the corresponding data sheets, operating
instructions and this system handbook before handling a product.
SIGMATEK GmbH & Co KG is not liable for damages caused through
non-compliance with these instructions or applicable regulations.
The general and special safety instructions described in the following
sections, as well as technical regulations, must therefore be observed.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 7
2.3 General Safety Guidelines
According to EU Guidelines, the operating instructions are a component of
a product.
This manual must therefore be accessible in the vicinity of the machine
since it contains important instructions.
This technical documentation should be included in the sale, rental or
transfer of the product, or its online availability indicated.
Maintain this manual in readable condition and keep it accessible for
reference.
Operate the unit with devices and accessories approved by SIGMATEK
only.
CAUTION
Handle the device with care and do not drop or let fall.
Prevent foreign bodies and fluids from entering the device.
The device must not be opened, otherwise it could be damaged!
Manipulez l’appareil avec précaution et ne le laissez pas tomber.
Empêchez les corps étrangers et les liquides de pénétrer dans l’appareil.
L’appareil ne doit pas être ouvert, sinon il risque d’être endommagé!

SE 052 S-DIAS SPLITTER ETHERNET
Page 8 02.08.2019
3 Residual Risks
3.1 Guidelines
The panel was constructed in compliance with European Union guidelines.
3.1.1 EU Declaration of Conformity
CE Declaration of Conformity
The SE 052 conforms to the following European guidelines:
•2014/35/EU Low-voltage guideline
•2014/30/EU “Electromagnetic Compatibility” (EMC guideline)
•2011/65/EU “Restricted use of certain hazardous substances in
electrical and electronic equipment” (RoHS Guideline)
The EU Conformity Declarations are provided on the SIGMATEK website.
See Products/Downloads or use the search function and the keyword “EU
Declaration of Conformity”.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 9
4 Technical Data
4.1 Performance Data
Interfaces
5x Ethernet 10/100 Mbit (Tyco Mini I/O)
4.2 Standard Configuration
Ethernet 1
X1
Ethernet 2
X2
Ethernet 3
X3
Ethernet 4
X4
Ethernet 5
X5
Problems can arise if a control is connected to an IP network, which
contains modules that do not contain a SIGMATEK operating system. With
such devices, Ethernet packets could be sent to the control with such a
high frequency (i.e. broadcasts), that the high interrupt load could cause a
real-time runtime error or runtime error. By configuring the packet filter
(Firewall or Router) accordingly however, it is possible to connect a network
with SIGMATEK hardware to a third-party network without triggering the
error mentioned above.
4.3 Electrical Requirements
Supply voltage
18-30 V DC
UL: Class 2 or LVLC(1)
Supply current over X6
200 mA
(1) Limited Voltage/Limited Current
(1)The device must be connected to a secondary galvanically separated
supply with a rated voltage of 24 V DC. In compliance with UL 249, max 4
A, the fuse must be connected in the area between the supply source and
the end device.

SE 052 S-DIAS SPLITTER ETHERNET
Page 10 02.08.2019
4.4 Miscellaneous
Article number
20-023-052
Hardware version
1.x
Standard
UL in preparation
Approvals
CE
4.5 Environmental Conditions
Storage temperature
-20 ... +85 °C
Ambient temperature
0 ... +55 °C
Humidity
0-95 %, non-condensing
Installation altitude above sea
level
0-2000 m without derating
> 2000 m with derating of the maximum environment temperature by 0.5 °C
per 100 m
Operating conditions
pollution degree 2
EMC resistance
in accordance with EN 61000-6-2 (industrial area)
EMC noise generation
in accordance with EN 61000-6-4 (industrial area)
Vibration resistance
EN 60068-2-6
3.5 mm from 5-8.4 Hz
1 g from 8.4-150 Hz
Shock resistance
EN 60068-2-27
15 g
Protection type
EN 60529
IP20

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 11
5 Mechanical Dimensions

SE 052 S-DIAS SPLITTER ETHERNET
Page 12 02.08.2019
6 ESD Protection
Before any device is connected to or disconnected from the SE 052, the
potential with ground should be equalized (by touching the control cabinet
or ground terminal). Electrostatic loads (through clothing and shoes) can
thereby be dissipated.
Avant de connecter ou de déconnecter un appareil au SE 052, le potentiel
avec masse doit être égalisé (en touchant l'armoire électrique ou la borne
de terre). Les charges électrostatiques (à travers les vêtements et les
chaussures) peuvent ainsi être dissipées.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 13

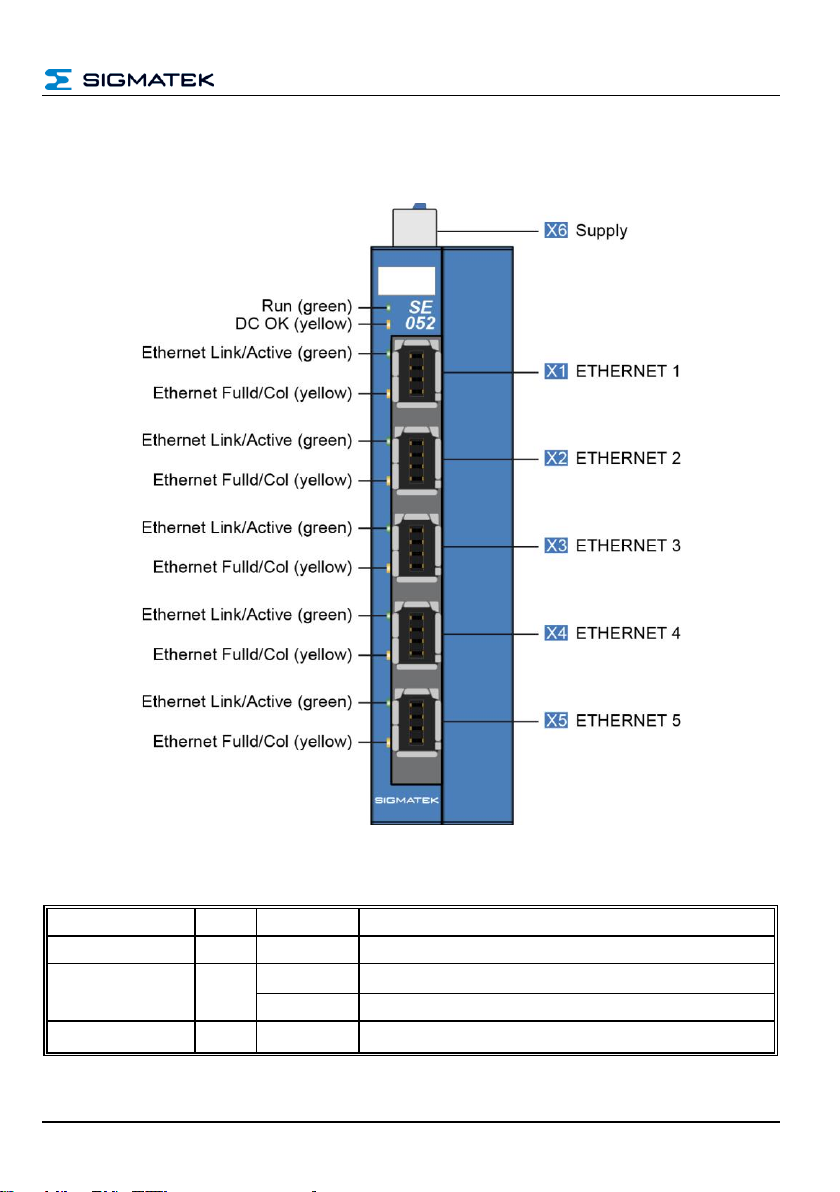

7 Connector Layout
7.1 Front View
7.1.1 Status LEDs
Run
green
LIGHTS
switch-IC running
DC OK
yellow
LIGHTS
module is supplied with a voltage > 18 V
Ethernet Link/Active
green
LIGHTS
connection between the two PHYs made
BLINKS
data is exchanged over the Ethernet bus
Ethernet Fulld/Col
yellow
LIGHTS
full duplex mode (LED does not light –half duplex)

SE 052 S-DIAS SPLITTER ETHERNET
Page 14 02.08.2019
7.1.2 Connectors

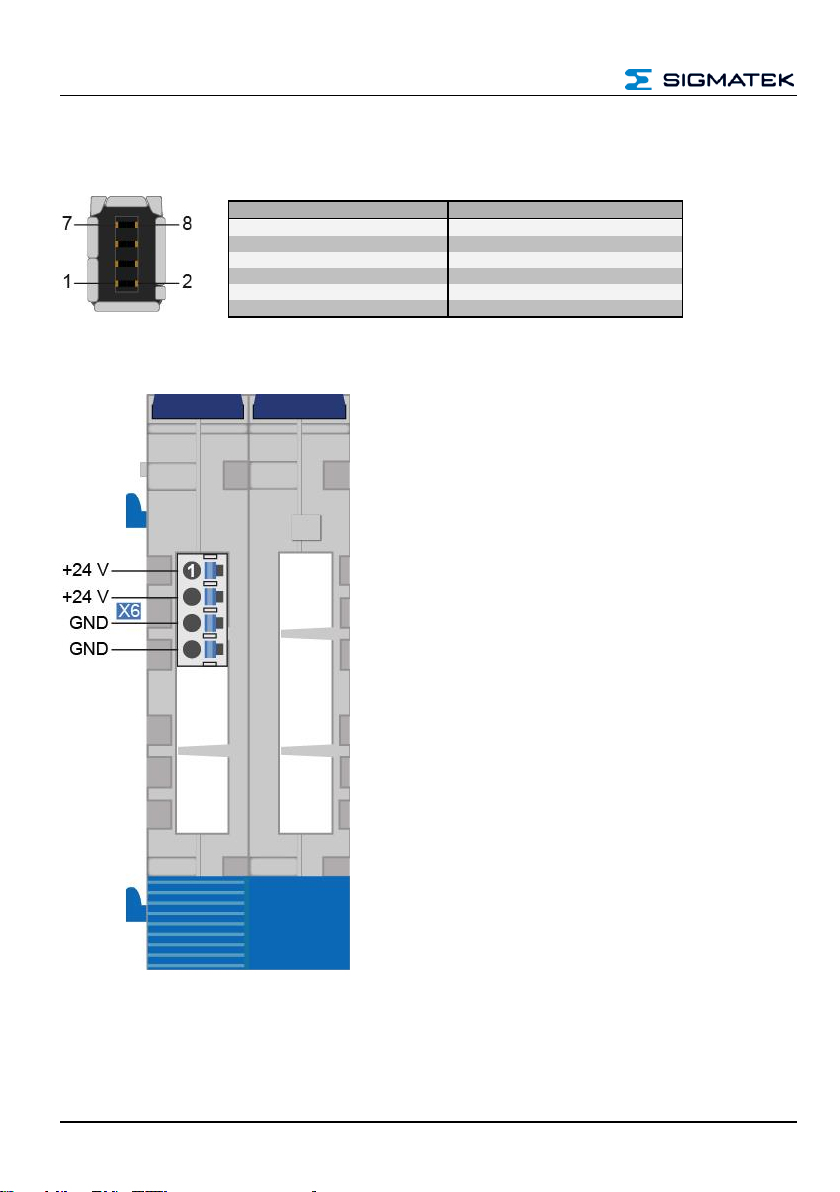

7.1.2.1 X1-X5: Ethernet (Industrial Mini I/O)
7.2 Top View
Pin
Function
1
Tx+/Rx+
2
Tx-/Rx-
3
Rx+/Tx+
4-5
n.c.
6
Rx-/Tx-
7-8
n.c.

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 15
7.3 Applicable Connectors
Connectors:
X1-X5: Industrial Mini I/O Plug Type 1 Lock Extend Version (not included in
delivery)
X6: Connectors with spring terminals (included in delivery)
The spring terminals are suitable for the connection of ultrasonically compressed
(ultrasonically welded) strands.
Connections:
Stripping length/sleeve length:
10 mm
Mating direction:
parallel to the conductor axis or circuit board
Conductor cross section rigid:
0.2-1.5 mm2
Conductor cross section flexible:
0.2-1.5 mm2
Conductor cross-section strands ultrasonically compacted:
0.2-1.5 mm2
Conductor cross section AWG/kcmil:
24-16
Conductor cross section flexible with ferrule without plastic
sleeve:
0.25-1.5 mm2
Conductor cross section flexible with ferrule with plastic sleeve:
0.25-0.75 mm2(reason for reduction d2 of the
ferrule)

SE 052 S-DIAS SPLITTER ETHERNET
Page 16 02.08.2019
7.4 Applicable Connector Cables
Ethernet:
Cable type
Length
Article number
RJ45 on industrial Mini I/O Type 1, drag chain capable
0.5 m
16-911-005
1 m
16-911-010
1.5 m
16-911-015
2 m
16-911-020
3 m
16-911-030
5 m
16-911-050
10 m
16-911-100
20 m
16-911-200
50 m
16-911-500
Industrial Mini I/O Type 1 on industrial Mini I/O Type 1, drag chain capable
0.5 m
16-912-005
1 m
16-912-010
1.5 m
16-912-015
2 m
16-912-020
3 m
16-912-030
5 m
16-912-050
10 m
16-912-100
20 m
16-912-200

S-DIAS SPLITTER ETHERNET SE 052
02.08.2019 Page 17

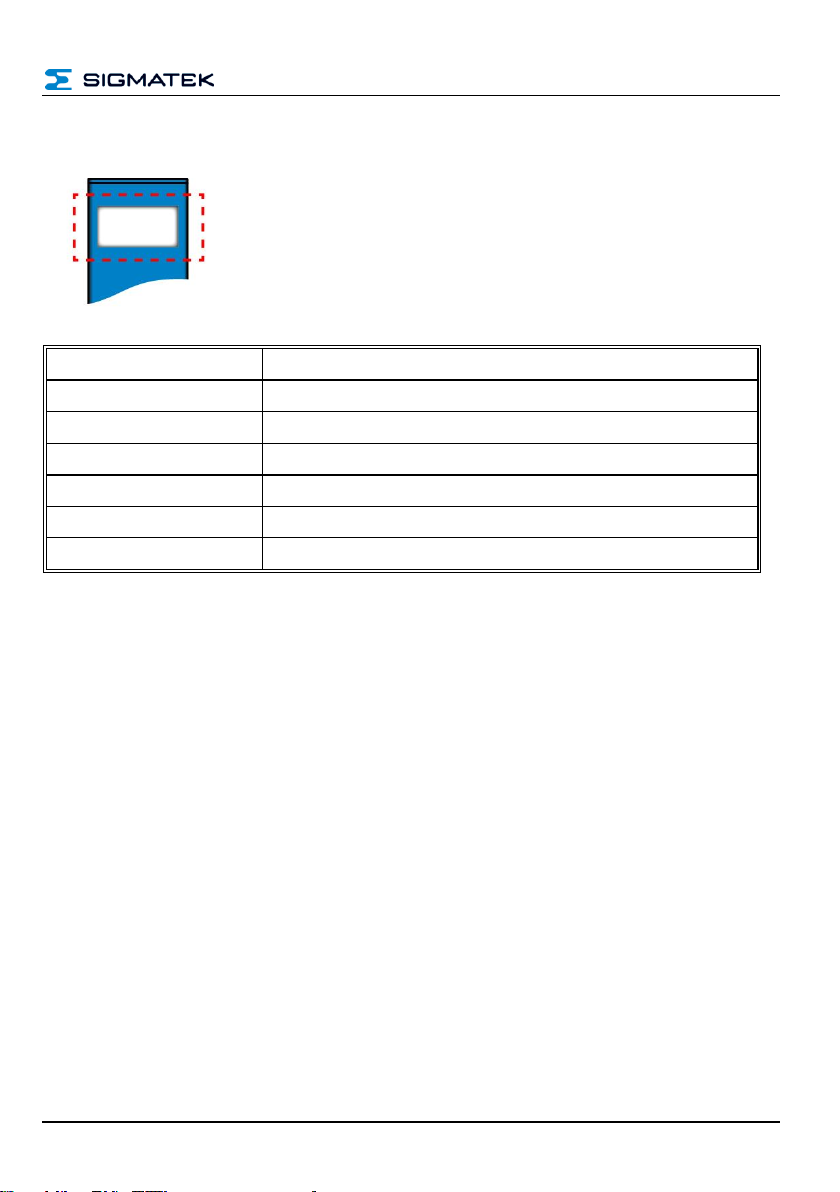

7.5 Label Field
Manufacturer
Weidmüller
Type
MF 10/5 CABUR MC NE WS
Article number Weidmüller
1854510000
Compatible printer
Weidmüller
Type
Printjet Advanced 230V
Article number Weidmüller
1324380000

SE 052 S-DIAS SPLITTER ETHERNET
Page 18 02.08.2019
8 Shielding
The Ethernet wiring must be shielded.
The low-ohm shielding is either connected at the entry to the control cabinet or directly
before the SE 052 over a large surface (cable grommets, grounding clamps)!
Noise signals can therefore be prohibited from reaching the electronics and affecting the
function.
To avoid compensating currents from the PE, which flow over the shielding the conductors,
it is recommended that the system components have low Ohm and low impedance
connections to one another.
