SIGMA TEK SV 141 User manual

SV 141
S-DIAS Splitter VARAN
Instruction Manual
Date of creation: 29.01.2015
Version date: 26.07.2023
Article number: 20-023-141-E

Publisher: SIGMATEK GmbH & Co KG
A-5112 Lamprechtshausen
Tel.: [phone]
Fax : [phone]
Email: [email protected]
WWW.SIGMATEK-AUTOMATION.COM
Copyright © 2015
SIGMATEK GmbH & Co KG
Translation of the Original Instructions
All rights reserved. No part of this work may be reproduced, edited using an electronic system, duplicated or
distributed in any form (print, photocopy, microfilm or in any other process) without the express permission.
We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not
responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur
through use of this handbook.

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 1
S-DIAS Splitter VARAN SV 141
with 1 VARAN In
4 VARAN Out
With its four VARAN Out ports, the VARAN SV 141 S-DIAS splitter
module allows a VARAN bus system to be configured in a tree
structure.
The SV 141 has the same form as S-DIAS, so that it can be
mounted on a DIN rail with S-DIAS modules.
The VARAN Out ports have a +24 V supply for the VARAN bus,
which can be switched via the software. With this supply, special
VARAN peripheral devices can be connected to the SV 141 and
supplied with +24 V without an additional power cable.
The VARAN Out ports have automatic Ethernet recognition. If one of
the ports is connected to an Ethernet participant, it is automatically
made an Ethernet port.
As soon as a VARAN Out port has changed to Ethernet, this
function is blocked for all other VARAN Out ports.
Incoming Ethernet packets are, similar to using a HUB, distributed to all other Ethernet
ports in the VARAN bus system and the VARAN manager (and therewith the CPU as well)
with VtE.
To connect a simulation computer in real time, the SV 141 has an optional real-time
Ethernet port.

SV 141 S-DIAS SPLITTER VARAN
Page 2 26.07.2023
Contents
1Introduction............................................................................. 5
1.1 Target Group/Purpose of this Operating Manual......................5
1.2 Important Reference Documentation .........................................5
1.3 Contents of Delivery.....................................................................5
2Basic Safety Directives .......................................................... 6
2.1 Symbols Used...............................................................................6
2.2 Disclaimer......................................................................................8
2.3 General Safety Directives ............................................................9
2.4 Software/Training .......................................................................10
3Standards and Directives......................................................11
3.1 Directives.....................................................................................11
3.1.1 EU Conformity Declaration................................................................11
4Type Plate...............................................................................12
5Technical Data .......................................................................13
5.1 Performance Data.......................................................................13
5.2 Electrical Requirements.............................................................13
5.3 Miscellaneous .............................................................................15
5.4 Environmental Conditions.........................................................15
6Mechanical Dimensions........................................................16
7Connector Layout..................................................................17

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 3
7.1 Front View....................................................................................17
7.1.1 Status LEDs...................................................................................... 18
7.1.2 Connectors........................................................................................ 18
7.1.3 VARAN Wiring Guidelines................................................................. 19
7.2 Top View......................................................................................20
7.3Applicable Connectors...............................................................21
7.4 Label Field...................................................................................22
7.5 Real-time Ethernet......................................................................23
8Assembly/Installation ...........................................................24
8.1 Check Contents of Delivery.......................................................24
8.2 Mounting......................................................................................25
8.2.1 Thermal Requirements ..................................................................... 25
8.3 S-DIAS Assembly........................................................................26
9Transport/Storage .................................................................27
10 Storage...................................................................................27
11 Maintenance...........................................................................28
11.1 Service.........................................................................................28
11.2 Repair...........................................................................................28
12 Disposal .................................................................................28
13 Recommended Shielding for VARAN..................................29
13.1 Wiring from the Control Cabinet to an External VARAN
component...................................................................................30

SV 141 S-DIAS SPLITTER VARAN
Page 4 26.07.2023
13.2 Wiring Outside of the Control Cabinet.....................................31
13.3 Shielding for Wiring Within the Control Cabinet.....................32
13.4 Connecting Noise Generating Components............................33
13.5 Shielding Between Two Control Cabinets ...............................34
14 Hardware Class SV141..........................................................35
14.1 Interfaces.....................................................................................36
14.1.1 Clients ...............................................................................................36
14.1.2 Servers..............................................................................................37
14.2 Global Methods...........................................................................38
14.3 Required VARAN Data Objects.................................................39
14.4 Example.......................................................................................40
14.5 Setting Examples........................................................................43
14.6 Transparent Mode.......................................................................45
14.6.1 No transparent module......................................................................46
14.6.2 VSV Transparent...............................................................................46
14.6.3 CIV Transparent................................................................................47

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 5
1 Introduction
1.1 Target Group/Purpose of this Operating Manual
This operating manual contains all information required for the operation of the product.
This operating manual is intended for:
•Project planners
•Technicians
•Commissioning engineers
•Machine operators
•Maintenance/test technicians
General knowledge of automation technology is required.
Further help and training information, as well as the appropriate accessories can be found
on our website www.sigmatek-automation.com.
Our support team is happily available to answer your questions.
Please see our website for our hotline number and business hours.
1.2 Important Reference Documentation
This and additional documents can be downloaded from our website or obtained through
support.
1.3 Contents of Delivery
1x SV 141

SV 141 S-DIAS SPLITTER VARAN
Page 6 26.07.2023
2 Basic Safety Directives
2.1 Symbols Used
The following symbols are used in the operator documentation for warning and danger
messages, as well as informational notes:
DANGER
Danger indicates that death or serious injury will occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Danger indique une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
WARNING
Warning indicates that death or serious injury can occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Avertissement d’une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
CAUTION
Caution indicates that moderate to slight injury can occur, if the
specified measures are not taken.
To avoid moderate to slight injuries, observe all guidelines.
Attention indique une situation dangereuse qui, faute de prendre les
mesures adéquates, peut entraîner des blessures assez graves ou
légères.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 7
INFORMATION
Information
Provides important information on the product, handling or
relevant sections of the documentation, which require
attention.

SV 141 S-DIAS SPLITTER VARAN
Page 8 26.07.2023
2.2 Disclaimer
INFORMATION
The contents of this operating manual were prepared with the greatest
care. However, deviations cannot be ruled out. This operating manual
is regularly checked and required corrections are included in the
subsequent versions. The machine manufacturer is responsible for the
proper assembly, as well as device configuration. The machine
operator is responsible for safe handling, as well as proper operation.
The current operating manual can be found on our website. If
necessary, contact our support.
Subject to technical changes, which improve the performance of the
devices. The following operating manual is purely a product
description. It does not guarantee properties under the warranty.
Please thoroughly read the corresponding documents and this
operating manual before handling a product.
SIGMATEK GmbH & Co KG is not liable for damages caused
through, non-compliance with these instructions or applicable
regulations.

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 9
2.3 General Safety Directives
The Safety Directives in the other sections of this operating manual must be observed.
These instructions are visually emphasized by symbols.
INFORMATION
According to EU Directives, the operating manual is a component of a
product.
This operating manual must therefore be accessible in the vicinity of
the machine since it contains important instructions.
This operating manual should be included in the sale, rental or transfer
of the product, or its online availability indicated.
Regarding the requirements for Safety and health connected to the use
of machines, the manufacturer must perform a risk assessment in
accordance with machine directives 2006/42/EG before introducing a
machine to the market.
Operate the unit with devices and accessories approved by
SIGMATEK only.

SV 141 S-DIAS SPLITTER VARAN
Page 10 26.07.2023
CAUTION
Handle the device with care and do not drop or let fall.
Prevent foreign bodies and fluids from entering the device.
The device must not be opened!
Manipulez l’appareil avec précaution et ne le laissez pas tomber.
Empêchez les corps étrangers et les liquides de pénétrer dans
l’appareil.
L’appareil ne doit pas être ouvert!
If the device does not function as intended or has damage that could
pose a danger, it must be replaced!
En cas de fonctionnement non conforme ou de dommages pouvant
entraîner des risques, l'appareil doit être remplacé!
The module complies with EN 61131-2.
In combination with a facility, the system integrator must comply with
EN 60204-1 standards.
For your own safety and that of others, compliance with the
environmental conditions is essential.
Le module est conforme à la norme EN 61131-2.
En combinaison avec une équipement, l’intégrateur de système doit
respecter la norme EN 60204-1.
Pour votre propre sécurité et celle des autres, le respect des conditions
environnementales est essential.
2.4 Software/Training
The application is created with the software LASAL CLASS 2 and LASAL SCREEN Editor.
Training for the LASAL development environment, with which the product can be
configured, is provided. Information on our training schedule can be found on our website.

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 11
3 Standards and Directives
3.1 Directives
The product was constructed in compliance with the following European Union directives
and tested for conformity.
3.1.1 EU Conformity Declaration
EU Declaration of Conformity
The product SV 141 conforms to the following European directives:
•2014/35/EU Low-voltage Directive
•2014/30/EU Electromagnetic Compatibility (EMC Directive)
•2011/65/EU “Restricted use of certain hazardous substances in
electrical and electronic equipment” (RoHS Directive)
The EU Conformity Declarations are provided on the SIGMATEK website.
See Products/Downloads or use the search function and the keyword “EU
Declaration of Conformity”.

SV 141 S-DIAS SPLITTER VARAN
Page 12 26.07.2023

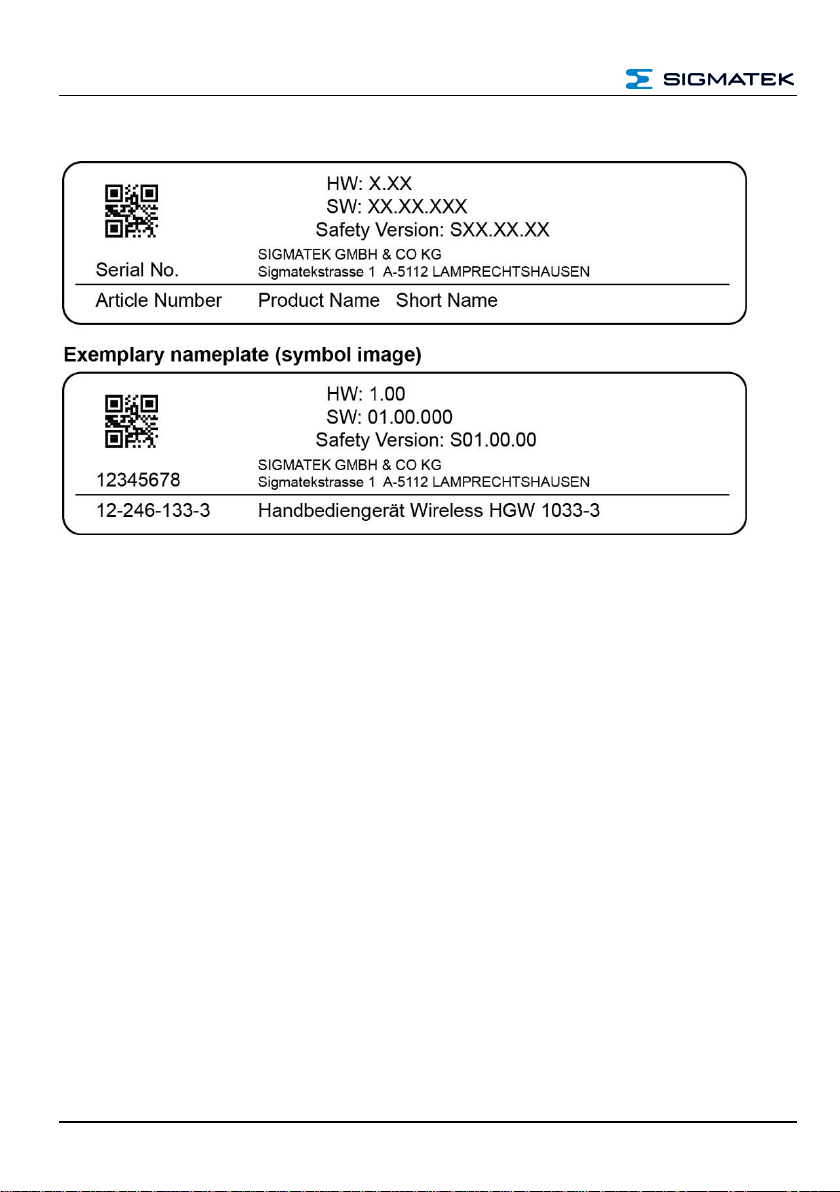

4 Type Plate
HW: Hardware version
SW: Software version

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 13
5 Technical Data
5.1 Performance Data
Interfaces
1x VARAN In (RJ45)
4x VARAN Out (RJ45), +24 V switchable over VARAN, 500 mA per port
(of which 1x Ethernet (Vte) or real-time Ethernet optional)
(maximum cable length: 100 m)
5.2 Electrical Requirements
Supply voltage
+18-30 V DC
UL: Class 2 or LVLC(1)
Current consumption of +24 V
power supply
typically 0.25 A internal electronics supply
VARAN Out port load (maximum 2 A)
(1) Limited Voltage/Limited Current
INFORMATION
(1) Device shall be supplied by a secondary isolated source rated 24 V
DC. Fuse in accordance with UL 249, rated max. 4 A shall be provided
between the supply and device terminal.

SV 141 S-DIAS SPLITTER VARAN
Page 14 26.07.2023

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 15
5.3 Miscellaneous
Article number
20-023-141
Standard
UL 508 (E247993)
Approbations
UL, cUL, CE, UKCA
5.4 Environmental Conditions
Storage temperature
-20 ... +85 °C
Environmental temperature
0 ... +50 °C
Humidity
0-95 %, non-condensing
Installation altitude above sea
level
0-2000 m without derating
> 2000 m up to a maximum of 5000 m with derating of the maximum
environmental temperature by 0.5 °C per 100 m
Operating conditions
pollution degree 2
EMC resistance
in accordance with EN 61000-6-2 (industrial area)
EMC noise generation
in accordance with EN 61000-6-4 (industrial area)
Vibration resistance
EN 60068-2-6
3.5 mm from 5-8.4 Hz
1g from 8.4-150 Hz
Shock resistance
EN 60068-2-27
15 g
Protection type
EN 60529
IP20

SV 141 S-DIAS SPLITTER VARAN
Page 16 26.07.2023
6 Mechanical Dimensions

S-DIAS SPLITTER VARAN SV 141
26.07.2023 Page 17
7 Connector Layout
7.1 Front View

SV 141 S-DIAS SPLITTER VARAN
Page 18 26.07.2023
7.1.1 Status LEDs
RUN
yellow
LIGHTS
VARAN PLL locked
DC OK
green
LIGHTS
Module is supplied with a voltage > 18 V
VARAN In Link
green
LIGHTS
Connection between both PHYs made
BLINKS
VARAN In of the primary client has no link
VARAN In Active
yellow
LIGHTS
Data is exchanged over the VARAN bus
VARAN Out Link
green
LIGHTS
Connection between both PHYs made
BLINKS
There is no connection between VARAN In and the primary client.
VARAN Out Active
yellow
LIGHTS
Data is exchanged over the VARAN bus
VARAN Out 24 V
yellow
LIGHTS
24 V supply to VARAN Out port is on
7.1.2 Connectors
X1: VARAN In
8-pin RJ45
n.c. = do not use
X2-X5: VARAN Out
8-pin RJ45
Pin
Function
1
TX+/RX+
2
TX-/RX-
3
RX+/TX+
4
n.c.
5
n.c.
6
RX-/TX-
7
n.c.
8
n.c.
Pin
Function
1
TX+/RX+
2
TX-/RX-
3
RX+/TX+
4
+24 V out
5
+24 V out
6
RX-/TX-
7
GND
8
GND
