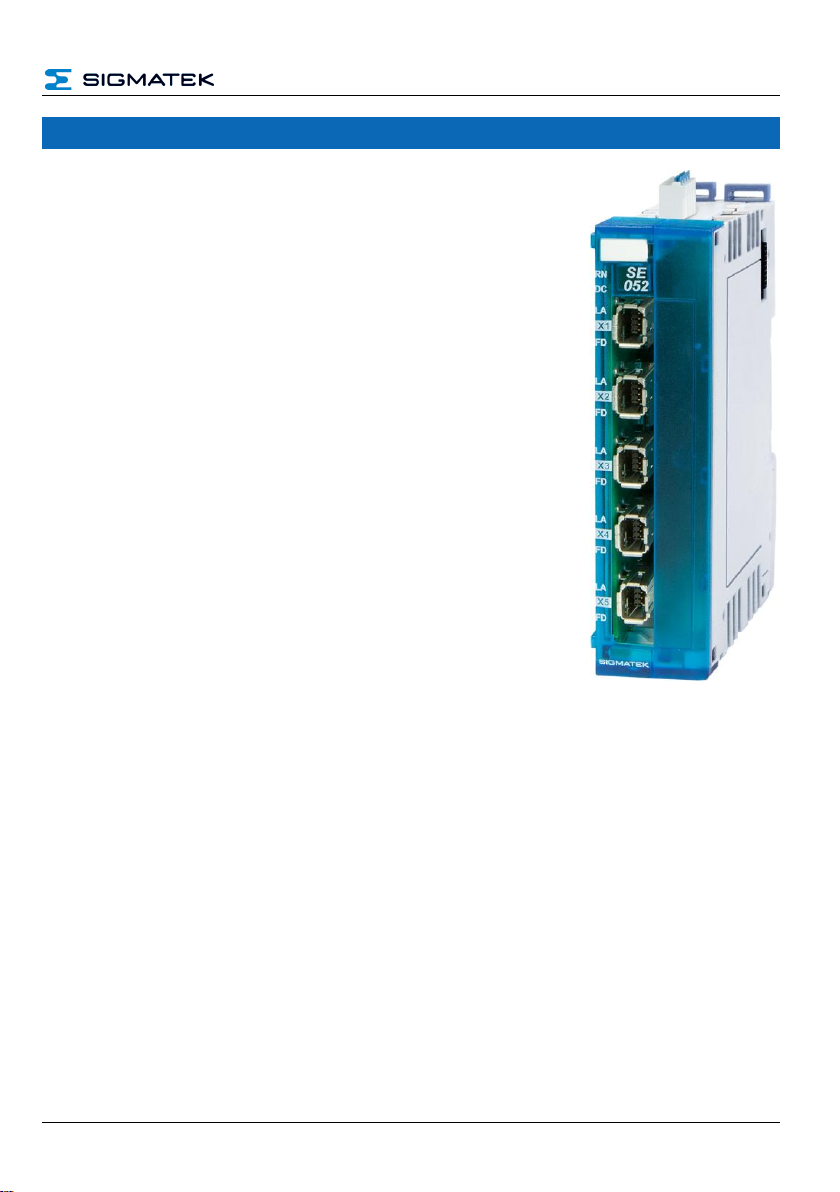

S-DIAS Splitter Ethernet SE 052
with 5 Ethernet interfaces (Tyco Mini I/O)
The S-DIAS SE 052 Ethernet splitter connects multiple network
segments via 5 ports. Incoming data packets to an Ethernet port
are distributed to the other ports. The splitter module is installed in
a double-wide S-DIAS housing. The current is supplied from the
top over a 4-pin Phoenix connector.

SE 052 S-DIAS SPLITTER ETHERNET
Page 2 26.07.2023
Contents
1Introduction............................................................................. 4
1.1 Target Group/Purpose of this Manual ........................................4
1.2 Contents of Delivery.....................................................................4
2Basic Safety Guidelines......................................................... 5
2.1 Symbols Used...............................................................................5
2.2 Disclaimer......................................................................................7
2.3 General Safety Guidelines...........................................................8
3Residual Risks .......................................................................10
3.1 Guidelines....................................................................................10
3.1.1 EU Declaration of Conformity............................................................10
4Type Plate...............................................................................11
5Technical Data .......................................................................12
5.1 Performance Data.......................................................................12
5.2 Standard Configuration..............................................................12
5.3 Electrical Requirements.............................................................13
5.4 Miscellaneous .............................................................................13
5.5 Environmental Conditions.........................................................14
6Mechanical Dimensions........................................................15
7ESD Protection.......................................................................16

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 3
8Connector Layout..................................................................17
8.1 Front View....................................................................................17
8.1.1 Status LEDs...................................................................................... 17
8.1.2 Connectors........................................................................................ 18
8.2 Top View ......................................................................................18
8.3 Applicable Connectors...............................................................19
8.4 Applicable Connector Cables....................................................20
8.5 Label Field ...................................................................................21
9Shielding................................................................................22
10 Strain Relief ...........................................................................23
11 Assembly/Installation ...........................................................24
11.1 Check Contents of Delivery.......................................................24
11.2 Mounting......................................................................................25
12 Transport/Storage.................................................................27
13 Storage...................................................................................27
14 Maintenance...........................................................................28
14.1 Service .........................................................................................28
14.2 Repair...........................................................................................28
15 Disposal .................................................................................28

SE 052 S-DIAS SPLITTER ETHERNET
Page 4 26.07.2023
1 Introduction
1.1 Target Group/Purpose of this Manual
This manual contains all information required for operating the SE 052.
This manual is intended for:
•Project planners
•Technicians
•Commissioning engineers
•Machine operators
•Maintenance/test technicians
General knowledge of automation technology is required.
Further help and training information, as well as the appropriate accessories can be found
on our website www.sigmatek-automation.com
Our support team is happily available to answer your questions.
Please see our website for our hotline number and business hours.
1.2 Contents of Delivery
1x SE 052
1x opposing connector
This document can be downloaded from our website.
Additional documents may be included with delivery.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 5
2 Basic Safety Guidelines
2.1 Symbols Used
The following symbols are used in the operator documentation for warning and danger
messages, as well as informational notes:
DANGER
Danger indicates that death or serious injury will occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Danger indique une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
WARNING
Warning indicates that death or serious injury can occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Avertissement d’une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
CAUTION
Caution indicates that moderate to slight injury can occur, if the
specified measures are not taken.
To avoid moderate to slight injuries, observe all guidelines.
Attention indique une situation dangereuse qui, faute de prendre les
mesures adéquates, peut entraîner des blessures assez graves ou
légères.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.

SE 052 S-DIAS SPLITTER ETHERNET
Page 6 26.07.2023
INFORMATION
Information
Provides important information on the product, handling or
relevant sections of the documentation, which require
attention.
CAUTION
Danger for ESD-sensitive components.
Les signes de danger pour les composants sensibles aux décharges
électrostatiques.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 7
2.2 Disclaimer
INFORMATION
The contents of this operating manual were prepared with the greatest
care. However, deviations cannot be ruled out. This operating manual
is regularly checked and required corrections are included in the
subsequent versions. The machine manufacturer is responsible for the
proper assembly, as well as device configuration. The machine
operator is responsible for safe handling, as well as proper operation.
The current operating manual can be found on our website. If
necessary, contact our support.
Subject to technical changes, which improve the performance of the
devices. The following operating manual is purely a product
description. It does not guarantee properties under the warranty.
Please thoroughly read the corresponding data sheets, operating
instructions and this system handbook before handling a product.
SIGMATEK GmbH & Co KG is not liable for damages caused
through non-compliance with these instructions or applicable
regulations.
The general and special safety instructions described in the following
sections, as well as technical regulations, must therefore be observed.

SE 052 S-DIAS SPLITTER ETHERNET
Page 8 26.07.2023
2.3 General Safety Guidelines
The Safety Directives in the other sections of this operating manual must be observed.
These instructions are visually emphasized by symbols.
INFORMATION
According to EU Guidelines, the operating instructions are a
component of a product.
This manual must therefore be accessible in the vicinity of the machine
since it contains important instructions.
This technical documentation should be included in the sale, rental or
transfer of the product, or its online availability indicated.
Maintain this manual in readable condition and keep it accessible for
reference.
Regarding the requirements for Safety and health connected to the use
of machines, the manufacturer must perform a risk assessment in
accordance with machine directives 2006/42/EG before introducing a
machine to the market.
Operate the unit with devices and accessories approved by
SIGMATEK only.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 9
CAUTION
Handle the device with care and do not drop or let fall.
Prevent foreign bodies and fluids from entering the device.
The device must not be opened!
Manipulez l’appareil avec précaution et ne le laissez pas tomber.
Empêchez les corps étrangers et les liquides de pénétrer dans
l’appareil.
L’appareil ne doit pas être ouvert!
If the device does not function as intended or has damage that could
pose a danger, it must be replaced!
En cas de fonctionnement non conforme ou de dommages pouvant
entraîner des risques, l'appareil doit être remplacé!
The module complies with EN 61131-2.
In combination with a facility, the system integrator must comply with
EN 60204-1 standards.
For your own safety and that of others, compliance with the
environmental conditions is essential.
Le module est conforme à la norme EN 61131-2.
En combinaison avec une équipement, l’intégrateur de système doit
respecter la norme EN 60204-1.
Pour votre propre sécurité et celle des autres, le respect des conditions
environnementales est essential.

SE 052 S-DIAS SPLITTER ETHERNET
Page 10 26.07.2023
3 Residual Risks
3.1 Guidelines
The panel was constructed in compliance with European Union guidelines.
3.1.1 EU Declaration of Conformity
EU Declaration of Conformity
The SE 052 conforms to the following European guidelines:
•2014/35/EU Low-voltage guideline
•2014/30/EU “Electromagnetic Compatibility” (EMC guideline)
•2011/65/EU “Restricted use of certain hazardous substances in
electrical and electronic equipment” (RoHS Guideline)
The EU Conformity Declarations are provided on the SIGMATEK website.
See Products/Downloads or use the search function and the keyword “EU
Declaration of Conformity”.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 11

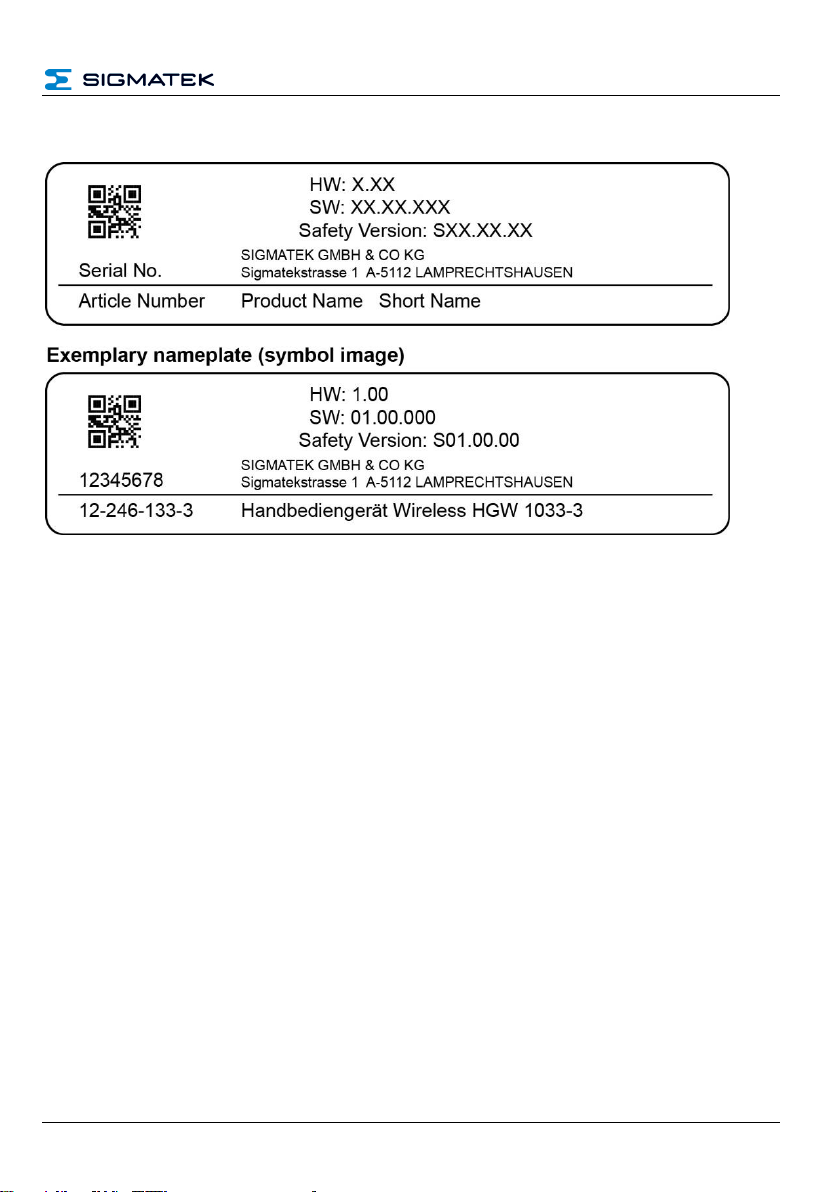

4 Type Plate
HW: Hardware version
SW: Software version

SE 052 S-DIAS SPLITTER ETHERNET
Page 12 26.07.2023
5 Technical Data
5.1 Performance Data
Interfaces
5x Ethernet 10/100 Mbit (Tyco Mini I/O)
Network coupling type
Layer 2 Switch
Supported functionalities
Auto MDI/MDIX,
Autonegotiation with
100Base-TX, full-duplex,
100Base-TX, half-duplex,
10Base-T, full-duplex,
10Base-T, half-duplex
5.2 Standard Configuration
Ethernet 1
X1
Ethernet 2
X2
Ethernet 3
X3
Ethernet 4
X4
Ethernet 5
X5
INFORMATION
Problems can arise if a control is connected to an IP network, which
contains modules that do not contain a SIGMATEK operating system.
With such devices, Ethernet packets could be sent to the control with
such a high frequency (i.e. broadcasts), that the high interrupt load
could cause a real-time runtime error or runtime error. By configuring
the packet filter (Firewall or Router) accordingly however, it is possible
to connect a network with SIGMATEK hardware to a third-party
network without triggering the error mentioned above.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 13
5.3 Electrical Requirements
Supply voltage
18-30 V DC
UL: Class 2 or LVLC(1)
Supply current over X6
typically: 45 mA at 18 V
typically: 35 mA at 24 V
typically: 30 mA at 30 V
maximum: 50 mA at 18 V
maximum: 40 mA at 24 V
maximum: 35 mA at 30 V
(1) Limited Voltage/Limited Current
INFORMATION
(1)The device must be connected to a secondary galvanically separated
supply with a rated voltage of 24 V DC. In compliance with UL 249,
max 4 A, the fuse must be connected in the area between the supply
source and the end device.
5.4 Miscellaneous
Article number
20-023-052
Standard
UL 508 (E247993)
Approvals
CE

SE 052 S-DIAS SPLITTER ETHERNET
Page 14 26.07.2023
5.5 Environmental Conditions
Storage temperature
-20 ... +85 °C
Ambient temperature
0 ... +55 °C
Humidity
0-95 %, non-condensing
Installation altitude above sea
level
0-2000 m without derating
> 2000 m with derating of the maximum environment temperature by 0.5 °C
per 100 m
Operating conditions
pollution degree 2
EMC resistance
in accordance with EN 61000-6-2 (industrial area)
EMC noise generation
in accordance with EN 61000-6-4 (industrial area)
Vibration resistance
EN 60068-2-6
3.5 mm from 5-8.4 Hz
1 g from 8.4-150 Hz
Shock resistance
EN 60068-2-27
15 g
Protection type
EN 60529
IP20

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 15
6 Mechanical Dimensions

SE 052 S-DIAS SPLITTER ETHERNET
Page 16 26.07.2023
7 ESD Protection
CAUTION
Before any device is connected to or disconnected from the SE 052,
the potential with ground should be equalized (by touching the control
cabinet or ground terminal). Electrostatic loads (through clothing and
shoes) can thereby be dissipated.
Avant de connecter ou de déconnecter un appareil au SE 052, le
potentiel avec masse doit être égalisé (en touchant l'armoire électrique
ou la borne de terre). Les charges électrostatiques (à travers les
vêtements et les chaussures) peuvent ainsi être dissipées.

S-DIAS SPLITTER ETHERNET SE 052
26.07.2023 Page 17
8 Connector Layout
8.1 Front View
8.1.1 Status LEDs
Run
yellow
LIGHTS
switch-IC running
DC OK
green
LIGHTS
module is supplied with a voltage > 18 V
Ethernet Link/Active
green
LIGHTS
connection between the two PHYs made
BLINKS
data is exchanged over the Ethernet bus
Ethernet Fulld/Col
yellow
LIGHTS
full duplex mode (LED does not light –half duplex)

SE 052 S-DIAS SPLITTER ETHERNET
Page 18 26.07.2023
8.1.2 Connectors
1.1.1.1 X1-X5: Ethernet (Industrial Mini I/O)
8.2 Top View
Pin
Function
1
Tx+/Rx+
2
Tx-/Rx-
3
Rx+/Tx+
4-5
n.c.
6
Rx-/Tx-
7-8
n.c.
