Signamax065-7030Q 16-Port QoS Switch
User’s Manual 1
FCC Statement
The FCC (Federal Communications Commission) restricts
the amount of radio frequency emission and radiation coming
from computer equipment.
The equipment introduced in this manual has been tested
and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user is required
to correct the interference at his/her own expense.
Any changes or modifications not expressly approved by the
manufacture would void the user’s authority to operate the
equipment.
Trademarks
Product names mentioned in this manual may be trademarks
or registered trademarks of those products.
All trademarks or brand names mentioned are properties of
their respective companies.

Signamax065-7030Q 16-Port QoS Switch
2User’s Manual
Preface
This manual describes how to install and use the Signamax065-
7030Q 16-Port QoS Switch. The switch introduced here auto-
negotiates the presence of 10/100Mbps and full/half-duplex mode.
To get the most out of this manual, you should have an
understanding of networking concepts such as bridging, IEEE
802.3 Ethernet, 100BaseTX/FX Fast Ethernet, and local area
networks (LANs).
For more information about these topics, please refer to the
Appendices.
In this manual, you will find:
•Introduction on the Switch
•Product features
•Illustrative LEDs functions
•Installation instructions
•Specifications
•Tutorial information for Ethernet technologies
•Troubleshooting Guide

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 3
Table of Contents
FCC STATEMENT 1
TRADEMARKS 1
PREFACE 2
TABLE OF CONTENTS 3
PRODUCT OVERVIEW 5
FRONT VIEW 5
PACKAGE CONTENTS 5
PRODUCT FEATURES 6
FRONT PANEL DISPLAY 7
PHYSICAL PORTS 8
Understanding Front Panel Design 8
QOS (QUALITY OF SERVICE) SETTINGS 9
INSTALLATION 10
SELECTING A SITE FOR THE EQUIPMENT 10
DECIDING HOW TO INSTALL 11
Desktop or any flat surface 11
CONNECTING TO POWER 11
CONNECTING TO YOUR NETWORK 12
Cabling 12
Network Segmentation 13
TECHNICAL SPECIFICATIONS 14
PHYSICAL SPECIFICATIONS 15
APPENDIX A –CONNECTOR PINOUTS 16
APPENDIX B –INTRODUCTION TO LAN & ETHERNET
TECHNOLOGIES 17

Signamax065-7030Q 16-Port QoS Switch
4User’s Manual
LAN 17
ETHERNET TECHNOLOGIES 18
Fast Ethernet 18
Gigabit Ethernet 18
ETHERNET PRODUCTS 19
Hub 19
Switch 19
APPENDIX C –VLANS20
APPENDIX D–TROUBLESHOOTING GUIDE 22
NO POWER TO THE SWITCH 23
POWER LED FAILURE 24
NO CONNECTIVITY TO THE DATA TERMINAL EQUIPMENT 25
NO CONNECTIVITY TO CERTAIN NODES ON THE NETWORK 27
POOR PERFORMANCE 28
APPENDIX E: CONTACT INFORMATION 29

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 5
Product Overview

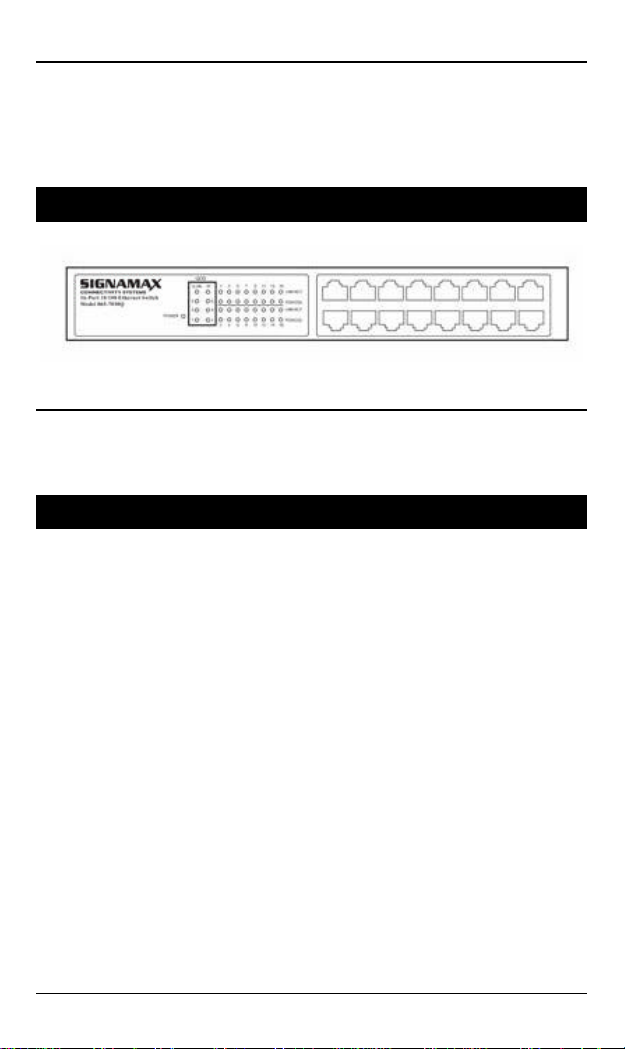

Front View
Figure 1: Signamax065-7030Q 16-Port QoS Switch
Package Contents
When you unpack the product package, you shall find these items
listed below.
PThe Signamax  065-7030Q 16-Port QoS
Switch
POne AC power cord
PUser’s Manual
Please inspect the contents, and report any apparent damage or
missing items immediately to your authorized reseller.

Signamax065-7030Q 16-Port QoS Switch
6User’s Manual
Product Features
♦PLUG-AND-PLAY.
♦PROVIDES 16 × 10/100MBPS PORTS USING RJ-45
CONNECTORS.
♦SUPPORTS 16 RJ-45 CONNECTOR PORTS WITH AUTO MDIX.
♦SUPPORTS 16K MAC ADDRESSES FOR THE 16-PORT SWITCH.
♦AUTO-NEGOTIATION FOR SPEED AND DUPLEX MODE ONTX
PORTS.
♦TRUE NON-BLOCKING ARCHITECTURE.
♦STORE-AND-FORWARD MECHANISM.
♦FULL WIRE SPEED FORWARDING RATE.
♦BACKPRESSURE AND IEEE 802.3X COMPLIANT FLOW
CONTROL.
♦THREE QOS (QUALITY OF SERVICE) LEVELS CHECKED VIA IP
HEADER AND 802.1Q VLAN TAG AND/OR SELECTED PER
PORT BASIS.
♦BROADCAST THROTTLING.
♦FRONT PANEL PORT STATUS LEDS.

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 7
Front Panel Display
An array of LED indicators on the front panel provides you with
instant feedback on each port status, and, helps you monitor and
troubleshoot the Signamax065-7030Q 16-Port QoS switch.
Œ Power • Port Status Ž QoS
Status
Figure 2: Signamax065-7030Q 16-Port QoS Switch Front Panel LEDs
ΠPower
This LED comes on when the switch is properly connected to power and
turned on.
• Port Status
The RJ-45 ports numbered from 1 to 16 in one section on the 16-Port QoS
Switch.
The LEDs are located at the left side of 16 RJ-45 ports, displaying status for
each respective port. Please refer to the table below for more information.
Ž QoS (Quality of Service) Status
The LEDs displaying status for Layer 3 IP Header priority, Layer 2 VLAN
Tagging priority, and Port 1~6 Port based priority.
iBefore you use this table for troubleshooting, make sure the switch is
properly connected to power and turned on.

Signamax065-7030Q 16-Port QoS Switch
8User’s Manual
Physical Ports
The Signamax065-7030Q 16-Port QoS Switch has sixteen
10/100Mbps ports using RJ-45 connectors with Auto MDIX
function.
UNDERSTANDING FRONT PANEL DESIGN
On Power feeding in
Power switched off
Power LED Off Improper connection
On A valid network connection
LNK stands for LINK
Flashing Transmitting or receiving data
ACT stands for ACTIVITY
LNK/ACT
Off No connection
On Full duplex mode
FDX stands for Full Duplex
Flashing Collision occurred
COL stands for Collision
Port LED
FDX/COL
Off Half duplex mode
On Layer 3 IP Header priority onIP Off Layer 3 IP Header priority off
On Layer 2 VLAN Tagging priority on VLAN Off Layer 2 VLAN Tagging priority off
On Port 1~6 Port based priority on
QoS Status
LED
Port 1~6 Off Port 1~6 Port based priority off

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 9
QoS (Quality of Service) Settings

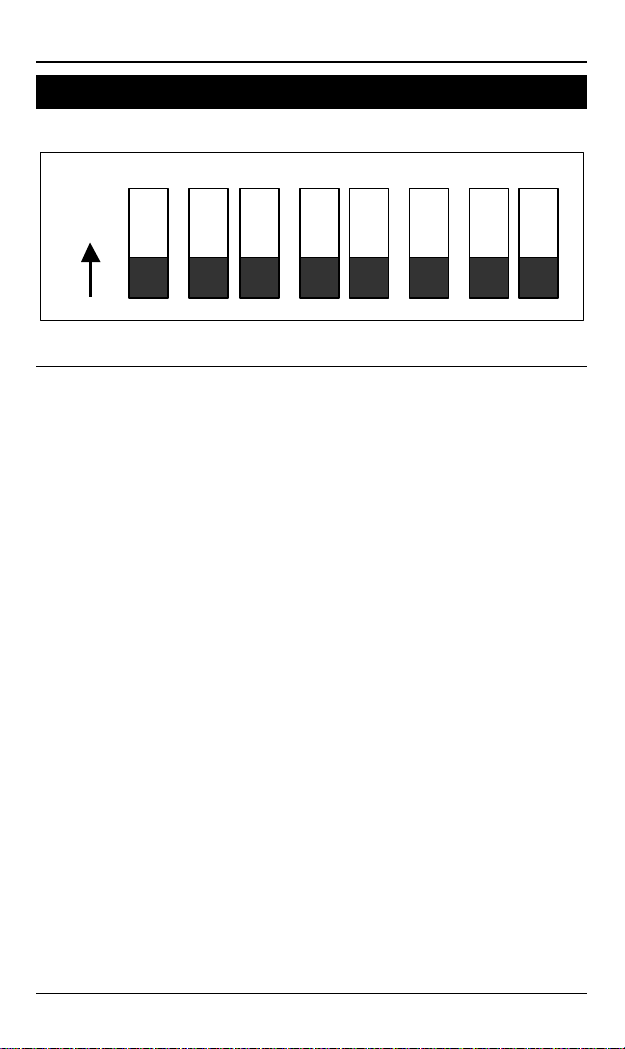

Figure 3: Default Setting of the QoS (Quality of Service) DIP Switch on the
Rear Panel
There are eight pins on the QoS (Quality of Service) DIP
Switch for QoS (Quality of Service) Settings.
lToggle on Pin 1 to enable Port based QoS on Port 1.
lToggle on Pin 2 to enable Port based QoS on Port 2.
lToggle on Pin 3 to enable Port based QoS on Port 3.
lToggle on Pin 4 to enable Port based QoS on Port 4.
lToggle on Pin 5 to enable Port based QoS on Port 5.
lToggle on Pin 6 to enable Port based QoS on Port 6.
lToggle on Pin 7 to enable layer 2 VLAN Tagging QoS.
lToggle on Pin 8 to enable layer 3 IP Header QoS.
1 2 3 4 5 6 7 8
O
N

Signamax065-7030Q 16-Port QoS Switch
10 User’s Manual
Installation
Selecting a Site for the Equipment
As with any electric device, you should place the Signamax065-
7030Q 16-Port QoS Switch where it will not be subjected to
extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following
requirements:
-The ambient temperature should be between 32 and 104
degrees Fahrenheit (0 to 40 degrees Celsius).
-The relative humidity should be less than 90 percent,
non-condensing.
-Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards for IEC 801-3, Level 2
(3V/M) field strength.
-Make sure that the equipment receives adequate ventilation.
Do not block the ventilation holes on each side of the switch or
the fan exhaust port on the side or rear of the equipment.
-The power outlet should be within 1.8 meters of the switch.

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 11
Deciding How to Install
DESKTOP OR ANY FLAT SURFACE
The Signamax065-7030Q 16-Port QoS switch can sit on desktop
or any flat surface with adequate space and ventilation. If you want
to place it onto a shelf, make sure the shelf can withstand the
weight of the switch.
Step 1: Simply put the switchon the desired place.
Step 2: Ensure the switch receives good ventilation.
Step 3: Proceed to the “Connecting to Power” section.
Connecting to Power
Locate the supplied AC power cord.
Step 1:Connect the AC power cord to the receptacle at the back of the
switch.
Step 2:Attach the plug into a standard AC outlet with a voltage range from
100~260V AC.
Step 3:Locate the power ON/OFF switch beside the receptacle at the
back.
Turn on the switch by flipping the ON/OFF switch to ON position.
The power LED on the front panel will come on then.
Figure 4: Rear view of the Signamax065-7030Q 16-Port QoS Switch

Signamax065-7030Q 16-Port QoS Switch
12 User’s Manual
Connecting to Your Network
CABLING
Step 1: First, ensure the power of the switch and end devices is turned off.
iIt may cause an electric shock and possible harm to you if the power is
not switched off.
Step 2: Prepare cable with corresponding connectors for each type of port
in use.
Consult the table below for cabling requirements based on
connectors and speed considerations.
Step 3: Connect one end of the cable to the switch and the other end to a
desired device.
Step 4: Once the connections between two end devices are made
successfully, turn on the power and the switch is operational.

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 13
NETWORK SEGMENTATION
Cable Specifications Table
Ethernet
Standards Connector Port Speed
Half/Full
Duplex
Cable Max.
Distance
10Base2 BNC 10/20
Mbps Coaxial 185 m
10BaseT RJ-45 10/20
Mbps Cat. 3, 4 or 5 UTP/STP 100 m
100BaseTX RJ-45 100/200
Mbps Cat. 5 UTP/STP 100 m
100BaseFX
Multi-mode ST, SC,
MT-RJ,
VF-45
100/200
Mbps 62.5/125 µm multi-
mode fiber
2 km
100BaseFX
Single-mode SC 100/200
Mbps 10/125 µm single-
mode fiber
15 km
100BaseFX
Single-mode SC 100/200
Mbps 10/125 µm single-
mode fiber
40 km
100BaseFX
Single-mode SC 100/200
Mbps 10/125 µm
single-
mode fiber
75 km

Signamax065-7030Q 16-Port QoS Switch
14 User’s Manual
Technical Specifications
Signamax065-7030Q
16-Port QoS Switch
Applicable
Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
Back pressure and IEEE 802.3x compliant flow control
IEEE 802.1Q VLAN Tagging
Fixed Ports Sixteen ports for the 16-Port QoS Switch
100BaseTX:
200Mbps for full-duplex; 100Mbps for half-duplex
Speed
10BaseT:
20Mbps for full-duplex; 10Mbps for half-duplex
Switching
Method Store-and-Forward
Performance 148,800pps forwarding rate per port for 100Mbps
14,880pps forwarding rate per port for 10Mbps
PowerChassis LED
Indicators For fixed ports:
LNK/ACT; FDX/COL (2 LEDs)
For IP QoS
IP (1 LED)
For VLAN QoS
VLAN (1 LED)
QoS LED
Indicators
For Port based QoS
1~6 (1 LED for each Port, Port 1~6)

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 15
Physical Specifications
Signamax065-7030Q 16-Port QoS
Switch
Dimensions 254 × 135 × 35 mm (10 × 5.3 × 1.4 inch)
Compact Size
Weight Approx. 1.6kg (3.5lb.)
Power Input 100 ~ 260 V AC, 47~63 Hz
Power
Consumption 15W Max.
Operating
Temperature 0° ~ 40°C (32° ~ 104°F)
Storage
Temperature -25° ~ 70°C (-13° ~ 158°F)
Humidity
10 ~ 90%, non-condensing
Emissions FCC part 15 Class A, CISPR Class A,
VCCI Class A, CE Mark
Safety
UL

Signamax065-7030Q 16-Port QoS Switch
16 User’s Manual
Appendix A –Connector Pinouts
Pin arrangement of RJ-45 connectors:
Figure 5: RJ-45 Connector and Cable Pins
The following table lists the pinout of 10/100BaseT/TX ports.
Table 6: Connector Pin-Out
Pin Regular Ports Uplink port
1Input Receive Data + Output Transmit Data +
2Input Receive Data-Output Transmit Data-
3Output Transmit Data + Input Receive Data +
4NC NC
5NC NC
6Output Transmit Data-Input Receive Data -
7NC NC
8NC NC

Signamax065-7030Q 16-Port QoS Switch
User’s Manual 17
Appendix B –Introduction to LAN
& Ethernet Technologies
As communication and business applications become increasingly
complex, computer networking has evolved as a very important
part of the infrastructure.
Communication systems like Local Area Network (LAN) evolved
into sophisticated, powerful, yet flexible technology. Among the
different types of LAN technologies, Ethernet represents the best in
speed, cost, ease of installation, and supportability.
LAN
Local Area Network (LAN) technology gives personal computers
the power to share resources of hardware and software. LAN
connects personal computers, file servers, printers, etc. together
within a geographical area, usually a single building. Multiple,
widely dispersed LAN systems are referred to as a Wide Area
Network (WAN).

Signamax065-7030Q 16-Port QoS Switch
18 User’s Manual
Ethernet Technologies
More than 80 percent of all LANs utilize Ethernet technology. The
Institute of Electrical and Electronic Engineers (IEEE) standardized
Ethernet in IEEE 802.3, which provides for configuration rules,
interaction requirements, types of media, and data rate.
FAST ETHERNET
For networks that need higher transmission speed, a faster speed
was developed and IEEE next established IEEE 802.3u, raising the
Ethernet speed from 10 Mbps to 100 Mbps. Thus, Fast Ethernet
arose and users quickly began converting from 10Mbps to
100Mbps.
GIGABIT ETHERNET
The demand for even higher speed created the Gigabit Ethernet at
1000Mbps (or 1Gbps). The newer IEEE standards for Gigabit
Ethernet are IEEE 802.3z and 802.3ab. Watch for 10 Gigabit
Ethernet.
