24 Ports Nway Fast Ethernet Web Smart Switch
Introduction
065-7542 Switch provides 24 10/100Mbps ports. 065-7542
Switch was designed for easy installation and high
performance in an environment where traffic on the network
and the number of user increase continuously.
The compact rigid desktop size was specifically designed for
ROBO (Remote Office & Branch Office) and medium to
large workgroups. 065-7542 Switch can be installed where
space is limited; moreover it provides smooth network
migration and easy upgrade to network capacity.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Key Features
24 Port 10/100Base-T/TX Nway (Auto-negotiation)
Switch with RJ-45 connectors
All Ports Auto-MDI/MDIX
Desktop size with compact rigid design
Auto-detect of Full/Half-duplex modes in all ports
Dedicated Full-duplex 200Mbps bandwidth on each
port
Broadcast storm control
Store & Forward switching methods
IEEE 802.3x flow control for Full-duplex
Zero-Packet Loss Back-pressure flow control for
Half-duplex
Non-blocking & Non-head-of-line blocking full wire
speed forwarding
Auto-learning of networking configurations
Status LEDs: Power, 10/100M, Link/Activity
Smart plug & play
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Package Contents
Before you start to install 065-7542 Switch, please verify
your package that contains the following items:
One 065-7542 Fast Ethernet Switch
One Power Cord
One CD with User’s Manual
Note: If any of these items is found missing or damaged,
please contact your local supplier for replacement.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542

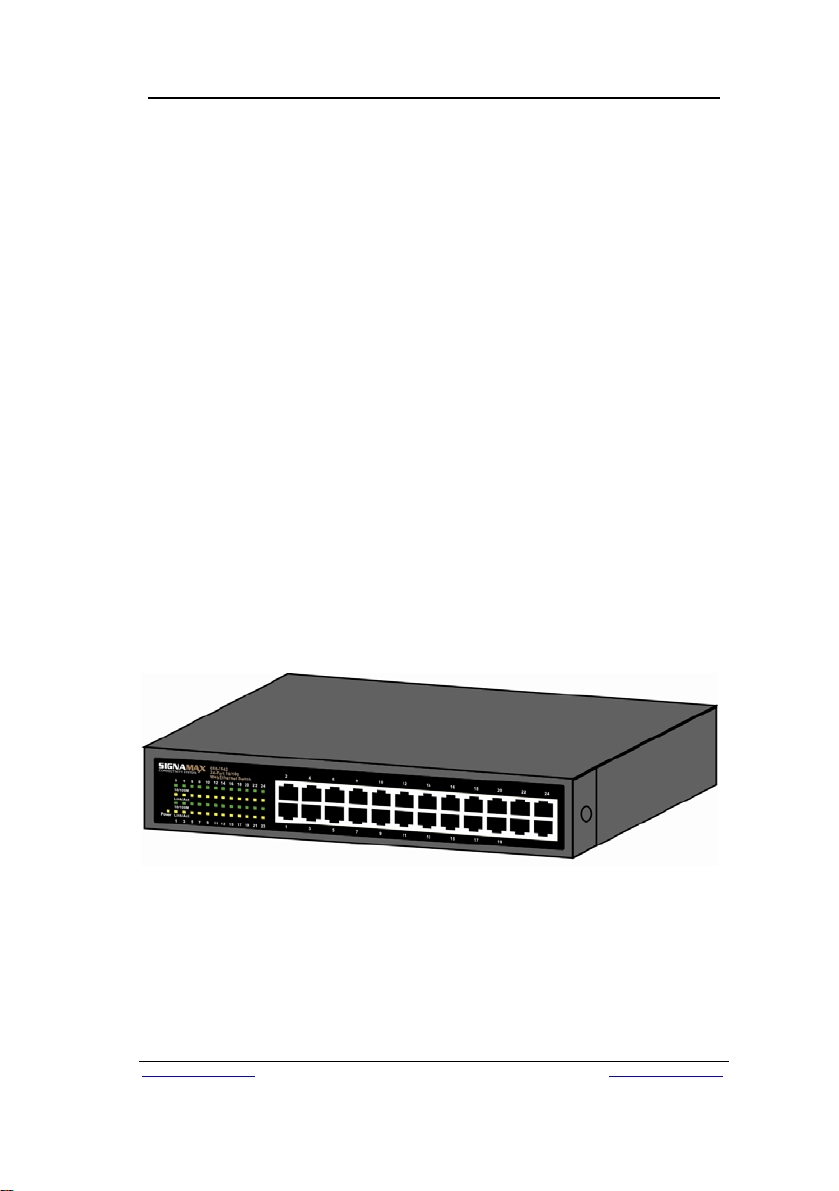

Front Panel Layout
Ⅰ. 24 RJ-45 10/100Mbps Switch Ports
There are 1~24 RJ-45 connectors on the front panel for
connecting to servers, workstation or other devices.
065-7542 Switch provides 24 10/100Mbps switching ports
that could sense the 10/100M speed and negotiate
Full/Half-duplex mode automatically. These switching
ports allow users to connect 065-7542 Switch to 10Base-T
and 100Base-TX devices.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Ⅱ.LED Indicators of 24 Port 10/100Mps Switch
LED Status Description No. Of LED
Power On Power on Power
On Port is on the
100M status 24 (1~24)10/100M
Off Port is on the 10M
status 24 (1~24)
On 10/100Mbps port
for connection 24 (1~24)LINK/ACT.
Flashing 10/100Mbps for
data activating 24 (1~24)
Ⅲ. LED Definitions
Power LED
On ：The unit is powered on and ready for use.
Off ：The unit is powered off.
10/100M LED
On ：The port is on the 100Mbps status.
Off ：The port is on the 10Mbps status.
LINK/ACT LED
On ：The port is ready for 10/100Mbps
connection.
Flashing ：The data is transmitted or received on the
port.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Rear Panel Layout
AC input
AC input (90-240V/AC, 50-60Hz) UL Safety
Installation
Ⅰ. To connect 065-7542 Switch to PCs, servers, and
other network devices
Use straight-through twisted-pair cable (Cat. 5) to connect
065-7542 Switch to PCs, servers and other network devices.
Networks can be built as figure shown.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Ⅱ. To connect 065-7542 Switch to a Switch or a Hub
Use straight-through twisted pair cable to connect 065-7542
Switch to another Switch or Hub on uplink port. If you
connect 065-7542 Switches on port 1 to port 24, the cable
should be changed to crossover cable.
Technical Specification
1. Standards Compliance
-IEEE 802.3 10BASE-T
-IEEE 802.3u 100BASE-TX
2. Number of Ports
- 24 integrated ports (10/100Mbps N-Way port)
3. Fully Flow Control Supported
- Half-duplex mode: Backpressure
- Full-duplex mode: IEEE 802.3x
4. Network Transmission Media
- 10Base–T Cat. 3, 4, 5 UTP/STP
- 100Base–TX Cat. 5 UTP/STP
- System: POWER
5. Network Status Monitoring LEDs
- Per port: LINK/ACT, 10/100M
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
9. Power
6. Buffer Memory
- RAM: 1.5Mbits per device
-RAM buffer dynamically allocated for each port
7. Filter/Forward Rate
- 100Mbps port - 148,800pps
- 10Mbps port - 14,880pps
8. MAC Address
- Up to 4K per device
-AC input (90-240V/AC, 50-60Hz) UL Safety
10. Power Consumption
- 9.2 Watts (Max)
11. Operating Temperature
-0℃~ 60℃
12. Store Temperature
- -20℃~ 90℃
13. Humidity
- 10% ~90% RH (Non-condensing)
14. Dimension (L × W × H)
- 266mm × 160mm × 44mm
15. Weight
- 1.6Kg
16. Safety & EMI Certificates
-CE & FCC-B
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Web Smart Switch
Ⅰ. Features Overview
Supports real-time status (link, speed, duplex) of each
port
Supports port setting for enable or disable operation
(the 1st port can’t be disabled)
Supports port setting for N-Way or force mode operation
Supports Bandwidth Control on transmission and
reception
Supports Broadcast Storm Protection
Supports Maximum Packet Length 1536 or 1552.
Supports Port-bases VLAN
Supports two priority queues for CoS
Supports weighted round robin scheduling for queues.
Supports Port-bases / 802.1p / DiffServ. priority three
types of CoS
Ⅱ. Configure
Please follow the steps to configure 065-7542 Switch.
Step 1:
Use a twisted pair cable to connect 065-7542 Switch to
your PC and power on the Switch
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Step 2:
Set your PC’s IP to 192.168.2.xx
Step 3:
Open the web browser (like IE…), and then go to the
192.168.2.1 site, and you will see the login screen.
Key in the user name and the password to pass the
authentication, and the user ID and the password is
“admin”.
IP: 192.168.2.1
ID: admin
Password: admin
After the authentication procedure, the home page shows
up.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Step 4:
On the following home page, select the configuration by
clicking the icon. It includes,
- Administrator
- Port Management
- VLAN Setting
- QoS Setting
- Port Security
- Logout
Administrator: Authentication Configuration
Change the password, or use a new user ID and the
password.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Click “Update” to confirm the new change, and then power
off/on the Switch to take the new ID and the password
effectively.

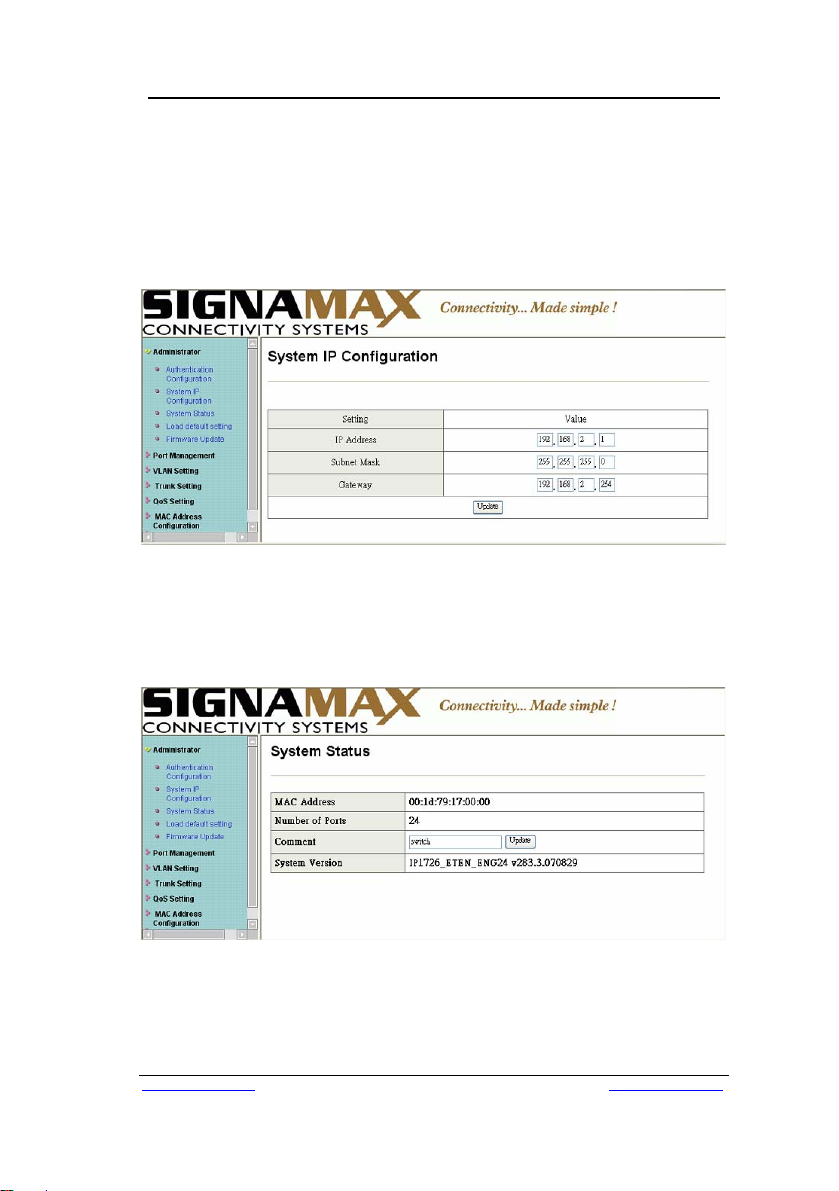

Administrator: System IP Configuration
Change the IP address by typing the new IP and press
“Update” to complete the change.
Administrator: System Status
It shows the switch MAC address, and you can select
“Back to the last display” or “Logout” when the time’s out.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542

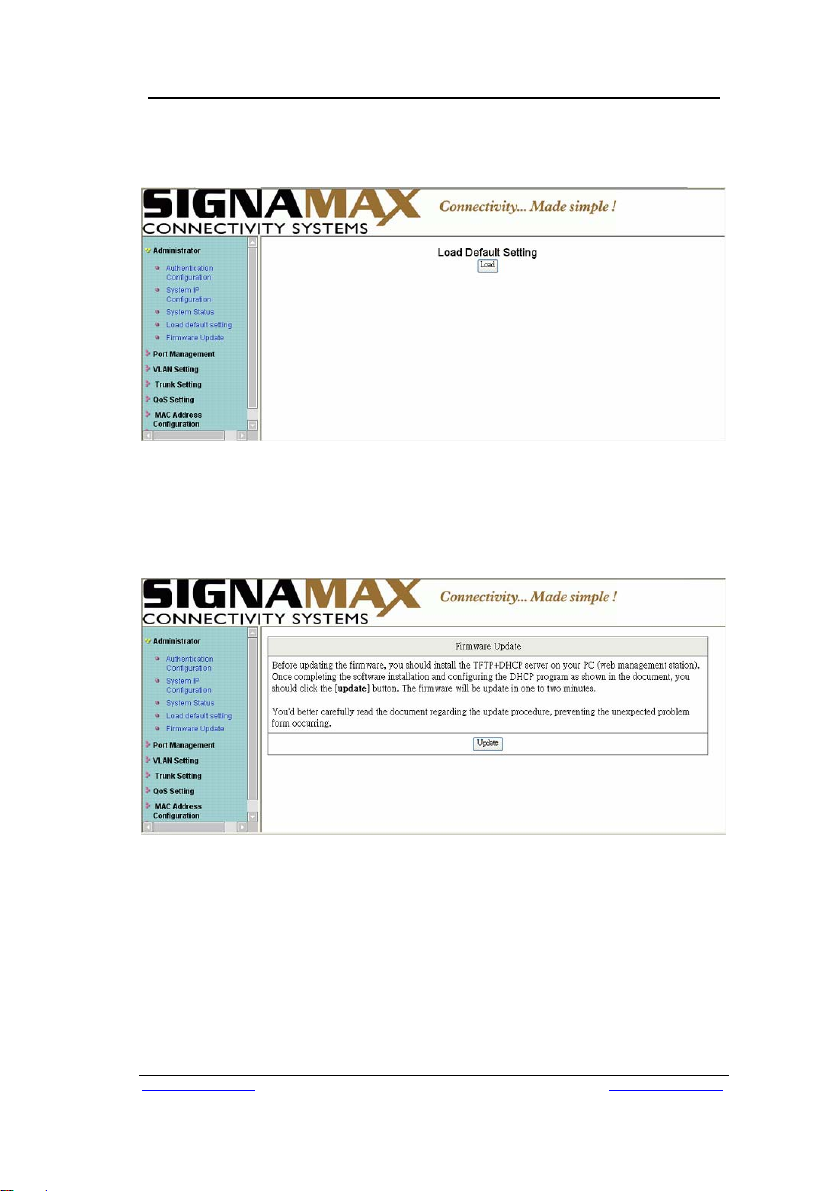

Administrator: Load Default Setting to EEPROM
Click “Load” to load the factory default setting change, and
then reset the switch by power off/on to take it effectively.
Administrator: Firmware Update
Follow the instruction on the screen to update the new
firmware. The firmware is the latest version, please contact
with your sales agents to get the new firmware information.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Port Management: Port Control Configuration
“Port No.” is meant to the port number you want to
configure it.
“Link Capability” is meant you can choose the port is
Auto-Nego. mode or Force mode on 100M or 10M.
“Duplex” is meant you can select the port is full or half
duplex or enable/disable the port.
Port Management: Port Mirroring
Port mirroring is used to mirror traffic from Source port to a
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542
Destination port for analysis.
Select the Destination port from port 1 to port 24, and select
the source port by click the check box of the port.
Port Management: Bandwidth Control
“Port No.” is meant to the port number you want to
configure it.
“TX Rate” is meant you can set the maximum
transmission rate of the selected port and choose the full
speed or 128K/256K/512K/1M/2M/4M/8M speed.
“RX Rate” is meant you can set the maximum receiving rate
of the selected port and choose full speed or
128K/256K/512K/1M/2M/4M/8M speed.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542

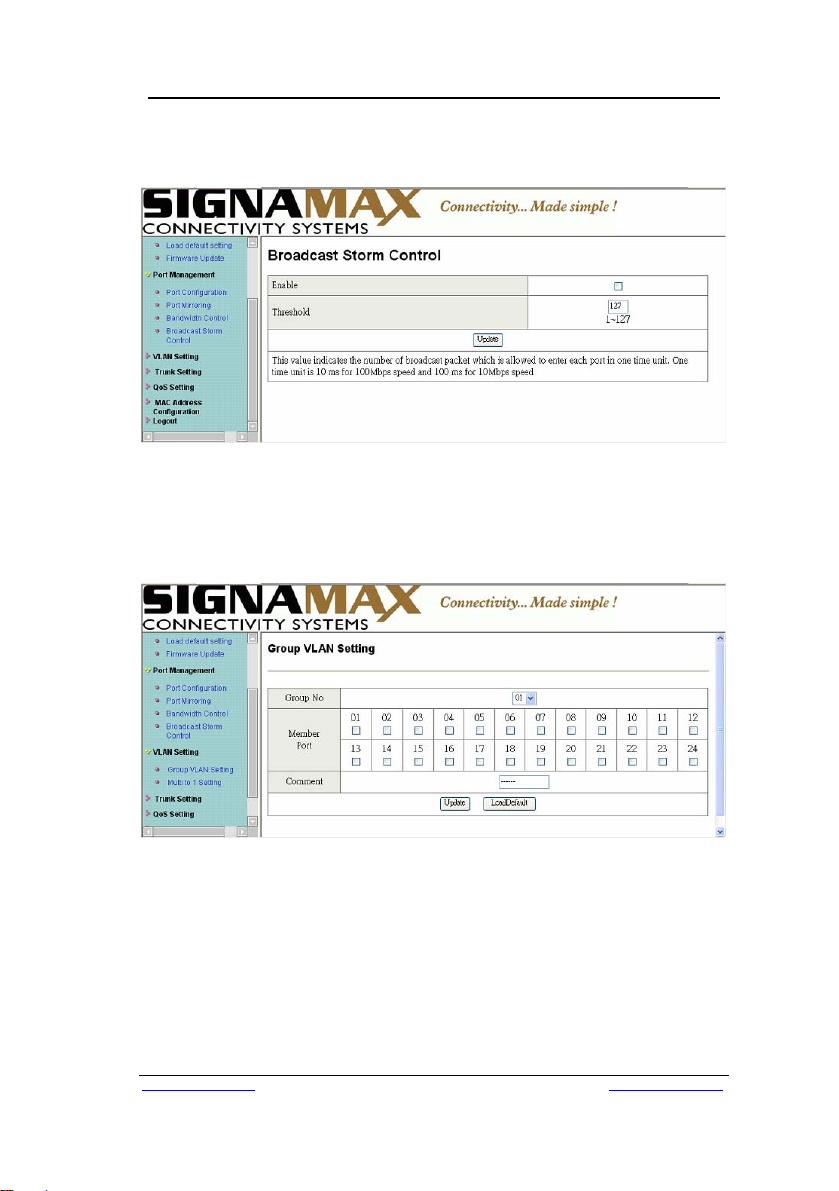

Port Management: Broadcast Storm Control
Enable or disable the broadcast storm protection feature.
VLAN Setting: Group VLAN Setting
There are 12 VLAN groups, 01, 02, 03, 04, 05, 06, 07, 08,
09, 10, 11, 12 can be used
Select a group, and then click the port number which you
want to put it into the selected VLAN group
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542

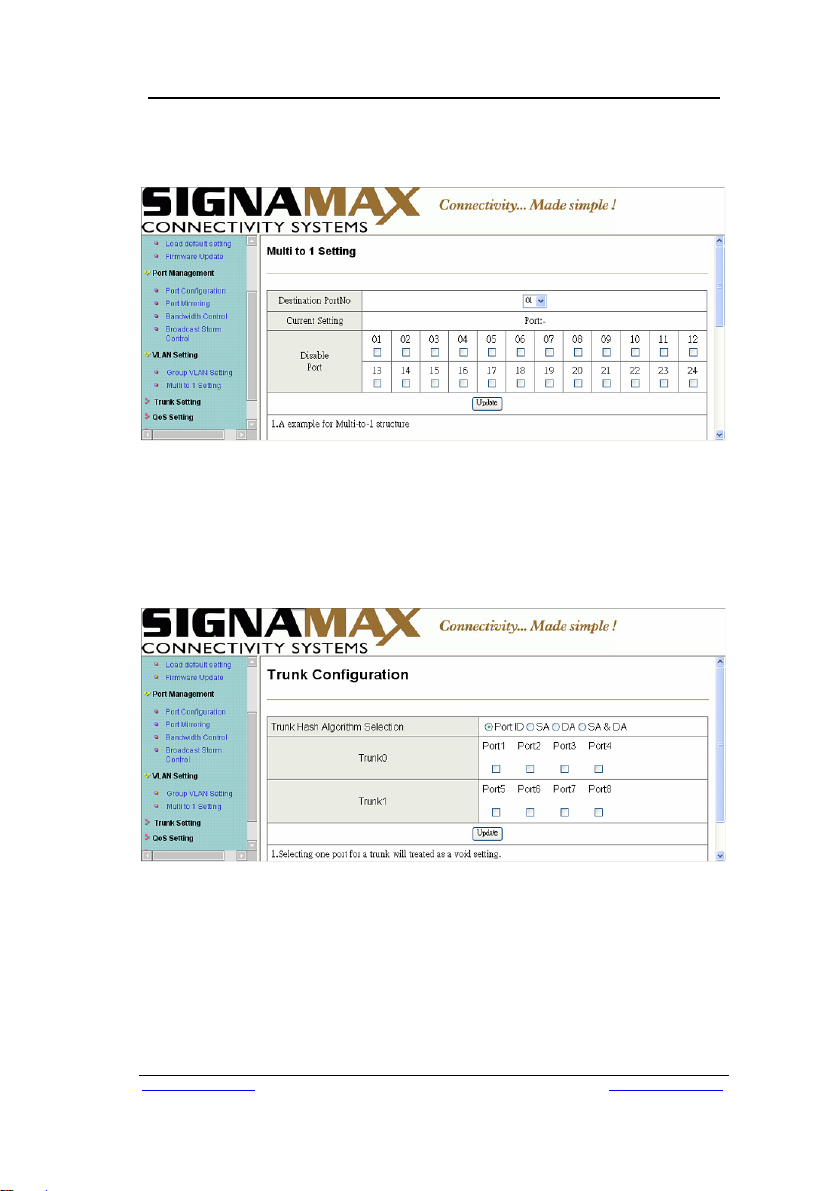

VLAN Setting: Multi to 1 Setting
This is special designed for easily setting the Switch VLAN
into “VLAN Per Port “. After this setting, all ports can only
connect to the destination port.
Trunk Setting: Trunk Configuration
Set up Port trunk groups, and click the port number you
want to include it into the same group. There are two groups
to choose, and the maximum of ports for one group is 4.
www.signamax-us.com www.signamax-eu.com

Signamax Connectivity Systems ______________________________________________ 065-7542

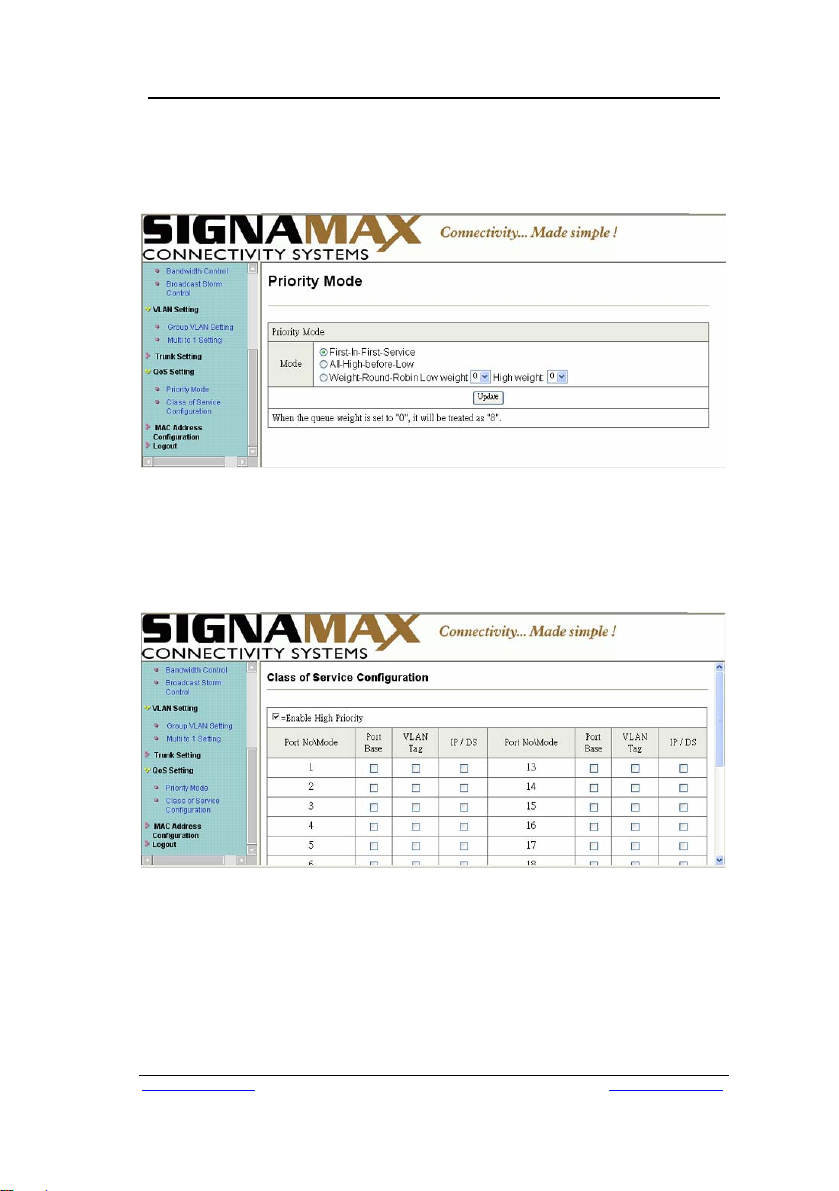

QoS Setting: Priority Mode
Click the priority mode you want, there are three priority
mode for choosing.
QoS Setting: Class of Service Configuration
Select the class of service for each port.
www.signamax-us.com www.signamax-eu.com
