SIIG JU-HM0112-S1 User manual

1
USB 2.0 to HDMI with
Audio
Quick Installation Guide
04-0664B
Introduction
The USB 2.0 to HDMI with Audio adds HDMI
port to your USB enabled system.
Key Features and Benefits
• Quickly adds a monitor, LCD or projector
to your USB enabled (USB 2.0 or later)
system
• Built with a DisplayLink chipset DL-165
System Requirements
• Desktop or notebook PC with a Single Core
CPU at 1.2 GHz or later and an available
USB 2.0/3.0 port
• Windows®7 (32-/64-bit) / Vista (32-/64-
bit) / XP (32-bit, SP2)
• MAC OS® 10.4 or later (Intel-based Apple
computers only)

2
Package Contents
•USB 2.0 to HDMI with Audio
• USB Cable
• Driver CD
• Quick installation guide
Layout
Figure 1: Layout
USB cable
connector
On/Off switch
Power LED (green)
Not used. Reserved for power adapter
HDMI Output

3
Windows Software Installation
Make sure the proper driver for your graphics
card is installed, the USB 2.0 to HDMI with Audio
is not designed to work with Windows' Standard
VGA Graphics Adapter driver. Important: Do
not plug the USB 2.0 to HDMI with Audio into the
computer until instructed to do so.
Windows 7 (32-/64-bit)
1. Insert the driver CD. Close AutoPlay box.
Click Start, in the Search programs and
files box, type D:\setup.exe, press Enter.
(Change D: to match your CD/DVD-ROM
drive letter).
2. At User Account Controls, click Yes.
3. Select I accept.
4. Connect your second monitor to the USB
2.0 to HDMI with Audio and turn it on.
5. Plug the USB 2.0 to HDMI with Audio into
the computer, the driver will be installed
automatically.

4
Windows Vista (32-/64-bit)
1. Insert the driver CD. Close AutoPlay box.
Click Start, in the Start Search box, type
D:\setup.exe, press Enter.(Change D: to
match your CD/DVD-ROM drive letter).
2. At User Account Controls, click Yes or
Continue.
3. Select I accept.
4 Connect your second monitor to the USB
2.0 to HDMI with Audio and turn it on.
5. Plug the USB 2.0 to HDMI with Audio into
the computer, the driver will be installed
automatically.
6. Restart your system to complete the
installation.
Windows XP (32-bit)
1. Insert the driver CD. Click Start, then Run.
Type D:\setup.exe, click OK. (Change D:
to match your CD/DVD-ROM drive letter).
2. Select I accept.
3. Connect your second monitor to the USB
2.0 to HDMI with Audio and turn it on.

5
4. Connect the USB 2.0 to HDMI with Audio to
the computer and the driver will be installed
automatically.
5. Restart your system to complete the
installation.
To Verify Windows Installation
1. From the desktop, right click Computer or
My Computer, then click Manage.
For Windows 7: Click Device Manager.
For Windows Vista: Click Continue, then
Device Manager.
For Windows XP: Click Device Manager.
2. Double click USB Display Adapters, USB
HDMI adapter should be displayed.
Uninstalling the Adapter Driver
Windows 7
1. Click Start, Control Panel.
2. Click Programs.
3. Click Programs and Features.
4. Select DisplayLink Graphics, then click
Uninstall. Click Yes, Yes.

6
5. Click Yes to complete uninstalling the driver
Windows Vista
1. Click Start, Control Panel.
2. Click Classic View, double click Programs
and Features.
3. Select DisplayLink Graphics, then click
Uninstall, then click Yes.
4. Click Allow.
5. Click Yes tocompleteuninstallingthe driver.
Windows XP
1. Click Start.
2. Click Control Panel, double click Add/
Remove Programs.
3. Select DisplayLink Graphics, click either
Remove, then click Yes.
4. Click Yes tocomplete uninstallingthe driver.

7
Windows Display Utility
After successful driver installation a USB HDMI
Adapter display utility icon will appear in the
taskbar by the system clock. This display utility
allows you to quickly change the viewing modes
and resolutions for the USB 2.0 to HDMI with
Audio. Access the utility by clicking the icon.
Viewing Modes
Windows Vista (32-bit) / XP (32-bit)
•Updates:
Check Now - Connects to the update server
to check for newer driver versions and
download them if available.
Configure - Opens the update Windows
where you can configure automatic updates.
•Screen Resolution: Displays a list of
available resolutions.
•Screen Rotation:
Normal - No rotation is applied to the USB
2.0 to HDMI with Audio display.
Rotated Left - Rotates the extended or
mirrored display by 270 degrees.

8
Rotated Right - Rotates the extended or
mirrored display by 90 degrees.
Upside-Down - Rotates the extended or
mirrored display by 180 degrees.
•Extend to:
Right - Extends the display to the right of
the main display.
Left - Extends the display to the left of the
main display.
Above - Extends the display above of the
main display.
Below - Extends the display below the main
display.
• Extend: This is the default setting of the
USB 2.0 to HDMI with Audio. This mode
extends your desktop for easy viewing of
multiple windows. Windows will move off
the primary display from the right side and
enter the extended display from the left
side.
•Set as Main Monitor: This mode, makes
the USB 2.0 to HDMI with Audio the main
display adapter in the system.

9
•Notebook Monitor Off: Switches off the
display of an attached notebook and makes
the USB 2.0 to HDMI with Audio display
primary.
•Mirror: In this mode, the USB 2.0 to HDMI
with Audio will mirror your desktop. You
will see the same image on both monitors.
•Off: This setting turns off the USB 2.0 to
HDMI with Audio adapter.
•Optimize for Video (Vista and Windows
7 only): Configures the secondary display
for optimum full screen video performance
output. Note: Text may appear less clear.
•Fit to TV: Opens a GUI to change the size of
the Windows desktop so it fits on a TV
screen.
•Advanced Configuration: Opens the
Display Settings window (WDP).
Windows 7 (32-/64-bit) / Vista (64-bit)
•Check for updates: Connects to the
Windows Update and checks for newer
versions and download them if available.

10
•Optimize for Video: Select this option for
better movie playback performance on the
DisplayLink enabled displays. Only select
thisoption whenplayingback videocontent.
Note: Text may appear less clear when
enabled.
•Fit to TV: If the Windows desktop does not
completely appear on the TV, this option
can be used to adjust the size of the Windows
desktop.
•Advanced Configuration: Opens the
Windows Display Properties (WDP).
Using Windows Display Properties (WDP)
This allows you to rotate, duplicate or extend
screens as well as modify screen resolution.
•Display: Use the drop down list to select a
display to be configured.
•Resolution: Use the drop down list and
user the slider to choose a resolution.
•Orientation:
Landscape - Sets the display to landscape
view.

11
Portrait - Sets the display to portrait mode.
Landscape (flipped) - Setsthe display toupside
down landscape mode.
Portrait (flipped) - Sets the display to upside
down landscape mode.
•Multiple displays:
Duplicates these displays - Reproduces the
main display on the second display.
Extend these displays - Extends the main
display onto the secondary display.
Show Desktop only on 1 - The desktop appears
onthe displaymarked1. Thedisplay marked
2 becomes blank.
Shows Desktop only on 2 - The desktop
appears on the display marked 2. The
display marked 1 becomes blank.
•Make this my main display: When you
check the box, it will make your USB 2.0 to
HDMI with Audio the main display adapter
in the system. Make sure the secondary
monitor is seclected before choosing this
option.

12
Display Positions
To move the position of a display, click and hold
the display you wish to move then drag it to the
desired position. The display will be highlighted
with a blue border while you are moving the
display to its new position.
Mac OS Driver Installation
1. Connect the USB 2.0 to HDMI with Audio to
an available USB port.
2. Insert driver CD.
3. Double click Driver CD icon on the Desktop.
4. Double click Mac folder.
5. Double click displaylink_installer_1.7.dmg.
6. Double click DisplayLink Software
Installer.pkg.
7. Click Continue, Continue, and Continue.
8. Click Agree, then click Install.
9. Type in your system password, then click
OK.
10. Click Continue Installation.
11. Click Restart to complete the installation.

13
To Verify Driver Installation
1. Double click OS 10.4.X or above volume/
drive icon.
2. Go to System/Library/Extensions folder.
3. If both files DisplayLink Driver.kext and
DisplayLinkGA.plugin are in the
Extension folder, the USB 2.0 to HDMI with
Audio is installed successfully.
To Uninstall the Driver
1. Insert the driver CD.
2. Double click Driver CD icon on the Desktop.
3. Double click Mac folder.
4. Double click displaylink_installer_1.7.dmg.
5. Double click DisplayLink Software
Uninstaller.
6. Select Uninstall.
7. Type in your system password, then click
OK.
8. Click Restart to complete uninstalling the
driver.

14

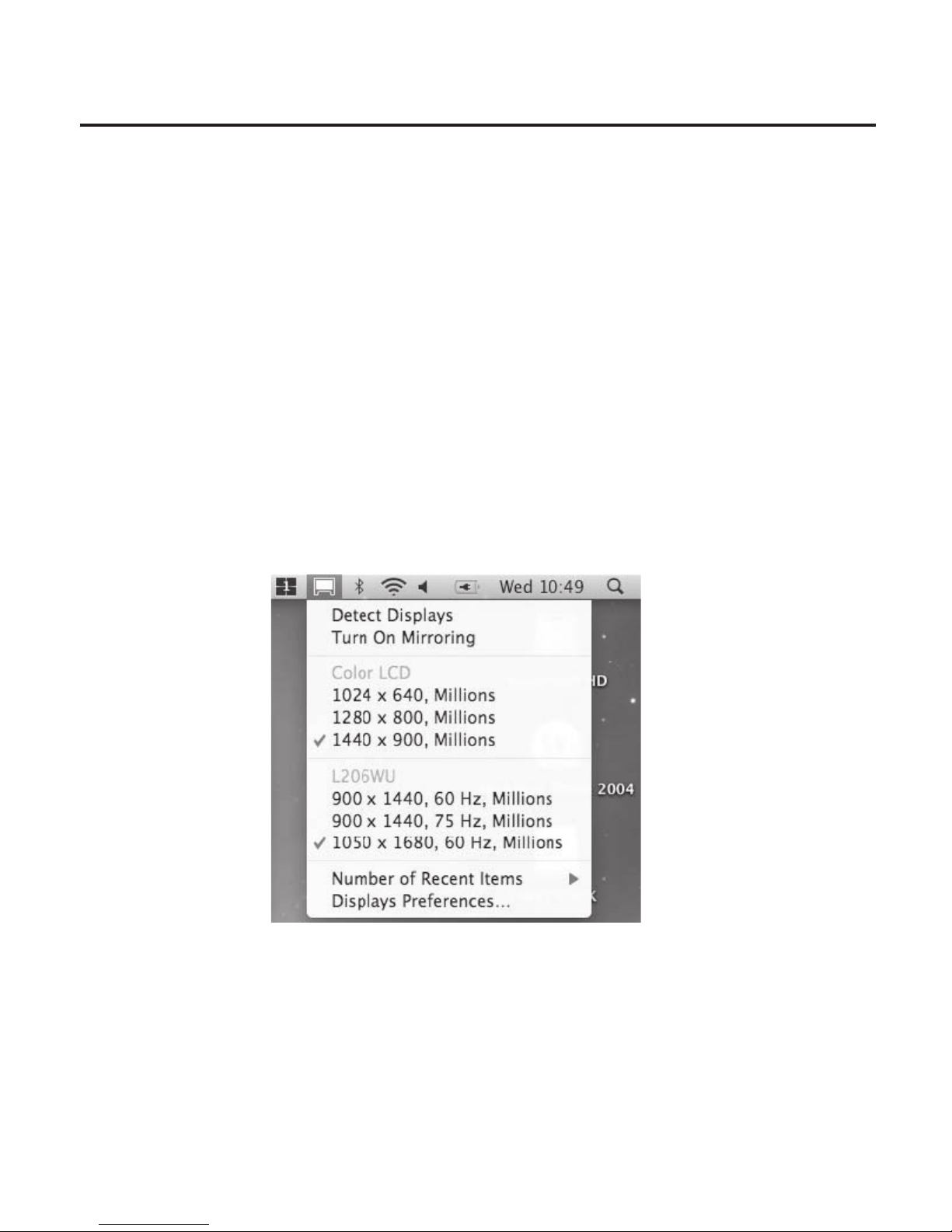

Mac Display Utility
After successful driver installation an added icon
will appear in the taskbar by the system clock, see
Figure 2. This utility allows you to quickly change
the viewing modes and resolutions for the USB
2.0 to HDMI with Audio. Access the menu by
clicking the icon and select Display Preferences.
You can also access Display Preferences if you
go to System Preferences and click Displays
under Hardware,see Figure 3 in the next page.
Figure 2

15
Figure 3

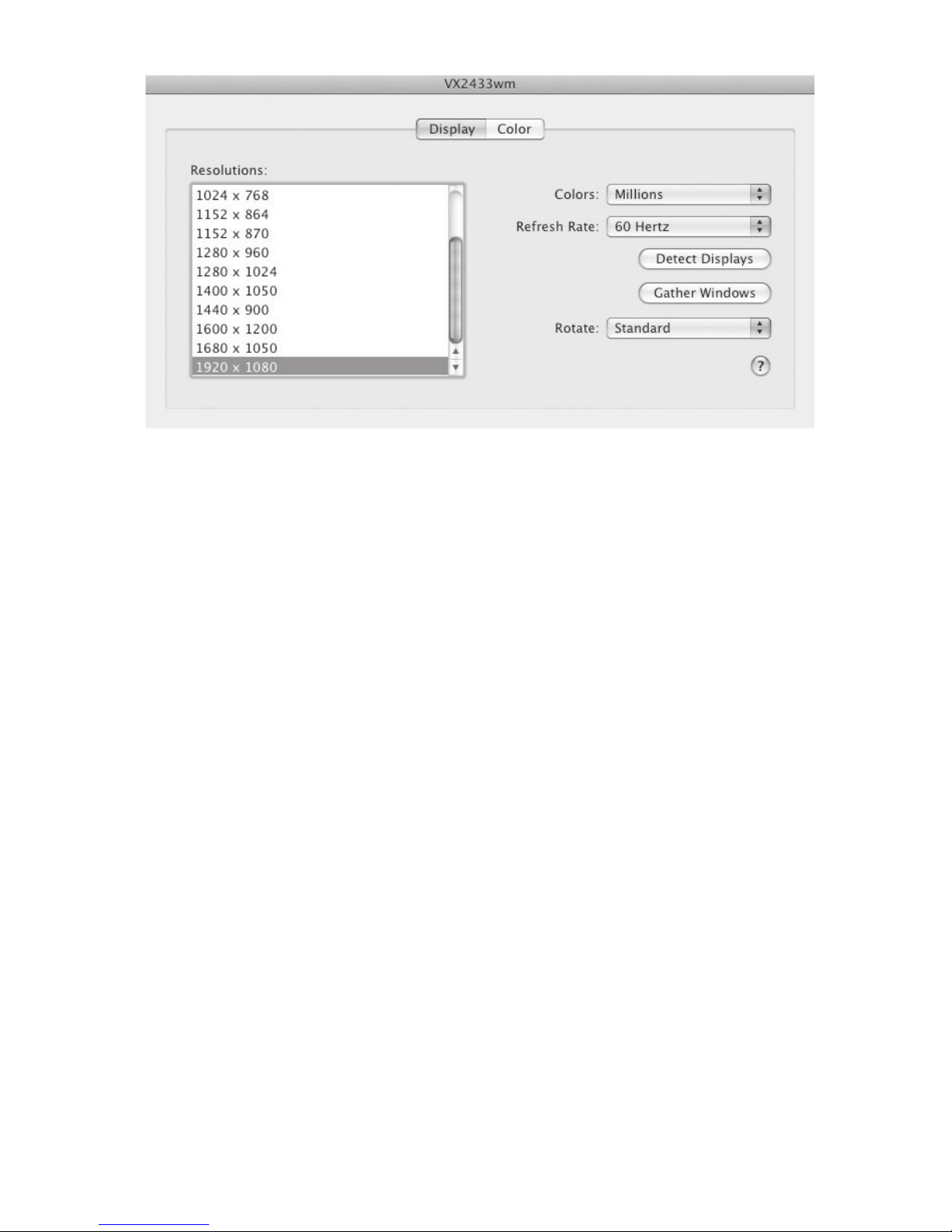

Setting the Display Resolutions
To change the display’s resolution, select an
available resolution from the Display Preferences
window of the display you wish to change, see
Figure 4 in thenext page. Theresolutions available
depend on both the USB 2.0 to HDMI with Audio
enabled product and the capabilities of the
connected display.

16
Figure 4
Rotating a Display
If you wish to rotate your display, you can
configure the orientation using the Rotate drop
down, see Figure 4. Select the appropriate angle
of rotation to match your display’s set up.
Display Positions
To move the position of a display, click and hold
the display you wish to move then drag it to the
desired position. The display will be highlighted
with a red border while you are moving the
display to its new position.

17
Setting the Display to Mirror mode
When in Mirror mode, additional displays will
display what is being shown on the primary
display. Checking the Mirror Displays on the
Arrangement paneenablesthis feature, seeFigure
5.
Figure 5

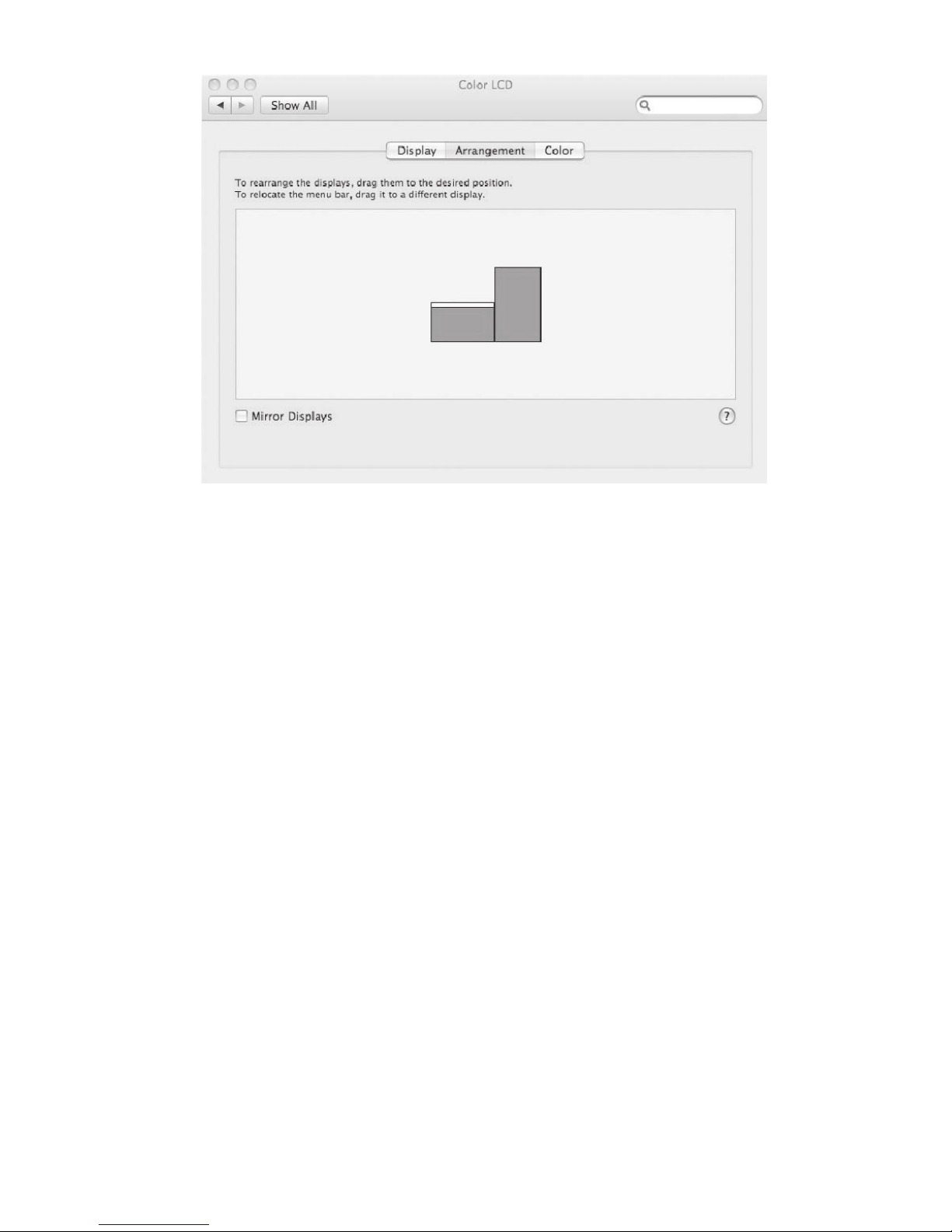

Setting the Display to Extend
To extend connected displays, make sure that the
Mirror Displays on the Arrangement pane is
unchecked, see Figure 6 in the next page.

18
Figure 6
Changing the Main Display
You can change which is the main display by
moving the Menu Bar between displays.
Changing the main display affects where new
windows appear and the position of the Dock.
The Menu Bar can be moved so that it is shown
on an alternative display. Clicking the white
menu bar and dragging it to the desired display
will perform this action, see Figure 7 in the next
page.

19
Figure 7

20
Frequently Asked Questions
Q1: How come my open window will not
move over to the extended display?
A1: Restore down the open window before
moving it over the the extended display,
also make sure the window is moved
completely over onto the extended
display.
Q2: How come my video will not play on Media
Player if I move it over to the extended
desktop?
A2: Check that you have moved the Media
Player window completely over to the
extended screen.
Q3: There are lines running horizontally up
and down my screen or the screen is
distorted.
A3: This is due to a low or unsupported refresh
rate setting. You can change this in Display
Properties/Settings/Advanced/Monitor.
Make sure you select the USB 2.0 to HDMI
with Audio and not set the refresh rate
higher than what your monitor can support.
