Silca SW-RKE ROVER-L0 SDD User manual

SW- RKE ROVER®-L0 (SDD/SBB)
CODE: D431406XA - VERS. 2.0
GB

INDEX
1FUNCTIONS MENU RKE ROVER®................................................................ 3
1.1 IMMOBILIZER ROVER®(ROUTINE 13) .............................................. 3
2

SW- RKE ROVER®-L0 (SDD/SBB)
1 FUNCTIONS MENU RKE ROVER®
1.1 IMMOBILIZER ROVER®(ROUTINE 13)
Model Year
from
Year to RKE RKE
N°
Cable Pos.
Conn.
ROVER
MGF 1997 2003 ORIGINAL 4 00 C4
MINI 1997 2003 ORIGINAL 4 00 C3
100 1997 ORIGINAL 4 00 C3
200 1997 4 00 C4
400 1997 1998 4 00 C4
45 2000 4 00 C4
The functions on these vehicles are:
- Addition of new remote controls;
- Deletion of remote controls;
- Reading of EKA code.

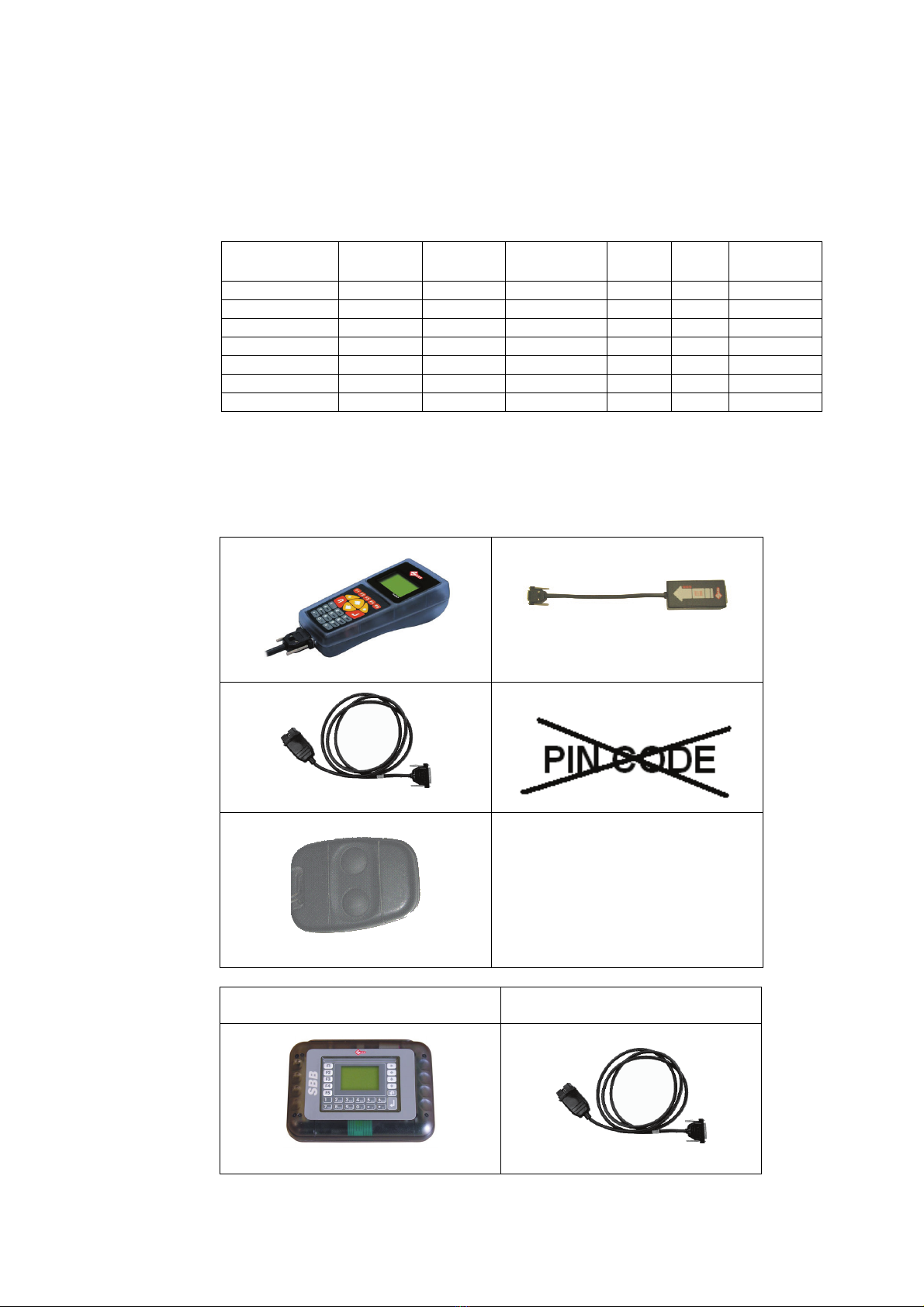

To use these functions the following are required:
SWITCH ADAPTER
OBD II CABLE [00]
ALL RKE
SBB CABLE/ADAPTER
CABLE OBD II [00] (STANDARD)
3

DIAGNOSIS CONNECTOR POSITIONS
C24
GENERAL INFORMATION
Differently from immobilizer systems with transponder keys, these systems use a remote
control to enable or disable the motor immobilizer; when the vehicle is locked by remote control
the immobilizer is automatically activated; vice versa when the vehicle is unlocked using a
remote control the immobilizer is disactivated.
When the immobilizer system is disactivated the car turn indicators flash (only on models with
theft alarms) and the immobilizer led stops flashing. When the immobilizer system is activated,
the car turn indicators flash (only on models with theft alarms) and the immobilizer led flashes
quickly for 10 seconds, then slowly.
If the vehicle is locked by means of a mechanical key the motor immobilizer is not active, but
activates automatically after 20 seconds.
REMOTE CONTROL INFORMATION
All vehicles provided with the remote control illustrated above use the immobilizer system
described and can be programmed by SDD/SBB. This remote control is a radio transmitter with
two buttons, one for activating and one for disactivating the motor immobilizer. The radio code
is modified on the remote control and immobilizer central unit every time the remote control is
used. If for any reason (flat battery, replacement of battery, etc.) the sequence becomes
unsynchronised (the remote control code is not the same as that on the central unit) it must be
re-synchronised in the following way:
- Unlock the driver’s door with a key;
- Check that all the doors, including the boot and bonnet are closed;
- Press the “Lock” button on the remote control quickly 4 times.
EKA CODE INFORMATION
The emergency start code is used in the event of a missing, broken or faulty remote control to
cut out the motor immobilizer manually.
In this case the immobilizer is disabled for one start only, at the end of which the operation must
be repeated.
The EKA code is made up of 4 digits and is different for each vehicle. It is issued by the dealer
and appears on the safety plate, or it can be read by SDD/SBB using the special “EKA CODE”
function.
To disable the motor immobilizer proceed as follows:
1) Use a key and turn it anti-clockwise in the driver’s door lock to the “LOCK”
position; hold in this position for at least five seconds. Turn the key back to
the central position.
4

Now it will be possible to use the key to write the numerical value of the four digits in the EKA
code, as shown below:

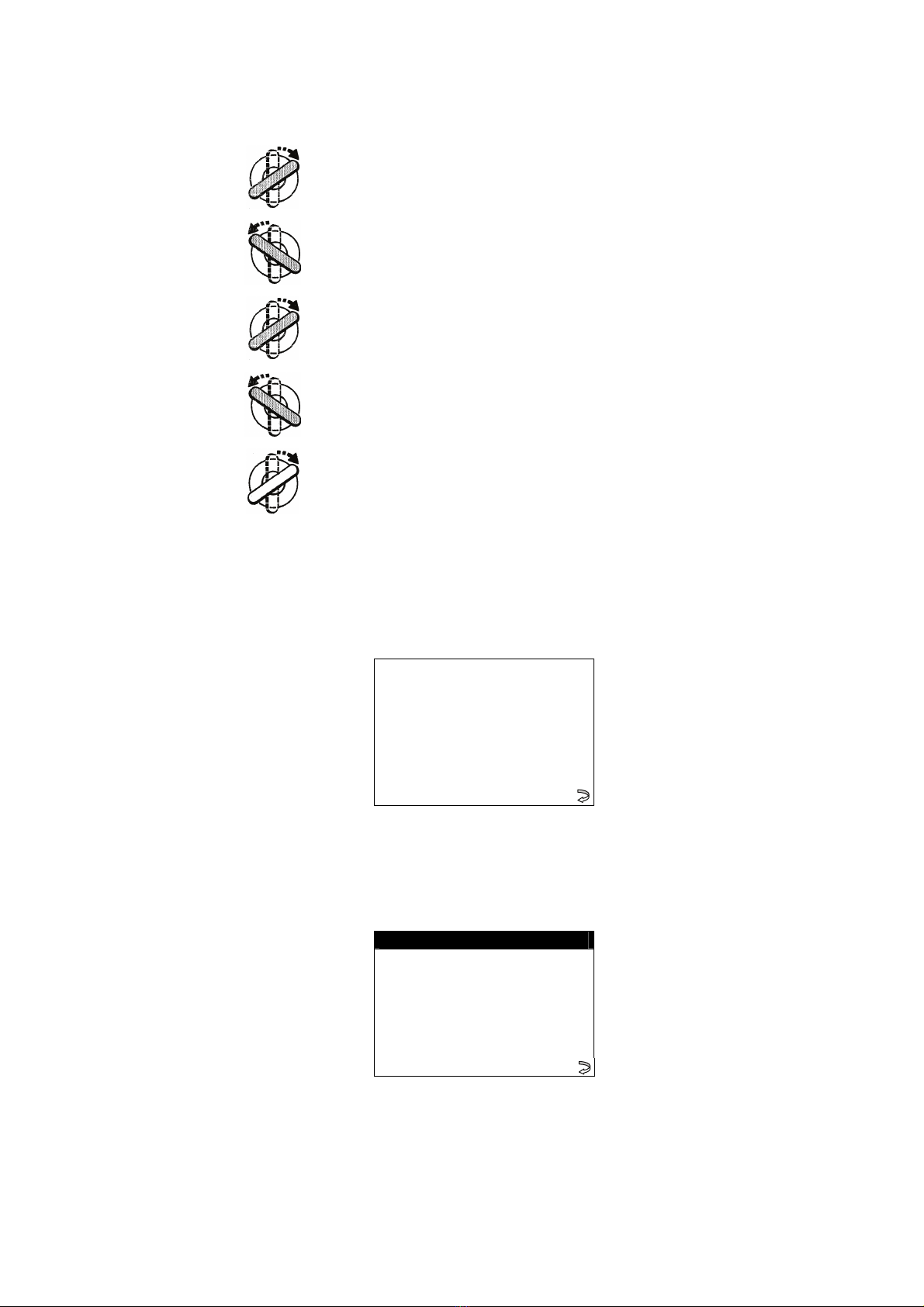

2) Enter the FIRST digit in the code.
If the first digit is 5, turn the key five times to take it to the “UNLOCK”
position. Make sure the key returns to the exact central position after each
turn.
3) Enter the SECOND digit in the code.
If the second digit is 2, turn the key twice to take it to the “LOCK” position.
Make sure the key returns to the exact central position after each turn.
4) Enter the THIRD digit in the code.
If the third digit is 6, turn the key six times to take it to the “UNLOCK”
position. Make sure the key returns to the exact central position after each
turn.
5) Enter the FOURTH digit in the code.
If the fourth digit is 1, turn the key once to take it to the “LOCK” position.
Make sure the key returns to the exact central position.
6) Finally, take the key to the “UNLOCK” position again: in this way the
motor immobilizer is disabled for one start.
If the code is entered wrongly three consecutive times, you must wait 10 minutes before
repeating the procedure.
IMMOBILIZER FUNCTIONS MENU
From the main menu select: REMOTE CONTROLS ÖROVER ÖMODEL
Insert a key
and turn on
the control panel
(
ESC)
Insert a key into the ignition block and turn to the ON position.
- Press ENTER to continue;
- Press ESC to return to the previous menu.
The display will show:
-
R
OVER
-
>
PROGRAMME RKE
EKA CODE
×Ø
(
ESC)
- Select and press ENTER.
5

PROGRAMME RKE
This function is used to programme / delete remote controls. Every time programming is
carried out all the old and new remote controls to be used on the vehicle must be re-
programmed. Remote controls that are not programmed during this operation will not work.
- To activate the function, select “PROGRAMME RKE” and press ENTER.
MAXIMUM 4 RKE
CAN BE PROGRAMMED
Press any key…
No more than four simultaneously operating remote controls can be programmed.
- Press any key to continue.
Press UNLOCK
8 consecutive times
until horn sounds or
lights go on.
Repeat for the other
remote controls.
Press any key…
- Press 8 consecutive times the LOCK key on the remote control;
- The horn will sound to indicate that the remote control has been memorized;
- Repeat for all remote controls to be programmed;
- Press any key to finish programming.
EKA CODE
This function is used to read the EKA CODE
- To activate the function, select “EKA CODE” and press ENTER
UNLOCK N1
LOCK N2
UNLOCK N3
LOCK N4
Press any key…
N1 First digit in EKA CODE
N2 Second digit in EKA CODE
N3 Third digit in EKA CODE
N4 Fourth digit in EKA CODE
- Press any key to return to the previous menu.
6
