Silicon Laboratories Si5338 User manual

Rev. 0.4 6/10 Copyright © 2010 by Silicon Laboratories Si5338/56-PROG-EVB
Si5338/56-PROG-EVB
Si5338/Si5356 FIELD PROGRAMMING KIT USER’SGUIDE
Description
The Si5338/Si5356 Field Programming Kit provides all
of the tools necessary for writing a new configuration file
to the one-time programmable (OTP) non-volatile
memory (NVM) in the Si5338/Si5356 any-frequency,
any-output clock generator. This user’s guide describes
the procedure for writing to the device NVM.
Field Programming Kit Features
Fully-powered from a single USB port
High-quality and easy-to-use socket
Simple software-based user interface
Status LEDs for Pass or Fail indication
Figure 1. Si5338-PROG-EVB

Si5338/56-PROG-EVB
2 Rev. 0.4
1. Introduction
The Si5338/Si5356 is a highly-flexible and configurable clock generator/clock buffer. The device has a
factory-defined default configuration stored in non-volatile memory (NVM). During powerup, the default
configuration is copied into the random access memory (RAM). Having its working configuration stored in RAM
allows in-system configuration changes through the I2C port. During a power cycle, any configuration changes
stored in RAM are overwritten with the factory default configuration from the NVM.
The NVM is a one-time-programmable (OTP) memory that allows a user to define the default configuration. This is
a useful feature, especially if the Si5338/Si5356 is providing clocks to devices that require pre-defined clocks at
powerup. As its name implies, the OTP NVM can only be written once.
Figure 2. Memory Configuration
The field programming kit allows writing a new default configuration to the Si5338’s NVM memory. The kit consists
of the Field Programmer (Si5338-PROG-EVB), a USB cable, and the ClockBuilder™ Desktop Software. This
user’s guide outlines the steps necessary to write new default values to the NVM.
The NVM file must be created before writing it to the Si5338/Si5356. The NVM file is created using the
ClockBuilder Desktop, which is part of the ClockBuilder Desktop Software. NVM file support for the Si5356 is in
version 2.6 or later of the ClockBuilder Desktop Software. Version 2.5 or older only supports the Si5338. As
always, use the latest software version for best results. See "Appendix B—Installing the ClockBuilder Desktop
Software" on page 10 for installation instructions. Refer to the Si5338 or Si5356 user’s guides (available at
www.silabs.com) for information on using the ClockBuilder Desktop software.
(OTP)
Default
Configuration
Working
Configuration
Power-Up
I
2
C
In-System
Configuration
Changes
Si5338/Si5356
Write
New Default Configuration
Field Programmer
USB
Si5338-PROG-EVB

Si5338/56-PROG-EVB
Rev. 0.4 3
2. Overview of Generating and Writing to NVM
The process of generating and writing an NVM file to the device is shown in Figure 3.
Figure 3. Generating and Writing an NVM File to the Device
Use the Si5338-EVB to
verify its configuration
Use the MultiSynth Clock
Programmer software to
generate/update a custom
NVM configuration
Save the NVM file
Configuration OK
Configuration
Requires Modification
Optional
Load the NVM file using the
Field Programmer software
Load a blank Si5338 or Si5356
device in the Si5338-PROG-
EVB socket
Write to NVM
Generating an NVM file using the
MultiSynth Clock Programmer
software
Writing an NVM File using the Field
Programmer software and the
Si5338-PROG-EVB

Si5338/56-PROG-EVB
4 Rev. 0.4
3. Getting Started with the Si5338/Si5356 Field Programmer
(Si5338-PROG-EVB)
3.1. Installing the Software
Before connecting the Field Programmer (Si5338-PROG-EVB) to the host PC, the latest version of the
ClockBuilder Desktop Software must be installed. Refer to "Appendix B—Installing the ClockBuilder Desktop
Software" on page 10 for software installation instructions.
3.2. Connecting the Hardware
Connect a USB cable from the Si5338-PROG-EVB to the host PC. The Field Programmer is fully powered from the
USB port, so no other connections are necessary.
3.3. Running the Software
Once installed, run the Field Programmer software from the Windows Start menu.
StartPrograms Silicon Laboratories ClockBuilder Desktop Software Field Programmer
3.3.1. Setting up Communication
1. Select the desired target device, Si5356 or Si5338. The one that is selected must be placed in the socket when
it is time to program the NVM.
2. Before the software connects with the Field Programmer (Si5338-PROG-EVB), it automatically detects its serial
number. If more than one field programmer is connected to the same PC, use the drop-down box to select one
of the field programmers. This feature allows one PC to control several field programmers simultaneously.
USB Cable
Host PC
Si5338-PROG-EVB

Factory set I2C address
Leave as default
Automatically selected when a
valid field programmer
Click OK to connect
is detected
Select the target device for writing the NVM

Si5338/56-PROG-EVB
Rev. 0.4 5
3. All devices shipped from the factory are pre-programmed with an I2C address of 0x70. The field programmer
software will automatically use this I2C address when communicating with a device loaded into the socket. If the
device has a different I2C address, enter its new address in the box provided.
4. If the PC is connected to a valid field programmer, it will automatically select “Continue and connect to the
EVB”. If “Continue and do not connect to the EVB” is selected, the software could not find a valid field
programmer. Ensure that the field programmer (Si5338-PROG-EVB) is properly connected to the host PC using
a cable.
5. Click on OK.

Si5338/56-PROG-EVB
6 Rev. 0.4
4. Getting Ready to Write The NVM File
The NVM File contains all of the information needed to configure the NVM. Valid Register Map Files have a .nvm
extension and are created using the ClockBuilder Desktop software included in the Si5338-EVB or Si5356-EVB.
For more information about creating an NVM File, see the software User Guide available by clicking Help Help
in any of the software.
4.1. Loading the NVM File
Click on the “Open Register Map File” button to select the desired .nvm file. The header of the register map file is
displayed in the File Header window if the software detects that it is a valid NVM file.

Click to select the NVM file
Displays the file
header

Si5338/56-PROG-EVB
Rev. 0.4 7
4.2. Load a Blank Device in the Socket
1. Before writing the NVM, a device must be loaded into the socket as shown below. Pull the lever to unlock the
lid. Ensure that there is not another device in the socket before proceeding. Note: Some field programming
kits are shipped with a plastic slug loaded in the socket. This plastic slug must be removed before
loading a device.
2. Insert a blank Si5338 or Si5356 device in the socket using a pair of tweezers or a suction tool. It is very
important that the Si5338 or Si5356 be inserted into the socket with the correct pin 1 orientation. Pin 1
on the device is marked with a white dot. Pin 1 on the socket is labeled on the PCB as shown below.
3. Once the device is properly loaded, close the lid. Ensure that the lid is fully closed and in the locked position.
Some tension is normal when closing the lid. This ensures proper contact with the device.
1
2
Pin 1 Indicator
Pin 1 Indicator

Si5338/56-PROG-EVB
8 Rev. 0.4

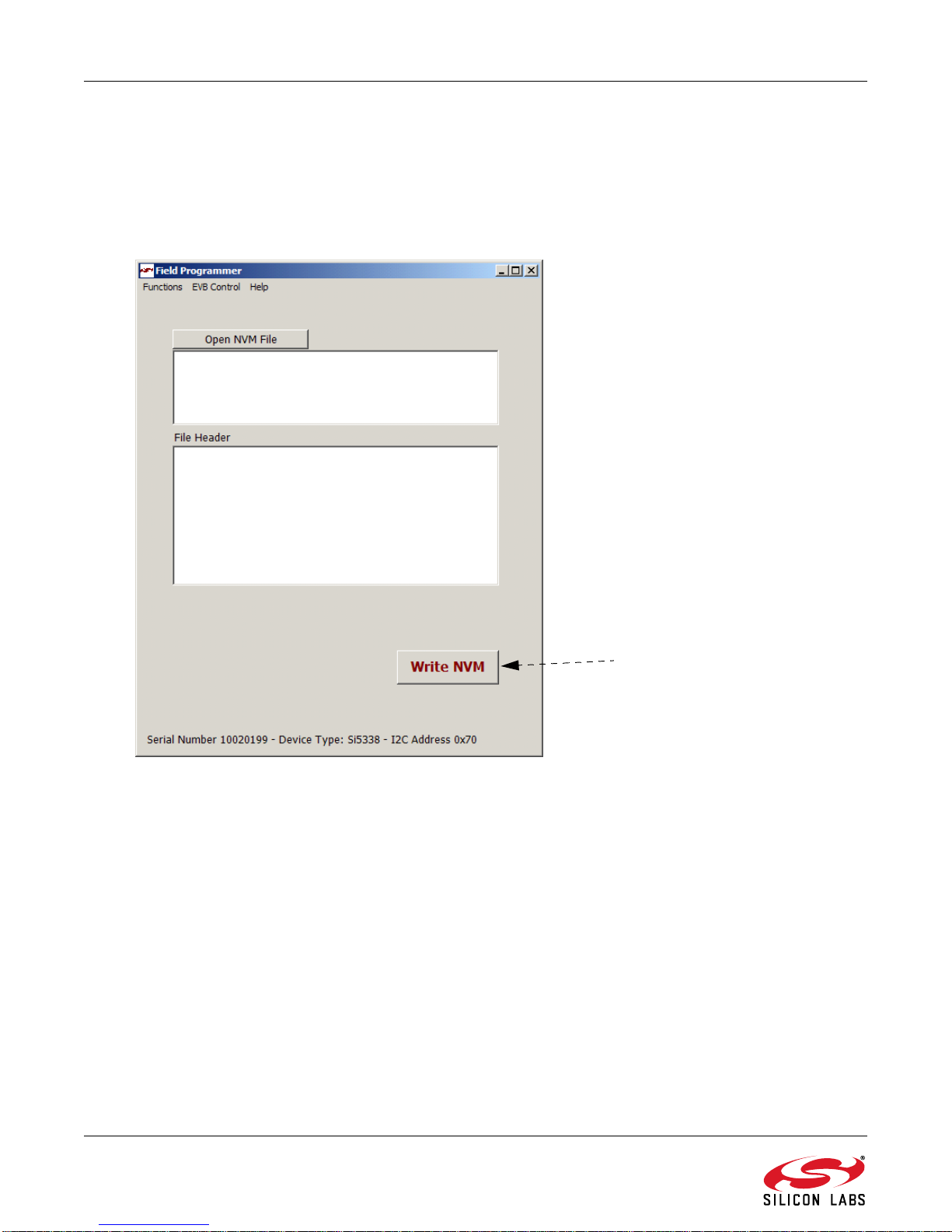

5. Write to NVM
1. Click on the “Write NVM” button to make a final write to the one-time programmable NVM. Writing to the NVM
should only take a few seconds. When writing to the NVM is successful, the green LED will light. If there was an
error while writing to the NVM, the red LED will light. See the "Appendix A—Troubleshooting Guide" on page 9
to find the possible causes of an NVM failure.
2. Once the NVM is written, the device is ready for use.
3. Remove the device from the socket.
4. Load a new device into the socket.
5. Press the Write NVM button.
6. Repeat Steps 3 to 5.

Click to write
to NVM

Si5338/56-PROG-EVB
Rev. 0.4 9
APPENDIX A—TROUBLESHOOTING GUIDE
Use this guide to help troubleshoot possible sources of errors when an NVM write fails.
Writing to NVM Results in a “Fail” Status
Possible Causes
1. A device can only be programmed once. If the device loaded into the socket has already been programmed
(NVM was previously written), it cannot be re-programmed. This will cause a fail status. Load a blank device
into the socket.
2. Writing to NVM failed. The device may be defective and should be discarded. Load a new device into the
socket.
Writing to NVM Causes the “Busy” LED to Stay On
Possible Causes
1. The device loaded into the socket has incorrect polarity. Refer to “4.2. Load a Blank Device in the Socket” for
proper device orientation. Press the reset button on the Si5338-PROG-EVB; discard the device in the socket,
and load a blank device into the socket.
2. There is no device loaded in the socket. Press the reset button on the Si5338-PROG-EVB and load a blank
device into the socket.

Si5338/56-PROG-EVB
10 Rev. 0.4
APPENDIX B—INSTALLING THE CLOCKBUILDER DESKTOP SOFTWARE
Before connecting the Field Programmer (Si5338-PROG-EVB) to the host PC, ensure that the ClockBuilder
Desktop Software has been installed on your PC. The software is shipped on a CD with the Si5338/Si5356 Field
Programming Kit, or it can be downloaded from the Silicon Laboratories website (www.silabs.com).
The ClockBuilder Desktop Software contains the following programs:
ClockBuilder Desktop (used to control the Si5338-EVB and Si5336-EVB)
Field Programmer (used to control the Si5338-PROG-EVB)
Register Programmer (used to read and write registers from the Si5338-EVB and Si5336-EVB)
System Requirements
Microsoft Windows 2000®or Windows XP®or Windows Vista®
USB 2.0
3.5 MB of free hard drive space
1024 x 768 screen resolution or greater screen resolution
Microsoft .NET Framework 1.1
USBXpress®3.1.1 driver
Note: The USBXpress 3.1.1 driver is provided and installed with the software. Different versions of USBXpress (available from
other EVB kits or online) have not been tested with this software.

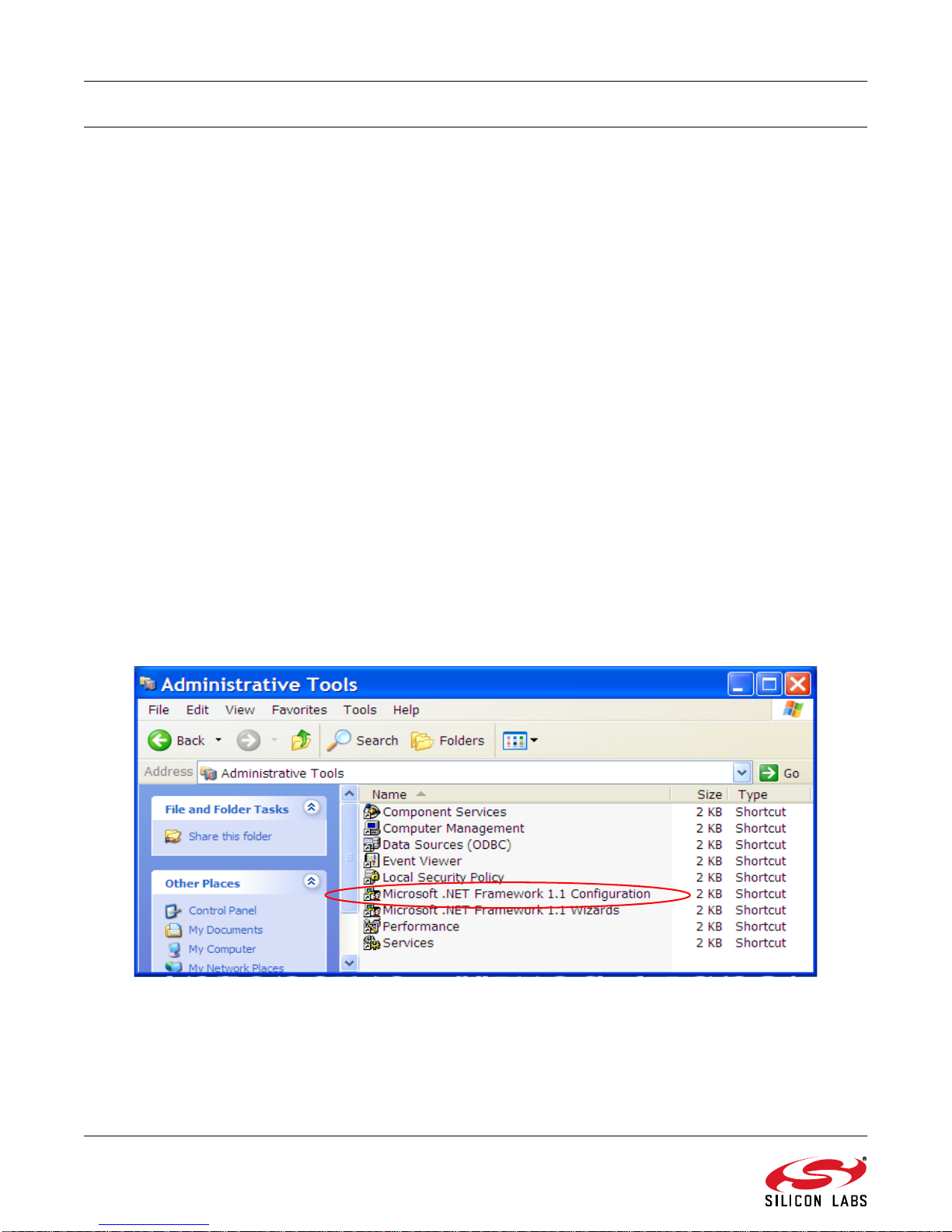

Microsoft .NET Framework
Microsoft .NET Framework 1.1 must be installed on your system before installing and running the ClockBuilder
Desktop Software. To verify, click Start > Control Panel > Administrative Tools on the Windows start menu. If
Microsoft .NET Framework 1.1 Configuration does not appear in the list, it will have to be installed as described in
the following section.

Si5338/56-PROG-EVB
Rev. 0.4 11
Installing Microsoft .NET Framework 1.1
Skip this section if Microsoft .NET Framework 1.1 has already been installed to your system. See Section for
details. Installation instructions for the.NET Framework are available from the Microsoft website using the following
link:
http://www.microsoft.com/downloads details.aspx?FamilyId=262D25E3-F589-4842-8157-034D1E7CF3A3&displaylang=en
There are several versions of the .NET Framework available from Microsoft. Multiple versions can be installed on
the same PC. The Software requires Version 1.1. Contact your system administrator for more details.
ClockBuilder Desktop Software Installation
The ClockBuilder Desktop Software is installed from the ClockBuilderDesktopSwInstall.exe file.
1. Double-click the ClockBuilderDesktopSwInstall.exe file to start the wizard.
2. Follow the instructions to complete the installation for both the software and the USB driver. Use the default
installation location for best results.
3. Once the software installation is complete, refer to the next section for the USB driver installation.
USBXpress Driver Installation
The Field Programmer uses the Silicon Laboratories' USBXpress driver to allow the EVB to communicate with the
host PC. The driver must be installed after the ClockBuilder Desktop Software is installed. Click Install to run the
driver installation.
If the USB driver was already installed from previous Silicon Laboratories evaluation software, it will not be
reinstalled. A message box will appear as shown below. Click OK to close the message.
Your software installation is now complete.

Si5338/56-PROG-EVB
12 Rev. 0.4
APPENDIX C—UNINSTALLING THE CLOCKBUILDER DESKTOP SOFTWARE
Perform the following steps to uninstall the ClockBuilder Desktop Software and USB driver.
1. Close all the programs and help files before running the uninstaller to ensure complete removal of the software.
2. Use the Add and Remove Programs utility in the Control Panel, as shown in Figure 4, or click on Start 
Programs Silicon Laboratories ClockBuilder Desktop Software Uninstaller.
Figure 4. Uninstall in Add and Remove Programs

Si5338/56-PROG-EVB
Rev. 0.4 13
The USBXpress driver may be removed via the Add and Remove Programs utility in the Control Panel. Locate the
entry called Silicon Laboratories USBXpress Device. Click the button and it should show the version and location
of what will be removed.
Figure 5. Driver Uninstall Location

Si5338/56-PROG-EVB
14 Rev. 0.4
DOCUMENT CHANGE LIST
Revision 0.1 to Revision 0.2
Changed “Si533x configuration” to “Any Rate Clock
Generator” throughout.
Changed “Si5338 Programmer” to “MultiSynth Clock
Programmer” throughout.
Updated Figures 3 and 4.
Revision 0.2 to Revision 0.3
Changed document title from Si5338-PROG-EVB to
Si5338/56-PROG-EVB.
Added the Si5356 to the Field Programming Kit.
Revision 0.3 to Revision 0.4
Changed “Any Rate Clock Generator” to
“ClockBuilder Desktop” throughout.
Changed “MultiSynth Clock Programmer” to
“ClockBuilder Desktop” throughout.
Updated Figure 4 on page 12.

Si5338/56-PROG-EVB
Rev. 0.4 15
NOTES:

Disclaimer
Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers
using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific
device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories
reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy
or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply
or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific
written consent of Silicon Laboratories.A"Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected
to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no
circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.
Trademark Information
Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations
thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,
USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of
ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.
http://www.silabs.com
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
USA
ClockBuilder Pro
One-click access to Timing tools,
documentation, software, source
code libraries & more. Available for
Windows and iOS (CBGo only).
www.silabs.com/CBPro
Timing Portfolio
www.silabs.com/timing SW/HW
www.silabs.com/CBPro Quality www.silabs.com/quality Support and Community community.silabs.com
