Si5340 EVALUATION BOARD USER’S GUIDE
Description
The Si5340-EVB is used for evaluating the Si5340 Low
Jitter Any-Frequency Clock Generator. The Si5340 uses
the patented MultisynthTM technology to generate up to
10 independent clock frequencies each with 0 ppm
synthesis error. The Si5340-EVB has 3 independent
input clocks, an optional feedback input clock for zero
delay mode, and 4 independent output clocks. The
Si5340-EVB can be controlled and configured using the
Clock Builder ProTM (CB ProTM) software tool.
Features
Powered from USB port or external power supply
Onboard 48 MHz XTAL allows free-run mode of
operation on the Si5340 or up to 3 input clocks for
synchronous clocking
Feedback clock input for optional zero delay mode
CBProTM GUI-programmable VDD supply allows
device to operate from 3.3, 2.5, or 1.8 V.
CBPro GUI-programmable VDDO supplies allow
each of the 4 outputs to have its own supply voltage
selectable from 3.3, 2.5, or 1.8 V
CBPro GUI-controlled voltage, current, and power
measurements of VDD and all VDDO supplies.
Status LEDs for power supplies and control/status
signals of Si5340
SMA connectors for input and output clocks
Si5340 Evaluation Board

Si5340-EVB
2 Rev. 1.0
1. Functional Block Diagram
Below is a functional block diagram of the Si5340-EVB. This EVB can be connected to a PC via the main USB
connector for programming, control, and monitoring. See Section “3. Quick Start” or Section “9. Installing
ClockBuilderPro (CBPro) Desktop Software” for more information.
Figure 1. Si5340-EVB Block Diagram

Si5340-EVB
Rev. 1.0 3
2. Si5340 EVB Support Documentation and ClockBuilderProTM Software
All Si5340 schematics, BOMs, User's Guides, and software can be found on-line at the following link:
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
3. Quick Start
1. Install ClockBuilderPro™ desktop software: http://www.silabs.com/CBPro
2. Connect a USB cable from the Si5340-EVB to the PC where the software is installed.
3. Leave the jumpers as installed from the factory and launch the ClockBuilderPro™ software.
4. You can use ClockBuilderPro™ to create, download, and run a frequency plan on the Si5340-EVB.
5. For Si5340 data sheet go to: http://www.silabs.com/timing
4. Jumper Defaults
Si5340 EVB Jumper Defaults
Location Type I = Installed
0 = Open
Location Type I = Installed
0 = Open
JP1 2 pin I JP14 2 pin O
JP2 2 pin I JP15 2 pin O
JP3 2 pin O JP16 3 pin all open
JP4 2 pin O JP17 3 pin all open
JP5 3 pin 1 to 2 JP18 2 pin O
JP6 2 pin O JP19 2 pin O
JP7 2 pin O JP20 3 pin all open
JP8 2 pin O JP21 3 pin all open
JP9 2 pin O JP22 2 pin O
JP10 2 pin O JP23 2 pin O
JP11 2 pin O JP24 3 pin all open
JP12 2 pin O
JP13 2 pin O JP17 5x2 Hdr All 5 installed
Note: Refer to the Si5340 EVB schematics for the functionality associated with each jumper.

Si5340-EVB
4 Rev. 1.0
5. Status LEDs
D11 is illuminated when USB +5V supply voltage is present. D12 and D13 are status LEDs showing on-board MCU
activity.

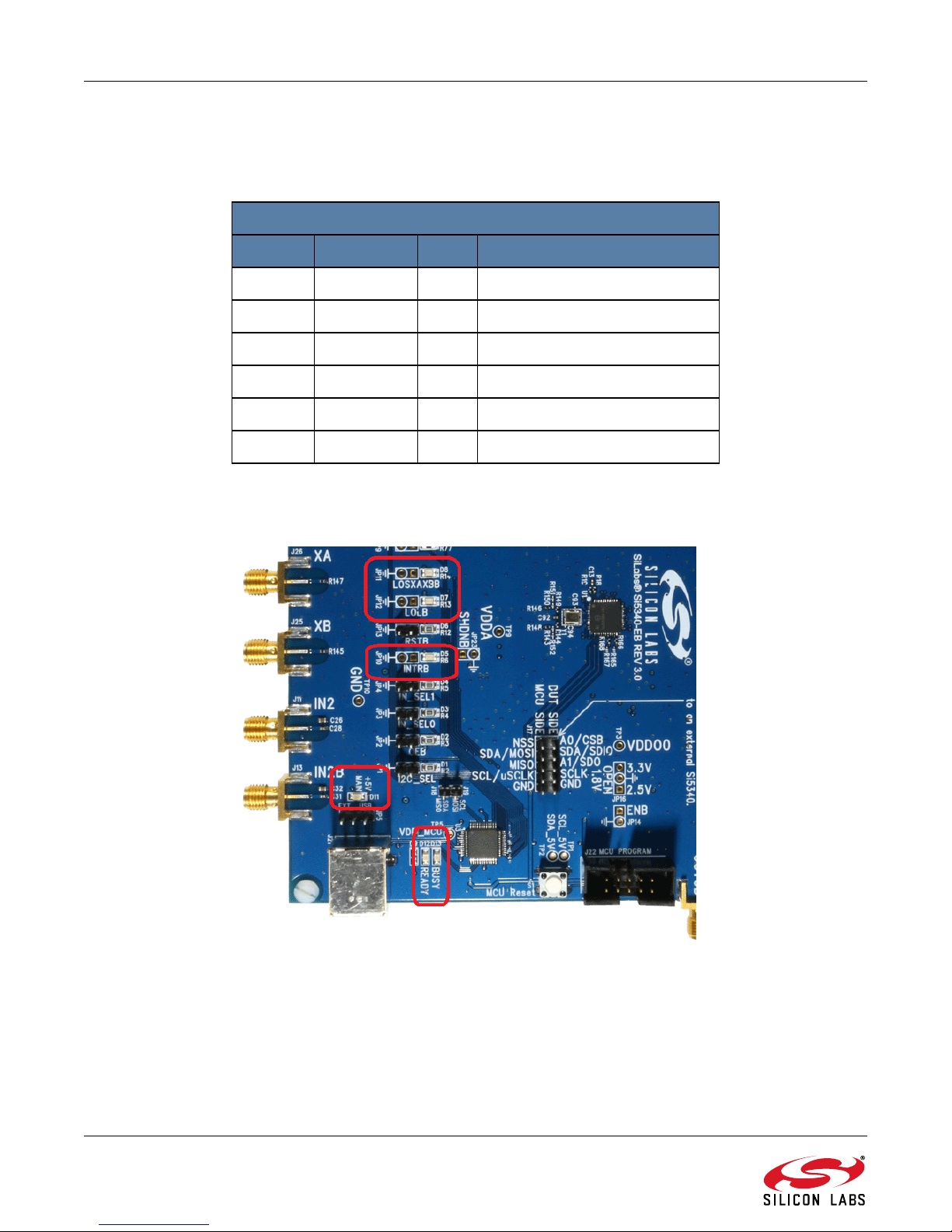

Figure 2. Status LEDs
Si5340 EVB Status LEDs
Location Silkscreen Color Status Function Indication
D5 INTRB Blue DUT Interrupt
D7 LOLB Blue DUT Loss of Lock
D8 LOSXAXBB Blue DUT Loss of Reference
D11 +5V MAIN Green Main USB +5V present
D12 READY Green MCU Ready
D13 BUSY Green MCU Busy

Si5340-EVB
Rev. 1.0 5
6. External Reference Input (XA/XB)
An external reference (XTAL) is used in combination with the internal oscillator to produce an ultra-low jitter
reference clock for the DSPLL and for providing a stable reference for the free-run and holdover modes. The
Si5340-EVB can also accommodate an external reference clock instead of a crystal. To evaluate the device with a
REFCLK, C93 and C94 must be populated and the XTAL removed (see Figure 3 below). The REFCLK can then be
applied to J25 and J26.
Figure 3. External Reference Input Circuit
7. Clock Input Circuits (INx/INxB and FB_IN/FB_INB)
The Si5340-EVB has eight SMA connectors (IN0/IN0B – IN2/IN2B and FB_IN/FB_INB) for receiving external clock
signals. All input clocks are terminated as shown in Figure 4 below.
Input clocks are AC coupled and 50-terminated. This represents 4 differential input clock pairs. Single-ended
clocks can be used by appropriately driving one side of the differential pair with a single-ended clock. For details on
how to configure inputs as single-ended, please refer to the Si5340 data sheet.
Figure 4. Input Clock Termination Circuit

Si5340-EVB
6 Rev. 1.0
8. Clock Output Circuits (OUTx/OUTxB)
Each of the 8 outputs (4 differential pairs) is AC coupled to its respective SMA connector. The output clock
termination circuit is shown in Figure 5 below. The output signal has no DC bias. If DC coupling is required, the AC
coupling capacitors can be replaced with a resistor of appropriate value. The Si5340-EVB provides pads for
optional output termination resistors and/or low frequency capacitors.
Note: Components with schematic “NI” designation are not normally populated on the Si5340-EVB and provide locations on
the PCB for optional DC/AC terminations by the end user.

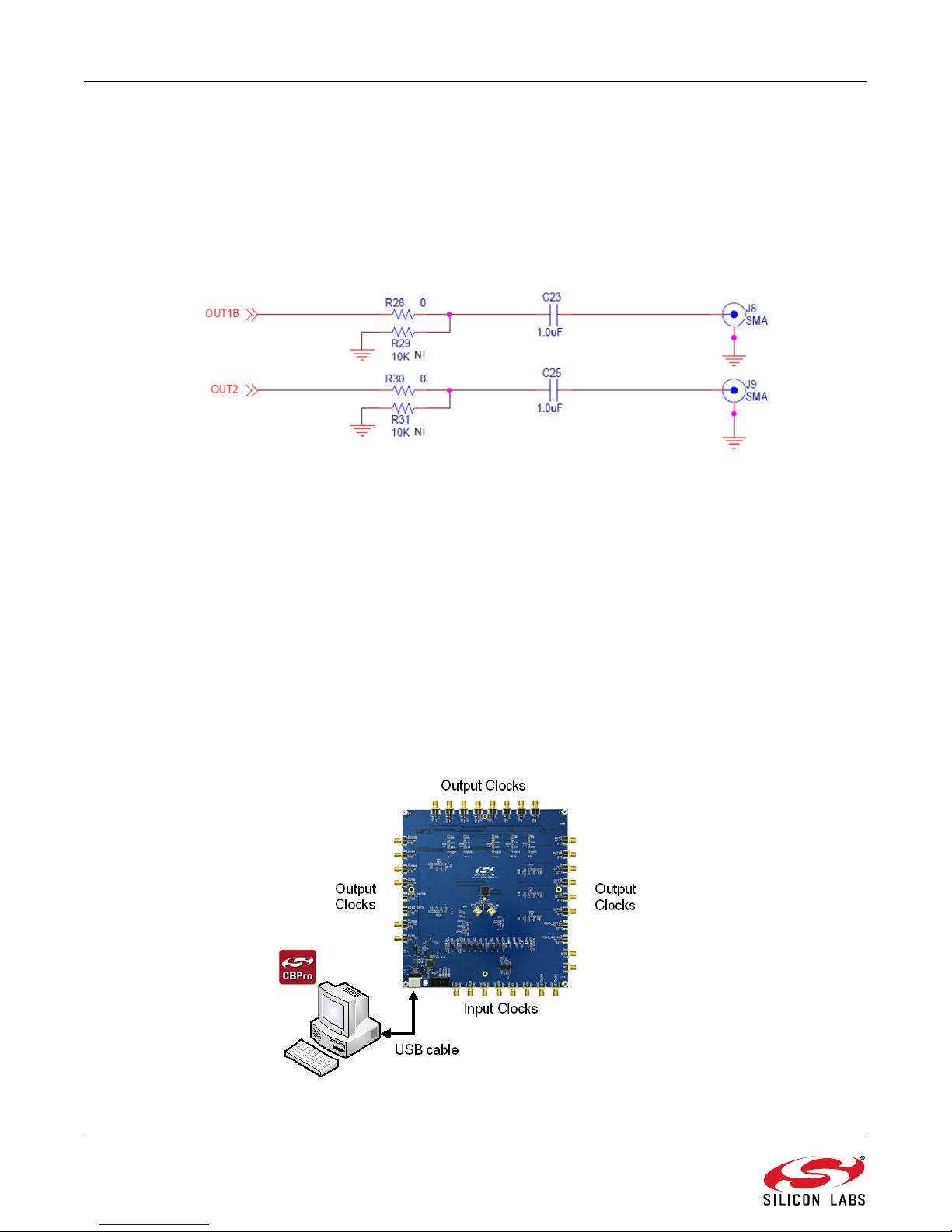

Figure 5. Output Clock Termination Circuit
9. Installing ClockBuilderPro (CBPro) Desktop Software
To install the CBPro software on any Windows 7 (or later version) PC, do the following:
1. Go to http://www.silabs.com/CBPro/ and download ClockBuilderPro™ software.
2. Installation instructions and User’s Guide for ClockBuilderPro™ can be found at the download link shown
above. Please follow the instructions as indicated.
10. Using the Si5340 EVB
10.1. Connecting the EVB to Your Host PC
Once the ClockBuilderPro™ software in installed, connect the PC to the EVB with a USB cable as illustrated in
Figure 6.
Figure 6. EVB Connection Diagram

Si5340-EVB
Rev. 1.0 7
10.2. Overview of ClockBuilderProTM Applications
The ClockBuilderPro™ installer installs two main applications: the ClockBuilderPro Wizard and the EVB GUI.
Figure 7. Application #1: ClockBuilderPro Wizard
Use the CBPro Wizard to do the following:
Create a new design
Review or edit an existing design
Export: create in-system programming
Figure 8. Application #2: EVB GUI
Use the EVB GUI to do the following:
Download configuration to EVB’s DUT (Si5340)
Control the EVB’s regulators
Monitor voltage, current, and power on the EVB

Si5340-EVB
8 Rev. 1.0
10.3. Common ClockBuilderProTM Work Flow Scenarios
There are three common workflow scenarios when using CBPro and the Si5340 EVB. These workflow scenarios
are as follows:
Workflow Scenario #1: Testing a Silicon Labs-created default configuration
Workflow Scenario #2: Modifying the default Silicon Labs-created device configuration
Workflow Scenario #3: Testing a user-created device configuration
Each workflow scenario is described in more detail in the following sections.
10.3.1. Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
The flow for using the EVB GUI to initialize and control a device on the EVB is as follows:
1. Once the PC and EVB are connected, launch ClockBuilder Pro by clicking this icon on your PC's desktop:
Figure 9. ClockBuilderPro Desktop Icon
2. If an EVB is detected, click on the Open Default Plan button on the Wizard's main menu. CBPro
automatically detects the EVB and device type.
Figure 10. Open Default Plan
3. Once you open the default plan (based on your EVB model number), a popup window appears.
Figure 11. Write Design to EVB Dialog

Si5340-EVB
Rev. 1.0 9
4. Select Yes to write the default plan to the Si5340 device mounted on your EVB. This ensures the device is
completely reconfigured per the Silicon Labs default plan for the DUT type mounted on the EVB.
Figure 12. Writing Design Status
5. After CBPro writes the default plan to the EVB, click on Open EVB GUI as shown in Figure 13.
Figure 13. Open EVB GUI
6. The EVB GUI opens.
Note: All power supplies are set to the values defined in the device's default CBPro project file created by
Silicon Labs, as shown in Figure 14.
Figure 14. EVB GUI Window

Si5340-EVB
10 Rev. 1.0
Verify Free-Run Mode Operation
Assuming no external clocks have been connected to the INPUT CLOCK differential SMA connectors (labeled
"INx/INxB") located around the perimeter of the EVB, the DUT should now be operating in free-run mode, as the
DUT will be locked to the crystal in this case.
You can run a quick check to determine if the device is powered up and generating output clocks (and consuming
power) by clicking on the Read All button (the bottom-right of Figure 14) and then reviewing the voltage, current,
and power readings for each VDDx supply.
Note: Shutting the VDD and VDDA power supplies "Off" and then "On" will power-down and reset the DUT. Every time you do
this, to reload the Silicon Labs-created default plan into the DUT's register space, you must go back to the Wizard's main
menu and select Write Design to EVB:
Figure 15. Write Design to EVB
Failure to do the step above will cause the device to read in a pre-programmed plan from its non-volatile memory (NVM).
However, the plan loaded from the NVM may not be the latest plan recommended by Silicon Labs for evaluation.
At this point, you should verify the presence and frequencies of the output clocks (running in free-run mode from
the crystal) using appropriate external instrumentation connected to the output clock SMA connectors. To verify the
output clocks are toggling at the correct frequency and signal format, click on View Design Report as highlighted
in Figure 16.
Figure 16. View Design Report

Si5340-EVB
Rev. 1.0 11
Your configuration's design report appears in a new window, shown in Figure 17. Compare the observed output
clocks to the frequencies and formats noted in your default project's Design Report.
Figure 17. Design Report Window

Si5340-EVB
12 Rev. 1.0
Verify Locked Mode Operation
Assuming you connect the correct input clocks to the EVB (as noted in the Design Report shown above), the DUT
on your EVB will be running in "locked" mode.
10.3.2. Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device Configuration

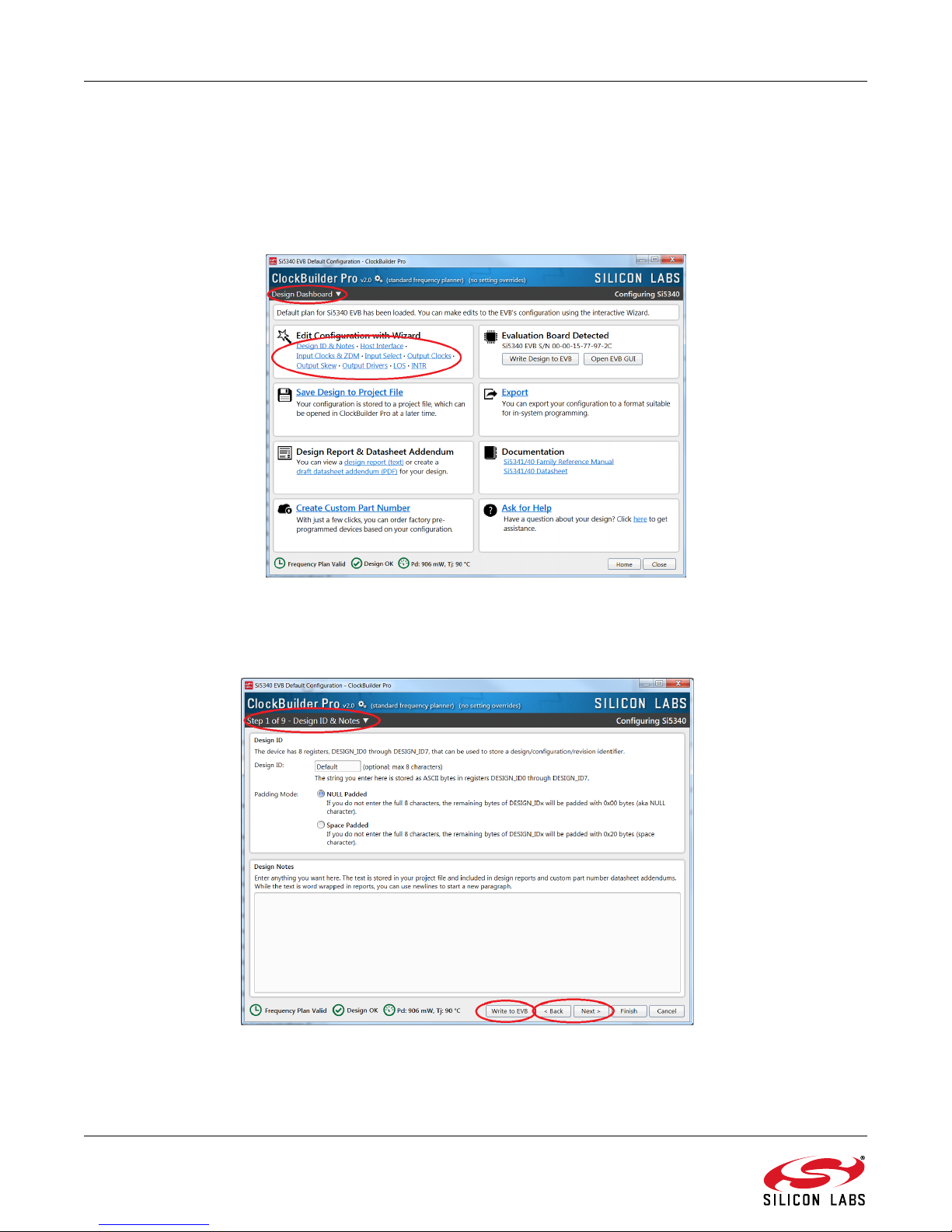

To modify the "default" configuration using the CBPro Wizard, click on Edit Configuration with Wizard.
Figure 18. Edit Configuration with Wizard
You are then taken to the Wizard's step-by-step menus which allow you to change any of the default plan's
operating configurations.
Figure 19. Design Wizard
Note: You can click on the icon on the lower left hand of the menu to confirm if your frequency plan is valid. After making your
desired changes, you can click on Write to EVB to update the DUT to reconfigure your device in real-time. The Design
Write status window opens each time you make a change.

Si5340-EVB
Rev. 1.0 13

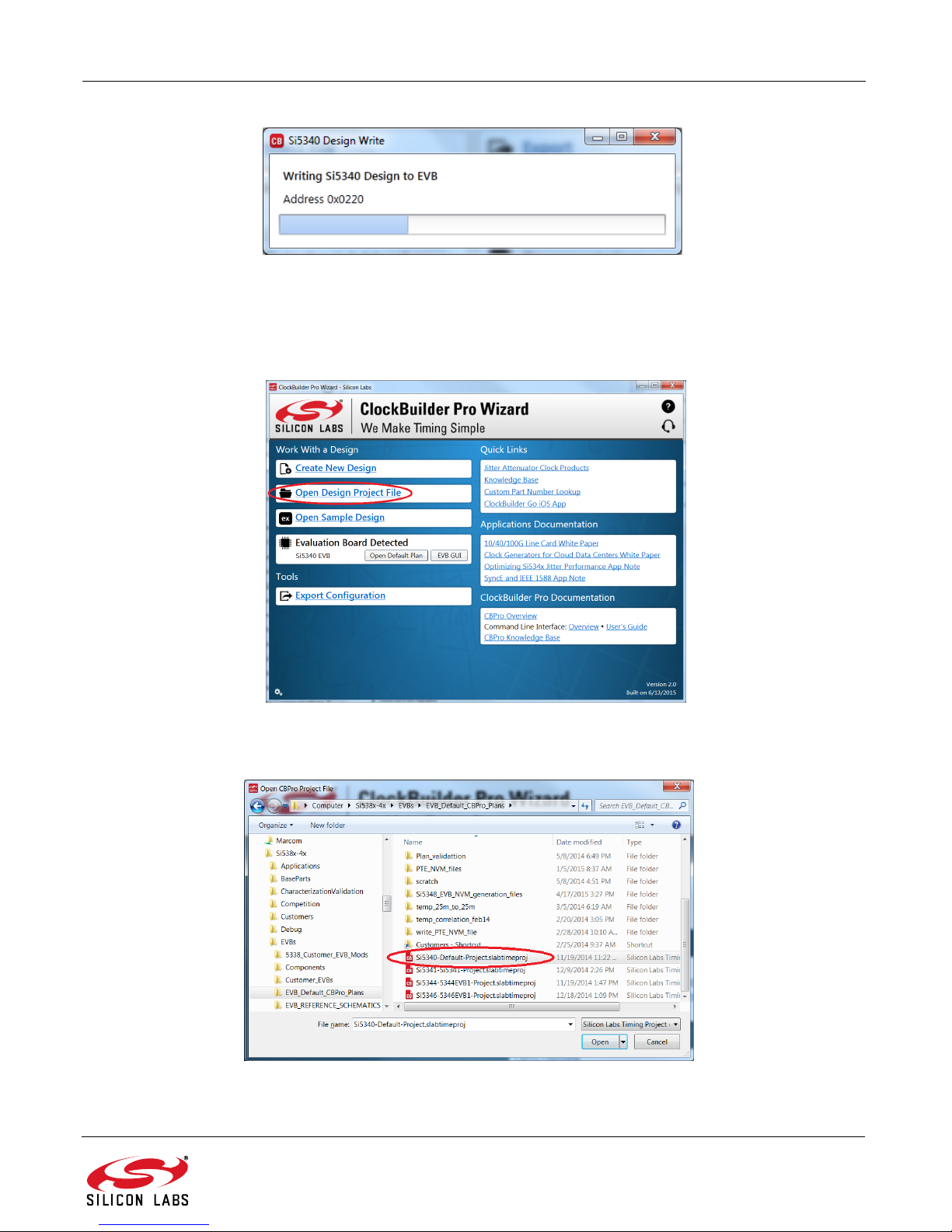

Figure 20. Writing Design Status
10.3.3. Workflow Scenario #3: Testing a User-Created Device Configuration
1. To test a previously-created user configuration, open the CBPro Wizard by clicking on the icon on your
desktop and then selecting Open Design Project File.
Figure 21. Open Design Project File
2. Locate your CBPro design file (*.slabtimeproj or *.sitproj file) in the Windows file browser.
Figure 22. Browse for Project Files

Si5340-EVB
14 Rev. 1.0
3. Select Yes when the Write Design to EVB popup appears.

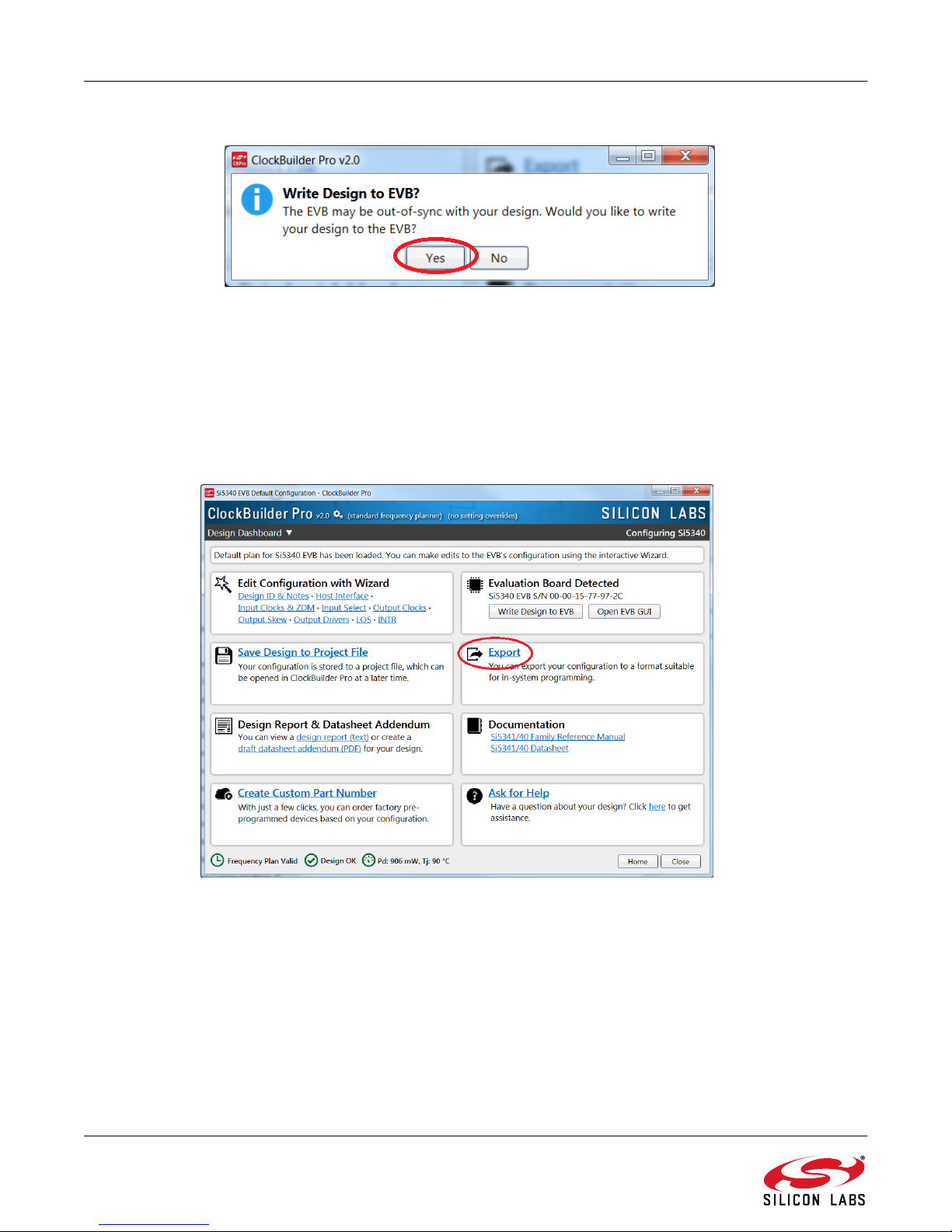

Figure 23. Write Design to EVB Dialog
4. The progress bar is launched. Once the new design project file has been written to the device, verify the
presence and frequencies of your output clocks and other operating configurations using external
instrumentation.
10.4. Exporting the Register Map File for Device Programming by a Host Processor
You can also export your configuration to a file format suitable for in-system programming by selecting Export as
shown in Figure 24.
Figure 24. Export Register Map File

Si5340-EVB
Rev. 1.0 15

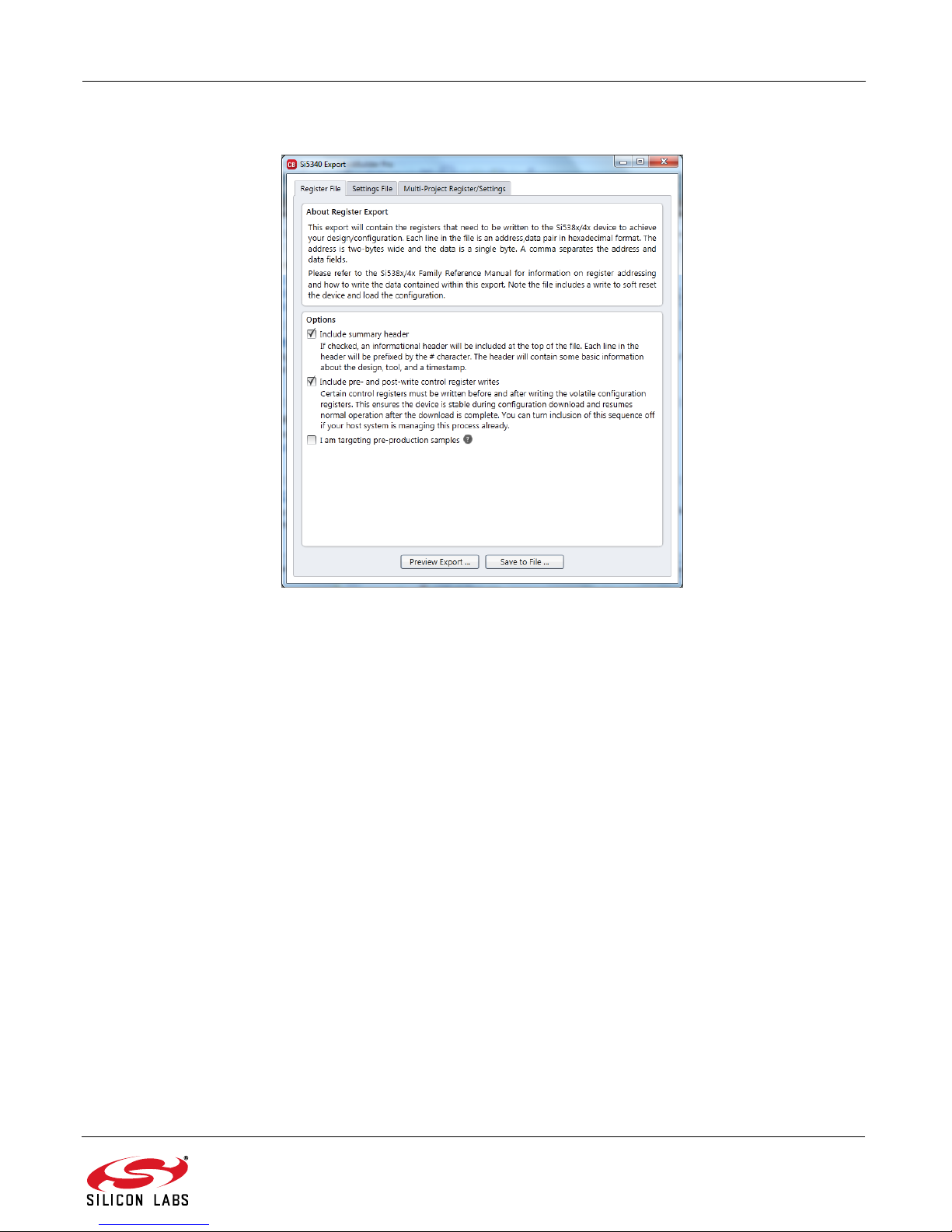

You can now write your device's complete configuration to file formats suitable for in-system programming.
Figure 25. Export Settings

Si5340-EVB
16 Rev. 1.0
11. Writing a New Frequency Plan or Device Configuration to Non-Volatile
Memory (OTP)
Note: Writing to the device’s non-volatile memory (OTP) is NOT the same as writing a configuration into the Si5340 using
ClockBuilderPro on the Si5340 EVB. Writing a configuration into the EVB from ClockBuilderPro is done using Si5340
RAM space and can be done virtually unlimited number of times. Writing to OTP is limited as described below.
Refer to the Si534x/8x Family Reference Manuals and device datasheets for information on how to write a
configuration to the EVB DUT's non-volatile memory (OTP). The OTP can be programmed a maximum of two
times only. Care must be taken to ensure the configuration desired is valid when choosing to write to OTP.
12. Serial Device Communications (Si5340 <—> MCU)
12.1. On-Board SPI Support
The MCU on-board the Si5340-EVB communicates with the Si5340 device through a 4-wire SPI (Serial Peripheral
Interface) link. The MCU is the SPI master and the Si5340 device is the SPI slave. The Si5340 device can also
support a 2-wire I2C serial interface, although the Si5340-EVB does NOT support the I2C mode of operation. SPI
mode was chosen for the EVB because of the relatively higher speed transfers supported by SPI vs. I2C.
12.2. External I2C Support
I2C can be supported if driven from an external I2C controller. The serial interface signals between the MCU and
Si5340 pass through shunts loaded on header J17. These jumper shunts must be installed in J17 for normal EVB
operation using SPI with CBPro. If testing of I2C operation via external controller is desired, the shunts in J17 can
be removed thereby isolating the on-board MCU from the Si5340 device. The shunt at JP1 (I2C_SEL) must also be
removed to select I2C as Si5340 interface type. An external I2C controller connected to the Si5340 side of J17 can
then communicate to the Si5340 device. (For more information on I2C signal protocol, please refer to the Si5340
data sheet.)
Figure 26 below illustrates the J17 header schematic. J17 even numbered pins (2, 4, 6, etc.) connect to the Si5340
device and the odd numbered pins (1, 3, 5, etc.) connect to the MCU. Once the jumper shunts have been removed
from J17 and JP1, I2C operation should use J17 pin 4 (DUT_SDA_SDIO) as the I2C SDA and J17 pin 8
(DUT_SCLK) as the I2C SCLK. Please note the external I2C controller will need to supply its own I2C signal pull-up
resistors.
Figure 26. Serial Communications Header J17

Si5340-EVB
Rev. 1.0 17
13. Si5340-EVB Schematic and Bill of Materials (BOM)
The Si5340 EVB Schematic and Bill of Materials (BOM) can be found online at:
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
Please be aware the Si5340 EVB schematic is in OrCad Capture hierarchical format and not in a typical "flat"
schematic format.

Si5340-EVB
18 Rev. 1.0
DOCUMENT CHANGE LIST
Revision 1.0
Initial Release

Si5340-EVB
Rev. 1.0 19
CONTACT INFORMATION
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
Tel: 1+[phone]
Fax: 1+[phone]
Toll Free: 1+[phone]
Please visit the Silicon Labs Technical Support web page:
https://www.siliconlabs.com/support/pages/contacttechnicalsupport.aspx
and register to submit a technical support request.
Patent Notice
Silicon Labs invests in research and development to help our customers differentiate in the market with innovative low-power, small size, analog-
intensive mixed-signal solutions. Silicon Labs' extensive patent portfolio is a testament to our unique approach and world-class engineering team.
Silicon Laboratories and Silicon Labs are trademarks of Silicon Laboratories Inc.
Other products or brandnames mentioned herein are trademarks or registered trademarks of their respective holders.
The information in this document is believed to be accurate in all respects at the time of publication but is subject to change without notice.
Silicon Laboratories assumes no responsibility for errors and omissions, and disclaims responsibility for any consequences resulting from
the use of information included herein. Additionally, Silicon Laboratories assumes no responsibility for the functioning of undescribed fea-
tures or parameters. Silicon Laboratories reserves the right to make changes without further notice. Silicon Laboratories makes no warran-
ty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Silicon Laboratories assume any
liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation
consequential or incidental damages. Silicon Laboratories products are not designed, intended, or authorized for use in applications intend-
ed to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where
personal injury or death may occur. Should Buyer purchase or use Silicon Laboratories products for any such unintended or unauthorized
application, Buyer shall indemnify and hold Silicon Laboratories harmless against all claims and damages.
