DIGITAL AIR FRYER SHFD 1350 A1
DIGITAL AIR FRYER
Operation and safety notes
ΨΗΦΙΑΚΗ ΦΡΙΤΈΖΑ
ΘΈΡΜΟΎ ΑΈΡΑ
Υποδείξεις χειρισμού και ασφαλείας
IAN 384072_2107

GB/IE/CY Operation and safety notes Page 5
GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 25

5
1
4
7
6
2
38
A

9
181920
1110 12
14
15
16
17
13

2
3
4
5
B
2
3
4
5
C

2
3
4
5
D
2
3
4
5
E

5GB/IE/CY
Warnings and symbols used ....................................... Page 6
Introduction .......................................................... Page 6
Intended use............................................................ Page 6
Scope of delivery ........................................................ Page 7
Description of parts ...................................................... Page 7
Technical data .......................................................... Page 7
Safety instructions................................................... Page 7
Before first use ....................................................... Page 12
Operation............................................................. Page 12
Preparation............................................................. Page 13
Selecting a program...................................................... Page 13
Starting cooking......................................................... Page 14
Pausing cooking ......................................................... Page 14
Cancelling cooking ...................................................... Page 14
Detaching the basket from the bowl.......................................... Page 14
Removing the food ....................................................... Page 15
Cooking table ........................................................ Page 15
Recipe suggestions .................................................. Page 17
Crispy cheese hot dog .................................................... Page 17
Spicy chicken ........................................................... Page 17
Mushroom, onion and cheese pie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Bell pepper ring ......................................................... Page 18
Baked egg with bacon and spinach ......................................... Page 19
Spring chicken .......................................................... Page 19
Jacket potato ........................................................... Page 20
Small cake ............................................................. Page 20
Dinner roll.............................................................. Page 21
Fish fillet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Troubleshooting...................................................... Page 22
Cleaning and care ................................................... Page 23
Maintenance ........................................................... Page 23
Storage ............................................................... Page 23
Disposal............................................................... Page 23
Warranty ............................................................. Page 24

6 GB/IE/CY
Warnings and symbols used
The following warnings are used in this user manual and on the packaging:
DANGER! This symbol with the signal
word “Danger” indicates a hazard with
a high level of risk which, if not avoided,
will result in serious injury or death.

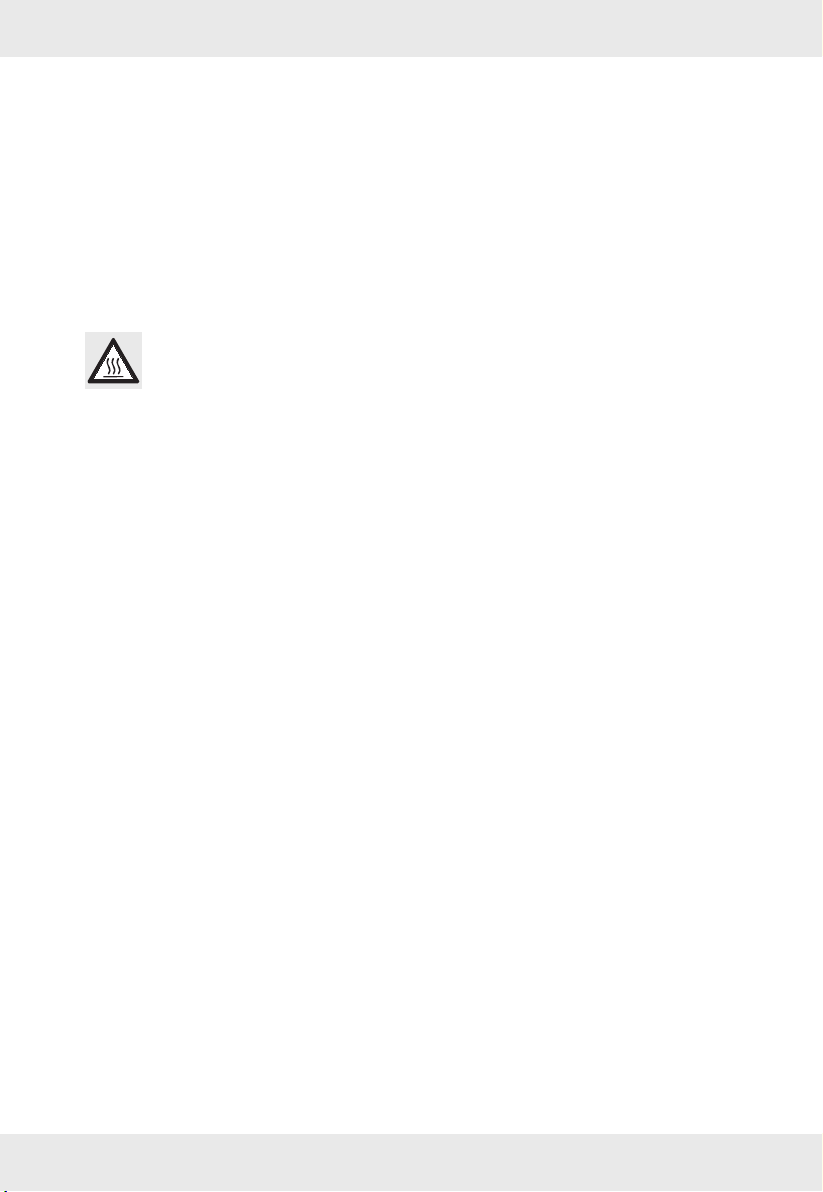

Warning! Burning hazard: This
symbol indicates a hot surface.
WARNING! This symbol with the
signal word “Warning” indicates a
hazard with a medium level of risk
which, if not avoided, could result in
serious injury or death.
Food safe
This product has no adverse effect on
taste or smell.
Alternating current/voltage
NOTE: This symbol with the signal
word “Note” provides additional useful
information.
CE mark indicates conformity with
relevant EU directives applicable for this
product.
The basket [2] and the bowl [4] are
suitable for the dishwasher. UKCA mark indicates conformity with
relevant Great Britain regulations
applicable for this product (The UKCA
mark logo is valid in Great Britain only).
Never leave children unattended with
packaging materials or the product.
DIGITAL AIR FRYER
Introduction
We congratulate you on the purchase of your
new product. You have chosen a high quality
product. The instructions for use are part of the
product. They contain important information
concerning safety, use and disposal. Before using
the product, please familiarise yourself with all
of the safety information and instructions for use.
Only use the product as described and for the
specified applications. If you pass the product on
to anyone else, please ensure that you also pass
on all the documentation with it.
Intended use
This air fryer is intended for preparing foods that
require a high cooking temperature and would
otherwise require deep-frying. The product is
intended only for preparing foods.
The product is designed solely for domestic use. It
is not intended for commercial use.
Use the product in moderate climates only.
Use of the product in tropical climates is not
recommended.

7GB/IE/CY
Any other use not mentioned in these instructions
may cause a damage to the product or create a
serious risk of injury.
The manufacturer accepts no liability for damages
caused by improper use.
Scope of delivery
After unpacking the product, check if the delivery
is complete and if all parts are in good condition.
Remove all packaging materials before use,
including the packaging material underneath the
bowl and the basket.
Contact customer service if parts are missing or
damaged.
Digital air fryer
Instruction manual
Description of parts

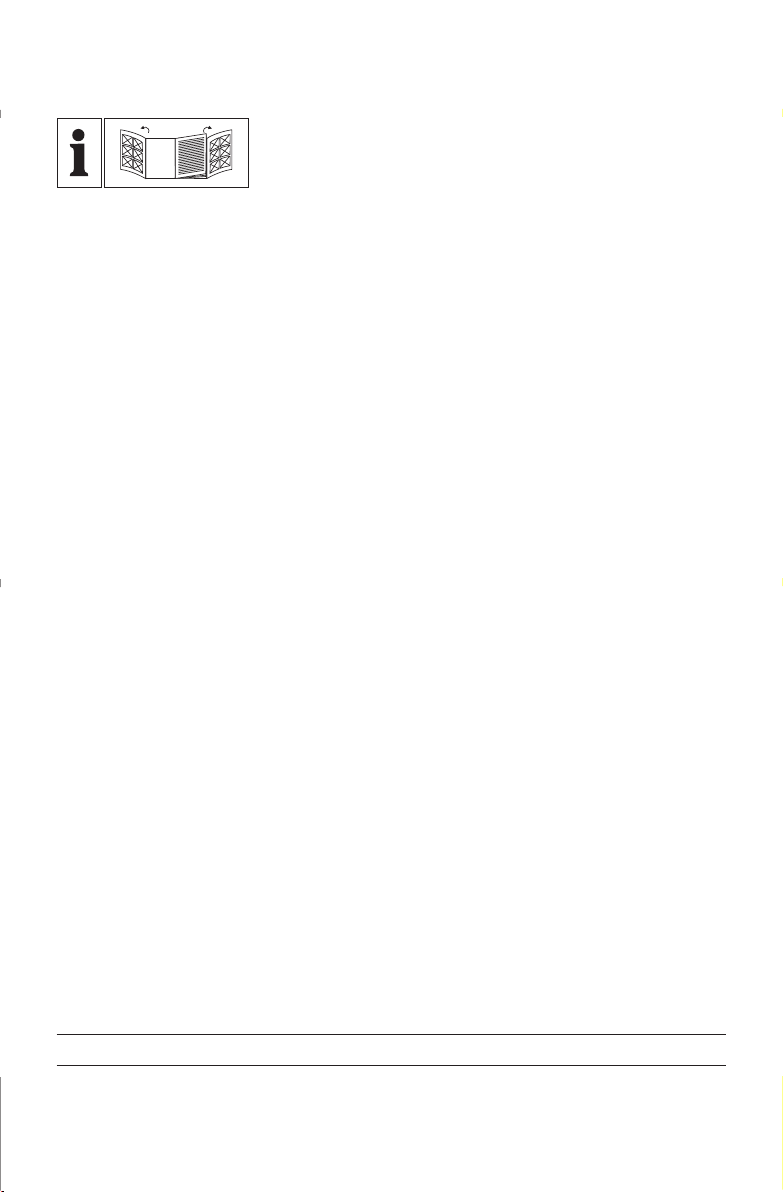

Before reading, unfold the page containing the
illustrations and familiar yourself with all functions
of the product.
[1] Display (with control panel)
[2] Basket (with MAX fill line on the inside)
[3] Basket release (with protective cover)
[4] Bowl
[5] Handle
[6] Air vents
[7] Power cord with plug
[8] Cooking chamber
Display (with control panel)
[9] Menu selection display
[] Value display (temperature and timer)
[] Time unit display
[] Temperature unit display
[] Menu selection display
[] Operation light
[] button (increase temperature)
[] button (decrease temperature)
[] button (menu selection)
[] button (start/pause/off)
[] button (decrease cooking time)
[] button (increase cooking time)
Technical data
Input voltage 220–240 V∼,
50–60 Hz
Protection class I
Output 1350 W
Cooking temperature 80 to 200 °C
Cooking time 1 to 60 minutes
Safety instructions
BEFORE USING THE
PRODUCT, FAMILIARISE
YOURSELF WITH ALL OF
THE SAFETY INFORMATION
AND INSTRUCTIONS FOR
USE! WHEN PASSING THIS
PRODUCT ON TO OTHERS,
ALSO INCLUDE ALL THE
DOCUMENTS!

8 GB/IE/CY
In the case of damage resulting
from non-compliance with
these operating instructions
the guarantee claim becomes
invalid! No liability is accepted
for consequential damage! In
the case of material damage
or personal injury caused by
incorrect handling or non-
compliance with the safety
instructions, no liability is
accepted!

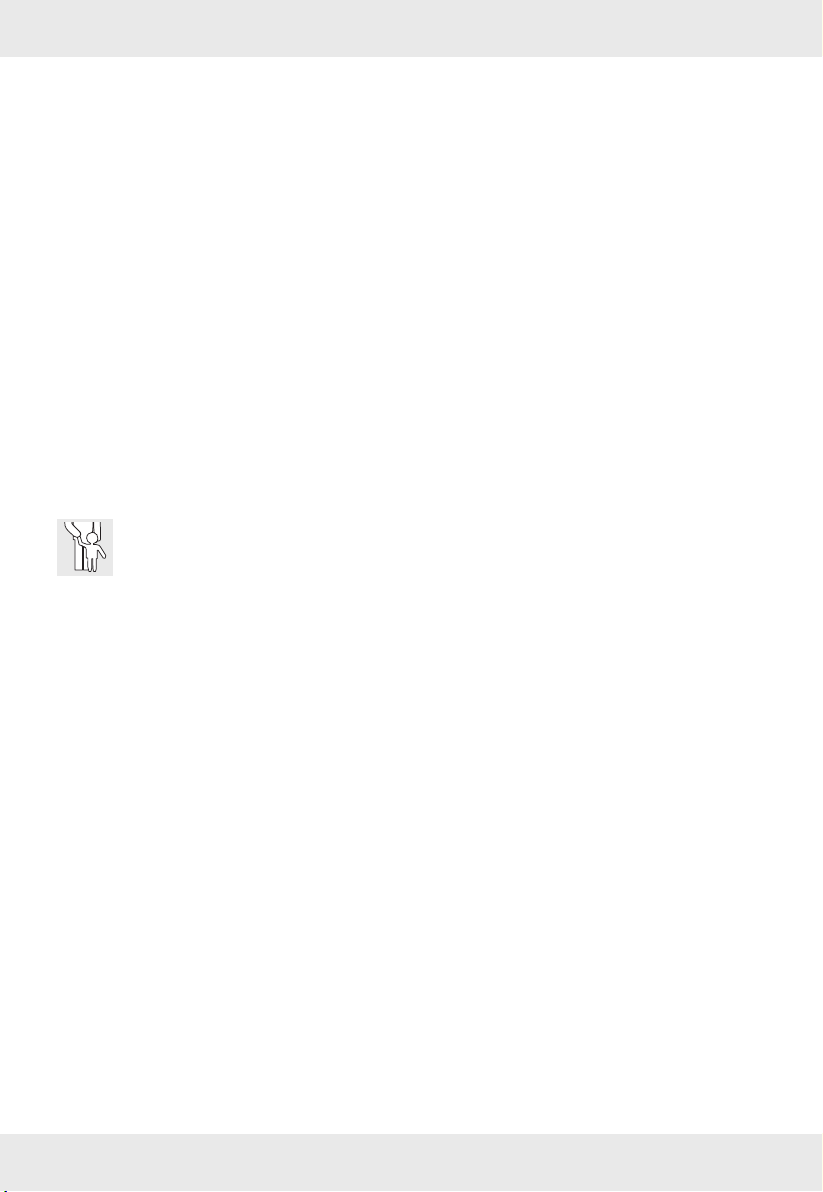

Children and persons with
disabilities
mDANGER OF DEATH
AND ACCIDENTS
FOR TODDLERS AND
CHILDREN!
Never leave children unsupervised
with the packaging material. The
packaging material represents a
danger of suffocation. Children
frequently underestimate the
dangers. Keep children away
from the product and packaging
material at all times.
This product may be used by
children over 8 years of age
and persons with reduced
physical, sensory or mental
capabilities if they have been
given supervision or instruction
concerning the safe use of the
product and have understood
the hazards involved.
User cleaning and maintenance
may not be carried out by
children unless they are over
8 years of age and under
supervision.
The product and the power
cord must be kept out of reach
of children below 8 years of
age.
Children shall not play with the
product.
Electrical safety
mDANGER! Risk of electric
shock! Do not attempt to
repair the product yourself. In
case of malfunction, repairs are
to be conducted by qualified
personnel only.

9GB/IE/CY
mWARNING! Risk of
electric shock! Do not
immerse the product in water or
other liquids. Do not hold the
product under running water.
mWARNING! Risk of
electric shock! Never use a
damaged product. Disconnect
the product from the power
supply and consult your retailer
if the product is damaged.
mWARNING! Risk of
electric shock! Do not set up
the product next to a sink or in
moist areas.
Before connecting the product
to the power supply, check that
the voltage and current rating
corresponds with the power
supply details shown on the
product’s rating label.
Connect the product only to an
earthed socket-outlet. Always
make sure that the plug is
inserted into the wall socket
properly.
To avoid damaging the power
cord, do not squeeze, bend or
chafe it on sharp edges. Keep
it away from hot surfaces and
open flames as well.
Lay out the power cord in such
a way that no unintentional
pulling or tripping over is
possible.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Pull the plug and not the cable
itself to disconnect the product
from the power supply.
Do not wrap the power cord
around the product. Connect
the product to an easily
reachable electrical outlet so
that in case of an emergency
the product can be unplugged
immediately.

10 GB/IE/CY
This product is not intended
to be operated by means of
an external timer or separate
remote-control system.
Do not operate the product
with wet hands. Do not touch
the product with wet hands.
Fire/burn hazard and heat
 WARNING! HOT
SURFACE! Keep
children and pets away
from the product while it is in
operation or cooling down. The
accessible parts are hot.
mCAUTION! Burn hazard!
Never touch the inside of the
product while it is operating or
still hot.
mCAUTION! Fire hazard!
Do not place the product in
the vicinity of inflammable
materials (e.g. curtains,
tablecloths).
mCAUTION! Fire hazard!
To prevent overheating, do
not cover the product during
operation.
mCAUTION! Burn hazard!
Do not use the product with
boiling liquids or hot grease.
mCAUTION! Burn hazard!
During operation hot steam is
released through the air outlet
openings. Keep your hands
and face at a safe distance
from the steam and from the air
outlet openings.
mCAUTION! This product
is not a toy for children!
Children are not aware of
the dangers associated with
handling electrical products.
mCAUTION! Burn hazard!
Hot steam may rise when you
open the product.
If you notice any smoke or
unusual noises, immediately
disconnect the product from
the power supply. Have the
product checked by a specialist
before continued use.

11GB/IE/CY
In the event of a fire, first pull
the plug from the power outlet
or disconnect the product
from the power supply before
taking appropriate firefighting
measures.
Do not cover the product’s air
vents. Make sure the product
has sufficient ventilation. Do not
place the product in a cabinet.
Do not place anything on top
of the product.
Leave at least 10 cm of space
in all directions around the
product to ensure sufficient
ventilation.
Setup instructions
Do not set up the product
directly beneath a socket-outlet.
Do not set up the product on
hotplates (gas, electric, coal,
etc.).
Always operate the product on
an even, stable, clean, heat-
resistant and clean surface.
Leave the product to cool
before using it in a different
location.
Operation
mFilling the bowl directly
with oil may cause a fire
hazard.
Never touch the inside of the
product while it is operating.
Keep all ingredients in the
basket to prevent any contact
from heating elements.
Never leave the product
unattended while it is in use.
Do not overfill the product. Do
not fill the basket[2] above
the MAX fill line. This is
important so that neither the
food nor an inserted container
(e.g. a baking tin) comes in
direct contact with the heating
element.
Do not place more than 750 g
of food and loading (e.g.
baking tin) into the basket [2].
This could damage the product.

12 GB/IE/CY
Cleaning and storage
The product shall not be
exposed to any dripping or
splashing water.
Disconnect the product from the
power outlet during periods of
disuse and before cleaning.
Refer to the “Cleaning and
care” section for instructions on
how to clean the product.
Before first use
Remove all the packaging materials.
Clean the product (see “Cleaning and care”).
Operation
NOTES:
The product switches to standby mode if no
button is pressed for 60 seconds in program
selection mode.
A signal sounds each time a button is
pressed.
You can remove the bowl [4] at any time,
even during cooking.
– The heating element and fan switch off
when the bowl [4] is removed.
– When the bowl [4] is replaced, the product
returns automatically to the previous
operating mode.
Large amounts of food usually need a longer
cooking time than small amounts of food.
Refer to the “Cooking table” section which
food needs to be shaken/turned during the
cooking process. For even cooking results, we
recommend shaking/turning the food after
approximately one third and two thirds of the
total cooking time. Shake for 5 to 10 seconds
each time.
For better cooking results, you may shake/
turn the food 3times during the cooking time.
If you find it difficult to shake/turn, use an aid
(e.g. spoon).
To remove the bowl [4] and the basket [2]
from the cooking chamber [8], carefully
hold back the upper part of the housing
with one hand. With the other hand, pull
the handle [5] to remove the bowl and the
basket.
Always insert the basket [2] horizontally and
without pressure into the bowl [4]. You can
hear and feel the locking mechanism click into
place (ill. B).
Do not place more than 750 g of food and
loading (e.g. baking tin) into the basket [2].
This could damage the product.
m ATTENTION! Risk of product
damage! Never touch the basket[2]
and bowl[4] with sharp objects. This could
damage the coating.
m ATTENTION! Risk of product
damage! Never press the basket
release [3] while holding the basket [2] and
the bowl [4] in the air. The released bowl
would fall to the ground uncontrolled (ill. C).

13GB/IE/CY
To engage the basket release [3], first slide
its protective cover forward. Then, press the
basket release (ill. D).
Preparation
Connect the product to a suitable power
outlet. [] lights up and the value
display[] shows “–––”. 1 beep sounds. The
product enters standby mode.
Fill the basket [2] with your food. Do not fill
above the MAX fill line (on the inside of the
basket).
Insert the bowl [4] with the filled basket [2]
into the cooking chamber [8].
m ATTENTION! Risk of product
damage! Do not pour any liquids (e.g. oil
or water) into the bowl [4]. This could impair
the product’s functionality.
Selecting a program
Switch to program selection mode: Press
[]. The menu selection display [9] []
flashes for 3 seconds and then goes off. The
other indicators light up, except [].
The temperature is preset to 180 °C and the
cooking time to 15 minutes.
You can adjust the temperature (with 5 °C
intervals) and the cooking time (with 1 minute
intervals):
Button Function (temperature)
[] Increase temperature (max. 200 °C)
[] Decrease temperature (min. 80 °C)
Button Function (time)
[] Increase time (max. 60 minutes)
[] Decrease time (min. 1 minute)
Selecting a program
You can also select a program that suits your
food.
Press [] to select one of the programs.
The selected program [9] [] flashes.
Food °C Min. Optimal
quantity
Preset 180 15 –
French fries 200 15 300 g
Steak 180 10 200 g
Fish 180 15 300 g
Shrimps 180 15 400 g
Chicken
drumstick 200 30 500 g
Cake 160 15 4 x 50 g
Chicken 200 30 500 g
Bread 160 10 7 x 70 g
NOTES:
For better cooking results we recommend to
preheat the product for 3 minutes.
Refer to the “Cooking table” section which
food needs to be shaken during the cooking
process. The cooking table also contains the
suggested minimum/maximum quantity of
different food.
If the combined weight of the basket [2],
bowl [4] and food is too heavy to shake it
thoroughly: Set down the bowl on a heat-
resistant surface and remove the basket
(ill. E).

14 GB/IE/CY
Starting cooking
Once you have made the desired settings,
press [].Cooking begins.
NOTES:
During cooking, the following indicators are
active:
– [] flashes
– The selected menu selection display [9][]
flashes.
– [] [] [] [] []
light up.
During cooking, the display [1] toggles
between the set temperature and the
remaining cooking time.
After cooking has ended, the fan continues to
run for 1 minute to cool down the product.
The value display [] shows the countdown
time (in seconds). [] and [] light up.
To switch to the program selection mode
during cooling down period, press [].
After the cooling down period has ended, the
product switches to standby mode. A double
beep sounds 5 times.
You can remove the bowl [4] at any time and
do not need to wait for the fan to turn off.
All indicators go off and the value display []
shows “–––”.
Pausing cooking
You may want to pause cooking for the following
reasons:
– to change settings
– to shake/turn the food
Pausing cooking (pause mode): Press [].
When cooking is paused:
– [] lights up
– [] flashes
Continuing cooking: Press [] again.
NOTES:
The heating element and the timer are off
when cooking is paused. The fan keeps
on running in order to prolong the life
expectancy of the product.
When cooking is paused: If the bowl [4] is
removed from the cooking chamber [8], the
fan goes off as well.
Cancelling cooking
Press and hold [] for 3seconds during
cooking.
– [] and [] light up.
After cooking has been cancelled, the fan
continues to run for 1 minute to cool down the
product.
Detaching the basket from the
bowl
The basket [2] and the bowl [4] can be detached.
This can be helpful to better mix the food or clean
the individual parts.
Remove the bowl [4] with the basket [2] from
the cooking chamber [8].
Set down the bowl [4] on a suitable surface
(even, stable, heat-resistant).
Slide the cover of the basket release [3]
forward.
Press the button of the basket release [3].

15GB/IE/CY
Lift the basket [2] by the handle [5] from the
bowl [4].
You should feel and hear the basket [2] click
into place when you return it to the bowl [4].
Removing the food
We recommend removing the food with a
suitable kitchen utensil (e.g. kitchen tongs).
m ATTENTION! Risk of product
damage! Never touch the basket[2]
and bowl[4] with sharp objects. This could
damage the coating.
If you want to shake the food from the
basket [2], first detach it from the bowl [4].
Hot liquid may have gathered in the bowl that
could pour out unintentionally.
Cooking table
Food Recommended
quantity (g)
Cooking
time
(mins)
Temp.
(°C)
Shake/turn
required
Preparation
Potatoes and fries
Frozen fries (thin) 200–500 15–18 200 Y
Frozen fries (thick) 200–500 15–18 200 Y
Home-made fries
(8 x 8 mm)
1200–500 15–18 200 Y
Home-made potato
wedges
1300–500 18–22 180 Y
Peel the potato
and cut into
wedges.
Home-made potato
cubes
1300–500 12–18 180 Y
Peel the potato
and cut into
cubes.
Meat and poultry
Steak 3100–300 6–10 180 Y
Lamb chop 3100–300 10–14 180 Y
Hamburger 3100–300 7–14 180 Y
Sausage 3100–300 8–10 180 Y
Drumsticks 3100–500 20–30 200 Y
Chicken breast 3100–300 10–15 180 Y
Spring chicken 1,3 500 30 200 Y See recipe
Fish and seafood
1= add ½ teaspoon of oil • 2= use baking tin
3= marinate with seasoning (depending on user’s preference)

16 GB/IE/CY
Food Recommended
quantity (g)
Cooking
time
(mins)
Temp.
(°C)
Shake/turn
required
Preparation
Shrimp 3100–400 15 180 Y
Salmon fillet 1,3 100–300 10–12 180 N
Capelin 1,3 150 8–10 180 Y
Cod fish fillet 1,3 100–300 12–15 180 N
Vegetable
Okra
1
100 10 160 N Cut off the head
and cut in half.
Asparagus 1100–300 6–10 180 N Cut in half
Corn
1
200–400 6–9 200 Y Husk and remove
the corn silk.
Bell pepper
1
200–400 10 200 Y
Remove head and
seeds. Cut into
2–4 pieces.
Snacks
Samosas 100–300 12–15 200 Y
Frozen chicken
nuggets 100–400 12–15 200 Y
Frozen fish fingers 100–300 6–10 200 Y
Frozen bread
crumbed cheese
snacks
100–400 8–12 180 Y
Baking
Small cake 22 x 50 – 4 x 50 15 160 N See recipe
Sandwich 1 set 4–6 180 Y
Croutons 3300 6–10 180 Y Cut bread into
bite-sized pieces.
Dinner roll 400 See recipe. 160 N See recipe
1= add ½ teaspoon of oil • 2= use baking tin
3= marinate with seasoning (depending on user’s preference)

17GB/IE/CY
Regularly check the ingredients until they
are cooked or have obtained the desired
browning level. The required cooking time
may be actually shorter or longer than stated
in the recipes.
To avoid a prolonged cooking time, the
ingredients should not be too thick.
The height of the baking tin or the oven dish
must not exceed the MAX fill line inside the
basket [2].
Recipe suggestions
Crispy cheese hot dog
Ingredients
2 sausages
2 hot dog buns
Shredded cheddar cheese (depending on
how rich a flavour you like)
(Optional) Ketchup
(Optional) Mustard
Preparation
Preheat the product to 180 °C.
Place the sausages in the basket [2]. Cook for
8 minutes at 180 °C. Remove the sausages
from the basket.
Place the cooked sausages inside the hot dog
buns.
Add the shredded cheddar cheese on
sausages and hot dog buns.
Place the hot dog into the basket [2] again.
Cook for 1 to 2 minutes until the cheese has
melted.
When cooking is completed, place the hot
dog on a dish.
Optional: Serve with ketchup and mustard.
Spicy chicken
Ingredients
6 chicken drumsticks
1 garlic clove
1 teaspoon mustard
3 teaspoons sugar
2 teaspoons chilli powder
2 teaspoons olive oil
Pepper and salt (depending on how rich a
flavour you like)
Preparation
Preheat the product to 200 °C.
In a bowl, crush the garlic and mix with sugar,
olive oil, chilli powder, and mustard.
Season with salt and pepper.
Rub the marinade over the drumsticks and
leave for 20 minutes.
Place the drumsticks in the product and cook
for 10 minutes.
Adjust heat to 140 °C and cook for an
additional 10 minutes.
When cooking is completed, put the
drumsticks on dish to serve.
Weight of ingredients: 400 g

18 GB/IE/CY
Mushroom, onion and cheese
pie
Ingredients
3eggs
2 cups mushrooms, cleaned
1 red onion
1 tablespoon olive oil
3 tablespoons cheese, crumbled
1 pinch salt
Preparation
Peel and slice a red onion into 5 mm thin
slices. Clean mushrooms; then cut into 5 mm
thin slices.
In a sauté bowl with olive oil, sweat onions
and mushrooms under a medium flame until
tender. Remove from heat and place on a dry
kitchen towel to cool.
Preheat the product to 180 °C.
In a mixing bowl crack 3 eggs. Whisk
thoroughly and vigorously. Add a pinch of
salt.
In a heat-resistant baking dish, coat the inside
and bottom with a light coating of bowl
spray.
Pour eggs into the baking dish, then the onion
and mushroom mixture and then the cheese.
Place the baking dish in the basket [2] and
cook in the product for 20 minutes.
Hint: 5 to 8 minutes before the cooking is
done: Add more cheese on the top of the pie,
if desired.
The pie is done when you can stick a knife
into the middle, and the knife comes out
clean.
Weight of ingredients: 260 g
Bell pepper ring
Ingredients
30g flour
1egg
10ml water
2tablespoons vegetable oil
1teaspoon salt
1teaspoon pepper
1teaspoon paprika
30g dry bread crumbs
1bell pepper
Preparation
Preheat the product to 200°C.
Put the flour in a small bowl.
Whisk the egg with water in another small
bowl.
Mix the vegetable oil, salt, pepper, paprika
and the dry bread crumbs in another bowl
until the ingredients become well mixed.
Cut off the bell pepper head and remove the
seeds.
Slice the bell pepper into 4pieces and
remove the bottom.
Toss the sliced bell pepper with flour.
Dip the bell pepper in the whisked egg.
Dip the bell pepper in the crumb mixture until
the bell pepper is fully covered.
Place the bell pepper in the basket [2]. Cook
each side for 5minutes.
