Silvercrest SDR 1.5 A1 Product information sheet

V 1.5
English.................................................................................2
Deutsch..............................................................................33

SilverCrest SDR 1.5 A1
2 - English
Table of Contents
1. Intended use......................................................................... 4
2. Package contents ................................................................. 5
3. Technical specifications ......................................................... 6
4. Safety instructions ................................................................ 6
5. Copyright ........................................................................... 11
6. Operating environment ...................................................... 11

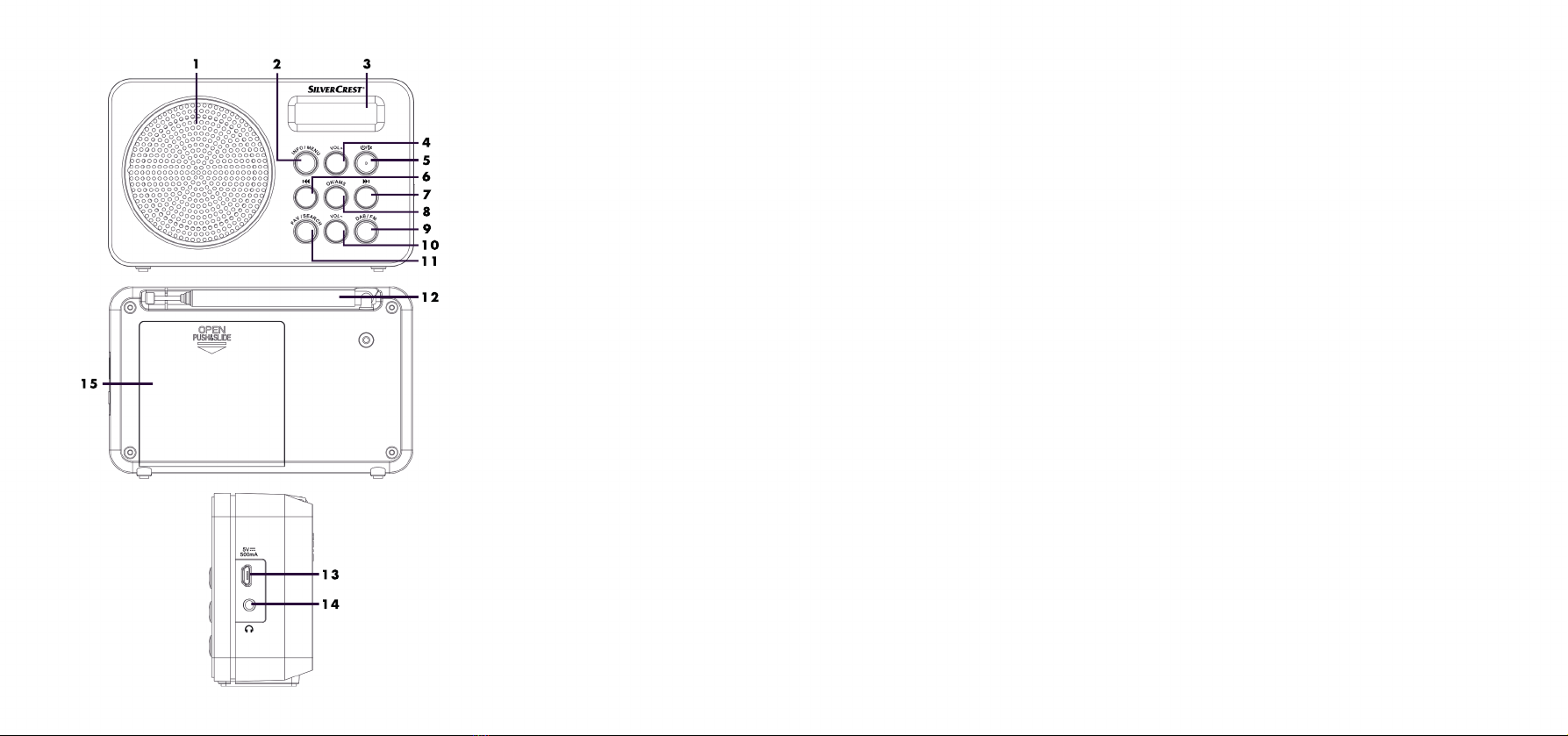

7. Overview of controls and button functions ......................... 12
8. Before you start.................................................................. 13
8.1 Inserting the batteries.................................................................................13
8.2 Using the power adapter ..........................................................................14
9. Commissioning and operation ............................................ 14
9.1 Setting up the telescopic aerial (12)........................................................14
9.2 Switching the digital radio on and off......................................................14
9.3 Adjusting the volume .................................................................................15
9.4 Selecting the station...................................................................................15
9.5 Adjusting the display .................................................................................15
9.6 Sleep timer..................................................................................................16
9.7 Automatic station scan...............................................................................16
9.8 Storing presets............................................................................................16
9.9 Selecting DAB/FM radio ..........................................................................17
9.10 DAB Radio ...............................................................................................17
9.10.1 Recalling a saved station ................................................................17
9.10.2 Complete scan.................................................................................17
9.10.3 Manual tuning .................................................................................18
9.10.4 DRC ..................................................................................................18

SilverCrest SDR 1.5 A1
English - 3
9.10.5 Prune station list ...............................................................................19
9.11 FM radio ..................................................................................................19
9.11.1 Scan setting......................................................................................19
9.11.2 Automatic tuning..............................................................................19
9.11.3 Manual tuning .................................................................................20
9.11.4 Manually tuning a station ...............................................................20
9.11.5 Recalling a saved station ................................................................20
9.11.6 Audio setting....................................................................................20
9.12 Settings.....................................................................................................21
9.12.1 Setting the alarm..............................................................................21
9.12.2 Setting the date and time................................................................22
9.12.3 Automatic time synchronisation......................................................24
9.12.4 Setting the clock format...................................................................24
9.12.5 Setting the date format....................................................................25
9.12.6 Setting the display brightness .........................................................25
9.12.7 Automatic display power-off...........................................................25
9.12.8 Selecting the language ...................................................................26
9.12.9 Factory reset ....................................................................................26
9.12.10 SW version ....................................................................................27
9.13 Connecting headphones.........................................................................27
9.14 Storage when not in use .........................................................................27
10. Troubleshooting................................................................ 28
11. Environmental regulations and disposal information........ 29
12. Conformity notes .............................................................. 30
13. Warranty and service information.................................... 31

SilverCrest SDR 1.5 A1
4 - English
Congratulations!
By purchasing the SilverCrest SDR 1.5 A1 DAB+ pocket radio, hereinafter
referred to as the digital radio, you have opted for a quality product.
Before first using it, familiarise yourself with the way the digital radio works and
read these operating instructions through carefully. Be careful to follow the safety
instructions and only use the digital radio as described in the operating
instructions and for the applications given.
Keep these operating instructions in a safe place. If you pass the digital radio on
to someone else, make sure to give them all the relevant documents with it. The
User’s Manual forms part of this product.
1. Intended use
This device is a consumer electronics device. It has been designed to receive and
play back analogue and digital radio stations. The device can also be used as
a clock and as an alarm clock. It is suitable only for private use, not for industrial
or commercial purposes. The device may also not be used in tropical climates.
The manufacturer is not liable for any damage or problems caused by
unauthorised modifications. Only use accessories recommended by the
manufacturer. Observe the regulations and laws in the respective country of use.
Please note that country-specific regulations may exist with respect to the
frequency bands that can be received. Any information received from frequency
bands outside those that are explicitly free for public use may not be used nor
may its contents be forwarded to any third parties.

SilverCrest SDR 1.5 A1
English - 5
2. Package contents
Remove the digital radio and all accessories from the packaging. Remove all
packaging material and check that all parts are complete and undamaged. If
you find anything missing or damaged, please contact the manufacturer.
A SilverCrest SDR 1.5 A1 digital radio
B AA batteries (x4)
C USB cable (Mini-USB to USB Type A)
D These operating instructions (line-art illustration)

SilverCrest SDR 1.5 A1
6 - English
3. Technical specifications
Power supply Batteries: 4 x 1.5 V AA (Mignon) / LR6
or USB: 5 V , 500 mA
Station presets 60 (30 per reception band)
DAB+ frequency band 174 – 240 MHz
FM frequency band 87.5 - 108 MHz
Output power 1.5 Watt (RMS)
Headphone jack 3.5 mm jack
Dimensions (W x H x D) approx. 13 x 8.2 x 4.3 cm
Weight (without batteries) approx. 200 g
Operating temperature +5 °C to +35 °C
Storage temperature -10 °C to +45 °C
Operating humidity max. 85% rel. humidity
The technical data and design may be changed without prior notice.
4. Safety instructions
Before you use this device for the first time, please read the following notes and
heed all warnings, even if you are familiar with handling electronic devices. Keep
this manual in a safe place for future reference. If you sell the device or pass it
on, it is essential that you also hand over this manual. It is an integral part of the
product.

SilverCrest SDR 1.5 A1
English - 7
Explanation of used symbols
DANGER! This signal word indicates a danger with a high risk,
which could lead to death or major injuries if not avoided.
WARNING! This signal word indicates a danger with a
moderate risk, which can lead to death or major injuries if not
avoided.
ATTENTION! This signal word indicates a danger with a low
risk, which can lead to minor or moderate injuries if not avoided.
CAUTION! This symbol indicates important instructions to
protect against damage to property.
WARNING! This icon warns you about possible damage to the
user’s hearing.
Note the user manual
This symbol denotes further information on the topic.
Direct current
DANGER! Personal safety
This appliance may be used by children older than 8 years as well as by persons
with physical, sensory or mental impairments or persons without sufficient
knowledge or experience, providing they are supervised or they have received
instructions regarding the proper use of the appliance and they understand the
associated risks. This device is not a toy. The product must not be cleaned or

SilverCrest SDR 1.5 A1
8 - English
maintained by unsupervised children. Small parts can represent choking
hazards. If small parts are swallowed, seek medical help immediately. Keep the
packaging out of the reach of these people. Packaging material is no toy.
DANGER! There is a risk of suffocation!
WARNING! Batteries
Insert the batteries with the correct polarity. Refer to the diagram on the batteries
and inside the battery compartment. Do not attempt to recharge the batteries
and do not dispose of the batteries in a fire. Do not mix battery types (old and
new or carbon and alkaline, etc.). Remove the batteries when the device is not
to be used for an extended period. Improper use could cause explosions or
leaks.
Batteries must never be opened or deformed, as this could result in chemicals
leaking out which could cause injuries. If the batteries have leaked, remove them
to prevent damage to the device. You can wipe off any leaked battery fluid by
using a dry, absorbing cloth. Always wear protective gloves! Avoid any skin
contact. If the battery fluid comes into contact with the skin or eyes, rinse
immediately with plenty of water and seek medical aid. Batteries can represent
choking hazards. Batteries are not toys! Keep batteries out of reach of children.
If a battery is swallowed, seek medical help immediately.

SilverCrest SDR 1.5 A1
English - 9
ATTENTION! Cables
Unplug all cables by holding the plugs and never pull on the cables themselves.
Never place pieces of furniture or other heavy objects on the cables and take
care that they do not become damaged, especially at the plugs and sockets.
Never install the cables around hot or sharp objects to avoid damaging them.
Never tie knots in cables and do not tie them to other cables. All cables must be
positioned so that nobody can trip over them or be obstructed by them.
ATTENTION! Repairs
Repairs are required if this device has been damaged in any way, for example
if the device housing is damaged, if liquids or objects have penetrated the device
or if the product has been exposed to rain or moisture. Repairs are also
necessary if the device is not working properly or has been dropped. If you
notice any smoke, unusual noises or strange smells, disconnect the device from
the power source immediately or remove the batteries. If this occurs, the device
should not be used before it has been inspected by authorised service personnel.
All repairs must be carried out by qualified service personnel. Never open the
housing of the device, this will void your warranty.

SilverCrest SDR 1.5 A1
10 - English
CAUTION! Cleaning
Make sure the device is disconnected from the power source before cleaning.
Only use a clean, slightly dampened cloth to clean the digital radio. Never use
any aggressive liquids. For stubborn dirt, add a little detergent to the damp cloth.
Do not attempt to open the housing of the device, this will void your warranty.
CAUTION! Please heed the following:
 there is free circulation of air (do not place the device on shelves, on a carpet,
on a bed, or anywhere that obstructs the ventilation slots and leave at least
10 cm clearance on all sides),
 no direct heat sources (e.g. radiators) affect the device,
 no direct sunlight or bright artificial light reaches the device,
 contact with water spray and drops and aggressive fluids is avoided and the
device is never operated near water. Also, the device must never be
submerged, and do not place any items containing liquids, such as drinks,
vases, etc. on or near the device,
 never place the device in the immediate vicinity of magnetic fields (e.g. loud-
speakers),
 there are no fire sources (e.g. burning candles) on or near the device,
 there is no penetration by foreign bodies,
 the device is not subject to major temperature fluctuations as this can cause
condensation and short-circuits. If the device has been exposed to extreme
temperature fluctuations, wait for it to reach the ambient temperature before
switching it on (about 2 hours),
 the device is not subjected to excessive shocks or vibrations.

SilverCrest SDR 1.5 A1
English - 11
Risks associated with excessive volume levels
Be careful when using headphones. Audio listening at high volume can harm the
user’s auditory system. Do not use headphones at high volume levels, otherwise
you will damage your hearing and possibly disturb other people. Even if the
headphones are designed to enable you to hear external noise, never turn the
volume up so high that you cannot hear what is going on around you. Please
note that ambient noise can be perceived in a different and unfamiliar way.
Do not use headphones in hazardous situations, e.g. when driving or riding a
bike, working with machines or other situations which require your full attention.
The sound may distract your attention or prevent you from being aware of what
is happening around you.
5. Copyright
All the contents of this User Manual are protected by copyright and provided to
the reader for information only.
Copying data and information without the prior explicit written consent of the
author is strictly forbidden. This also applies to any commercial use of the
contents and information.
All texts and diagrams are up-to-date as of the date of printing.
6. Operating environment
The device is not for use in rooms with a high temperature or humidity (e.g.
bathrooms), and must be kept free of dust. Operating temperature and operating
humidity: 5°C to 35°C, max. 85% rel. humidity

SilverCrest SDR 1.5 A1
12 - English
7. Overview of controls and button functions
These operating instructions have a fold-out cover. Fold-out the cover so you can
refer to the relevant controls at any time.
1 Speaker
2 INFO / MENU button
3 Display
4 VOL+ button
5 (Switch on/off; set sleep time)
6 I◂◂ button
7 ▸▸I button
8 OK / AMS button
9 DAB / FM button
10 VOL- button
11 FAV / SEARCH button
12 Telescopic antenna
13 Micro USB connection
14 (headphone jack)
15 Battery compartment

SilverCrest SDR 1.5 A1
English - 13
8. Before you start
You can power the device either using the batteries (B) supplied or with a USB
power adapter. The USB power adapter is not included in the package.
8.1 Inserting the batteries
Open the battery compartment cover (15) on the back panel of the device by
sliding it towards the bottom in the direction shown by the arrow and remove it.
Insert the batteries with the correct polarity (+ and -), as shown in the following
figure. The correct polarity is labelled on the batteries and inside the battery
compartment. Re-insert the cover of the battery compartment (15) and slide it
upwards until it locks into place.
CAUTION! Remove the batteries when the device is not to be
used for an extended period. The batteries could leak and
damage the device.

SilverCrest SDR 1.5 A1
14 - English
8.2 Using the power adapter
In order to power the device with a USB power adapter (5 V , 500 mA, not
supplied), connect the USB cable (C) supplied to the micro USB connection (13)
on the digital radio and a free USB port on your USB power adapter.
If the digital radio is disconnected from the power, various
settings (e.g. date and time) are lost. You can insert additional
batteries to prevent this. Batteries cannot be recharged in the
digital radio.
9. Commissioning and operation
9.1 Setting up the telescopic aerial (12)
To guarantee optimum radio reception, extend the telescopic aerial (12) to its
full length. The telescopic aerial (12) can be rotated. This lets you optimise the
radio reception.
9.2 Switching the digital radio on and off
Switch the digital radio on by pressing and holding the button (5) for
approx. 3 seconds.
When the time and date are shown on the display (3), you can
switch the digital radio on by briefly pressing the button (5).
When you first start it, the digital radio starts up in DAB mode
and automatically scans for and saves all available DAB stations.
In battery mode, the display (3) shows the charge level of the
batteries with a battery icon. Replace the batteries when they are
empty.

SilverCrest SDR 1.5 A1
English - 15
In battery mode, the display (3) switches off after approx. 30
seconds (factory-default setting) if no buttons are pressed.
Press the button (5) briefly to switch off the digital radio.
9.3 Adjusting the volume
Press the VOL+ (4) and VOL- (10) buttons to adjust the volume. The current
volume setting is shown on the display (3). The digital radio will always switch
on at the volume level that was set when it was switched off.
9.4 Selecting the station
You can scroll through saved stations by pressing the I◂◂ (6) and ▸▸I buttons
(7).
9.5 Adjusting the display
The display (3) shows the name of the radio station, artist and track. Press the
INFO / MENU button (2) several times to adjust the display. What is shown on
the display is different in FM and DAB mode:
DAB Radio FM Radio
Radio text Radio text
Signal strength Signal strength
Genre Genre
Group Frequency
Frequency Mono/ Stereo
Signal error Time
Bit rate and codec Date
Time
Date

SilverCrest SDR 1.5 A1
16 - English
9.6 Sleep timer
The sleep timer function lets you set a time of between 15 and 90 minutes, after
which the digital radio will switch off automatically.
 Press and hold the button (5) for approx. 2 seconds until “15 minutes”
is shown on the display (3).
 The number of minutes increases every time you press the button (5). You
can also scroll through the options by pressing the I◂◂ button (6) and ▸▸I
button (7): “15 minutes”, “30 minutes”, “45 minutes” “60 minutes”, “90
minutes” and “Sleep off”. “Sleep off” disables the sleep timer.
 Press the OK / AMS button (8) briefly to confirm your selection.
 When the Sleep Timer is activated, a clock icon is shown on the display (3).
You can display the time remaining on the sleep timer by pressing the INFO /
MENU button (2) several times to toggle what is shown on the display (3).
 You can also cancel the sleep timer simply by switching the digital radio off.
9.7 Automatic station scan
Start automatic tuning by pressing the OK / AMS button (8) and holding it down
for about 2 seconds. With this function, any stations found are saved
automatically.
The unit only scans for DAB or for FM stations, depending on the
mode selected.
9.8 Storing presets
You can save up to 30 stations or frequencies for each frequency band.
 Tune in the station that you want to store.
 Press and hold the FAV / SEARCH button (11) for approx. 2 seconds until
“Preset Store” is shown on the display (3).
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the preset where you want to
store the station.
 Press the OK / AMS button (8) briefly to finish saving.

SilverCrest SDR 1.5 A1
English - 17
Please note that any station presets already used will be
overwritten.
9.9 Selecting DAB/FM radio
Press the DAB/ FM button (9) to switch between DAB and FM radio. The current
mode selected, either “DAB Radio” or “FM Radio” is shown briefly on the display
(3).
9.10 DAB Radio
The following options are available in “DAB Radio” mode.
9.10.1 Recalling a saved station
You can recall stations you have saved to your favourites as follows:
 Press the FAV / SEARCH button (11) briefly.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the station you want.
 Press the OK / AMS button (8) briefly to display the selected station.
9.10.2 Complete scan
In the DAB Radio menu on the digital radio, you can start a station scan and
configure various settings. Proceed as follows to start a complete station scan:
 Press and hold the INFO / MENU button (2) for approx. 2 seconds.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the “Full scan” option.
 Press the OK / AMS button (8) briefly.
 The digital radio now automatically scans for and saves all available DAB
stations.
You can also start an automatic station scan by pressing and
holding the OK / AMS button (8) for about 2 seconds.

SilverCrest SDR 1.5 A1
18 - English
9.10.3 Manual tuning
This option in the DAB Radio menu lets you add stations in a group to the station
list manually.
Please note that you can only enter frequencies manually if they
can be received in your region.
 Press and hold the INFO / MENU button (2) for approx. 2 seconds.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the “Manual tune” option.
 Press the OK / AMS button (8) briefly.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the frequency you want and
confirm your selection by pressing the OK / AMS button (8) twice.
 The stations are now added to the station list automatically. No further
messages are displayed.
9.10.4 DRC
In the DAB Radio menu, you can reduce the dynamic range between low and
high-volume sounds as required.
 Press and hold the INFO / MENU button (2) for approx. 2 seconds.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select the “DRC” option.
 Press the OK / AMS button (8) briefly.
 Use the I◂◂ (6) and ▸▸I (7) buttons to select one of the following options:
Option Effect
DRC off No adjustment
DRC low The difference between high and low-
volume sound is reduced slightly.
DRC high High and low-volume sound is aligned.
 Press the OK / AMS button (8) briefly to confirm the setting.
