PLL WORLD RECEIVER
4C
PLL World Receiver
Operating instructions
Svetovni PLL-sprejemnik
Navodila za uporabo
PLL-Svjetski prijemnik
Upute za upotrebu
CV_KH2031_DT35253_LB4C.qxd 09.09.2009 9:41 Uhr Seite 1

KH 2031
Aq w e
r
t
y
u
i
oasdfg
2);lk
j
h
B
CV_KH2031_DT35253_LB4C.qxd 09.09.2009 9:41 Uhr Seite 4

- 1 -
CONTENTS PAGE
Intended use 2
Technical Data 2
Symbols used 4
Safety information 5
Operating elements 9
Starting up 10
General functions 12
Time functions 13
Time, date, time zone and world time ............................................13
Select display mode .........................................................................17
Alarm function ...................................................................................18
Stop watch function ..........................................................................20
Countdown function..........................................................................20
Radio operation 22
Setting the station..............................................................................23
Fine tuning..........................................................................................24
Aerial..................................................................................................24
Memory functions .............................................................................25
Cleaning 27
Disposal 28
Importer 28
Warranty & Service 29
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 1

PLL WORLD RECEIVER KH2031
Before using the device for the first time, read these operating instructions
carefully and keep them for later reference. Hand the instructions over
when transferring the device to a third party.
Intended use
This device is designed to receive generally approved radio transmissions
in all countries (world receiver) and only for domestic use.
It has not been designed to receive transmissions that are not generally
approved, nor as part of safety radio systems, e.g. on board sports boats,
nor for industrial or commercial use. It has also not been designed for use
in temperatures beyond those stated in the Technical Data.
Technical Data
This appliance is in full compliance with the fundamental requirements and
relevant stipulations of the EMC Directive 2004/108/EC, as well as the
guidelines of the Low Voltage Directive 2006/95/EC.
Power consumption: 5 watts
Power consumption Standby: 1.4 W
Operating temperature: +5 ~+35°C
Humidity: 5 ~90% (no condensation)
- 2 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 2

Dimensions (W x H x D): 177 x 110 x 40 mm
Appliance weight: 380 g approx.
Power transformer weight: 185 g approx.
Batteries
4x 1.5 V, Type AA/LR6/Mignon (not supplied)
Frequency range radio:
VHF (FM): 87 – 109 MHz
SW: 5.85 – 17.90 MHz
MW (AM) Europe 522 – 1656 kHz
MW (AM) USA 520 – 1710 kHz
LW 144 – 299 kHz
The technical features of the device enable the frequency ranges stated
above to be set. Various countries may have different national rules on the
radio frequency ranges assigned. Please note that you may not sell, transfer
to third parties or abuse information received outside the assigned radio
frequency ranges.
Tuning ranges (NORMAL/FINE):
FM (VHF) 100 kHz /50 kHz
SW 5 kHz /1 kHz
MW (AM) Europe 9 kHz /1 kHz
MW (AM) USA 10 kHz /1 kHz
LW 1 kHz
Sensitivity: SW can be set to 2 intervals
- 3 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 3

General
Memory positions : 1600 (400 for each frequency range)
Headphones
Model: E105
Impedance: 32 Ω
Wideband characteristic
Voltage (WBCV): approx. 150 mV
Headphone socket
max. Output voltage: approx. 200 mV
Power transformer
Manufacturer: S&S MFG. LTD.
Model: A400-75
Primary: 230 V ~50 Hz / 30 mA
Secondary: 7.5 V DC 400 mA / 3VA
Symbols used
These symbols bring to your attention that here a warning notice
follows in regard to one of the following matters:
- Risk of injury,
- Risk of electric shocks,
- Risk of fire,
- Risk of explosion,
plus bringing your attention to important matters such as:
- Information regarding the handling of batteries,
- Information about voltage surges,
- Information about mains-power disconnection.
- 4 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 4

This symbol warns about submersing the appliance in water or
other liquids.
This symbol warns you about hearing damage.
Note:
With this symbol you are given tips about interaction with the appliance.
Safety information
• This device has not been designed for use by people (including children)
with restricted physical, sensory or intellectual abilities or lack of expe-
rience and/or knowledge, unless they are supervised by a responsible
person (for their own safety) or have received instructions on how to
use the device.
• Children should be supervised to ensure that they do not play with
the device.
• In order to avoid the device being switched on unintentionally, remove
the adapter from the mains socket after each use and before cleaning.
• Check the device and all parts for visible damage. The device’s safety
concept can only work if the device is in perfect condition.
• A mains adapter connected to the device must always be easily
accessible so that the device can be quickly disconnected from the
mains power in an emergency.
- 5 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 5

Risk of electric shock!
• Connect the mains-power adapter only to correctly installed and eart-
hed mains sockets. Ensure that the rating of the local power supply tal-
lies completely with the details given on the rating plate of the appliance.
• Damaged adapters or mains cables should be exchanged immediately
by an authorised technician or the Customer Service in order to
avoid risks.
• Connection cables or devices that do not work perfectly or have been
damaged should be repaired or exchanged immediately by Customer
Services.
Never immerse the device in water! Simply wipe it with a slightly
damp cloth.
• Do not expose the wall wart to rain or use it in a damp or wet
environment.
• Ensure that the connection cable is never wet or damp when in use.
• You must not open or repair the device’s housing. This can be dangerous
and renders the warranty null and void.
• Protect the device from moisture and sprayed water. Therefore do not
place any objects filled with water (e.g. vases) on or near the device.
Risk of fire!
• Do not use the device near hot surfaces.
• Do not set the device up where it is exposed to direct sunlight.
This could cause it to overheat and damage it beyond repair.
• Never leave the device unattended during operation.
• Never cover the device’s ventilation slots when it is switched on.
• Do not place open flames, such as candles, on or near the device.
- 6 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 6

Risk of injury
• Keep children away from the connection cable and device.
Children frequently underestimate the danger of electrical devices.
• If the device has fallen down or is damaged it must no longer be used.
Have the device checked by a qualified specialist and, if necessary,
repaired.
• Batteries must not be handled by children.
Children can put batteries in their mouths and swallow them.
If a battery has been swallowed, obtain medical assistance immediately.
Thunder storms!
Devices connected to mains power can be damaged during a thunder
storm. If there is a thunder storm, always remove the mains plug from
the socket.
Information on voltage surges (EFT/electrical fast
transient) and electrostatic discharges:
If the product does not work properly due to electrical fast transient
processes (voltage surges) or electrostatic discharge, it must be
reset to restore normal operation. If necessary, remove the plug from
the power socket and insert it again. The batteries (if used) must be
removed and reinserted.
Information on separating the device from
mains power
The POWER button on this device does not completely separate it from
the mains network. In addition, the device uses power when in stand-
by mode. In order to completely separate the device from the mains
supply the plug must be removed from the mains socket.
- 7 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 7

Notes on handling batteries
The device uses batteries. Please note the following on handling batteries:
Risk of explosion!
Do not throw batteries into a fire. Do not recharge batteries.
• Never open, solder or weld batteries. There is a risk of explosion and injury!
• Check batteries regularly. Leaking batteries can damage the device.
• If the appliance is not going to be used for long periods, remove the
batteries.
• If batteries leak, put on protective gloves.
• Clean the battery compartment and contacts with a dry cloth.
Caution!
No liability/warranty applies to damage to the device caused by
moisture due to water penetrating the device or overheating!
- 8 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 8

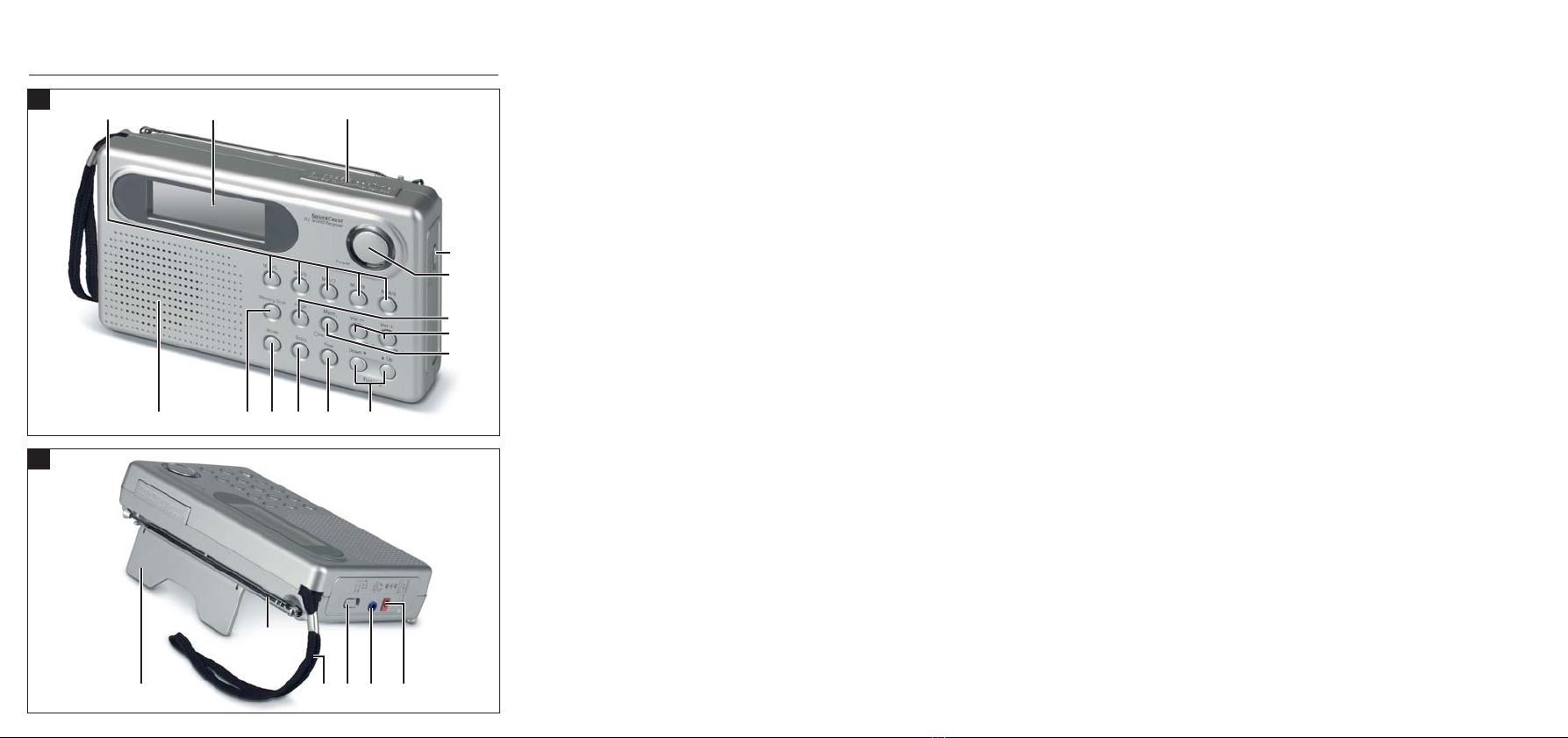

Operating elements
Front panel
qSave buttons M.0/5 - M.4/9
wDisplay
eButton SNOOZE
rWaveband selector switch (LW/SW/MW/FM)
tPOWER button
yPAGE button
uVOL+(AL-1)/VOL-(AL-2) buttons
iMEM button
oUP/DOWN buttons
aFINE button
sBASS button
dMODE button
fMEMORY SCAN button
gLoudspeakers
Back
hStand
jAerial
kCarrying strap
lswitch SW SEN. (DX/LX)
;Headphone output
2) EXT. DC 7.5 V 400 mA: Mains adapter connection
- 9 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 9

Starting up
Unpack the device
Remove all packaging materials.
Caution!
Do not let children play with the plastic film. There is a risk of suffocation.
Check the items supplied
Whilst unpacking, check that all of the following items are available to you:
• Shortwave Radio
• Power transformer
• Headphones
• Storage case
• These operating instructions, complete with the warranty card
Mains and battery operation
When you disconnect the radio from the mains supply, any settings you
may have made (time, alarm, stations in memory) will be lost. If you wish
to keep these settings, insert batteries (see below) before disconnecting.
Inserting batteries
The device can also be operated with batteries (not supplied) as well as
from the mains. You will need four 1.5V mignon batteries, size AA, LR6.
• Open the battery compartment on the rear of the device by sliding
the cover downwards.
• Insert four batteries into the compartment, paying attention to
the polarity.
- 10 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 10

• Replace the cover on the battery compartment.
If the batteries are too weak, this is indicated on the screen by a flashing
symbol .
Mains connection
• Connect the plug of the mains adapter to the EXT. DC 7.5 V 400 mA socket
on the side of the device.
• Plug the mains adapter into an easily accessible socket. To avoid trip-
ping hazards, please avoid using an extension cable.
Connecting headphones
On the left side of the radio, you will find the headphone socket.
Caution!
With this appliance, use only the supplied type E105 headphones.
• Insert the headphone jack plug into the headphone output.
The speaker will be deactivated automatically.
Caution:
Listening to music with headphones for long periods and at high
volume levels can lead to hearing damage!
- 11 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 11

General functions
Key lock
In order to prevent changing the settings unintentionally by touching the
buttons, you can activate the key lock.
• Press and hold down the MEM button for around 3 seconds. On screen,
the message flashes. All buttons, except the buttons SNOOZE and
MEM, are now blocked.
• Press and hold down the MEM button again for about 3 seconds to
cancel the key lock. The message on the screen disappears.
Screen lighting
• Press any button to illuminate the screen. The screen will remain lit for
about 10 seconds.
Stand
• Fold out the base on the rear of the device to make the device
more stable.
- 12 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 12

Time functions
The time functions can only be set when the radio is switched off. When used
for the first time the preset time of the global receiver is set to “0:00 00”.
If the device is disconnected from its power supply the settings are lost.
Time, date, time zone and world time
You can set the time, date and time zone via the MODE button. You can also
query and set the world time, data alarm, medium wave reception, alarm time
reception and hourly mode.
When you press the button MODE with the radio switched off, the function to be
programmed blinks for about 15 seconds. During this time, adjust the setting
with the UP/DOWN buttons.
• Press MODE x 1: Setting clock time
• Press MODE x 2: Setting the date
• Press MODE x 3: Set time zone (“Local City”)
• Press MODE x 4: Show world time
• Press MODE x 5: Date alarm
• Press MODE x 6: Set reception range for medium wave.
• Press MODE x 7: Set alarm pause.
• Press MODE x 8: Set 12/24 hour mode.
To apply a setting, just wait until the screen stops flashing (the screen reverts to the
time indication) or press MODE to move on to the next function.
Setting clock time
• Press MODE once. The most recently set time flashes on the screen.
• Press the UP or DOWN button to move the time forward or backward at
minute intervals. Hold down one of the buttons for a few seconds to
move the setting forward or backward quickly at 10 minute intervals.
- 13 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 13

Note:
Set the time without summer time offset. If summer time is required, this can be
set when setting the time zone.
Setting the date
• Press MODE again or twice.
The date set flashes on the screen (“Tu 01:01 08” when first switched on).
• Press the UP or DOWN button to move the date forward or backward.
Keep either of these buttons pressed for a few seconds to change the
date in ten-day steps.
The weekday indication follows automatically. The indication uses the first
two letters of the English name of the day.
The built-in calendar runs from 2000 to 2099.
Day of the week indication:
Su = Sunday
Mo = Monday
Tu = Tuesday
We = Wednesday
Th = Thursday
Fr = Friday
Sa = Saturday
Setting the time zone
• Press MODE again or three times. The selected time zone flashes on the
screen as the abbreviation for the corresponding city (UTC when first
switched on); the time disappears.
• Press the UP or DOWN button to move the time zone forward or backward.
The following table summarises the city abbreviations for the time zones and
time differences.
- 14 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 14

- 15 -
Short code Difference
from CET
Town
HNL -10:00 Honolulu/USA
ANC -9:00 Anchorage/USA
YVR -8:00 Vancouver/Canada
LAX -8:00 Los Angeles/USA
DEN -7:00 Denver/USA
CHI -6:00 Chicago/USA
MEX -6:00 Mexico City/Mexico
NYC -5:00 New York/USA
YYZ -5:00 Toronto/Canada
YUL -5:00 Montreal/Canada
CCS -4:00 Caracas/Venezuela
RIO -3:00 Rio de Janeiro/Brazil
BUE -3:00 Buenos Aires/Argentina
UTC* 0:00 Universal Time Coordinated
LON 0:00 London/GB
MUN 1:00 Munich/Germany
FRA 1:00 Frankfurt/Germany
PAR 1:00 Paris/France
ROM 1:00 Rome/Italy
CAI 2:00 Cairo/Egypt
IST 2:00 Istanbul/Turkey
MOW 3:00 Moscow/Russia
KWI 3:00 Kuwait City/Kuwait
DXB 4:00 Dubai/United Arab Emirates
KHI 5:00 Karachi/Pakistan
DAC 6:00 Dhaka/Bangladesh
BKK 7:00 Bangkok/Thailand
SIN 8:00 Singapore
HKG 8:00 Hong Kong
PEK 8:00 Beijing/China
TYO 9:00 Tokyo/Japan
SYD 10:00 Sydney/Australia
NOU 11:00 Noumea/New Caledonia
AKL 12:00 Auckland/New Zealand
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 15

*UTC
Universal Time Coordinated (UTC). UTC is the reference for the times of the
various time zones around the world.
Summer time offset
• While the time zone indication is still flashing, press the SNOOZE button.
The screen shows the SUN OFF message when summer time has been
deactivated.
• Press the SNOOZE button again. The screen now shows SUN ON. Sum-
mer time offset is now activated and the clock moves one hour ahead.
Show world time
• Press MODE again or four times to show the world time. The city abbre-
viation appears with the corresponding time.
• Press the UP or DOWN button to move the time zone forward or backward.
Special date alarm
• Press the MODE button a fifth time to set the special date alarm.
The screen flashes SDA1 and the date in succession.
• Press the PAGE button to select one of the ten settable date alarms
(SDA1–SDA 10).
• Press the UP or DOWN button to set the date on which the alarm should
sound.
• Press the SNOOZE button to ignore the year number setting so that the
alarm sounds every year.
• When the current date tallies with the date of the SDA alarm,
at 08.00 on this day the alarm tone will sound.
In addition, the SDA message will flash on the screen.
• Turn off the alarm by pressing any button.
- 16 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 16

Note:
In order to completely deactivate the date alarm set a date that is in
the past!
Setting 12/24 hour mode
• Press MODE eight times. The screen shows the”24 HR” message for
24-hour mode.
• Press the UP button to set the 24 hour mode.
• Press the DOWN button to set the 12 hour mode.
“12 HR” is displayed on the screen. In the afternoon in addition PM is
shown on the screen.
Select display mode
You can select which information is shown on the screen when the radio is
switched off.
The selected mode is indicated by a corresponding symbol on the screen.
When the radio is switched off, select the display mode by repeatedly
pressing the FINE button in accordance with the following table:
Symbol on the screen display mode
CLK only the time is displayed
CITY The time and world time are shown in succession
DATE The time and date are shown in succession
CIT DAT the time, date and world time are shown in succession
- 17 -
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 17

Alarm function
The world receiver provides two alarms that can be set independently of
one another, AL1 and AL2. For both, you can set:
...whether the alarm should operate on every day of the week or only
from Monday to Friday;
... whether you wish to be woken by the alarm tone or the radio.
Setting the alarm time
You can set two alarm times in your world receiver.
• With the radio switched off, press the buttons VOL.+/AL–1 (or VOL.-/AL–2).
The screen shows the most recently set alarm time and the symbol for
the alarm type.
• Press the UP or DOWN button to move the alarm time forward or backward
at minute intervals. Hold down one of the buttons for a few seconds to
move the setting forward or backward quickly at 10 minute intervals.
• Press the VOL.+/AL–1 (or VOL.–/AL–2) button until the desired alarm function
(see table above) is indicated on the screen.
- 18 -
Alarm function Symbol on the screen
Radio
Acoustic signals
Switched off No symbol
IB_KH2031_DT35253_LB4C 09.09.2009 12:56 Uhr Seite 18
