- 1 -
CONTENTS PAGE
Intended use 2
Technical Data 2
Symbols used 4
Safety information 5
Operating elements 9
Starting up 10
General functions 12
Time functions 12
Time, date, time zone and world time . . . . . . . . . . . . . . . . . . . . .13
Select display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Alarm function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Stop watch function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Countdown function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Radio operation 24
Setting the station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Memory functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Cleaning 29
Disposal 29
Importer 30
Warranty & Service 30
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 1

MULTI-BAND RADIO
Before using the device for the first time, read these operating instructions
carefully and keep them for later reference. Hand the instructions over
when transferring the device to a third party.
This documentation is copyright protected. Every duplication resp. every
copying, also as extracts, as well as any reproduction of images, even in an
altered state, is only permitted with the written consent of the manufacturer.
Intended use
This appliance is intended for receiving generally approved radio transmis-
sions in all countries (world receiver) and only for domestic use.
Utilisation other than as described here is not permitted and it could lead
to damages and injuries. No liability will be accepted for damages resulting
from misuse or improper handling, the application of force or unauthorised
modifications.
Technical Data
This appliance fulfills, in regard to conformity with, the fundamental require-
ments and other relevant provisions of the EMC Directive 2004/108/EC,
the Low Voltage Directive 2006/95/EC and the Ecodesign Directive
2009/125/EC (Commission Regulation 1275/2008 Annex II, No .1).
- 2 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 2

Power consumption: 5 watts
Power consumption Standby: approx. 1 W
Operating temperature: +5 ~+40°C
Humidity: 5 ~90% (no condensation)
Dimensions (W x H x D): 17.7 x 11 x 3.9 cm
Appliance weight: approx. 425 g
Power transformer weight: approx. 185 g
Batteries
4x 1.5 V, Type AA/LR6/Mignon (not supplied)
Frequency range radio:
VHF (FM): 87 – 109 MHz
SW: 5.85 – 17.90 MHz
MW (AM) Europe 522 – 1656 kHz
MW (AM) USA 520 – 1710 kHz
LW 144 – 299 kHz
The technical features of the device enable the frequency ranges stated
above to be set. Various countries may have different national rules on the
radio frequency ranges assigned. Please note that you may not sell, transfer
to third parties or abuse information received outside the assigned radio
frequency ranges.
Tuning ranges (NORMAL/FINE):
FM (VHF) 100 kHz /50 kHz
SW 5 kHz /1 kHz
MW (AM) Europe 9 kHz /1 kHz
MW (AM) USA 10 kHz /1 kHz
LW 1 kHz
Sensitivity: SW can be set to 2 intervals
- 3 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 3

General
Memory positions: 400
Headphones
Model: E105
Impedance: 32 Ω
Wideband characteristic
Voltage (WBCV): approx. 110 mV
Headphone socket
max. Output voltage: approx. 35 mV
Power transformer
Manufacturer: Everway Industries Ltd.
Model: EW35V400-090A
Primary: 230 V ~50 Hz / 25 mA
Secondary: 9 V ~400 mA / 3,6 VA
Symbols used
These symbols bring to your attention that here a warning notice
follows in regard to one of the following matters:
- Risk of injury,
- Risk of electric shocks,
- Risk of fire,
- Risk of explosion,
plus bringing your attention to important matters such as:
- Information regarding the handling of batteries,
- Information about voltage surges,
- Information about mains-power disconnection.
- 4 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 4

This symbol warns about submersing the appliance in water or
other liquids.
This symbol warns you about hearing damage.
Note:
With this symbol you are given tips about interaction with the appliance.
Safety information
• This device has not been designed for use by people (including children)
with restricted physical, sensory or intellectual abilities or lack of expe-
rience and/or knowledge, unless they are supervised by a responsible
person (for their own safety) or have received instructions on how to
use the device.
• Children should be supervised to ensure that they do not play with
the device.
• In order to avoid the device being switched on unintentionally, remove
the adapter from the mains socket after each use and before cleaning.
• Check the device and all parts for visible damage. The device’s safety
concept can only work if the device is in perfect condition.
• A mains adapter connected to the device must always be easily
accessible so that the device can be quickly disconnected from the
mains power in an emergency.
- 5 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 5

Risk of electric shock!
• Connect the mains-power adapter only to correctly installed and
earthed mains sockets. Ensure that the rating of the local power
supply tallies completely with the details given on the rating plate of
the appliance.
• Damaged adapters or mains cables should be exchanged immediately
by an authorised technician or the Customer Service in order to
avoid risks.
• Connection cables or devices that do not work perfectly or have been
damaged should be repaired or exchanged immediately by Customer
Services.
Never immerse the device in water! Simply wipe it with a slightly
damp cloth.
• Do not expose the wall wart to rain or use it in a damp or wet
environment.
• Ensure that the connection cable is never wet or damp when in use.
• You must not open or repair the device’s housing. This can be dangerous
and renders the warranty null and void.
• Protect the device from moisture and sprayed water. Therefore do not
place any objects filled with water (e.g. vases) on or near the device.
Risk of fire!
• Do not use the device near hot surfaces.
• Do not set the device up where it is exposed to direct sunlight.
This could cause it to overheat and damage it beyond repair.
• Never leave the device unattended during operation.
• Never cover the device’s ventilation slots when it is switched on.
• Do not place open flames, such as candles, on or near the device.
- 6 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 6

Risk of injury
• Keep children away from the connection cable and device.
Children frequently underestimate the danger of electrical devices.
• If the device has fallen down or is damaged it must no longer be used.
Have the device checked by a qualified specialist and, if necessary,
repaired.
• Batteries must not be handled by children.
Children can put batteries in their mouths and swallow them.
If a battery has been swallowed, obtain medical assistance immediately.
Thunder storms!
Devices connected to mains power can be damaged during a thunder
storm. If there is a thunder storm, always remove the mains plug from
the socket.
Information on voltage surges (EFT/electrical fast
transient) and electrostatic discharges:
If the product does not work properly due to electrical fast transient
processes (voltage surges) or electrostatic discharge, it must be
reset to restore normal operation. If necessary, remove the plug from
the power socket and insert it again. The batteries (if used) must be
removed and reinserted.
Information on separating the device from
mains power
The POWER button on this device does not completely separate it from
the mains network. In addition, the device uses power when in standby
mode. In order to completely separate the device from the mains supply
the plug must be removed from the mains socket.
- 7 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 7

Notes on handling batteries
The device uses batteries. Please note the following on handling batteries:
Risk of explosion!
Do not throw batteries into a fire. Do not recharge batteries.
• Never open, solder or weld batteries. There is a risk of explosion and injury!
• Check batteries regularly. Leaking batteries can damage the device.
• If the appliance is not going to be used for long periods, remove the
batteries.
• If batteries leak, put on protective gloves.
• Clean the battery compartment and contacts with a dry cloth.
Caution!
No liability/warranty applies to damage to the device caused by
moisture due to water penetrating the device or overheating!
- 8 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 8

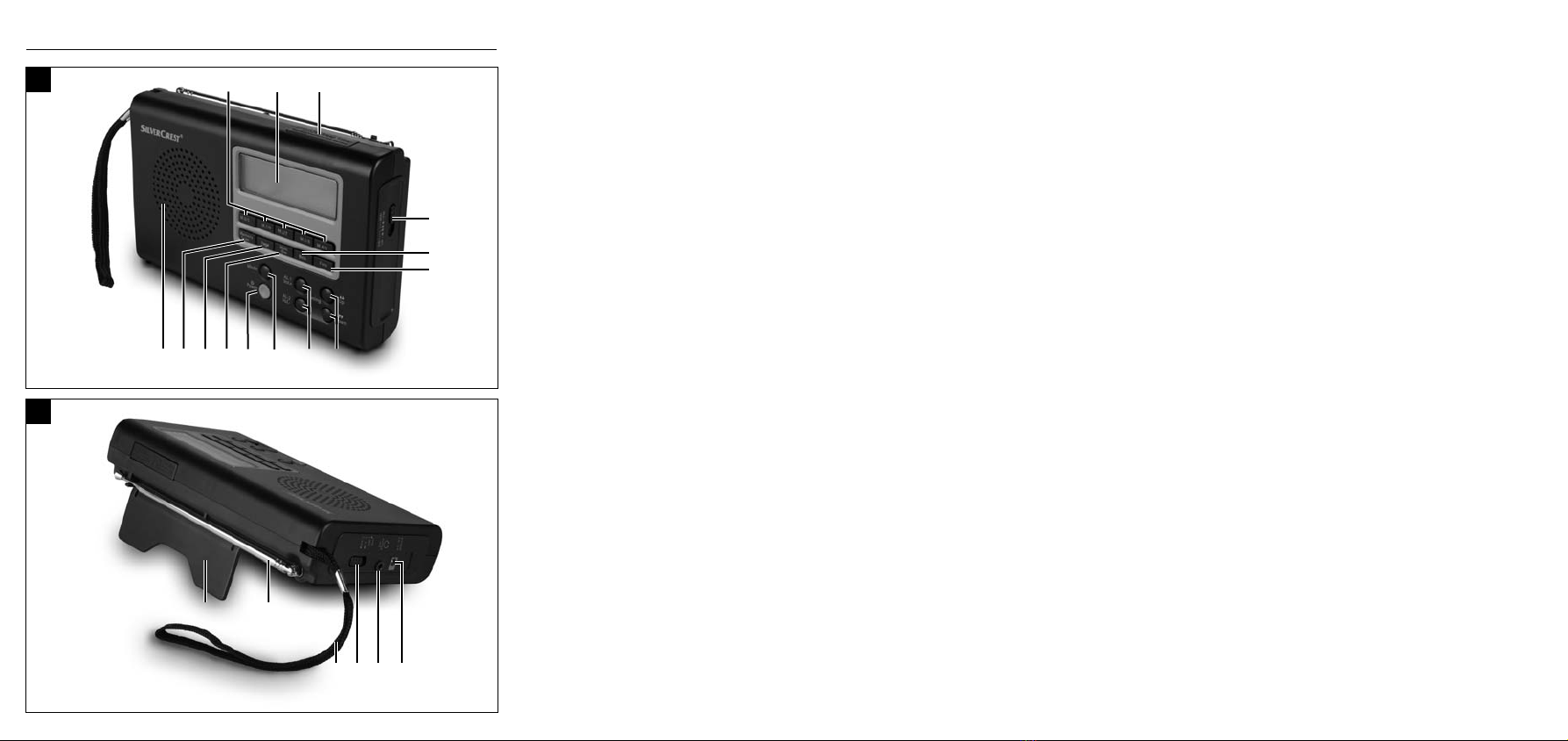

Operating elements
A Front panel
qSave buttons M.0/5 - M.4/9
wDisplay
eButton SNOOZE/SLEEP TIMER
rWaveband selector switch (LW/SW/MW/FM)
tBASS button
yFINE button
uUP/DOWN buttons
iVOL+(AL-1)/VOL-(AL-2) buttons
oMODE button
aPOWER button
sMEM button
dPAGE button
fMEMORY SCAN button
gLoudspeakers
B Back
hStand
jAerial
kCarrying strap
lswitch SW SEN. (DX/LX)
;Headphone output
2) AC ~9V 400 mA: Mains adapter connection
- 9 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 9

Starting up
Unpack the device
Remove all packaging materials.
Caution!
Do not let children play with the plastic film. There is a risk of suffocation.
Check the items supplied
Whilst unpacking, check that all of the following items are available to you:
• Shortwave Radio
• Power transformer
• Headphones
• Storage case
• These operating instructions
Mains and battery operation
When you disconnect the radio from the mains supply, any settings you
may have made (time, alarm, stations in memory) will be lost. If you wish
to keep these settings, insert batteries (see below) before disconnecting.
Inserting batteries
The device can also be operated with batteries (not supplied) as well as
from the mains. You will need four 1.5V mignon batteries, size AA/LR6.
• Open the battery compartment on the rear of the device by sliding
the cover downwards.
• Insert four batteries into the compartment, paying attention to
the polarity.
- 10 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 10

• Replace the cover on the battery compartment.
If the batteries become too weak, this is indicated by the symbol
blinking in the display. Subsequently, the appliance then switches itself off.
Mains connection
• Connect the plug of the mains adapter to the AC ~9V 400 mA socket on
the side of the device.
• Plug the mains adapter into an easily accessible socket. To avoid
tripping hazards, please avoid using an extension cable.
Note:
When the power adapter is connected the device is supplied with electricity
only through the power adapter, not from the batteries. The installed batte-
ries are not charged. In the event of prolonged use of the power adapter the
batteries should be removed from the battery compartment. Otherwise there
is a risk that the batteries may leak.
Connecting headphones
On the left side of the radio, you will find the headphone socket.
Caution!
With this appliance, use only the supplied type E105 headphones.
• Insert the headphone jack plug into the headphone output.
The speaker will be deactivated automatically.
Caution:
Listening to music with headphones for long periods and at high
volume levels can lead to hearing damage!
- 11 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 11

General functions
Key lock
In order to prevent changing the settings unintentionally by touching the
buttons, you can activate the key lock.
• With the radio switched on, press and hold the button MEM for about
3 seconds. On screen, the message flashes. All buttons, except
the buttons SNOOZE and MEM, are now blocked.
• Press and hold down the MEM button again for about 3 seconds to
cancel the key lock. The message on the screen disappears.
Screen lighting
• Press any button to illuminate the screen. The screen will remain lit for
about 15 seconds.
Stand
• Fold out the base on the rear of the device to make the device
more stable.
Time functions
When the power provision is established (mains or battery operation) the
time indicated by the world receiver begins at “0:00 00” Proceed with set-
tings the date and time, as explained in the following sections.
The time functions can only be programmed when the radio is switched off.
If the device is disconnected from mains power or the batteries are remo-
ved, the settings are lost.
- 12 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 12

Time, date, time zone and world time
You can set the time, date and time zone via the MODE button. You can con-
tinue to query and adjust the universal time, the date alarm, the medium-
wave reception, alarm time interruption and the hours mode.
When you press the button MODE with the radio switched off, the function to be
programmed blinks for about 15 seconds. During this time, adjust the setting
with the UP/DOWN buttons.
• Press MODE x 1: Setting clock time
• Press MODE x 2: Setting the date
• Press MODE x 3: Set time zone (“Local City”)
• Press MODE x 4: Show world time
• Press MODE x 5: Date alarm
• Press MODE x 6: Set reception range for medium wave.
• Press MODE x 7: Set alarm pause.
• Press MODE x 8: Set 12/24 hour mode.
To apply a setting, just wait until the screen stops flashing (the screen reverts
to the time indication) or press MODE to move on to the next function.
- 13 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 13

Setting clock time
• Press MODE once. The most recently set time flashes on the screen.
• Press the UP or DOWN button to move the time forward or backward at
minute intervals. Hold down one of the buttons for a few seconds to
move the setting forward or backward quickly at 10 minute intervals.
Setting the date
• Press MODE again or twice.
The date set flashes on the screen (“Su 1.01.12” when first switched on).
• Press the UP or DOWN button to move the date forward or backward.
Keep either of these buttons pressed for a few seconds to change the
date in ten-day steps.
The weekday indication follows automatically. The indication uses the first
two letters of the English name of the day.
The built-in calendar runs from 2000 to 2099.
Day of the week indication:
Su = Sunday
Mo = Monday
Tu = Tuesday
We = Wednesday
Th = Thursday
Fr = Friday
Sa = Saturday
- 14 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 14

Setting the time zone
• Press MODE again or three times. The selected time zone flashes on the
screen as the abbreviation for the corresponding city (UTC when first
switched on); the time disappears.
• Press the UP or DOWN button to move the time zone forward or backward.
The following table summarises the city abbreviations for the time zones and
time differences.
- 15 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 15

Short code Difference from CET Summer time Town
HNL -10:00 no Honolulu/USA
ANC -9:00 yes Anchorage/USA
YVR -8:00 yes Vancouver/Canada
LAX -8:00 yes Los Angeles/USA
DEN -7:00 yes Denver/USA
CHI -6:00 yes Chicago/USA
MEX -6:00 yes Mexico City/Mexico
NYC -5:00 yes New York/USA
YYZ -5:00 yes Toronto/Canada
YUL -5:00 yes Montreal/Canada
CCS -4:30 no Caracas/Venezuela
RIO -3:00 yes Rio de Janeiro/Brazil
BUE -3:00 no Buenos Aires/Argentina
UTC* 0:00 no Universal Time Coordinated
LON 0:00 yes London/GB
BER 1:00 yes Berlin/Germany
PAR 1:00 yes Paris/France
ROM 1:00 yes Rome/Italy
CAI 2:00 yes Cairo/Egypt
IST 2:00 yes Istanbul/Turkey
MOW 3:00 yes Moscow/Russia
KWI 3:00 no Kuwait City/Kuwait
DXB 4:00 no Dubai/United Arab Emirates
KHI 5:00 no Karachi/Pakistan
DAC 6:00 yes Dhaka/Bangladesh
BKK 7:00 no Bangkok/Thailand
SIN 8:00 no Singapore
HKG 8:00 no Hong Kong
PEK 8:00 no Beijing/China
SHA 8:00 no Shanghai/China
TYO 9:00 no Tokyo/Japan
SYD 10:00 yes Sydney/Australia
NOU 11:00 no Noumea/New Caledonia
AKL 12:00 yes Auckland/New Zealand
- 16 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 16

*UTC
Universal Time Coordinated (UTC). UTC is the reference for the times of the
various time zones around the world.
Show world time
• Press MODE again or four times to show the world time. The city
abbreviation appears with the corresponding time.
• Press the UP or DOWN button to move the time zone forward or backward.
Note:
To correctly present your set world time, you must set the summer time offset
depending on the world time (see table).
Summer Time Offset
Not every time zone around the world differentiates between summer time
and winter time. To correctly display your world time, you must set the sum-
mer time offset dependant on the time zone.
• When the display for the time zone is flashing, repeatedly press the
SNOOZE button until the corresponding time offset is set (see table).
Time offset Display Explanation
1OFFSET 1 In your time zone (Local City) it is winter time and
in the set world time it is summer time.
0OFFSET 0 In your time zone (Local City) and in the set world
time it is summer resp. winter time.
-1 OFFSET -1
In your time zone (Local City) it is summer time and
in the set world time it is winter time resp. they do
not have summer time.
- 17 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 17

Special date alarm
• Press the MODE button a fifth time to set the special date alarm.
The screen flashes SDA1 and the date in succession.
• Press the PAGE button to select one of the ten settable date alarms
(SDA1–SDA 10).
• Press the UP or DOWN button to set the date on which the alarm should
sound.
• Press the SNOOZE button to ignore the year number setting so that the
alarm sounds every year.
• When the current date tallies with the SDA alarm, on that day an
alarm sounds for 10 minutes on every hour from 8:00 - 23:00.
In addition, the SDA message will flash on the screen.
• Turn off the alarm by pressing any button.
Note:
In order to completely deactivate the date alarm set a date that is in the past!
Setting 12/24 hour mode
• Press MODE eight times. The screen shows the”24 HR” message for
24-hour mode.
• Press the UP button to set the 24 hour mode.
• Press the DOWN button to set the 12 hour mode.
“12 HR” is displayed on the screen. In the afternoon in addition PM is
shown on the screen.
- 18 -
IB_71305_SWEP500A1_LB7 20.12.2011 9:51 Uhr Seite 18
