Silvercrest SHBR 560 A1 User manual

3-IN-1 FLOOR CLEANER SHBR 560 A1
3-IN-1 FLOOR CLEANER
Operating instructions
3-IN-1 BODENREINIGER
Bedienungsanleitung
IAN 329835_1910

GB/IE/NI Operating instructions Page 1
DE/AT/CH Bedienungsanleitung Seite 27
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.

AB

GB│IE│NI│ 1 ■
SHBR 560 A1
Contents
Introduction ...................................................2
Information about these operating instructions .................................. 2
Copyright............................................................... 2
Proper use .............................................................. 2
Safety information .............................................3
Description of the appliance .....................................6
Package contents and transport inspection .........................7
Use ..........................................................7
Assembling the appliance .................................................. 7
Filling the fresh water tank .................................................. 9
Handling and operation........................................11
Cleaning hard floors .....................................................11
Cleaning carpets ........................................................12
Cleaning and maintenance .....................................14
Cleaning the waste water tank .............................................14
Self-cleaning function..................................................... 17
Manual cleaning ........................................................18
Replacing the dirt filter....................................................20
Ordering replacement parts ...............................................20
Storage .....................................................21
Troubleshooting ..............................................22
Disposal .....................................................24
Disposal of the appliance ................................................. 24
Disposal of the packaging................................................. 24
Attachment ..................................................24
Technical data ..........................................................24
Kompernass Handels GmbH warranty ....................................... 25
Service................................................................ 26
Importer ............................................................... 26
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 1 09.06.2020 14:04:47

■ 2 │ GB│IE│NI SHBR 560 A1
Introduction
Information about these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product.
The operating instructions are part of this product. They contain impor-
tant information about safety, usage and disposal.
Before using the product, please familiarise yourself with all operating and safety
instructions. Use the product only as described and for the range of applications
specified. Please also pass these operating instructions on to any future owner.
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduc-
tion of images (even in a modified state), is permitted only with the written
authorisation of the manufacturer.
Proper use
This appliance is designed exclusively for cleaning indoor floors and carpets.
It is not intended for any other purpose nor for use beyond the scope described.
The appliance is not intended for use in commercial or industrial environments.
The manufacturer accepts no responsibility for damage caused by failure to
observe these instructions, improper use or repairs, unauthorised modifications
or the use of unapproved replacement parts. The operator bears sole liability.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 2 09.06.2020 14:04:47

GB│IE│NI│ 3 ■
SHBR 560 A1
Safety information
RISK OF ELECTRICAL SHOCK!
► Connect the appliance only to a properly installed mains
power socket supplying a mains power voltage of 220–
240 V ∼, 50–60 Hz.
► Always pull on the plug to disconnect the appliance from
the mains. Do not pull on the cable itself.
► Do not kink or crush the power cable, and route the cable
so that it cannot be stepped on or tripped over.
► To avoid risks, arrange for defective plugs and/or power
cables to be replaced at once by qualified technicians or
our Customer Service Department.
► Ensure that the power cable does not become wet or damp
during use. Route the cable in such a way that it cannot be
crushed or damaged.
► Do not drive the appliance over the power cable.
► In case of a malfunction, remove the plug from the socket.
► Remove the mains plug from the mains socket before filling
the appliance with water, changing accessories or cleaning
it.
► To prevent risks, stop using the appliance immediately if it
is damaged.
► Operate the appliance only with dry hands and never with-
out shoes (i.e. not barefoot). This will help reduce the effect
of an electric shock in the event of a malfunction.
Use the appliance only in indoor areas, not out-
doors.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 3 09.06.2020 14:04:52

■ 4 │ GB│IE│NI SHBR 560 A1
RISK OF ELECTRICAL SHOCK!
► Never immerse the appliance in water or other liquids.
► Never aim the appliance at moisture-sensitive objects, floors
or surfaces.
► This appliance may be used by children aged 8 years and
above and by persons with limited physical, sensory or mental
capabilities or lack of experience and knowledge, provided
that they are under supervision or have been told how to use
the appliance safely and are aware of the potential risks.
Do not allow children to use the appliance as a toy.
► Cleaning and user maintenance tasks may not be carried out
by children unless they are supervised.
WARNING! RISK OF INJURY!
► Use only the original accessory parts recommended by the
manufacturer for this appliance.
► Only use the appliance when it is properly and completely
assembled.
► The appliance may not be used if it has been dropped, if
there are any obvious signs of physical damage or if it is
leaking.
► Always pull the plug out of the power socket during each
break in use, as well as after use and before any cleaning.
► Be particularly careful while using the appliance on steps or
stairs.
► Do not use the appliance to vacuum up chemicals, poisonous
materials or inflammable liquids.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 4 09.06.2020 14:04:52

GB│IE│NI│ 5 ■
SHBR 560 A1
ATTENTION! PROPERTY DAMAGE!
► Always comply with the cleaning instructions of the carpet
manufacturer. Before cleaning, check also whether the
carpet is suitable for cleaning with the appliance.
► Do not leave the appliance standing on wooden floors for
any length of time when it is switched on. The wood could
swell.
► Do not operate the appliance with an empty water tank.
Otherwise, the pump could run empty and overheat.
► Do not insert any objects into the openings of the appliance.
► Do not use the appliance if the openings are blocked. Keep
the openings free of dirt, fluff, hairs or anything that could
impede the air circulation.
► Make sure that you do not vacuum up hard, pointed or
sharp objects (e.g. glass, nails, screws, coins, etc.) with the
appliance.
► Ensure that the appliance, the power cable and the plug do
not come into contact with heat sources such as hotplates or
naked flames.
► Use only the type and quantity of liquids listed in these
operating instructions when operating the appliance.
► Never leave the appliance unattended during operation.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 5 09.06.2020 14:04:52

■ 6 │ GB│IE│NI SHBR 560 A1

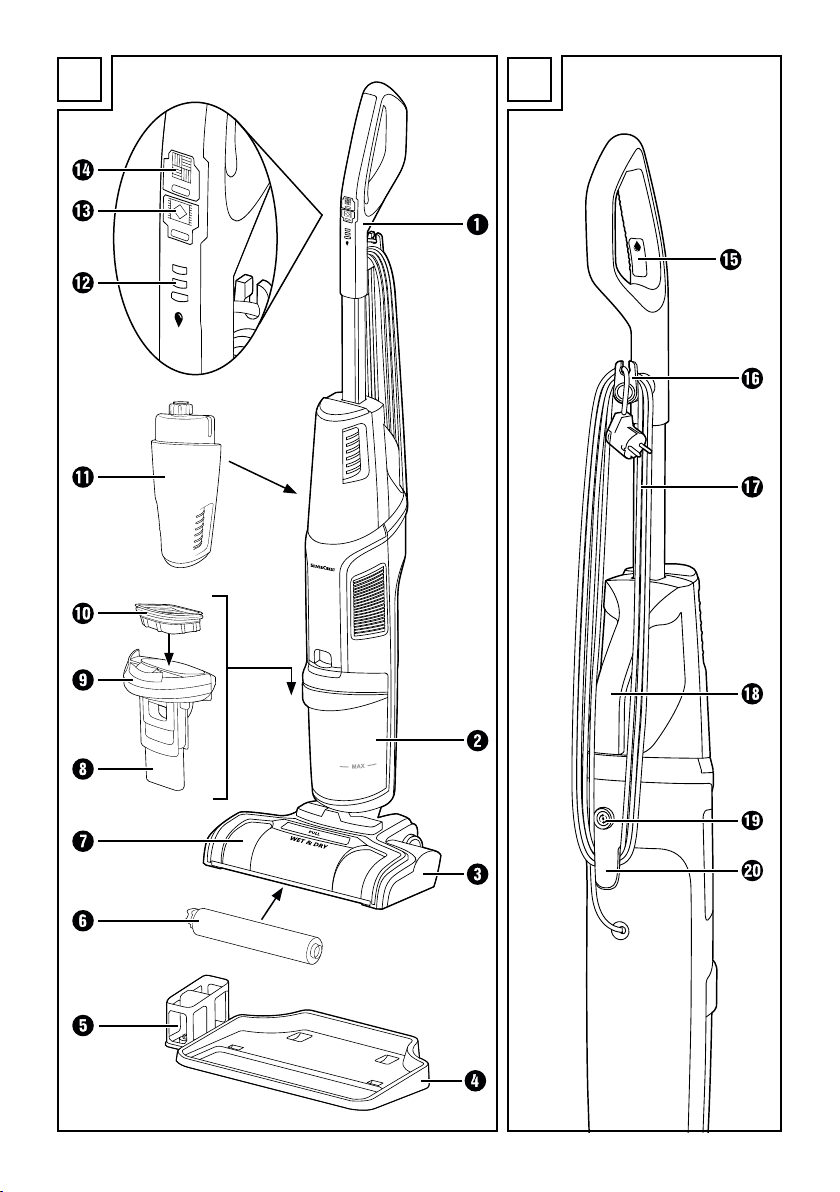

Description of the appliance
(See fold-out page for illustrations)
Figure A:
1Hand element with handle
2Waste water tank
3Foot section with brush chamber
4Storage tray
5Rotary brush holder
6Rotary brush
7Splash guard
8Float
9Lid of the waste water tank
0Dirt filter
qFresh water tank
wCleaning solution display
eCarpet switch (with LED)
rHard floor switch (with LED)
Figure B:
tCleaning solution switch
zUpper cable retainer
uPower cable with mains plug
iCarrying handle
oSelf-cleaning switch
pLower cable retainer
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 6 09.06.2020 14:04:52

GB│IE│NI│ 7 ■
SHBR 560 A1
Package contents and transport inspection
ƇRemove all parts of the appliance and the operating instructions from the
carton.
ƇRemove all packaging materials and any films and labels.
Check the contents of the package. The package contents include the following
components (see fold-out page for illustrations):
 Floor cleaner
 Hand element
 Storage tray
 Rotary brush holder
 Operating instructions
NOTE
► Check the package for completeness and signs of visible damage.
► If the delivery is incomplete or damage has occurred as a result of defec-
tive packaging or during transport, contact the Service hotline (see section
Service).
Use
Assembling the appliance
ƇSlide the hand element 1into the opening on the top of the appliance until the
hand element 1clicks into the opening (see fig. 1).
Fig. 1 Fig. 2
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 7 09.06.2020 14:04:53

■ 8 │ GB│IE│NI SHBR 560 A1
NOTE
► If you want to remove the hand element 1from the appliance, you must
first remove the fresh water tank qfrom the appliance to reach the catch
of the hand element 1 (see section Filling the fresh water tank). Once
you have removed the fresh water tank q, press the catch on the hand
element 1out of the catch opening with a pointed object. You can then
pull the hand element 1back out of the appliance (see fig. 2).
ƇWind the power cable u completely around the upper and lower cable
retainers z/p(see fig. 3).
Fig. 3
ƇThe parking and cleaning station consists of a storage tray 4and a rotary
brush holder 5(see fig. 4). To assemble the parking and cleaning station, slide
the rotary brush holder 5sideways into the opening on the storage tray 4.
Slide the rotary brush holder 5downwards until it audibly engages in the
opening and is firmly attached to the storage tray 4(see fig. 5).
+
Fig. 4 Fig. 5
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 8 09.06.2020 14:04:53

GB│IE│NI│ 9 ■
SHBR 560 A1
Filling the fresh water tank
ATTENTION! PROPERTY DAMAGE!
► Fill the fresh water tank qonly with cold to warm tap water
(up to max. 60°C) or distilled water.
Do not use boiling water.
► Never operate the appliance without water in the fresh water tank q.
► Use only standard commercial, non-foaming floor cleaners as cleaning
agents.

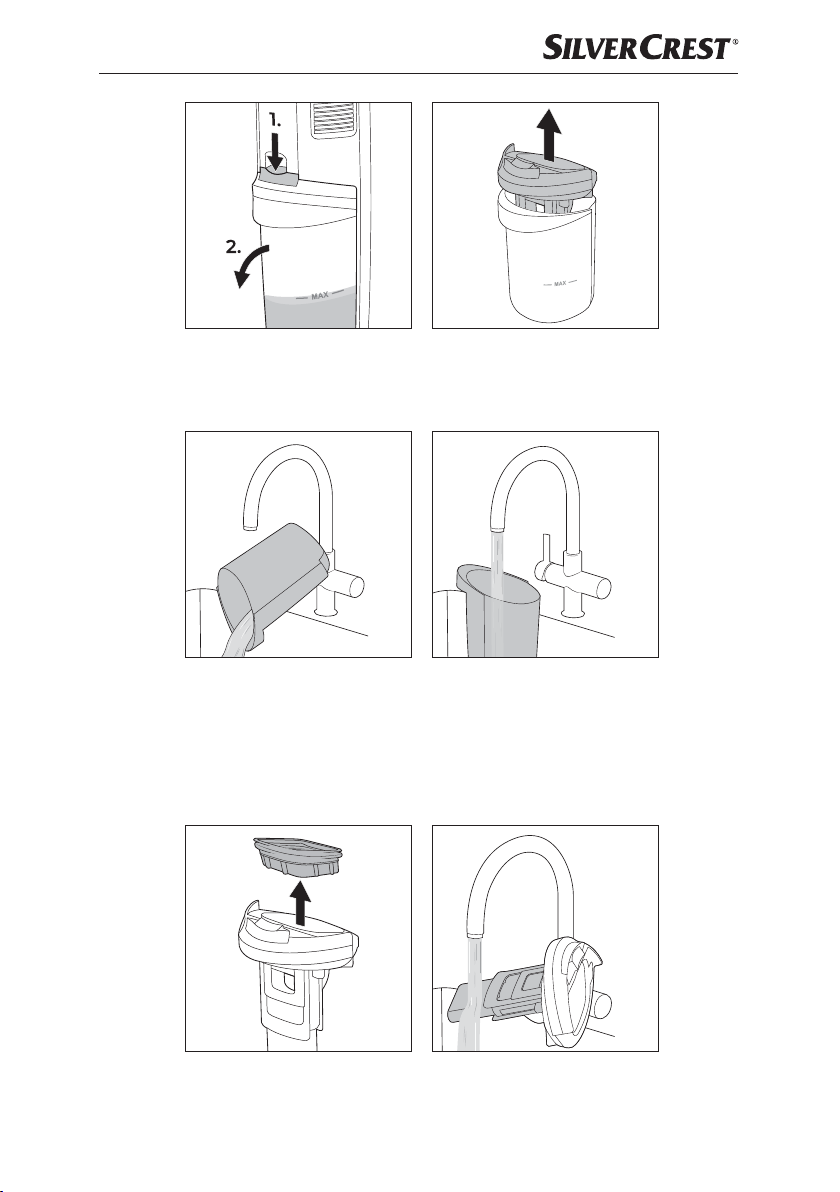

ƇGrasp the fresh water tank qby the gripping grooves on the side and pull it
upwards out of the appliance (see fig. 6).
ƇFlip the fresh water tank qover and unscrew the lid. (see fig. 7).
Fig. 6 Fig. 7
ƇFor small areas (up to 25 m), fill the fresh water tank qwith tap water
or distilled water up to the first fill level marking (see fig. 8).
ƇFor small areas (up to 25 m), fill the fresh water tank qwith cleaning
solution up to the second fill level marking (see fig. 8).
ƇFor large areas (up to 55 m), fill the fresh water tank qwith tap water
or distilled water up to the third fill level marking (see fig. 9).
ƇFor large areas (up to 55 m), fill the fresh water tank qwith cleaning
solution up to the fourth fill level marking (see fig. 9).
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 9 09.06.2020 14:04:54

■ 10 │ GB│IE│NI SHBR 560 A1
Fig. 8 Fig. 9
ƇClose the lid of the fresh water tank q(see fig. 10).
ƇFlip the fresh water tank qover and slide it back into the opening at the top on
the front of the appliance (see fig. 11).
ƇPush the fresh water tank qdown along the grooves in the opening until the
fresh water tank qaudibly snaps into place and sits firmly in the appliance.
Fig. 10 Fig. 11
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 10 09.06.2020 14:04:54

GB│IE│NI│ 11 ■
SHBR 560 A1
Handling and operation
ATTENTION! PROPERTY DAMAGE!
► While working with the appliance, make sure that the rotary brush 6does
not get blocked by loose objects lying around on the floor or by carpet
edges. These can damage the rotary brush 6and stop it from working
properly.
Cleaning hard floors
Once the appliance is assembled and the fresh water tank qis filled with water
and cleaning solution:
ƇUnwind the power cable u completely from the upper and lower cable retainers
z/p. To unwind the power cable uquickly from the cable retainers z/p,
pull the upper cable retainer z out a little way and turn it downwards (see
fig. 12).
ƇInsert the plug into the mains power socket.
ƇPress the hard floor switch r to switch the appliance on (see fig. 13).
The LED on the hard floor switch rlights up blue.
Fig. 12 Fig. 13
ƇBefore each use, press and hold the cleaning solution switch tfor about
10 seconds to add cleaning solution to the rotary brush 6so that it is ready
for use (see fig. 14). The cleaning solution display w flashes alternately
blue when the cleaning solution switch t is held down (see fig. 15).
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 11 09.06.2020 14:04:54

■ 12 │ GB│IE│NI SHBR 560 A1
Fig. 14 Fig. 15
ƇHold down the cleaning solution switch tduring both forward and backward
cleaning movements with the appliance. This ensures that the cleaning solution is
applied evenly to the hard floor via the rotary brush.
NOTE
► For stubborn dirt, move the appliance over the soiled area several times
while holding down the cleaning solution switch t.
ƇPress the hard floor switch ragain to switch the appliance off (see fig. 13).
Cleaning carpets
NOTE
► Before using the appliance to clean a carpet, test the appliance on an
inconspicuous area of the carpet.
► Before cleaning, check the carpet manufacturer's label for special care
instructions. The appliance is not suitable for sensitive carpets (e.g. silk,
leather, flokati etc.).
Once the appliance is assembled and the fresh water tank qis filled with water
and cleaning solution:
ƇUnwind the power cable u completely from the upper and lower cable retainers
z/p. To unwind the power cable uquickly from the cable retainers z/p,
pull the upper cable retainer z out a little way and turn it downwards (see
fig. 16).
ƇInsert the plug into the mains power socket.
ƇPress the carpet switch eto switch the appliance on (see fig. 17).
The LED on the carpet switch elights up blue.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 12 09.06.2020 14:04:54

GB│IE│NI│ 13 ■
SHBR 560 A1
Fig. 16 Fig. 17
ƇBefore each use, press and hold the cleaning solution switch tfor about
10 seconds to add cleaning solution to the rotary brush 6so that it is ready
for use (see fig. 18). The cleaning solution display w flashes alternately
blue when the cleaning solution switch t is held down (see fig. 19).
Fig. 18 Fig. 19
ƇHold down the cleaning solution switch tduring both forward and back-
ward cleaning movements with the appliance. This ensures that the cleaning
solution is applied evenly to the carpet via the rotary brush.
NOTE
► When cleaning carpets, if you activate the cleaning solution switch t,
twice as much cleaning solution is applied to the rotary brush 6as during
hard floor cleaning.
► To allow carpets to dry more quickly after cleaning, move the appliance
several times over the carpet without holding down the cleaning solution
switch t.
ƇPress the carpet switch eagain to switch the appliance off (see fig. 17).
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 13 09.06.2020 14:04:55

■ 14 │ GB│IE│NI SHBR 560 A1
Cleaning and maintenance
RISK OF ELECTRICAL SHOCK!
► Switch the appliance off and pull out the mains plug before cleaning the
appliance!
ATTENTION! PROPERTY DAMAGE
► Do not use caustic, abrasive or solvent-based cleaning materials. These can
damage the surfaces of the appliance.
NOTE
► Empty the waste water tank 2after every use.
► After every use, carry out a self-cleaning of the appliance (see section
Self-cleaning function).
ƇClean the appliance with a moist cloth or rag. For stubborn soiling use a mild
detergent on the cloth.
Cleaning the waste water tank
NOTE
► Empty the waste water tank 2as soon as the dirty water has reached the
MAX marking.
► Once the waste water tank 2is full, the float 8causes the suction motor
to switch off automatically.
ƇProceed as follows to empty the waste water tank 2:
1. Press the knob at the top of the waste water tank 2downwards (see fig. 20).
Hold the handle of the waste water tank 2while pressing the knob down-
wards.
2. Pull the waste water tank 2forwards out of the appliance (see fig. 20).
ƇPull the lid of the waste water tank 9upwards out of the waste water tank 2
(see fig. 21).
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 14 09.06.2020 14:04:55

GB│IE│NI│ 15 ■
SHBR 560 A1
Fig. 20 Fig. 21
ƇTip out the dirty water and dirt (see fig. 22).
ƇRinse the waste water tank 2in hot running water (see fig. 23).
Fig. 22 Fig. 23
ƇRemove the dirt filter 0from the waste water tank 2by gripping into the side
openings next to the dirt filter 0with your fingers and pulling it upwards off the
lid of the waste water tank 9(see fig. 24).
ƇClean the dirt filter 0, the float 8 and the lid of the waste water tank 9 in hot
running water (see fig. 25). If necessary, use a mild detergent.
Fig. 24 Fig. 25
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 15 09.06.2020 14:04:55

■ 16 │ GB│IE│NI SHBR 560 A1

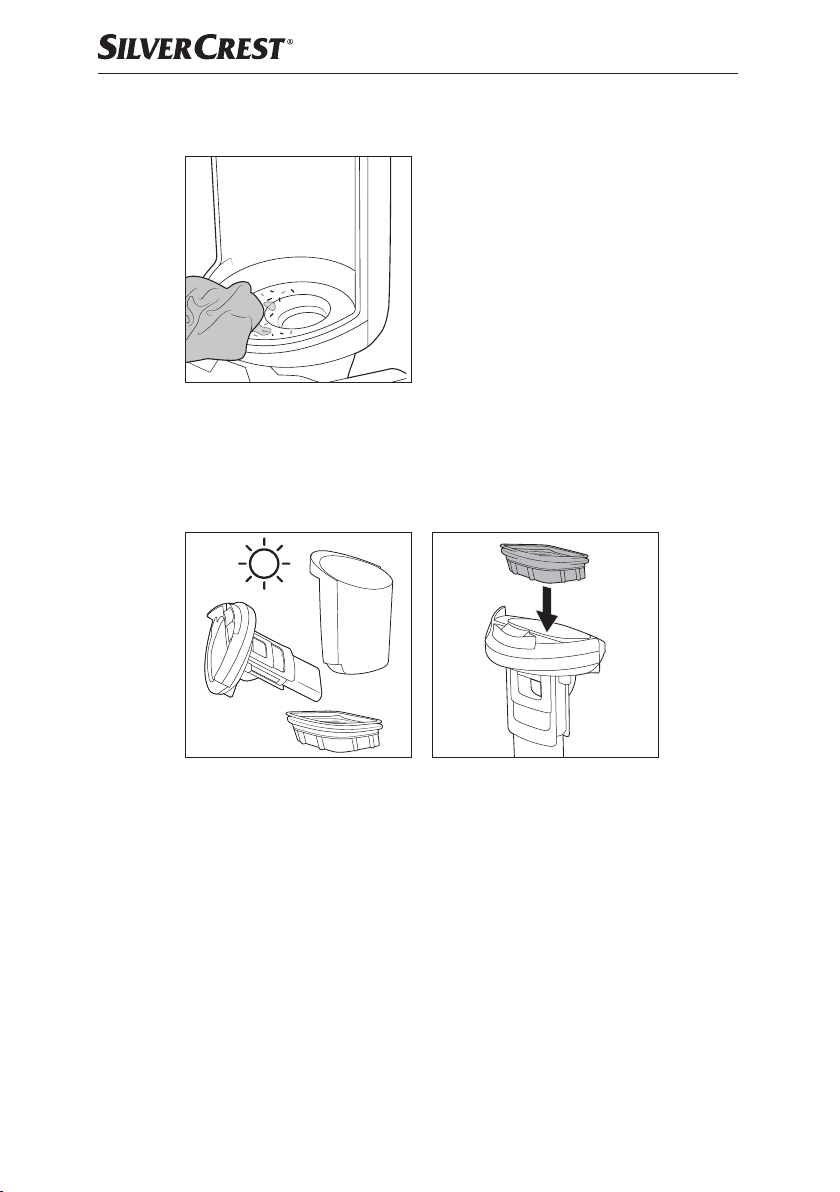

ƇIf necessary, clean the opening in which the waste water tank 2is located on
the appliance with a damp cloth or rag (see fig. 26).
Fig. 26
ƇAllow the dirt filter 0, the waste water tank 2 and the lid of the waste water
tank 9 to dry completely (see fig. 27).
ƇOnce the parts are fully dry, replace the dirt filter 0back in the lid of the waste
water tank 9(see fig. 28).
Fig. 27 Fig. 28

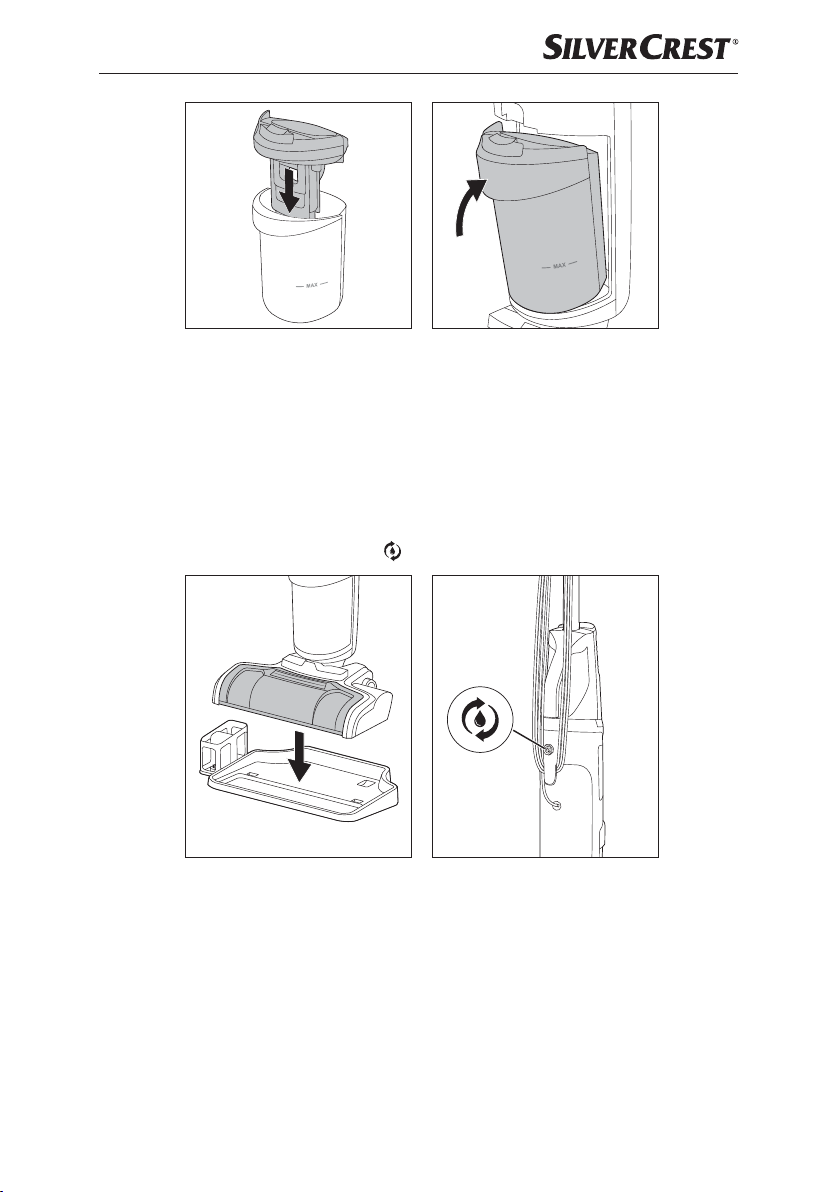

ƇPlace the lid of the waste water tank 9back onto the waste water tank 2
(see fig. 29).
ƇFit the waste water tank 2back onto the appliance by inserting the bottom
of the waste water tank 2first. Then push the waste water tank 2 into the
appliance until the waste water tank 2 audibly clicks into place (see fig. 30).
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 16 09.06.2020 14:04:55

GB│IE│NI│ 17 ■
SHBR 560 A1
Fig. 29 Fig. 30
Self-cleaning function
The appliance has a self-cleaning function that allows you to automatically clean
the rotary brush 6, the brush chamber in the foot section 3and the suction
channel after use.
ƇPlace the switched-off appliance on the storage tray 4of the parking and
cleaning station (see fig. 31).
ƇPress the self-cleaning switch o(see fig. 32).
Fig. 31 Fig. 32
ƇThe following cleaning programme is started:
1. Cleaning solution is applied to the rotary brush 6for approx. 20 seconds.
2. The rotary brush 6is started for approx. 10 seconds while cleaning solution
is applied to the rotary brush 6.
3. The rotary brush 6turns and the vacuum function remains active for approx.
30 seconds while cleaning solution is applied to the rotary brush 6.
4. The appliance will switch off automatically when the cleaning programme
completes.
IB_329835_SHBR560A1_LB6_GB-IE-NI.indb 17 09.06.2020 14:04:56
