Sime ECOMFORT PLUS 25 HE User manual

UK
ECOMFORT
PLUS HE -EV
User instructions
ENSURE THAT THESE INSTRUCTIONS ARE LEFT
FOR THE USER AFTER COMPLETION OF THE
BENCHMARK SECTION
Please read the Important Notice within
this guide regarding your boiler warranty
199838

All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make changes
and improvements in our products that may affect the accuracy of the information contained in this manual.
IMPORTANT NOTICE
For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and
labour.
As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and
service.
To take advantage of any extended warranty offered, all you have to do is to adhere to these 3 simple conditions:
• The installation must be carried out to Manufacturers/Benchmark Standards by a Gas Safe Registered
Engineer, and recorded in the installation manual.
• The appliance must be registered with both Sime Ltd and Gas Safe within 30 days of installation.
• The appliance must be serviced annually, by either Sime Ltd or a Gas Safe registered engineer- ensuring that the
Benchmark service record in the installation manual is completed.
Failure to comply with the above will result in only the 12 month warranty being offered.
In the absence of any proof of purchase, the 12 month warranty period will commence from the date of manufacture
of the boiler as shown on the appliance data plate.

The Benchmark Scheme
Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and
commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimi-
se safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
For more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist in the use and maintenance section
of the installation instructions supplied with the product and that you have signed it to say that you have received a
full and clear explanation of its operation.
The installer is legally required to complete a commissioning checklist as a means of complyng with the appropria-
te Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons
Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance.
The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work and as supporting documentation
relating to home improvements in the optional documents section of the Home Information Pack.

OPERATING INSTRUCTIONS FOR THE USER
1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 APPLIANCE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 MINIMUM CLEARANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.4 ROUTINE SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 ELECTRICAL SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.6 VENTILATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.7 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.8 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.9 INSTRUCTIONS FOR PROGRAMMING MECHANICAL CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CONTENTS
ECOMFORT PLUS 25 HE -EV: Gas Council number 47-283-30
ECOMFORT PLUS 30 HE -EV: Gas Council number 47-283-31
ECOMFORT SYSTEM PLUS 25 HE -EV: Gas Council number 41-283-26
ECOMFORT PLUS 25 HE -EV (without time clock): Gas Council number 47-283-32
ECOMFORT PLUS 30 HE -EV (without time clock): Gas Council number 47-283-33
These appliances comply with the S.E.D.B.U.K. scheme, band “A”
VERY IMPORTANT!
PLEASE MAKE SURE YOUR BENCHMARK CHECKLIST IN THE
INSTALLATION GUIDE, IS FILLED IN CORRECTLY.
ALL GAS SAFE REGISTER INSTALLERS CARRY A ID CARD.
THE REGISTRATION NUMBER SHOULD BE
RECORDED ON THE CHECK LIST.
YOU CAN CHECK YOUR INSTALLER IS GAS SAFE
REGISTERED BY CALLING ON 0800 408 5577

6
OPERATING INSTRUCTIONS FOR THE USER
THE GAS SAFETY (THE GAS SAFETY
(INSTALLATION AND USE) REGULA-
TIONS 1996.
It is the law that all gas appliances are
installed by a Gas Safe Registered engi-
neer, in accordance with the above reg-
ulations. Failure to install appliances
correctly could lead to prosecution. It is
in your own interest, and that of safety,
to ensure that the law is complied with.
It is essential that the appliance is
correctly earthed. An electricity sup-
ply of 240 V - 50 Hz fused at 3 A is
required.
Read these instructions carefully
before attempting to operate the appli-
ance.
1.1 INTRODUCTION
The Sime “ECOMFORT PLUS 25 HE -
EV” , “ECOMFORT PLUS 30 HE -EV”
and “ECOMFORT SYSTEM PLUS 25
HE -EV” are fully automatic, wall mount-
ed, room sealed, fan assisted boilers.
When operating in winter mode, the
appliance provides central heating as
required and the combination versions
produce instantaneous hot water upon
demand. When operating in summer
mode, the central heating is not opera-
tional however the appliance continues
to supply hot water whenever it is
required.
The heat output is automatically con-
trolled by the fully modulating gas valve
(within its pre-set limits).
A temperature/pressure gauge is fit-
ted and an overheat thermostat is
incorporated to protect against fault
conditions.
1.2 APPLIANCE OPERATION
(COMBINATION VERSION)
A demand of hot water will be sensed
by the appliance detecting water flow
(providing that the flow rate is above 2
l/m - 0.5 gal/min).
The fan will start and the burner will
light at full output. If the draw off rate
is near the maximum design flow
rate the appliance will run continu-
ously at full output until a tap is either
turned off or the flow rate is reduced
in which case the heat output will
reduce accordingly to maintain a
steady temperature.
Hot water is made available almost
immediately at the appliance outlet,
but the final temperature and time
taken for the hot water to reach a tap
depends upon the potentiometer set-
ting, the rate at which water is drawn
off, and the length of the pipe between
the boiler and the tap.
When the tap is turned off, the appli-
ance will revert to C.H. mode (if set on
winter position) otherwise the burner
will be extinguished pending the next
demand for hot water.
BOILER IGNITION (fig. 1)
The first ignition of the boiler must be
carried out by qualified technical per-
sonnel.
Successively, if it is necessary to start
up the boiler again, adhere strictly to
the following instructions: open the
gas tap to allow the flow of the fuel
and move the main switch of the
system to “ON”.
Wait for about 30
seconds before restoring functioning
conditions so that the boiler can
perform the control sequence.
If the green led is on, this indicates the
presence of voltage.
Keys lock
If the device is not used, the keys will be
locked 15 minutes after the last set-
ting was made (PAR 5 by default) and
the display light switches off.
To set one of the operating modes,
press any of the keys for more than
two seconds (the display will indicate
one to four segments progressively
before unlocking the controls).
Winter
Press the key of the controls to
activate the winter mode functioning
(heating and D.H.W.). The display will
be as shown in the figure.
Summer
Press the key of the controls to
activate the summer mode functioning
(only the production D.H.W.). The
display will be as shown in the figure.

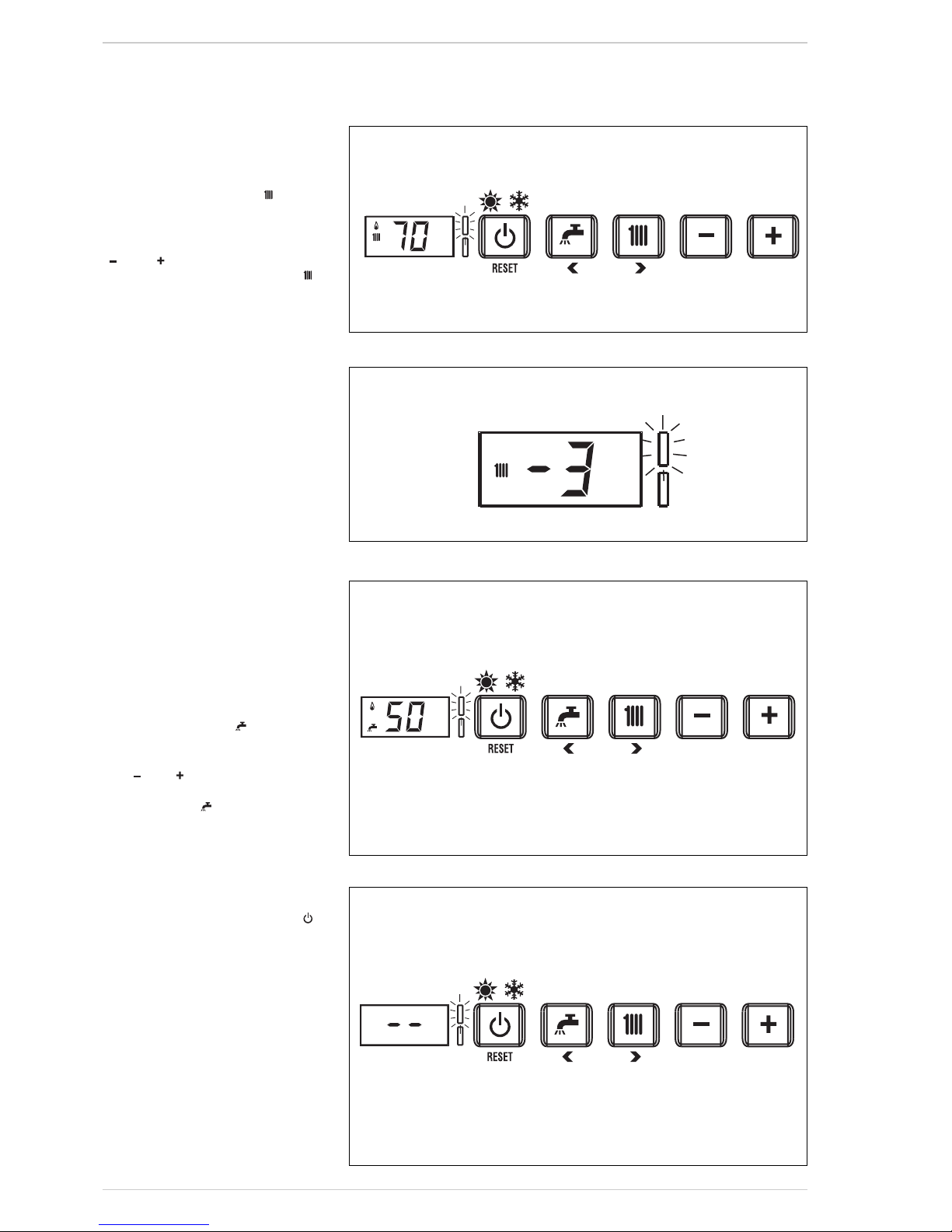

Fig. 1
ATTENTION: Use the keys to alter the value of any function, a beep indicates that the key was
touched and the function is activated. After 15 minutes the display will turn off (PAR 5).

7
REGULATION OF THE WATER TEM-
PERATURE FOR HEATING (fig. 2)
To set the temperature of the water
for heating, press the key of the
controls .
The display will be as shown in the figu-
re. Change the values with the key (
and ). The adjustment will be
accepted by pressing the key
again, or after 10 seconds if no key is
pressed.
Regulation of the external
sensor (fig. 2/a)
If an external sensor is installed, the
value of the output temperature is
automatically chosen by the system,
which quickly adjusts the of flow tem-
perature on the basis of the external
temperature. If you wish to change the
value of the temperature, increasing
or decreasing that calculated automa-
tically by the electronic card, proceed
as indicated in the preceding para-
graph. The level of various correction
of a value of temperature proportional
calculated. The display will be as
shown in fig. 2/a.
REGULATION OF THE D.H.W.
TEMPERATURE (fig. 3)
To set the desired temperature
D.H.W., press the key of the con-
trols. The display will be as shown in
the figure. Change the values with the
key ( and ).
The adjustment will be accepted by
pressing the key again, or after 10
seconds if no key is pressed.
TO SWITCH OFF THE BOILER (fig. 4)
In the case of a short absence, press
for more than two second the key
of the controls. The display will be as
shown in figure (boiler in stand-by). In
this way, leaving the electricity and the
fuel supply connected, the boiler is pro-
tected from frost and from the pump
becoming blocked.
If the boiler is not used for a prolonged
period, it is advisable to disconnect the
electricity supply, by switching off the
main switch of the system, and to
close the gas isolation valve and, if low
temperatures are expected, to com-
pletely empty the hydraulic circuits to
avoid pipes being frost damaged.
Fig. 2
Fig. 2/a
Fig. 4
Fig. 3

8
ERRORS AND SOLUTIONS
When there is a functioning error, the
display controls shows and red led switch
on.
Descriptions of the anomalies with the rela-
tive alarms and solutions are given below:
–AL 01
Request assistance from qualified
technical personnel.

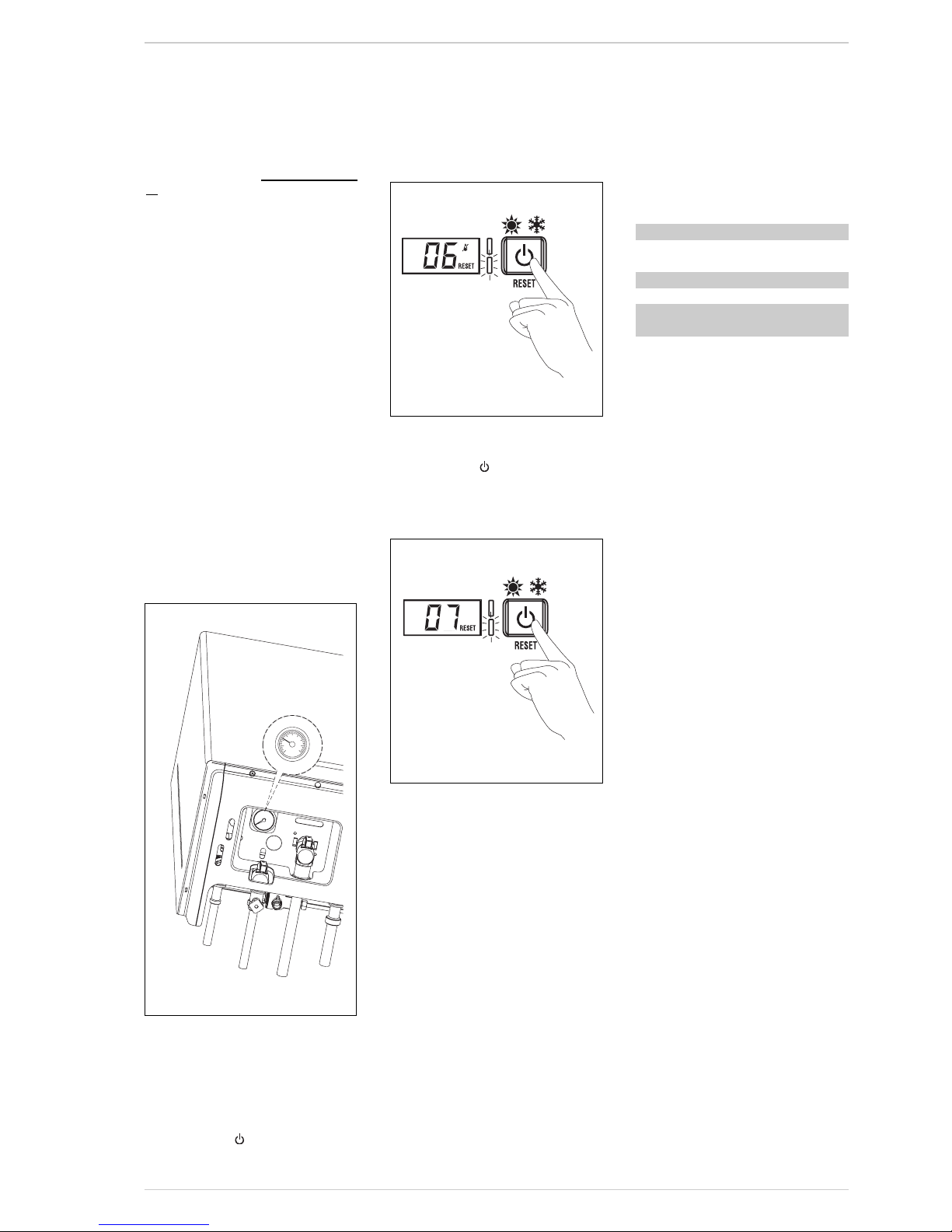

–AL 02 (fig. 5)
If the water pressure detected is lower
than 0.5 bar, the boiler will stop and the
display will show “AL 02”.
Bring the pressure back to normal by
means by use of the external filling loop.
Fill the system until the pressure indica-
ted by the hydrometer is between 1 and
1.2 bars.
WHEN FILLING HAS BEEN COMPLETED
CLOSE THE CONNECTIONS OF THE FIL-
LING LOOP AND DISCONNECT IT..
If it is necessary to repeat the system
filling procedure, it is advisable to con-
tact qualified technical personnel to
check the seal of the heating system
(to check whether there are any leaks).
–AL 05
Request assistance from qualified
technical personnel.
–AL 06 (fig. 5/a)
Press the key of the controls to re-
start the boiler.
If the error persists, request assistan-
ce from qualified technical personnel.
–AL 07 (fig. 5/b)
Press the key of the controls to re-
start the boiler.
If the error persists, request assistan-
ce from qualified technical personnel.
–AL 08
Request assistance from qualified
technical personnel.
–AL 10
Request assistance from qualified
technical personnel.
–AL 11
Request assistance from qualified
technical personnel.
–AL 12
Request assistance from qualified
technical personnel.
–AL 16
Request assistance from qualified
technical personnel.
–AL 17
Request assistance from qualified
technical personnel.
1.3 MINIMUM CLEARANCES
The following MINIMUM CLEARANCES
must be available for servicing the appli-
ance:
1.4 ROUTINE SERVICING
To ensure continued efficient operation of
the appliance, it is recommended that it is
checked and serviced as necessary at reg-
ular intervals, at least annually, this is a
condition of any extended warranty.
It is the law that any service work must be
carried out by a Gas Safe Register regis-
tered engineer.
1.5 ELECTRICAL SUPPLY
THIS APPLIANCE MUST BE EARTHED.
The mains supply must be fused at 3
amp.
1.6 VENTILATION
If the appliance is installed in a cabinet, the
cabinet MUST NOT be used for storage
purposes.
Any ventilation provided for the appliance
during installation MUST NOT be blocked
and a periodic check must be made to
ensure that the vents are free from
obstructions.
1.7 CLEANING
Use only a damp cloth and mild detergent
to clean the appliance outer casing. DO
NOT use abrasive cleaners.
1.8 SAFETY
It is essential that the instructions in this
booklet are strictly followed for the safe
and economical operation of this appliance.
The appliance functions as a fan assisted
balanced flue unit.
The flue terminal MUST NOT BE
OBSTRUCTED under any circumstances. If
damaged, turn off the appliance and con-
sult the installer, service engineer, or gas
supplier. If it is known or suspected that a
fault exists on the appliance it MUST NOT
be used until the fault has been rectified by
For servicing
ABOVE THE
APPLIANCE CASING 300 mm
AT THE R.H.S. 15 m m
AT THE L.H.S. 15 m m
BELOW THE
APPLIANCE CASING 200 mm
IN FRONT OF THE
APPLIANCE 500 mm
Fig. 5
Fig. 5/a
Fig. 5/b
04
13
2
bar

9
a competent person.
WARNING:
IF A GAS LEAK IS SUSPECTED OR
EXISTS, TURN OFF THE GAS SUPPLY TO
THE APPLIANCE AT THE GAS SERVICE
COCK.
DO NOT OPERATE ANY ELECTRICAL
SWITCHES.
DO NOT OPERATE ANY ELECTRICAL
APPLIANCE.
OPEN ALL WINDOWS AND DOORS. DO
NOT SMOKE.
EXTINGUISH ALL NAKED LIGHTS. CON-
TACT THE NATIONAL GAS EMERGENCY
SERVICE IMMEDIATLEY ON
0800111999.
1.9 INSTRUCTIONS FOR
PROGRAMMING

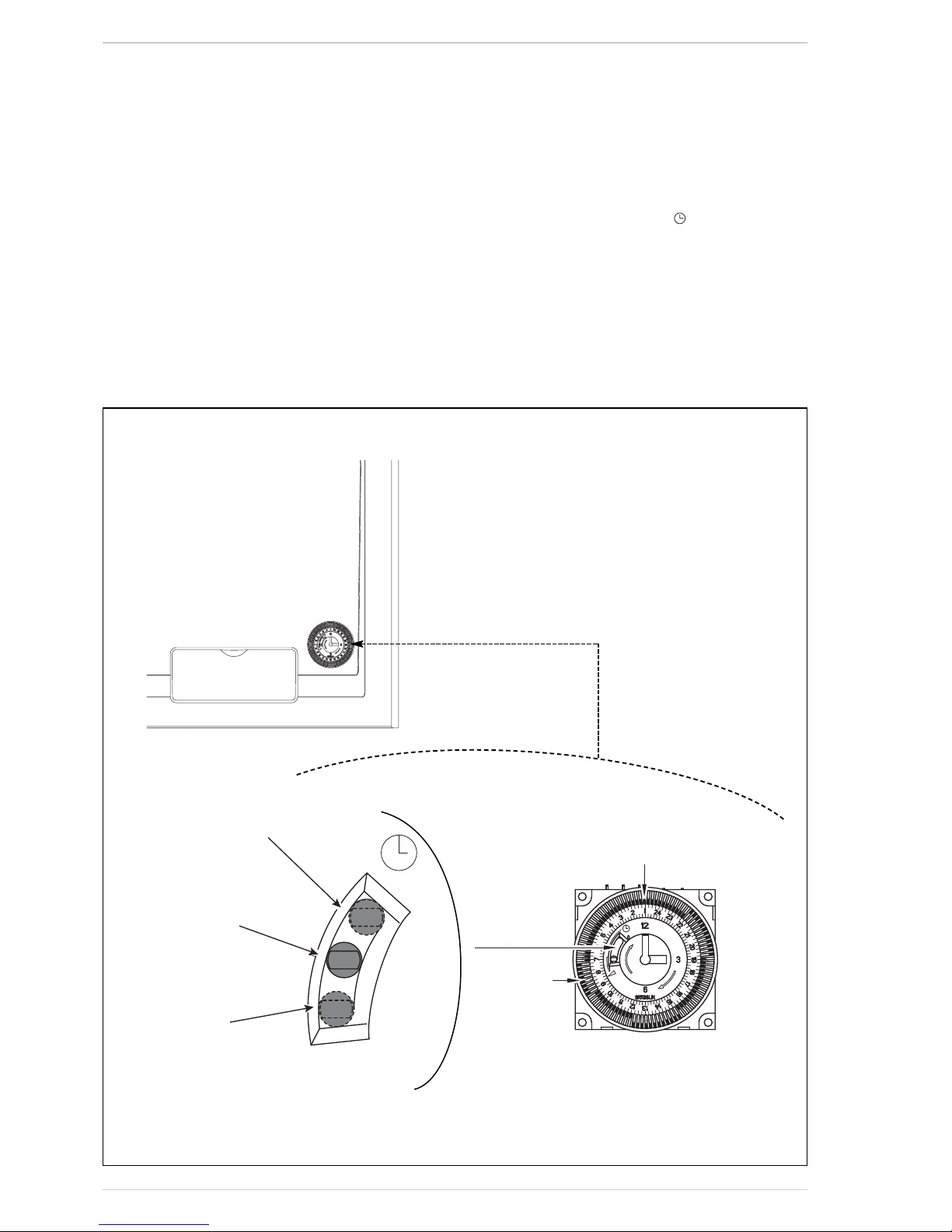

MECHANICAL CLOCK (Fig. 10)
Setting the time
The time of day can be set by grasping the
outer edge of the grey dial and turning it in
a clockwise direction until the correct time
is in line with the white pointer.
Setting the “switching time”
The “ON” periods are set by sliding the grey
tappets, adjacent to the time periods
required, to the outer edge of the dial.
The tappets that remain at the centre of
the dial will be the “OFF” periods.
N.B.: The smallest switching time (ON or
OFF) is 15 minutes.
– To select “Timed” mode move the mode
selector switch in the middle of the clock
face to the “”position, (middle of the
slot)
– To select “Constant” mode move the
mode selector switch in the middle of
the clock face to the “I” position (bottom
of the slot).
– To select “OFF” mode move the mode
selector switch in the middle of the clock
face to the “O” position, (top of the slot).
Fig. 10
D
r
F
(O)
I
O
Slide blue tappets
OUT for ONperiod
Slide blue tappets IN for OFF period
Mode selector switch
Slide black tap-
pets OUT
= ON period
Slide black tappets IN = OFF period
Heating OFF (O)
Heating
PROGRAMMIED
Heating ON (I)

10
NOTES

Cod. 6316117 - 08/11 - Documentation Dpt.
Sime Ltd
1a Blue Ridge Park
Thunderhead Ridge
Glasshoughton, Castleford, WF10 4UA
Phone: [phone]
Fax: [phone]
www.sime.ltd.uk
Email: [email protected]
