Simplex 4100ESi User manual

1 LT0638 Iss 1.1 7/2017
READ AND SAVE THESE INSTRUCTIONS - Follow the instructions in this installation
manual. These instructions must be followed to avoid damage to this product and
associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX PRODUCT THAT APPEARS DAMAGED - Upon
unpacking your Simplex product, inspect the contents of the carton for shipping damage.
If damage is apparent, immediately le a claim with the carrier and notify an authorised
Simplex product supplier.
ELECTRICAL HAZARD - Disconnect electrical eld power when making any internal
adjustments or repairs. All repairs should be performed by a representative or authorised
agent of your local Simplex product supplier.
STATIC HAZARD - Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components
• Prior to installation, keep components wrapped in anti-static material at all times
SYSTEM REACCEPTANCE TEST AFTER SOFTWARE CHANGES - To ensure proper
system operation, this product must be tested in accordance with AS1670.1, after any
programming operation or change in site-specic software. Reacceptance testing is
required after any change, addition or deletion of system components, or after any
modication, repair or adjustment to system hardware or wiring. All components, circuits,
system operations, or software functions known to be affected by a change must be 100%
tested. In addition, to ensure that other operations are not inadvertently affected, at least
10% of initiating devices that are not directly affected by the change, up to a maximum of
50 devices, must also be tested and proper system operation veried.
The 4100-6077AU MX Digital Loop Card is a 4 x 10 inch (double-height) PDI module
that interfaces a single MX Digital Loop to the 4100ESi re panel.
Features:
• 4 x 10 inch double-height PDI module
• Interfaces MX Loop to 4100ESi
• Supports up to 250 MX devices
• 500mA Loop power
• Electrically isolated MX Loop with earth fault monitoring
Cautions and
Warnings
Introduction
4100-6077AU
MX Digital Loop Card
Installation Instructions
This publication discusses the following topics:
Topic Page
Introduction to the MX Digital Loop Card 2
Installing the MX Digital Loop Card 4
Conguring the MX Digital Loop Card 6
Wiring the MX Digital Loop Card to Addressable Devices 8
Compatible MX Addressable Devices 10
In this
publication

Introduction to the MX Digital Loop Card
LT0638 Iss 1.1 7/2017 2
The MX Digital Loop Card provides MX loop communications for the Simplex 4100ESi
re alarm panel via a single electrically isolated MX Digital loop. It supports up to 250
MX devices - detectors and modules - and provides up to 500mA of loop power.
The 4100-6077AU MX Digital Loop Card (Figure 1) is a at, 4x10-inch form-factor
module that plugs into the Power Distribution Interface (PDI) of the 4100ESi panel.
An earlier version of the card was supplied as 4100-6077LIM, which included an extra
bracket on which two LIM800 Loop Isolators were mounted and wired.
This version of hardware has been withdrawn, as the 4100-6077AU now includes loop
short circuit protection.
Overview
Physical
Specifications
Status LEDs
Address
Dipswitch Status LEDs
Figure 1. MX Digital Loop Card

Introduction to the MX Digital Loop Card
3 LT0638 Iss 1.1 7/2017
The MX Digital Loop Card features 7 yellow LEDs that are used to indicate the status of
the MX Digital Loop Card. See Table 1 for the LED status denition:
LEDs
Input
Specifications
Environmental
Specifications
Table 1. Status LEDs
LED Name Interpretation Coding Colour
COMM Loss On when the card is not
communicating with the
4100ESi Central Processing
Unit (CPU)
On steady during
communications loss.
Flashing in local mode Yellow
Earth Fault Earth fault trouble On steady when earth fault
is detected on the MX loop
eld wiring
Yellow
L Loop MX loop communications
left channel fault
On steady when no device
response on left channel.
Slow blink = open circuit
loop;
Fast blink = short circuit
loop
Yellow
R Loop MX loop communications
right channel fault
On steady when no device
response on left channel.
Slow blink = open circuit
loop;
Fast blink = short circuit
loop
Yellow
MX Download Service Mode and
Download in progress
On steady for Service
Mode and download in
progress
Yellow
LPS Fault Indicates loop power
supply fault
On steady with loop
power supply failure
(Signal power)
Yellow
EMR Mode LED is currently unused LED is currently unused Yellow
Environmental Operating Temperature 0°C to +45°C
Operating Humidity Up to 93% RH, non-condensing @ 32°C maximum
Power Supply
Input Voltage (nominal) 24VDC
Quiescent or
Alarm Current
No Load Card power 30mA
Signal power 65mA
Full Load Card power 30mA
Signal power 1200mA

Step 1: Installing the MX Digital Loop Card
LT0638 Iss 1.1 7/2017 4
The MX Digital Loop Card mounts in a Cardcage/PDI bay of a 4100ESi panel. It can be
mounted on any available block - see Figure 2. Secure with the screws supplied in the MX
Digital Loop Card kit.
Installation of
the 4100-6077
in Card Cage
Figure 2. 4100ESi MX Digital Loop Card Installation

Step 1: Installing the MX Digital Loop Card
5 LT0638 Iss 1.1 7/2017
In 15U and 8U cabinets utilising the short PDI backplane (PA1098) the 4100-6077AU
MX Digital Loop Card is mounted onto the short PDI backplane using the same mounting
screws included with the Loop Card kit. For increased density, two 4100-6077AU cards
can be mounted on a ME0516 Legacy/Dual Bracket in either the 8U or 15U cabinets.
The ME0516 bracket is not suitable for mounting 4100-6077AU cards in the standard
Simplex expansion bay.
The earlier 4100-6077LIM version of the loop card should not be mounted on the
ME0516 Legacy/Dual Bracket (ME0516), as the resulting module width is too wide and
may interfere with other modules and equipment.
Installation of the
4100-6077
in a 8U/15U
Cabinet

Setting the Address
1. The MX Digital Loop Card Address is set through a Dual-In-Line Package (DIP)
switch SW100, which is a bank of eight switches. From left to right these switches
are designated as SW100-1 through SW100-8 (see Figure 4). Their functions are as
follows:
• SW100-1: This switch sets the baud rate for the internal communications line running
between the MX Digital Loop card and the CPU. Set this switch to ON.
• SW100-2 through SW100-8: These switches set the card address within the Fire Alarm
Control Panel (FACP). Refer to Table 2 for a complete list of switch settings for all of
the possible module addresses.
Note: Set these switches to the value assigned to the MX Digital Loop card by
the 4100ES Programmer.
Setting the
MX Loop Card
Address
Step 2: Configuring the MX Digital Loop Card

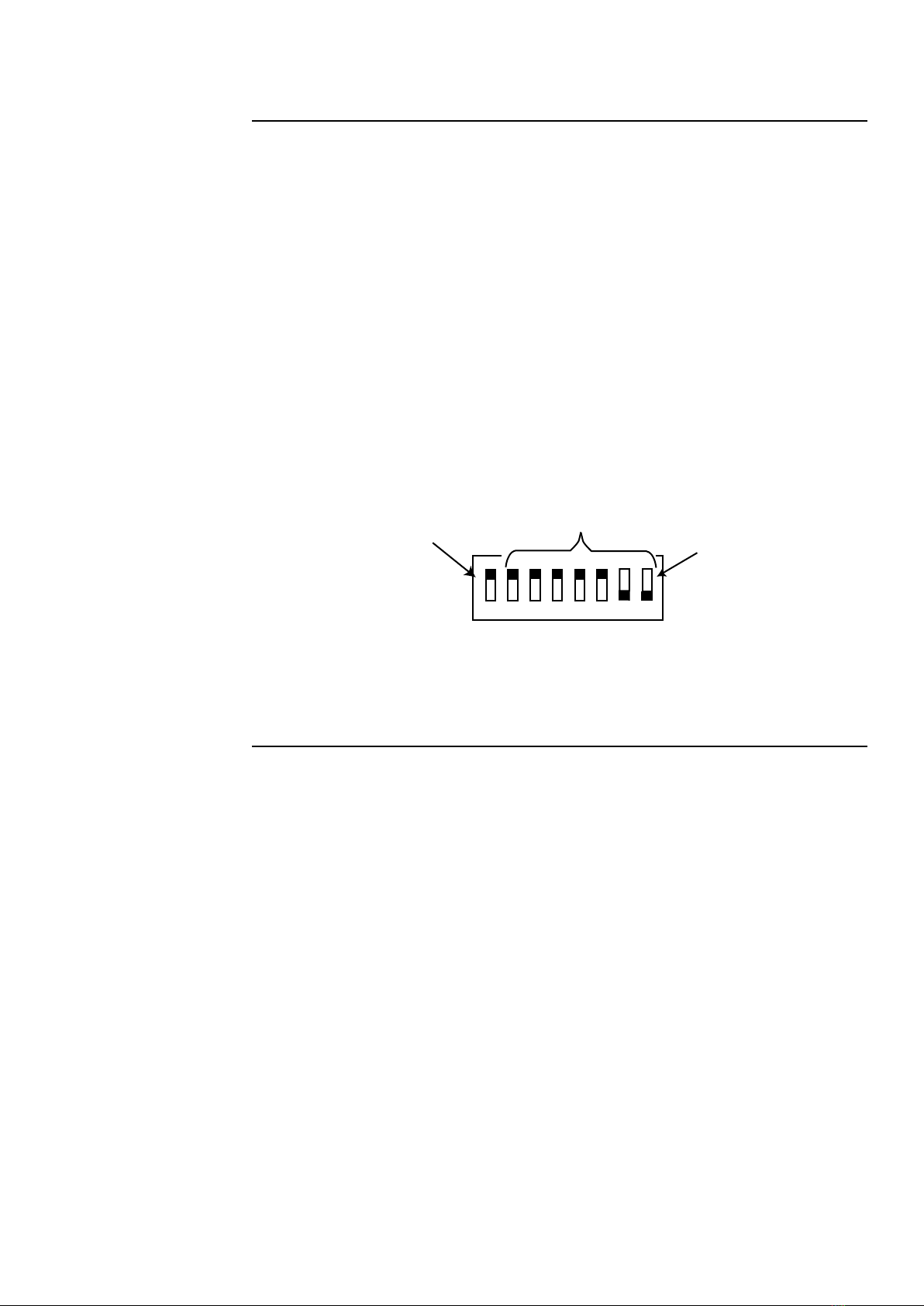

Figure 4. DIP Switch SW100
LT0638 Iss 1.1 7/2017 6
Use DIP Switches SW100-2 through
SW100-8 to set the Module Address.
This figure shows an Address of 3.
4100 Comm. Baud Switch
(SW100-1) must be set to ON Position 8 is LSB
(least significant bit)
ON
OFF OFF = ACTIVE
{
1 2 3 4 5 6 7 8
Programming The MX Digital Loop Card is programed using the 4100ESi Programmer. Refer to
LT0619 4100ESi Programming Manual for details.

Step 2: Configuring the MX Digital Loop Card

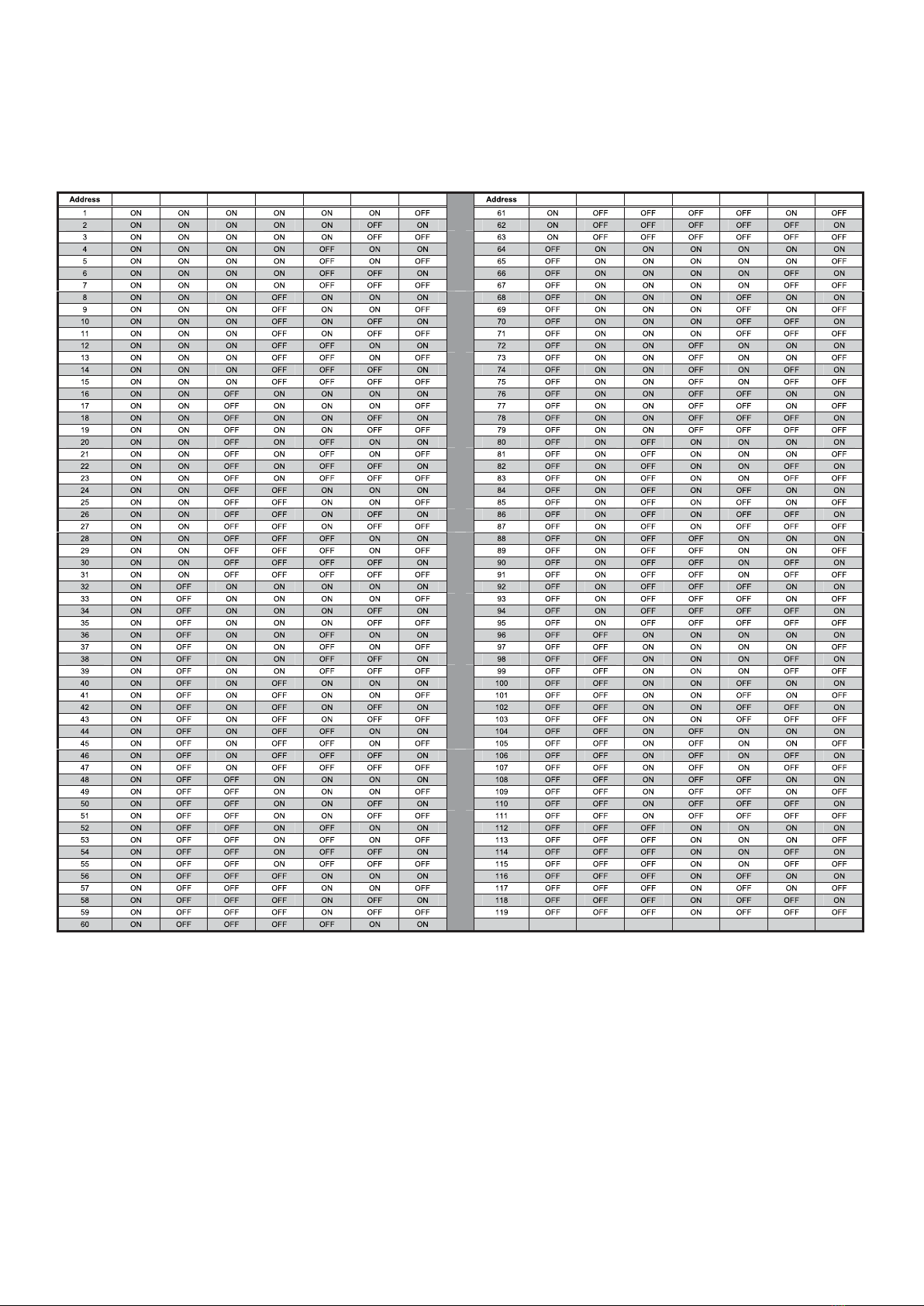

Table 2. Module DIP Addresses
7 LT0638 Iss 1.1 7/2017
SW100-2 SW100-8 SW100-7
SW100-6
SW100-5
SW100-4
SW100-3 SW100-2 SW100-8
SW100-7
SW100-6
SW100-5
SW100-4
SW100-3

Field Wiring
Specifications
Step 3: Wiring the MX Digital Loop Card to Addressable Devices
The eld wiring of the MX Digital Loop Card shall follow the specications below:
• Maximum devices per loop: 250
• MX device addresses allowed: 1 to 250
• Wire Size: 12 - 18 AWG (3.31 - 0.82 mm2)
• 2000m cable length
• Maximum resistance: 150 ohms, Maximum Capacitance: 0.2 uF, Inductance 1.5 mH
• Shield terminates at the loop card only (if used)
• Maximum voltage: 40V
• Maximum current: 500mA peak
• Ground fault detection: 10K
• All loop wiring is supervised
Note: “T” tapped wiring is permitted as long as the overall wiring complies with the
previously mentioned inductance, capacitance, and resistance parameters and all devices
on the spur map to the same zone.
Table 3. MX Loop Terminal Block Pin out
Pins Description
TB770-1 Left +
TB770-2 Left -
TB770-3 Shield (earth)
TB770-4 Right +
TB770-5 Right -
LT0638 Iss 1.1 7/2017 8

Wiring
Topologies
Step 3: Wiring the MX Digital Loop Card to Addressable Devices
The MX Loop is run as a loop from the MX Digital Loop Card out to the MX Devices and
back to the MX Digital Loop Card. Normally T-Tapping or spurs are not used (as a single
fault will stop the devices working). However, if all the devices have the same function
and map to the same zone then a spur is permitted. The spur can be connected directly to
the loop - as long as all devices on the spur and between the nearest isolators map to the
same zone. Otherwise, insert a 545.800.004 LIM800 SCI into the loop and wire the spur
cable off the S+, S- terminals. This is shown in Figure 5.
The earlier 4100-6077LIM included two LIM800 short circuit isolators at the start and
end of the loop to provide short circuit protection. These are not shown in Figure 5. These
are not required with the 4100-6077AU as it includes short circuit protection.
Full details of the MX Device and Loop wiring can be found in LT0432 4100ESi Field
Wiring Diagrams.
Figure 5. MX Digital Loop Wiring
+
+
-
-
LOOP RIGHT
MX DIGITAL
LOOP CARD
LOOP LEFT
DET
DET*
DET
DET
DET
MX DIGITAL ADDRESSABLE LOOP WITH ISOLATORS
ADDRESSABLE
DETECTOR SPUR
CONVENTIONAL
DETECTOR SPUR
EOL
DET*
MZAM CP
PLANT
RIAM
LIM
DII
DET
DET
EOL
CONTACT
ADDRESSABLE
DETECTOR SPUR
NOTES: 1. MAY BE CONFIGURED WITH UP TO 250 ADDRESSABLE DEVICES
2. SHORT CIRCUIT ISOLATORS (E.G., LIM800) AT START AND END OF CABLE NOT SHOWN
IB W/
DET
IB W/
DET
KEY
DET ADDRESSABLE DETECTOR
DET* CONVENTIONAL DETECTOR
IB ISOLATOR BASE
CP CALL POINT
RIAM RELAY IAM
LIM LINE ISOLATOR MODULE
DII DUAL INPUT IAM
MZAM MONITOR ZAM
EOL END-OF-LINE RESISTOR
9 LT0638 Iss 1.1 7/2017

Compatible
Devices
Appendix A: MX Addressable Devices
Table 4 lists the MX Devices compatible with the MX Digital Loop Card.
10
Addressable Interface Modules
Model Description
516.850.051.E 850PH Photoelectric Smoke & Heat detector with SCI, - Modes A2S, A2R
516.850.052.E 850P Photoelectric Smoke detector with SCI
516.850.053.E 850H Heat detector with SCI, - Modes A2S, A2R, CS, CR
516.850.054.E 850PC CO / Photoelectric Smoke / Heat detector with SCI
CP820 CP820 Indoor Call Point
514.800.604.Y CP830 Outdoor Call Point
516.800.958 LPAV3000 Loop Powered Sounder/Beacon base
516.800.957 LPSB3000 Loop Powered Sounder base
MIM800 MIM800 Mini IAM Input Module
CIM800 CIM800 Dual Input Module
RIM800 RIM800 Relay Output Module
SNM800 SNM800 Signal Notication Module
DIM800 DIM800 Detector Input Module (Dual)
577.800.006 DDM800 Universal Fire & Gas Detector Module (Dual)
516.018.014 VIO800 VESDA Interface Module
555.800.065 MIO800 Multi-I/O Module
516.800.960 LPSY800R Loop Powered Sounder - Indoor Red
516.800.961 LPSY800W Loop Powered Sounder - Indoor White
516.800.962 LPSY865R Loop Powered Sounder - Outdoor Red
516.800.963 LPAV800R Loop Powered Sounder Beacon - Indoor Red
516.800.964 LPAV800W Loop Powered Sounder Beacon - Indoor White
516.800.965 LPAV865 Loop Powered Sounder Beacon - IP65 Red
Table 4. Compatible MX Devices
Table 5. Compatible MX Ancillary Devices
Compatible
Devices
Table 5 lists the MX Ancillary Devices (non-Addressable) compatible with the MX Digital
Loop Card.
Non-Addressable Interface Modules
Model Description
517.050.042 4B-C Continuity Base
516.800.910 802SB Loop Powered Sounder Base
545.800.004 LIM800 Loop Isolator Module
516.800.911 901SB Externally Powered Sounder Base
Johnson Controls • Southbank, VIC • 3006 • AUS LT0638 Iss 1.1 7/2017
www.simplex-re.com
© 2017 Johnson Controls. All rights reserved. All specications and other information shown were current as of document revision date and are subject to change without notice.
