SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/19
SERVICE MANUAL
Model: SF-INS30-BK
- Instructions -
This manual will assist a qualied service technician in the
replacement of parts. Contact your dealer to arrange a
service call by a qualied service technician.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
WARNING: If the information in these
instructions is not followed exactly
it may result in personal injury and/or
property damage.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Pliers
Phillips screwdriver
Safety glasses
Flat blade screwdriver
Replacement Instructions
Front Replacement (FRONT-INS30)
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Grasp front with two hands. Pull straight back to
disengage front from appliance.
3. Install replacement front by aligning the tabs on its
back side with the glass C-channel located on the top
face of the appliance. Press evenly with two hands to
fully engage the front to the appliance.
Glass Front Replacement (GLA-INS30)
1. If necessary, place a drop cloth or other material
on the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 1.
4. Pivot glass away from appliance and lift out of bottom
retainer channel.
5. Install replacement glass into bottom retainer chan-
nel. Take care to properly align the glass with the
rubber seal inside the top and bottom retainers.
6. Install C-channel on top edge of replacement glass.
7. Align C-channel with screw holes in appliance. See
Figure 1.
8. While supporting glass, install both screws through
top C-channel retainer into appliance. Do not over
tighten screws.
9. Re-install front.
NOTICE! DO NOT discard any hardware while
servicing. It must be reused.
WARNING! Risk of Shock!
Always disconnect power before
disassembly or servicing.
Replacement parts include:
Description Part Number(s)
Front FRONT-INS30
Glass GLA-INS30
Log/Grate Assembly LOGS-IN30
Flame Screen FLAME-INS30
Remote REMOTE-INS30
LED Lighting LED-INS30
Heater Assembly HEATER-INS30
Rotisserie Motor
and Rod ROTISS-INS30
Remote Receiver RECEIVER -ELECT
Hardware HRDW-BI

SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/192
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Locate rubber plugs in each end of the grate.
Remove plugs with a small at screwdriver. Save for
later use. See Figure 2.
5. Remove Phillips screw from each end of grate. Lift
grate from faux ember bed. Take care to retain
screws for grate. See Figure 2.
6. Grasp log ember bed and gently lift up and out of
opening; do not pull too far as to damage the wiring.
Rotate ember bed to expose electrical wiring.
7. Disconnect lighting LED power source pin connector
from back side of ember bed. See Figure 3.
8. Position the log assembly and reconnect lighting LED
power source pin connector to back side of
replacement ember bed. See Figure 3.
9. Rotate log ember bed and align with oor of opening.
Engage back side of ember bed into the opening.
Pivot the front of the ember bed into position at on
the oor of the opening. Take care not to pinch wiring
under log ember bed.
10. Align the grate over the steel brackets under the
ember bed. Ensure that wiring is not pinched
between log ember bed and steel bracket. See
Figure 2.
11. Install and tighten the screw in each end of the
grate. See Figure 2.
12. Install rubber plugs into holes in each end of grate.
See Figure 2.
13. Re-install glass.
14. Re-install front.
Log/Grate Assembly Replacement Flame Screen Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Remove log/grate assembly. Refer to Log/Grate
Assembly Replacement section for details.
5. Remove 5 screws holding the plastic diffuser
brackets and panel in place. See Figure 4
6. Remove the ame screen bracket and panel by
removing ve screws that attach it to the appliance
chassis. See Figure 5.
7. Install the replacement ame screen panel, smooth
side facing out, and attach with ve screws. See
Figure 5.
8. Re-install plastic diffuser panel and panel brackets.
See Figure 4.
9. Re-install log/grate assembly.
10. Re-install glass.
11. Re-install front.
(LOGS-INS30)(FLAME-INS30)

3
SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/19
LED Lighting Replacement
Note: Kit includes all three LED light strip assemblies.
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Remove log/grate assembly. Refer to Log/Grate
Assembly Replacement section for details.
5. Remove Flame Screen. Refer to Flame Screen
Replacement section for details.
6. Remove the two metal brackets in front of rear LED
strip. Remove four screws to remove metal parts.
See Figure 6.
7. Locate Lighting LED circuit input power source
connectors in rear of opening. Unplug the two
connectors and jumper wire from the three circuit
boards. See Figure 7. If epoxy will not allow
separation of the two connectors, slide the pair of
connectors off the pins of the LED circuit board.
8. Using a pliers, compress each barbed clip along
the two base LED circuit boards while lifting the
boards evenly to disengage them from the clips. See
Figure 7. Use pliers to open clips along rear LED
strip while lifting to disengage it from the clips. See
Figure 8.
8. Remove all three lighting LED circuit boards.
10. Install replacement lighting LED circuit boards into
the appliance. Fully engage all clips. See Figure 7
and 8.
11. Connect the two lighting LED power source
connectors and the jumper wire to the three LED
circuit boards. See Figure 7.
12. Install metal brackets by attaching with four screws.
See Figure 6.
13. Re-install Flame Screen.
14. Re-install log/grate assembly.
15. Re-install glass.
16. Re-install front.
(LED-INS30)
Heater Assembly
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Remove two thumb screws from upper rear of
appliance cavity. See Figure 9.
5. Remove four screws from upper face of appliance.
Take care to support the Blower/Heater Module while
the screws are removed. See Figure 9.
6. Remove the Blower/Heater Module by lifting back
edge slightly then pulling it straight back from the
appliance opening.
7. Locate the seven electrical connectors on the right
side of the appliance cavity. Disconnect each of the
seven connectors. See Figure 10.
8. Reconnect the seven connectors from the
replacement Blower/Heater module to the appliance.
See Figure 10.
9. Carefully align the replacement Blower/Heater
module horizontally with the opening of the appliance.
Install it straight into the opening so that the back
edge interlocks with the back wall of the appliance.
10. While supporting the Blower/Heater Module, install
the four screws across the upper face of the
appliance. See Figure 9.
11. Install the two thumb screws in the upper rear of the
appliance cavity. See Figure 9.
12. Re-install glass.
13. Re-install front.
(HEATER-INS30)

SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/194
Rotisserie Motor and Rod
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Remove log/grate assembly. Refer to Log/Grate
Assembly Replacement section for details.
5. Remove Flame Screen. Refer to Flame Screen
Replacement section for details.
6. Disengage rotisserie rod from motor located in right
rear of cavity. Use hand to shift the reector rod to
the left until the rubber coupler on the right end
disengages from the motor shaft. See Figure 11.
7. Remove metal panel on right side of cavity to allow
access to the rotisserie motor and wiring
connections. Remove two screws to remove panel.
See Figure 12.
8. Remove three screws that attach motor mount
bracket to the appliance chassis and cut the wire tie.
See Figure 13.
9. Remove the motor and bracket from the chassis until
the electrical connector is visible. See Figure 13.
10. Disconnect the electrical connector to the motor. See
Figure 13.
11. Install the replacement motor on the bracket.
12. Reconnect the electrical connector between the
motor and the appliance. See Figure 13.
13. Install the motor mount bracket to the chassis with
three screws. See Figure 13.
14. Install the replacement reector rod. Install the left
end of the rod into the bushing in the left rear of the
cavity. Align the rubber coupler with the motor shaft.
Shift the rod to the right until the rubber coupler fully
engages the motor shift. See Figure 11.
15. Reinstall metal bracket in front of faux motor. Install
two screws to fasten the panel. See Figure 12.
16. Re-install ame screen.
17. Re-install log/grate assembly.
18. Re-install glass.
19. Re-install front.
Remote Receiver Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching.
2. Remove front. Refer to Front Replacement section
for details.
3. Remove glass. Refer to Glass Replacement section
for details.
4. Remove log/grate assembly. Refer to Log/Grate
Assembly Replacement section for details.
5. Remove 5 screws holding the plastic diffuser
brackets and panel in place. See Figure 4.

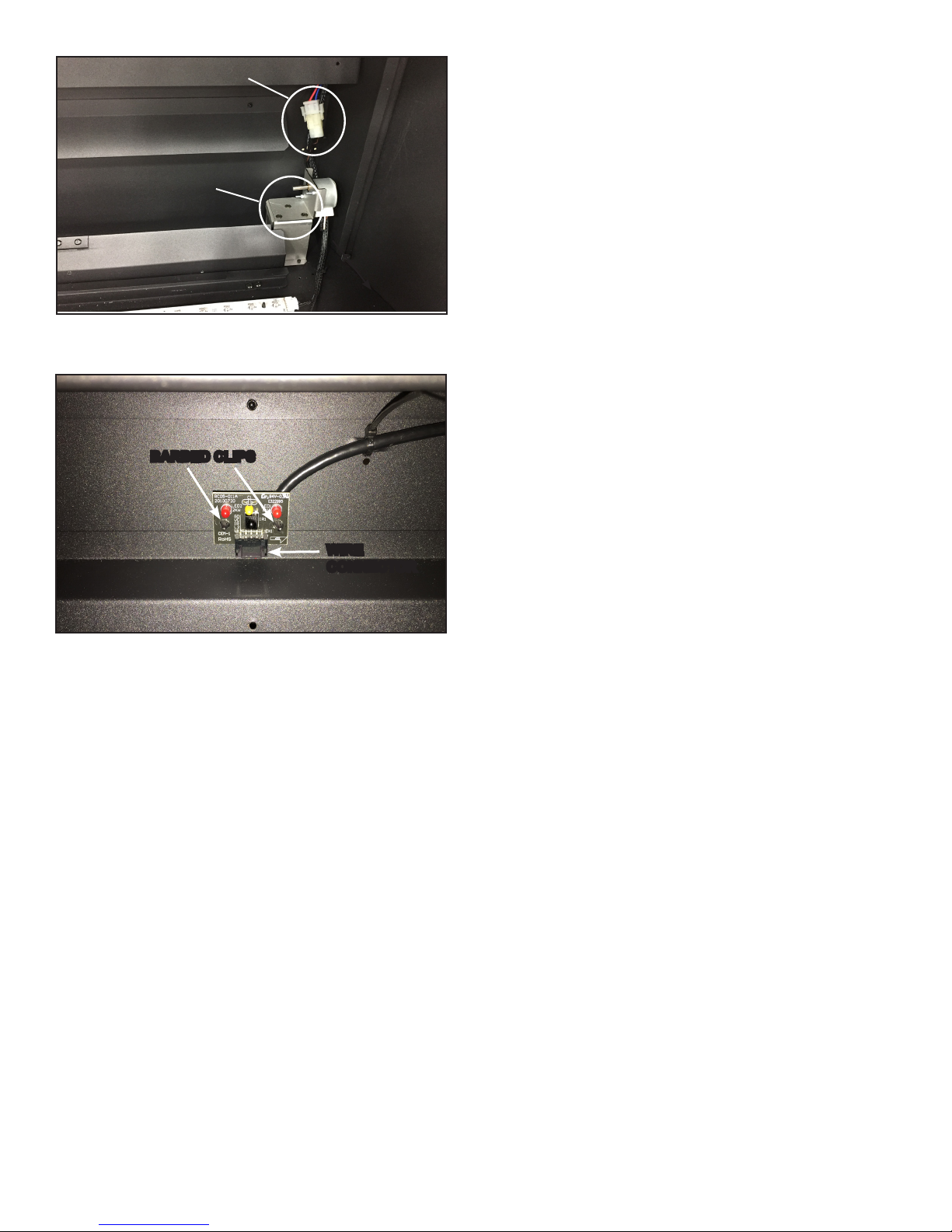

6. The remote receiver is positioned in the center of
the appliance behind the plastic diffuser panel. Using
a pliers, compress each barbed clip while lifting the
remote receiver board evenly to disengage it from the
clip. See Figure 14.
7. Disconnect the wiring harness from the top of the
receiver. See Figure 14.
8. Securely reconnect the wiring harness to the new
remote receiver. See Figure 14
9. Carefully align the new remote receiver board to the
barbed clips and push in place. See Figure 14.
10. Re-install the plastic diffuser brackets and panel.
11. Re-install log/grate assembly.
12. Re-install glass.
13. Re-install front.
(ROTISS-INS30 (RECEIVER-ELECT)

5
SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/19
Figure 1 Top Glass Retainer Screw Location
Figure 2 Grate and Log Screw Location
Figure 4 Removal installation of Plastic Diffuser Panel
Figure 3 Light LED Connection on Bottom of Log Ember Bed
Figure 5 Flame Screen Replacement
Figure 6 Bracket Removal
LED POWER SOURCE PIN

SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/196
Figure 8 Light LED Replacement
Figure 9 Four Screws and two thumb screws that attach
Blower/Heater Module to the Appliance
Figure 10 Seven Electrical Connections required for Heater/
Blower Module Removal and Installation
Figure 11 Rotisserie Rod Removal
3
4
5
2
Figure 12 Remove Panel
6
7
1
Figure 7 Light LED Replacement
CLIPS
CONNECTORS / JUMPER
RUBBER COUPLER
THUMB SCREWS

7
SimpliFire • SF-IN30-BK Service Manual • 2042-940 Rev. B • 1/19
Figure 13 Motor Replacement
Figure 14 Remote Receiver Replacement
SimpliFire, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Please contact your SimpliFire dealer or customer/technical support
(877-320-0730) with any questions or concerns.
For the location of your nearest SimpliFire dealer,
please visit www.hearthnhome.com.
ELECTRICAL
CONNECTION
MOTOR MOUNT
BRACKET
BARBED CLIPS
WIRE
CONNECTOR
