SimpliFire SF-BI30-E User manual

1
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Model(s):
WARNING: To reduce risk of re, electrical shock, or personal injury, read all instructions
before using heater.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
SF-BI30-E,
SF-BI36-E
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
INSTALLER: DO NOT DISCARD THIS MANUAL -
LEAVE FOR HOMEOWNER - SAVE THESE INSTRUCTIONS

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
2
• Read all instructions before installing this heater.
• This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at least 3 ft. (0.9 m) from the front of the heater and
keep them away from the sides and rear
• Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the heater is left
operating and unattended.
• Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a
reputable electrician before reusing.
• Do not insert or allow foreign objects to enter any ventilaion
or exhaust opening as this may cause an electric shock or
re, or damage the heater.
• To prevent a possible re, do not block heater connection
fan air intakes or exhaust in any manner.
• A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or ammable vapors
or liquids are used or stored.
• Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause re,
electric shock, or injury to persons.
• Do not operate any heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or damaged
in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment or repair.
• Do not use outdoors.
• The heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or water container.
• Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from trafc areas
and where it will not be tripped over. Do not coil cord.
• Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electrical shock or
re, or damage the heater.
• To prevent a possible re, do not block air intakes or exhaust
in any manner.
• Always use properly grounded, fused and polarized outlets.
• Always use ground fault protection where required by electrical
code.
• To disconnect heater, turn controls to “OFF” then remove plug
from outlet.
• Always disconnect power before performing any cleaning,
maintenance or relocation of the heater.
• To prevent a possible re, do not burn wood or other materials
in this heater.
• To prevent electrical shock or re, always use a certied
electrician should new circuits be required.
• When transporting or storing the heater, keep in a dry place
free from excess vibration and store to avoid damage.
• Avoid use of an extension cord because an extension
cord may overheat and cause a fire. However if you
have to use an extension cord, the cord should be No.
14 AWG minimum size and rated to not less than 1875
watts.
1IMPORTANT INSTRUCTIONS
WARNING! Risk of Fire! Risk of Burns!
Risk of Electrical Shock!
DO NOT:
• Installoroperatedamagedheater
• Modifyheater
• Operatetheheaterwithoutfullyassemblingall
components
Thefollowingactionsarestrictlyprohibited.
• InstallationotherthanasinstructedbyHearth&
HomeTechnologiesInc.
• Installationand/oruseofanycomponentpartnot
approvedbyHearth&HomeTechnologiesInc.
Hearth&HomeTechnologiesInc.disclaimsany
responsibilityfor,andthewarrantyandagencylistingwill
bevoidedbytheaboveactions.

WARNING! DO NOT operate replace before read-
ing and understanding operating instructions. Failure
to operate replace according to operating instructions
couldcausereorinjury.
WARNING! Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Refertoowner’sinformationmanual
provided with this heater.  For assistance or additional
informationconsultaqualiedinstaller,serviceagencyor
yourdealer.
NOTICE! Thisreplaceisnotintendedforuseasapri-
maryheatsourceandshouldnotbefactoredassuchin
residentialheatingcalculations.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electric shock,
and injury to persons, including the following:

3
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Model Name: ___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on replace: _____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
B. Congratulations
Congratulations on selecting a SimpliFire Electric
Fireplace, an elegant and clean alternative to wood & gas
burning replaces. The SimpliFire electric replace you
have selected is designed to provide the utmost in safety,
reliability, and efciency.
As the owner of a new replace, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’sManual. Pay special attention to all cautions and
warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’sManual, unless
noted otherwise, applies to all models and control systems.
Your new SimpliFire electric replace will give you years of
durable use and trouble-free enjoyment. Welcome to the
SimpliFire family of electric replace products!
Werecommendthatyourecordthefollowingpertinent
informationaboutyourreplace.
Homeowner Reference Information
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
4
Safety Alert Key:
• WARNING! Indicatesahazardoussituationwhich,ifnotavoidedcouldresultindeathorseriousinjury.
• CAUTION!Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.
Table of Contents
1 IMPORTANT INSTRUCTIONS
A. Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Congratulations .................................3
C. Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 GENERAL INFORMATION
A. Appliance Certication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
B. Unpacking and Inspecting Appliance . . . . . . . . . . . . . . . . 7
C. Model and Serial Number Information ..............7
3 GETTING STARTED
A. Parts and Hardware .............................8
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 8
C. Appliance Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Location .......................................9
E. Clearance to Combustibles . . . . . . . . . . . . . . . . . . . . . . . . 9
F. Electrical Supply Circuit Requirements . . . . . . . . . . . . . . . 9
4 INSTALLATION
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . 10
B. Installation into Existing Fireplace . . . . . . . . . . . . . . . . . . 11
C. Installation into New Construction . . . . . . . . . . . . . . . . . . 11
D. Constructing the Chase . . . . . . . . . . . . . . . . . . . . . . . . . . 11
E. Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
F. Finishing Fireplace Wall . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 OPERATING INSTRUCTIONS
A. Manual Switch Function: . . . . . . . . . . . . . . . . . . . . . . . . . 12
B. Operating by Remote Control. . . . . . . . . . . . . . . . . . . . . . 13
C. Resetting Temperature Cutoff Switch . . . . . . . . . . . . . . . . 13
6 MAINTENANCE
A. Maintenance ..................................14
B. Cleaning ......................................14
C. Electrical Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 14
D. Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E. Service Parts List ..............................15
F. Replacement Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 17
G. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Hearth & Home Technologies
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT
gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within one year following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date.
WARRANTY CONDITIONS:
• This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of
HHT authorized dealers is available on the HHT branded websites.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact
the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service
from a dealer other than the dealer from whom you originally purchased the product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges
for parts are not covered by this warranty.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and
exterior surface finishes may occur. This is not a flaw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items,
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts
include: paint, wood, pellet and coal gaskets, firebricks, grates, flame guides, batteries and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and com-
plaints related to this noise are not covered by this warranty.
• Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation
instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) failure to
install the appliance in accordance with local building codes; (3) shipping or improper handling; (4) improper opera-
tion, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or improperly/
incorrectly performed repairs; (5) environmental conditions, inadequate ventilation, negative pressure, or drafting
caused by tightly sealed constructions, insufficient make-up air supply, or handling devices such as exhaust fans or
forced air furnaces or other such causes; (6) use of fuels other than those specified in the operating instructions; (7)
installation or use of components not supplied with the appliance or any other components not expressly authorized
and approved by HHT; (8) modification of the appliance not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the appliance.
• Non-HHT venting components, hearth components or other accessories used in conjunction with the appliance.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.
• HHT’s obligation under this warranty does not extend to the appliance’s capability to heat the desired space. Informa-
tion is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consider-
ation must be given to appliance location and configuration, environmental conditions, insulation and air tightness of
the structure.
C. Limited Lifetime Warranty

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
6
B. Limited Lifetime Warranty (continued)
This warranty is void if:
• The appliance is operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals.
• The appliance is subjected to prolonged periods of dampness or condensation.
• There is any damage to the appliance or other components due to water or weather damage.
LIMITATIONS OF LIABILITY:
• The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or
implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no
event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states
do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you.
This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO
THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE
EXPRESSED WARRANTY SPECIFIED ABOVE.

7
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Note: The device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
MODELS: SF-BI30-E, SF-BI36-E
LABORATORY: CSA International
TYPE: Electric Air-Heaters Fixed and Location-Dedicated
Electric Room Heaters
STANDARD: UL 2021 (2nd Edition) CSA C22.2 No 46-M1988
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: Thisinstallationmustconformwithlocalcodes.
2 GENERAL INFORMATION
B. Unpacking and Inspecting Appliance
WARNING! DO NOT use this Electric Fireplace if any
part has been under water. Immediatelycallaqualied
servicetechnician to inspect and to replace any part of
theelectricalsystemifnecessary.Keepplasticwrapping
awayfromchildren.
• Carefully remove the appliance and components from
the packaging. Discard packaging.
• Carefully inspect components for any damage,
particularly the condition of the glass.
• Reference parts list to verify all parts have been received.
• Report to your dealer any missing or damaged parts.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benet.
This equipment uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions , may cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on. The user is encour-
aged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.

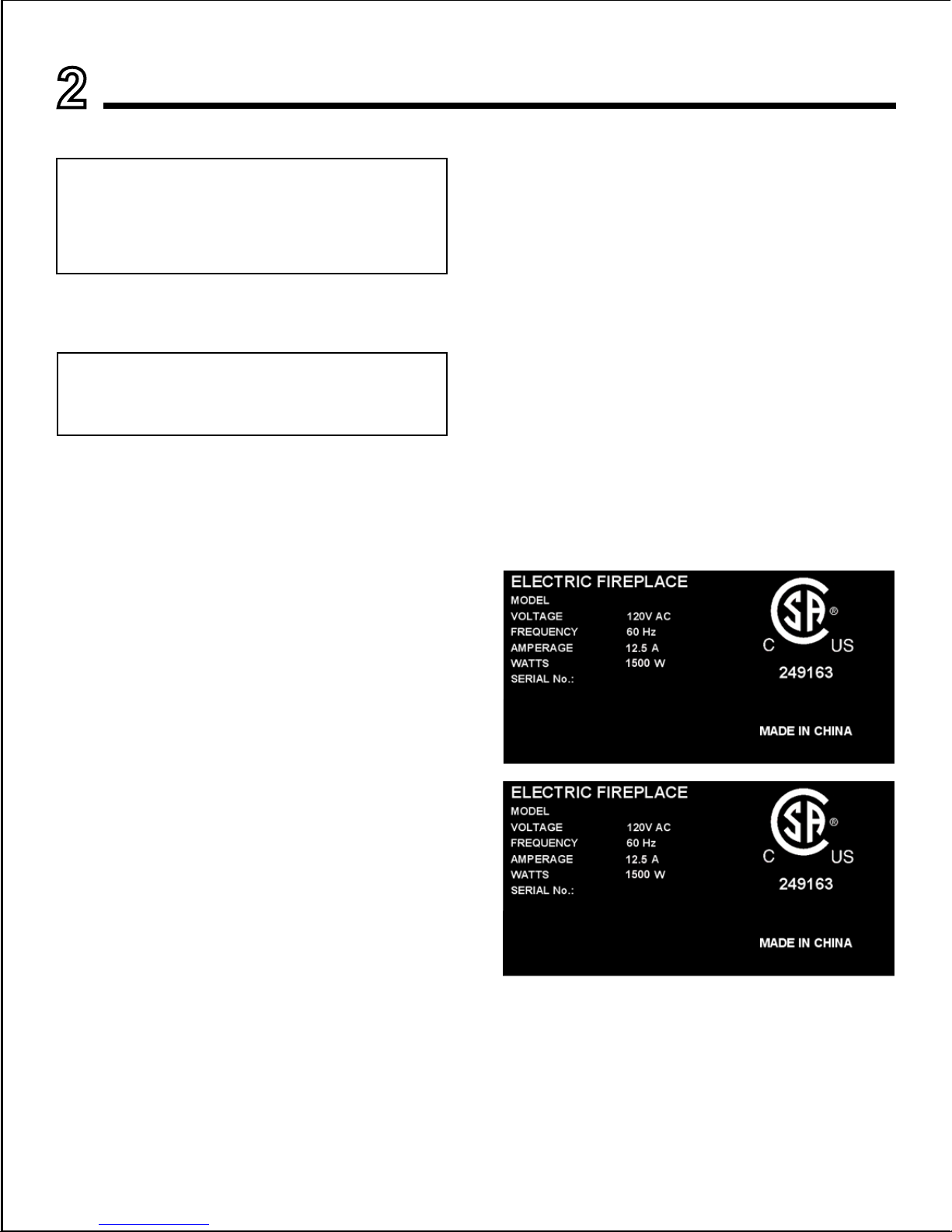

C. Model and Serial Number Information
The model and serial number information is located on
the rating plate. The rating plate is located on the upper
wall of the replace behind glass front.
SF-BI30-E
SF-BI36-E

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
8
3 GETTING STARTED
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Pliers
Hammer
Gloves
Magnetic Phillips screwdriver
Safety glasses
Flat blade screwdriver

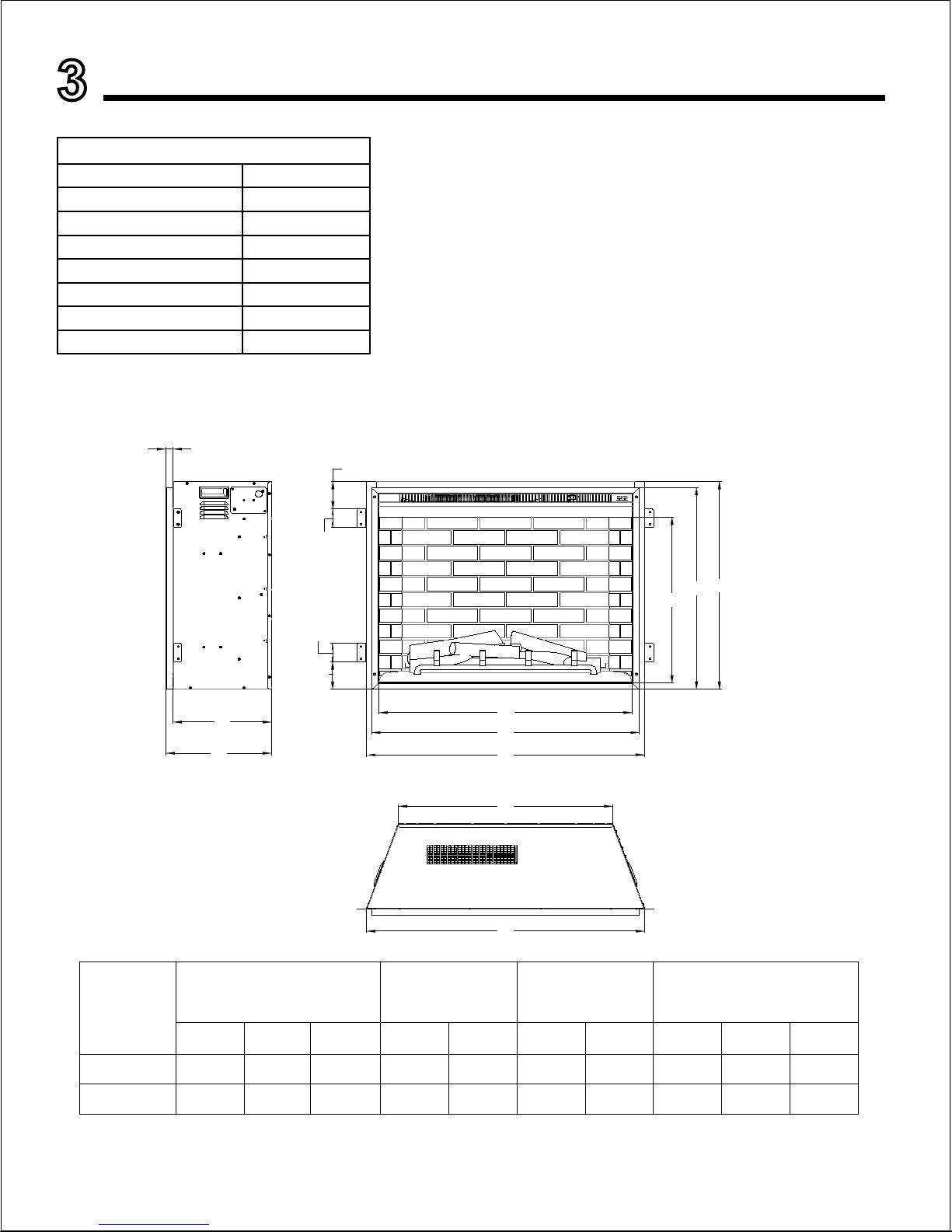

C. Appliance Dimensions
B. Tools and Supplies Needed

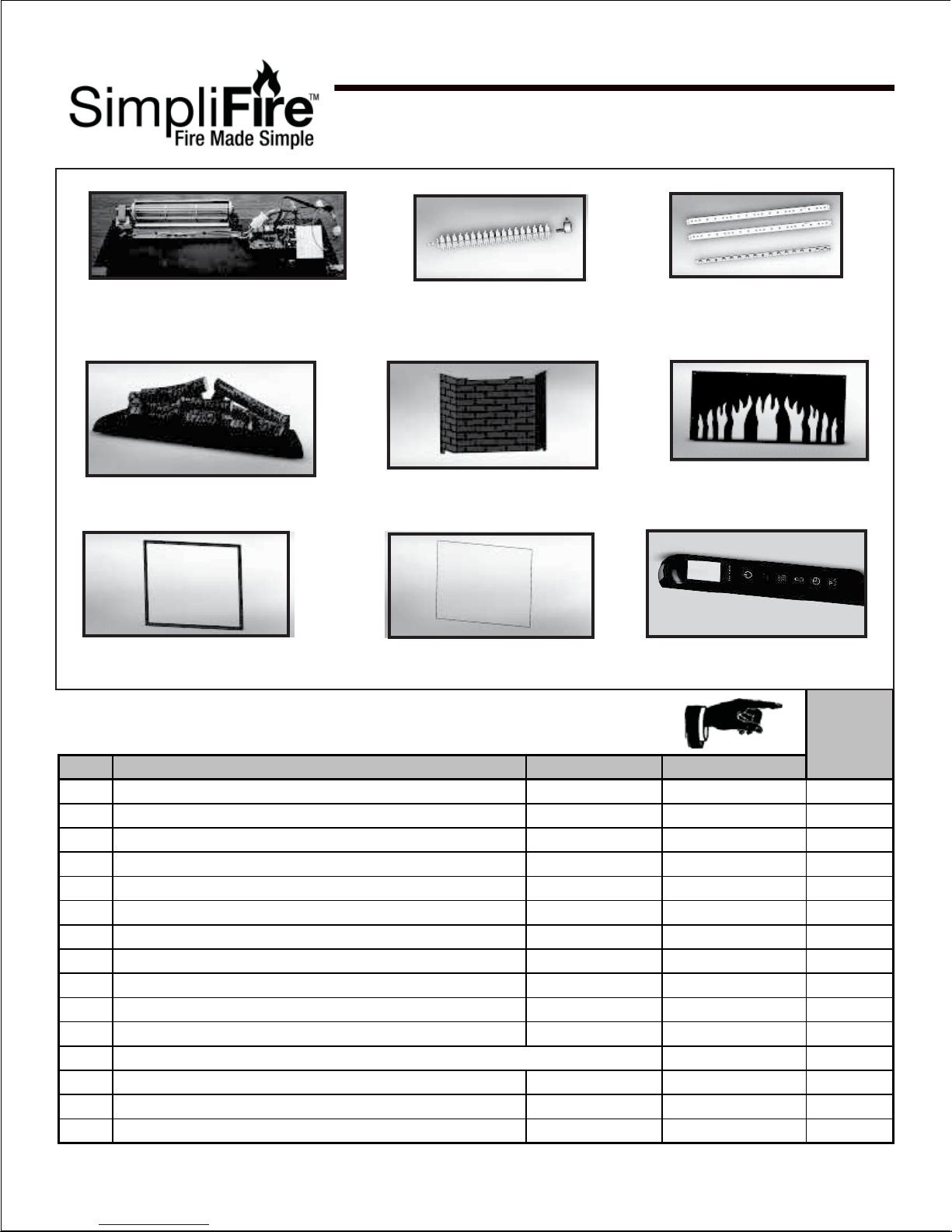

Parts and Hardware List
Part Quantity
Fireplace 1
Instruction Manual 1
Remote Control 1
AAA Battery 2
Mounting Bracket 4
Screw ST4x8 8
Screw ST4x12 8
A. Parts and Hardware
D1
D2
H3
W3
W4
3/4 in.
3-1/2 in.
W5
2-3/8 in.
2-3/8 in.
3-1/2 in.
W2
W1
H1
H2
MODEL
SHELL SIZE TRIM SIZE FLAME VIEW OTHER SIZE
W1
H1
D1
W2
H2
W3
H3
D2
W4
W5
SF-BI30-E
SF-BI30-E
11-13/16
29-15/16
26
28-11/32
21-13/32
11
24
31-1/8
37
30-3/8
34-1/4
25-7/8
11
29-7/8
37
11-13/16
35-13/16
31-1/4
31-1/8 26-3/4
SF-BI36-E
units: inches

9
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
D. Location
When choosing a location for your replace ensure that
the general rules are followed:
• For best results, install out of direct sunlight.
• Power supply service must be installed within
proximity of electric replace prior to nishing to
avoid reconstruction.
E. Clearance to Combustibles
Minimum Clearance to Combustibles
Sides.......................0 in.
Floor........................0 in.
Top..........................0 in.
Back........................0 in.
Front.......................36 in.
Mantels..........See Figure 3.1
WARNING! Risk of Fire! Keepelectricalcords,drapery,
furnishings or other combustibles at least 3 ft. (0.9 m)
fromthefrontoftheelectricreplace,andawayfromthe
sidesorrear.
F. Electrical Supply Circuit Requirements
Plan the location of the appliance so that it will have
adequate electric power. A 15 AMP, 120V/60hz. circuit
is required. Additional appliances on the same circuit as
this heater may exceed the current rating of that circuit.
A dedicated circuit is not required, but is preferred to
prevent circuit breaker trips or fuse failure.
Reference Section 4.E for more complete detail on com-
pleting electrical installation.
2 in. 2 in.
2 in.
6 in.
12 in.
Measurements from top surface
of the door front.
Figure 3.1 Minimum Vertical and Maximum Horizontal Dimensions of Combustible Mantels.

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
10
4 INSTALLATION
A. Selecting Appliance Location
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 4.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of trafc and away from furniture and draperies.
NOTICE: Illustrationsreecttypicalinstallationsandare
FORDESIGNPURPOSESONLY.Illustrations/diagrams
arenotdrawntoscale.Actualinstallationmayvarydueto
individualdesignpreference.
D2
1/2 in.
1/2 in. D3
D1
W2
H1
W1
MODEL W1 H1 D1 W2 D2 D3
SF-BI30-E
32
27-1/2
47-5/8
33-1/2
23-5/8
SF-BI36-E
37-3/8
35-1/2
55
37-3/4
26-1/2
11
11

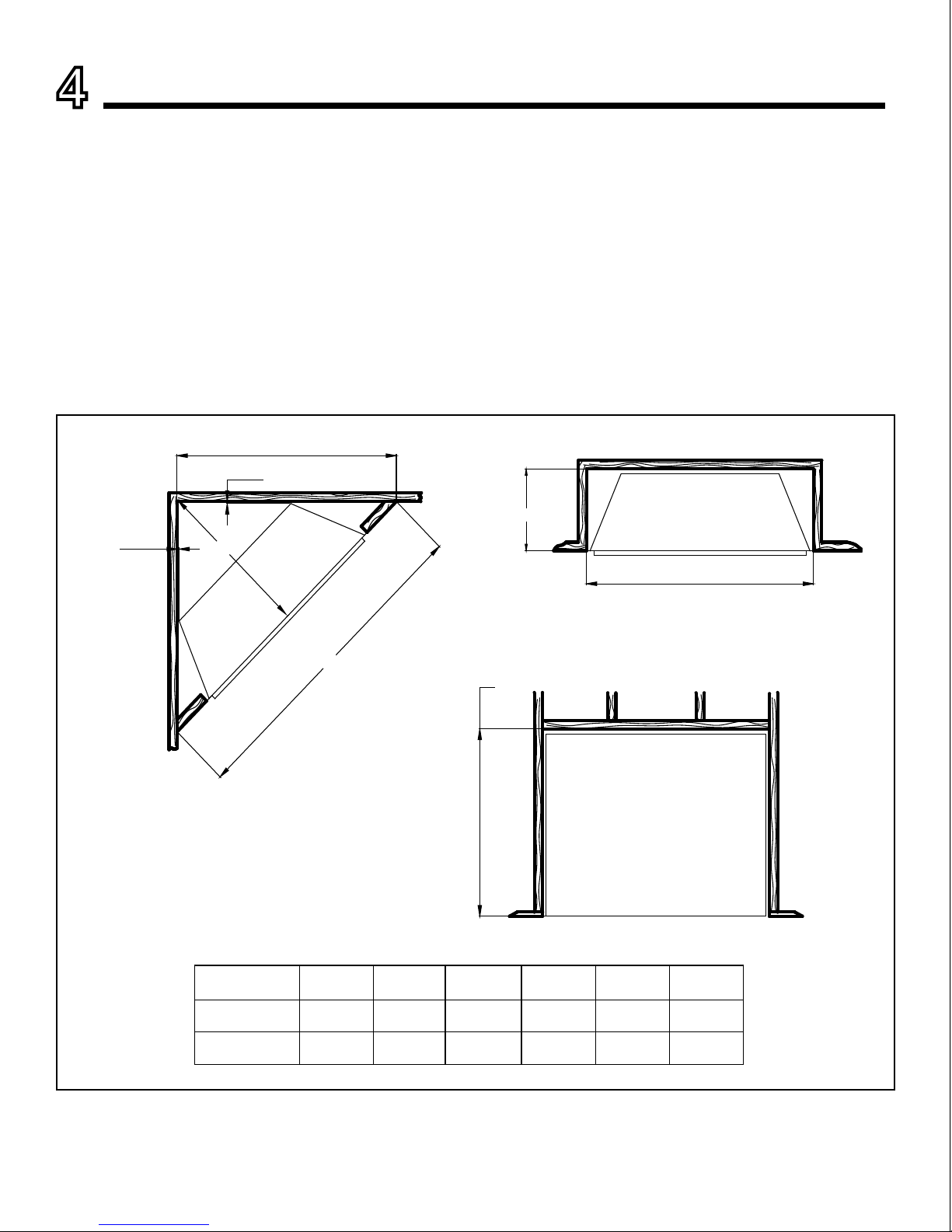

Figure 4.1 Clearance Requirements
This product can be built into new construction or an exist-
ing factory-built replace. Reference Sections 4.A - 4.D for
specic information for your installation.

11
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Figure 4.2 Finishing Dimensions
D. Constructing the Chase
A chase is a vertical box-like structure built to enclose the
electrical appliance. Chases should be constructed in the
manner of all outside walls of the home to prevent cold
air drafting problems. The chase should not break the
outside building envelope in any manner.
Walls, ceiling, base plate and cantilever oor of the chase
should be insulated. Vapor and air inltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air inltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
C. Installation into New Construction
Position the replace within the opening in the framing.
Level the replace with shims if necessary. Attach the
replace to the framing with the four provided brackets
and screws or nails.
E. Electrical Connection
Note: All wiring must be completed prior to nish-
ing the unit.
WARNING! Risk of Fire, Electrical Shock, and Injury!
Electricalwiringmustcomplywithlocalbuildingcodes
andotherapplicableregulations.
WARNING! Risk of Shock! Labelallwirespriorto
disconnectionwhenservicingproduct.Wiringerrorscan
causeimproperanddangerousoperation.Verifyproper
operationafterservicing.
A 15 AMP, 120 Volt, 60 Hz. circuit with a properly
grounded outlet is required. Use minimum size 14 AWG
for supply connection to 120 volt, 60 Hz, 15 AMP branch
circuit. Use copper wire only. The supply wiring should
be properly grounded. A dedicated circuit is recom-
mended as other appliances on the circuit may cause
the breaker to trip or fuse to blow when the heater is
operating.
1. Remove the screws securing the junction box cover
plate on the upper right side of appliance.
2. Pull electrical wires from outside appliance through
the 3/4 in. hole in the junction box cover plate.
3. Secure electrical wire to cover plate with Romex
stain relief connector (not provided).
4. Connect three wires to the terminal block in the ap-
pliance junction box.
5. Ensure all terminal block connections are tight.
6. Replace the cover and retaining screws.
7. All components and wiring may be inspected by
removing the top inner panel through the replace
front opening.
F. Finishing Fireplace Wall
Combustible or non-combustible materials may be used
to nish up to the replace glass frame. Ensure that you
leave adequate room to remove and replace the glass
frame. See Figure 4.2
30 1/4 in.
26 1/4 in.
36 1/4 in.
30 3/4 in.
SF-BI30-E Finishing Dimension
B. Installation into Existing Fireplace
1. Seal all drafts with non-berous insulation materials to
prevent debris or water from falling from the chimney
to electric replace.
2. Close or seal off the chimney ue and close damper
(if applicable) to prevent rain inltration.
3. Do not install in an existing replace that is prone to
dampness.
4. A provision must be made for the appliance to be
connected to power within existing rebox, or on an
adjacent wall.
SF-BI36-E Finishing Dimension

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
12
WARNING! Donotoperatetheunitifitisdamagedorhas
malfunctioned.Ifyoususpecttheunitisdamaged,call
aqualiedservicetechniciantoinspectandreplaceany
partoftheelectricalsystemifnecessary.
Note: A harmless slight brief odor may occur during rst
use or after prolonged period of storage.
A. Manual Switch Function:
The appliance can be operated by both remote control
and manual button. Once the unit has been properly
connected to a grounded electrical circuit, the unit can
be turned ON by pressing the Flame button. In any ac-
tive Flame mode, the Heater button function is available.
If the Flame effect is OFF, there is no Heater button
function. See Figure 5.1.
Flame Button
By pressing the FLAME button, the unit will cycle
through four ame effects.
Heater Button
- Press the heater button once to turn 750W power on.
Appliance will beep and illuminate 1 red LED.
- Press again turns 1500W power on.
Appliance will beep and illuminate 2 red LEDs.
- Press third time turns heater off.
NOTE:
There is a brief delay between the heater command and
the heating turning ON. When the appliance receives
a heater ON command, the appliance blower will turn
ON for 8 seconds before the heater turns ON. There is
also an 8 second delay between heater off and blower
shutdown.
Figure 5.1 Manual Operating Switches
5 OPERATING INSTRUCTIONS
Flame Button Heater Button

13
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13

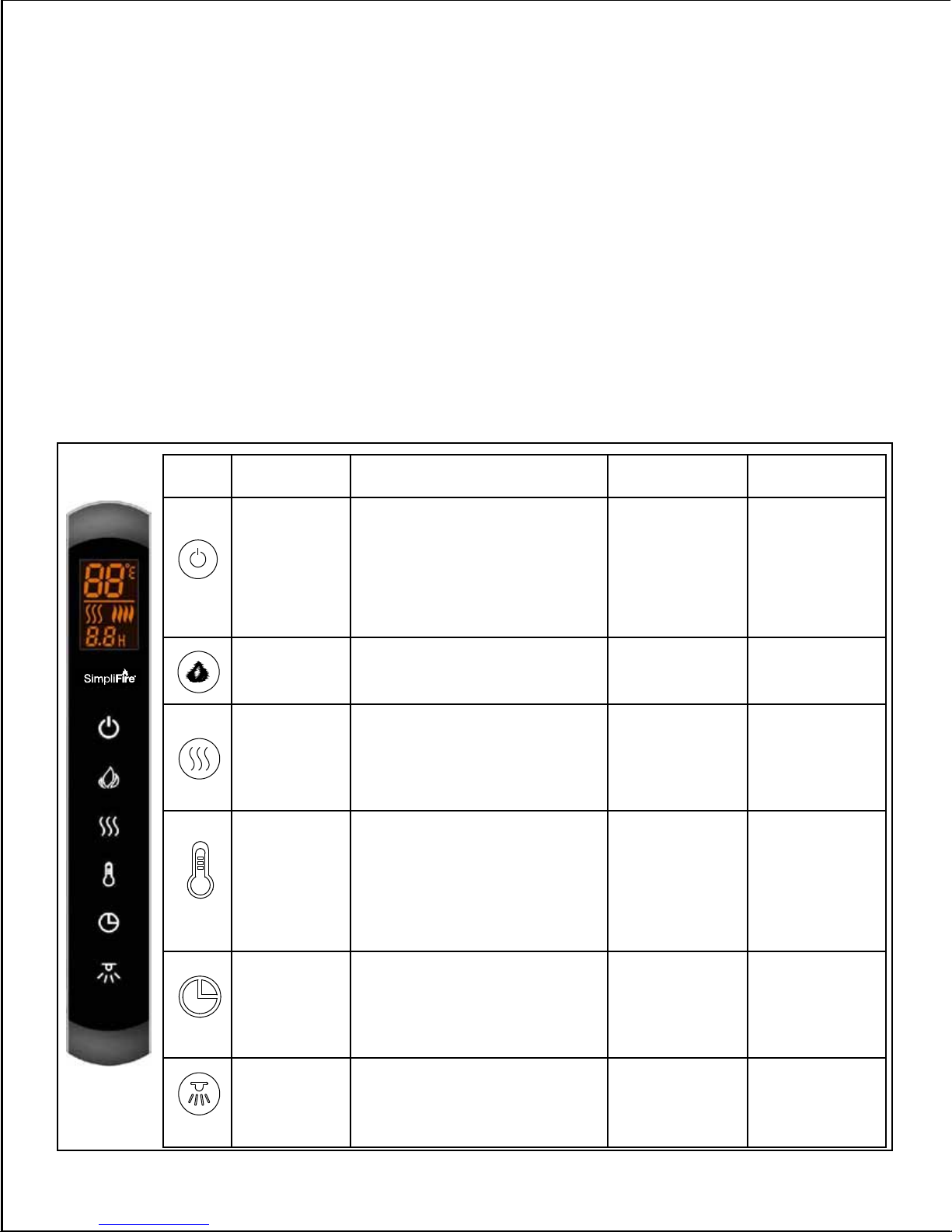

B. Operating by Remote Control
• Make sure batteries are properly installed in Remote
Control.
- Battery requirements 2 x AAA batteries
(included)
• The effective range of the remote is up to 13 ft.
• The remote control must be within the 13 ft. range and
also be pointed directly at the face of the appliance.
For best results, position the remote control within 45
degrees of the face of the appliance
C. Resetting Temperature Cutoff Switch
The heater is protected with a safety device to prevent
overheating. Should the heater overheat, an auto-
matic cutoff will turn the heater OFF. It will not turn ON
automatically without being reset. If it overheats for any
reason, it can be reset by:
1. Turn replace to off
2. Unplug unit and wait 5 minutes
3. Plug in and turn on.
CAUTION: Ifyouneedtocontinuouslyresettheheater,
unplugtheapplianceandcallyourdealer.
ICON TITLE FUNCTION REMOTE LCD
DISPLAY
FIREPLACE
RESPONSE
POWER
The POWER button will turn the
replace on. It will also put the
replace in a standby mode. This will
turn off all functions at once but will
hold the settings in memory except
Heater function. The unit will turn on
at the same settings by pressing the
power button again.
LCD illuminates
and displays ame
status Icon and
temperature set
point.
FLAME
By pressing the FLAME button, the unit
will cycle through four ame effects.
LCD illuminates
and displays ame
status icon.
HEATER
Press Heater button once 750W heater
turns on.
Press Heater button twice 1500W turns
on,
Press Heater button three times, turns
off heater.
LCD illuminates
and displays heater
status icon.
Two light illuminates
Three lights
illuminates
No lights illuminated
THERMOSTAT
Pressing the Temperature button
adjusts the heaters response to the
ambient temperature conditions in the
room. Temperature adjusts from 16 °C
- 28 °C (61 °F - 82 °F). Temperature
can be adjusted 1 ° at a time. Hold for
3 seconds and the LCD display from
°C to °F.
Remote displays
the temperature.
If in Stand-by
mode, temperature
displays but cannot
be adjusted.
TIMER
Pressing the Timer button sets the time
desired for the replace to run. The
Timer can be set from .5 hour up to 9
hours in 1 hour increments.
Remote will display
the time setting
selected. If in Stand-
by mode time will
display but cannot
be adjusted.
LIGHT Pressing the Spotlight button will switch
the spotlight ON and OFF. No indicator.
Fireplace will emit
one audible beep
as it transitions
between spotlight
ON and OFF states.

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
14
A. Maintenance
WARNING! Risk of Shock! Alwaysunplugthecordbe-
foremovingorservicing.Donotimmerseheaterinwater.
• Always turn OFF the heater and disconnect the cord
from the electrical outlet before cleaning your heater.
• Light accumulated dust may be removed from the
heater with a soft cloth or vacuum cleaner.
• Wipe the exterior surfaces of the heater occasionally
with a slightly damp cloth using a solution of mild de-
tergent and water. Dry thoroughly before operating
the heater.
CAUTION! Donotallowwatertorunintotheinteriorof
the heater as this could create a re or electric shock.
Always disconnect electrical service before serving ap-
pliance.
• The fan motor is factory lubricated for life and will not
require further lubrication.
• Store heater in a clean dry place when not in use.
WARNING! Risk of Fire! To reduce risk of re, do not
storeorusegasolineoranyotherammablevapors or
liquidsinthevicinityoftheheater.
B. Cleaning
Cleaning Glass
Dust particles can be removed by bufng lightly with a
clean dry cloth. Fingerprints and other marks can be
cleaned with a cloth dampened with a quality household
glass cleaner. The glass should be completely dried with
a lint free cloth or paper towel. Do not use abrasive clean-
ers on glass surface. Do not spray liquids directly onto
any surface.
Metal Surface
Dust particles can be removed by bufng lightly with a
clean dry cloth. A damp cloth can be used to clean paint-
ed surfaces. Do not use abrasive cleaners. Do not spray
liquids directly on to any surface,
6 MAINTENANCE

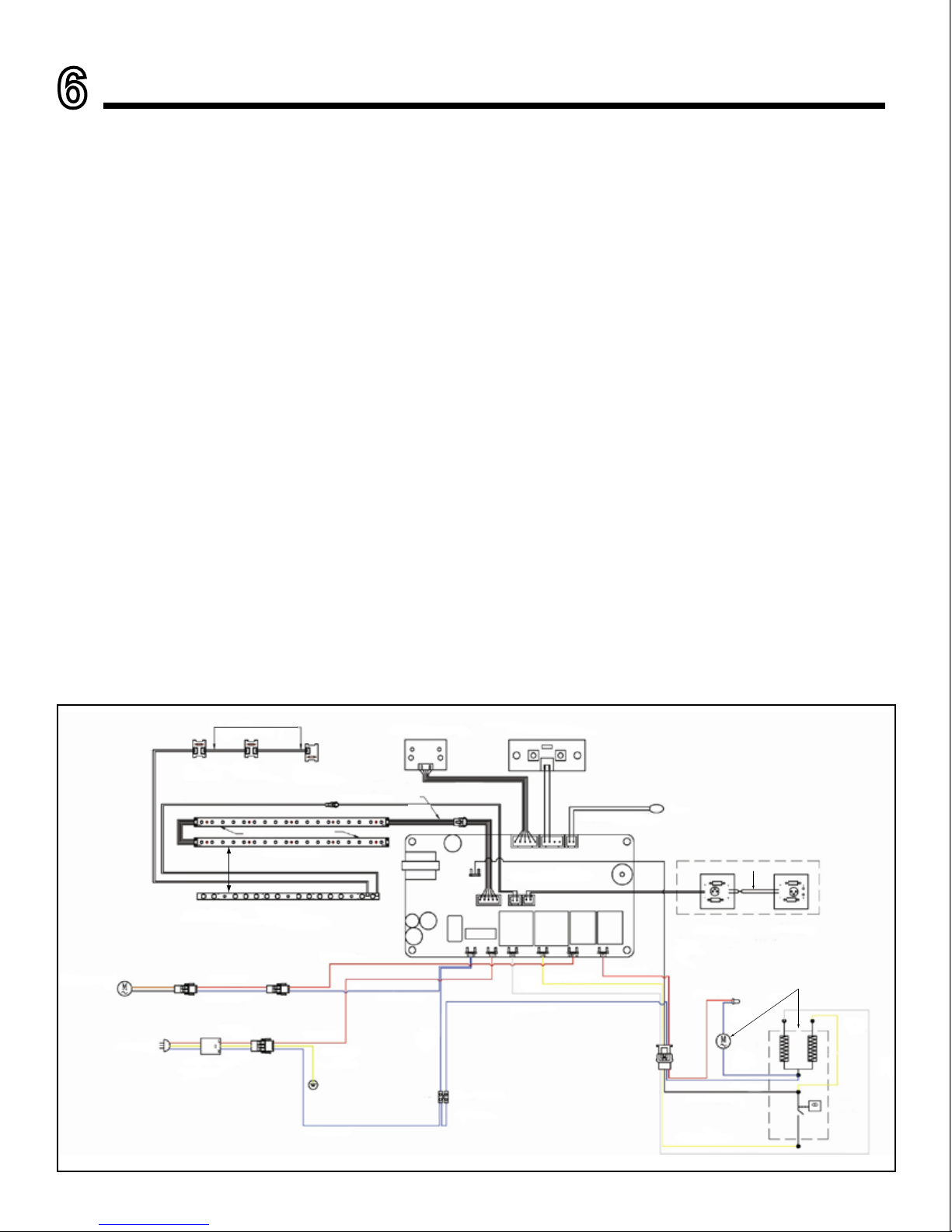

C. Electrical Wiring Diagram
See Figure 6.1.
LOG LED
LED
RC07-036A
LED
RC07-036A
LED
RC07-037A
Connector XH-5Y
Connector XH-5Y
LED RC07-017A/019A
Connector XH-2Y LED
RC07-068/69/70A
Receiver PCB RC05-011A Button PCB RC02-004A
Sensor
RC11-07G RC11-07G
Synchronous Motor Red 20AWG
Blue 20AWG
Red 20AWG
Blue 16AWG
Red 16AWG
Red
16AWG
16AWG
Blue
AC120 60Hz
Wiring
Terminal
Yellow/Green
16AWG
Blue 16AWG
Blue 16AWG
Blue 16AWG
Wiring Terminal
Blue 16AWG
Blue 16AWG
Blue
16AWG
Blue
16AWG
Red 20AWG
Black 20AWG
Yellow
17AWG
White
17AWG
Yellow 17AWG
White
17AWG
Yellow 17AWG
Red 20AWG
Black
16AWG
Main PCB RC01-005A03
Infared
120 VAC Faux Flame
Flame LED
120V Heater and Blower
Spotlight LED
Note: All LEDs
12V DC
Figure 6.1 Electrical Wiring Diagram
D. Servicing
Except for installation and cleaning described in this man-
ual, an authorized service representative should perform
any other servicing.
WARNING! Risk of Electrical Shock!Anyotherservic-
ingneededmustbeperformedbyanauthorizedservice
representative.Donotattempttoservicetheunityour-
self.

15
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13

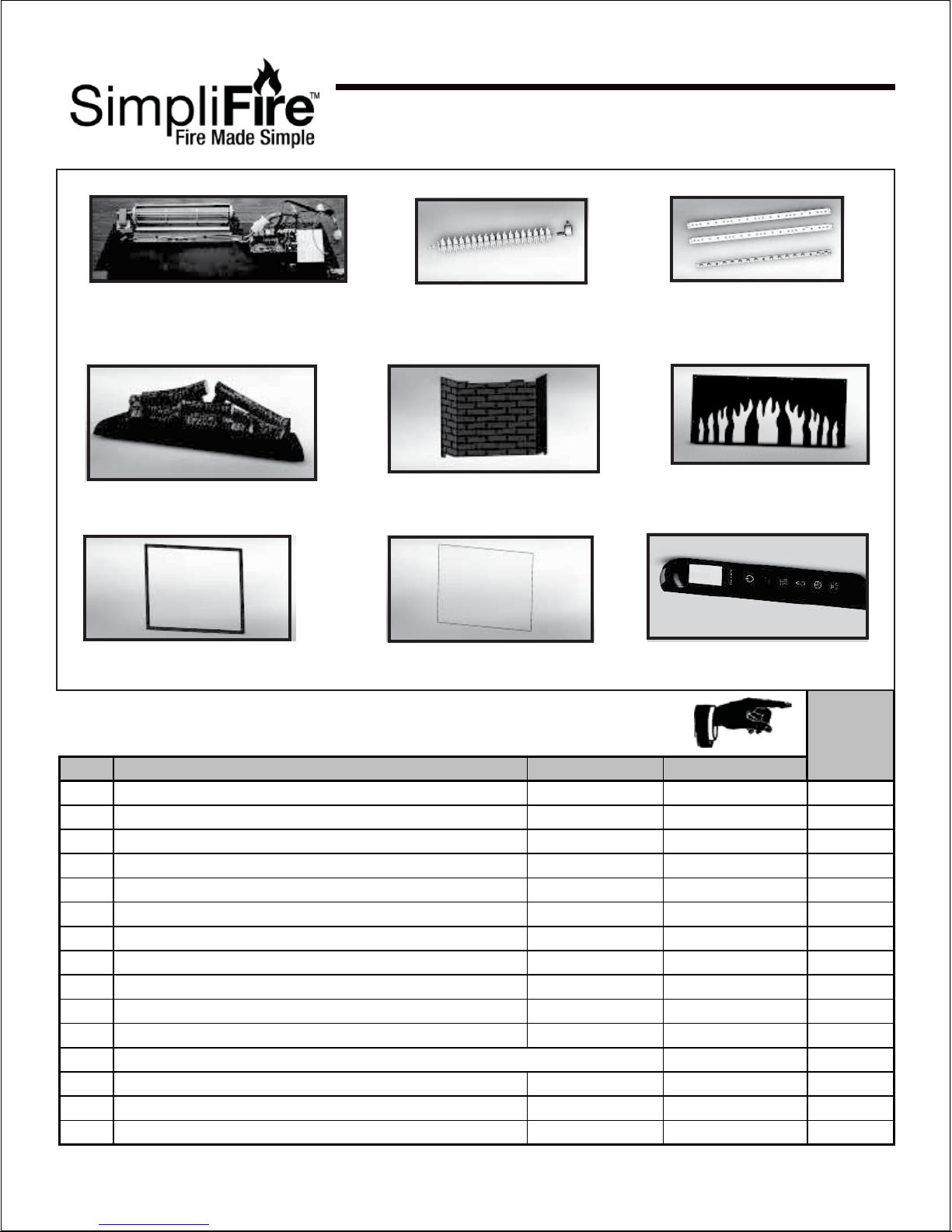

Service Parts SF-BI30-E
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Heater Assembly includes Control Board and Fan HEATER-BI30 Y
2 Rotisserie Motor, Rod & 3 screws ROTISSERIE-BI30 Y
3 LED Strips, 3 Strips LED-BI30 Y
4Log/Grate Assembly LOGS-BI30 Y
5 Refractory Kit REFRACTORY-BI30 Y
6 Flame Screen FLAME-BI30 Y
7 Front FRONT-BI30 Y
8 Glass GLA-BI30 Y
9 Remote REMOTE-SF-ELEC Y
Hardware Bag HRDW-BI Y
Includes: Mounting Brackets, Screw (ST4 x 8), Screws (ST4 x 12)
Installation Manual 2040-900
1/13
30” Electric Fireplace
#1 Heater Tray #2 Rotisserie Motor #3 LED Strips
#4 Log/Grate Assembly
#7 Front #8 Glass #9 Remote
#5 Refractory Kit #6 Flame Screen
E. Service Parts List

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
16
Service Parts SF-BI36-E
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Heater Assembly HEATER-BI36 Y
2 Rotisserie Motor, Rod & 3 Screws ROTISSERIE-BI36 Y
3 LED Strips, 3 Strips LED-BI36 Y
4Log/Grate Assembly LOGS-BI36 Y
5 Refractory Kit REFRACTORY-BI36 Y
6 Flame Screen FLAME-BI36 Y
7 Front FRONT-BI36 Y
8 Glass GLA-BI36 Y
9 Remote REMOTE-SF-ELEC Y
Hardware Bag HRDW-BI Y
Includes: Mounting Brackets, Screw (ST4 x 8), Screws (ST4 x 12)
Installation Manual 2040-900
1/13
36” Electric Fireplace
#1 Heater Tray #2 Rotisserie Motor #3 LED Strips
#4 Log/Grate Assembly
#7 Front #8 Glass #9 Remote
#5 Refractory Kit #6 Flame Screen

17
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
15. Align C-channel with screw holes in appliance.
16. While supporting glass, install both screws through
top C-channel retainer into appliance.
17. Install front by aligning the tabs on its back side with
the spring clips on the face of the appliance. Press
evenly with two hands to fully engage the front to the
appliance.
12. Install rubber plugs into holes in each end of grate.
See Figure 6.3.
13. Install glass into bottom retainer channel.
14. Install C-channel on top edge of glass panel. See
Figure 6.2.
F. Replacement Instructions
WARNING! Risk of Shock! Always disconnect power
before disassembly or servicing.
Front Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Install replacement front by aligning the tabs on its
back side with the spring clips on the face of the ap-
pliance. Press evenly with two hands to fully engage
the front to the appliance.
Glass Replacement
1. If necessary, place a drop cloth or other material
on the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 6.2.
3. Pivot glass away from appliance and lift out of bottom
retainer channel.
4. Install replacement glass into bottom retainer chan-
nel.
5. Install C-channel on top edge of replacement glass.
6. Align C-channel with screw holes in appliance. See
Figure 6.2
7. While supporting glass, install both screws through
top C-channel retainer into appliance
8. Install front by aligning the tabs on its back side with
the spring clips on the face of the appliance. Press
evenly with two hands to fully engage the front to the
appliance.
3. Pivot glass away from appliance and lift out of bottom
retainer channel.
4. Locate rubber plugs in each end of the grate.
Remove plugs with a small at screwdriver. Save for
later use. See Figure 6.3.
5. Remove Phillips screw from each end of grate. Lift
grate from faux ember bed. Take care to retain
screws with grate. See Figure 6.3.
6. Grasp log ember bed and lift up and out of opening.
Rotate ember bed to expose electrical wiring.
7. Disconnect lighting LED power source pin connector
from back side of ember bed. See Figure 6.4.
8. Connect lighting LED power source pin connector to
back side of replacement ember bed. See Figure 6.4.
9. Rotate log ember bed and align with oor of opening.
Engage back side of ember bed into the opening.
Pivot the front of the ember bed into position at on
the oor of the opening. Take care not to pinch wiring
under log ember bed.
10. Align the grate, with the retained screws, with the
steel brackets under the ember bed. Ensure that
wiring is not pinched between log ember bed and
steel bracket.
11. Install and tighten the screw in each end of the grate.
See Figure 6.3.
Log/Grate Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 6.2.

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
18
Flame Screen Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 6.2.
3. Pivot glass away from appliance and lift out of bottom
retainer channel.
4. Remove four thumb screws and metal angle bracket.
from upper rear of appliance cavity. See Figure 6.8.
5. Remove four screws from upper face of appliance.
Take care to support the Blower/Heater Module while
the screws are removed. See Figure 6.9.
6. Remove the Blower/Heater Module by lifting back
edge slightly then pulling it straight back from the
appliance opening. This will reduce the likelihood of
damaging the brick panels.
7. Locate the ve electrical connectors on the right
side of the appliance cavity. Disconnect each of the
ve connectors. See Figure 6.10.
8. Locate rubber plugs in each end of the grate.
Remove plugs with a small at screwdriver. Save for
later use. See Figure 6.3.
9. Remove Phillips screw from each end of grate. Lift
grate from faux ember bed. Take care to retain
screws with grate. See Figure 6.3.
10. Grasp log ember bed and lift up and out of opening.
11. If necessary, unplug LED wire harness from back
side of ember bed. See Figure 6.4.
12. Fold sheet metal tabs on each side of opening on
front edge of refractory panels. See Figure 6.11.
13. Use hand to carefully pry along front edge of
refractory panel to disengage it from the appliance.
Pull both refractory panels. See Figure 6.11.
14. Remove the one screw that retains the brick panel
in the rear appliance cavity. Remove the brick panel
from the cavity. See Figure 6.13.
15. Remove the ame screen panel by removing six
screws that attach it to the appliance chassis. See
Figure 6.14.
16. Install the replacement ame screen panel and
attach with six screws. See Figure 6.14.
17. Install the brick panel into the rear of the cavity.
Ensure that it is orientated so that the notch is
located in the lower right of the cavity. See Figure
6.13.
21. While supporting the Blower/Heater Module, install
the four screws across the upper face of the
appliance. See Figure 6.9.
22. Install the four thumb screws and metal angle
bracket in the upper rear of the appliance cavity.
See Figure 6.8.
23. If necessary, plug LED wire connection into back
side of ember bed. See Figure 6.4.
24. Rotate log ember bed and align with oor of opening.
Engage back side of ember bed into the opening.
Pivot the front of the ember bed into position at on
the oor of the opening. Take care not to pinch
wiring under log ember bed.
25. Align the grate, with the retained screws, with the
steel brackets under the ember bed. Ensure that
wiring is not pinched between log ember bed and
steel bracket.
26. Install and tighten the screw in each end of the grate.
See Figure 6.3.
27. Install rubber plugs into holes in each end of grate.
See Figure 6.3.
28. Install glass into bottom retainer channel.
29. Install C-channel on top edge of glass panel.
30. Align C-channel with screw holes in appliance.
See Figure 6.2.
31. While supporting glass, install both screws through
top C-channel retainer into appliance
32. Install front by aligning the tabs on its back side with
the spring clips on the face of the appliance. Press
evenly with two hands to fully engage the front to the
appliance.
18. Install side refractory panels. Align tabs on back
edge of the panel with the slots in the rear appliance
cavity. Once the tabs are engaged, carefully
install the front edge of the appliance cavity. Take
care to apply even pressure to prevent damage to
the replacement panels. See Figure 6.11 & 6.12.
19. Reconnect the ve connectors from the Blower/
Heater module to the appliance. See Figure 6.10.
20. Carefully align the Blower/Heater module horizontally
with the opening of the appliance. Install it straight
into the opening so that the back edge interlocks
with the back wall of the appliance.

19
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
Refractory Replacement
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 6.2.
3. Pivot glass away from appliance and lift out of bottom
retainer channel.
4. Remove four thumb screws and metal angle bracket
from upper rear of appliance cavity. See Figure 6.8.
5. Remove four screws from upper face of appliance.
Take care to support the Blower/Heater Module while
the screws are removed. See Figure 6.9.
6. Remove the Blower/Heater Module by lifting back
edge slightly then pulling it straight back from the
appliance opening. This will reduce the likelihood of
damaging the brick panels.
7. Locate the ve electrical connections on the right
side of the appliance cavity. Disconnect each of the
ve connectors. See Figure 6.10.
8. Locate rubber plugs in each end of the grate.
Remove plugs with a small at screwdriver. Save for
later use. See Figure 6.3
9. Remove Phillips screw from each end of grate. Lift
from faux ember bed. Take care to retain screws
with grate. See Figure 6.3.
10. Grasp log ember bed and lift up and out of opening.
11. Fold sheet metal tabs on each side of opening on
front edge of refractory panels. See Figure 6.11.
12. Use hand to carefully pry along front edge of
refractory panel to disengage it from the appliance.
Remove both refractory panels. See Figure 6.11.
13. Remove the one screw that retain the brick panel
in the rear appliance cavity. Remove the brick panel
from the cavity. See Figure 6.13.
14. Install the brick panel into the rear of the cavity.
Ensure that it is located so that the notch is in the
lower right of the cavity. See Figure 6.13.
15. Install replacement refractory panels. Align tabs
on back edge of the panel with the slots in the rear
appliance cavity. Once the tabs are engaged,
carefully install the front edge of the appliance cavity.
Take care to apply even pressure to prevent damage
to the replacement panels. See Figure 6.11 & 6.12.
16. Reconnect the ve connectors from the Blower/
Heater module to the appliance. See Figure 6.10.
17. Carefully align the Blower/Heater module horizontally
with the opening of the appliance. Install it straight
into the opening so that the back edge interlocks
with the back wall of the appliance.
18. While supporting the Blower/Heater Module, install
the four screws across the upper face of the
appliance. See Figure 6.9.
19. Install the four thumb screws and metal angle
bracket in the upper rear of the appliance cavity.
See Figure 6.8.
20. Rotate log ember bed and align with oor of opening.
Engage back side of ember bed into the opening.
Pivot the front of the ember bed into position at on
the oor of the opening. Take care not to pinch
wiring under log ember bed.
21. Align the grate, with the retained screws, with the
steel brackets under the ember bed. Ensure that
wiring is not pinched between log ember bed and
steel bracket.
22. Install and tighten the screw in each end of the
grate. See Figure 6.3.
23. Install rubber plugs into holes in each end of grate.
See Figure 6.3.
24. Install glass into bottom retainer channel.
25. Install C-channel on top edge of glass panel.
26. Align C-channel with screw holes in appliance.
See Figure 6.2.
27. While supporting glass, install both screws through
top C-channel retainer into appliance
28. Install front by aligning the tabs on its back side with
the spring clips on the face of the appliance. Press
evenly with two hands to fully engage the front to the
appliance.

SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. C • 2/13
20
Lighting LED Replacement
Note: Kit includes all three LED light strip assembly.
1. If necessary, place a drop cloth or other material on
the hearth or ooring to prevent scratching. Grasp
front with two hands. Pull straight back to disengage
front from appliance.
2. Locate C-channel that retains top edge of glass
panel. While supporting the glass, remove the screw
located in the C-channel at the top two corners of the
glass panel. See Figure 6.2.
3. Pivot glass away from appliance and lift out of bottom
retainer channel.
4. Remove four thumb screws and metal angle bracket
from upper rear of appliance cavity. See Figure 6.8.
5. Remove four screws from upper face of appliance.
Take care to support the Blower/Heater Module while
the screws are removed. See Figure 6.9.
6. Remove the Blower/Heater Module by lifting back
edge slightly then pulling it straight back from the
appliance opening. This will reduce the likelihood of
damaging the brick panels.
7. Locate the ve electrical connections on the right
side of the appliance cavity. Disconnect each of the
ve connectors. See Figure 6.10.
8. Locate rubber plugs in each end of the grate.
Remove plugs with a small at screwdriver. Save for
later use. See Figure 6.3
9. Remove Phillips screw from each end of grate. Lift
from faux ember bed. Take care to retain screws
with grate. See Figure 6.3.
10. Grasp log ember bed and lift up and out of opening.
11. Fold sheet metal tabs on each side of opening on
front edge of refractory panels. See Figure 6.11.
12. Use hand to carefully pry along front edge of
refractory panel to disengage it from the appliance.
Remove both refractory panels. See Figure 6.11.
13. Remove the one screw that retains the brick panel
in the rear appliance cavity. Remove the brick panel
from the cavity. See Figure 6.13.
14. Remove metal bracket in front of rear LED strip.
Remove four screws to remove metal parts. See
Figure 6.5.
15. Locate Lighting LED circuit input power source
connectors in rear of opening. Unplug all three
connectors from the three circuit boards. See Figure
6.7.
16. Using a pliers, compress each barbed clip along the
circuit board while lifting the board evenly to
disengage it from the clip. See Figure 6.6.
17. Remove all three lighting LED circuit boards.
18. Install replacement lighting LED circuit boards into
the appliance. Fully engage each barbed clip. See
Figure 6.6.
19. Connect all three lighting LED power source
connectors to the three LED circuit boards. See
Figure 6.7.
20. Install metal brackets by attaching with four screws.
See Figure 6.5.
21. Install the brick panel into the rear of the cavity.
Ensure that it is located so that the notch is in the
lower right of the cavity. See Figure 6.13.
22. Install replacement refractory panels. Align tabs
on back edge of the panel with the slots in the rear
appliance cavity. Once the tabs are engaged,
carefully install the front edge of the appliance cavity.
Take care to apply even pressure to prevent damage
to the replacement panels. See Figure 6.11 & 6.12.
23. Reconnect the ve connectors from the Blower/
Heater module to the appliance. See Figure 6.10.
24. Carefully align the Blower/Heater module horizontally
with the opening of the appliance. Install it straight
into the opening so that the back edge interlocks
with the back wall of the appliance.
25. While supporting the Blower/Heater Module, install
the four screws across the upper face of the
appliance. See Figure 6.9.
26. Install the four thumb screws and metal angle
bracket in the upper rear of the appliance cavity.
See Figure 6.8.
25. Rotate log ember bed and align with oor of opening.
Engage back side of ember bed into the opening.
Pivot the front of the ember bed into position at on
the oor of the opening. Take care not to pinch
wiring under log ember bed.
27. Align the grate, with the retained screws, with the
steel brackets under the ember bed. Ensure that
wiring is not pinched between log ember bed and
steel bracket.
28. Install and tighten the screw in each end of the
grate. See Figure 6.3.
29. Install rubber plugs into holes in each end of grate.
See Figure 6.3.
30. Install glass into bottom retainer channel.
31. Install C-channel on top edge of glass panel.
32. Align C-channel with screw holes in appliance.
See Figure 6.2.
33. While supporting glass, install both screws through
top C-channel retainer into appliance.
34. Install front by aligning the tabs on its back side with
the spring clips on the face of the appliance. Press
evenly with two hands to fully engage the front to the
appliance.
