Introduction
System overview
The basic system consists of the processor and one or two monitors.

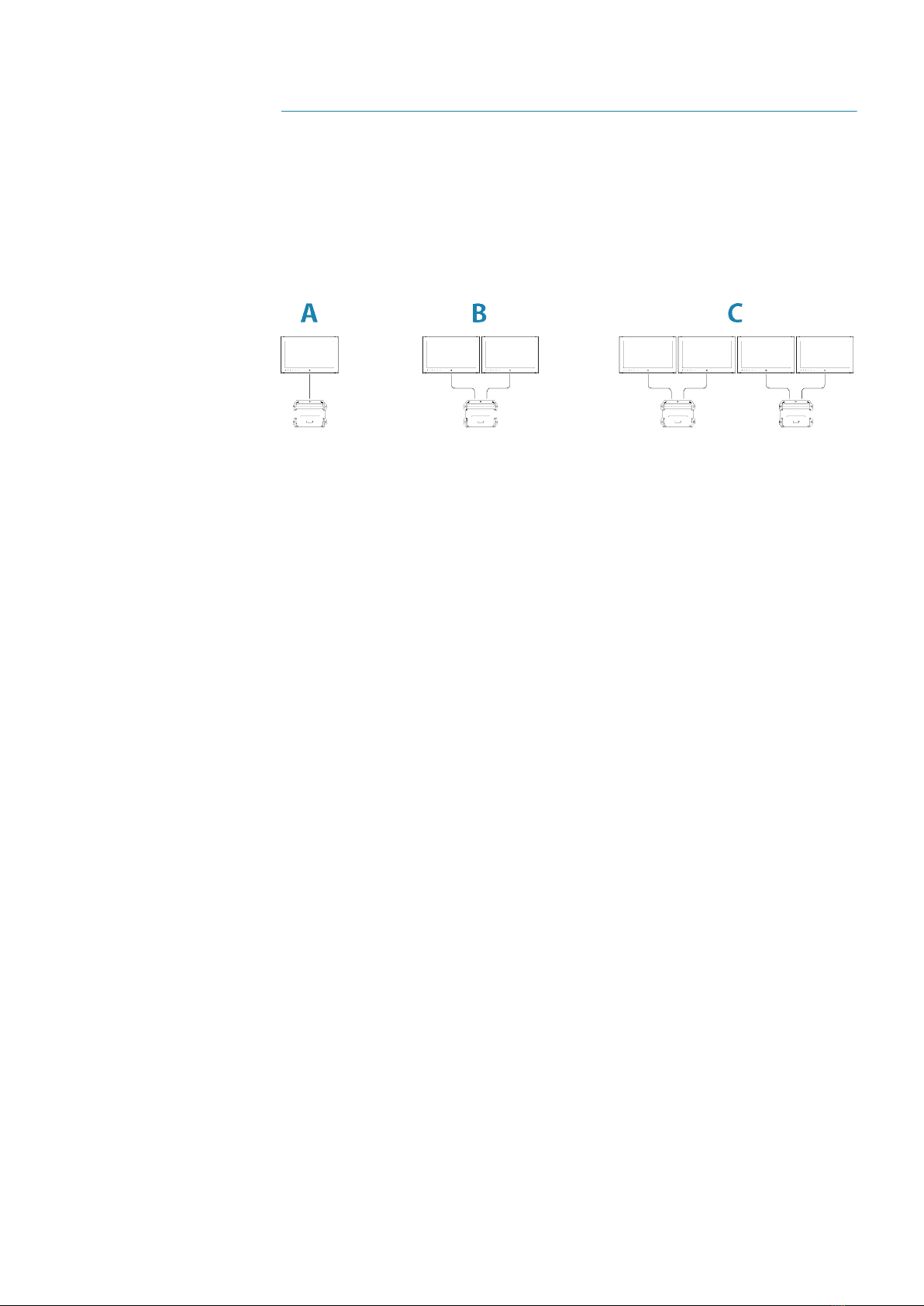

The system can be configured and installed in various configurations:
•One processor with one monitor (A)
•One processor with two independent monitors (B)
•A complex network where additional networked processors are connected to
independent monitors throughout the boat (C)
Operating the system
The system supports single and dual touch-screen operation when compatible touch
monitors are connected.
If a compatible remote controller is available on the network, this can control multiple
processors and monitors, including power control. A separate manual is delivered with the
remote controller units.
You can also use a keyboard and mouse/trackball to control the system. Once these devices
are connected to the USB ports on a processor, they can be used to control the monitors
connected to the same processor.
The active controller is indicated with an icon in the status bar.
1
Introduction | NSO evo3S MPU Installation Manual

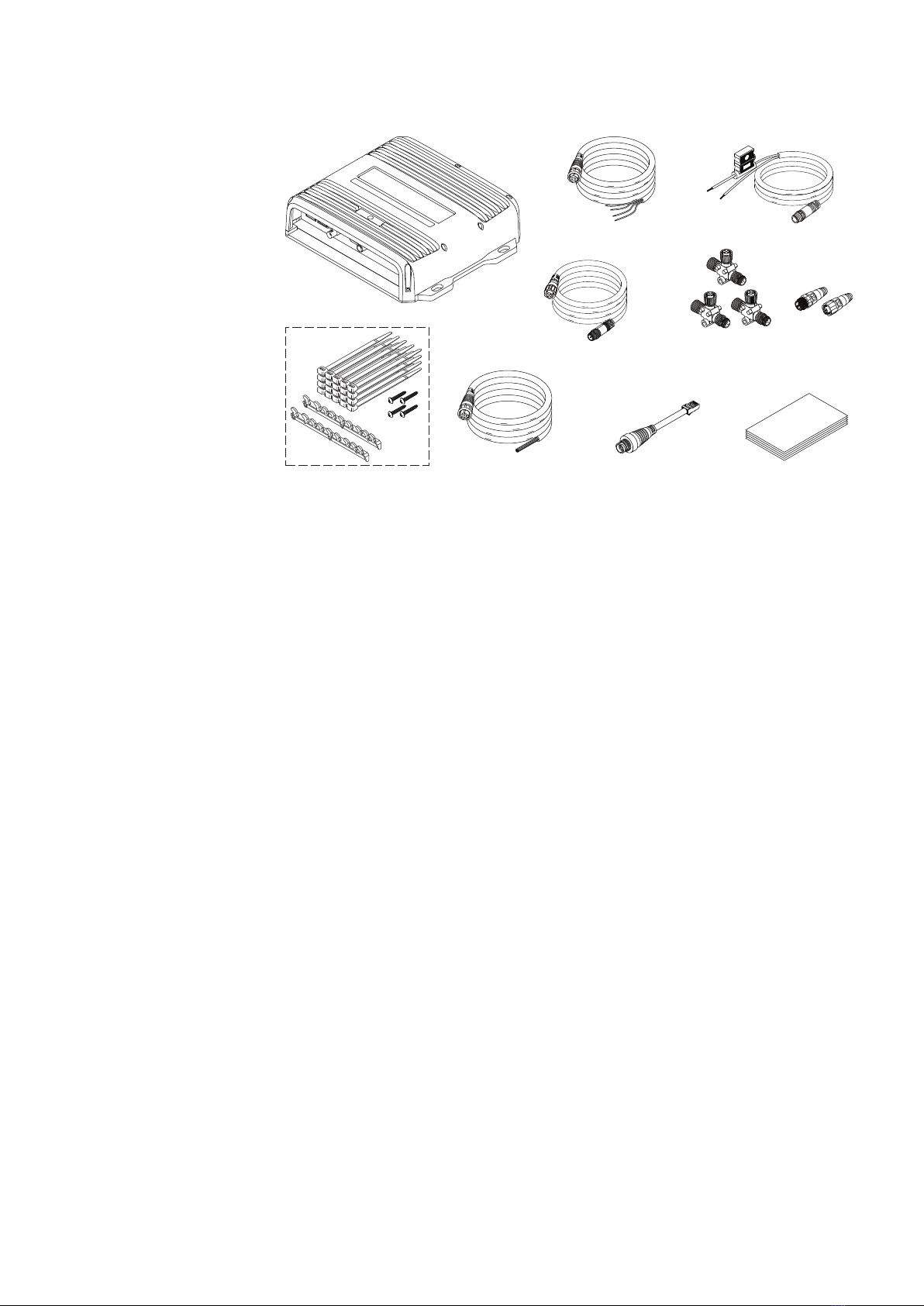

Parts included
F
ABC
D
E
G
H
I
J
ANSO evo3-S Marine Processor Unit (MPU)
BMPU Power cable, 2 m (6.5')
CMicro-C power cable, 1.3 m (4.3')
DMicro-C drop cable, male-female plugs, 1.8 m (6')
EMicro-C T-connectors (x3)
FMicro-C terminators, 120 ohm, (male and female)
GNMEA 0183 serial cable, 8 wires, 2 m (6.5')
HEthernet adaptor, 5 pin female to RJ45 male
IInstallation kit:
•Cable retainers (x2)
•Cable ties (x20)
•Pan head screws, 3.5 x 19, A4 DIN7981B (x8)
JDocumentation pack
Introduction | NSO evo3S MPU Installation Manual

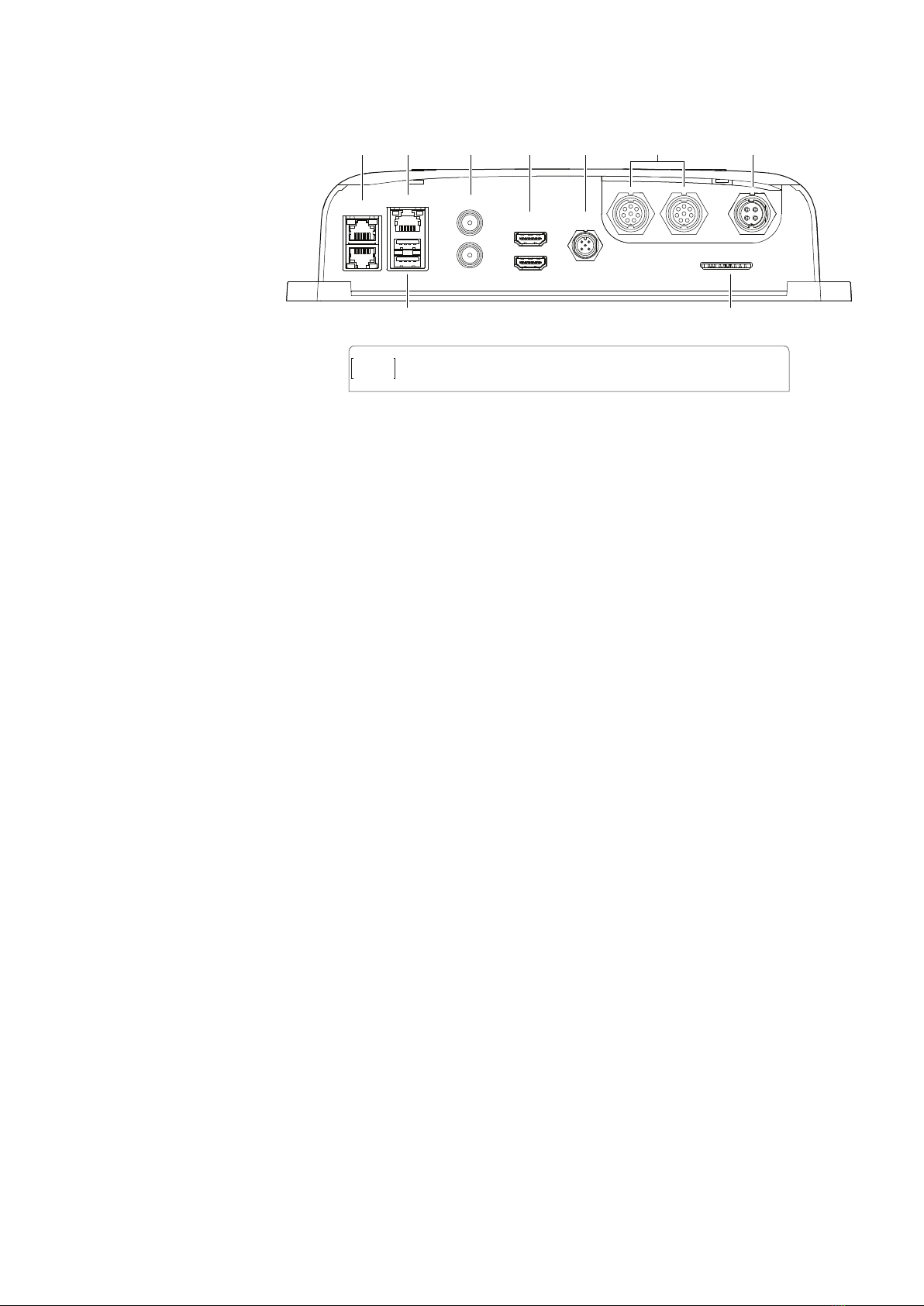

Connectors
NETWORK 1 NETWORK 3
USB 1
VIDEO 1 IN HDMI 1 OUT
HDMI 2 OUT
SD CARD
NMEA2000 SERIAL 1 SERIAL 2 POWER
45W MAX
VIDEO 2 IN
USB 2
NETWORK 2
PoE 15W
COMBINED
A B C D E F
IH
G
ANetwork 1 and Network 2 ports (Ethernet with PoE)
BNetwork 3 (Ethernet)
CVideo 1 IN and Video 2 IN
DHDMI 1 OUT and HDMI 2 OUT
ENMEA 2000
FSerial 1 and Serial 2
GPower
HUSB 1 and USB 2
ISD card reader
Introduction | NSO evo3S MPU Installation Manual

Installation
General mounting guidelines
Warning: Do not install the unit in a hazardous/flammable atmosphere.
ÚNote: Choose a mounting location that will not expose the unit to conditions that
exceed the technical specifications.
Mounting location
Ensure that the selected area allows for:
•cable routing, cable connection and cable support
•connection and use of portable storage devices
•viewing any LED indicators
•easy access to serviceable parts
Do also consider:
•the free space around the unit to avoid overheating
•the mounting surface’s structure and strength, with regard to the weight of the
equipment
•any mounting surface vibration that might damage the equipment
•hidden electrical wires that might be damaged when drilling holes
Ventilation
Inadequate ventilation and subsequent overheating of the unit will cause unreliable
operation and reduced service life.
If possible, select a location where the vessel's air conditioning system can be used to control
the temperature.
Ensure that any ventilation holes are not blocked.
Electrical and radio frequency interference
This unit conforms to the appropriate Electromagnetic Compatibility (EMC) regulations. To
ensure that the EMC performance is not compromised, the following guidelines apply:
•separate battery used for the vessel engine
•minimum 1 m (3 ft) between the device, the device's cables and any transmitting
equipment or cables with radio signals
•minimum 2 m (7 ft) between the device, the device's cables and the SSB radio
•more than 2 m (7 ft) between the device, the device's cables and the radar beam
2
Installation | NSO evo3S MPU Installation Manual

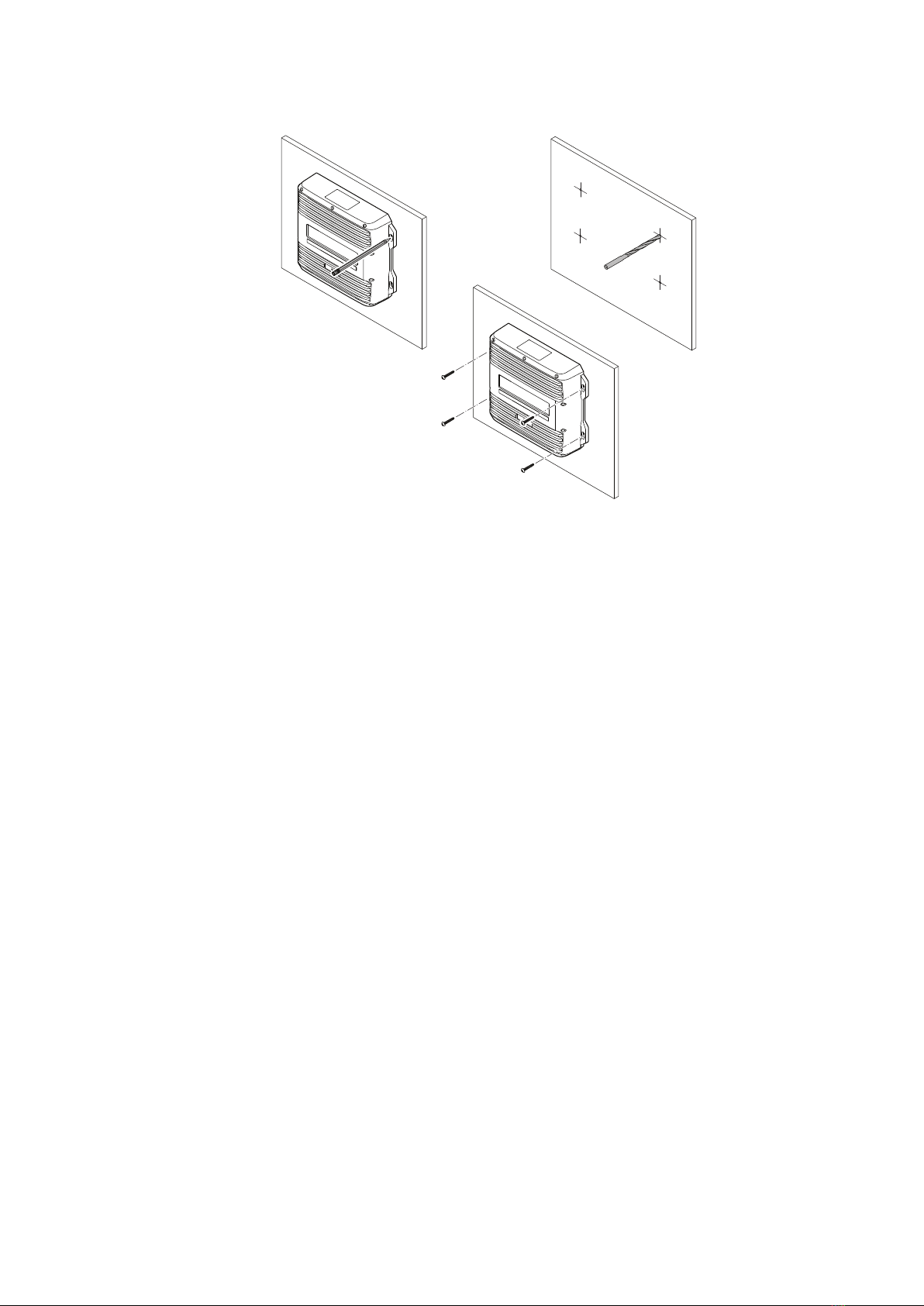

Wall mounting
12
3
Installation | NSO evo3S MPU Installation Manual

Wiring
Access to connectors
For easier access to connectors, remove the bottom front of the unit.
Wiring guidelines
Don't:
•Make sharp bends in the cables
•Run cables in a way that allows water to flow down into the connectors
•Run the data cables adjacent to radar, transmitter, or large/high current carrying cables or
high frequency signal cables.
•Run cables so they interfere with mechanical systems
•Run cables over sharp edges or burrs
Do:
•Make drip and service loops
•Use cable-tie on all cables to keep them secure
•Solder/crimp and insulate all wiring connections if extending or shortening the cables.
Extending cables should be done with suitable crimp connectors or solder and heat
shrink. Keep joins as high as possible to minimize possibility of water immersion.
•Leave room adjacent to connectors to ease plugging and unplugging of cables
Warning: Before starting the installation, be sure to turn electrical power
off. If power is left on or turned on during the installation, fire, electrical
shock, or other serious injury may occur. Be sure that the voltage of the
power supply is compatible with the unit.
Warning: The positive supply wire (red) should always be connected to
(+) DC with a fuse or a circuit breaker (closest available to fuse rating).
Control devices
The system can be operated by:
•a supported remote controller connected via NMEA 2000
•touch monitors connected via serial interface (RS422) or USB
•keyboard and mouse/trackball connected via USB
For wiring details, refer to the port description in the next pages.
By default, a USB port is assigned by control the monitor connected to the same processor.
See more details in "USB ports" on page 22.
Monitors
Up to two monitors may be connected via the HDMI ports.
Monitors with DVI inputs only should use an HDMI-DVI adaptor.
ÚNote: Brightness control are not supported over DVI.
3
Wiring | NSO evo3S MPU Installation Manual

Monitors must conform to the supported resolutions and refresh rates as defined in the
Technical specification.
Power
The unit is designed to be powered by a 12 or 24 V DC system.
It is protected against reverse polarity, under voltage and over voltage (for a limited
duration).
A fuse or circuit breaker should be fitted to the positive supply. For recommended fuse
rating, refer to "Technical specifications" on page 38.

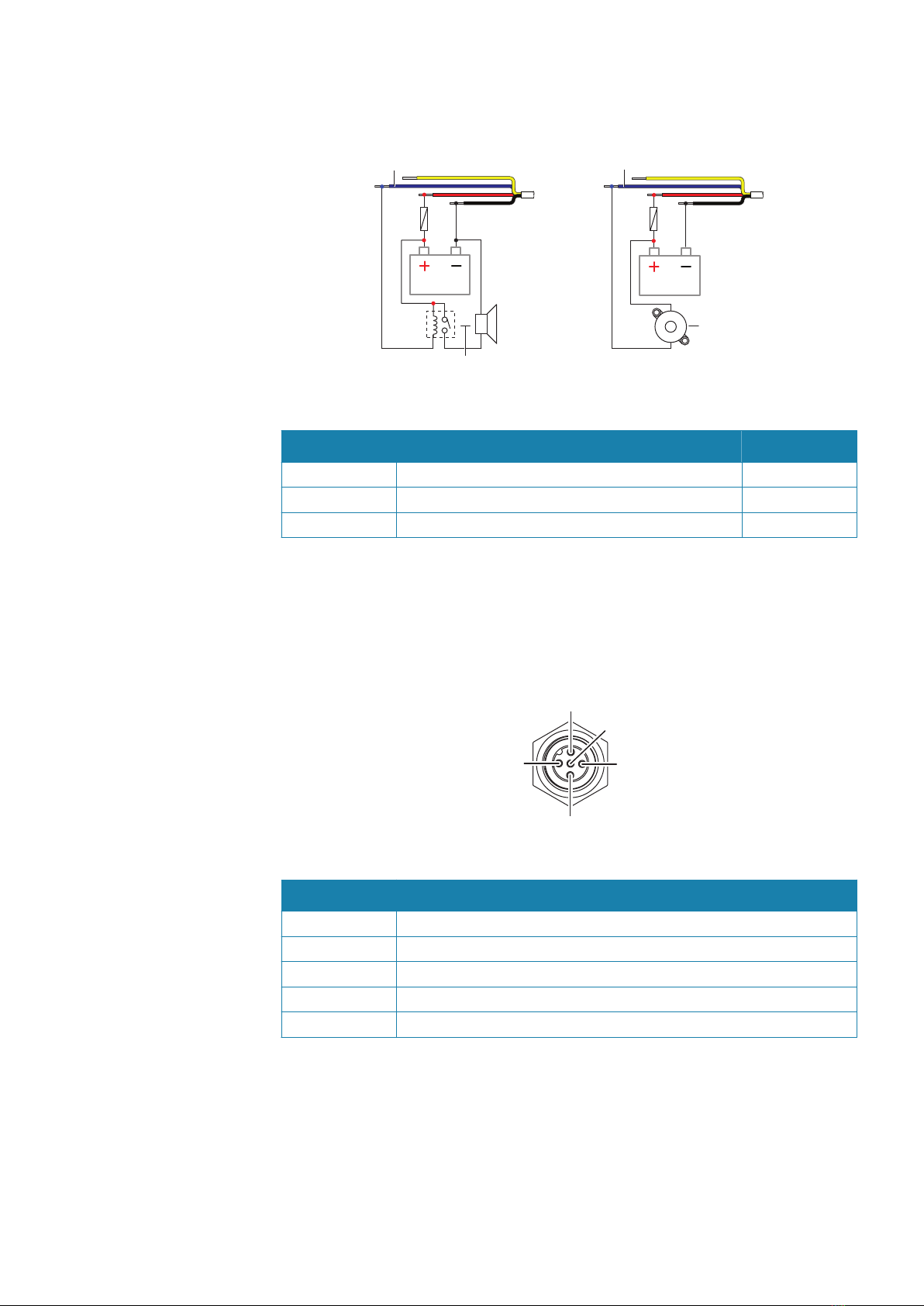

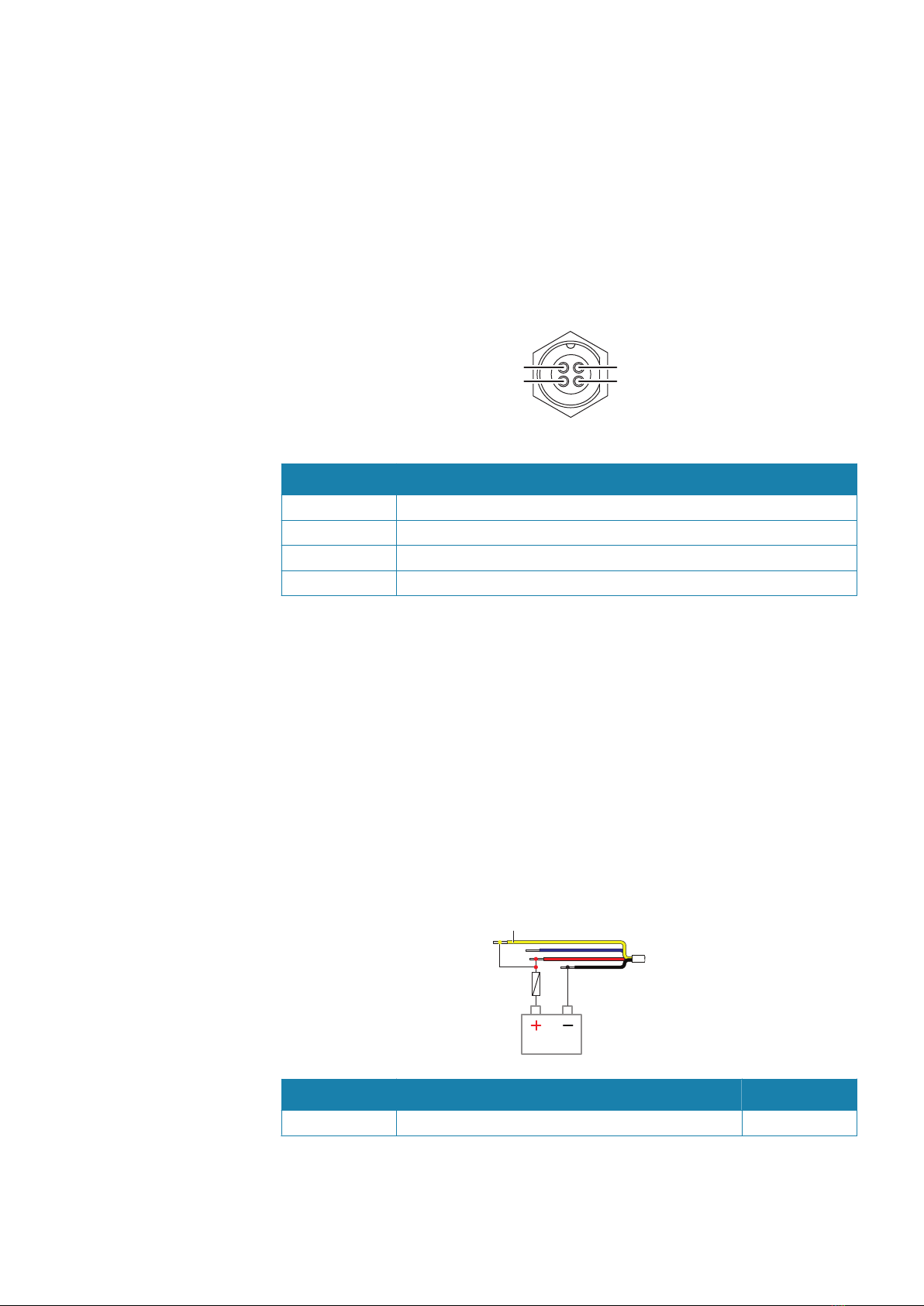

Power connector details
3
41
2
Unit socket (male)
Pin Purpose
1DC negative
2External alarm
3Power control
4+12/24 V DC
Power control connection
The yellow wire in the power cable can be used to control how the unit is turned on and off.
Power controlled by power key
The unit will turn on/off when the power key on the unit is pressed.
Leave the yellow power control wire disconnected and tape or heat-shrink the end to
prevent shorting.
Power control by supply power
The unit will turn on/off without using the power key when power is applied/removed.
Connect the yellow wire to the red wire after the fuse.
ÚNote: The unit cannot be powered down by power button, but can be put in to standby
mode (the screen backlight turns off).
A
Key Purpose Color
APower control wire, connected to supply power Yellow
Wiring | NSO evo3S MPU Installation Manual

Power controlled by ignition
The unit will turn on once ignition is turned on to start engines.
ÚNote: Engine start batteries and house batteries should have a common ground
connection.
A
B
Key Purpose Color
APower control wire Yellow
BIgnition switch
Power controlled by master slave bus
The yellow power control wire can either be an input that will turn on the unit when power
is applied, or an output that turns on other devices when the unit is powered on. It can be
configured at the installation stage to control the power state of displays and compatible
devices. When commissioning the system, the unit can be set to be a power control slave or
power control master.
A
A
B
Key Purpose Color
APower control wire Yellow
BMaster slave bus
If a unit is configured as power control master and turned on by the power key, it will output
voltage on the power control bus. This will power on both other power master units and
power slave units. If a unit is set to power control slave, it cannot be powered down using its
own power key while a power control master unit is turned on. Pressing the power key will
set the unit to standby. If all power control masters are off, power control slaves can be
turned on using their own power key. This however will not turn on any other units
connected to the power bus.
Wiring | NSO evo3S MPU Installation Manual

External alarm
A A
B
C
Siren Buzzer
For sirens that draw more than 1 A, use a relay.
Key Purpose Color
AExternal alarm output Blue
BSiren and relay
CBuzzer
NMEA 2000
The NMEA 2000 data port allows receiving and sharing of a multitude of data from various
sources.
Connector details
2
1
3
4
5
Unit socket (male)
Pin Purpose
1Shield
2NET-S (+12 V DC)
3NET-C (DC negative)
4NET-H
5NET-L
Plan and install an NMEA 2000 network
An NMEA 2000 network consists of a powered backbone from which drop cables connect to
NMEA 2000 devices. The backbone needs to run within 6 m (20 ft) of the locations of all
products to be connected, typically in a bow to stern layout.
The following guidelines apply:
•The total length of the backbone should not exceed 100 meters (328 ft)
Wiring | NSO evo3S MPU Installation Manual

•A single drop cable has a maximum length of 6 meters (20 ft). The total length of all drop
cables combined should not exceed 78 meters (256 ft)
•The backbone needs to have a terminator at each end of the backbone. The terminator
can be a terminator plug or a unit with built-in terminator
A
A
A
CC
DB
B
B
B
E
A
ANMEA 2000 device
BDrop-cable
CTerminator
DPower supply
EBackbone

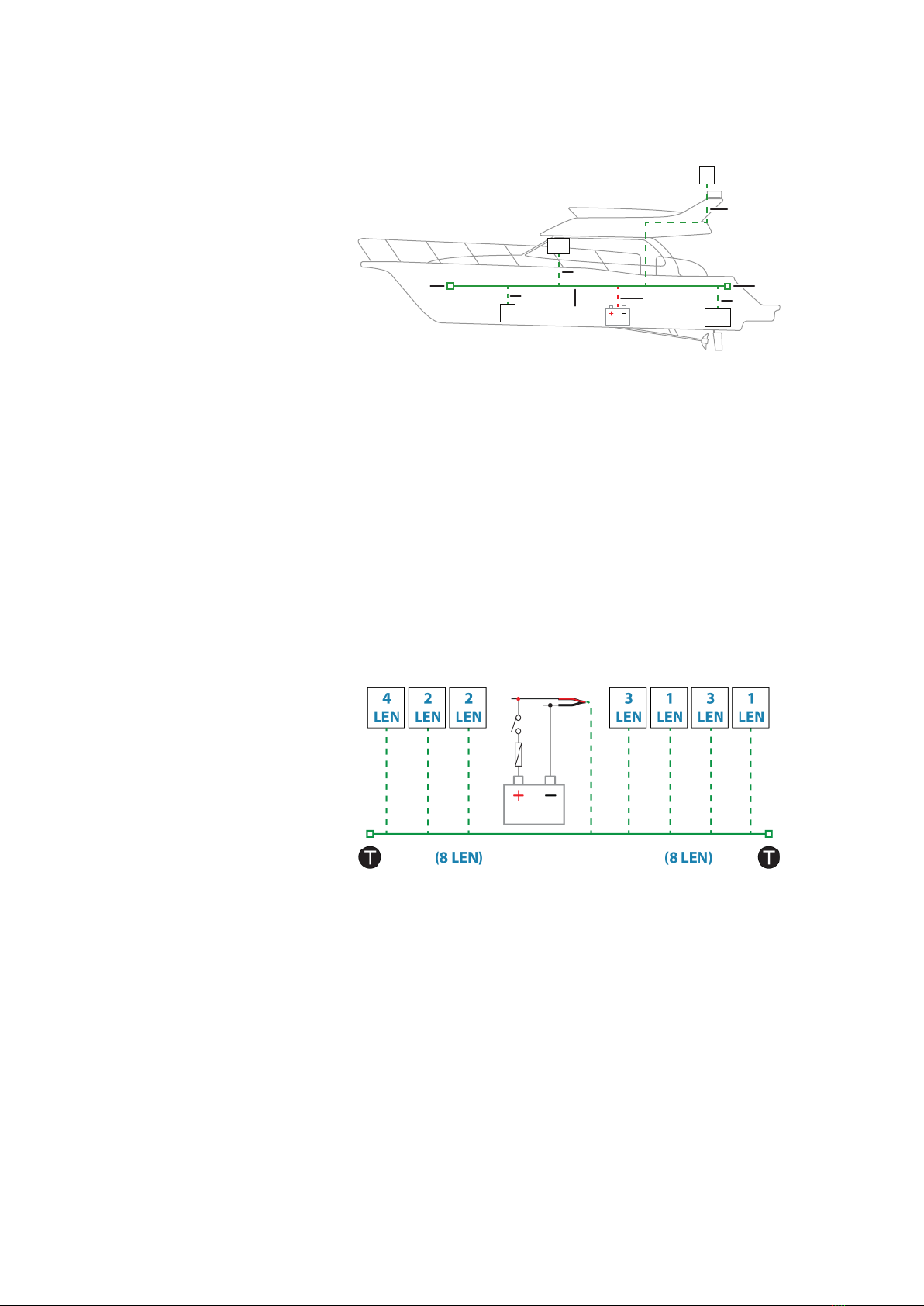

Powering the network
The network requires its own 12 V DC power supply, protected by a 3 amp fuse.
For smaller systems: connect power at any location in the backbone.
For larger systems: connect power at a central point in the backbone to balance the voltage
drop of the network. Make the installation such that the load/current draw on each side of
the power node is equal.
ÚNote: 1 LEN (Load Equivalency Number) equals 50 mA current draw.
ÚNote: Do not connect the NMEA 2000 power cable to the same terminals as the engine
start batteries, autopilot computer, bow thruster or other high current devices.
Serial port
The serial port(s) is used for NMEA 0183 and touch screen control.
Wiring | NSO evo3S MPU Installation Manual

Connector details
1
2
6
78
3
4
5
Unit socket (male)
Pin Purpose
1NMEA 0183 Listener A (Rx_A)
2NMEA 0183 Listener B (Rx_B)
3NMEA 0183 Talker A (Tx_A)
4NMEA 0183 Talker B (Tx_B)
5RS422 Talker + (Tx+)
6RS422 Talker - (Tx-)
7RS422 Listener - (Rx-)
8RS422 Listener + (Rx+)

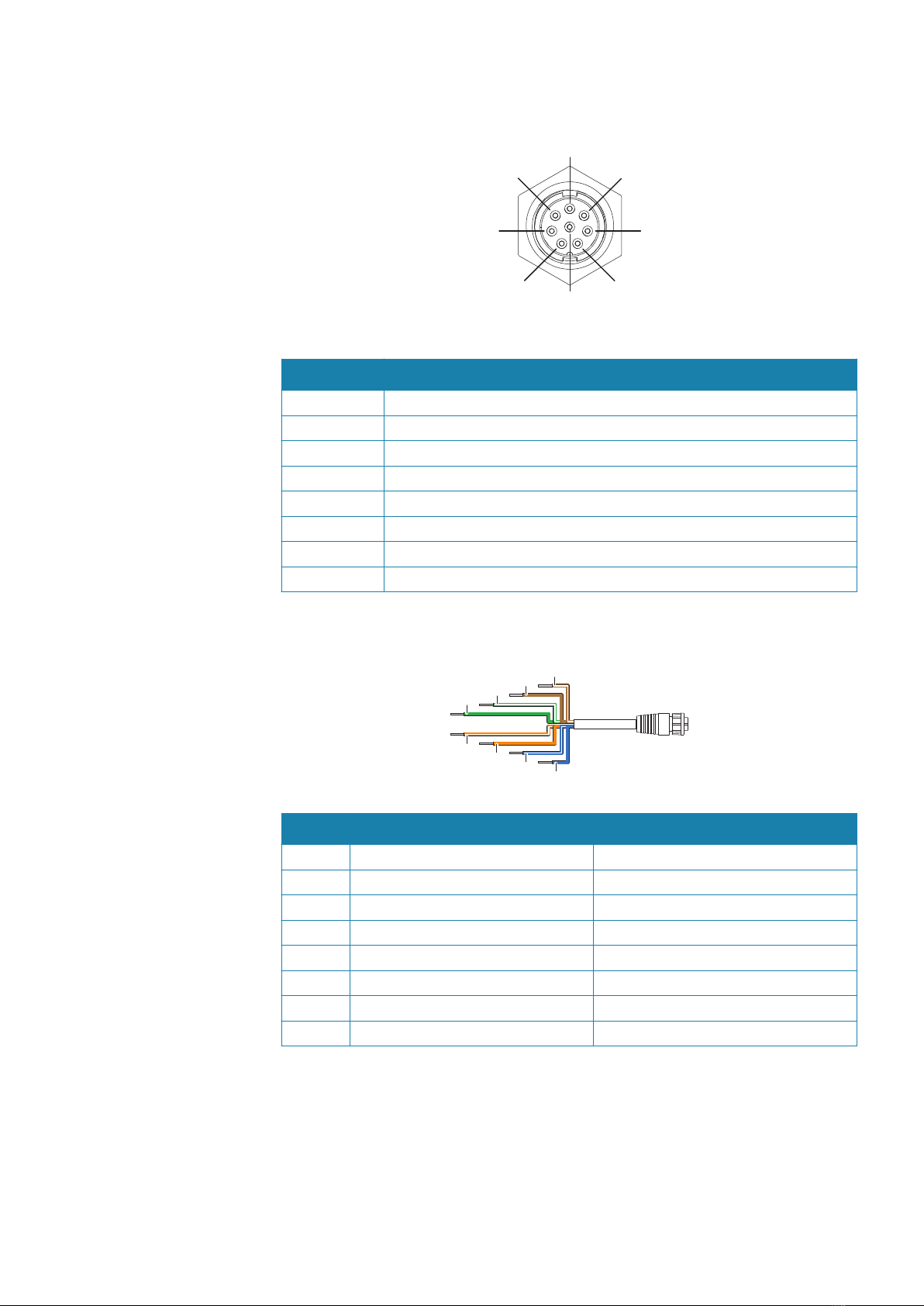

NMEA 0183 and Touch screen control, cable details
A
B
C
D
EFGH
Key Description Color
ANMEA 0183 Listener B (Rx_B) Brown/white
BNMEA 0183 Listener A (Rx_A) Brown
CNMEA 0183 Talker B (Tx_B) Green/white
DNMEA 0183 Talker A (Tx_A) Green
ERS422 Talker + (Tx+) Orange/white
FRS422 Talker - (Tx-) Orange
GRS422 Listener - (Rx-) Blue/white
HRS422 Listener + (Rx+) Blue
NMEA 0183
The units has two NMEA 0183 ports, which are connected via two discrete cables. Each cable
is dedicated to one of the two internal processors.
ÚNote: AIS data supplied via NMEA 0183 is not internally bridged, and must be connected
to both NMEA 0183 ports if required on both screens. AIS data supplied via NMEA 2000 is
available to both processors.
Wiring | NSO evo3S MPU Installation Manual

The port(s) uses the NMEA 0183 (serial balanced) standard, and can be configured in the
software for different baud rates up to 38,400 baud.
Talkers and listeners
Only one talker (output device) can be connected to a serial input (RX) on the unit, in
accordance with the NMEA0183 protocol. However, an output port (TX) on the unit may be
connected to up to three listener (receiver) devices, dependent on the hardware capabilities
of the receiver.
Touch screen control
Touch monitors can be connected via the serial port (RS422).
Ethernet
The Ethernet port(s) can be used for transfer of data and synchronization of user created
data. It is recommended that each device in the system is connected to the Ethernet
network.
No special setup is required for establishing an Ethernet network.
Ethernet connector details
Unit socket (female)
The unit is equipped with standard RJ45 connector(s).
Ethernet adapter cables
Units with a 5-pin yellow Ethernet connector will require an adapter cable to connect to this
unit.
For more details about the available adapter cables, refer to the brand website of your unit:
Ethernet expansion device
Connection of network devices can be made via an Ethernet expansion device. Additional
expansion devices can be added to provide the required number of ports.
USB port
The USB port can be used to:
•connect a keyboard
•connect a mouse
•connect a storage device
•connect a card reader
ÚNote: If you want to read chart cards using a USB card reader connected to the USB port,
an MI10 USB card reader is required.
The USB devices should be standard PC compatible hardware.
ÚNote: USB cable length should not exceed 5 m when using regular cables. Lengths over
5 m may be possible with the use of an active USB cable.
Configuring the USB port
By default, a USB port is assigned by control the monitor connected to the same processor.
See more details in "USB ports" on page 22.
Wiring | NSO evo3S MPU Installation Manual

USB connector details
Unit socket (female)
The unit is equipped with standard USB type-A connector(s).

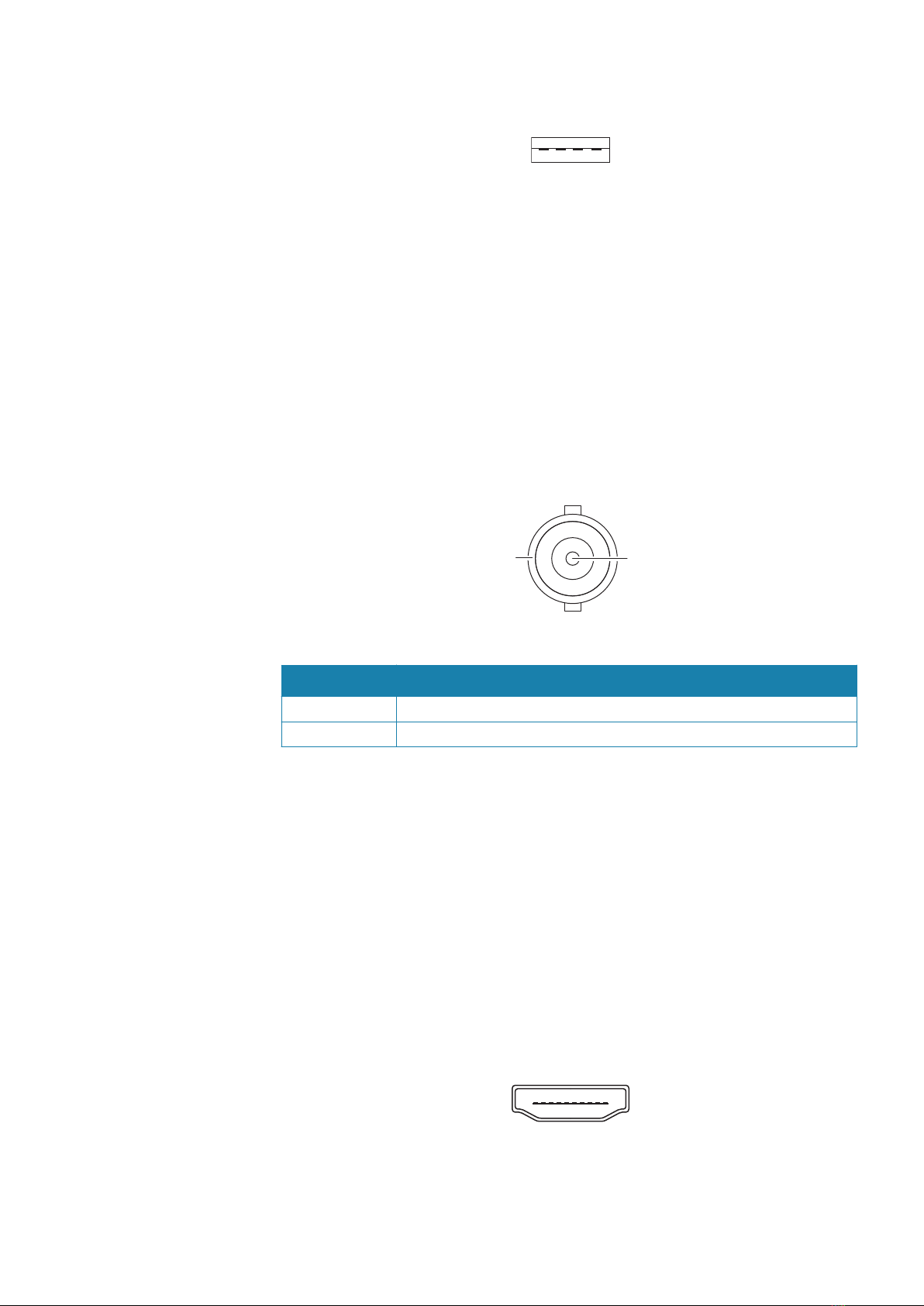

Video in
The unit can be connected to two composite video sources, and display video images on its
display.
ÚNote: Camera cables are not supplied, and will need to be selected to suit termination -
BNC at the unit, and typically BNC or RCA plug at the camera end.
ÚNote: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
ÚNote: Both NTSC and PAL formats are supported.
Video in connector details
12
Unit socket (female)
Pin Purpose
1Ground
2Signal
Video input configuration
Configurations to video input are made in the video panel. Refer to the Operator Manual for
more information.
HDMI out
The HDMI port(s) is used for connecting monitor(s).
The connected monitor should support the resolution listed in the Technical specifications,
or be able to scale.
ÚNote: Some HDMI TV displays may apply over-scan, which will in effect crop the image
possibly causing loss of important content. Check the display manual for an option to
disable over-scan or adjust scaling.
HDMI connector details
Unit socket (female)
The unit is equipped with standard HDMI (Type A) connector(s).
Wiring | NSO evo3S MPU Installation Manual

HDMI cable requirements
ÚNote: The unit should be turned off prior to connecting or disconnecting an HDMI cable.
While the HDMI standard does not state maximum cable length, signal may be
compromised on long runs. Only use Navico or other high quality HDMI certified cables. 3rd
party cables should be tested before installation. On runs over 10 m it may be required to
add an HDMI amplifier or use HDMI-CAT6 adaptors.
Card reader
A memory card can be used for:
•Chart data
•Software updates
•Transfer of user data
•Logging user data
•System backup
ÚNote: Do not download, transfer or copy files to a chart card. Doing so can damage chart
information on the chart card.
Wiring | NSO evo3S MPU Installation Manual

Software setup
First time startup
When the unit is started for the first time, or after a reset, the unit displays a series of dialogs.
Respond to the dialog prompts to make fundamental settings.
You can perform further setup and later change settings using the system settings dialogs.
Software setup sequence
This setup sequence focus on the settings done during installation and setup of the system.
For other settings refer to the Operator manual.
1 General settings - refer to "System settings" on page 21.
•Make general settings as desired
•Configure the USB ports
•Configure the power control
2 Advanced settings - refer to "Advanced" on page 22.
•Enable or disable features
•Review the advanced setting options and make changes as desired
3 Source selection - refer to "Network settings" on page 32.
•Make sure that the proper external data sources have been selected
4 Feature setup
•Configure specific features as described later in this chapter

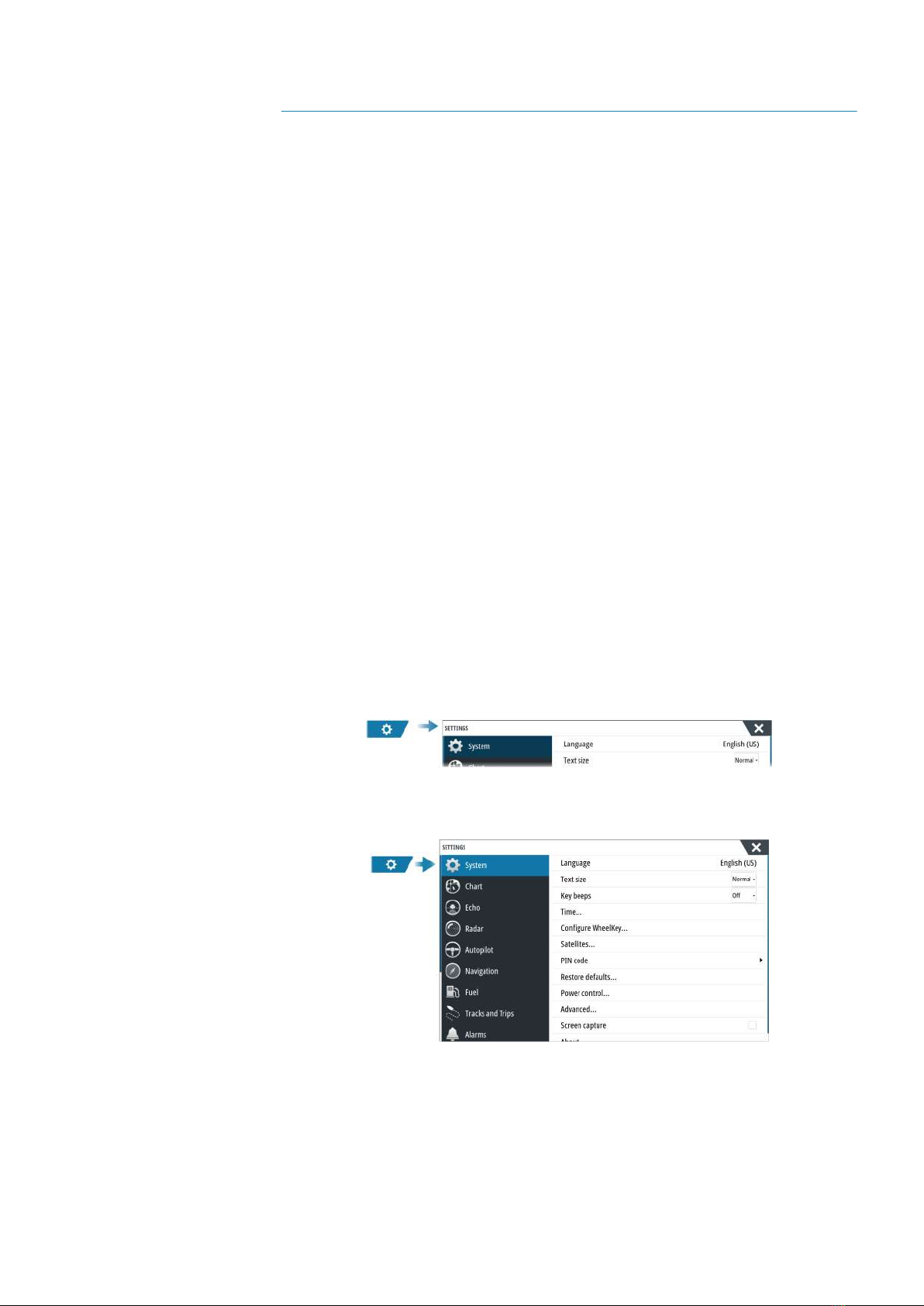

The settings dialog
The software setup is done from the settings dialog.
System settings
Boat settings
Used to specify the physical attributes of the boat.
Time
Configure time settings to suit vessel location, along with time and date formats.
4
Software setup | NSO evo3S MPU Installation Manual

PIN code
Sets a PIN code to prevent unauthorized access to your system's settings.
Note: Record the PIN code and store it in a safe place.
When you establish password protection, the PIN code must be entered when any of the
following are selected. After the correct PIN code is entered, all of them can be accessed
without re-entering the PIN code.
•Settings, activated from the home page or system controls dialog
•Alarms, activated from the toolbar
•Storage, activated from the toolbar
•Store, activated from the toolbar
Power control setup
Determines unit response to signal applied to the power control wire. Refer to "Power control
connection" on page 13.
This setting is only applicable if the yellow wire is used for power control.
•Set to slave if the yellow wire is connected to ignition or to a stand-alone switch
•Set to master to make this device turn other devices connected to the master slave bus on
and off
When a master unit is turned on or off, all units connected to the same master slave bus
turns on or off.
While a master unit is on, a slave unit cannot be turned off.
If no master unit is turned on, slave units can be turned on or off individually.
USB ports
By default, one USB port is assigned to each monitor.
If a mouse or a keyboard is used to only control one of the displays, set the USB port used to
be permanently assigned to one display.
If a mouse or a keyboard is used to control both monitors, the USB port used need to be
setup to be switchable between the monitors.
ÚNote: A USB port should be set to switchable only when used for a mouse or a keyboard.

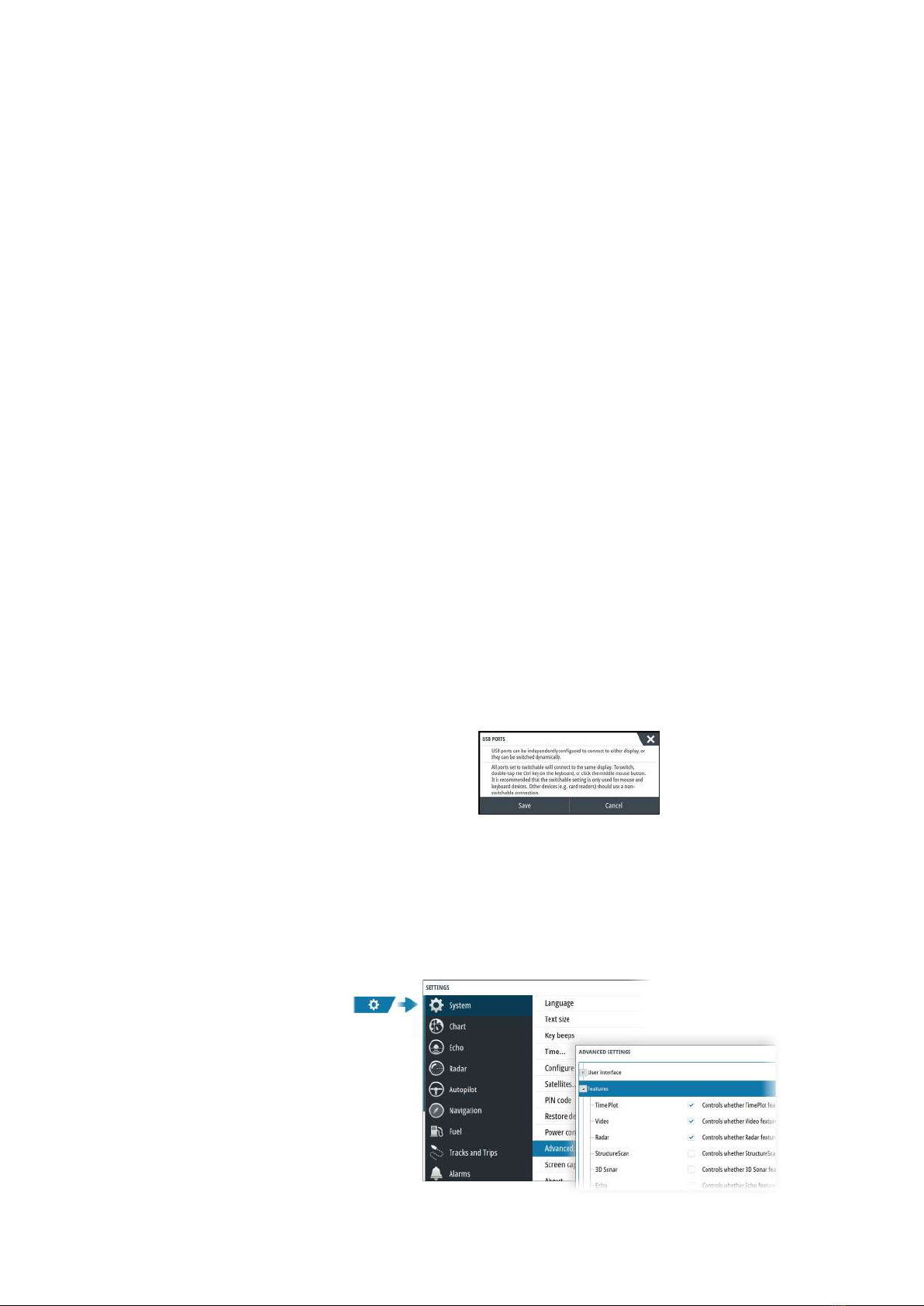

Advanced
Enabling or disabling features
Use the feature option to enable or disable features that are not automatically enabled or
disabled by the system.
Software setup | NSO evo3S MPU Installation Manual
