ADDENDUM for NSS evo3S Operator Manual
The synchronize feature
The C-MAP Embark button in the system controls dialog is replaced with a Synchronize my
data button. The C-MAP Embark option in the Services Settings dialog is also replaced with a
Synchronize my data option.
Example of the Synchronize my data button in the system controls dialog:
Using the synchronize feature
•Waypoints
•Routes
•Tracks
Use the MFD's Synchronize my data option to synchronize between the MFD and your
Simrad app account.
Requirements
•An account with the Simrad mobile app
ÚNote: Your C-MAP Embark or C-MAP app account credentials can be used to sign-in to
the mobile app. You do not need to create a separate mobile app account.
•To synchronize, the unit must be connected to the internet. To connect the unit to the
internet, refer to the operator manual.
Synchronizing
After sign-in, the system advises the last time synchronizing occurred and the following
options are available:
•Edit - use to change sign-in credentials
•Auto Synchronize - synchronizing occurs periodically in the background when connected
to the internet
•Synchronize now - synchronizing occurs immediately

ENGLISH
NSS evo3S
Installation Manual

Preface
Disclaimer
As Navico is continuously improving this product, we retain the right to make changes to the
product at any time which may not be reflected in this version of the manual. Please contact
your nearest distributor if you require any further assistance.
It is the owner’s sole responsibility to install and use the equipment in a manner that will not
cause accidents, personal injury or property damage. The user of this product is solely
responsible for observing maritime safety practices.
NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM ALL
LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE
OR THAT MAY VIOLATE THE LAW.
This manual represents the product as at the time of printing. Navico Holding AS and its
subsidiaries, branches and affiliates reserve the right to make changes to specifications
without notice.
Governing language
This statement, any instruction manuals, user guides and other information relating to the
product (Documentation) may be translated to, or has been translated from, another
language (Translation). In the event of any conflict between any Translation of the
Documentation, the English language version of the Documentation will be the official
version of the Documentation.
•CE under RED 2014/53/EU
United States of America
Navico declare under our sole responsibility that the product conforms with the
requirements of:
•Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation
Warning: The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
ÚNote: This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that the interference will not
Preface | NSS evo3S Installation Manual 3

occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from that of the receiver is
connected
•Consult the dealer or an experienced technician for help
ISED Canada
This device complies with ISED (Innovation, Science and Economic Development) Canada’s
license-exempt RSSs. Operation is subject to the following two conditions: (1) This device
may not cause interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
La traduction française de ce document est disponible sur le site Web du produit.
Australia and New Zealand
Navico declare under our sole responsibility that the product conforms with the
requirements of:
•level 2 devices of the Radiocommunications (Electromagnetic Compatibility) standard
2017
•radiocommunications (Short Range Devices) Standards 2014
Internet usage
Some features in this product use an internet connection to perform data downloads and
uploads.
Internet usage via a connected mobile/cell phone internet connection or a pay-per-MB type
internet connection may require large data usage. Your service provider may charge you
based on the amount of data you transfer. If you are unsure, contact your service provider to
confirm rates and restrictions.
Trademarks
Navico®is a registered trademark of Navico Holding AS.
Simrad®is used by license from Kongsberg.
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
C-Monster™is a trademark of JL Marine Systems, Inc.
CZone™is a trademark of Power Products LLC.
Evinrude®is a registered trademark of BRP US, Inc.
FLIR® is a registered trademark of FLIR.
HDMI®and HDMI™, the HDMI Logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Mercury®is a registered trademark of Mercury.
NMEA®and NMEA 2000®are registered trademarks of the National Marine Electronics
Association.
Power-Pole®is a registered trademark of JL Marine Systems, Inc.
SD™and microSD™are trademarks or registered trademarks of SD-3C, LLC in the United
States, other countries or both.
SmartCraft VesselView®is a registered trademark of Mercury.
Suzuki®is a registered trademark of Suzuki.
Yamaha®is a registered trademark of Yamaha.
4Preface | NSS evo3S Installation Manual

Navico product references
This manual refers to the following Navico products:
•Broadband Radar™ (Broadband Radar)
•GoFree™ (GoFree)
•Halo™ Pulse Compression Radar (Halo Radar)
About this manual
Images used in this manual might not exactly match the screen on your unit.
Important text conventions
Important text that requires special attention from the reader is emphasized as follows:
ÚNote: Used to draw the reader’s attention to a comment or some important information.
Warning: Used when it is necessary to warn personnel that they should
proceed carefully to prevent risk of injury and/or damage to equipment/
personnel.
Intended audience
This manual is written for system installers.
The manual assumes that the reader has basic knowledge about this type of equipment with
regards to:
•installation work to be carried out
•nautical terminology and practices
Preface | NSS evo3S Installation Manual 5

Contents
7 Introduction
7Parts included
8 Front controls
9 Card reader
10 Connectors
11 Installation
11 General mounting guidelines
13 U-bracket mounting
14 Panel mounting

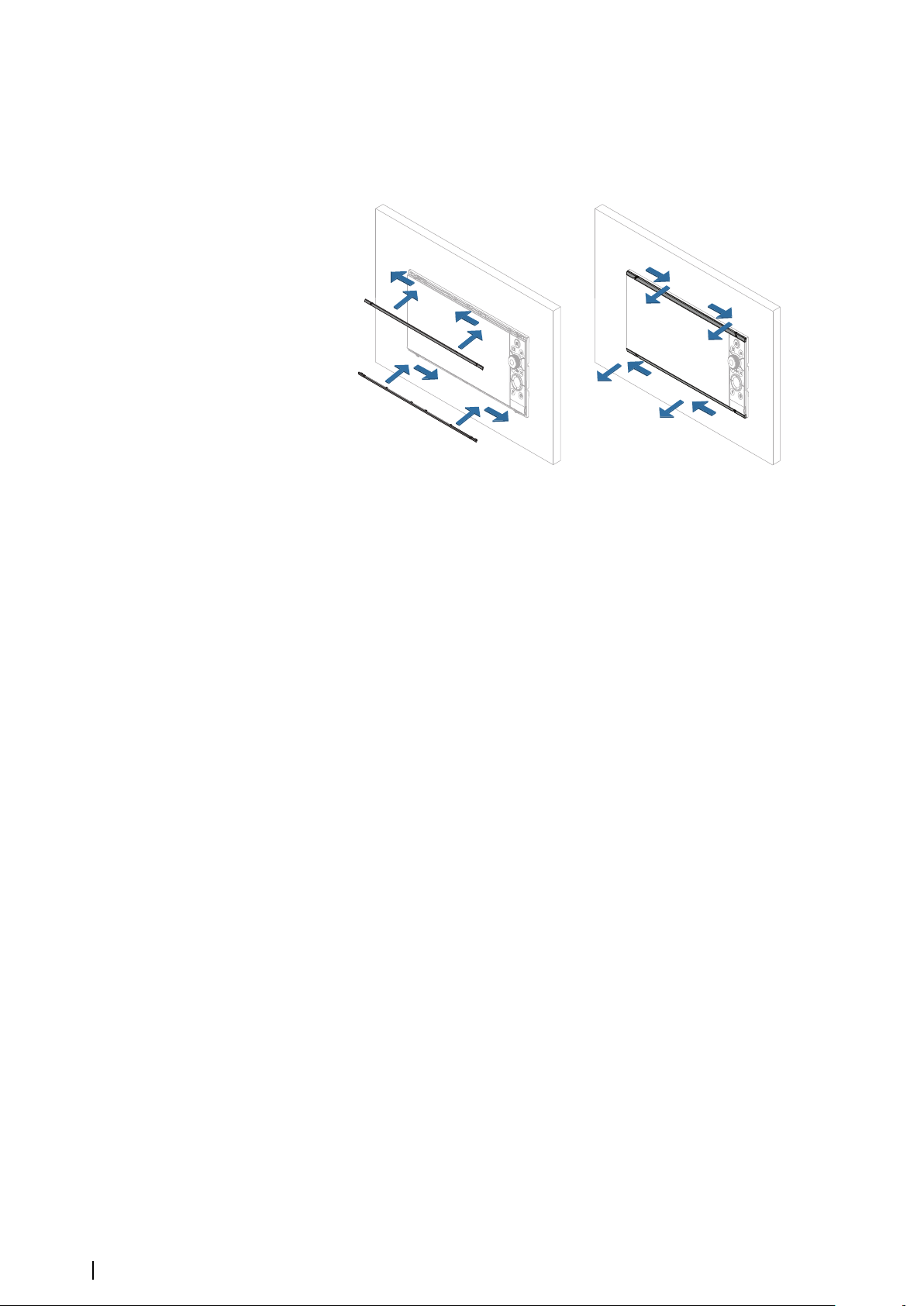

14 Bezel fitment and removal
15 Wiring
15 Connectors
15 Wiring guidelines

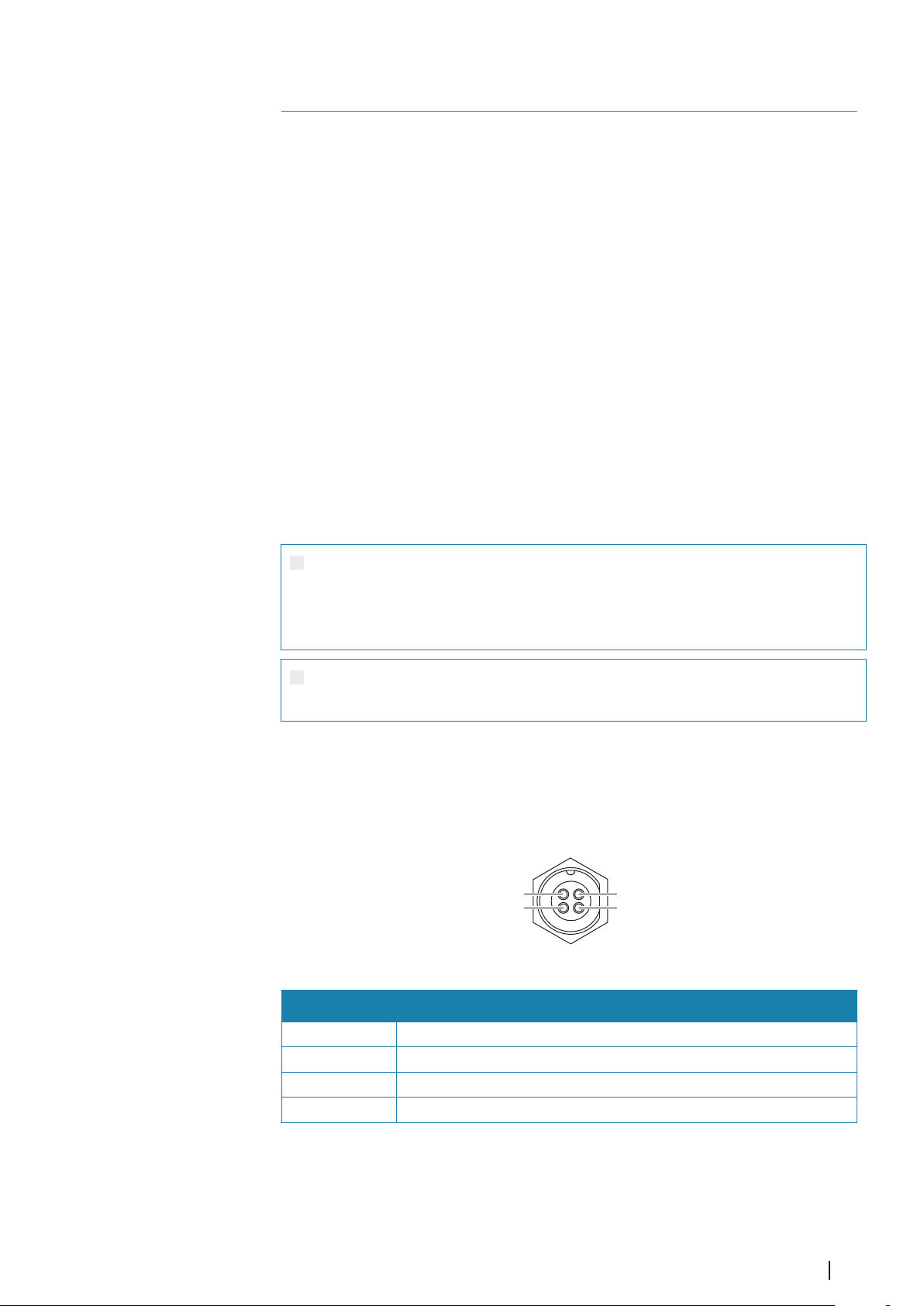

15 Power

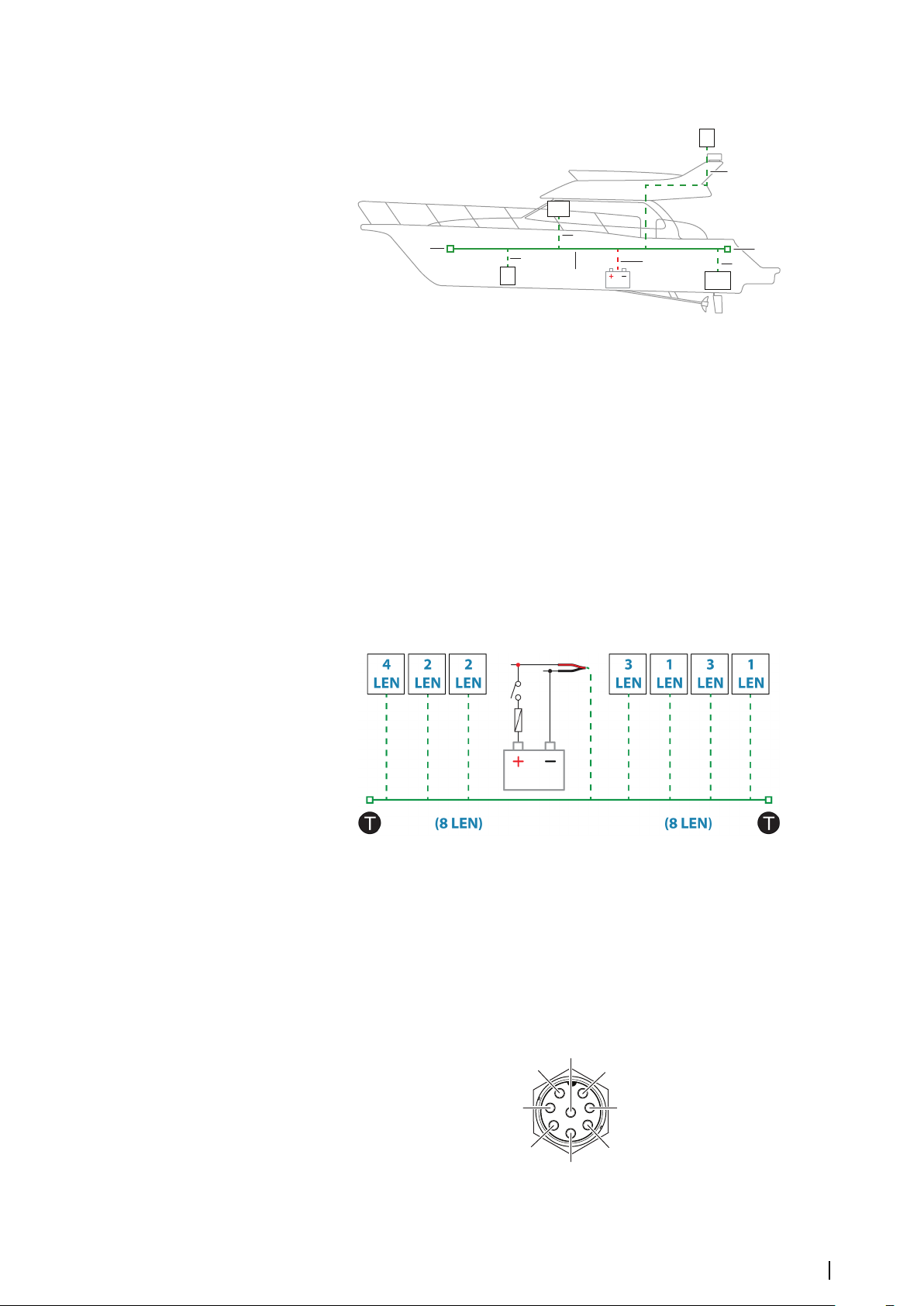

18 NMEA 2000

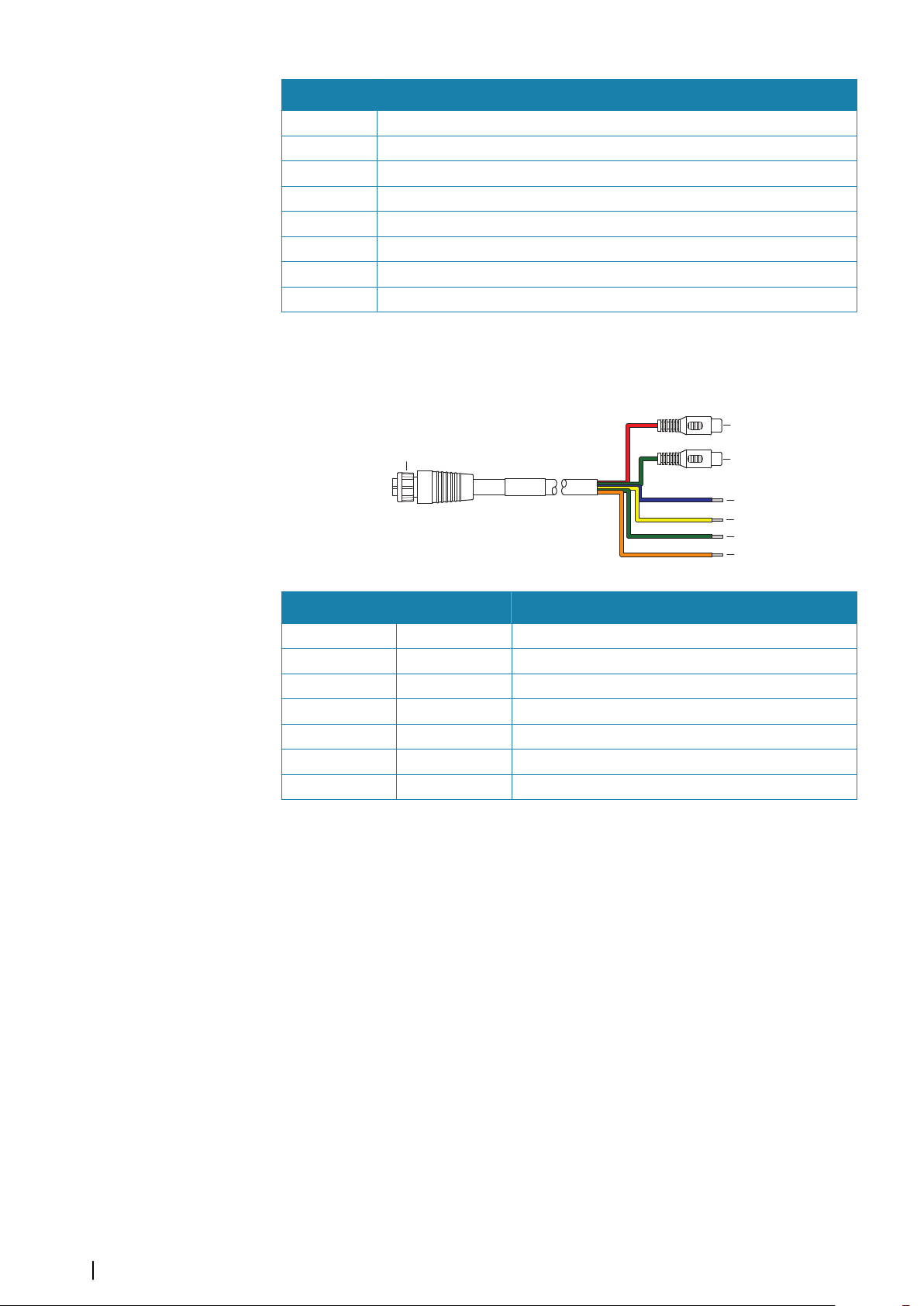

19 Video IN and NMEA 0183
21 Ethernet
22 Sonar CH1 - blue connector
22 Sonar CH2 - black connector
23 HDMI out
23 USB port
25 System setup
25 Turning the system on and off
25 First time startup
25 System setup sequence
25 The settings dialog
25 System settings
27 Activating/deactivating features and applications
27 Alarms
28 Radar installation
30 Echosounder settings
33 Autopilot settings
35 Fuel settings
36 Wireless settings
37 Network settings
40 3rd party support
40 CZone
41 Naviop
41 Mercury
41 Suzuki Marine
41 Yamaha
41 Evinrude
41 Power-Pole
41 FLIR camera setup
43 Appendix
43 Technical specifications
45 Dimensional drawings
46 Supported data
6Contents | NSS evo3S Installation Manual

Introduction
Parts included
A
C
BD
EFa G
Fb
ADisplay unit
BBezel trim
CDocumentation pack
DSun cover
EPower cable kit
•Power cable
•Fuse
•Fuse holder

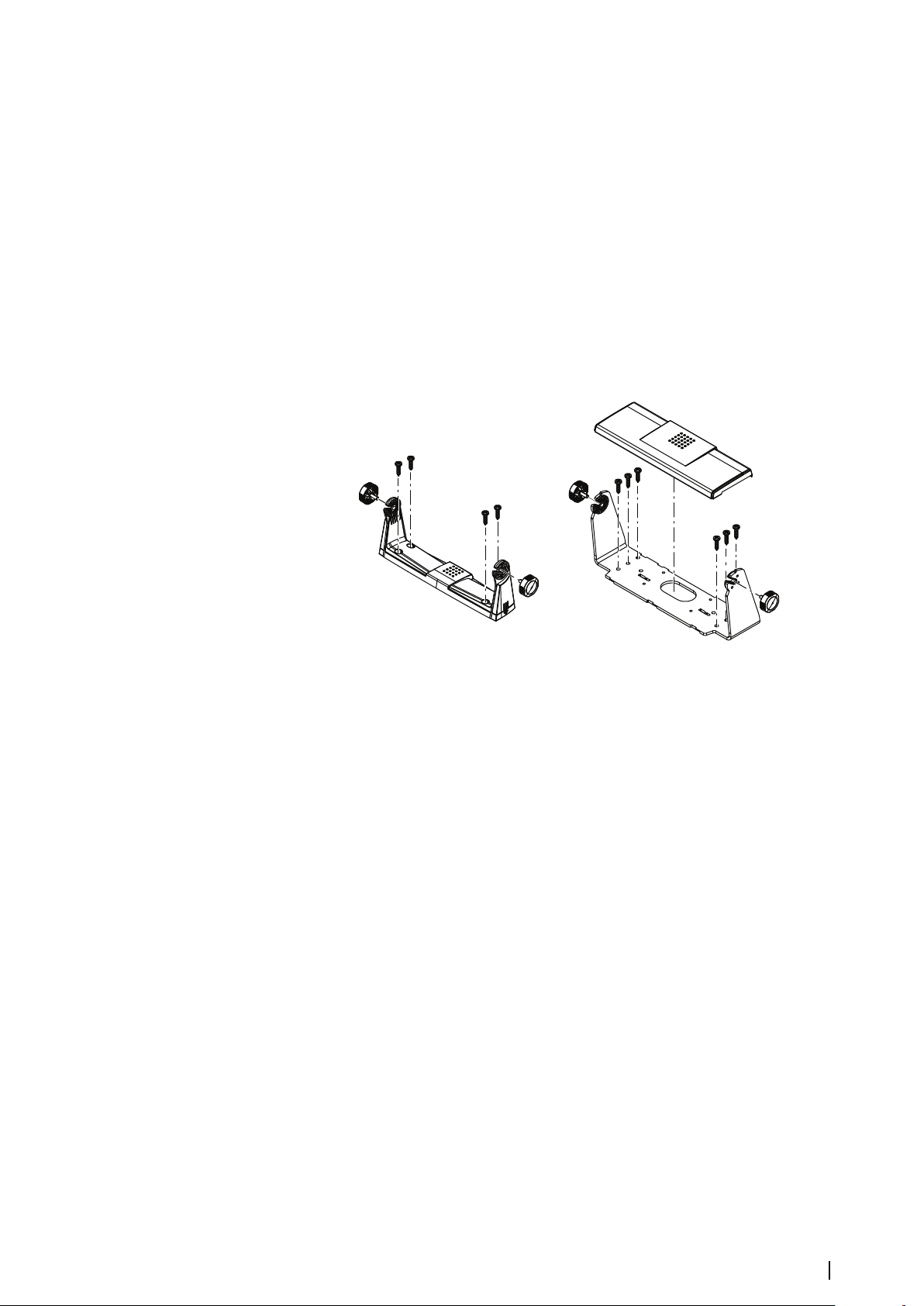

Fa U-bracket kit - 9" units
•Plastic U-bracket
•Bracket knobs
•Mounting screws
- 4x #10x3/4" self-tapping pan head
Fb U-bracket kit - 12" units
•Metal U-bracket
•Bracket cover
•Bracket knobs
•Mounting screws
- 6x #14x1" self-tapping pan head
- 4x M4x12 pan head
GPanel mounting kit
•Gasket
•Screw jig
•Mounting screws
- 9" and 12" units: 8x #4x1/2" self-tapping pan head
- 16" units: 12x #4x1/2" self-tapping pan head
ÚNote: U-bracket kit for 16" units is sold separately.
1
Introduction | NSS evo3S Installation Manual 7

Front controls
A
K
E
B
G
CD
F
I
J
L
H
A Touch screen
B Pages/Home
•Press to open the Home page for page selection and setup options.
C WheelKey - user configurable key. Refer to "Configure WheelKey" on page 26.
Default without an autopilot connected to the system:
•Short press: toggles between panels on split screen.
•Long press: maximizes active panel on split screen.
Default with an autopilot connected to the system:
•Short press: opens the autopilot controller and puts the autopilot in standby
mode.
•Long press: toggles between panels on split screen.
D Menu key
•Press to display the active panel's menu.
E Rotary knob
•Turn to zoom or scroll the menu, press to select an option.
F Enter key
•Press to select an option or to save settings.
G Exit key
•Press to exit a dialog, return to previous menu level, and clear the cursor from
the panel.
H MOB
•Press simultaneously the Enter and Exit keys to create a MOB at the vessel's
position.
I Arrow keys
•Press to activate the cursor or to move the cursor.
•Menu operation: press to navigate through menu items and to adjust a value.
J Mark key
•Press to place waypoint at vessel position or at cursor position when the cursor
is active.
•Press and hold to open the Plot dialog from where you can select options to
add new or manage existing waypoints, routes and tracks.
8Introduction | NSS evo3S Installation Manual

K Power key
•Press and hold to turn the unit ON/OFF.
•Press once to display the System Controls dialog. Repeat short presses to toggle
through the default dimming levels.
L Card reader door

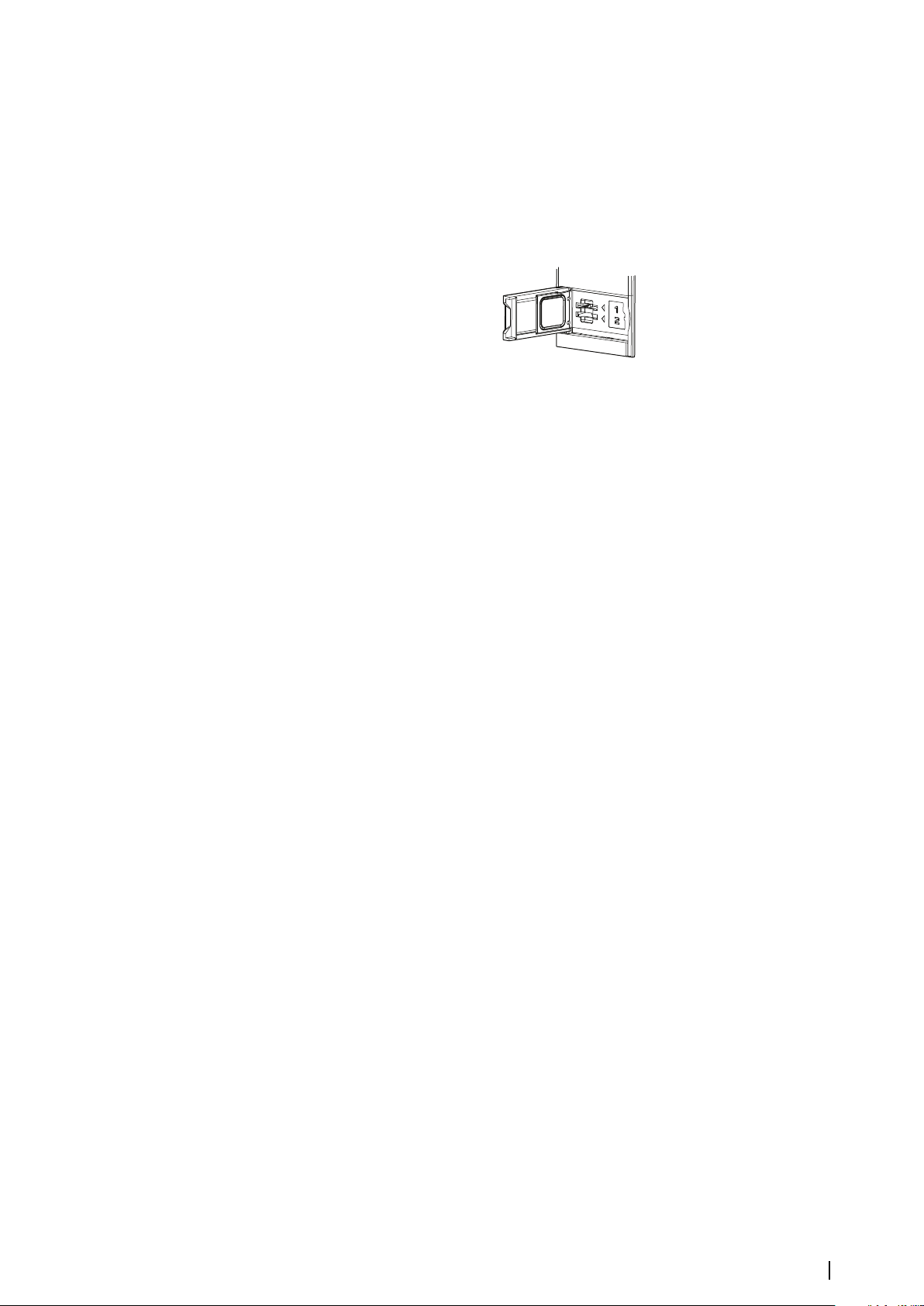

Card reader
A memory card can be used for:
•Chart data
•Software updates
•Transfer of user data
•Logging user data
•System backup
ÚNote: Do not download, transfer or copy files to a chart card. Doing so can damage chart
information on the chart card.
The protective door should always be securely shut immediately after inserting or removing
a card, in order to prevent possible water ingress.
Introduction | NSS evo3S Installation Manual 9

Connectors
Connectors
9" units
E
F
SONAR 2
SONAR 1
POWERETHERNETVIDEONMEA2000
D
C
A
B
12" units
ETHERNET ETHERNET HDMI VIDEO NMEA2000 POWER SONAR 1 SONAR 2
A A
G
B
C
D E
F
16" units
ETHERNET ETHERNETUSB HDMI VIDEO NMEA2000 POWER SONAR 1 SONAR 2
AA
HG
BC
D E
F
A Ethernet - Ethernet network
B Power - power, power control, and external alarm
C Video- composite video and NMEA0183
D NMEA 2000 - NMEA 2000 data
E Sonar CH1
F Sonar CH2
G HDMI - HDMI video output
H USB connector - mouse, keyboard or mass storage
10 Introduction | NSS evo3S Installation Manual

Installation
General mounting guidelines
Warning: Do not install the unit in a hazardous/flammable atmosphere.
ÚNote: Choose a mounting location that will not expose the unit to conditions that
exceed the technical specifications.
Mounting location
Ensure that the selected area allows for:
•Cable routing, cable connection and cable support.
•Connection and use of portable storage devices.
•Viewing any LED indicators.
•Easy access to serviceable parts.
Do also consider:
•The free space around the unit to allow for adequate cooling.
•The mounting surface’s structure and strength, with regard to the weight of the
equipment.
•Any mounting surface vibration that might damage the equipment.
•Hidden electrical wires that might be damaged when drilling holes.
Ventilation
Inadequate ventilation and subsequent overheating of the unit will cause unreliable
operation and reduced service life.
Ventilation behind units is recommended for all units which are not bracket mounted.
Examples of enclosure ventilation options, in order of preference, are:
•Positive pressure air from the vessel's air conditioning system.
•Positive pressure air from local cooling fans (fan required at input, fan optional at outlet).
•Passive airflow from air vents.
Electrical and radio frequency interference
This unit conforms to the appropriate Electromagnetic Compatibility (EMC) regulations. To
ensure that the EMC performance is not compromised, the following guidelines apply:
•Separate battery used for the vessel engine.
•Minimum 1 m (3 ft) between the device, the device's cables and any transmitting
equipment or cables with radio signals.
•Minimum 2 m (7 ft) between the device, the device's cables and the SSB radio.
•More than 2 m (7 ft) between the device, the device's cables and the radar beam.
WiFi
It is important to test the WiFi performance before the location of the unit is decided.
Construction material (steel, aluminum, or carbon) and heavy structure might affect WiFi
performance.
The following guidelines apply:
•Select a location where there is a clear, direct line of sight between WiFi connected units.
•Keep the distance between WiFi units as short as possible.
•Mount the WiFi unit at least 1 m (3 ft) away from:
-Other WiFi enabled products.
- Products that send wireless signals in the same frequency range.
- Equipment that might generate interference.
2
Installation | NSS evo3S Installation Manual 11

Compass safe distance
The unit outputs electromagnetic interference that can cause inaccurate readings on a
nearby compass. To prevent compass inaccuracy the unit must be mounted far enough
away so the interference does not affect compass readings. For minimum compass safe
distance, refer to "Technical specifications" on page 43.

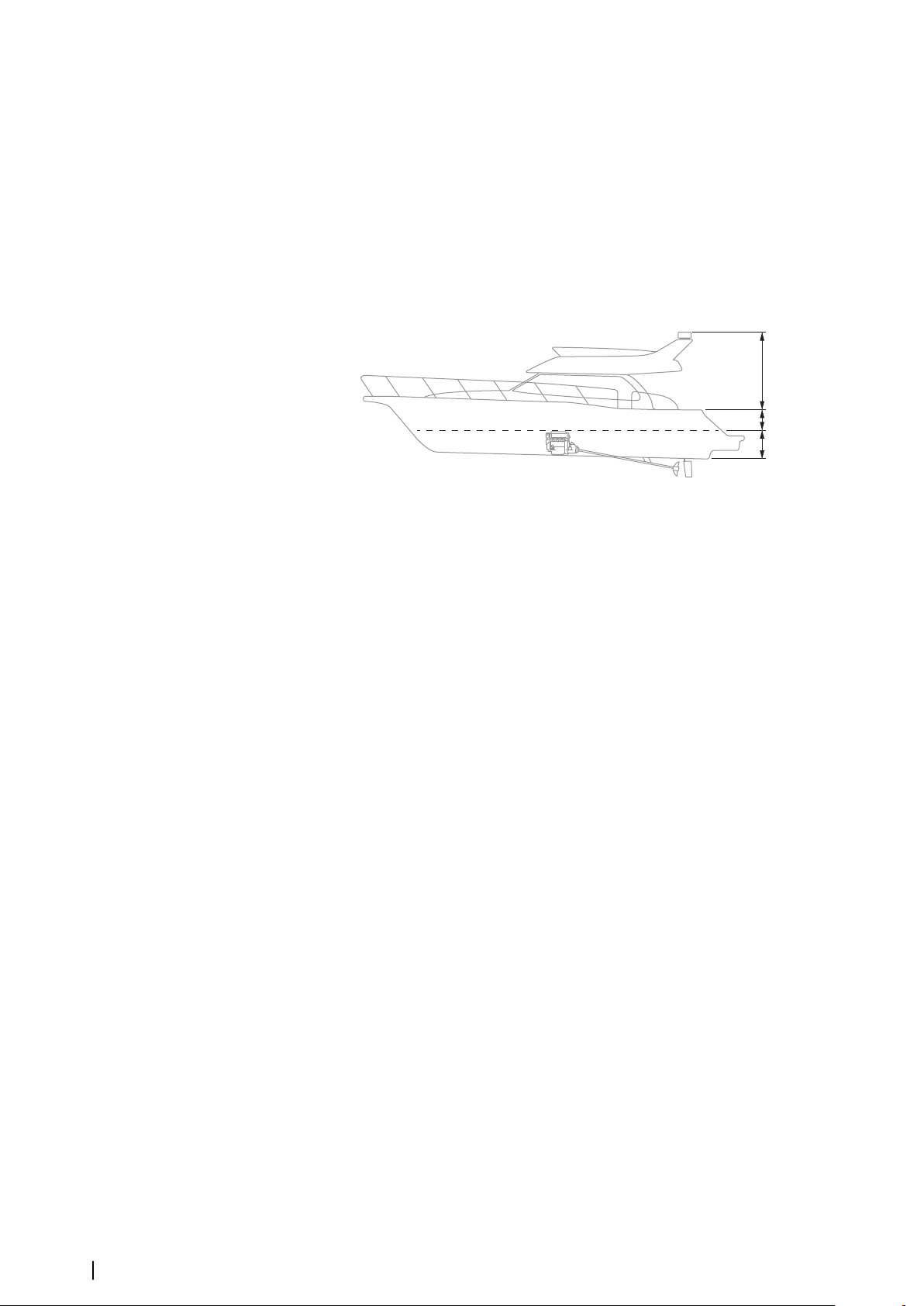

GPS
It is important to test the GPS performance before the location of the unit is decided.
Construction material (steel, aluminum, or carbon) and heavy structure might affect GPS
performance. Avoid a mounting location where metal obstacles block the view of the sky.
A well placed external GPS module can be added to overcome poor performance.
A
B
C
AOptimal location (above deck)
BLess effective location
CNot recommended location
ÚNote: Consider the lateral swinging if mounting the GPS sensor high above the sea level.
Roll and pitch might give false positions and affect the true directional movement.
Touchscreen
Touchscreen performance can be affected by the location of the unit. Avoid locations where
the screen is exposed to:
•Direct sunlight.
•Prolonged rainfall or floating water.
12 Installation | NSS evo3S Installation Manual

U-bracket mounting
1 Place the bracket in the desired mounting location. Ensure that the chosen
location has enough height to accommodate the unit fitted in the bracket, and
allows tilting of the unit. Also adequate space is required on both sides to allow
tightening and loosening of the knobs.
2 Mark the screw locations using the bracket as a template, and drill pilot holes.
3 Screw down the bracket using fasteners that are suitable for the material you are
mounting the bracket on.
4 For metal brackets, install the plastic cover over the lower part of the bracket.
5 Mount the unit to the bracket using the knobs. Hand tighten only.
The screws shown below are for illustration purposes only. Use fasteners that are suitable for
the material you are mounting the bracket on.
Installation | NSS evo3S Installation Manual 13

Panel mounting
Refer to the separate mounting template for panel mounting instructions.
Bezel fitment and removal
ÚNote: The unit in the illustration is an example only.
14 Installation | NSS evo3S Installation Manual

Wiring
Connectors
Different models have different connectors. For available connectors and connector layout
refer to "Connectors" on page 10.
Wiring guidelines
Don't:
•Make sharp bends in the cables.
•Run cables in a way that allows water to flow down into the connectors.
•Run the data cables adjacent to radar, transmitter, or large/high current carrying cables or
high frequency signal cables.
•Run cables so they interfere with mechanical systems.
•Run cables over sharp edges or burrs.
Do:
•Make drip and service loops.
•Use cable-ties on all cables to keep them secure.
•Solder/crimp and insulate all wiring connections if extending or shortening the cables.
Extending cables should be done with suitable crimp connectors or solder and heat
shrink. Keep joins as high as possible to minimize possibility of water immersion.
•Leave room adjacent to connectors to ease plugging and unplugging of cables.
Warning: Before starting the installation, be sure to turn electrical power
off. If power is left on or turned on during the installation, fire, electrical
shock, or other serious injury may occur. Be sure that the voltage of the
power supply is compatible with the unit.
Warning: The positive supply wire (red) should always be connected to
(+) DC with a fuse or a circuit breaker (closest available to fuse rating).
Power
The power connector is used for power, power control and for external alarm output.
Power connector details
3
41
2
Unit socket (male)
Pin Purpose
1DC negative
2External alarm
3Power control
4+12/24 V DC
Power connection
The unit is designed to be powered by 12 or 24 V DC system.
3
Wiring | NSS evo3S Installation Manual 15

It is protected against reverse polarity, under voltage, and over voltage (for a limited
duration).
A fuse or circuit breaker should be fitted to the positive supply. For recommended fuse rating
refer to "Technical specifications" on page 43.
C
A B
Key Purpose Color
A+12/24 V DC Red
BDC negative Black
CFuse
Power control connection
The yellow wire in the power cable can be used to control how the unit is turned on and off.
Power controlled by power key
The unit will turn on/off when the power key on the unit is pressed.
Leave the yellow power control wire disconnected and tape or heat-shrink the end to
prevent shorting.
Power control by supply power
The unit will turn on/off without using the power key when power is applied/removed.
Connect the yellow wire to the red wire after the fuse.
ÚNote: The unit cannot be powered down by power button, but can be put in to standby
mode (the screen backlight turns off).
A
Key Purpose Color
APower control wire, connected to supply power Yellow
Power controlled by ignition
The unit will turn on once ignition is turned on to start engines.
ÚNote: Engine start batteries and house batteries should have a common ground
connection.
16 Wiring | NSS evo3S Installation Manual

A
B
Key Purpose Color
APower control wire Yellow
BIgnition switch
Power controlled by power bus
The yellow power control wire can either be an input that will turn on the unit when power
is applied, or an output that turns on other devices when the unit is powered on. It can be
configured at the installation stage to control the power state of displays and compatible
devices. When commissioning the system, the unit can be set to be a power control slave or
power control master.
A
B
A
Key Purpose Color
APower control wire Yellow
BPower control bus
If a unit is configured as power control master and turned on by the power key, it will output
voltage on the power bus. This will power on both other power master units and power
slave units. If a unit is set to power control slave, it cannot be powered down using its own
power key while a power control master unit is turned on. Pressing the power key will set the
unit to standby. If all power control masters are off, power control slaves can be turned on
and off using their own power key. However, this will not turn on any other units connected
to the power bus.
Wiring | NSS evo3S Installation Manual 17

External alarm
A A
B
C
For sirens that draw more than 1 A, use a relay.
Key Purpose Color
AExternal alarm output Blue
BSiren and relay
CBuzzer
NMEA 2000
The NMEA 2000 data port allows receiving and sharing of a multitude of data from various
sources.
Connector details
2
1
3
4
5
Unit socket (male)
Pin Purpose
1Shield
2NET-S (+12 V DC)
3NET-C (DC negative)
4NET-H
5NET-L
Plan and install an NMEA 2000 network
An NMEA 2000 network consists of a powered backbone from which drop cables connect to
NMEA 2000 devices. The backbone needs to run within 6 m (20 ft) of the locations of all
products to be connected, typically in a bow to stern layout.
The following guidelines apply:
•The total length of the backbone should not exceed 100 meters (328 ft).
•A single drop cable has a maximum length of 6 meters (20 ft). The total length of all drop
cables combined should not exceed 78 meters (256 ft).
18 Wiring | NSS evo3S Installation Manual

•A terminator must be installed at each end of the backbone. The terminator can be a
terminator plug or a unit with built-in terminator.
A
A
A
CC
DB
B
B
B
E
A
ANMEA 2000 device
BDrop-cable
CTerminator
DPower supply
EBackbone
Powering the NMEA 2000 network
The network requires its own 12 V DC power supply, protected by a 3 amp fuse.
For smaller systems: connect power at any location in the backbone.
For larger systems: connect power at a central point in the backbone to balance the voltage
drop of the network. Make the installation such that the load/current draw on each side of
the power node is equal.
ÚNote: 1 LEN (Load Equivalency Number) equals 50 mA current draw.
ÚNote: Do not connect the NMEA 2000 power cable to the same terminals as the engine
start batteries, autopilot computer, bow thruster or other high current devices.
Video IN and NMEA 0183
The unit has a combined Video IN and NMEA 0183 connector. The connector is labelled
VIDEO on the rear of the unit.
Connector details
7
6
2
4
8
35
1
Unit socket (male)
Wiring | NSS evo3S Installation Manual 19

Pin Purpose
1Video 1 Ground
2Video 1 (+)
3Video 2 Ground
4Video 2 (+)
5NMEA 0183 TX_B
6NMEA 0183 TX_A
7NMEA 0183 RX_A
8NMEA 0183 RX_B
VIDEO IN/NMEA 0183 cable
ÚNote: This cable (part number 000-00129-001) is not included with the unit.
D
E
F
G
A
B
C
Key Color Purpose
AVideo in/data cable connector to unit
BRed Camera input 1 (RCA coaxial connector)
CGreen Camera input 2 (RCA coaxial connector)
DBlue NMEA 0183 TX_B
EYellow NMEA 0183 TX_A
FGreen NMEA 0183 RX_A
GOrange NMEA 0183 RX_B
Video input
The unit can be connected to a composite video source, and display video images on its
display.
ÚNote: Camera cables are not supplied, and will need to be selected to suit termination -
RCA at the unit, and typically BNC or RCA plug at the camera end.
ÚNote: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
ÚNote: Both NTSC and PAL formats are supported.
Video input configuration
Configurations to video input are made in the video panel. Refer to the Operator Manual for
more information.
NMEA 0183
The unit has a built in NMEA 0183 serial interface, providing both input and output. The
port(s) uses the NMEA 0183 (serial balanced) standard, and can be configured in the software
for different baud rates up to 38,400 baud.
20 Wiring | NSS evo3S Installation Manual
