SIMTOO Dragonfly Drone User manual
See yourself in another vision
4IFO;IFO4JNUPP*OUFMMJHFOU5FDIOPMPHZ$P-5%
8FTU*OEVTUSZ#VJMEJOH"1BSLSPBE#BPBO%JTUSJDU
4IFO[IFO$IJOB
5&--
8FCḬXXXTJNUPPDPN
Record the unique life of yours from the view of sky
嘒嘷嘼嘽嘪嘵嘵嘪嘽嘲嘸嘷嘖嘪嘷嘾嘪嘵
%SBHPOGMZ%SPOF

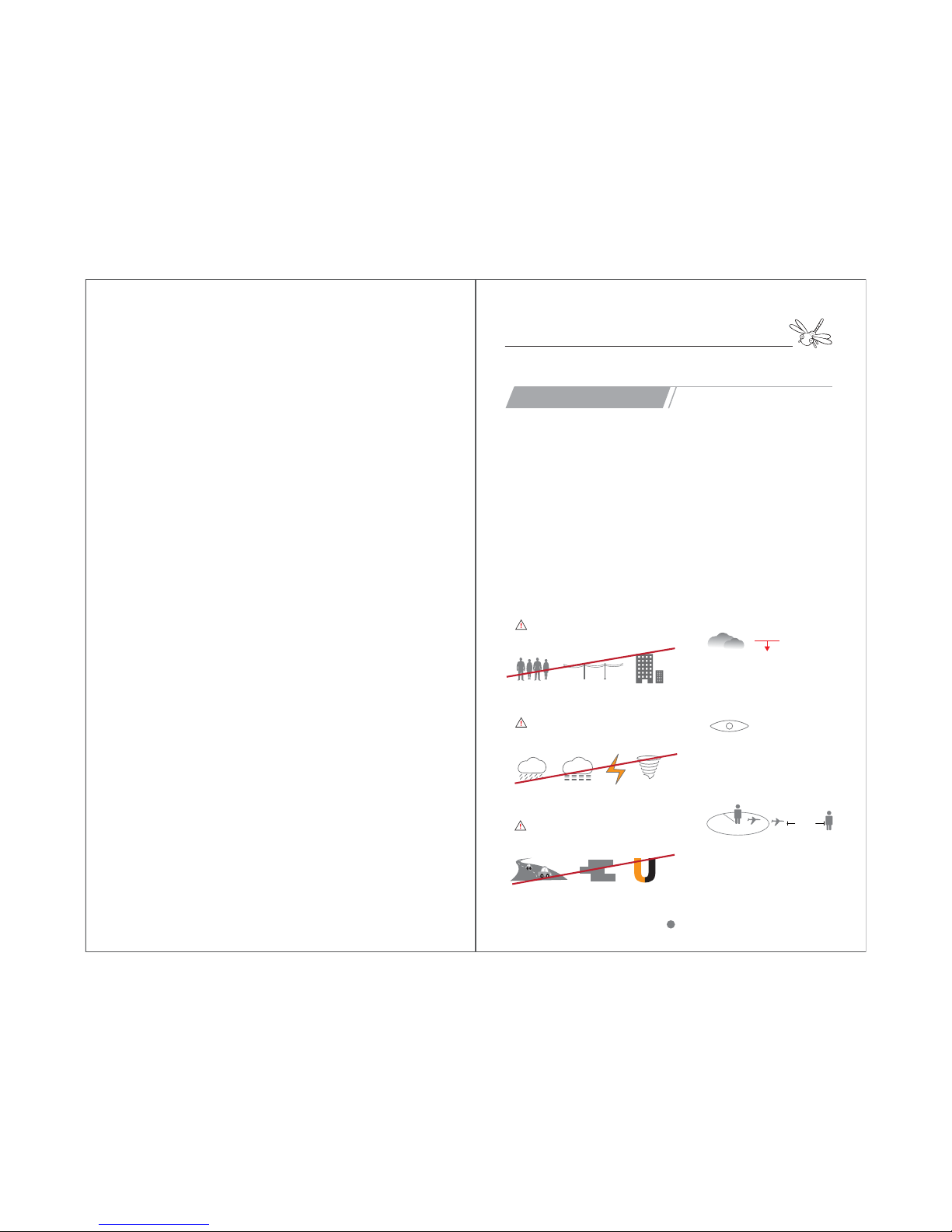

Preconditions
Notes: Keep dragonfly away from people, trees,
electric wires and building.
Notes:Do not fly in strong wind, rains, Thunder,
snow or fog
Notes: Do not fly over roads or near metal structure
and strong magnetic field
20 meters
Flight height of less than
Notes:please keep the flight altitude and
range within 20 meters
Keep dragonfly in your vision：
Do not fly across building or any other
obstacles which may cut your vision and
radio connection
Notes:
1.Do not fly over roads or near metal
structure and strong magnetic field.
2.Keep people more than 5 meters away
from the aircraft before takeoff to avoid
damage by propellers.
10 m
1.Ensure you are in an open area, most of your aircraft's abilities rely on strong GPS signal
that can easily be weakened by nearby structures.
2.Put the aircraft on the flat ground. Long press the power button on the aircraft tail, when
the Red indicators keep on.
3.After startup, aircraft will have self-checking. Don’t touch or move aircraft when it’s
self-checking in case of failure. Blue indicators are quick flashing when self-checking.
It becomes slow flashing when self-checking completes. Aircraft will also alarm“Di-Di-Di-Di-.....”
when gimbal self-checking complete. When the watch displays 16 satellites, it’s ready to fly.
4.You’d better keep 2 meters away from the aircraft when it takes off, in case of danger and
unstable GPS signal.
5.If aircraft quickly deviate or keep ascending beyond 6 meters due to the site, weather, or
surrounding electromagnetic interference, please immediately short press the “land” button
to force aircraft to land.
（Ⅰ）Safe Flying Tips
5m 〈
1
PreconditionsPreconditions
Aircraft：
Power Button
Smart Watch：
GPS Tracker：
Satellite Signal(GPS)
Aircraft Battery Capacity
〉5m
Follow Tracker Watch
Signal connected
Connection distance less than 1 meter
(Please take it by your side)
1
2
1 2 3
3

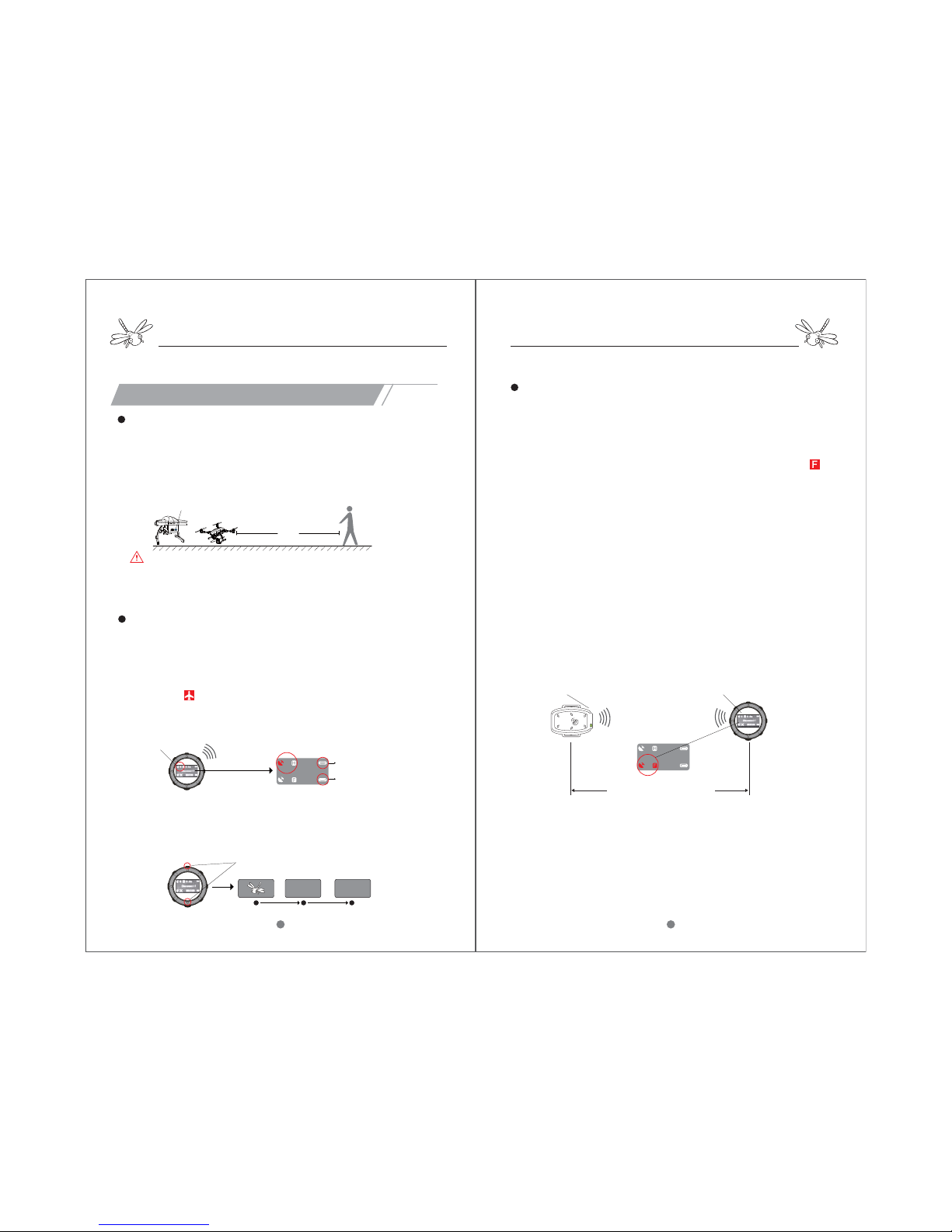

（Ⅱ）Preconditions of aircraft, watch and tracker
08
08
0.
08:03:55
0m
1 2
08
0.
08:03:55
0m
Bind code ... 0
NET ID:XXX
Bind code Begin ...
Watch matches the aircraft:
Long press the watch power button and descend button until watch show the ID no.
Watch Battery Capacity
1. Turn on the aircraft before turning on the watch.
2. Turn on the watch, it’ll search and connect the aircraft until it shows the control interface.
3. After the aircraft connects watch, short press the power button on the watch, the aircraft
front red color will be on. Short press it again, the front red color will be off.
4. Dragonfly drone is not recommended to take off until it gets more than 12 GPS satellites
and a sign of “ ”are shown at the upper left of watch screen.
5. Smart watch interface will display battery icons, the one on the top is for aircraft, the other
one on the bottom is for watch itself.
Please do not touch/move the drone when you just switch on the battery otherwise it will
cause drone`s self-checking failure..When the drone and gimbal finished self-checking and
ring "DI DI DI", you can start to take off the drone.
1.Place Dragonfly drone on flat ground before turning on the battery. The front LED lights
will shine red and rear LED lights will flash blue slowly.
2.When the rear LED lights rapidly flashes blue, Dragonfly drone is doing self-check. The
lights will come back to solid blue when the self-check is completed.
3.Keep people 5 meters away from Dragonfly drone before starting the fly.
Match :
Make the aircraft short circuit part connected, power on the aircraft. After a few seconds,
take off the connector on the short circuit. Long Press the watch power button and descend
button until watch show the ID no, then loose the button and wait for the connection finished.
Match:
turn on watch and GPS tracker first, then use needle to stick the tiny hole on the back of
GPS tracker. The blue indicator flashes when it’s matching. And blue indicator keeps on
and “X” icon on the left bottom of watch will disappear when code-matching complete.
1. Turn on GPS tracker, when it connects 8 satellites at least, watch will display “ ”
icon on the left bottom, then aircraft could be into Follow me Mode.
2. Don’t cover the tracker’s signal; don’t take tracker far from the watch. You’d
better keep tracker and watch together within 1 meter.
3. If watch displays ”X” on the left bottom, it means disconnect to tracker, far distance
between watch and tracker, or you need to match code again.
4. Please ensure that you are familiar with all functions of watch before you get into follow
me mode.
5. Please ensure aircraft is far from high-rise buildings and electromagnetic interference.
Buildings will reflect GPS signal sometimes, which will lead to aircraft crash. Always fly in
open area.
6. Notice your “follow me” path, keep away from buildings, trees and other obstacles in
case of any damage.
7. Please keep the front of GPS tracker uncovered, or it’ll make the signal unstable to let
the aircraft fly in danger.
2 3
Precautions
（Ⅲ）Precautions of Flight

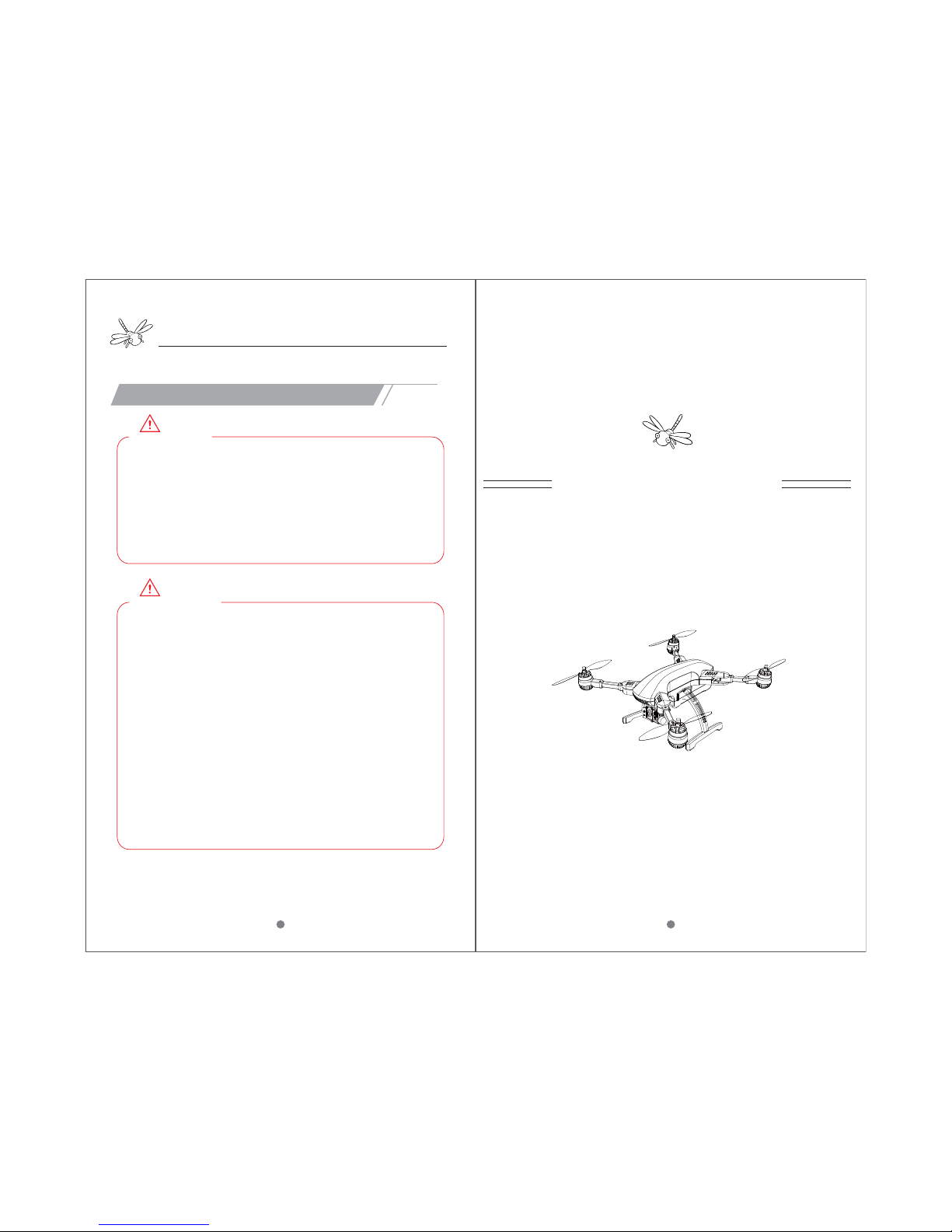

Installation Manual of Dragonfly Drone
* 10 steps presenting the smart shooting device
*Shenzhen Simtoo Intelligent Technology Co., LTD. * all rights reserved
Safety Precautions
1. The propellers are quite harmful, do not fly in crowds.
2. Our drone is quite harmful, fully smart and highly relies on GPS, please fly in a
wide open area and keep away from people, trees, electric wires, high buildings,
roads or near metal structure and strong magnetic field.
3. If the aircraft goes unstable due to effect from the ground, weather or electrom-
agnetism, press the land button immediately for an emergency landing.
4. Keep people more than 2 meters away from the aircraft before takeoff to avoid
damage by propeller.
5. Please do not touch/move the drone when you just switch on the battery other-
wise it will cause drone`s self-checking failure..When the drone and gimbal finished
self-checking and ring "DI DI DI", you can start to take off the drone.
Precautions of Flight
1.Please keep the watch, camera and aircraft fully charged before taking off.
2.The aircraft will be locked again if it doesn’t take off within 6 seconds. Please practice
the taking off and landing firstly, then try the left or right towards flight. The aircraft will
emit a continuous beep sound if it stands by for too long, you can turn off the battery or
unlock the aircraft to stop the sound. Please do not assemble the props when you test
dragonfly indoor and just try whether the motors are working properly.
3.Propellers must be tightened before flying, otherwise it’ll crash. The same color
propellers are located diagonally. The black color props are located at the front left and
rear right. The silver color props are located at the front right and rear left. (Please note
that the front is at the lens of camera).
4.The aircraft will blink red, emit beep and auto-land within 1 minutes when the battery is
low power.
5.When the watch is power off, dragonfly will return to the takeoff point and land safety.
6.When the aircraft is low power, it will land in its current spot instead of auto-return.
7.After landing 5 seconds later, the blue light flashes slowly and props stop rotating.
8.It’s necessary to press the hover button before one flight mode transferred to another.
9.When you press the Return to home button during flying, the aircraft will rise or decline
to the 15 meter height, then go back the above of landing point and decline to land.
10.The return to home function only works when the aircraft is more than 5 meters away
from home point, or it’ll land directly.
11.The max control height is 20 meters, it’ll be not work after rising up to 20 meter
height by watch.
4 5

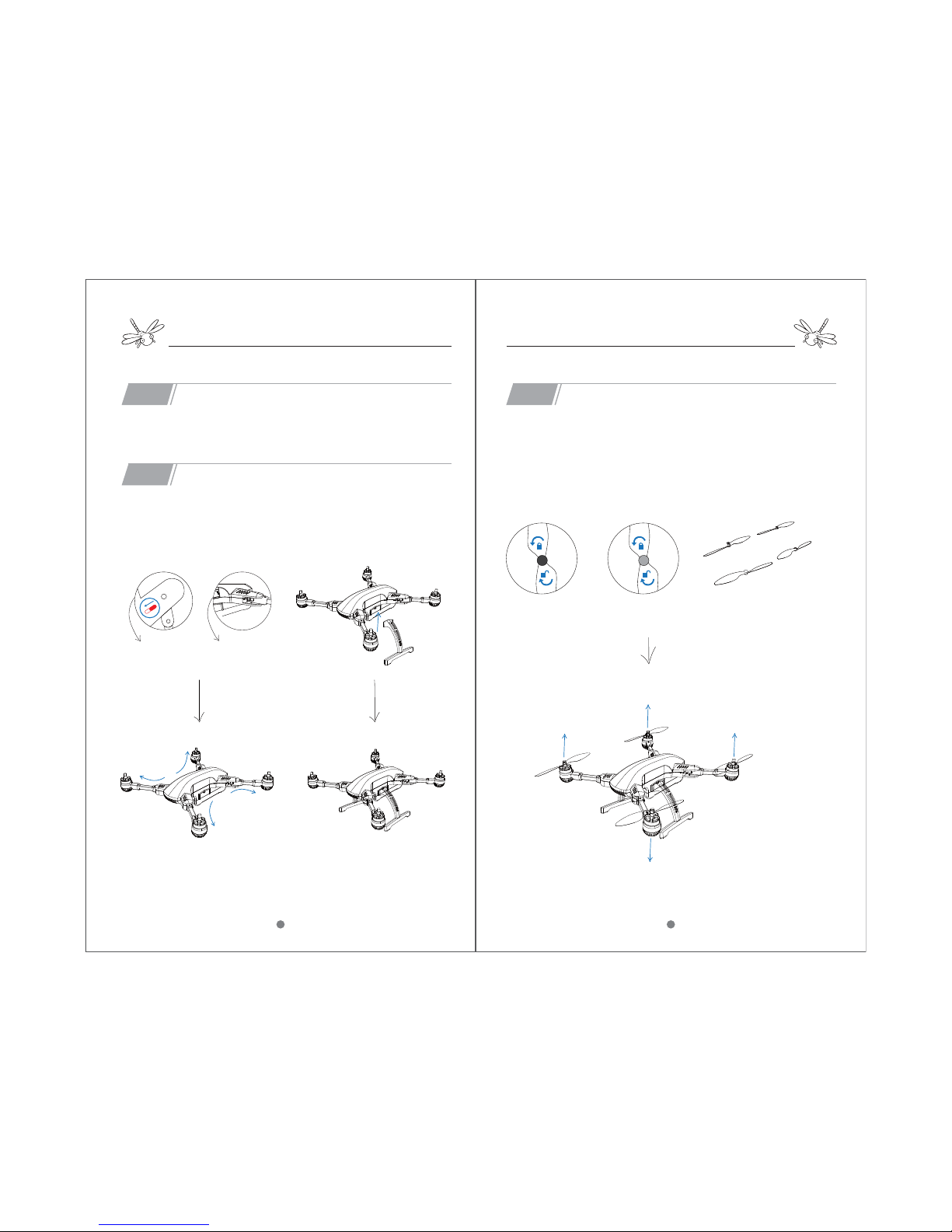

Propellers
Diagram1： Diagram2：
Unfold or fold the wings:
1.Unfold the rear wings before folding the front wings.
2. Fold the front wings before folding the rear wings.
Installation of landing gear at both sides：
Match the landing gear to the gear slot and push it up.
front wing
front wing
rear wing
rear wing
Folded wingPush the spring button under
the wings for unfolding or folding
*Notes:Fold the front wings before folding the rear wings. Do not force the wings without pulling the
button under the wing, by which the damage is out of warranty.
Wing(as the diagram1)Step1
Landing Gears(as the diagram2)Step2
Installation of propellers(2 black pointed and 2 silver pointed) ：
1.Tighten the propeller by spinning it in the lock direction
2. Spin the propeller in the unlock direction to loosen it.
Black pointed
Silver pointed
Black pointed
Silver pointed
Black pointed propeller Silver pointed propeller
lock
unlock
lock
unlock
Propellers(as the diagram)Step3
Diagram：
Wing & Landing Gears
6 7

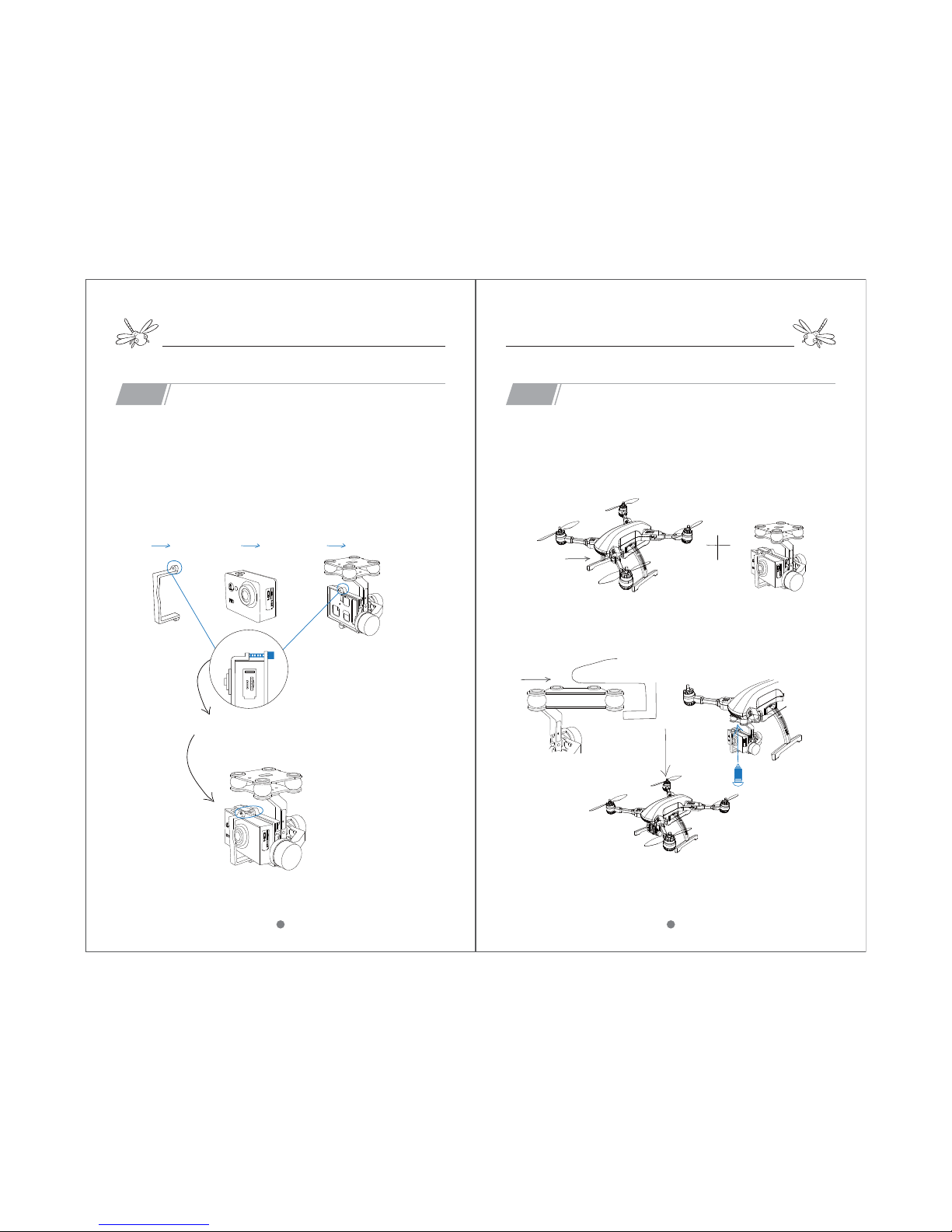

Gimbal & Camera
1.Release the gimbal clamp
2.Fit the camera into the gimbal holder
3.Tighten the gimbal clamp with long screw
Step one Step two Step three
Side view of screw tightening
Gimbal & Camera Installation(as the diagram)Step4
Diagram：
Gimbal & Airframe
1.Fit the gimbal mount under the head of airframe.
2.Drive a screw into the hole under the head of airframe through
the opening of gimbal mount.
airframe rear gimbal
the bottom of
airframe head
Step 1: Push the gimbal into the hanger Step 2：Match the opening of gimbal mount
with the airframe hole and drive in the screw
Fit gimbal into airframeStep5
Diagram：
*Warnings: Do not install or remove the gimbal while the aircraft is power on.
The screw must be fully driven in to fix the gimbal.
8 9
Battery & Airframe
Diagram：
Battery Installation：
1.Pull up the spring button at the airframe rear to let the battery
in or out
2.Match the battery plug with the slot on PCB before fully pushing
the battery in.(as the diagram)
airframe
PCB Slot
Battery Plug
battery plug
Spring button at the airframe rear battery
The right gesture to install battery
battery plug
Fit battery into airframe(as the diagram)Step6
Diagram:
Battery Charger Camera Watch
USD charger cable
Charging cable for battery, charger, watch,
camera (as the diagram)
Charger power cable
Battery charger cable
Watch, camera (charging cable
and data cable are the same)
Step7
35*+
51
Frequency Range
Modulation Mode
Line of Sight Range
Battery
Color
Weight
915MHz
FSK
60m(180ft)
5500mAh 3S Lion-rechargable battery
Red/Black/Blue
1250g
Aircraft
Connecting Feature
General Specification
Charging cable
10 11
Smart Mode - Follow me
1RWH
7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD
&ODVV%GLJLWDOGHYLFHSXUVXDQWWR3DUWRIWKH)&&5XOHV7KHVHOLPLWVDUH
GHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQD
UHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQUDGLDWHUDGLR
IUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQGXVHGLQDFFRUGDQFHZLWKWKH
LQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV
+RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODU
LQVWDOODWLRQ,IWKLVHTXLSPHQWGRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRU
WHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRIIDQG
RQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQHRUPRUHRIWKH
IROORZLQJPHDVXUHV
5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD,QFUHDVHWKHVHSDUDWLRQEHWZHHQ
WKHHTXLSPHQWDQGUHFHLYHU
&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFK
WKHUHFHLYHULVFRQQHFWHG
&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS
7KHGHYLFHKDVEHHQHYDOXDWHGWRPHHWJHQHUDO5)H[SRVXUHUHTXLUHPHQW7KH
GHYLFHFDQEHXVHGLQSRUWDEOHH[SRVXUHFRQGLWLRQZLWKRXWUHVWULFWLRQ7KLVGHYLFH
DQGLWVDQWHQQDVPXVWQRWEHFRORFDWHGRURSHUDWLRQLQFRQMXQFWLRQZLWKDQ\
RWKHUDQWHQQDRUWUDQVPLWWHU
&DXWLRQ
$Q\FKDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKH
SDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKHXVHUV
DXWKRULW\WRRSHUDWHWKLVHTXLSPHQW
