Sirius Satellite Radio SATELLITE RADIO SIR-ECL2nt User manual

Installation Guide
SIR-ECL2nt
ECLIPSE COMPATIBLE
SIRIUS SATELLITE RADIO PLUS TRAFFIC TUNER

Congratulations on your purchase of the SIR-ECL2nt, the
Eclipse Compatible SIRIUS Satellite Radio Plus Trafc Tuner!
Your new SIRIUS Radio Plus Trafc Tuner is designed to work with compatible Eclipse satel-
lite ra dio ready headunits and trafc ready navigation systems. Contact Eclipse or SIRIUS for
model compatibility.
What is SIRIUS Satellite Radio?
Over 120 channels of the best
entertainment and completely
commercial-free music for your car,
home or ofce.
Only SIRIUS has more than 65 original
music channels, from today’s hits to R&B
oldies to classical masterpieces. From
authentic country and real bluegrass to cool
jazz, hot latin, reggae, rock and many more.
Best of all, it’s all completely commercialfree.
SIRIUS also has more than 55 channels of
world-class sports, news and
entertainment. Included as part of your
subscription, you get up to 16 NFL games a
week, up to 40 NBA games a week and up
to 40 NHL games a week. (Games are
broadcast during their respective seasons.)
Coupled with great sports news from
ESPN, the SIRIUS sports offering is
unrivaled. And don’t forget a host of other
great news and entertainment, like NPR,
CNBC, Fox News, Radio Disney and E!
Entertainment Radio. For more information,
visit www.sirius.com.
What is SIRIUS Trafc?
Navigational trafc information for 22
major metropolitan areas* in the
continental US.
SIRIUS Trafc conveys navigational trafc
information for visual display on a
compatible navigation system.
Using a navigation system (such as the
ECLIPSE AVN6610), trafc data from
SIRIUS is displayed either superimposed on
a navigation map, or in a list type format
displayed on the navigation screen. The
data provides trafc speed and ow
information as well as scheduled and
unscheduled incidents, alerting you to
congestion, accidents, road construction,
detours, and other trafc related information
as you drive. The SIRIUS Trafc data is
updated frequently enabling you to be up-to-
date regarding trafc situations. Based on the
information from SIRIUS Trafc, the navigation
system can then plan alternate routes before
you get caught in trafc, and if you make a
wrong turn, the system can recalculate your
route and get you back on track in seconds.
* Metropolitan areas for which the SIRIUS Trafc service is available as of November 2006
are: Atlanta, Austin, Baltimore, Boston, Buffalo/Niagra Falls, Columbus, Cincinnati, Cleveland,
Chicago, Dallas /Ft. Worth, Denver/Boulder, Detroit, Hartford/New Britain/Middletown, Houston/
Galveston, Kansas City, Las Vegas, Los Angeles, Memphis, Miami/Ft. Lauderdale/Hollywood
(FL), Milwaukee/Racine, Minneapolis/St. Paul, Nashville, New York City, Norfolk/Virgina Beach/
Newport News, Orlando, Philadelphia, Phoenix, Portland, Pittsburgh, Providence/Warwick/
Pawtucket, Sacramento, San Antonio, San Francisco/Oakland, San Diego, San Jose, Sara-
sota/Bradenton, Seattle, St. Louis, Tampa/St. Petersburg/Clearwater, Tacoma, Washington,
DC, Wilmington, and West Palm Beach/Boca Raton. Additional cities are expected to be added
as they become available.
2SIR-ECL2nt Installation Guide

3
SIR-ECL2nt Installation Guide
Table of Contents
Package Contents
Warnings and Cautions
Installation
Mounting the SIR-ECL2nt tuner
Installing the Antenna
Optimum Antenna Mounting Locations
Wiring and Cable Connections
System Connection Examples
Activating Your SIRIUS Subscriptions
Trafc Information Setup
Basic Operation
Audio Headunit Messages
Navigation System Messages
Specications
12 Month Limited Warranty
3
4
6
6
6
7
8
10
15
17
19
21
21
22
23

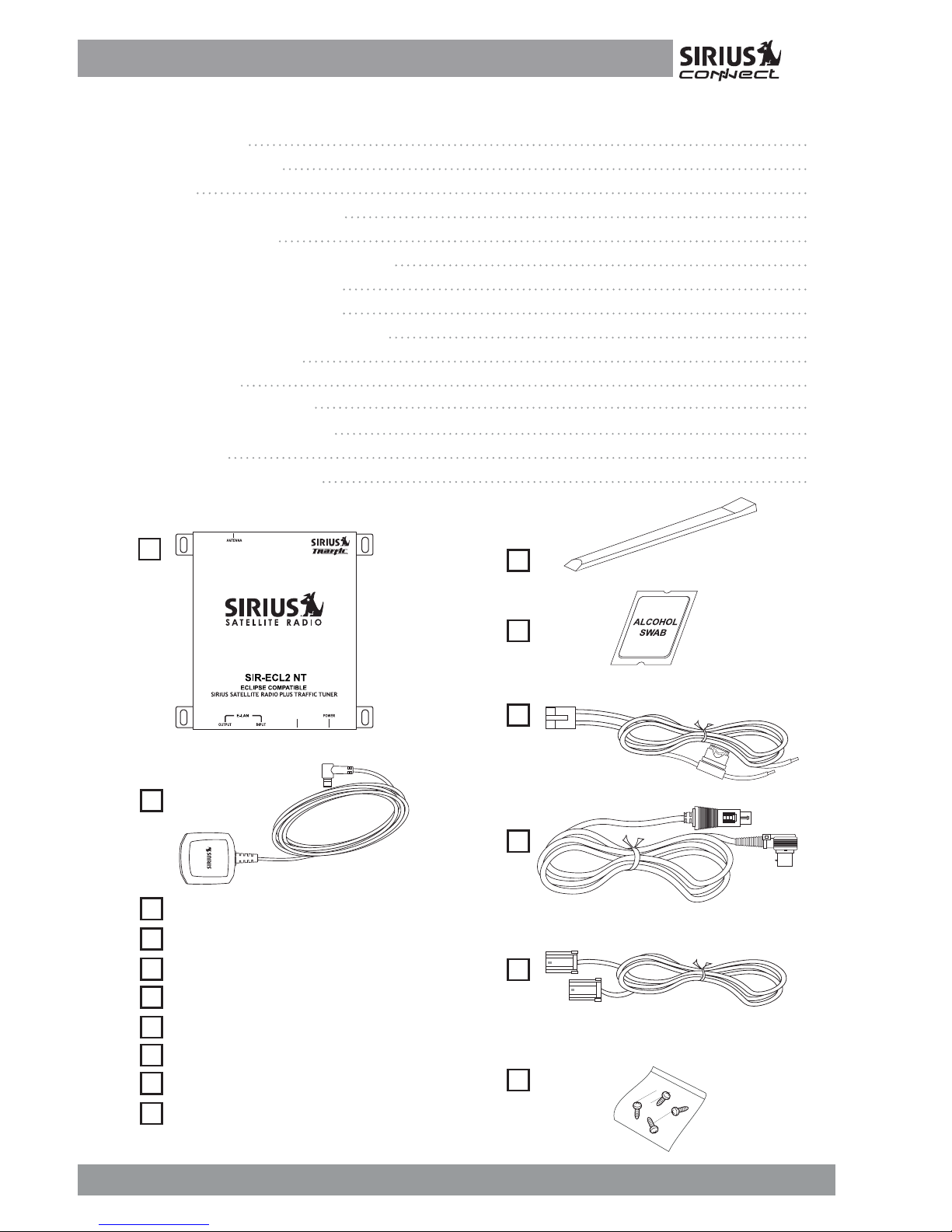

Package Contents
DATA
A
B
C
E
F
G
H
D
A
B
C
D
E
F
G
H
SIR-ECL2nt Tuner
Magnetic Mini Antenna
Antenna Cable Cover/Tail
Alcohol Swab
Power Harness With In-Line Fuse
3.5-Meter Data Cable
4 Mounting Screws
3.5-Meter E-LAN Cable

4SIR-ECL2nt Installation Guide
This symbol means important
instructions. Failure to heed them can
result in serious injury or death.
DO NOT OPERATE ANY FUNCTION
THAT TAKES YOUR ATTENTION AWAY
FROM SAFELY DRIVING YOUR
VEHICLE.
Any function that requires your prolonged
attention should only be performed after
coming to a complete stop. Always stop the
vehicle in a safe location before performing
these functions. Failure to do so may result
in an accident.
DO NOT OPEN, DISASSEMBLE OR
ALTER THE UNIT IN ANY WAY. Doing so
may result in re, electric shock or product
damage.
DO NOT INSERT ANY OBJECTS INTO
THE UNIT. Doing so may result in re,
electric shock or product damage.
USE THE CORRECT AMPERE RATING
WHEN REPLACING FUSE. Failure to do
so may result in re, electric shock or
product damage.
MAKE THE CORRECT CONNECTIONS.
Failure to make proper connections may
result in re or product damage.
DO NOT SPLICE INTO A ELECTRICAL
CABLES. Never cut away cable insulation
to supply power to other equipment. Doing
so will exceed the current carrying capacity
of the wire and result in re or electric
shock.
DO NOT INSTALL IN LOCATIONS THAT
MIGHT HINDER VEHICLE OPERATION.
Doing so may obstruct vision or hamper
movement which can result in a serious
accident.
DO NOT INSTALL THE UNIT TO HIGH
LEVELS OF HUMIDITY, MOISTURE OR
DUST. Doing so can result in electric shock
or product failure
FCC Warning: This equipment may
generate or use radio frequency energy.
Changes or modications to this equipment
may cause harmful interference unless the
modications are expressly approved in this
User Guide. The user could lose the
authority to operate this equipment if an
unauthorized change or modication is
made.
Note: This equipment has been tested and
found to comply with Part 15 of the FCC
Rules. These rules are designed to provide
reasonable protection against harmful
interference. This equipment may cause
harmful interference to radio
communications if it is not installed and
used in accordance with these instructions.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is
encouraged to try to correct the interference
by one of more of the following measures:
• Relocate the receiving antenna.
• Consult the dealer or an experienced
technician for help.
WARNING

5
SIR-ECL2nt Installation Guide
This symbol means important
instructions. Failure to heed them can
result in injury or material property dam-
age.
HALT USE IMMEDIATELY IF A PROBLEM
APPEARS. Failure to do so may cause
personal injury or damage to the product.
Return the unit to your authorized retailer or
nearest service center for repairing.
INSTALL THE WIRING SO THAT IT IS NOT
CRIMPED OR PINCHED BY SCREWS OR
SHARP METAL EDGES. Route the cables
away from moving parts or sharp pointed
edges. This will prevent crimping and
damage to the wiring. If the wiring must
pass through a metal hole, be sure to use a
rubber grommet to prevent the wire’s
insulation from being cut by the metal edge
of the hole.
USE THE SPECIFIED ACCESSORY
PARTS AND INSTALL THE PRODUCT
SECURELY. Be sure to use only the
specied accessory parts. Use of nonspecied
parts may damage this unit internally or may
not securely install the unit in place. This may
cause parts to become loose, resulting in
hazards or product failure.
USE CAUTION IF YOU NEED TO
DISCONNECT THE BATTERY TERMINAL.
Please consult the vehicle’s owner’s
manual or a service technician prior to
removing the battery positive or ground
connection, as it may cause damage to the
vehicle’s electrical system or require
reprogramming of the vehicle’s computer
controlled devices.
CAUTION

6SIR-ECL2nt Installation Guide
Installation
It is recommended that prior to starting the
installation, you read completely this
installation manual and follow the guidelines
listed below:
Consider the mounting location carefully.
You should make sure that you avoid the
following:
• Any location where the tuner is
exposed to moisture.
• Any location where the tuner is
exposed to extreme heat.
• Any location that would interfere with
moving parts on the vehicle or interfere
with driving.
Mounting the SIR-ECL2nt tuner
Be sure that you nd a location that is at and
has clearance above the tuner to
prevent any damage, as well as allow for
ventilation.
Do not install the tuner under the carpet or in
a small enclosed area without proper ventila-
tion. Doing so can result in damage to the
tuner or the vehicle. Use the supplied screws to
securely fasten the unit.
If you are attaching the tuner directly to the
vehicle’s chassis, be sure that you check to
make sure the area behind the tuner is free
from moving parts, fuel or brake lines, wire
harnesses or any other items which may get
damaged by drilling a mounting hole or from
the screws.
Installing the Antenna
The antenna includes a plastic cable cover/
tail which covers the exposed antenna
cable and keeps it attached securely to
vehicle roof. The tail also helps position the
antenna the proper distance from the rear
window, sunroof or rear hatch.
To attach the cover/tail:
1. Once you have determined the proper
mounting location (see the next
section), clean the area with the
supplied alcohol swab.
2. Connect the antenna cover/tail to the
antenna cable, making sure that the
strain-relief on the antenna seats into
the cover/tail groove. Route the cable
through the wire channel in the cover/
tail.
3. Remove the protective tape from the
adhesive and carefully position the
antenna with cover/tail and apply
pressure to secure it to the vehicle.
DATA
Adhesive Strips
Cable
Cover/Tail
Antenna
(Underside)
Antenna Cable
Cable Cover/Tail
Antenna
Vehicle
Caution:

7
SIR-ECL2nt Installation Guide

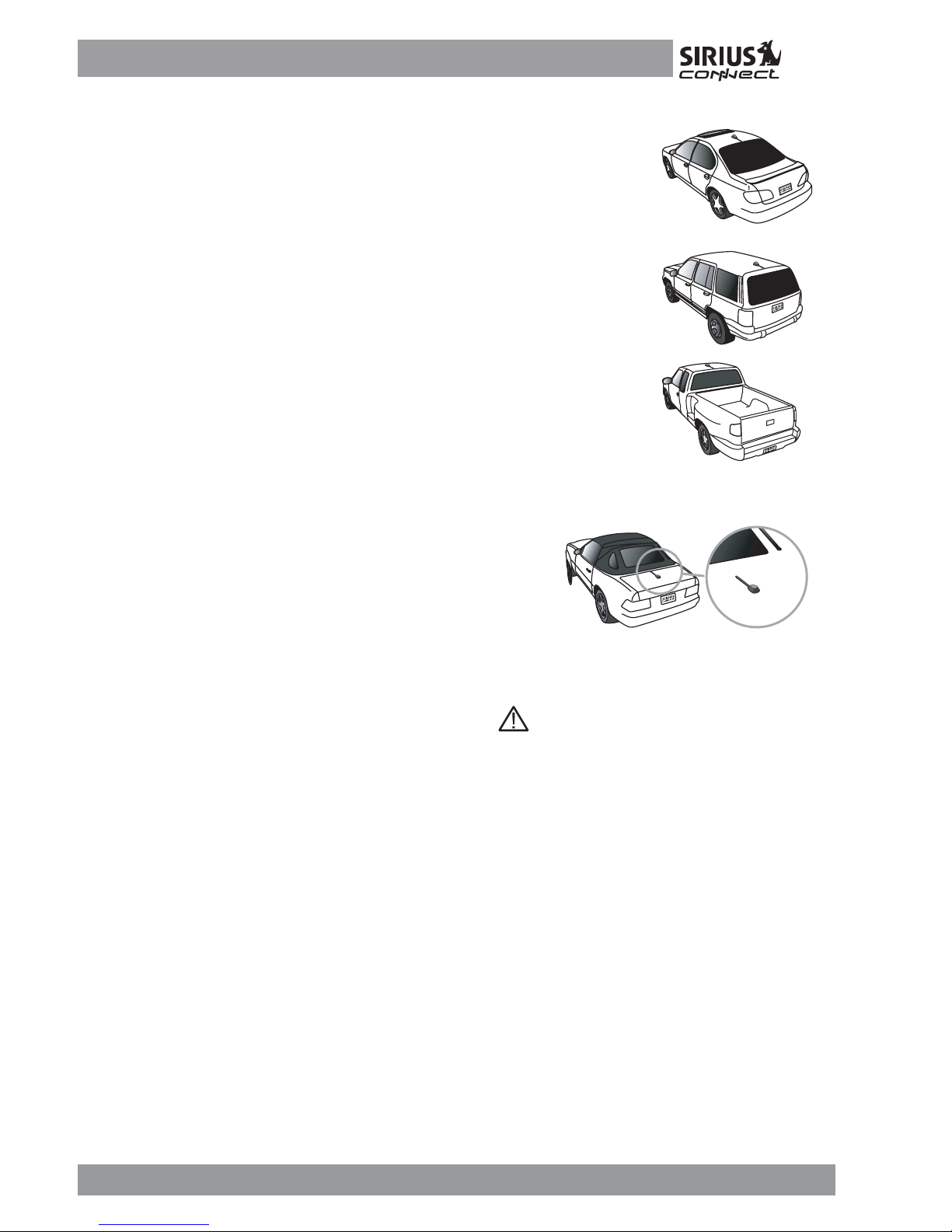

Optimum Antenna Mounting Locations
The optimum location to mount the antenna
is on the roof of the vehicle. It is important to
avoid any obstruction that will block the
satellite signal, such as a roof rack. For
convertible vehicles, install the antenna on
the trunk lid as shown.
• Place the antenna on a metal surface
of your vehicle at least 12” x 12”, and at
least 6” from a window. (Use the
antenna cover/tail as a guide for the
proper distance from the rear window.)
• The antenna’s magnet will secure it to
the metal surface. The adhesive that is
attached to the antenna cover/tail will
secure the cable to the vehicle. Before
routing the antenna cable, conrm that
the antenna is mounted in a suitable
location.
• Route the cable from the antenna to the
vehicle’s interior by tucking it
underneath the rubber molding around
the rear window, if possible.
• Route the cable from the lowest point
of the rear window into the trunk. Take
advantage of any existing cable
channels or wiring conduits.
• For SUVs, minivans and ve-door
vehicles, bring the cable into the
vehicle under the rubber molding of the
tailgate, and continue under the interior
trim.
• From the trunk, carefully route the
cable to the location of the
SIR-ECL2nt and plug the SMB
connector into the tuner.
Convertible (only)
• Do not pull the wire across sharp
edges that could damage it.
• Keep the wire away from areas where it
could become tangled in the driver’s
and passenger’s feet.
• Keep the antenna wire away from
extreme heat, such as exhaust systems.
• Avoid placing the cable near any
moving parts.
Caution:
Sedan/Coupe
SUV/Mini-Van
Truck

1
3
2
4
A
CE D
E-LAN
8SIR-ECL2nt Installation Guide

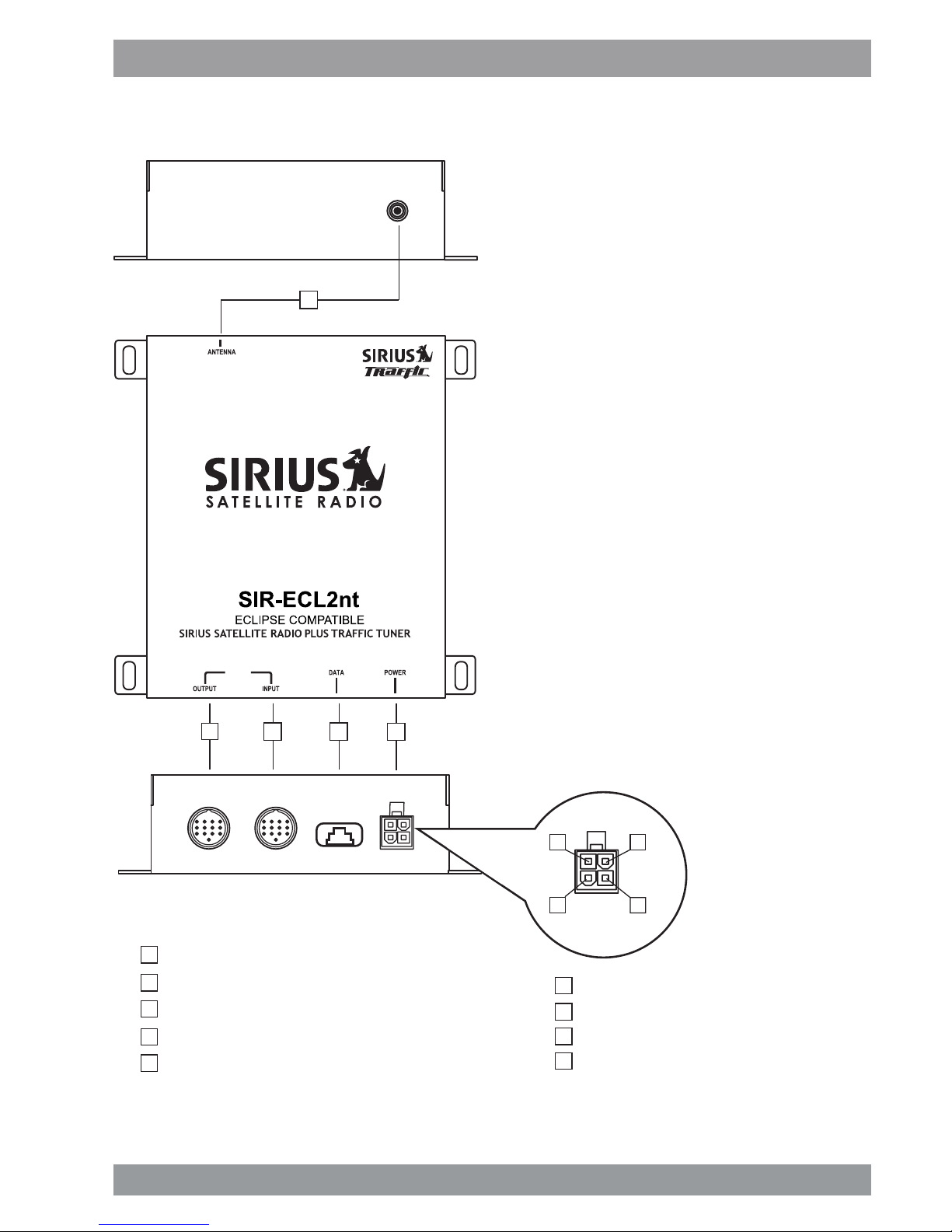

Wiring and Cable Connections
Antenna Input
Connect the right-angle SMB connector
from the antenna. Push rmly to attach.
E-LAN Output Connector
E-LAN Input Connector
Use the supplied E-LAN cable to connect
to the ECLIPSE Headunit or Audio Processor
See “System Connection Examples” for
more specic details.
E-LAN Input Connector
Connect to optional ECLIPSE audio equip-
ment like CD Changers - See “System
Connection Examples” for more specic
details.
Power Harness Connector
After the wiring connections are complete,
plug the wiring harness into the connector.
Make sure to insert rmly to lock the
connector in place.
Antenna Input (SMB)
E-LAN Output Connector
E-LAN Input Connector
DATA Connector
Power Connector
Open
Battery (+)
Ground (-)
Open
B
A
B
C
D
E
1
2
3
4

9
SIR-ECL2nt Installation Guide

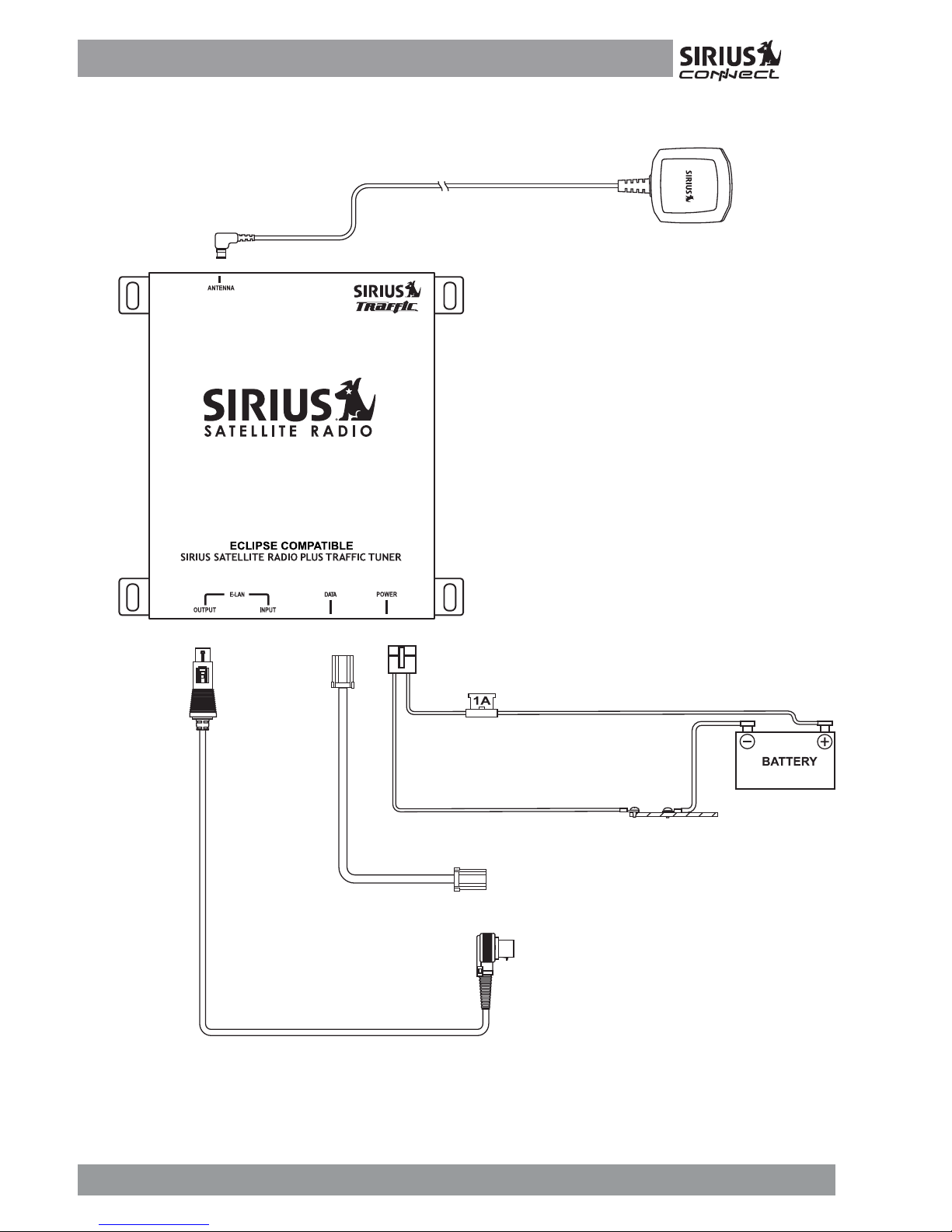

SIR-ECL2nt
Right-angle
SMB Connector Antenna (21’ cable)
Mount on Roof of Vehicle
Yellow (Pin 2) – Connect to
Battery Positive (+)
Black (Pin 3) – Connect to Chassis
Ground (–)
3.5-meter Data Cable
(Connect to ECLIPSE AVN6610)
3.5-meter E-LAN Cable
(Connect to ECLIPSE AVN6610)

10 SIR-ECL2nt Installation Guide

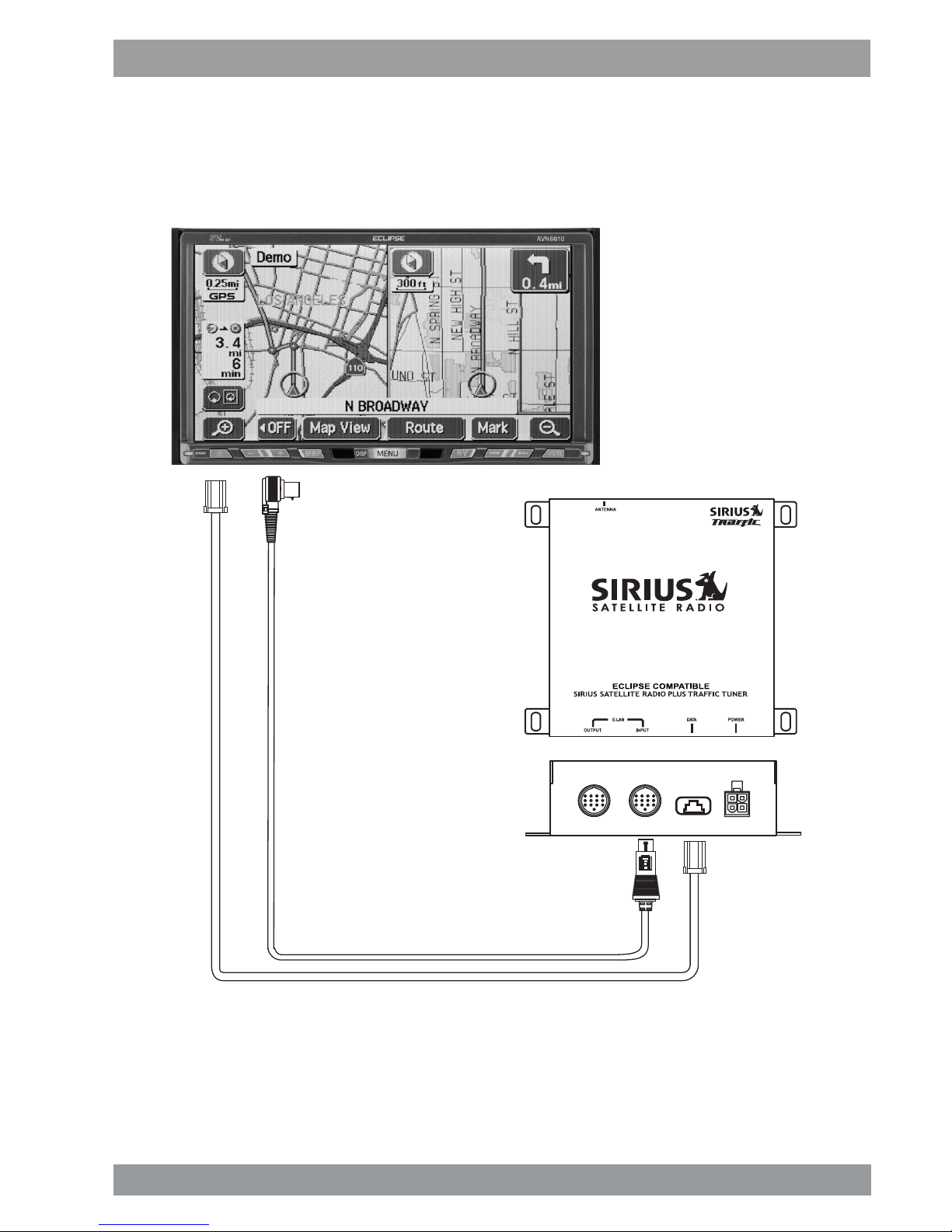

System Connection Examples
System 1: ECLIPSE Navigation System and SIR-ECL2nt
SIR-ECL2nt
AVN6610
