Sirius Satellite Radio Sportster SP5 User manual

Sportster 5
Sportster 5
Satellite Radio
User Guide
User Guide

Congratulations on the Purchase of your new SIRIUS Sportster SP5
Plug-n-Play Radio
Your new SIRIUS Sportster™ SP5 Plug-n-Play Radio lets you enjoy SIRIUS®Satellite Radio’s
digital entertainment anywhere you’ve installed the SUPH1 SIRIUS Universal Plug and Play
Home Kit, SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, or the SUBX1 SIRIUS Plug and
Play Universal Boombox (each sold separately). Use this manual to familiarize yourself with all
of SIRIUS Sportster’s features and capabilities. For the latest information about this and other
SIRIUS Sportster products and accessories, visit http://www.sirius.com.

[Table of Contents ]
4
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . 6
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . 10
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Magnetic Antenna . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 34
Docking the SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connecting Your SIRIUS Radio to Your Vehicle’s Audio System . . . . . . . . . . . . 35
Direct Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Direct FM Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cassette Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Wireless Connection Using the FM Extender Antenna . . . . . . . . . . . . . . . 39
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 49
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
SIRIUS Sportster SP5 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . 50
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Vehicle Dock Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . . 54
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Display (DISP) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Search Modes (Category, Channel, Artist, Song Title) . . . . . . . . . . . . . . . . 58

[Table of Contents ] 5
Direct Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Channel Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Memory (MEMO) and Song Seek (S-Seek) Functions. . . . . . . . . . . . . . . . . 64
Instant Replay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
FM Transmitter Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sirius ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
S-Seek Alert Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Channel Preview Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Sports Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
NASCAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
NFL, NBA, NHL, College Football, College Basketball . . . . . . . . . . . . . . . 91
Time-Based Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Program Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Auto Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
OPTIONAL ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . 97
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

[Warning and Safety Information ]
6
Warning and Safety Information
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.
2.
3.
4.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
1.
2.

[Warning and Safety Information ] 7
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
Liquid Crystal Precautions
If the LCD screen on the SIRIUS Sportster is damaged, do not to touch the liquid crystal fluid.
If any of the following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not operate the SIRIUS SP5 in a way that might divert your attention from driving safely.
As a driver, you alone are responsible for safely operating your vehicle in accordance with
traffic safety laws at all times.
Do not install the unit where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Do not install the unit where it may hinder the function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning properly in the event of an accident.
Be sure the unit is installed as described in these installation instructions and the instruc-
tions which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for
issues arising from installations which were not installed according to the instructions.
1.
2.
3.
•
•
•
•

[Warning and Safety Information ]
8
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect the
unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, wait 10 seconds, and then
turn it on again.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating this unit.
Do not install the FM Extender Antenna where it will hinder or block your view. In some states
it may be illegal to mount it on the windshield of your vehicle. Check applicable law for any
restrictions or limitations before installing the FM Extender Antenna on your windshield.
Do not install the FM Extender Antenna where it may hinder the function of safety devices
such as an airbag. Doing so may prevent the airbag from functioning properly in the event
of an accident.
Warnings
Notice To Drivers In California and Minnesota
State law prohibits drivers in California and Minnesota from using suction mounts on their
windshields while operating motor vehicles. Other dashboard or friction mounting options
should be used. SIRIUS does not take any responsibility for any fines, penalties, or damages
that may be incurred as a result of disregarding this notice. (See California Vehicle Code
Section 26708(a); Minnesota Statutes 2005, Section 169.71)
Operating Temperature
The radio is designed to operate between -20° to +85° C (-4° to +185° F). Avoid leaving the
radio in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the LCD
display screen, and possibly damage it.
•
•
•
•
•
•
•

[Warning and Safety Information ] 9
Cleaning and Maintenance
If the radio or accessories become dirty, turn the power off and wipe them clean with a soft
cloth. Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile
solvents to clean. These may cause damage to the radio.
Cigarette Lighter Adapter
The Vehicle Dock cannot be powered directly from a vehicle’s 12VDC power system. It must be
powered from the vehicle’s cigarette lighter or similar power port using the included Cigarette
Lighter Adapter or an equivalent DC power adapter (see your local electronics dealer).
Connecting the Vehicle Dock directly to the vehicle’s 12VDC power system may result in
damage to the Vehicle Dock or SIRIUS radio, or both.

[Copyrights & Trademarks ]
10
Copyrights & Trademarks
© 2007 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite
Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo are
registered trademarks of the National Football League. “NHL” and the NHL Shield are registered
trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are registered
trademarks of NBA Properties Inc. All other trademarks, service marks, sports team names,
album art, and logos are the property of their respective owners. All Rights Reserved.
™“Sportster” is a trademark of SIRIUS Satellite Radio.
Portions of the software on this radio are licensed under the eCos License. Distribution of
eCos requires that the eCos source code be made available to SIRIUS Satellite Radio customers.
The eCos License and eCos source code are available to the public at http://www.sirius.com/
ecoslicense.
SIRIUS Satellite Radio reserves all rights to all radio software not covered under the eCos
license. This includes all portions of radio software that were not distributed to SIRIUS as part
of the eCos operating system.
Hardware, subscription and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ] 11
Package Contents
The following items are included with your SIRIUS Sportster SP5 radio:
Sportster SP5 RadioSportster SP5 Radio Remote
Control
Remote
Control
Vehicle DockVehicle Dock

[Package Contents ]
12
Suction Cup MountSuction Cup Mount Vent Mount &
Extended Vent Hooks
Vent Mount &
Extended Vent Hooks
Cigarette Lighter
Adapter
Cigarette Lighter
Adapter
Magnetic AntennaMagnetic Antenna Antenna
Cover/Tail
Antenna
Cover/Tail
Mounting ScrewsMounting Screws Alcohol WipeAlcohol Wipe

[Package Contents ] 13
Unpack your SIRIUS Sportster SP5 carefully and make sure that everything shown is present.
If anything is missing or damaged, or if your SIRIUS Sportster radio fails to operate, notify your
dealer immediately. It is recommended that you retain the original carton and packing materials
in case you need to ship your radio in the future.
Suction Cups (2)Suction Cups (2)FM Extender AntennaFM Extender Antenna Self Adhesive
Cable Guides (3)
Self Adhesive
Cable Guides (3)

[Installation ]
14
Installation
SIRIUS suggests that you have your Sportster SP5 professionally-installed in your vehicle.
Professional installation provides an experienced technician to install this product in your vehicle,
advice for selecting a suitable mounting location for the Vehicle Dock, installation of the antenna,
and proper routing of all the necessary wires and cables. If the locations of your SIRIUS
radio and your vehicle’s FM antenna make the performance of your SIRIUS radio’s built-in
FM transmitter within your vehicle poor, a professional installer will have the necessary
accessories to install an optional FM Direct Adapter or audio cable to connect the audio output
of the Vehicle Dock directly to your vehicle’s audio system. Ask your SIRIUS retailer if they
provide professional installation services, or can recommend a professional installation service.
Installing the Vehicle Dock
When installing the vehicle dock in your vehicle, choose a location that will not block your vi-
sion, interfere with the vehicle controls, or obstruct the air bag. The location should be easily
accessible and provide good visibility of the display, and should not be located where it will be
in direct sunlight which will affect the visibility of the radio’s display screen.
The mounting accessories necessary to install the vehicle dock in a vehicle are provided.

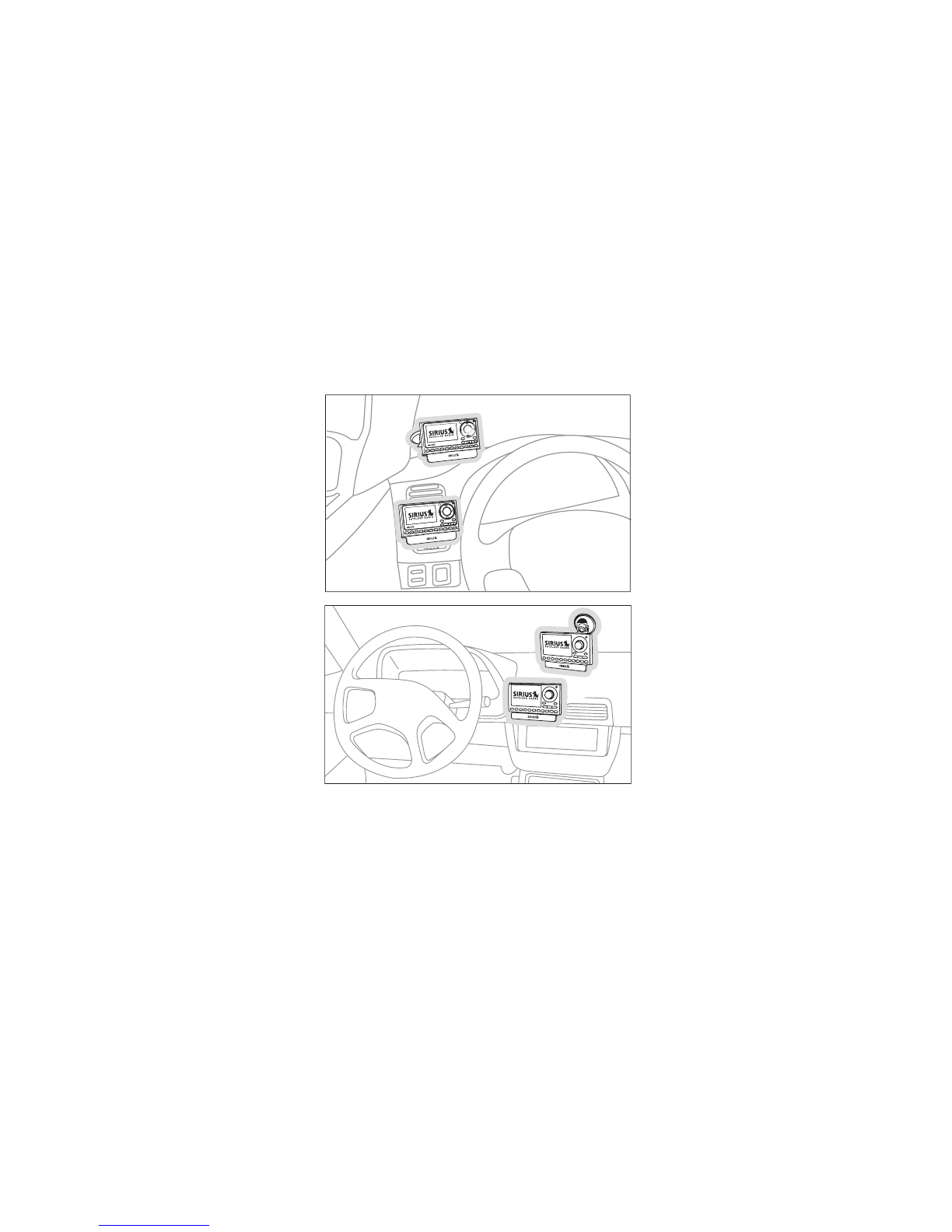

Figure 1 shows two examples of the SIRIUS radio mounted in a vehicle: Ais the suction cup
mount method, and Bis the vent mount method using the vent mount clip.
Note: The supplied suction cup mount and vent mount should work in most vehicles. If your
installation requires a different mounting option, check with a local electronics retailer for
other compatible mounts that are available separately.

[Installation ] 15
Depending upon the mounting location you select in your vehicle, the mount should be attached
to the vehicle dock and installed as described in the following sections.
A.
B.
Figure 1
A.
B.

[Installation ]
16
Suction Cup Mount Method (A)
The suction cup mount may be attached to your vehicle’s windshield. Before attaching the
suction cup mount to your windshield, you should check your state and local laws for regulations
regarding mounting this device on your windshield.
To mount the vehicle dock using the suction cup mount, assemble the mount as follows:
Attach the vehicle dock to the suction cup mount using the provided screws. (See Figure 2.)
Attach Dock
to Mount with
Included Screws
Clean the area where you are attaching the suction cup with the supplied alcohol wipe.
1.
2.
Figure 2Figure 2

[Installation ] 17
Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount
on the windshield or other location you have chosen. Press the cam lever all the way
down towards the base of the mount until it locks to firmly adhere the suction cup.
(To unlock the suction cup, lift the lever up.)
Press Lever
Down To
Lock Mount
3.
Figure 3Figure 3

[Installation ]
18
Vent Mount Method (B)
To mount the vehicle dock using the vent mount method, install the vent mount as follows:
If the vent louvers in your vehicle are recessed, you may need to use the longer vent hooks
with the vent mount. Refer to Figure 4 and install the longer vent hooks into the vent
mount. Be sure to observe the orientation of the vent hooks as shown.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
Attach the vent mount to the vehicle dock using the provided screws. (See Figure 5.)
Attach Dock
to Mount with
Included Screws
1.
2.
Figure 4Figure 4
Figure 5Figure 5

[Installation ] 19

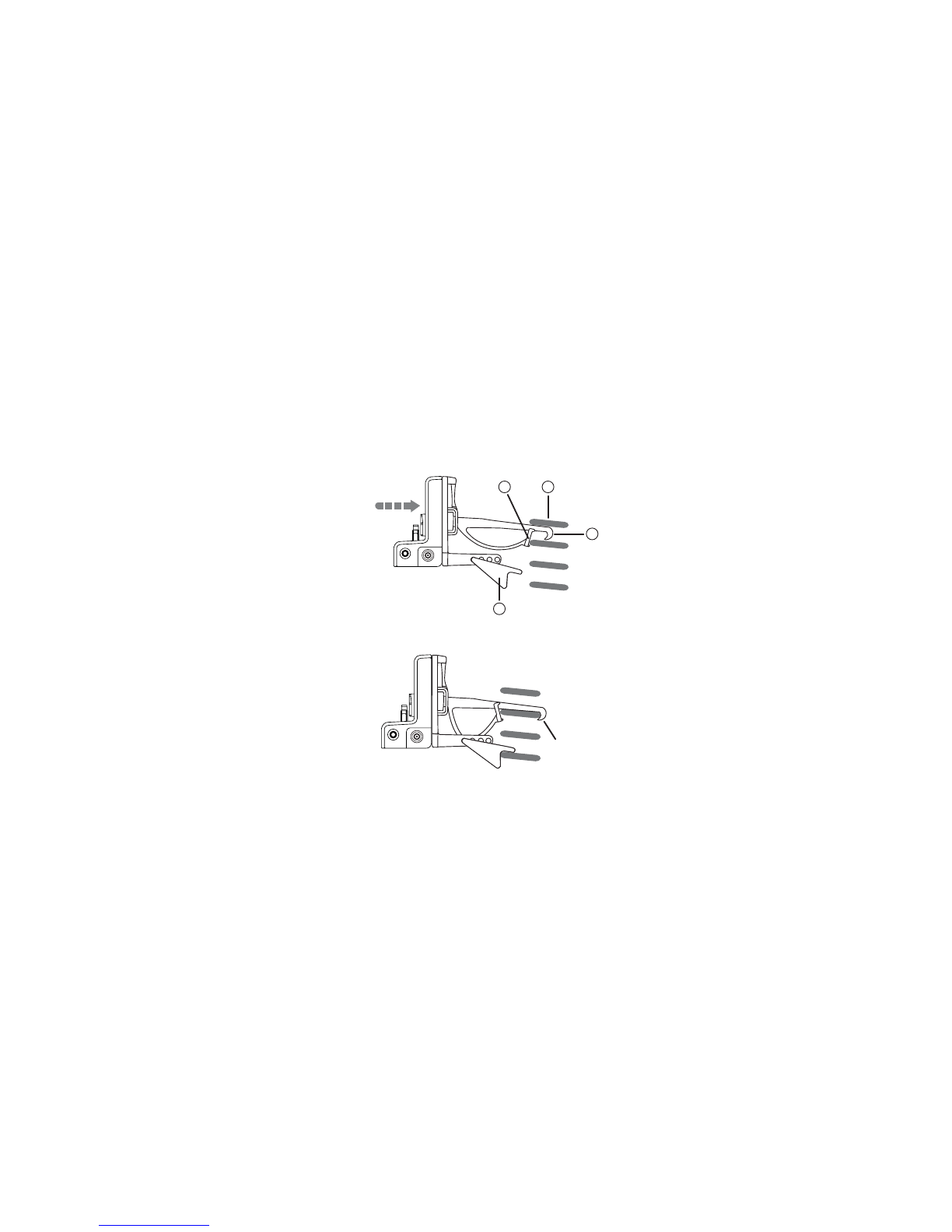

Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent
in your vehicle. Position the two tension springs Aagainst a vent louver B. Then
push the vent mount into the vent, far enough so that the hooks Cdrop down and
hook the rear of the vent louver (see Figure 7). Once the hooks have grasped a
vent louver, the tension springs Awill keep the vent mount hooked to the louver.
FM OUT ANT
C
B
A
D
PUSH
FM OUT ANT HOOKED
3.
Figure 6Figure 6
Figure 7Figure 7

[Installation ]
20
The angle of the vehicle dock may be changed by changing the position of foot Don the
vent mount to a different adjustment hole. (See Figure 8.)
4.
FM OUT ANT
ADJUSTMENT
HOLES
D
Figure 8
