Sirius Satellite Radio SIRIUS STILETTO 2 User manual

Live Portable Satellite Radio
User Guide

Congratulations on the purchase of your new Stiletto 2!
The Stiletto 2™ is SIRIUS’s next generation live personal satellite radio. It includes everything
you need to listen live to SIRIUS®radio almost anywhere you want to go. Powerful features
allow you to record up to 100 hours of your favorite songs and shows, and even download
your personal MP3 & WMA files for continuous entertainment.
With your Stiletto 2 you can:
Listen live to more than 125 SIRIUS satellite channels of 100% commercial free music,
sports, and talk programming.
Listen live to SIRIUS Internet Radio over an available Wi-Fi network.
Store up to 100 hours of your favorite songs, SIRIUS shows, and personal MP3 & WMA
music files. Add a microSD™card and store even more of your personal MP3 & WMA
music files.
Schedule recordings up to 6 hours long so you never miss your favorite shows.
Add any music you hear to your “wish list” and then go online to purchase and download
from almost any Windows Media®based music service.
The Stiletto 2 includes My Sirius Studio™ and Yahoo! Music Jukebox™ software to help you
create and manage your personal playlists, and supports the download of both purchased and
subscription based music content.
•
•
•
•
•

[Table of Contents ]
2
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . 4
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . 5
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

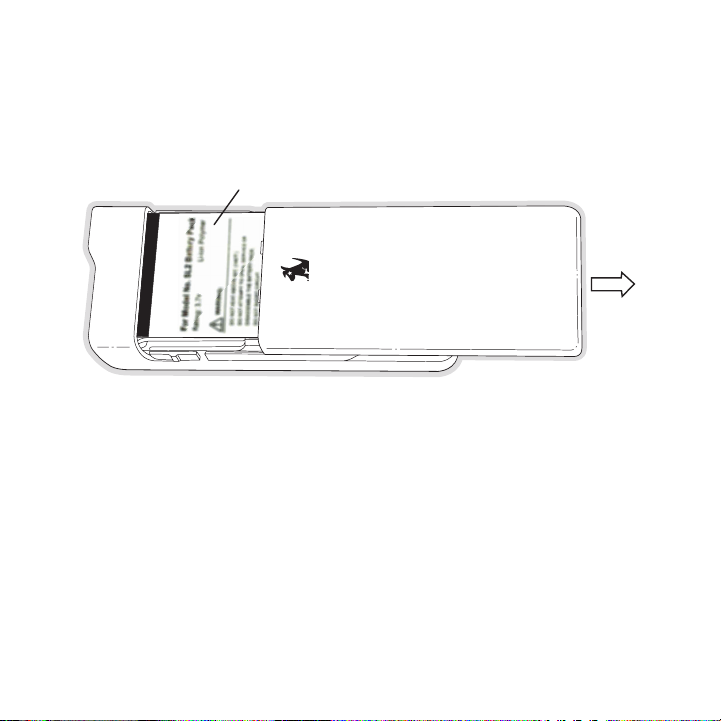

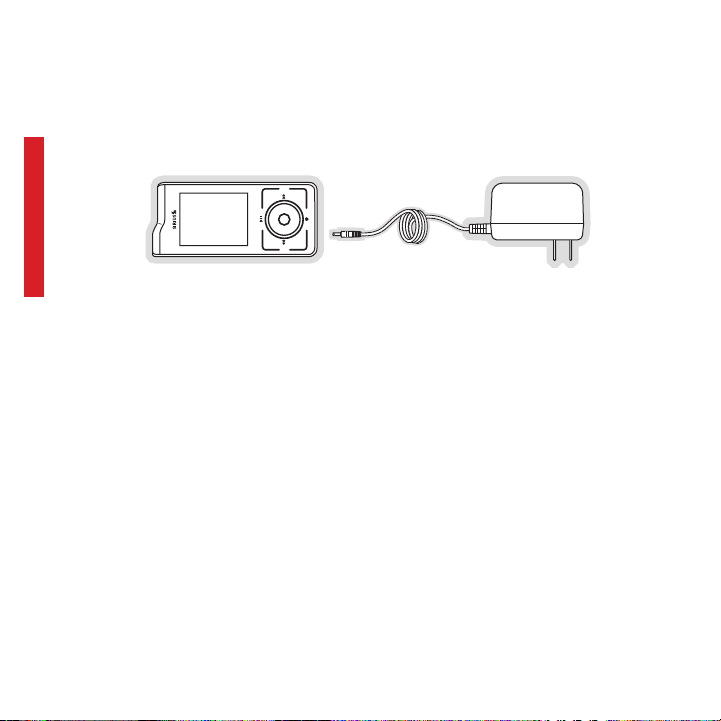

BATTERY LIFE, INSTALLATION, AND CHARGING . . . . . . . . . . . . . . . . . 10
INSTALLING A REMOVABLE MEDIA CARD. . . . . . . . . . . . . . . . . . . . 13
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Stiletto 2 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the Media Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Turning the Stiletto 2 On/Off, Sleep, and Lock Modes . . . . . . . . . . . . . . . . 19
Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Receiving the SIRIUS Satellite Signal . . . . . . . . . . . . . . . . . . . . . . . 23
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 25
Device Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting the Stiletto 2 to a PC Computer . . . . . . . . . . . . . . . . . . . . 26
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Internet Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Radio Replays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
MY SIRIUS STUDIO SOFTWARE INSTALLATION . . . . . . . . . . . . . . . . . 67

[Table of Contents ] 3
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
OPTIONAL ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . 69
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
END USER LICENSE AGREEMENT . . . . . . . . . . . . . . . . . . . . . . . 73
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . 81
Copyrighted Broadcast Material . . . . . . . . . . . . . . . . . . . . . . . . . 81
Copyrights & Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
INDEX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

[Warning and Safety Information ]
4
Warning and Safety Information
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.
2.
—
—
—
—

[Warning and Safety Information ] 5
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
SIRIUS disclaims all liability for hearing loss, bodily injury, or property damage as a result of
the use or misuse of this product.
Volume and Hearing Safety Precautions
When listening to your Stiletto, be aware of your surroundings. The use of earbuds or
headphones while riding a bike or operating a vehicle or motorcycle may be prohibited by
law, and is not recommended.
If you experience ringing in the ears while listening, stop using the Stiletto and consult a
medical professional.
When using your Stiletto, start the volume low and gradually turn it up to a medium level
which you can hear. If the ambient sounds around you are noisy or loud, do not turn the
volume up to high level. Find a quieter location instead.
•
•
•
Any changes or modifications not expressly approved by the party responsible for compliance
coulid void the user’s authority to operate this equipment. This device and its antenna(s) must
not be co-located or operating in conjunction with any other antenna or transmitter.
For product available in the USA market, only channel 1~11 can be operated. Selection of
other channels is not possible.
This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI
/IEEE C 95.1-1999 and had been tested in accordance with the measurement methods and
procedures specified in OET Bulletin 65 Supplement C.
FCC Radiation Exposure Statement

[Warning and Safety Information ]
6
Liquid Crystal Precautions
If the LCD screen on the Stiletto is damaged, do not to touch the liquid crystal fluid. If any of
the following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
General Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not expose the Stiletto to moisture or use it near or in water. Do not handle it with wet
hands, or let water or any other liquid spill on or in it.
Do not operate the Stiletto in a way that might divert your attention from driving safely. As
a driver, you alone are responsible for safely operating your vehicle in accordance with
traffic safety laws at all times.
Be sure the unit is installed as described in the installation instructions in this guide. When
installing the unit using a Vehicle Kit, Home Kit or Executive Sound System, follow the
installation instructions included with those accessories.
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.,) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect
the unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from
the unit, wait 10 seconds, replace the battery and then turn it on again.
1.
2.
3.
•
•
•
•
•
•
•
Permanent hearing loss can occur if you set the volume too high. Your ears adapt to the
loud volume and can be permanently damaged.
The use of earbuds or headphones for an extended period of time can cause serious
damage to your ears. Wearing them for prolonged periods of time or while sleeping is not
recommended.
•
•

[Warning and Safety Information ] 7
manage information on your Stiletto 2 to ensure that the operating system software essential
to the operation of the Stiletto 2 is not removed or damaged.
The software also provides for upgrading features and functionality as they become available
from SIRIUS. Be sure to periodically connect the Stiletto 2 to your PC computer to load the
latest updates. Refer to the user guide included on the software CD-ROM for further informa-
tion on installing and using the software.
The My Sirius Studio software should be installed before connecting the Stiletto 2 to your PC
computer.
Operating Temperature
The Stiletto 2 is designed to operate between -5° to +40° C (23° to 104° F). Avoid leaving
the unit in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the LCD
display screen, and possibly damage it.
Cleaning and Maintenance
If the Stiletto 2 becomes dirty, turn the power off and wipe it clean with a soft clean cloth. Do
not use hard cloths, paint thinner, alcohol, or other volatile solvents to clean. These may cause
damage to the unit.
My Sirius Studio Software
The My Sirius Studio software CD-ROM included with the Stiletto 2 will allow you to connect
your Stiletto 2 to your PC computer running the Windows®XP operating system with Service
Pack 2, or the Vista operating system. It is important that this software be used to transfer and

[Package Contents ]
8

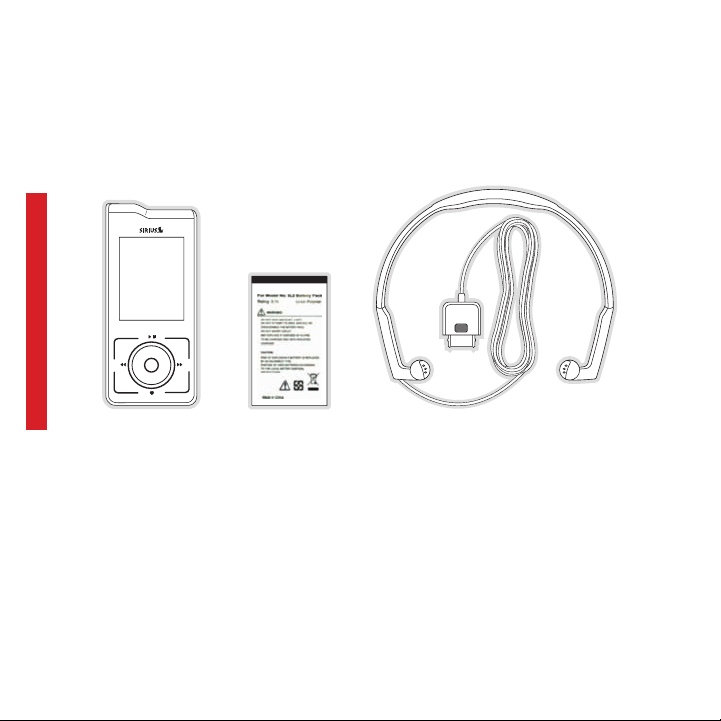

Package Contents
The following items are included with your purchase of the Stiletto 2:
FPO
back home
display
options
Stiletto 2Stiletto 2 BatteryBattery Antenna HeadphonesAntenna Headphones

[Package Contents ] 9
©
2
0
0
5
S
i
r
i
u
s
,
I
n
c
.
A
l
l
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
U
n
a
u
t
h
o
r
i
z
e
d
c
o
p
y
i
n
g
o
r
r
e
p
r
o
d
u
c
t
i
o
n
p
r
o
h
i
b
i
t
e
d
.
MY SIRIUS STUDIO
SOFTWAREVERSION XXXX
Personal Satellite Radio Receiver
STILETT0 2
Quick Start Guide
Personal Satellite Radio Receiver
STILETT0 2
User Guide
Enhancing thE vErsatility of your stilEtto
Stiletto Vehicle Kit (Model SLV1)
In order to use your Stiletto in a vehicle, you will need the Stiletto Vehicle Kit. The kit includes
a compact docking cradle that rapidly charges your Stiletto’s battery, connects to an external-
ly mounted antenna for more reliable reception, and plays audio through your vehicle’s stereo
system. Ten dedicated preset buttons (30 presets total) and an included remote control make
it easy to tune and operate your Stiletto without taking your eyes from the road.
Stiletto Home Kit (Model SLH1)
The Stiletto Home Kit provides everything you need to use the Stiletto in your home or office.
The sleek docking cradle provides a convenient way to charge your Stiletto’s battery along
with an extra slot for charging a spare battery. The included indoor/outdoor antenna provides
improved reception, while audio cables enable you to connect the Stiletto to amplified speak-
ers or a home entertainment system. A remote control is included, along with USB cable and
PC computer software for optionally connecting the home dock to your PC computer.
AC AdapterAC AdapterEar Buds
& Pads
Ear Buds
& Pads
User Guide, Quick Start Guide,
Inserts, and PC Software CD
User Guide, Quick Start Guide,
Inserts, and PC Software CD
USB CableUSB Cable

[Battery Life, Installation, and Charging ]
10
Battery Life, Installation, and Charging
The Stiletto battery when fully charged will provide a range of listening times depending on
the listening mode. The following table provides the approximate listening times:
Listening Mode Approximate Listening Time
Satellite Radio 4 hours
Internet Radio 8 hours
Library 20 hours
Radio Replays 20 hours
As batteries age, the amount of listening time diminishes. Replacement (or spare) batteries
are available from your SIRIUS product distributor.
The amount of listening time the battery provides is dependent upon several settings: de-
creasing the length of time the backlight of the display screen remains on will prolong battery
life as well as adjusting the brightness of the display screen to a dimmer setting. Both of
these adjustments are made through the Settings menu. Refer to Brightness and Backlight
Timer on page 61 for details about these settings.

[Battery Life, Installation, and Charging ] 11
Stiletto 2 Battery Installation/Removal
To access the Stiletto battery, refer to Figure 1 and slide the battery cover toward the bottom
of the Stiletto and remove it. The battery can then be removed.
When installing the battery, place the battery into the battery compartment in the orientation
shown. The battery cover can then be reinstalled
Battery Compartment
Figure 1Figure 1

[Battery Life, Installation, and Charging ]
12
Battery Charging
The battery in the Stiletto 2 is shipped partially charged but should be fully charged before us-
ing. For the fastest charging time, the Stiletto 2 should be turned off while the battery is being
charged. When off, a fully discharged battery will charge in 4 hours.
To charge the Stiletto, power the unit off and connect the AC Adapter as shown in Figure 2.
back home
display
options
Battery Disposal
When disposing of batteries, do so in accordance with the local waste disposal regulations.
Batteries should not be disposed of in household waste, but should be recycled instead.
Figure 2Figure 2

[Controls ] 13
Installing A Removable Media Card
You can add additional memory to the Stiletto 2 by installing a microSD card. This adds ad-
ditional storage space for purchased and downloaded content. The microSD card can be any
size, up to a maximum size of 8GB.
The card slot for the microSD card is located underneath the battery which will need to be
removed in order to install the card. (Refer to the Stiletto 2 Battery Installation/Removal
instructions on page 11.) Once the battery has been removed, the microSD card holder will
be visible. As shown in Figure 3, flip up the card holder (1) and slide the microSD card into
the card holder in the orientation shown (2). Close the card holder (3) and reinstall the battery
and cover to complete the installation.
You can verify that the Stiletto has recognized that the microSD card is present by pressing
the Home button and selecting Settings Device microSD Card.
1
2
3
Figure 3Figure 3

[Controls ]
14
Controls
Stiletto 2 Reference Guide
Figure 1 identifies the buttons, controls, and connectors of the Stiletto 2.
back home
display
options
Satellite Radio
Internet Radio
Library
Fast Forward
Love
Media Dial
Play/Pause
Home
Display
Rewind
Select
Back
Options
Display
Screen
Headphone
Jack
Power
Connector Antenna Headphones/
Docking Connector
+
-
Volume
Up/Down
Power/
Lock
Figure 1Figure 1

[Controls ] 15
The following table describes the functions of the buttons and controls on the Stiletto 2.
Stiletto 2 Button and Control Descriptions
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
/
Power/Lock
Slide
Up Locks all buttons on the Stiletto 2
Center Unlocks all buttons on the Stiletto 2
Slide
Down
Slide down and release: Turns Stiletto 2 On (if Off), or places
radio in sleep mode (if On)
Slide down and hold for 5 seconds: Turns the Stiletto 2 Off
+/–
Volume
Press +Increases the audio volume
—Decreases the audio volume
Play/Pause
Press
Pauses a broadcast
or resumes playing
a paused broadcast
If playing, mutes
audio
If muted, resumes
playing
Pauses or resumes
playing the current
song or show
Rewind
Press
If listening, skips to
the previous song
or show
If in a channel or
preset list, moves
through categories
or preset banks
If listening and
muted, resumes
playing
If in a channel or
category list, moves
through channel
categories
Skips to the begin-
ning of the song or
show
Hold
If listening, rewinds
through a broad-
cast
Rewinds through
song or show

[Controls ]
16
Stiletto 2 Button and Control Descriptions Continued
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
Fast-Forward
Press
If listening, skips
in the replay buffer
to the next song or
show
If in a channel or
preset list, moves
through categories
or preset banks
If listening and
muted, resumes
playing
If in a channel or
category list, moves
through channel
categories
Skips to the next
song or show
Hold
Fast-Forwards
through the replay
buffer
Fast-Forwards
through song or
show
Love
Press
Saves the song or
show if possible,
or adds to the
wish list when
song/show cannot
be saved
While recording,
prompts to stop
recording
Adds the artist/song to the wish list
Hold
Displays recording
setup screen
While recording,
prompts to stop
recording
Media Dial
Scroll If listening, displays channel or category list
If in a list, menu, or prompt, scrolls to next or previous item

[Controls ] 17
Stiletto 2 Button and Control Descriptions Continued
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
Select
Press Selects highlighted item in a list, menu, or prompt
back
Press Returns back to the screen displayed just prior to the currently
displayed screen
home
Press First press returns to the Home screen
Additional press returns to the Now Playing screen
options
Press Displays available options for the currently displayed screen
If no options are available, nothing is displayed
display
Press Cycles between the normal/near and car/far display mode, artist
name, and song title when in the channel browsing mode

[Getting Started ]
18
Using the Media Dial
The Media Dial of the Stiletto 2 is controlled by placing your finger on the Media Dial
and rotating the dial clockwise or counter-clockwise to scroll, highlighting a channel, genre,
preset, menu item, or list item. (Figure 4) It may also be pressed at the north, south, east and
west locations for selecting Play/Pause, Love, Fast-Forward, and Rewind as labeled.
Pressing the center button provides the Select function for selecting a highlighted item.
back home
display
options
home
Satellite Radio
Internet Radio
Library
Figure 4Figure 4
