Sirius Satellite Radio Satellite Radio Sportster 5 User manual

Sportster 5
Satellite Radio
User Guide

Congratulations on the Purchase of your new SIRIUS Sportster
SP5 Plug-n-Play Radio
Your new SIRIUS Sportster™ SP5 Plug-n-Play Radio lets you enjoy SIRIUS®Satellite
Radio’s digital entertainment anywhere you’ve installed the SUPH1C SIRIUS Universal
Plug and Play Home Kit, SUPV1C SIRIUS Universal Plug and Play Vehicle Kit, or the
SUBX1C SIRIUS Plug and Play Universal Boombox (each sold separately). Use this
manual to familiarize yourself with all of SIRIUS Sportster’s features and capabilities. For
the latest information about this and other SIRIUS Sportster products and accessories,
visit http://siriuscanada.ca.

[Table of Contents ]
4
Table of Contents
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . 6
Industry Canada (IC) Statement . . . . . . . . . . . . . . . . . . . . . . 6
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . 10
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . 11
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Magnetic Antenna . . . . . . . . . . . . . . . . . . . . . . 21
Antenna Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cable Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . 37
Docking Your SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . . . . 37
Connecting Your SIRIUS Radio to Your Vehicle’s Audio System . . . . . . . . . 38
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . 44
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
SIRIUS Sportster SP5 Front Panel . . . . . . . . . . . . . . . . . . . . . 45
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 48
Vehicle Dock Reference Guide. . . . . . . . . . . . . . . . . . . . . . . 51
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . 52
Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . 53
Display (Disp) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Search Modes (Preset, Category, Channel, Artist, Song Title) . . . . . . . . . . 55

[Table of Contents ] 5
Direct Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Channel Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Memory (MEMO) and Song Seek (S-Seek) Functions. . . . . . . . . . . . . . 61
Sports Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Instant Replay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
FM Presets Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Sirius ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
S-Seek alert settings . . . . . . . . . . . . . . . . . . . . . . . . . 83
Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Channel Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Sports Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Sports Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
NASCAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
NFL, NBA, NHL, College football, college basketball . . . . . . . . . . . . . 92
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Program Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Auto Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

[Warning and Safety Information ]
6
Warning and Safety Information
Industry Canada (IC) Statement
Operation is subject to the following two conditions: (1) this device may not cause in-
terference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that permitted for successful communication.
Note: This equipment has been tested and found to comply with the limits for a
CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.
2.
3.
4.

[Warning and Safety Information ] 7
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
Liquid Crystal Precautions
If the LCD screen on the SIRIUS Sportster is damaged, do not to touch the liquid crystal
fluid. If any of the following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a
cloth and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at
least 15 minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink
large quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not operate the SIRIUS SP5 in a way that might divert your attention from driving
safely. As a driver, you alone are responsible for safely operating your vehicle in ac-
cordance with traffic safety laws at all times.
1.
2.
3.
•

[Warning and Safety Information ]
8
Do not install the unit where it may obstruct your view through the windshield, or of
your vehicle’s indicator displays.
Do not install the unit where it may hinder the function of safety devices such as an
airbag. Doing so may prevent the airbag from functioning properly in the event of
an accident.
Be sure the unit is installed as described in these installation instructions and the
instructions which accompany each accessory kit. SIRIUS Satellite Radio is not
responsible for issues arising from installations which were not installed according
to the instructions.
To avoid short circuits, do not open the unit, and never put or leave any metallic
objects (coins, tools, etc.) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and discon-
nect the unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, wait 10 seconds,
and then turn it on again.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating
this unit.
Warnings
Operating Temperature
The radio is designed to operate between -20° to +85° C (-4° to +185° F). Avoid leaving the
radio in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the
LCD display screen, and possibly damage it.
•
•
•
•
•
•
•
•

[Warning and Safety Information ] 9
Cleaning and Maintenance
If the radio or accessories become dirty, turn the power off and wipe them clean with a
soft cloth. Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other
volatile solvents to clean. These may cause damage to the radio.
Cigarette Lighter Adapter
TheVehicleDockcannotbepowereddirectlyfromavehicle’s12VDCpowersystem.Itmustbe
poweredfromthevehicle’scigarettelighterorsimilarpowerportusingtheincludedCigarette
Lighter Adapter or an equivalent DC power adapter (see your local electronics dealer).
Connecting the Vehicle Dock directly to the vehicle’s 12VDC power system may result
in damage to the Vehicle Dock or SIRIUS radio, or both.

[Copyrights & Trademarks ]
10
Copyrights & Trademarks
© 2007 SIRIUS Satellite Radio Inc. All Rights Reserved.
®“SIRIUS”,theSIRIUSdoglogo,channelnamesandlogosaretrademarksofSIRIUSSatellite
Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo are
registered trademarks of the National Football League. “NHL” and the NHL Shield are
registered trademarks of the National Hockey League. “NBA” and the NBA silhouette
logo are registered trademarks of NBA Properties Inc. All other trademarks, service
marks, sports team names, album art, and logos are the property of their respective
owners. All Rights Reserved.
™“Sportster” is a trademark of SIRIUS Satellite Radio.
Portions of the software on this radio are licensed under the eCos License. Distribution
of eCos requires that the eCos source code be made available to SIRIUS Satellite Radio
customers. The eCos License and eCos source code are available to the public at http://
www.sirius.com/ecoslicense.
SIRIUS Satellite Radio reserves all rights to all radio software not covered under the
eCos license. This includes all portions of radio software that were not distributed to
SIRIUS as part of the eCos operating system.
Hardware, subscription and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI
and AK. Equipment and subscription sold separately. Installation required with some
equipment.

[Package Contents ] 11
Package Contents

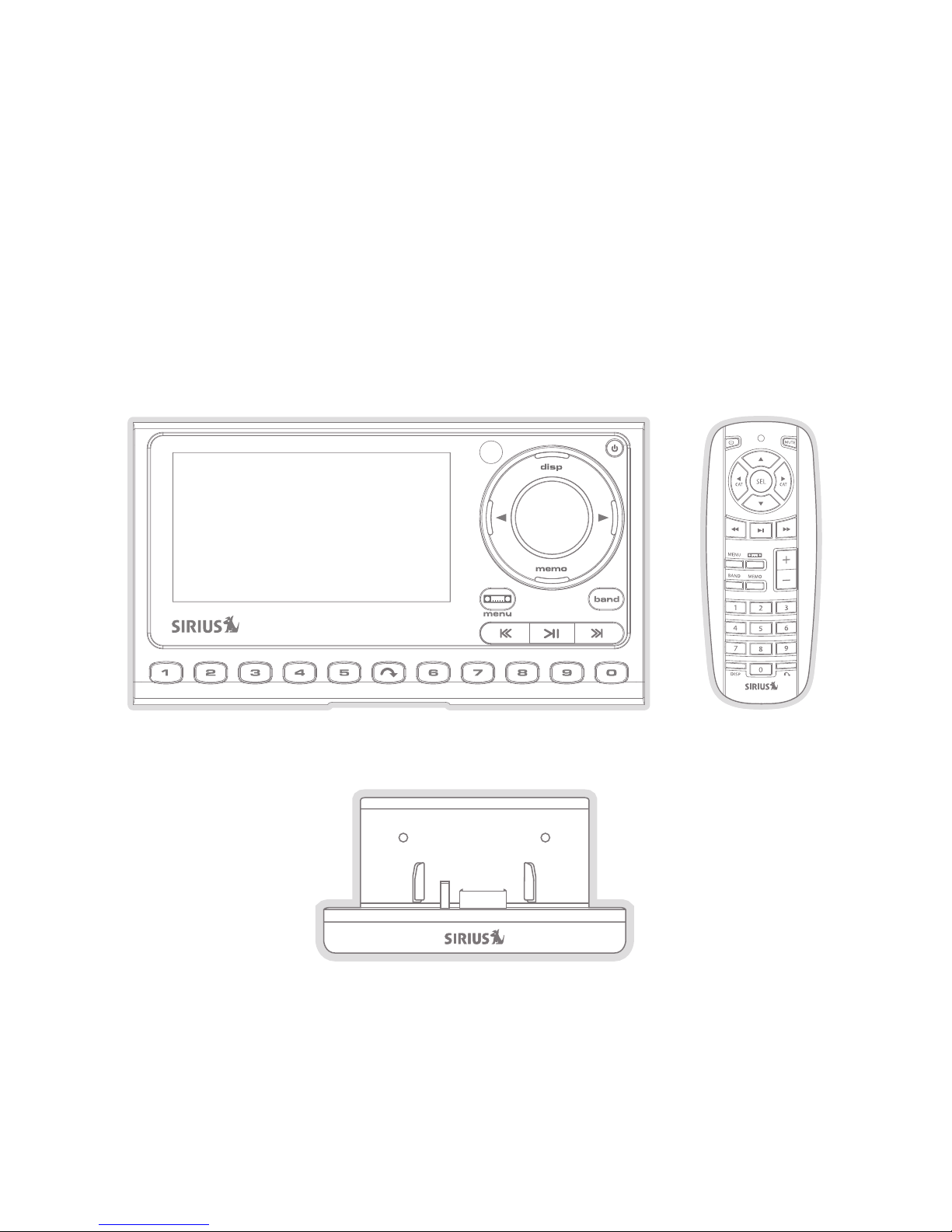

The following items are included with your SIRIUS Sportster SP5 radio:
Sportster SP5 Radio Remote Control
Vehicle Dock

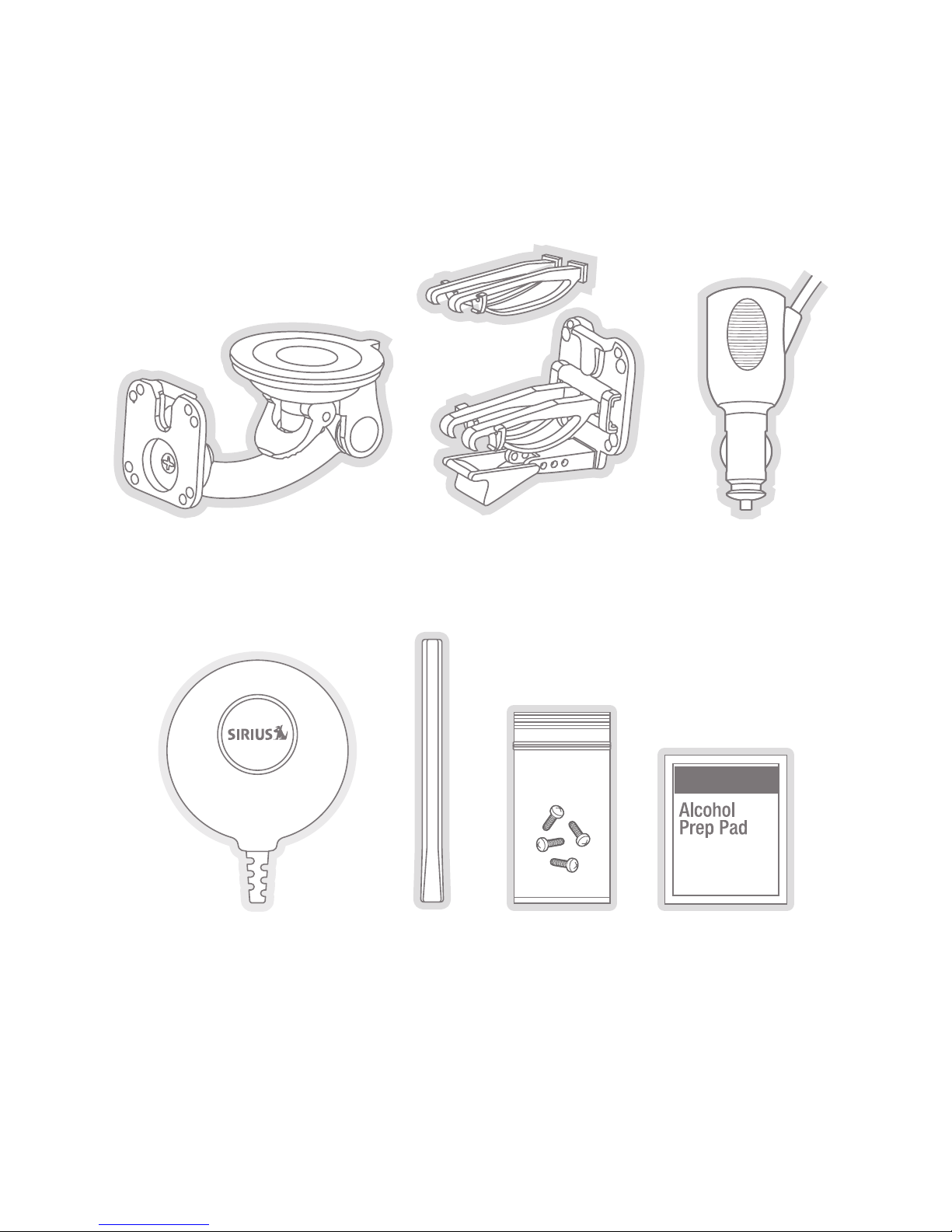

[Package Contents ]
12
Cigarette Lighter
Adapter
Vent Mount &
Extended Vent Hooks
Suction Cup Mount
Alcohol
Wipe
Mounting
Screws
Antenna
Cover/Tail
Magnetic
Antenna

[Package Contents ] 13
Unpack your SIRIUS Sportster SP5 carefully and make sure that everything shown is
present. If anything is missing or damaged, or if your SIRIUS Sportster radio fails to
operate, notify your dealer immediately. It is recommended that you retain the original
carton and packing materials in case you need to ship your radio in the future.

[Installation ]
14
Installation
SIRIUS suggests that you have your Sportster SP5 professionally-installed in
your vehicle. Professional installation provides an experienced technician to in-
stall this product in your vehicle, advice for selecting a suitable mounting loca-
tion for the Vehicle Dock, installation of the antenna, and proper routing of all
the necessary wires and cables. If the locations of your SIRIUS radio and your ve-
hicle’s FM antenna make the performance of your SIRIUS radio’s built-in FM trans-
mitter within your vehicle poor, a professional installer will have the necessary
accessories to install an optional FM Direct Adapter or audio cable to connect the audio
output of the Vehicle Dock directly to your vehicle’s audio system. Ask your SIRIUS re-
tailer if they provide professional installation services, or can recommend a professional
installation service.
Installing the Vehicle Dock
When installing the vehicle dock in your vehicle, choose a location that will not block
your vision, interfere with the vehicle controls, or obstruct the air bag. The location
should be easily accessible and provide good visibility of the display, and should not
be located where it will be in direct sunlight which will affect the visibility of the radio’s
display screen.
The mounting accessories necessary to install the vehicle dock in a vehicle are provided.
Figure 1 shows two examples of the SIRIUS radio mounted in a vehicle: Ais the suction
cup mount method, and Bis the vent mount method using the vent mount clip.
Note: The supplied suction cup mount and vent mount should work in most vehicles.
If your installation requires a different mounting option, check with a local electron-
ics retailer for other compatible mounts that are available separately.

[Installation ] 15
Depending upon the mounting location you select in your vehicle, the mount should be
attached to the vehicle dock and installed as described in the following sections.
A.
B.
Figure 1
A.
B.

[Installation ]
16
Suction Cup Mount Method (A)
The suction cup mount may be attached to your vehicle’s windshield. Before attaching the
suctioncupmounttoyourwindshield,youshouldcheckyourstateandlocallawsforregulations
regarding mounting this device on your windshield.
To mount the vehicle dock using the suction cup mount, assemble the mount as
follows:

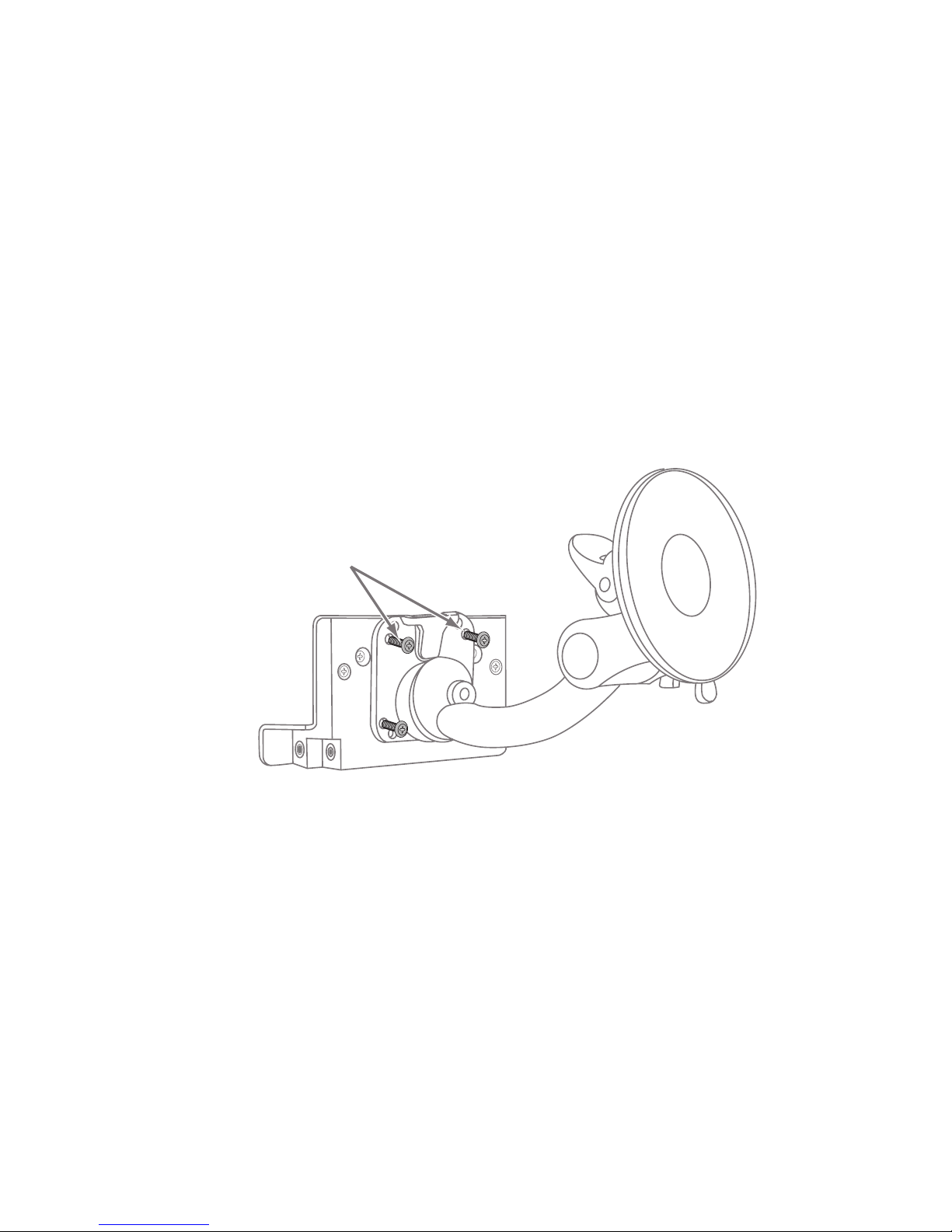

Attach the vehicle dock to the suction cup mount using the provided screws.
(See Figure 2.)
Clean the area where you are attaching the suction cup with the supplied alcohol
wipe.
1.
2.
Attach Dock
to Mount with
Included Screws
Figure 2

[Installation ] 17

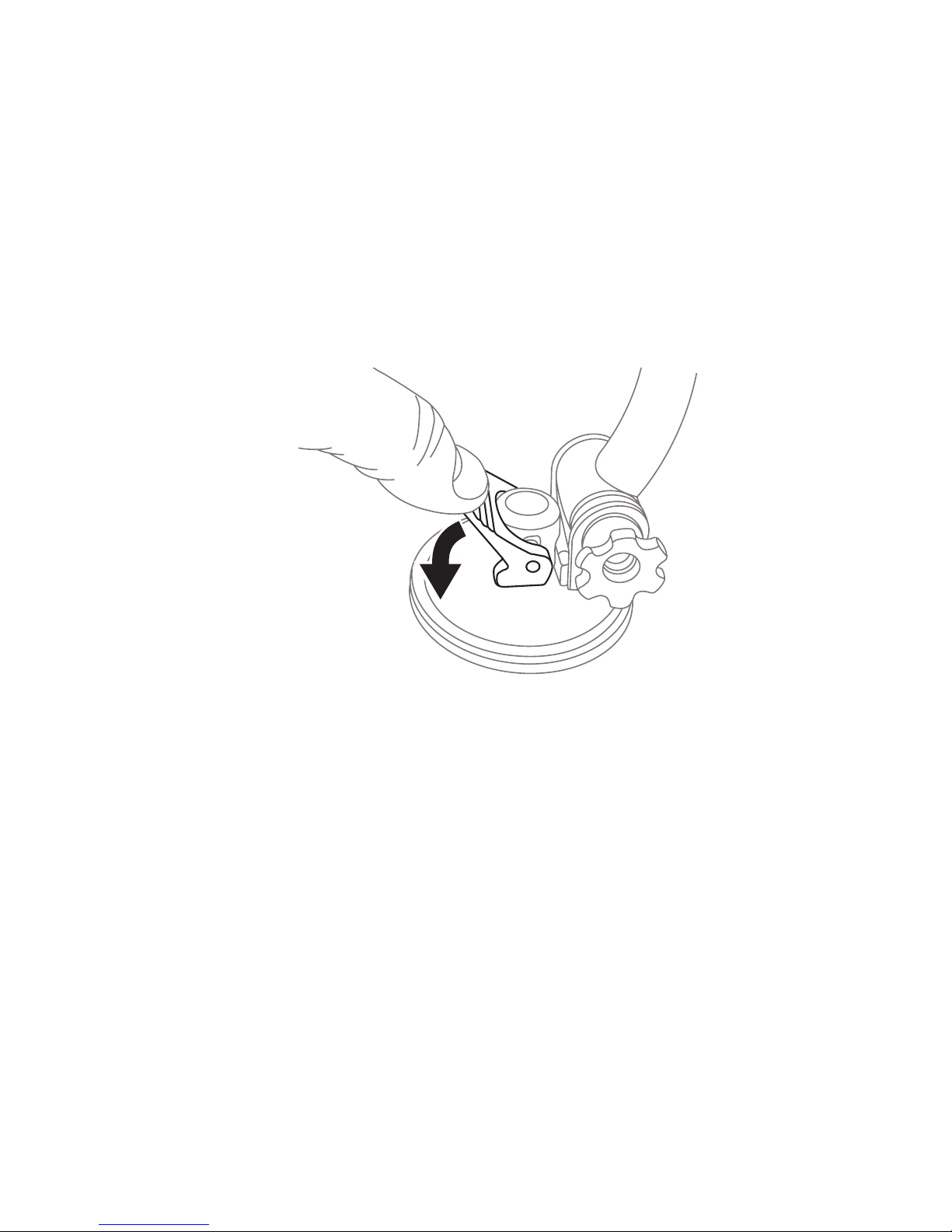

Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount
on the windshield or other location you have chosen. Press the cam lever all the way
down towards the base of the mount until it locks to firmly adhere the suction cup.
(To unlock the suction cup, lift the lever up.)
3.
Press Lever
Down To
Lock Mount
Figure 3

[Installation ]
18
Vent Mount Method (B)
To mount the vehicle dock using the vent mount method, install the vent mount as follows:

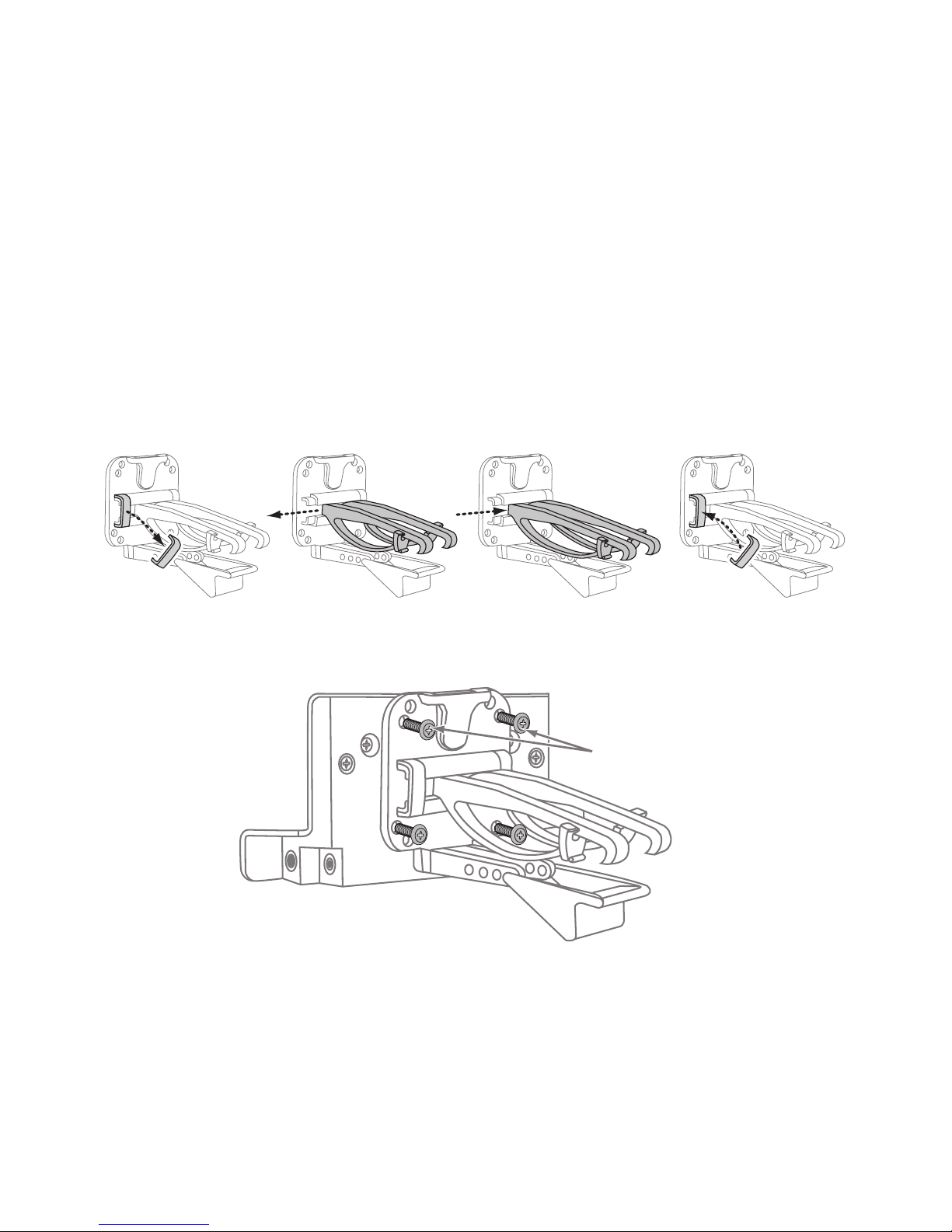

If the vent louvers in your vehicle are recessed, you may need to use the longer vent
hooks with the vent mount. Refer to Figure 4 and install the longer vent hooks into
the vent mount. Be sure to observe the orientation of the vent hooks as shown.
Attach the vent mount to the vehicle dock using the provided screws. (See Figure 5.)
1.
2.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
Attach Dock
to Mount with
Included Screws
Figure 4
Figure 5

[Installation ] 19
Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent in
your vehicle. Position the two tension springs Aagainst a vent louver B. Then push
the vent mount into the vent, far enough so that the hooks Cdrop down and hook
the rear of the vent louver (see Figure 7). Once the hooks have grasped a vent
louver, the tension springs Awill keep the vent mount hooked to the louver.
3.
FM OUT ANT
C
B
A
D
PUSH
FM OUT ANT HOOKED
Figure 6
Figure 7

[Installation ]
20
The angle of the vehicle dock may be changed by changing the position of foot D
on the vent mount to a different adjustment hole. (See Figure 8.)
4.
FM OUTANT
ADJUSTMENT
HOLES
D
Figure 8
