Sirius Satellite Radio Model Satellite User manual

OWNER’S MANUAL
Model Satellite

1
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Warning: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture. For example, do not use near a bathtub, in a wet basement, near
a swimming pool, and the like.
6) Clean only with dry cloth. Do not use aerosol or liquid cleaners. Unplug the product
before cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. Do not block openings by placing on a bed, sofa, rug, or similar surface.
Do not place in a built-in installation such as a rack or bookshelf unless proper
ventilation is provided. Do not push objects of any kind through openings.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet. Do not overload wall outlets or extension cords.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
When removing the power cord from the wall outlet, grasp it by the plug, not the cord.
11) Only use attachments/accessories specified by the manufacturer.
CAUTION
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICINGTO QUALIFIED
SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15) Operate this product only from the type of power source indicated on the rear
panel. For products using an external power supply, use an exact replacement
if lost or damaged. For products operating from battery power, refer to the user
manual.
16) If an outside antenna or cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide some protection against
voltage surges and built-up static changes. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
See figure A.

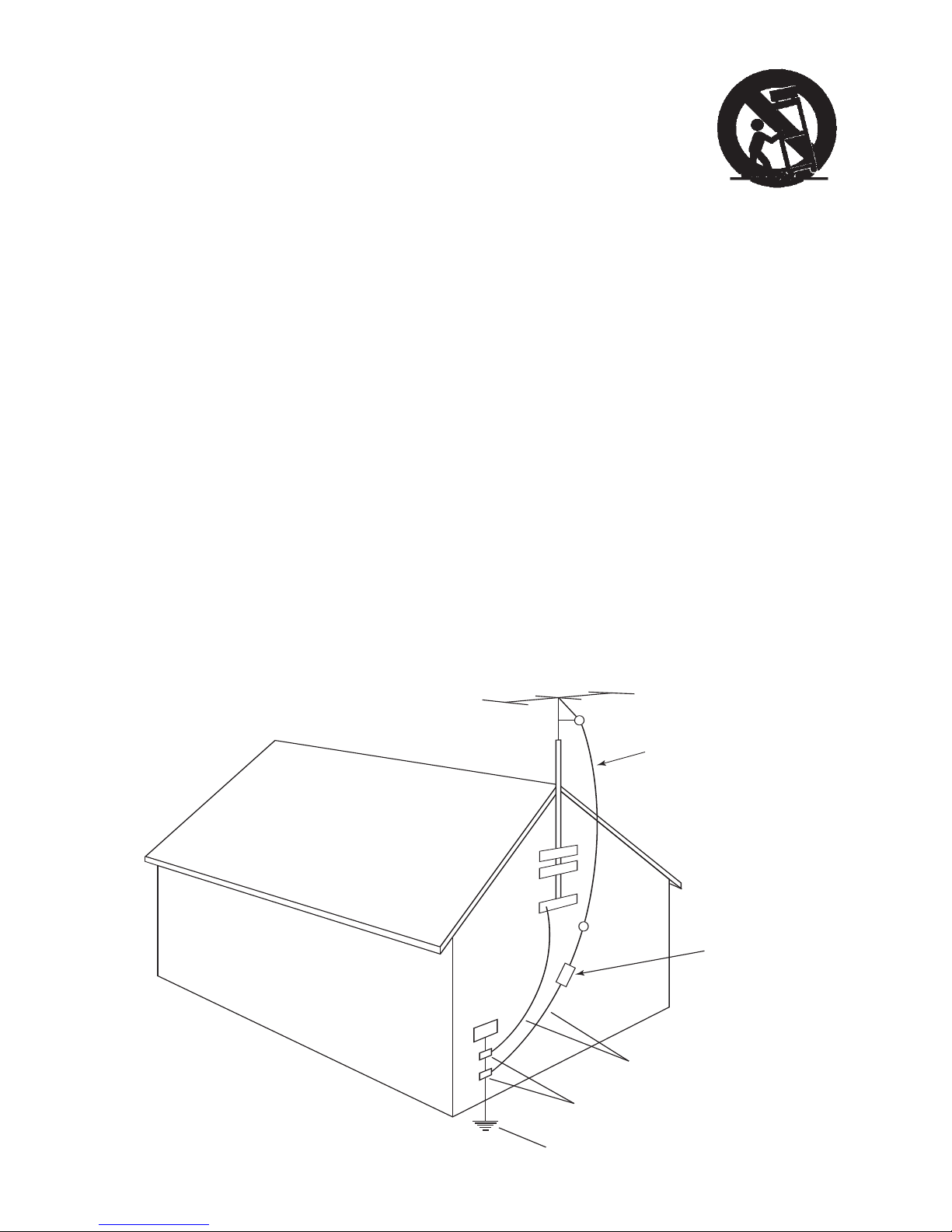

FIGURE A
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-21)
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ANTENNA
LEAD IN WIRE
2
FIGURE A

3
17) An outside antenna should not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it can fall into such circuits.
18) Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to water or rain.
d. If the product does not operate normally by following the operating instructions.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinctive change in performance.
19) When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer, product is in proper operating
condition.
20) Upon completion of any service, ask the service technician to perform safety
checks to confirm the product is in proper operating condition.
21) This product has been tested and found to comply with the limits for Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This product generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the product on and off, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antennas
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
22) Keep this product a safe distance away from naked flame, such as a lit candle.
23) Do not expose this product to splashing or dripping. Objects containing liquid,
such as vases or drinking glasses, should not be placed on top of this product.
24) The recommended operating temperature range is 5 degrees C to 40 degrees C
(41-104 degrees F).
25) The 12VDC input is suited for operating this product in a boat or camper using an
optional 12VDC, 1A fused adapter.

4
Model Satellite Instructions
Congratulations on your purchase of the Model Satellite table radio. The Model Satellite
combines our sensitive Henry Kloss analog AM/FM tuner with Sirius’ multi-channel,
digital-quality programming*. The result is a great sounding, easy to use, unique home
entertainment product.
In order to take full advantage of what your new radio is capable of, please take a
moment to read this owner’s manual and the Safety Instructions. If you have any
questions, please do not hesitate to contact your dealer or Tivoli Audio.
Please save the carton and original packing should you ever need to ship your
radio, as shipping damage is not covered by the factory warranty.
On behalf of all of us, thank you for choosing Tivoli Audio and enjoy your new
Model Satellite!
*Subscription required.
About Tivoli Audio
Tivoli Audio was started by Tom DeVesto with the goal of bringing simple to use, high
quality audio products to consumers at reasonable prices. His long professional asso-
ciation with Henry Kloss includes co-founding Cambridge SoundWorks*. As CEO and
head of research and development at his former company, Tom was responsible for the
development of many of the best selling home entertainment and multi-media products
on the market. He also held senior management positions in product development at
both Advent and Kloss Video.
Henry Kloss (1929-2002) began his long love affair with audio back in the early 1950’s
when, as a student at M.I.T., he began building speaker enclosures for fellow students
who wanted to exploit the sound of live FM broadcasts of the Boston Symphony
Orchestra. With encouragement from Major Edwin Armstrong, inventor of FM, and
M.I.T. lab staff, he co-founded Acoustic Research in 1952. Here, Henry co-invented
the revolutionary AR1 acoustic suspension loudspeaker, which forever changed the
way audio was reproduced. In 1957 he went on to co-found KLH, where he introduced
audio enthusiasts to the Model Six loudspeaker, Model Eight FM table
radio, and the Model 11 portable phonograph. Ten years later at Advent, he designed
one of the first projection television (which earned him an Emmy Award), along with
one of the first consumer cassette decks utilizing Dolby B noise reduction**. After
continuing projection television work at Kloss Video, Henry co-founded Cambridge
SoundWorks in 1988 along with Tom DeVesto. In 2000, at the age of 70, Henry
emerged from retirement to once again team-up with DeVesto to produce the original,
critically acclaimed Model One mono table radio.
*Cambridge SoundWorks is a registered trademark of Creative Technology, Singapore.
**Dolby is a registered trademark of Dolby Labs, Inc.

5
Packed with your Model Satellite radio you should find:
• 1 External FM Antenna
• 1 External Sirius Antenna
• 1 External AM Loop Antenna
• 1 External Power Supply
• 1 Remote Control with Battery
• 1 Warranty Registration Card
Please contact your dealer or Tivoli Audio if any of these items are missing.
GETTING STARTED:
1. Connect the Sirius antenna to the rear Sirius antenna input.
2. Connect the external power supply and plug it into an outlet.
3. Be sure the front source knob is in the Sirius position and press
and hold the Power button to turn the unit on.
4. Position the Sirius antenna for best signal reception. See section
marked “Sirius Reception”.
5. Activate your Sirius subscription.
ATTENTION: “NO SIGNAL. PUSH ENTER BUTTON IN SIRIUS MODE” The display
will show this message when the power supply is connected to the Model Satellite for
the first time, when the power supply is disconnected and re-connected from the unit,
or after a power failure. In such cases, be sure the source knob is in the Sirius position
and the Sirius antenna is properly connected. Press and hold the Enter button to turn
the Model Satellite on to re-acquire the signal.
Activating your Sirius Radio Subscription
You will quickly be able to enjoy the multitude of Sirius channels once you activate your
subscription by following these three easy steps:
1) Once you’ve connected the Sirius antenna and power supply, the LCD screen
will show: “No Signal. Press Enter Button in Sirius Mode”. Verify that the source
knob is set in the SIRIUS position. Press and hold the red Power/Enter button
until the unit turns on. The display will initially show “Acquiring Signal”, then
“Updating Channels”, and will then show “To Activate Call 1-888-539-7474” if
the signal is received. Adjust the volume control. You should be hearing the Preview
Channel. This is the only channel you will receive until your subscription is activated.
If not, point the remote control at the unit, press the Direct button on the remote
control, followed by the numbers “1-8-4”. You should now hear the preview channel.
If you still do not hear anything, re-orient the Sirius antenna until you do. For more,
see the section marked “Reception”.
2) Now press the Menu button. Sirius ID will be highlighted in the Main Menu. Press
the Enter button to view your unit’s unique 12-digit ID number on the display.
Record this number and have a valid credit card available when you contact
Sirius at 1-888-539-7474 to activate your subscription, or log on to:
www.siriusradio.com

6
Note: Once your Sirius subscription is activated, whenever you receive a subscription
update, the display will show “Subscription Updated” and “Press Any Key to Continue”.
Press any front panel or remote control button to resume normal operation.
SIRIUS RECEPTION:
Use this map as a general placement guideline — some experimentation may be needed
to obtain the best reception in your particular situation.
Please face the antenna in the direction designated for your area.
In most instances, placing the Sirius antenna near a window will provide good reception,
but since the antenna is weather proof, it may also be placed outdoors with a clear
view of the sky for maximum reception. Such placement may require an antenna
extension cable (not included). If the Sirius signal is not received, the display will show
one of three messages:
• “Acquiring Signal”: The Sirius signal is weak or cannot be received. No other
information will be displayed.
• “Antenna Error”: The Sirius antenna is not connected properly. No other information
will be displayed.
• “Antenna Not Detected”: The Sirius antenna is not connected or not connected
properly and no signal is available. No other information will be displayed.
To check the Sirius satellite signal at any time, press the Menu button, highlight the
Antenna Aiming option and press Enter. Wait a few seconds for the meter to become
active. Adjust the Sirius antenna until the maximum number of reception bars are shown.
Wait two seconds after moving the antenna for the meter to reset. “SAT” indicates
satellite reception while “TER” indicates a terrestrial ground repeater used in major
metropolitan areas where the satellite signal may not penetrate. Terrestrial signals may
not be available in your area. Due to satellite orbiting characteristics, signal strength
may fluctuate throughout the day.
If you continue to experience reception difficulty, contact Sirius for additional advice at
1-888-539-7474 or email customercar[email protected]
IF YOU LIVE IN:
Section 1: East or Northeast
Section 2: North or Northeast
Section 3: North or Northwest
Section 4: North or Northwest
Section 5: Straight Up

7

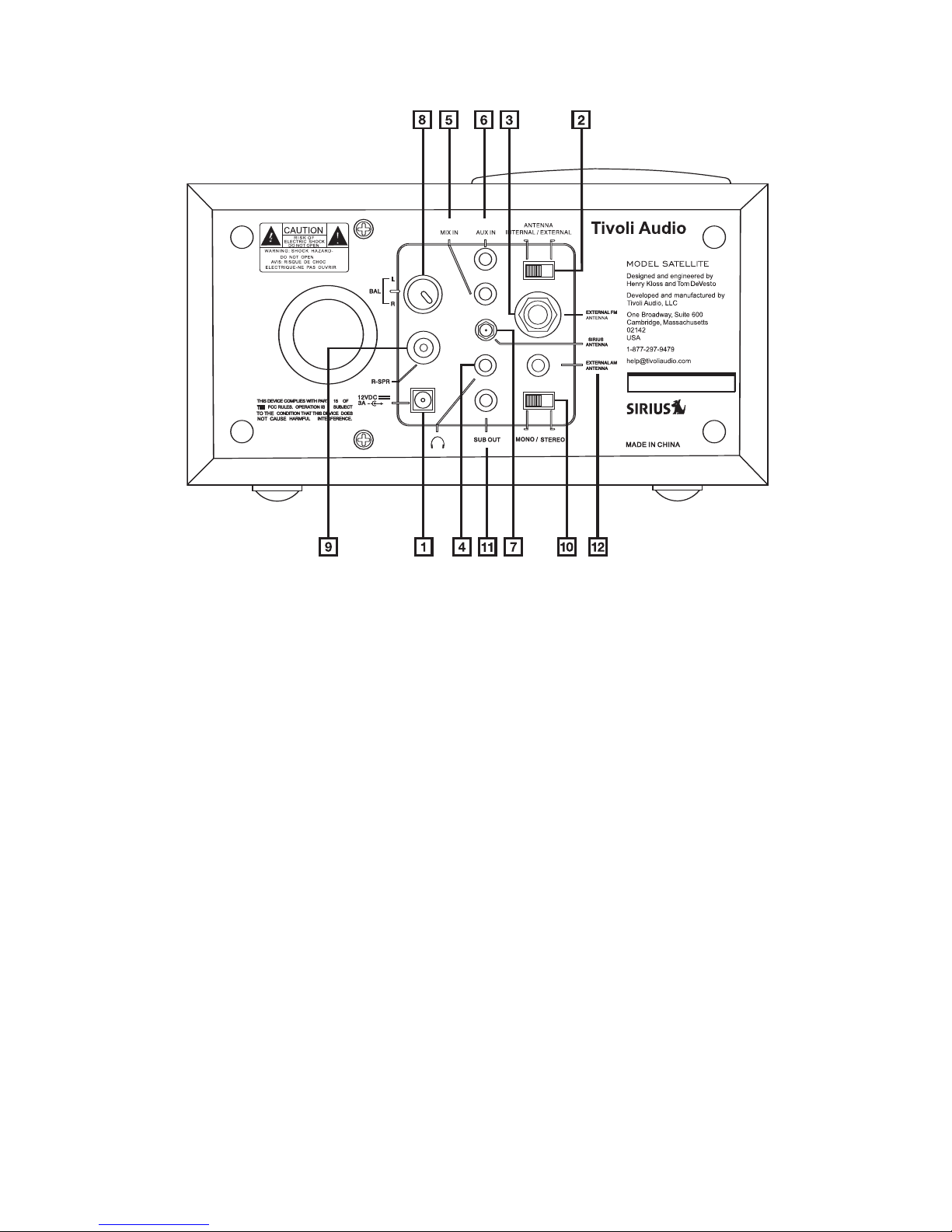

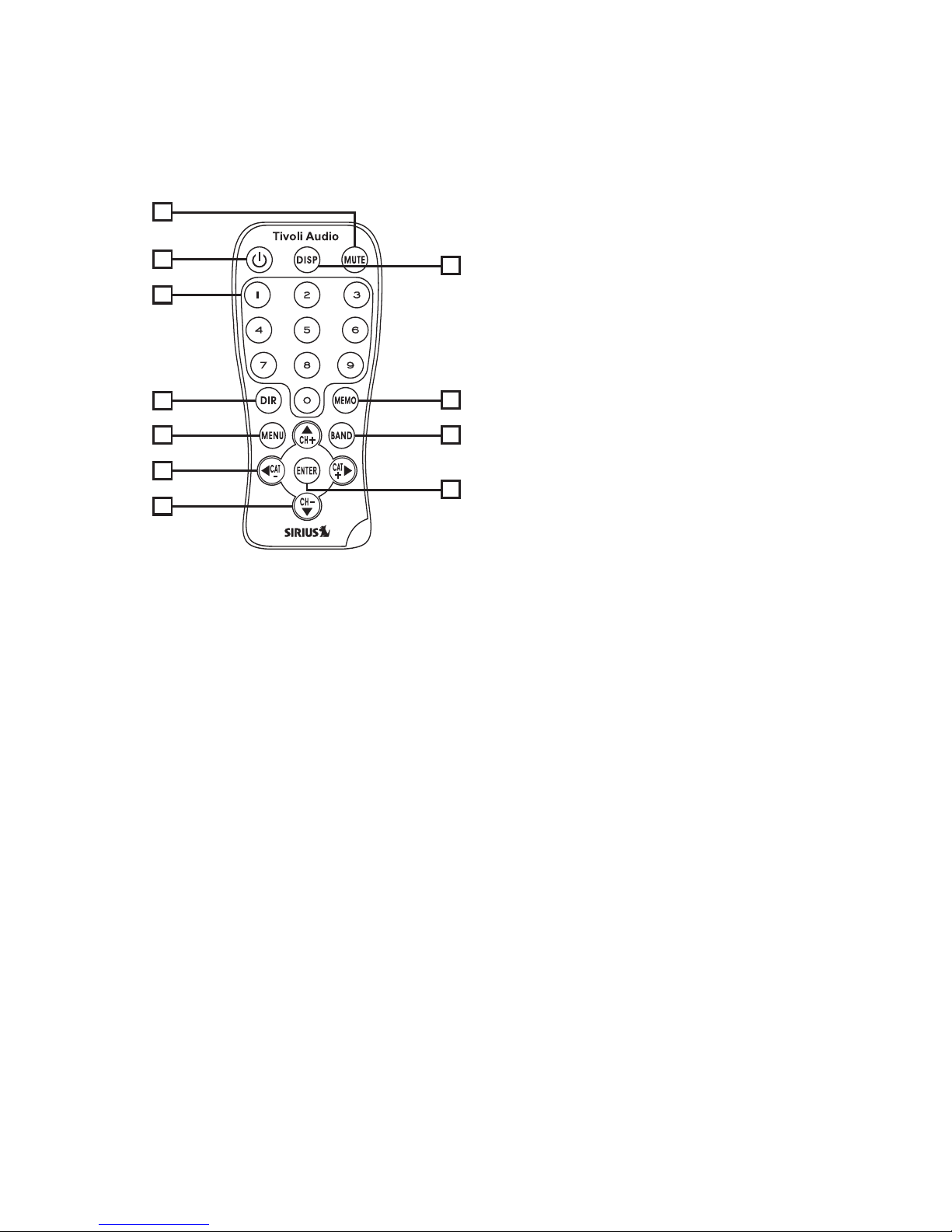

GUIDE TO FEATURES (FRONT PANEL)
1. POWER/ENTER (Enter is a separate button on remote control): Press and
hold to power the unit On and the small green LED on the front panel will illuminate.
The Sirius logo will be briefly displayed when in Sirius mode and the last tuned
channel will be displayed. Press and hold to power the unit Off (standby). The Tivoli
Audio logo will be briefly displayed. Press briefly when the unit is on to select items
highlighted in the menu/lists. Occasionally upon turn-on in the Sirius mode, the
display may show “Updating Channels”, in which case audio is muted and tuning
prohibited while the channel line-up is updated.
2. MENU: When the source knob is set to the Sirius position, press the menu button
briefly from any mode other than a sub menu to enter the Main Menu. The Main
Menu options are: Sirius ID, Display Settings, Add or Skip, Lock Options, Antenna
Aiming, Memory Options, Clock, Alarm Settings, Sleep mode, and Factory Default.
For more, see “Main Menu Options”. Press again briefly to move back one level.
Press and hold while in a sub menu to instantly return to the channel screen.
3. CH+/CH-: Press to navigate up or down through the Menu, lists, or to change
Sirius channels. Press and hold to fast forward or fast reverse through channels.
Use the Enter button to select the highlighted item.
10
8
6
11
12
7
5
9
2 34 113

8
FIGURE 1
4. CAT </>: Press to access and advance through categorized channels based on
content. (Figure 1) When in this mode, briefly press the DISP button to cycle
between category and artist and song title information (when available). Use the
CH+/- buttons to navigate and the Enter button to select the highlighted item.

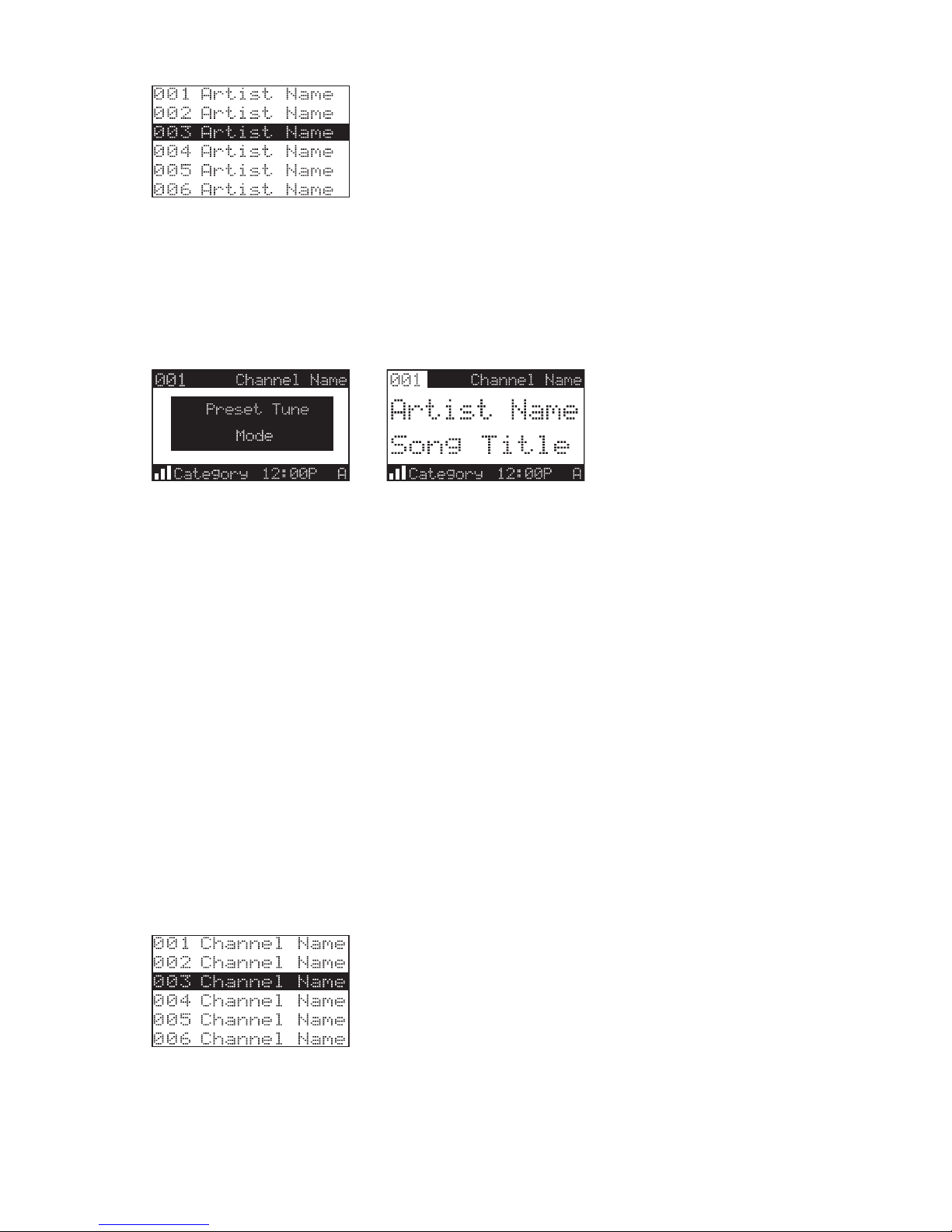

FIGURE 2 FIGURE 3
5. BAND: Press briefly to cycle between the 4 Sirius preset bands (A, B, C, and D).
Press and hold for Preset Tune mode to access the entire 4 banks of stored
presets. (Figure 2) The highlight behind the preset number and channel number
will disappear to indicate you are in Preset Tune mode. (Figure 3) Use the Channel+/-
keys to scroll through and tune each saved preset (empty presets are skipped).
Pressing and holding the Band button again will cancel the Preset Tune mode.
If no presets have been stored you will not be able to access the Preset Tune
mode. While in Preset Tune mode, press and hold the DISP button to view a list of
all stored presets. Use the CH+/- and Enter buttons to select and tune a preset.
6. PRESETS #1-5: Press and hold to set the currently tuned Sirius channel. A beep
will be heard confirming the channel has been successfully stored. A pop-up screen
will indicate how many Presets have been stored and how many remain open. Once
stored, press the Preset button briefly to recall the channel associated with that
preset. Bands A, B, C, and D allow up to 5 Presets per band to be set, for a total
of 20 Presets. These presets are dedicated to Sirius channels only and are shown
in the lower right corner of the display.
FIGURE 4
7. DISP: Press to change the display from Normal (2-lines) to Large (1-line) text mode.
In Large mode the display will scroll if the artist or song title information cannot be
viewed in its entirety. The artist field will be empty if such information is not available.

9
Press and hold the DISP button to enter the complete Channel List mode. (Figure 4)
Press the DISP button again briefly to alternate between artist and song title information
(when available) to see what is currently playing on other channels. Use the channel
+/- or CAT </> buttons along with the Enter button to make your channel selection,
or press and hold the DISP button again to exit the Channel List mode and return
to the last selected channel.

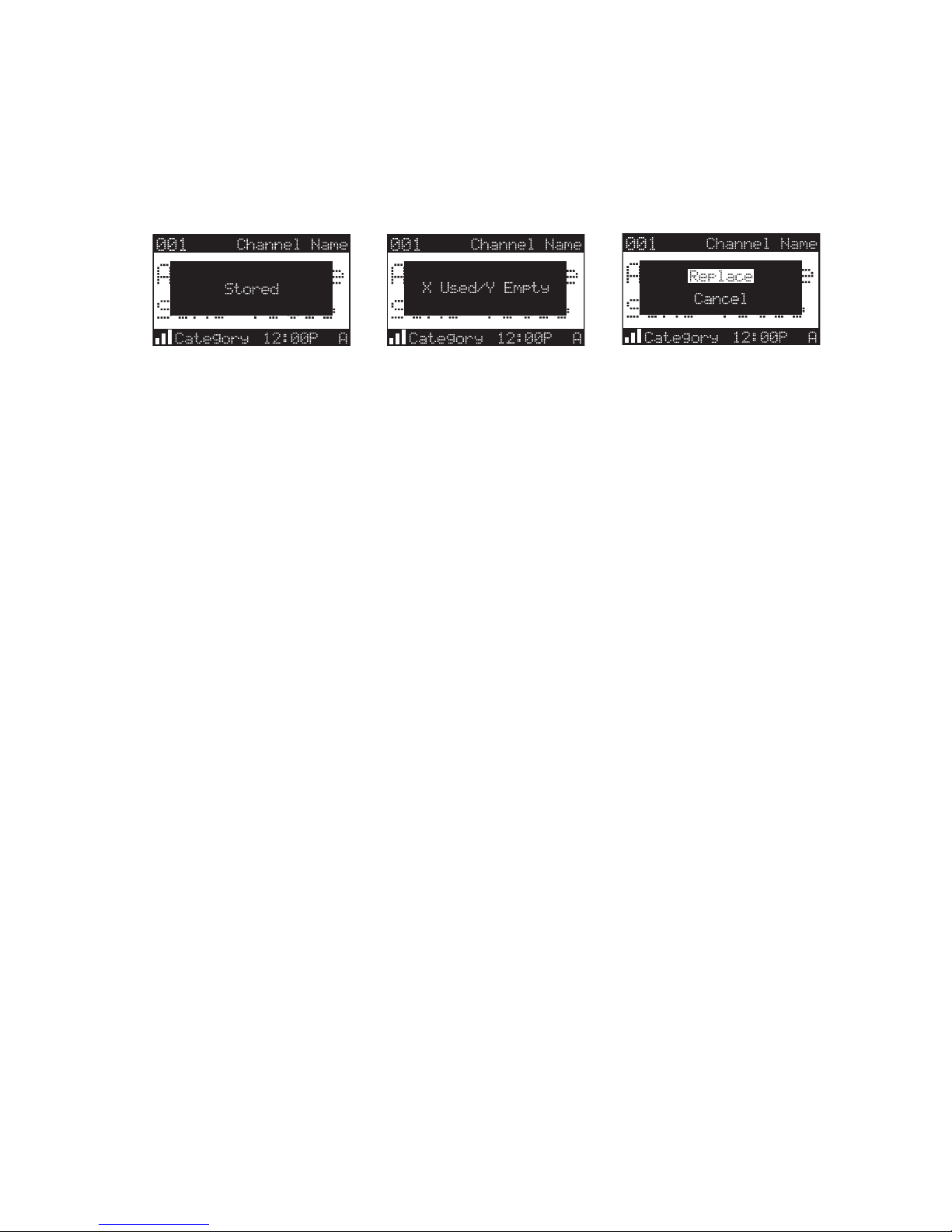

FIGURE 5 FIGURE 6 FIGURE 7
8. MEMO: Press briefly to save the currently tuned Sirius channel song and artist
information, up to 20 listings total (Figure 5 and 6). Press and hold to review all
stored listings, using the CH+/- keys to cycle rotate through the stored pages.
Press the Enter key for the option to delete the listing (using the CH+/- keys) or to
activate/deactivate Song-Seek. Press the Memo button again to exit. See “Memory
Options” in the section marked “Menu Options” for more information about the
Song-Seek function. If all 20 listings are full and the Memo button is pressed, a
pop-up screen will provide the option of replacing an existing listing or cancelling
the action (Figure 7) using the CH+/- and Enter buttons. Press Memo to return to
the previous menu.
9. SIRIUS/FM/AM/AUX SOURCE KNOB: Turn the knob one click to the right to hear
Sirius Radio, two clicks to the right to hear the FM band, three clicks to the right to
hear the AM band, or four clicks for the auxiliary input. When switching from Sirius
to FM, AM, or Aux, the Tivoli Audio logo will be displayed briefly, followed by the
clock and date. When switching from FM, AM, or Aux to Sirius, or when turning the
unit on in Sirius mode, the Sirius logo will be displayed briefly, followed by the
channel screen. If the Sirius satellite signal is not fully received, the clock and date
will be unable to update and the display will show “No Signal. Press Enter Button
in Sirius Mode”.
10. VOLUME KNOB: Rotate the volume knob to the right to increase the volume or
to the left to decrease the volume. This knob also controls the volume of the
headphone output.
11. POWER INDICATOR: Glows green whenever the unit is powered On.
12. TUNING INDICATOR: Glows bright amber when best AM/FM tuning has been
achieved. Some listenable AM stations will not light the tuning indicator and should
be tuned by ear for the clearest signal. This light may be off or on when in the Aux
position depending upon the position of the AM dial. This light remains off when in
Sirius satellite mode.
13. TUNING KNOB: Rotate the tuning dial to the right or to the left to adjust the analog
FM (upper half of dial) and AM (lower half of dial) frequency range. This control
does not affect Sirius channels.
