Sirius Satellite Radio SUPV1 User manual

SUPV1
SIRIUS Plug and Play Vehicle Kit
For use with most newer SIRIUS Plug and Play Radios
with the FM Extender Antenna
Installation Guide

Congratulations on the Purchase of your new SUPV1 SIRIUS
Universal Plug and Play Vehicle Kit
Your new SUPV1 SIRIUS Universal Plug and Play Vehicle Kit lets you enjoy SIRIUS®Satellite
Radio’s digital entertainment in any vehicle. Use this manual as a guide for the installation.
The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit will work with most new SIRIUS plug
and play satellite radios. See your Plug and Play user manual for specific product compat-
ibility.
For the latest information about this and other SIRIUS products and accessories, visit
http://www.sirius.com.

[Table of Contents ] 3
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . 4
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Compatibility Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 6
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 19
Docking the SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maximizing Audio Quality From Your SIRIUS Radio. . . . . . . . . . . . . . . . . . 21
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 36
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
OPTIONAL ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . 38
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

[Warning and Safety Information ]
4
Warning and Safety Information
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident and/or personal injury.
Installation must be performed according to this installation guide. SIRIUS is not responsible
for issues arising from installations not performed according to the procedures in this guide.
Do not operate the SIRIUS radio in a way that might divert your attention from driving safely.
As a driver, you alone are responsible for safely operating your vehicle in accordance with
traffic safety laws at all times.
Do not install the unit where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Before attaching the suction cup mount to your windshield, you should check your state and
local laws for regulations regarding mounting this device on your windshield.
Do not install the unit where it may hinder the function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning properly in the event of an accident.
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the vehicle dock.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect the
unit from any power source.
Do not drop the unit or subject it to strong shocks.
The installation and use suggestions contained in this manual are subject to any restrictions
or limitations that may be imposed by applicable law. The purchaser should check applicable
law for any restrictions or limitations before installing and/or operating this unit.
Do not install the FM Extender Antenna where it will hinder or block your view. In some states
it may be illegal to mount it on the windshield of your vehicle. Check applicable law for any
restrictions or limitations before installing the FM Extender Antenna on your windshield.
Do not install the FM Extender Antenna where it may hinder the function of safety devices
such as an airbag. Doing so may prevent the airbag from functioning properly in the event of
an accident.
•
•
•
•
•
•
•
•
•
•
•

[Warning and Safety Information ] 5
Product Compatibility Notice
The SUPV1 is compatible only with plug and play products that use the New SIRIUS Uni-
versal Docking capability. This product specifically is not intended nor is it approved for use
with SIRIUS radios exhibiting FCC identification numbers NKRUPASV301, NKRUPAST401,
P3HSP4, P3HNSPH4, P3HNSPH3, or P3HNSPH-3.
Warnings
Notice To Drivers In California and Minnesota
State law prohibits drivers in California and Minnesota from using suction mounts on their
windshields while operating motor vehicles. Other dashboard or friction mounting options
should be used. SIRIUS does not take any responsibility for any fines, penalties, or damages
that may be incurred as a result of disregarding this notice. (See California Vehicle Code Sec-
tion 26708(a); Minnesota Statutes 2005, Section 169.71)
Operating Temperature
The SIRIUS Cigarette Lighter Adapter is designed to operate between -20° to +85° C (-4° to
+185° F). Avoid leaving it in a vehicle or elsewhere where the temperature may fall outside
this range.
Cleaning and Maintenance
If the vehicle dock becomes dirty, turn the power off and wipe it clean with a soft cloth. Do
not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to
clean. These may cause damage to the unit.
Cigarette Lighter Adapter
The SUPV1 cannot be powered directly from a vehicle’s 12 VDC power system. It must be
powered using the included Cigarette Lighter Adapter only. Connecting the SUPV1 directly to
the vehicle’s 12 VDC power system may result in damage to the vehicle dock or SIRIUS radio, or
both.

[Copyrights & Trademarks ]
6
Copyrights & Trademarks
© 2006 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of Sirius Satellite
Radio Inc. All Rights Reserved.
Hardware, subscription, and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ] 7
Package Contents

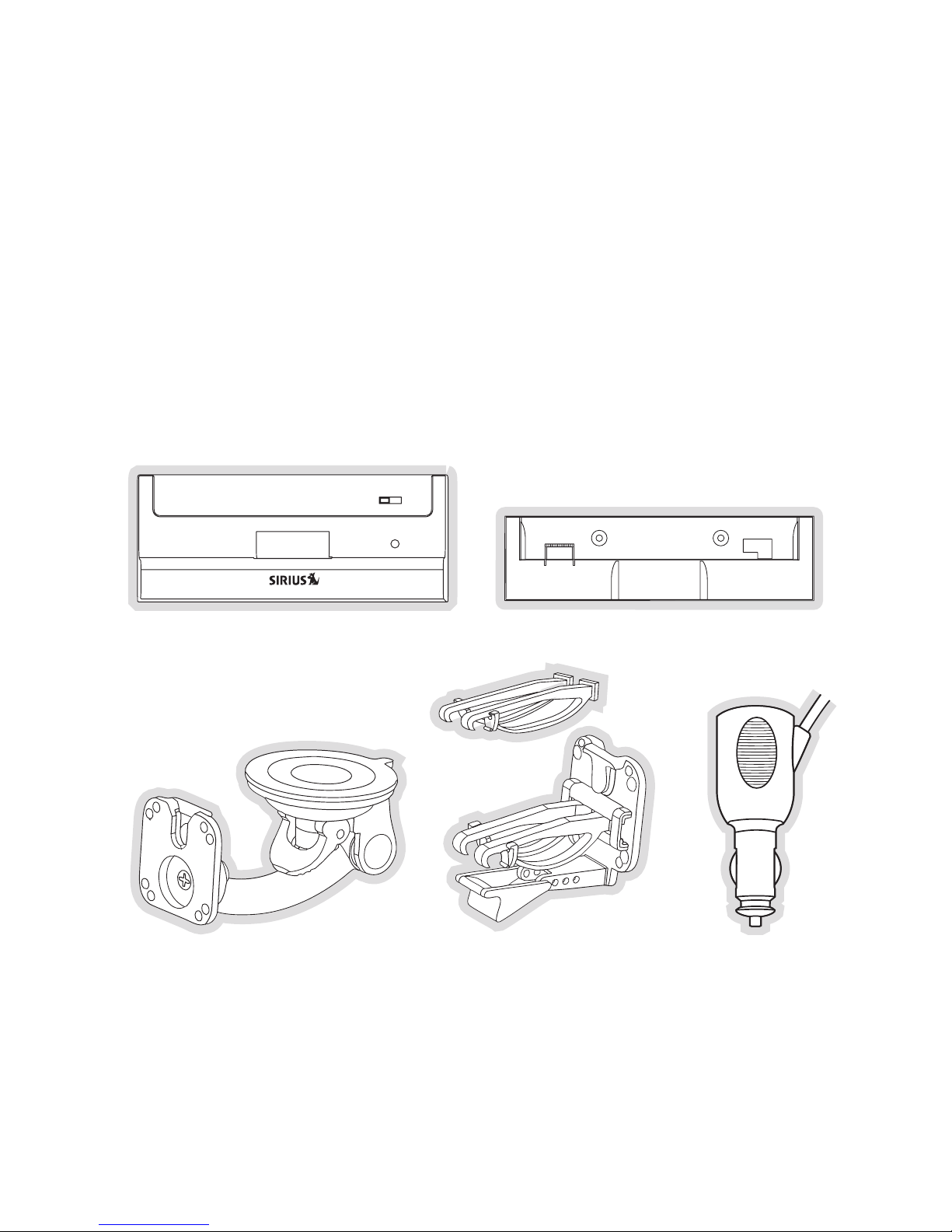

The following items are included with your purchase of the SUPV1 SIRIUS Universal Plug and
Play Vehicle Kit. Unpack the kit carefully and make sure that everything shown is present. If
anything is missing or damaged, or if the kit fails to operate properly, notify your dealer im-
mediately. It is recommended that you retain the original carton and packing materials in case
you need to ship your kit in the future.
Vehicle DockVehicle Dock Vehicle Dock AdapterVehicle Dock Adapter
Vent Mount &
Extended Vent Hooks
Vent Mount &
Extended Vent Hooks
Cigarette Lighter AdapterCigarette Lighter Adapter
Suction Cup MountSuction Cup Mount

[Package Contents ]
8
Magnetic AntennaMagnetic Antenna Alcohol SwabAlcohol Swab Antenna
Cover/Tail
Antenna
Cover/Tail
Mounting
Screws
Mounting
Screws
Suction Cups (2)Suction Cups (2)FM Extender AntennaFM Extender Antenna Self Adhesive
Cable Guides (3)
Self Adhesive
Cable Guides (3)

[Controls ] 9
Controls
Figure 1 and the section following identify and describe the controls and connectors of the
vehicle dock.
1
56 43
2

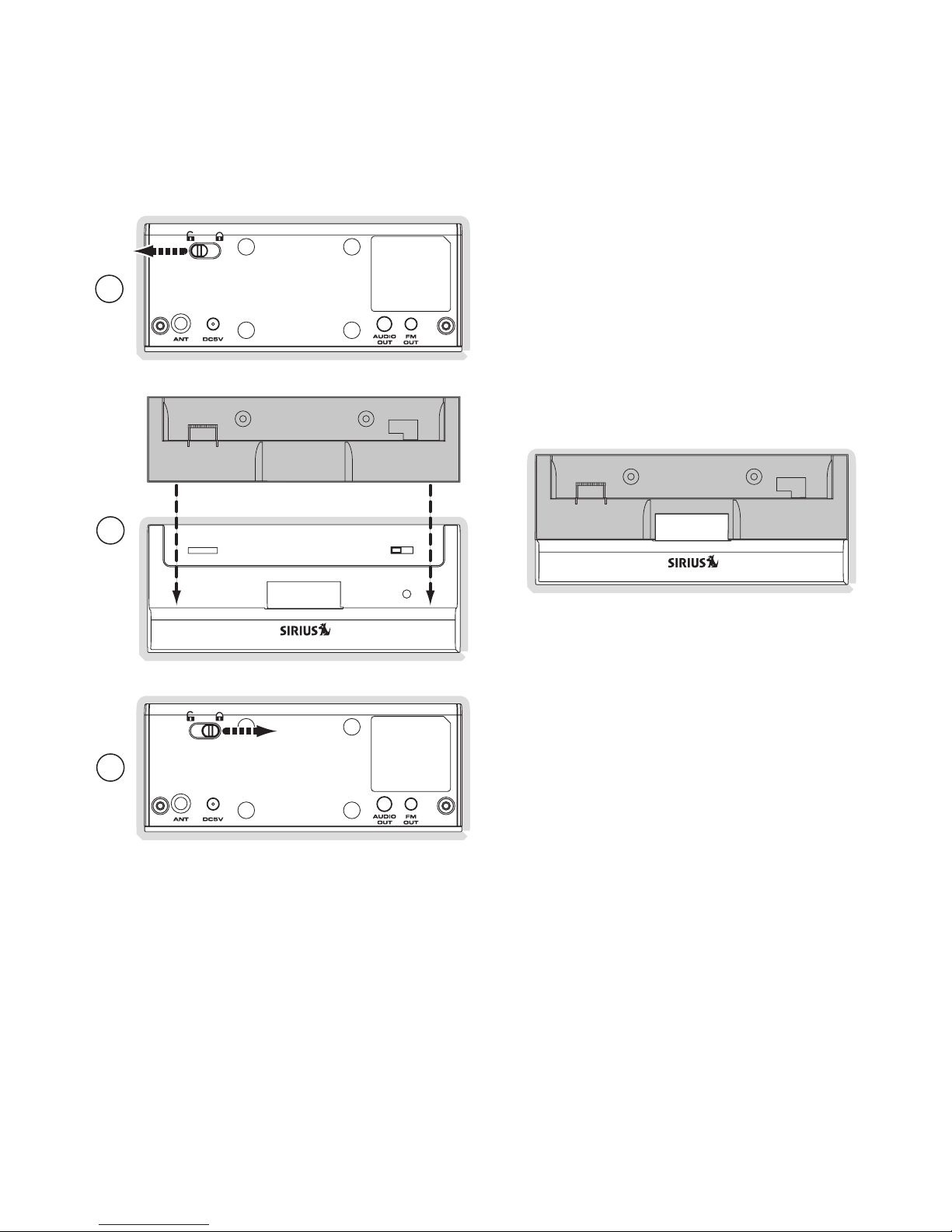

Lock Switch: Locks and unlocks the SIRIUS radio in the vehicle dock.
Mounting Holes: Mounting holes for attaching the suction cup mount or the vent mount.
FM OUT Connector: FM output for use with the optional FM Direct Adapter.
AUDIO OUT Connector: Optional audio output connection for connecting to your
vehicle’s audio system if you are not using the FM transmitter.
DC5V Power Connector: Power connection for the cigarette lighter adapter.
ANT Antenna Connector: Connection for the provided magnetic antenna.
1.
2.
3.
4.
5.
6.
Figure 1Figure 1

[Installation ]
10
Installation
SIRIUS suggests professional installation of this product in your vehicle. Professional instal-
lation provides an experienced technician to install this product in your vehicle, advice for se-
lecting a suitable mounting location, installation of the antenna, and routing all the necessary
wires and cables. If the FM reception within your vehicle proves to be poor, an installer will
have the necessary accessories to install an optional FM Direct Adapter, or an audio cable, to
connect the audio output of the vehicle dock directly to your vehicle’s audio system. Ask your
SIRIUS retailer if they provide professional installation services, or can recommend a profes-
sional installation service.
Installing the Vehicle Dock
When installing the vehicle dock in your vehicle, choose a location in your vehicle where it
will not block your vision, interfere with the vehicle controls, or obstruct the air bag. The loca-
tion should be easily accessible and provide good visibility of the display, and should not be
located where it will be in direct sunlight which will affect the visibility of the display screen.
The mounting accessories necessary to install the vehicle dock in a vehicle are provided.

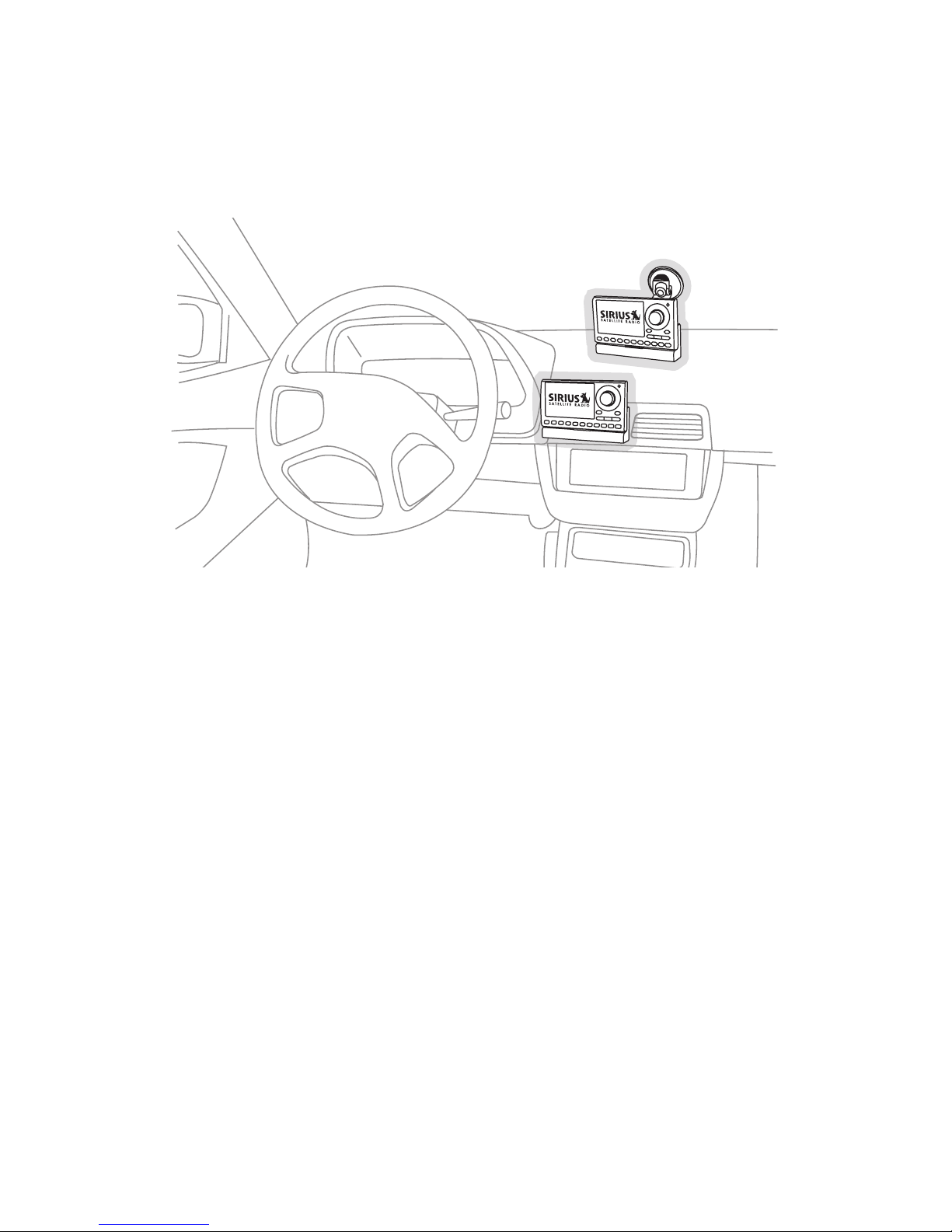

Figure 1 shows two examples of the SIRIUS radio mounted in a vehicle: Ais the suction cup
mount method, and Bis the vent mount method using the vent mount clip.

[Installation ] 11
A.
B.
Depending upon the mounting location you select in your vehicle, the mount should be at-
tached to the vehicle dock and installed as described in the following sections.
Figure 1Figure 1

[Installation ]
12
Suction Cup Mount Method (A)
The suction cup mount may be attached to any smooth surface. Before attaching the suction
cup mount to your windshield, you should check your state and local laws for regulations
regarding mounting this device on your windshield.

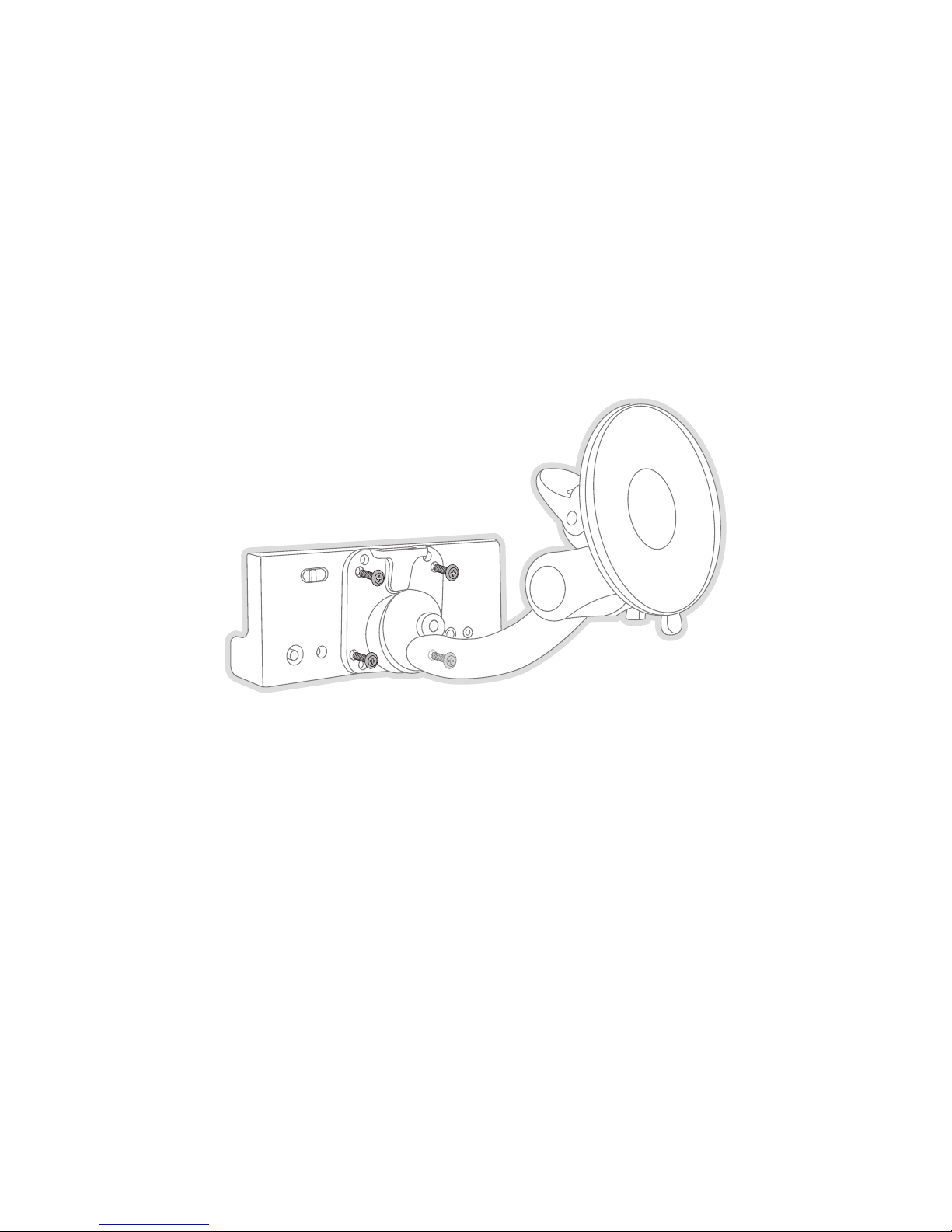

To mount the vehicle dock using the suction cup mount, assemble the mount as follows:
Attach the vehicle dock to the suction cup mount using the provided screws. (Figure 2)
Clean the area where you are attaching the suction cup with an alcohol wipe.
1.
2.
Figure 2Figure 2

[Installation ] 13

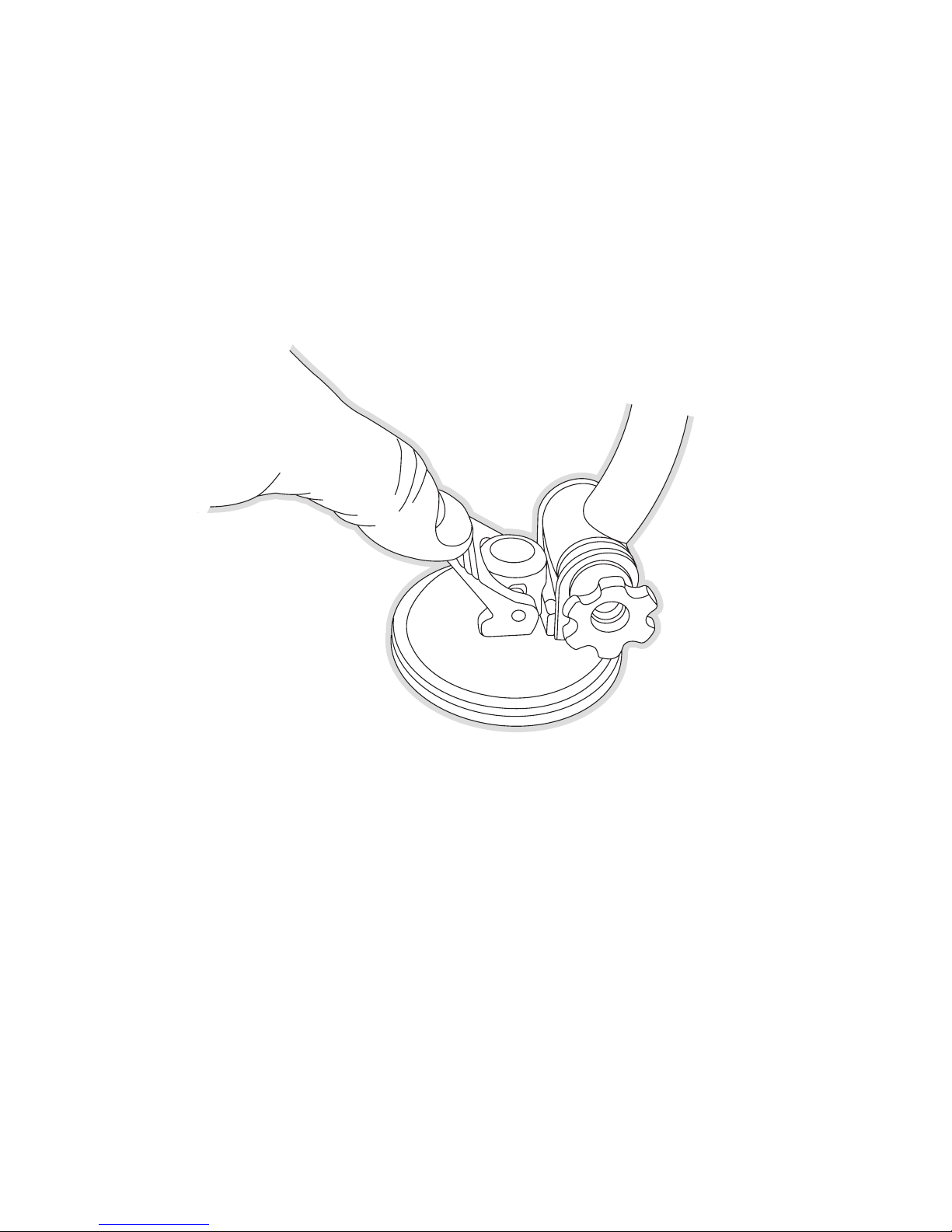

Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount
on the windshield or other location you which have chosen. Press the cam lever all the
way down towards the base of the mount until it locks to adhere the suction cup. (To
unlock the suction cup, lift the lever up.)
3.
Figure 3Figure 3

[Installation ]
14
Vent Mount Method (B)

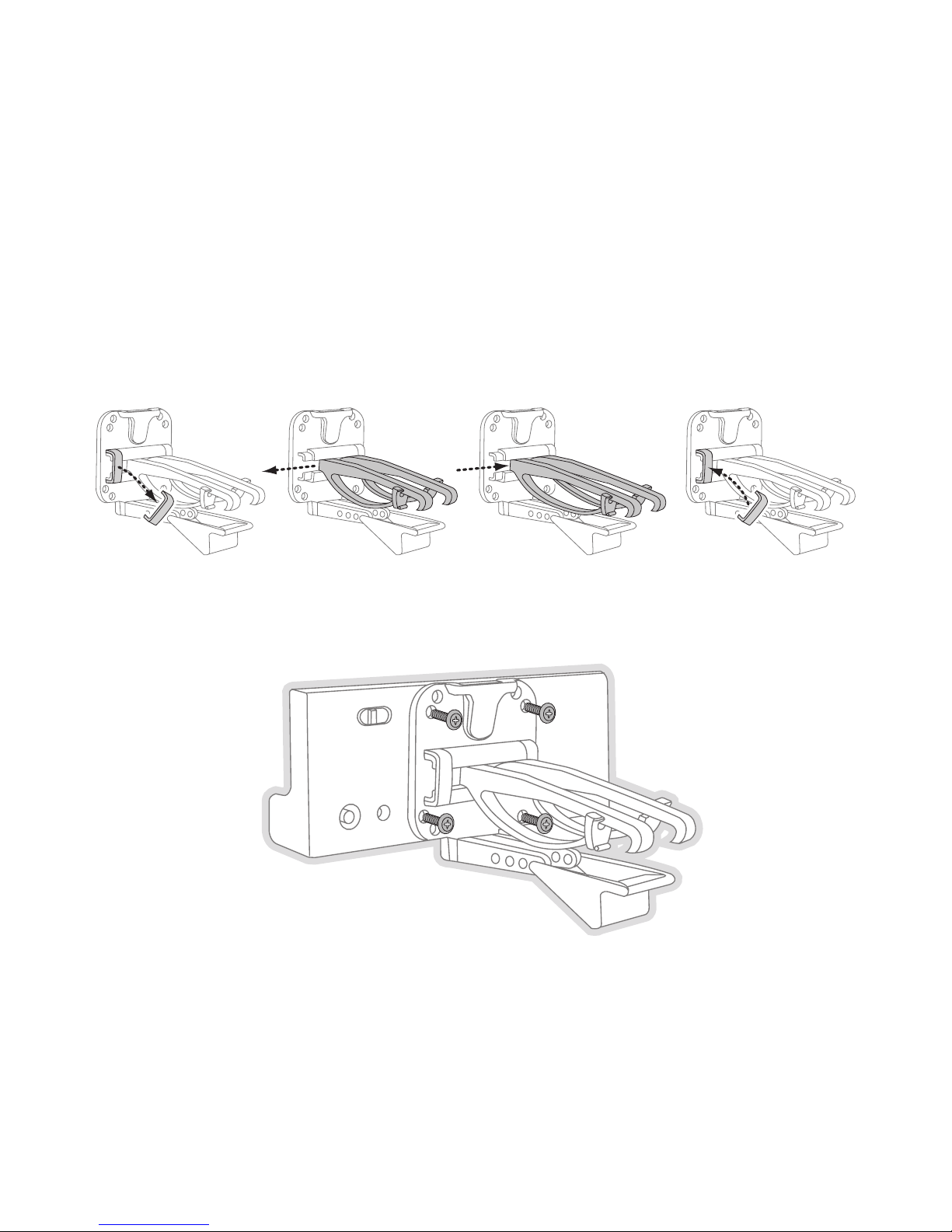

To mount the vehicle dock using the vent mount method, install the vent mount as follows:
If the vent louvers in your vehicle are recessed, you may need to use the longer vent
hooks with the vent mount. Refer to Figure 4 and install the longer vent hooks into the
vent mount. Be sure to observe the orientation of the vent hooks as shown.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
Attach the vent mount to the vehicle dock using the provided screws. (Figure 5)
1.
2.
Figure 4Figure 4
Figure 5Figure 5

[Installation ] 15

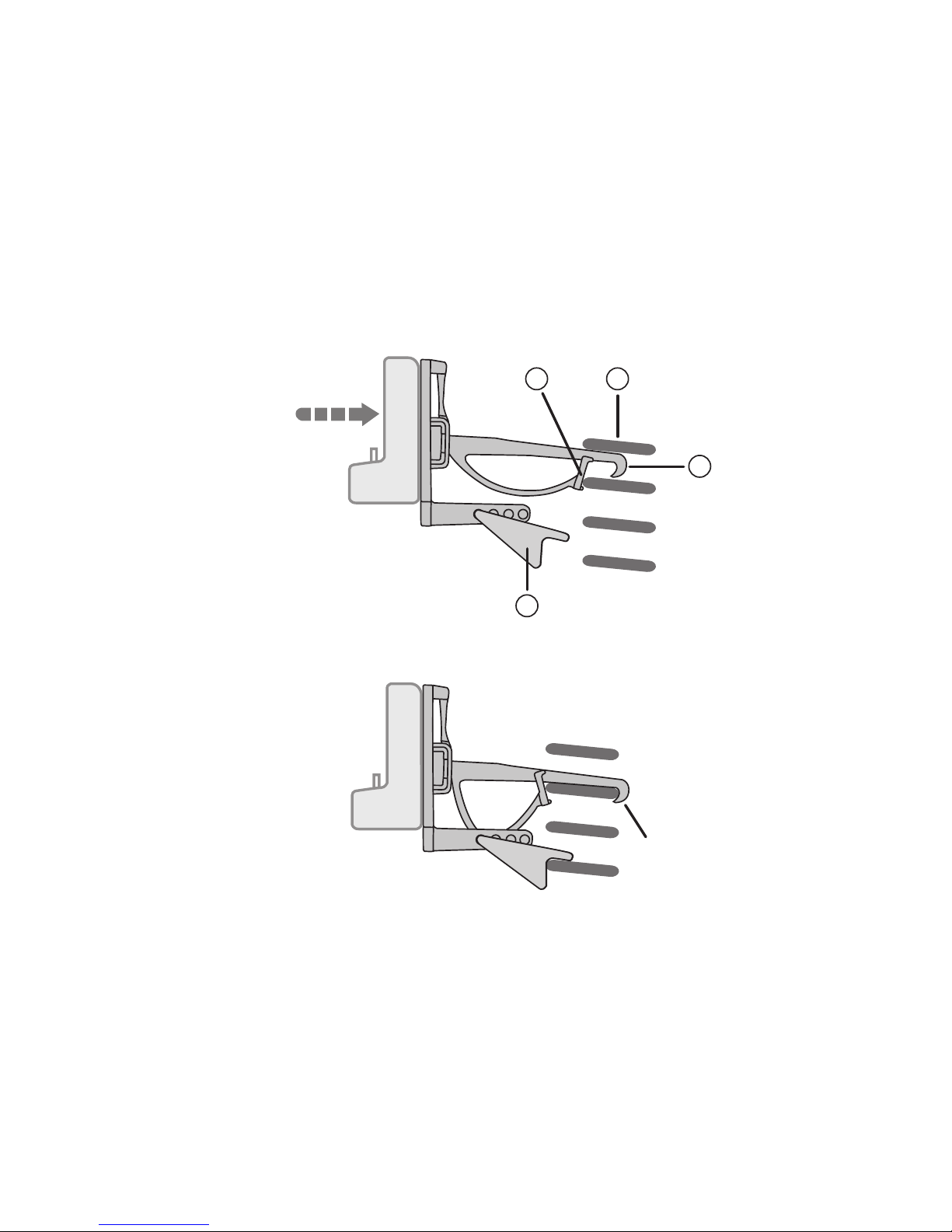

Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent in your
vehicle. Position the two tension springs Aagainst a vent louver B. Then push the vent
mount into the vent, far enough so that the hooks Cdrop down and hook the rear of the
vent louver (Figure 7). Once you are sure that the hooks have grasped a vent louver, the
tension springs Awill keep the vent mount hooked to the louver.
C
B
A
D
PUSH
HOOKED
3.
Figure 6Figure 6
Figure 7Figure 7

[Installation ]
16
The angle of the vehicle dock may be changed by changing the position of foot Don the
vent mount (Figure 6) to a different adjustment hole. (Figure 8)
A
DJUSTMENT HOLES
Installing the Antenna
The optimum mounting location for the magnetic antenna is on the roof of the vehicle, with a
minimum unobstructed area of 12 inches by 12 inches, and exactly 6½ inches from the rear
roof edge of the vehicle (the length of the rubber antenna cable cover/tail). It is important to
avoid any obstructions that will block the SIRIUS signal, obstructions such as a roof rack,
a sunroof, roof mounted cargo containers, or other antennas. For convertible vehicles, the
antenna should be installed on the trunk lid.
For best performance, it is recommended that the antenna be installed with the rubber
antenna cable cover/tail. This rubber antenna cable cover/tail provides two benefits: first, it
positions the antenna the recommended distance from the rear window, rear door/hatch, or
trunk edge to give the antenna the best view of the sky. Secondly, it conceals and protects
the exposed antenna cable. The rubber antenna cable cover/tail has adhesive strips that hold
it securely in place.
The following illustrations show the recommended mounting locations of the antenna for
several types of vehicles. (Figure 9) Follow these recommendations for best performance from
the antenna.
4.
Figure 8Figure 8

[Installation ] 17
Sedan/Coupe. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear window.
Pickup Truck. Mount the antenna along the rear center-line of the cab roof, located at the
rear of the roof near the rear window.
SUV/Mini-Van. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear door/hatch.
Convertible. Mount the antenna along the center-line of the trunk lid, with the rubber antenna
cable cover/tail directed toward the rear window.
When you have selected a suitable mounting location, clean the area where the antenna and
rubber antenna cable cover/tail will be mounted with the supplied alcohol swab.
Rubber Antenna
Cover/Tail
Protective
Strips
Adhesive
Strain
Relief
Cable
Figure 9Figure 9
Figure 10Figure 10
Figure 11Figure 11

[Installation ]
18
Connect the rubber antenna cable cover/tail to the antenna cable, making sure that the strain-
relief on the antenna sits into the rubber antenna cable cover/tail groove. (Figure 10) Route
the antenna cable through the wire channel in the rubber antenna cable cover/tail. Do not
remove the protective strips yet.
Temporarily position the antenna and rubber antenna cable cover/tail in the selected mounting
area and route the cable from the antenna to the vehicle’s interior by tucking it underneath the
rubber molding around rear window, as shown in Figure 11.
Route the cable from the lowest point of the rear window into the trunk. Take advantage of
any existing cable channels or wiring conduits. For SUVs, mini-vans and 5-door vehicles, bring
the cable into the vehicle under the rubber molding for the tailgate, and continue under the
interior trim.
From the trunk, or rear of the vehicle, route the cable around the passenger compartment and
to the front of the vehicle, to the radio. Take care not pull the cable across sharp edges that
could damage it, and keep it away from areas where it might entangle feet. Coil any excess
antenna cable in a location where it can be hidden.
Once the antenna cable is routed through the vehicle, and you are satisfied with the cable
routing, peel the protective material from the adhesive strips and press the rubber antenna
cable cover/tail firmly into place on the vehicle. Double check that the location of the antenna
and rubber antenna cable cover/tail are correct, and continue to press firmly down on rub-
Figure 12Figure 12

[Installation ] 19
ber antenna cable cover/tail for another 30 seconds. (Figure 12) At room temperature (68
degrees), maximum adhesion usually occurs within 72 hours. During this period, avoid car
washes and other contact with the antenna and rubber antenna cable cover/tail.
Connect the antenna cable to the ANT connection at the rear of the vehicle dock. (Refer to
Figure 1 on page 9 for the location of this connector.)
Connecting the Cigarette Lighter Adapter
Connect the provided cigarette lighter adapter to the DC5V connection at the rear of the
vehicle dock. (Refer to Figure 1 on page 9 for the location of this connector.)
Docking the SIRIUS Radio
If your radio is a SIRIUS Plug and Play series ST or SV, you will need to install the vehicle
dock adapter provided with the kit. Refer to Figure 13 and place the vehicle dock lock in
the unlocked position (1). Install the adapter into the front of the vehicle dock, positioning it
behind the connector and against the backrest (2). Once the adapter is installed in the vehicle
dock, slide the lock to the locked position (3). The radio may now be placed into the vehicle
dock, pressing the radio down until it is fully seated.

[Installation ]
20
1
2
3
For SIRIUS radios which do not require the adapter, make sure the lock on the vehicle dock
is set in the unlocked position and place the SIRIUS radio into the vehicle dock, pressing the
radio down until it is fully seated. Slide the lock into the locked position. (Refer to Figure 1 on
page 9 for the location of the lock.)
Figure 13Figure 13
