SIRIUS Conductor Satellite Radio User Guide
© 2006 SIRIUS Satellite Radio Inc. SC-H1W ® "SIRIUS" and the SIRIUS dog logo
are registered trademarks of Sirius Satellite Radio Inc.
SIRIUSRadio.book Page 2 Tuesday, November 21, 2006 5:15 PM

SIRIUS Satellite Radio User Guide
Table of Contents
SIRIUS CONDUCTOR
Installation Guide . . . . . . . . . . . . . . . . . . . 1
SIRIUS Satellite Radio: The Best Radio On Radio..........................1
Package Contents...............................................................2
Installation...........................................................................4
Mounting the Sirius Conductor Tuner.............................................4
Installing the Antenna .......................................................................4
Wiring the Sirius Conductor Tuner ..................................................5
Activating Your SIRIUS Subscription ..............................................6
Operation.............................................................................6
Satellite Radio Receiver
User Guide . . . . . . . . . . . . . . . . . . . . . . . . . 7
Quick Setup.........................................................................7
Pairing Your Wireless Controller with Your Radio.........................7
Activating Your SIRIUS Subscription................................7
Adding a Device..................................................................7
Adding a Device by Entering Its Code.............................................8
Adding a Device by Searching for Its Code ....................................8
Controlling Your Stereo’s Volume and Setting Its Audio Source
Using Your Wireless Controller........................................................8
Using the Key and the POWER Key to Turn Your Devices On or
Off........................................................................................................9
SIRIUS Modes of Operation ...............................................9
Normal Mode......................................................................................9
Display Button..................................................................................10
Channel List Mode...........................................................................10
Category List Mode..........................................................................10
Menu Options Mode.........................................................................10
Using the Signal Indicator...............................................................10
SIRIUSRadio.book Page 1 Tuesday, November 21, 2006 5:15 PM

SIRIUS Satellite Radio User Guide
Storing Presets..................................................................11
Restoring Factory Default...............................................................11
Special Display Messages................................................12
Out of Range ....................................................................................12
Acquiring Signal ..............................................................................12
Updating Channels..........................................................................12
Subscription Updated......................................................................12
Antenna Not Detected .....................................................................12
SIRIUS ID Number (SID) ..................................................................12
Invalid Channel ................................................................................12
Multi Radio Control...........................................................13
SIRIUS LCD Wireless Controller
User Guide . . . . . . . . . . . . . . . . . . . . . . . . 15
Introduction.......................................................................15
Features and Functions....................................................16
Key Chart (SIRIUS Functions) ........................................................16
Key Chart (General Functions).......................................................17
Setting Up Your LCD Wireless Controller.......................18
Re-Pairing or Adding Another Wireless Controller .......18
Adding a Node..................................................................................18
Deleting a Node................................................................................19
Adding a Device................................................................19
Adding a Device by Searching for Its Code ..................................19
Adding a Device by Entering Its Code...........................................20
Using Learning..................................................................20
Deleting All Learned Keys...............................................................21
Deleting a Single Learned Key .......................................................21
Choosing Your Audio Source..........................................21
Replacing a Device ...........................................................22
Deleting a Device ..............................................................22
Viewing a Device Code.....................................................22
SIRIUSRadio.book Page 2 Tuesday, November 21, 2006 5:15 PM

SIRIUS Satellite Radio User Guide
Replacing a Device ...........................................................23
Setting Volume Control....................................................23
Locking Volume Control to Other Devices....................................23
Adding a Device to Volume Lock...................................................24
Removing a Device from Volume Lock..........................................24
Using Key Mover...............................................................24
Deleting Copied Keys.......................................................25
Deleting All Copied Keys ................................................................25
Deleting a Single Key Mover Key...................................................25
Using Key Macros.............................................................25
Adding a Key Macro ........................................................................25
Deleting a Key Macro.......................................................................26
Setting the Contrast of Your Wireless Controller’s LCD
Display ...............................................................................26
Adjusting the LCD Timer..................................................26
About..................................................................................27
Resetting Programming ...................................................27
Resetting All Features.....................................................................27
Restoring Programming to Factory Settings................................27
Setting Up a ZWAVE Network..........................................27
Network Reset..................................................................................27
Excluding a Node or Radio from the Network...............................28
Including a Third-Party Manufacturer Node in the Network........28
Replicating a Remote Control.........................................................28
Remote Copy (Receive a Copy)......................................................28
Manufacturer’s Codes ......................................................30
Setup Codes For Audio Amplifiers ................................................30
Setup Codes For Audio Accessories.............................................32
Setup Codes for CD Players...........................................................32
Setup Codes for Cassette Decks....................................................33
Setup Codes For Cassette Decks...................................................34
Setup Codes for DBS/PVR Combination .......................................34
Setup Codes For DVD Players........................................................35
Setup Codes for DVD/PVR Combination .......................................36
SIRIUSRadio.book Page 3 Tuesday, November 21, 2006 5:15 PM

SIRIUS Satellite Radio User Guide
Setup Codes for DVD/VCR Combination.......................................36
Setup Codes for DVD Recorders....................................................37
Setup Codes for HDTV Decoders...................................................37
Setup Codes For Home Automation..............................................38
Setup Codes For Video Laser Disk Players ..................................38
Setup Codes for Media Center Controllers ...................................39
Setup Codes for PVRs.....................................................................39
Setup Codes For Televisions..........................................................41
Setup Codes for Televisions (DLP)................................................44
Setup Codes for Televisions (LCD)................................................45
Setup Codes for Televisions (Plasma)...........................................45
Setup Codes for TV/DVD Combination..........................................46
Setup Codes for TV/VCR Combination..........................................46
TV/VCR/DVD Combination ..............................................................47
Setup Codes for Satellite Set Top Boxes ......................................47
Setup Codes for VCRs.....................................................................48
Setup Codes for Video Accessories..............................................50
Remote Control Certifications.........................................52
Sirius Conductor Certifications.......................................53
12 Month Limited Warranty..............................................54
Troubleshooting................................................................55
Specifications....................................................................56
SIRIUS ID............................................................................57
SIRIUSRadio.book Page 4 Tuesday, November 21, 2006 5:15 PM

1
SC-H1W SIRIUS Conductor Installation Guide 1
1
Congratulations on your purchase of the SIRIUS
Conductor Satellite Radio Tuner!
SIRIUS Satellite Radio: The Best Radio On Radio
With everything from 100% commercial-free music to in-depth sports cover-
age, plus news, talk and the hottest entertainment – you can always hear
exactly what you want.
• The only home of 100% commercial-free music. Whether you’re
discovering new music, or rediscovering songs you haven’t heard in
years – you’ll hear it all on SIRIUS.
• Live play-by-play and expert talk from the biggest leagues. NFL, every
game, every week, everywhere. Plus NFL Radio 24/7 news and opinions
from top NFL pros, 40 games a week from NBA and College Sports from
over 150 schools. Plus NASCAR moving exclusively to SIRIUS in
January 2007.
• Entertainment, Comedy and Talk that can’t be found anywhere else.
From 2 channels of Howard Stern, Blue Collar Comedy with Jeff
Foxworthy and Larry the Cable Guy to Maxim and Playboy Radio.
• Especially for Women. Martha Stewart and her team will inspire you 24/7
along with Cosmo Radio, Deepak Chopra Wellness Radio and other
exclusive talk show hosts.
• World Class News, traffic and weather. Fox, CNN, NPR and BBC. Local
traffic and weather for the top 20 cities.
• Family & Kids: G-rated fun for everyone with Radio Disney, Discovery
Kids Channel, Laugh Comedy and more.
SIRIUSRadio.book Page 1 Tuesday, November 21, 2006 5:15 PM

2 SC-H1W SIRIUS Conductor Installation Guide

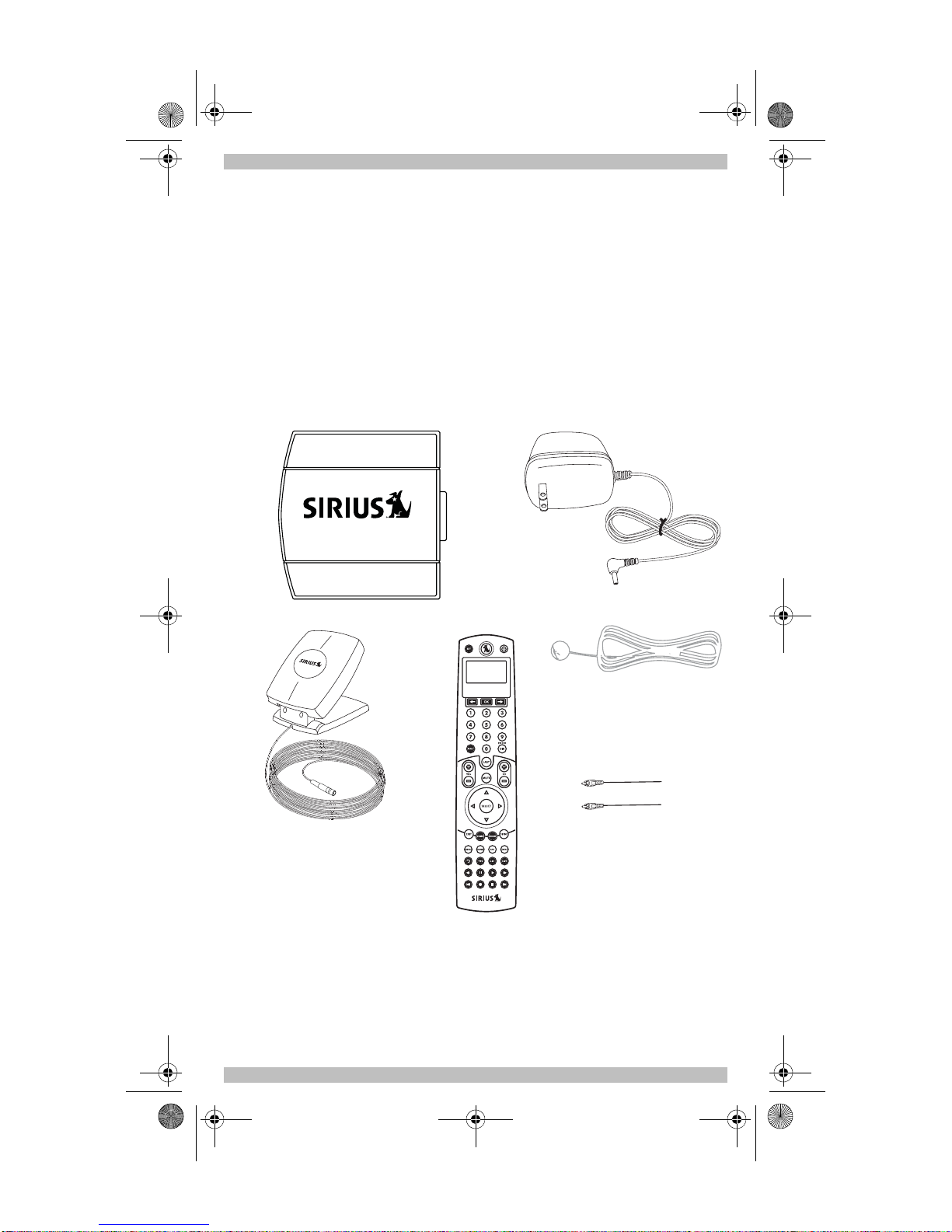

Package Contents
1. SIRIUS Conductor Tuner
2. Windowsill Antenna
3. AC Power Adapter
4. IR Blaster Cable
5. LCD Wireless Controller
6. RCA Audio Cables
1.
2.
3.
4.
5.
6.
SIRIUSRadio.book Page 2 Tuesday, November 21, 2006 5:15 PM

SC-H1W SIRIUS Conductor Installation Guide 3
WARNING
This symbol means
important instructions.
Failure to heed them can result in
serious injury or death.
Any function that requires your
prolonged attention should only be
performed after coming to a complete
stop. Always stop the vehicle in a safe
location before performing these
functions. Failure to do so may result
in an accident.
DO NOT OPEN, DISASSEMBLE OR
ALTER THE UNIT IN ANY WAY.
Doing so may result in fire, electric
shock or product damage.
DO NOT INSERT ANY OBJECTS
INTO THE UNIT. Doing so may result
in fire, electric shock or product
damage.
MAKE THE CORRECT
CONNECTIONS. Failure to make
proper connections may result in fire
or product damage.
DO NOT SPLICE INTO A
ELECTRICAL CABLES. Never cut
away cable insulation to supply power
to other equipment. Doing so will
exceed the current carrying capacity
of the wire and result in fire or electric
shock.
DO NOT INSTALL THE UNIT IN
AREAS WHERE THERE ARE HIGH
LEVELS OF HUMIDITY, MOISTURE
OR DUST. Doing so can result in
electric shock or product failure.
FCC Warning: This equipment may
generate or use radio frequency
energy. Changes or modifications to
this equipment may cause harmful
interference unless the modifications
are expressly approved in this User
Guide. The user could lose the
authority to operate this equipment if
an unauthorized change or
modification is made.
Note: This equipment has been tested
and found to comply with Part 15 of
the FCC Rules. These rules are
designed to provide reasonable
protection against harmful
interference. This equipment may
cause harmful interference to radio
communications if it is not installed
and used in accordance with these
instructions. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, try to
correct the interference by one of
more of the following measures:
• Relocate the receiving antenna.
• Consult the dealer or an
experienced technician for help.
CAUTION
This symbol means
important instructions.
Failure to heed them can result in
injury or material property damage.
HALT USE IMMEDIATELY IF A
PROBLEM APPEARS. Failure to do
so may cause personal injury or
damage to the product. Return the
tuner to your authorized retailer or
nearest service center for repairing.
INSTALL THE WIRING SO THAT IT
IS NOT CRIMPED OR PINCHED BY
SCREWS OR SHARP METAL
EDGES. Route the cables away from
moving parts or sharp pointed edges.
This will prevent crimping and damage
to the wiring. If the wiring must pass
through a metal hole, be sure to use a
rubber grommet to prevent the wire’s
insulation from being cut by the metal
edge of the hole.
SIRIUSRadio.book Page 3 Tuesday, November 21, 2006 5:15 PM

4 SC-H1W SIRIUS Conductor Installation Guide
USE THE SPECIFIED ACCESSORY
PARTS AND INSTALL THE
PRODUCT SECURELY. Be sure to
use only the specified accessory
parts. Use of non-specified parts may
damage this unit internally or may not
securely install the unit in place. This
may cause parts to become loose,
resulting in hazards or product failure.
Installation
Before you install, read this installation
section completely and follow the
instructions. In addition, consult the
manual of the audio device to which
you will connect the Sirius Conductor
Tuner to determine the required
installation configuration:
• Use the provided AC Power
Adapter to provide power for the
Sirius Conductor Tuner.
• Connect the audio output of the
Sirius Conductor Tuner to your
audio system via the RCA-type or
Optical audio output connectors
of the tuner.
Mounting the Sirius Conductor
Tuner
Consider the mounting location
carefully to avoid:
• moisture.
• extreme heat.
You may place the tuner on any flat
surface.
Installing the Antenna
Proper installation of the windowsill
antenna is important for consistent
satellite signal reception.
For correct operation and best
reception of the SIRIUS signal, locate
the antenna in a place where it has a
clear view of the SIRIUS satellites in
the sky. Obstructions such as bushes,
trees, other homes or buildings,
overhangs, soffits, chimneys, gables,
dormers, etc., impair or prevent the
antenna from receiving a signal.
You can obtain the best reception if
you locate the antenna outside. The
pod portion of the antenna (where the
SIRIUS logo is printed) should have a
clear 360 degree view of the sky.
If you cannot obtain a clear 360
degree view of the sky outdoors, or
you will be locating the antenna
indoors, then you need to place the
antenna in a window (or outdoor
location) that has a clear view of the
sky in the direction of the satellites.
Aim the antenna in the direction of the
satellites, as shown in the diagram on
the next page.
Use the map in the diagram on the
next page to find your location area (1
to 5). Then find the direction your
window (or outdoor location) needs to
face, with a clear view of the sky:
Area 1: You need a window/location
with a clear view of the sky facing
EAST or NORTHEAST or
SOUTHEAST
Area 2: You need a window/location
with a clear view of the sky facing
NORTH or NORTHEAST
Area 3: You need a window/location
with a clear view of the sky facing
NORTH or NORTHWEST
Area 4: You need a window/location
with a clear view of the sky facing
WEST or NORTHWEST or
SOUTHWEST
Area 5: You need a clear view of the
sky facing STRAIGHT UP
(Antenna cannot be indoors)
For example, suppose you live in Area
2. You determined that your antenna
needs a window (or outdoor location)
with a clear view of the sky facing
North or Northeast. Your exact
location in Area 2 relative to the X on
the map determines your specific
direction. If you live in Texas, you
need a more North-facing clear view of
SIRIUSRadio.book Page 4 Tuesday, November 21, 2006 5:15 PM

SC-H1W SIRIUS Conductor Installation Guide 5
the sky, whereas if you live in southern
California, you need a more
Northeast-facing clear view of the sky.
(In major US cities, you may be able to
receive the SIRIUS signal from the
SIRIUS ground repeaters, which allow
you to place the antenna away from a
window if the signal is strong enough.)
When you have installed the antenna
in a suitable location, check the signal
strength display of your SIRIUS-ready
receiver to verify that you are receiving
a suitable signal. (Consult the user
guide of your specific receiver for
instructions on how to access the
signal strength display.) A minimum of
3 bars of either satellite (SAT) or
terrestrial (TER) signal strength is
required for consistent reception. If
you do not obtain at least three bars,
adjust the antenna by changing the
orientation in small increments, to see
if you can obtain better signal
reception.
If the tuner loses reception at times,
this is indication that the antenna is
not aimed in the optimal direction.
Adjust the antenna by changing the
aiming in small increments to see if
you can obtain consistent signal
reception.
If you are having trouble locating your
antenna in a place for optimal signal
reception, please visit your retailer or
our website http://sirius.com for
information on signal distribution
accessories that let you use RG6 coax
cable, your existing in-home wiring,
and other technologies to connect
your Sirius Conductor Tuner to the
antenna. These other options allow
placement of the antenna with the best
view of the sky regardless of the
location of your Sirius Conductor
Tuner.

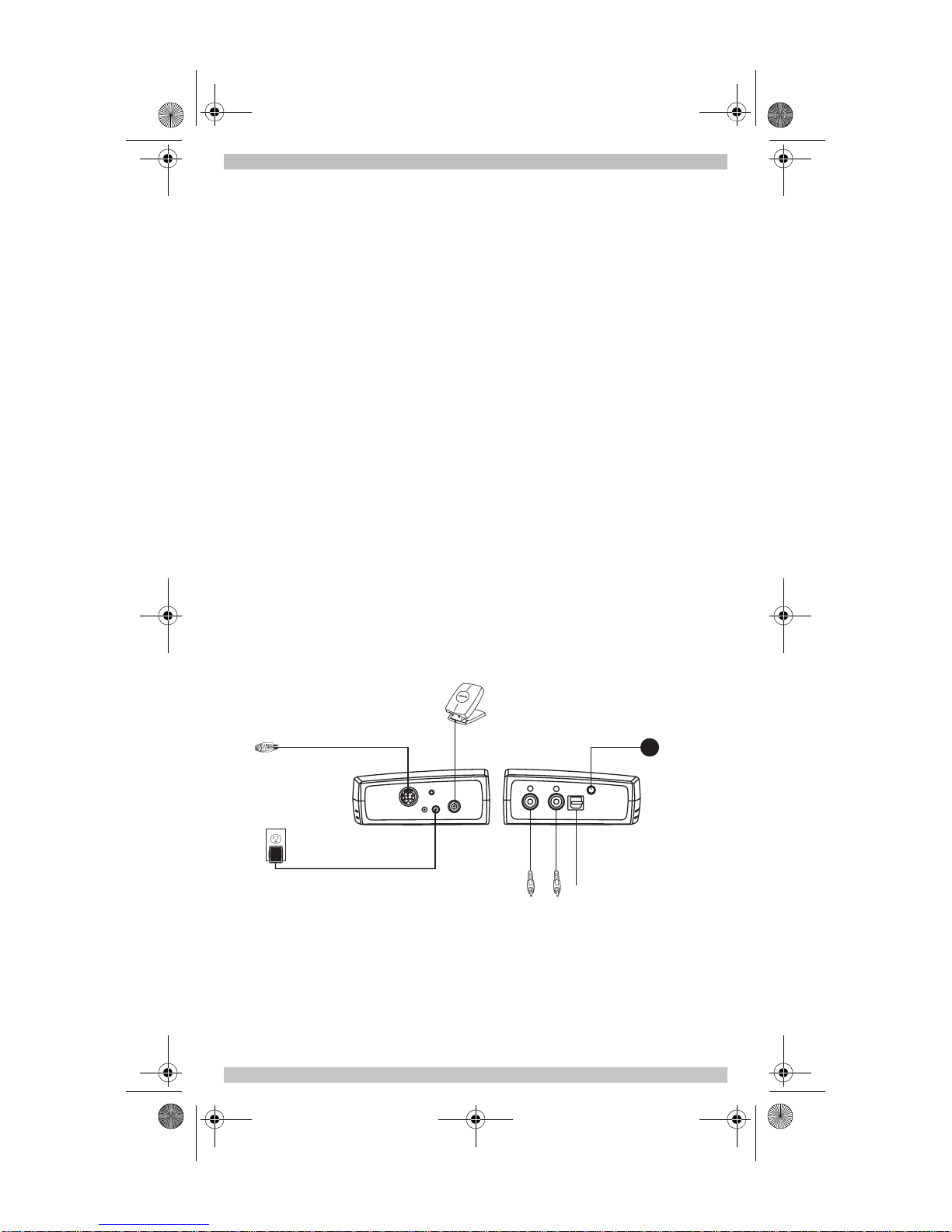

Wiring the Sirius
Conductor Tuner
Wire the Sirius Conductor Tuner as
shown in the diagram on the next
page, using the supplied IR Blaster
cable.
Please consult your audio equipment
manuals for the wiring connections
needed for the Sirius Conductor Tuner
to operate with your particular
equipment.
1
23
4
5
HORIZON
SKY
SOUTH
WEST EAST
NORTH
SIRIUSRadio.book Page 5 Tuesday, November 21, 2006 5:15 PM

6 SC-H1W SIRIUS Conductor Installation Guide
Activating Your SIRIUS
Subscription
You must activate the Sirius
Conductor Tuner before you can begin
to receive the SIRIUS Satellite Radio
service.
In order to activate your radio
subscription, you need the SIRIUS ID
(SID) which uniquely identifies your
tuner. You can find the SID on a
sticker located on the Sirius Conductor
packaging, or on the bottom of the
tuner itself. You can also tune to
channel 000 on your SIRIUS LCD
wireless controller to display the SID.
The SID is a 12-digit number. When
you locate the SID, write it down in the
space provided on page 57. Please
make sure that the tuner is turned on
and you can hear audio from channel
184 before you continue.
Contact SIRIUS on the Internet:
https://activate.siriusradio.com/
Follow the prompts to activate your
subscription, or you can also call
SIRIUS toll-free at:
1-888-539-SIRIUS (1-888-539-7474).
Once the subscription process is
completed, your Sirius Conductor
Tuner is ready to use.
Operation
Consult the owners manual of your
connected audio equipment for
operating instructions.
The Sirius Conductor Tuner has an
LED indicator light that provides basic
status information about the tuner.
When the tuner is powered on, this
light is red to indicate the tuner is
receiving power.
Steady red: Power-on indication.
LED off: Indicates standby mode.
ANALOG OUTPUT
(L/R)
DIGITAL OPTICAL
LINK
WINDOWSILL
ANTENNA
AC ADAPTER
OPTIONAL
DIN CABLE
TO SIRIUS CONNECT
HOME TUNER IR BLASTER
Peripheral components not to scale
TO RECEIVER (USE EITHER ANALOG OR OPTICAL)
ATTACH BLASTER
DIRECTLY
TO RECEIVER’S
IR WINDOW
RESET
5V DC ANT
SECOND
TUNER AUDIO OUT
LR
OPTICAL
IR CONNECT
SIRIUSRadio.book Page 6 Tuesday, November 21, 2006 5:15 PM

SIRIUS Conductor Tuner 7
2
Quick Setup
Pairing Your Wireless
Controller with Your Radio
The first time you power up your
wireless controller, you need to pair it
with the SIRIUS Satellite Radio. The
wireless controller’s LCD displays
sirius radio has not been setup.... push
ok to set up...
1. Press OK. The wireless controller
displays Push button on Sirius
radio to begin setup.
2. Press RESET on the radio. The
wireless controller displays Push
Button on Sirius Radio again to
finish.
Press RESET again. The wireless
controller displays Success! Radio and
Remote are now paired. You can now
use your wireless controller to control
your SIRIUS Satellite Radio.
Activating Your SIRIUS
Subscription
Before you can listen to the Receiver,
you must subscribe to SIRIUS
Satellite Radio’s service.
1. Make sure that you have properly
connected the SIRIUS Conductor
SC-H1W tuner and that its
antenna is oriented to receive the
SIRIUS satellite signal.
2. Press to turn the SC-H1W
tuner ON. After you have
contacted SIRIUS to subscribe to
the service, the SC-H1W tuner
updates all SIRIUS channels. The
display reads UPDATING CHANNELS
on the top line and X%Completed
(0%-20%-40%-60%-80%-100%)
on the bottom line until the update
completes.
CAUTION: Don’t push any buttons
or perform any operations until
updating has been completed.
You can view the SIRIUS preview
channel, 184, and channel 000 without
subscribing to SIRIUS. You cannot
tune to any other channels until you
activate your SIRIUS subscription.
3. Press CH+ or CH– to view your
SIRIUS ID (SID). The SID can
always be found on channel 000.
You need your SID to activate
your SIRIUS subscription.
4. Channel 000 displays your unit’s
unique 12-digit SIRIUS ID
Number (SID). This SID number
should also be available on the
SIRIUS Conductor SC-H1W tuner
packaging. Write the number
down and have your credit card
handy. A space has been
provided at the end of this user
guide to write down your SID. See
“SIRIUS ID” on page 57.
Contact SIRIUS at https://
activate.siriusradio.com on the
Internet. Follow the prompts to
activate your subscription. You can
also call SIRIUS toll-free at 1-888-539-
SIRIUS (1-888-539-7474).Once
SIRIUS channels are updated and
received, the display changes to
Subscription Updated.
Adding a Device
Before you add your first device (your
receiver), the LCD displays PRESS
SIRIUS TO LISTEN TO MUSIC PRESS OK TO
SETUP OTHER DEVICES.....
You can add up to 12 devices to
control with your SIRIUS LCD wireless
controller. To add a device, you can
search for its code using your wireless
controller, or you can manually enter
the code into the controller.
NOTE: You should first add the stereo
receiver your SIRIUS radio is
connected to for audio control.
SIRIUSRadio.book Page 7 Tuesday, November 21, 2006 5:15 PM

8 SIRIUS Conductor Tuner
Adding a Device by Entering Its
Code
You can add a device by manually
entering its manufacturer’s code. See
“Manufacturer’s Codes” on page 30.
To add a device by entering its code,
perform the following steps:
1. Press and hold SET until the
remote displays Initial Setup.
2. Press OK. The wireless controller
displays Add Device. The bottom
line of the display lists Receiver as
the first device you can add.
Press OK to add your receiver.
3. Enter the four-digit code for your
device (for example, 1967). You
can find the code list for receivers
at the end of this user guide. (See
“Manufacturer’s Codes” on
page 30.) The LED blinks once
for each digit entry. It blinks twice
after the you have entered the
final digit.
4. Your receiver turns off if the code
was successful.
5. Press OK to save the code.
Repeat the steps above for each
device you want to add.
Adding a Device by Searching
for Its Code
To add a device by searching for its
code, perform the following steps.
1. Press and hold SET until the
wireless controller displays Initial
Setup.
2. Press OK. The wireless controller
displays Add Device. The bottom
line of the display lists Receiver as
the first device you can add.
Press OK to add your receiver.
3. The remote displays the device
name on the top line and Code
Setup on the next line. Press
Scroll Left () or Scroll Right
() to scroll through the
manufacturer’s codes for your
receiver. When you have selected
the correct code, the wireless
controller turns off the receiver.
4. Press OK to save the code for
your receiver.
Controlling Your Stereo’s
Volume and Setting Its Audio
Source Using Your Wireless
Controller
NOTE: You must first set up your
wireless controller to control your
stereo receiver before setting it to
control the receiver’s volume.
Make sure you can control
volume using the wireless
controller before connecting the
IR Blaster to your receiver. If you
cannot add a device using its
code setup, try having your
wireless controller learn the setup
from another remote control (See
“Replacing a Device” on
page 22.)
To set up your wireless controller to
control your stereo’s volume, perform
the following steps:
1. Connect the 6-foot SIRIUS IR
Blaster cable to your stereo’s
infrared remote control window.
To make this connection, pull the
backing from the end of the cable
and stick the end of the cable
onto your stereo’s infrared remote
control window.
NOTE: If you cannot find your
stereo’s infrared window, try
shining a flashlight at your stereo
to find the infrared “eye.”
2. Press OK to exit SIRIUS mode,
then press and hold SET until the
LCD displays Initial Setup.
3. Press Scroll Left () or Scroll
Right () until the LCD displays
Advanced Setup.
4. Press OK.
5. The wireless controller displays
SELECT AUDIO DEVICE AND PUSH OK.
Press Scroll Left () or Scroll
SIRIUSRadio.book Page 8 Tuesday, November 21, 2006 5:15 PM

SIRIUS Conductor Tuner 9
Right () to find the audio device
that Sirius is plugged into. The
LCD displays the name of the
device (for example, Receiver).
6. The wireless controller displays
NOW PUSH OK TO FIND INPUT FOR
RADIO 1. Press OK.
7. The wireless controller displays
PUSH OK WHEN YOU FIND YOUR INPUT.
The input label is displayed in the
bottom line (for example, Input 1).
8. Press Scroll Left () or Scroll
Right () to find the input you
want to choose. Each time you
press Scroll Left () or Scroll
Right (), the wireless controller
transmits an input signal to your
stereo. When your stereo goes to
the correct input for Sirius, press
OK. For example, if you
connected the SIRIUS SC-H1W
tuner to the SAT input on your
stereo, then press Scroll Left ()
or Scroll Right () until the
stereo changes to SAT input.
9. Press OK to save the input.
NOTE: Some stereos do not have
discrete input selections, but
instead use a single input select
to cycle through all available
inputs. If your stereo operates in
this way, simply use the INPUT
key (below digit 7on the wireless
controller) to cycle to the
appropriate audio input for Sirius.
10. The wireless controller displays
YOUR INPUT IS NOW PROGRAMMED
PUSH OK TO EXIT.
11. The wireless controller displays
SIRIUS Key Now Automatically
Changes Input.
You can now use your SIRIUS
wireless controller to control your
stereo’s volume whenever you press
Volume+, Volume–, or MUTE on the
controller while you’re in SIRIUS
mode.
Using the Key and the
POWER Key to Turn Your
Devices On or Off
You can use the key on your
SIRIUS wireless controller to turn on
your SIRIUS Conductor, or the
POWER key to turn it off.
When you press , the wireless
controller enters SIRIUS mode and
turns on your SIRIUS radio. Once you
have programmed the audio sources
as described previously, the key
also transmits power to your audio
device and controls its volume. By
pressing one key, you can turn your
SIRIUS radio and your stereo or other
audio device on or off, while remaining
in SIRIUS mode so you can access all
the features of your satellite radio.
NOTE: If you change any settings for
your Audio Device, you must follow
the steps for Audio Source
programming again to save the
changes.
SIRIUS Modes of
Operation
Normal Mode
When you first turn on your radio, the
LCD displays the Normal Operation
(Default) screen. The screen displays
the last channel selected before
shutdown, the artist’s name, the
channel number, and the radio band
information.
NOTE: If the artist name or song title
is too long to fit the screen, it
scrolls across the screen from
right to left.
CH NAME
Artist Name
Song Title
A
001
SIRIUSRadio.book Page 9 Tuesday, November 21, 2006 5:15 PM

10 SIRIUS Conductor Tuner
Display Button
Pressing DISPLAY from the Default
display switches between channel
name and category on the top line of
the display.
Pressing and holding DISPLAY for 3
seconds enters Channel List mode.
Channel List Mode
Use CURSOR UP (S), CURSOR
DOWN (T), CH + or CH –to scroll
through the channel list. Press
SELECT to tune the highlighted
channel and return to the Normal
Default screen.
NOTE: To preview what is playing on
other channels before selecting a
channel, press DISPLAY while in
the Channel List Mode to change
between Channel Name, Artist
Name and Song Title.
Category List Mode
Pressing CURSOR LEFT (W)or
CURSOR RIGHT (X) changes the
display to show the currently listed
category. Press the cursor again to
scroll up or down through the
categories.
The currently selected channel is
highlighted on the second row.
Pressing CH + or CH –browses the
channels while remaining in Category
List mode. Pressing CURSOR UP (S)
or CURSOR DOWN (T) browses
through the channels while keeping
the second line highlighted. Press
SELECT to tune the highlighted
channel.
Menu Options Mode
To display the Menu Options, press
and release MENU. The Menu Options
list appears on the display (below).
Using CH + or CH –, or CURSOR
LEFT (W)or CURSOR RIGHT (X),
highlight the option you wish to adjust
and press SELECT. The following
options are available:
• Signal Indicator
• Factory Default
• SIRIUS ID
Using the Signal Indicator
When using the SIRIUS Conductor
indoors, such as with the Home
Docking Kit, it is important to locate
the antenna in an acceptable location.
1. Press CH + or CH –to highlight
Signal indicator. Press SELECT.
2. The LCD displays two 10-
segment horizontal bar graphs
(SAT and TER) with a “–“sign to the
left and a “+” sign to the right. SAT
indicates satellite signal and TER
indicates terrestrial signal (if
available).
Adjust the antenna for greatest signal
reception. To exit this function, press
SELECT or MENU.
CAT
Artist Name
Song Title
A
001
003 CH Name
002 CH Name
001 CH Name
CATEGORY
002 CH Name
001 CH Name
Menu Options
Signal Indicator
Factory Default
SIRIUS ID
SIRIUSRadio.book Page 10 Tuesday, November 21, 2006 5:15 PM

SIRIUS Conductor Tuner 11
Storing Presets
You can store up to 30 total presets
(10 presets per A, B, and C bank) by
assigning them to the number pad.
To set presets, go to A, B or C bank.
You can change the bank by pressing
BAND, and it will display the current
bank in the upper right hand corner of
the display.
Tune to the channel you want to store
and press and hold the appropriate
number (for example, 1) key for 1.5
seconds. For example, to store
channel 001 to digit 1, in bank A:
1. Tune to the channel you want to
store.
2. Select bank A by pressing BAND
until Ais in the upper right hand
corner of the display.
3. Press and hold the 1key until A1
appears in upper right hand
corner of display.
Now channel 001 is stored as one of
your presets. To access this preset,
simply press and release 1.
NOTE: You can override previously
stored presets by saving over
them.
Restoring Factory Default
Press CH + or CH –,or CURSOR
LEFT (W)or CURSOR RIGHT (X) to
navigate to the Factory Restore
screen (see below). Restoring factory
default clears all favorite channel
presets.
1. Press CH + or CH –or CURSOR
UP (S), CURSOR DOWN (T) to
highlight the Factory Restore.
2. Press SELECT. Restore Settings
appears on the wireless
controller’s display.
3. Use CH + or CH –or CURSOR
UP (S), CURSOR DOWN (T) to
select YES. Press SELECT to
reset. This restores all settings
the factory settings. Select NO to
leave the settings as they are and
return to Menu Options.
_+
SAT
TER
Signal Indicator
Factory Restore?
Yes
No
SIRIUSRadio.book Page 11 Tuesday, November 21, 2006 5:15 PM

12 SIRIUS Conductor Tuner
Special Display Messages
Out of Range
The LCD displays Out of Range
whenever the remote and the radio
cannot communicate because they
are too far apart. This message pops
up when the remote is out of range,
and returns to the normal display
automatically when the remote is
again within range of the radio.
Acquiring Signal
The LCD displays Acquiring Signal
whenever the radio signal is lost. This
message pops up when the remote is
out of range, and returns to the normal
display automatically when the radio
regains its signal.
Updating Channels
The remote displays Updating
Channels whenever an update from
SIRIUS is detected. While the
channels update, the percentage of
update progress is displayed on the
screen.
Subscription Updated
The remote displays Subscription
Updated whenever SIRIUS broadcasts
a subscription update. Press any
SIRIUS-related key to update your
subscription.
Antenna Not Detected
The LCD displays Antenna Not
Detected whenever there is no
antenna detected and audio is lost. If
this message appears, check that the
antenna is securely connected to the
SC-H1W tuner. The normal display
returns automatically when the
antenna is detected again.
SIRIUS ID Number (SID)
To display your SIRIUS ID (SID)
Number, tune your radio to channel
000. When you tune to another
channel besides 000, the remote no
longer displays your SID. You can also
select SIRIUS ID by pressing CURSOR
UP (S), CURSOR DOWN (T) from
the Menu Options screen to display
your SID.
Invalid Channel
The remote displays Invalid Channel
whenever you enter a channel number
that does not exist. After two seconds,
the current, active channel information
is re-displayed.
SIRIUSRadio.book Page 12 Tuesday, November 21, 2006 5:15 PM

SIRIUS Conductor Tuner 13
Multi Radio Control
You can control up to two SIRIUS
radios with your remote control. First
you must connect the SIRIUS
Conductor Home Tuner (model SC-
H1). Connect it to your SIRIUS
Conductor radio using an optional 8-
pin DIN cable (not included with your
SIRIUS Conductor. The DIN cable is
included with the SIRIUS Connect
Home Tuner instead.).
After you connect the SIRIUS
Conductor Home Tuner, make sure
to press RESET on your SC-H1W
Tuner (Conductor). This enables
the second radio, then follow the
instructions for your SIRIUS
Conductor Home Tuner to activate
the second radio.
1. To select a second radio, press
and hold for 1.5 seconds, or
press SWAP.
2. To highlight a radio (either 1or 2),
press CH +, CH –, or CURSOR
UP (S), CURSOR DOWN (T).
3. Press SELECT or DIRECT to
select the highlighted radio.
When two radios have been set up,
the display shows a superscript
number to indicate which radio is
shown, as in the example below,
where the LCD displays radio 1:
Press SWAP to switch between the
active radios displayed on the screen.
CH NAME
1Artist Name
1
Song Title
A
1001
SIRIUSRadio.book Page 13 Tuesday, November 21, 2006 5:15 PM
