Sirius Satellite Radio STILETTO Stiletto 100 User manual

Live Portable Satellite Radio
User Guide

Congratulations on the purchase of your new Stiletto 100!
The Stiletto 100™ is SIRIUS’s first live personal satellite radio. It includes everything you
need to listen live to SIRIUS® radio almost anywhere you want to go. Powerful features allow
you to record up to 100 hours of your favourite songs and shows, and even download your
personal MP3 & WMA files for continuous entertainment.
With your Stiletto 100, you can:
Listen live to 110 SIRIUS satellite channels of 100% commercial free music, sports, and
talk programming.
Listen live to SIRIUS Internet Radio over an available Wi-Fi network.
Store up to 100 hours of your favourite songs, SIRIUS shows, and personal MP3 & WMA
music files.
Schedule recordings up to 6 hours long so you never miss your favourite shows.
Mark any music you hear as a “Favourite” and then go online to purchase and download
from almost any Windows Media®based music service.
The Stiletto 100 includes My Sirius Studio™ and Yahoo! Music Engine™ software to help you
create and manage your personal playlists, and supports the download of both purchased and
subscription based music content.
•
•
•
•
•

SL100TK1C
[Table of Contents ]
2
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4
IC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
BATTERY LIFE, INSTALLATION, AND CHARGING . . . . . . . . . . . . . . . . . 11
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Stiletto 100 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Vehicle Dock Button and Connector Guide . . . . . . . . . . . . . . . . . . . . . 18
Remote Control Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the Media Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Turning the Stiletto 100 On/Off, Sleep, and Lock Modes . . . . . . . . . . . . . . . 23
Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Receiving the SIRIUS Satellite Signal . . . . . . . . . . . . . . . . . . . . . . . 26
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 26
Connecting the Stiletto 100 to a PC Computer . . . . . . . . . . . . . . . . . . . 28
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Internet Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Radio Replays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
VEHICLE DOCKING STATION INSTALLATION & USE . . . . . . . . . . . . . . . 68
Installing the Vehicle Docking Station . . . . . . . . . . . . . . . . . . . . . . . 68
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 75

SL100TK1C [Table of Contents ] 3
Docking and Un-docking the Stiletto 100 . . . . . . . . . . . . . . . . . . . . . 76
Selecting an FM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Direct Channel Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
MY SIRIUS STUDIO SOFTWARE INSTALLATION . . . . . . . . . . . . . . . . . 80
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
END USER LICENSE AGREEMENT . . . . . . . . . . . . . . . . . . . . . . . 88
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . 95
Copyrighted Broadcast Material . . . . . . . . . . . . . . . . . . . . . . . . . 95
Copyrights & Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
INDEX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

SL100TK1C
[Warning and Safety Information ]
4
Warning and Safety Information
IC Caution
Operation is subject to the following two conditions: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that
required for successful communication. This device has been designed to operate with an
antenna having a maximum gain of 2 dBi. Antenna having a higher gain is strictly prohibited
per regulations of Industry Canada. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC
RSS-102 and had been tested in accordance with the measurement methods and procedures
specified in IEEE 1528. This equipment should be installed and operated with minimum dis-
tance 1.5cm between the radiator & your body.
Body Worn Operation
To maintain compliance with IC RF exposure requirements, use only belt-clips, holsters
or similar accessories that does not contain metallic components in its assembly. The
use of accessories that do not satisfy these requirements may not comply with IC RF
exposure requirements, and should be avoided.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.

SL100TK1C [Warning and Safety Information ] 5
General Precautions
SIRIUS disclaims all liability for hearing loss, bodily injury, or property damage as a result of
the use or misuse of this product.
Volume and Hearing Safety Precautions
When listening to your Stiletto, be aware of your surroundings. The use of earbuds or
headphones while riding a bike or operating a vehicle or motorcycle may be prohibited by
law, and is not recommended.
If you experience ringing in the ears while listening, stop using the Stiletto and consult a
medical professional.
When using your Stiletto, start the volume low and gradually turn it up to a medium level
which you can hear. If the ambient sounds around you are noisy or loud, do not turn the
volume up to high level. Find a quieter location instead.
Permanent hearing loss can occur if you set the volume too high. Your ears adapt to the
loud volume and can be permanently damaged.
The use of earbuds or headphones for an extended period of time can cause serious
damage to your ears. Wearing them for prolonged periods of time or while sleeping is not
recommended.
Liquid Crystal Precautions
If the LCD screen on the Stiletto is damaged, do not to touch the liquid crystal fluid. If any of
the following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
General Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
•
•
•
•
•
1.
2.
3.

SL100TK1C
[Warning and Safety Information ]
6
Do not expose the Stiletto to moisture or use it near or in water. Do not handle it with wet
hands, or let water or any other liquid spill on or in it.
Do not operate the Stiletto in a way that might divert your attention from driving safely. As
a driver, you alone are responsible for safely operating your vehicle in accordance with
traffic safety laws at all times.
Be sure the unit is installed as described in the installation instructions in this guide. When
installing the unit using a Vehicle Kit, Home Kit or Executive Sound System, follow the
installation instructions included with those accessories.
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect
the unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from
the unit, wait 10 seconds, replace the battery and then turn it on again.
My Sirius Studio Software
The My Sirius Studio software CD-ROM included with the Stiletto 100 will allow you to con-
nect your Stiletto 100 to your PC computer running the Windows® XP operating system with
Service Pack 2. It is important that this software be used to transfer and manage information
on your Stiletto 100 to ensure that the operating system software essential to the operation of
the Stiletto 100 is not removed or damaged.
The software also provides for upgrading features and functionality as they become available
from SIRIUS. Be sure to periodically connect the Stiletto 100 to your PC computer to load the
latest updates. Refer to the user guide included on the software CD-ROM for further informa-
tion on installing and using the software.
The My Sirius Studio software should be installed before connecting the Stiletto 100 to your
PC computer.
•
•
•
•
•
•
•

SL100TK1C [Warning and Safety Information ] 7
Operating Temperature
The Stiletto 100 is designed to operate between -5° to +40° C (23° to 104° F). Avoid leaving
the unit in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the LCD
display screen, and possibly damage it.
Cleaning and Maintenance
If the Stiletto 100 becomes dirty, turn the power off and wipe it clean with a soft clean cloth.
Do not use hard cloths, paint thinner, alcohol, or other volatile solvents to clean. These may
cause damage to the unit.

SL100TK1C
[Package Contents ]
8
Package Contents
The following items are included with your purchase of the Stiletto 100:
back home
display
options
1 2 3
+
4 5 6
7 8 9
jump
preset
options display
back home
mute
tune
FM
0
1
preset tune jump
2 3 4 5
67 8 9 0
\
Stiletto 100Stiletto 100 Two Batteries
(Standard & Slim)
Two Batteries
(Standard & Slim)
Remote ControlRemote Control Vehicle Docking
Station
Vehicle Docking
Station
Ear Buds & PadsEar Buds & Pads
Docking Station
Finger Grip
Docking Station
Finger Grip
Antenna HeadphonesAntenna Headphones
Vehicle MountsVehicle Mounts

SL100TK1C [Package Contents ] 9
©
2
0
0
5
S
i
r
i
u
s
,
I
n
c
.
A
l
l
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
U
n
a
u
t
h
o
r
i
z
e
d
c
o
p
y
i
n
g
o
r
r
e
p
r
o
d
u
c
t
i
o
n
p
r
o
h
i
b
i
t
e
d
.
MY SIRIUS STUDIO
SOFTWARE VERSION XXXX
Personal Satellite Radio Receiver
STILETT0 100
Quick Start Guide
Personal Satellite Radio Receiver
STILETT0 100
User Guide
USB CableUSB Cable
AC AdapterAC Adapter
Cigarette Lighter
Adapter
Cigarette Lighter
Adapter
Magnetic AntennaMagnetic Antenna
Antenna Cable
Cover/Tail
Antenna Cable
Cover/Tail
Alcohol SwabAlcohol Swab
Mounting
Screws
Mounting
Screws
User Guide, Quick Start Guide,
Inserts, and PC Software CD
User Guide, Quick Start Guide,
Inserts, and PC Software CD

SL100TK1C
[Package Contents ]
10
Enhancing thE vErsatility of your stilEtto
Stiletto Vehicle Kit (Model SLV1C)
In order to use your Stiletto in a vehicle, you will need the Stiletto Vehicle Kit. The kit includes
a compact docking cradle that rapidly charges your Stiletto’s battery, connects to an external-
ly mounted antenna for more reliable reception, and plays audio through your vehicle’s stereo
system. Ten (10) dedicated presets and an included remote control make it easy to tune and
operate your Stiletto without taking your eyes from the road.
Stiletto Home Kit (Model SLH1C)
The Stiletto Home Kit provides everything you need to use the Stiletto in your home or office.
The sleek docking cradle provides a convenient way to charge your Stiletto’s battery along
with an extra slot for charging a spare battery. The included indoor/outdoor antenna provides
improved reception, while audio cables enable you to connect the Stiletto to amplified speak-
ers or a home entertainment system. A remote control is included, along with USB cable and
PC computer software for optionally connecting the home dock to your PC computer.

SL100TK1C [Battery Life, Installation, and Charging ] 11
Battery Life, Installation, and Charging
Two batteries are supplied with your Stiletto 100, a slim battery and a standard battery. The
batteries when fully charged will provide a range of listening times depending on the listening
mode. The following table provides the approximate listening times:
Listening
Mode
Approximate Listening Time
Standard Battery Slim Battery
Satellite Radio 4 hours 2 hours
Internet Radio 8hours 4 hours
Library 20 hours 10 hours
Radio Replays 20 hours 10 hours
As batteries age, the amount of listening time diminishes. Replacement (or spare) batteries
are available from your SIRIUS product distributor.
The amount of listening time the battery provides is dependent upon several settings: de-
creasing the length of time the backlight of the display screen remains on will prolong battery
life as well as adjusting the brightness of the display screen to a dimmer setting. Both of
these adjustments are made through the Settings menu. Refer to Brightness and Backlight
Timer on page 63 for details about these settings.
Stiletto 100 Battery Installation and Removal
To install the battery, refer to Figure 1 and slide the bottom of the battery (1) into the bottom
of Stiletto 100 (2) until the battery engages the clips. Then press the left side of the battery
down (3) until the release latch (4) locks the battery in place.
To remove the battery from the Stiletto 100, pull the release latch (4). When the battery pops
up, grasp the battery and slide it toward the latch until it disengages from the radio.

SL100TK1C
[Battery Life, Installation, and Charging ]
12
2
4
3
1
Remote Control Battery Installation
To install the remote control battery, locate the battery drawer on the bottom edge. Open
the battery drawer by holding the latch tab to the right and sliding the drawer out as shown
in Figure 2. Place the battery in drawer with the + side of the battery facing up and slide the
drawer back into the remote control.
Latch Tab
Latch Tab
+
Figure 1Figure 1
Figure 2Figure 2

SL100TK1C [Battery Life, Installation, and Charging ] 13
Battery Charging
The battery in the Stiletto 100 is shipped partially charged but should be fully charged before
using. For the fastest charging time the Stiletto 100 should be turned off. When off, a fully
discharged slim battery will charge in 2 hours and a standard battery will charge in 4 hours.

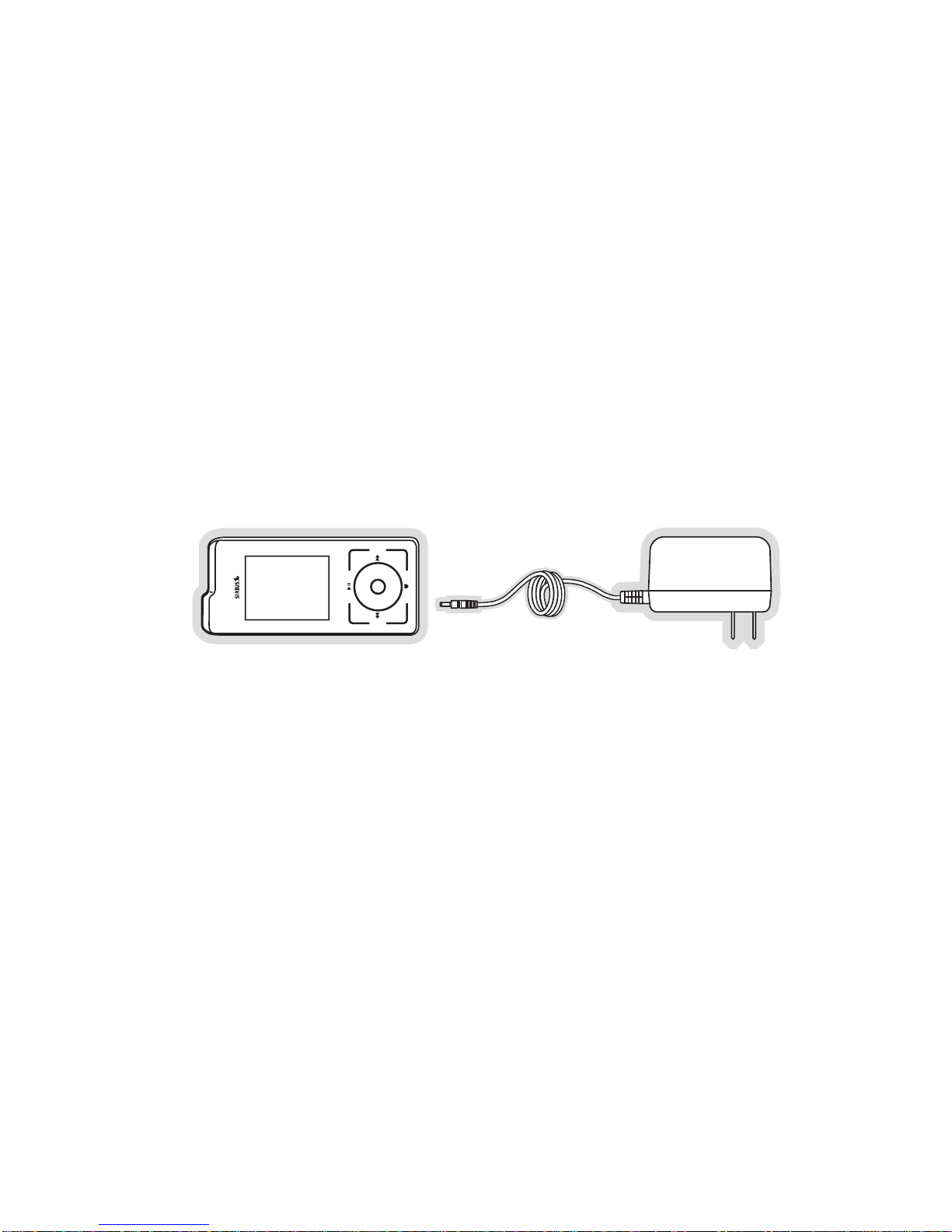

To charge the Stiletto, power the unit off and connect the AC Adapter as shown in Figure 2.
The battery may be charged in several ways:
In the vehicle docking station. The battery will be charged when the portable player is in
the vehicle dock and the vehicle is on.
Using the AC adapter. The AC adapter may be used to charge the battery when the
Stiletto 100 is not in the dock. To use the AC adapter, power the unit off and connect the
ac adapter as shown in Figure 3. A standard battery will reach full charge in 4 hours.
back home
display
options
Battery Disposal
When disposing of batteries, do so in accordance with the local waste disposal regulations.
Batteries should not be disposed of in household waste, but should instead be recycled.
Figure 2Figure 2

SL100TK1C
[Controls ]
14
Controls
Stiletto 100 Reference Guide
Figure 1 identifies the buttons, controls, and connectors of the Stiletto 100.
back home
display
options
Fast Forward
Love
Media Dial
Play/Pause
Home
Display
Rewind
Select
Back
Power/Lock
Volume
Up/Down
Options
Display Screen
+
Headphone
Jack
Power
Connector
Antenna Headphones
/
Docking Connector
Satellite Radio
Internet Radio
Library
Figure 1Figure 1

SL100TK1C [Controls ] 15
The following table describes the functions of the buttons and controls on the Stiletto 100.
Stiletto 100 Button and Control Descriptions
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
/
Power/Lock
Slide
Up Locks all buttons on the Stiletto 100
Center Unlocks all buttons on the Stiletto 100
Slide
Down
Slide down and release: Turns Stiletto 100 On (if Off), or places
radio in sleep mode if On
Slide down and hold for 5 seconds: Turns the Stiletto 100 Off
+/–
Volume
Press +Increases the audio volume
—Decreases the audio volume
Play/Pause
Press
Pauses a broadcast
or resumes playing
a paused broadcast
If playing, mutes
audio
If muted, resumes
playing
Pauses or resumes
playing the current
song or show
Rewind
Press
If listening, skips to
the previous song
or show
If in a channel or
preset list, moves
through categories
or preset banks
If listening and
muted, resumes
playing
If in a channel or
category list, moves
through channel
categories
Skips to the begin-
ning of the song or
show
Hold
If listening, rewinds
through a broad-
cast
Rewinds through
song or show

SL100TK1C
[Controls ]
16
Stiletto 100 Button and Control Descriptions Continued
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
Fast-Forward
Press
If listening, skips
in the replay buffer
to the next song or
show
If in a channel or
preset list, moves
through categories
or preset banks
If listening and
muted, resumes
playing
If in a channel or
category list, moves
through channel
categories
Skips to the next
song or show
Hold
Fast-Forwards
through the replay
buffer
Fast-Forwards
through song or
show
Love
Press
Saves the song or
show if possible, or
adds to favourites
when song/show
cannot be saved
While recording,
prompts to stop
recording Adds the artist/song to the favourites list
Hold
Displays recording
setup screen
While recording,
prompts to stop
recording
Media Dial
Scroll If listening, displays channel or category list
If in a list, menu, or prompt, scrolls to next or previous item

SL100TK1C [Controls ] 17
Stiletto 100 Button and Control Descriptions Continued
Button Action Satellite Radio
Mode
Internet Radio
Mode
Replay/Library
Mode
Select
Press Selects highlighted item in list, menu, or prompt
back
Press Returns back to the screen displayed just prior to the currently
displayed screen
home
Press First press returns to the Home screen
Additional press returns to the Now Playing screen
options
Press Displays available options for the currently displayed screen
If no options are available, nothing is displayed
display
Press
Cycles between 3-channel display mode, 6-channel display
mode, artist name, and song title when in the channel browsing
mode

SL100TK1C
[Controls ]
18
Vehicle Dock Button and Connector Guide
Figure 1 identifies the buttons and connectors of the Vehicle Dock.
1
preset tune jump
2 3 4 5
67 8 9 0
FM
lock
Direct Entry Tune/
Preset Buttons
Preset
Tune
DC5V LINE OUT
FM
Lock
Jump
IR Remote
Sensor
Preset Mode Indicator
Tune Mode Indicator
FM OUT ANT
Figure 1Figure 1
