Sirus Quad R 823 MKII User manual

Quad R/H/B/C 823 MKII,
Quad R/H/B/C 470
UHF Wireless System
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
12.04.2023, ID: 563362, 563361, 563359, 563360, 543456, ... (V3)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 14
4.1 General Information........................................................................................................................ 14
4.2 Receiver............................................................................................................................................... 15
4.3 Handheld microphone (Quad H)................................................................................................ 16
4.4 Bodypack transmitter (Quad B)................................................................................................... 16
4.5 Table call stations transmitter (Quad C)................................................................................... 17
5 Connections and controls................................................................................................................... 18
5.1 Receiver............................................................................................................................................... 18
5.2 Handheld microphone................................................................................................................... 24
5.3 Bodypack transmitter..................................................................................................................... 26
5.4 Table call stations transmitter..................................................................................................... 29
6 Operating.................................................................................................................................................... 31
6.1 Receiver............................................................................................................................................... 31
Table of contents
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 3
UHF Wireless System

6.2 Handheld microphone................................................................................................................... 33
6.3 Bodypack transmitter..................................................................................................................... 34
6.4 Table call stations transmitter..................................................................................................... 37
7 Technical specications....................................................................................................................... 40
7.1 Receiver............................................................................................................................................... 40
7.2 Handheld microphone................................................................................................................... 42
7.3 Bodypack transmitter..................................................................................................................... 43
7.4 Table call stations transmitter..................................................................................................... 45
8 Plug and connection assignment.................................................................................................... 47
9 Troubleshooting...................................................................................................................................... 49
10 Protecting the environment.............................................................................................................. 51
Table of contents
4Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 5
UHF Wireless System

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 7
UHF Wireless System

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 8.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Instructions
Cross-references
General information
8Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 9
UHF Wireless System

2 Safety instructions
This device is intended to be used for the wireless transmission of audio signals from micro‐
phones or instruments to ampliers or active speakers. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
10 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC
outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do
so could result in damage to the device and possibly the user. Unplug the external power supply before electrical storms occur and
when the device is unused for long periods of time to reduce the risk of electric shock or re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
Safety instructions
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 11
UHF Wireless System

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
12 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

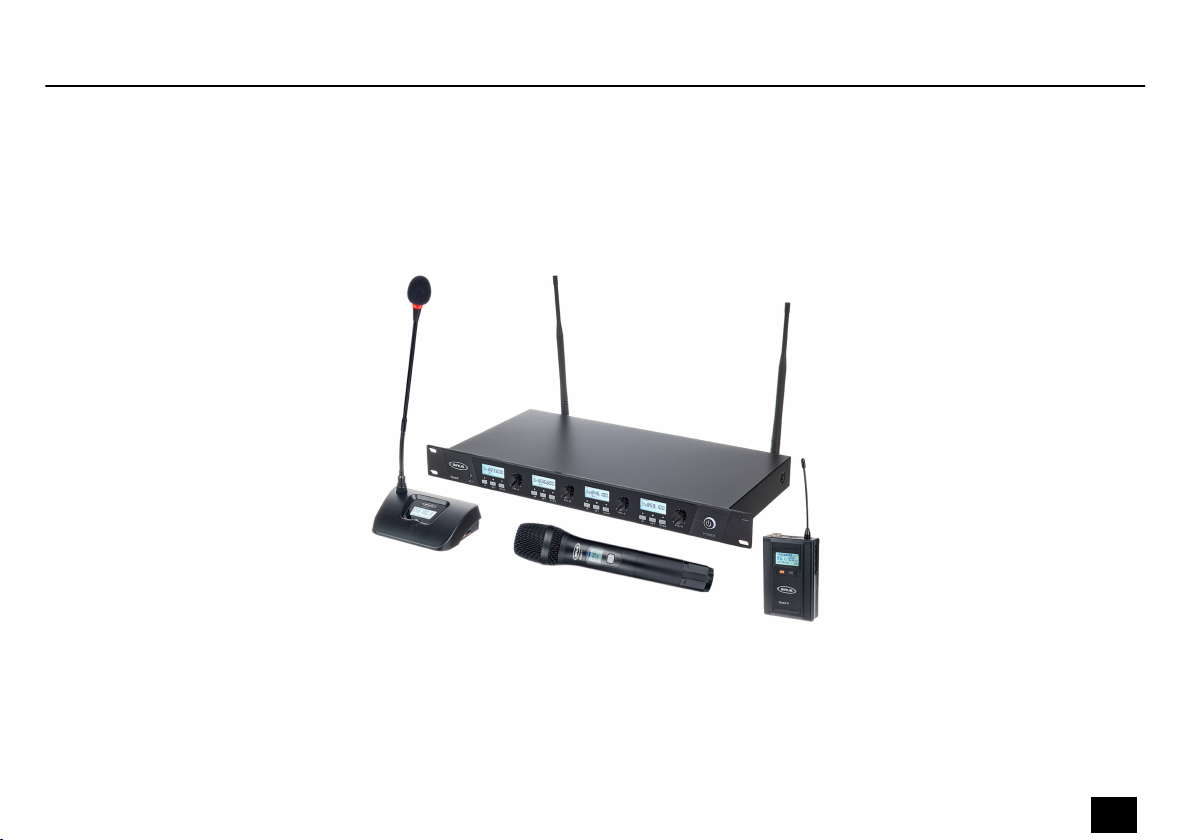

3 Features
The UHF wireless system is particularly suitable for professional audio transmission, for
example, at events, on rock stages and in concert halls, theatres, musicals or night clubs.
n19” UHF receiver (Quad R 823 MKII, item no. 563362; Quad R 470, item no. 543456)
– Two detachable BNC antennas for optimum reception quality
– Automatic frequency scanning
– Infrared interface for sending the frequency selection from the receiver to the trans‐
mitter
– Automatic Squelch
– Outputs: 4 × XLR, 1 × XLR + 1 × 1/4" jack socket as overall output
– 19" rack mountable (1 RU)
– Power supply: 12 V , a suitable power adapter is included
nBattery powered handheld cardioid microphone (Quad H 823 MKII, item no. 563361; Quad
H 470, item no. 543457)
nBattery powered bodypack transmitter (Quad B 823 MKII, item no. 563359; Quad B 470,
item no. 543458)
nBattery powered table call stations transmitter with gooseneck microphone (Quad C 823
MKII, item no. 563360; Quad C 470, item no. 543459)
Features
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 13
UHF Wireless System

4 Installation and starting up
4.1 General Information
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
nThis device utilizes frequencies that are not harmonized within the European Union (EU)
and therefore may only be used in certain EU member states. In all European countries, the
frequencies used for the transmission of audio signals are strictly regulated. Before you
start, make sure the frequencies are allowed in the respective country and check whether
the operation must be reported to the appropriate authority.
For more information, please visit: http://www.thomann.de.
nMake sure that transmitter and receiver are both tuned to the same channel.
nNever set multiple transmitters to the same channel.
nMake sure that there are no metal objects between the transmitter and receiver.
nAvoid interference from other radio or in-ear systems.
Notes on wireless transmission
Installation and starting up
14 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

4.2 Receiver
The unit has been designed for rack mounting in a standard 19" rack; it occupies one rack unit
(RU).
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
First, connect the power adapter to the receiver and then plug the power adapter into the
power outlet.
Rack mounting
Connecting the power supply
Installation and starting up
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 15
UHF Wireless System

Attach the included antennas to the rear panel of the transmitter. To improve the transmission
quality and to adapt to the spatial conditions they are rotatable and swivelling.
In case the space provided on the device for direct assembly of the antennas is not sucient,
for example because the space on the rack is narrow, you can use the optionally available
coaxial cable to assemble the antennas separately from the device.
Connect the audio outputs of the receiver to your mixer or your amplier. Ensure that only one
of the two outputs of the receiver (XLR or jack) is ever used at a time for the overall channel,
because faults might occur otherwise.
4.3 Handheld microphone (Quad H)
Unscrew the bottom housing section of the handheld microphone. Insert the batteries. Pay
attention to the correct location of the poles. The correct battery arrangement is illustrated in
the battery compartment. Close the battery compartment, screw the bottom housing section
back on, and switch the transmitter on.
4.4 Bodypack transmitter (Quad B)
Press the button on the rear side of the bodypack transmitter and pull the battery compart‐
ment cover downwards. Insert the batteries. Pay attention to the correct location of the poles.
Close the battery compartment and switch the transmitter on.
Attaching the antennas
Connecting audio and starting
up
Inserting batteries
Inserting batteries
Installation and starting up
16 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

nEnsure that the transmitter is switched o.
nConnect the microphone or instrument cable to the input on the transmitter (mini-XLR
panel connector).
nTurn on the transmitter and check the transmission by using the microphone or instru‐
ment. If necessary, adjust the amplication of the transmitter and the levels on your
mixing console or your amplier.
4.5 Table call stations transmitter (Quad C)
Open the lid of the battery compartment on the bottom side of the table call station, and
insert the batteries. Pay attention to the correct location of the poles. Close the battery com‐
partment and switch the transmitter on.
Connecting microphone of
instrument
Inserting batteries
Installation and starting up
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 17
UHF Wireless System

5 Connections and controls
5.1 Receiver
VO L- C
ACT
QUAD
ö $ % & ' $ % & ' $ % & ' $ % & ' (
# # # #
Front panel
Connections and controls
18 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System

1[ACT] | Infrared sensor
2 Display
3/[IR] | Starts the synchronisation of the settings with the transmitter. Increases the displayed value by one.
4/[SET] | Opens the menu
5/[SCAN] | Starts le automatic search for a free channel and the automatic synchronisation with the transmitter.
Decreases the displayed value by one.
6 Rotary volume control
7[POWER] | Press the switch for several seconds to switch the device on or o. All previous settings are retained even
when you switch the device o and disconnect it from the mains.
Connections and controls
Quad R/H/B/C 823 MKII, Quad R/H/B/C 470 19
UHF Wireless System

) )* + -,
Rear panel
Connections and controls
20 Quad R/H/B/C 823 MKII, Quad R/H/B/C 470
UHF Wireless System
