SISTEM AIR Tecno Star Dual Power User manual

05/07/11 Rev:1.0.0 1
• Type: domestic vacuum cleaner
• Model: Tecno Star Dual Power
• Revision 1.0.0
Line
TECNO Star Dual Power
INSTRUCTION MANUAL
1 HOW TO USE THE MANUAL 4
2 DESCRIPTION OF THE CENTRAL VACUUM CLEANER 4
2.1 Distinctive product features 5
3 TECHNICAL FEATURES 6
4 CONSTRUCTION FEATURES 8
5 SAFETY FEATURES 9
5.1 IP protection degree 10
5.2 Electric insulation degree 10
5.3 Declaration of absence of dangerous substances 10
5.4 Fixed closure safety guards 10
5.5 Movable closure safety guards 11
5.6 Identification plate 11
6 AUTHORIZED USE OF THE VACUUM CLEANER 12
7 UNAUTHORIZED USE OF THE VACUUM CLEANER 12
8 EQUIPMENT AND ACCESSORIES 13
9 INSTALLATION 14
9.1 Recommended Installation 14

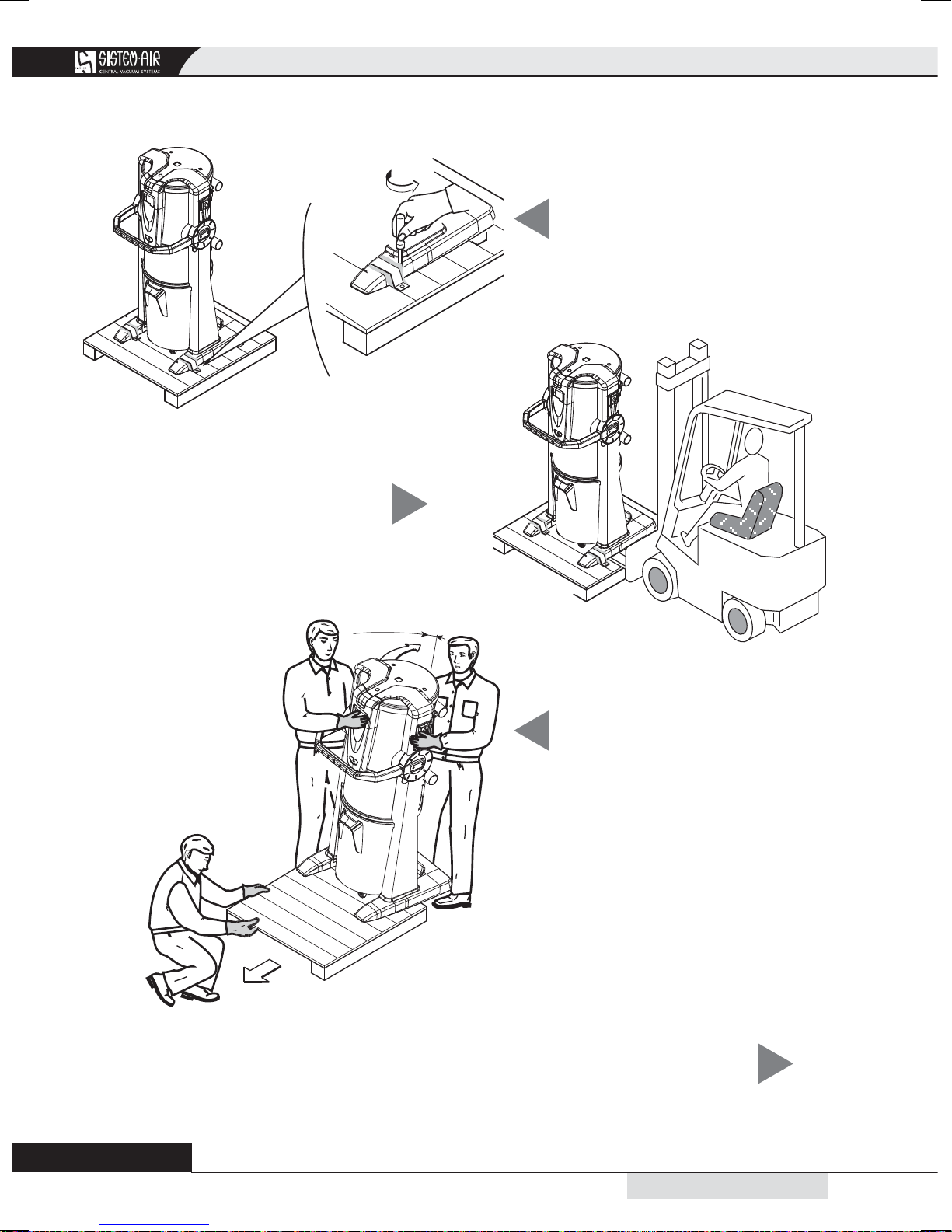

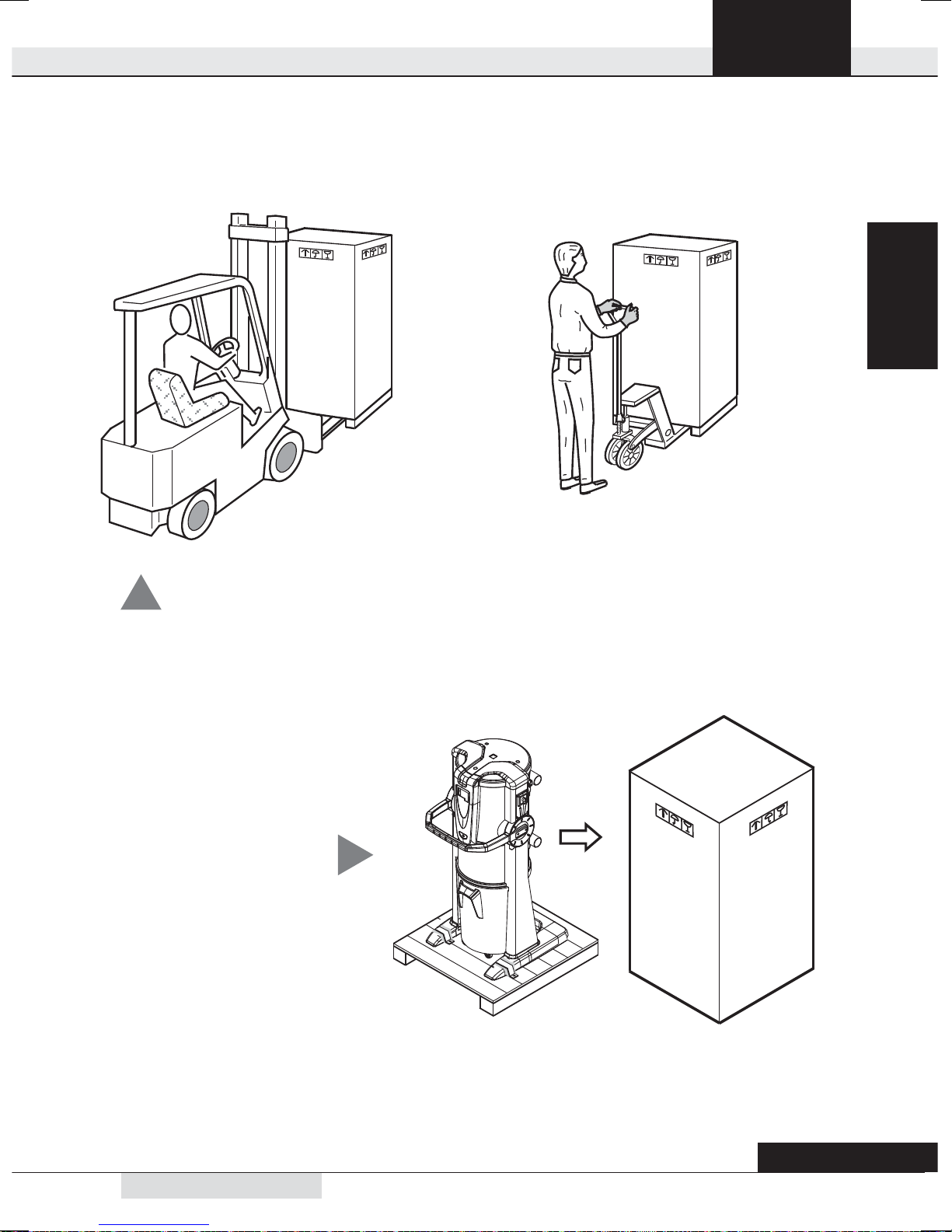

9.2 Transport and unpacking 15
9.3 Positioning of the vacuum cleaner 17
9.4 Transforming DX version (outlet pipes fitted on the right) into SX version
(outlet pipes fitted on the left) 17
9.5 Fixing the system to the wall 19

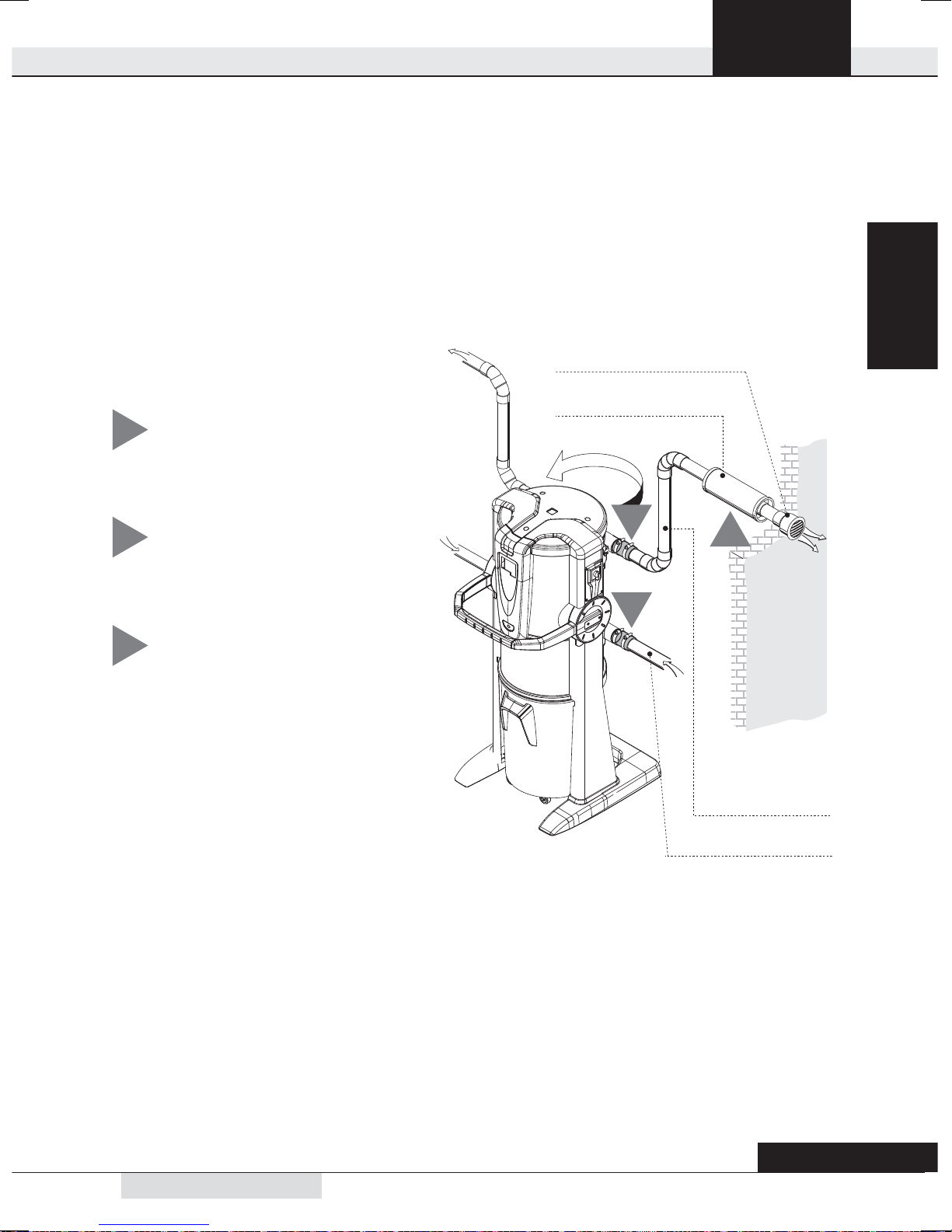

9.5.1 Connection to the piping network 19
10 STARTING THE VACUUM CLEANER 19
10.1 Control board 19
10.2 Electric connection 20
10.2.1 Auxiliary connection signal 21
11 USE OF THE VACUUM CLEANER 22
11.1 Switching on the vacuum cleaner 22
11.2 Using the vacuum cleaner 22
11.3 Programming and use of the computer for controlling the central unit 23
INDEX

205/07/11 Rev:1.0.0
• Type: domestic vacuum cleaner
• Model: Tecno Star Dual Power
• Revision 1.0.0
Line
TECNO Star Dual Power
INSTRUCTION MANUAL
11.3.1 Programming the start up 24
11.3.2 Main Menu 26
11.3.3 Turbo function Menu 27
11.3.4 Menu for date and time setting 27
11.3.5 Information and alarms Menu / Alarms coding 28
11.3.6 Menu for setting machine stop 30
11.3.7 Installation parameters Menu 32
11.3.8 Data transmission Menu 34
11.3.9 Parameters reset Menu 35
11.3.10 Check and test Menu 35
12 MAINTENANCE 36
12.1 Programmed routine maintenance 36
12.2 Extraordinary maintenance 36
12.3 Cleaning the vacuum cleaner body (cylinder) 37
12.4 Emptying the dust bin 37
12.5 Replacing the filter cartridge 39
12.6 Regeneration of the filter cartridge 41
12.7 Cleaning of the external body 41
13 REPAIRS AND SPARE PARTS 41
13.1 Intervention criteria 41
13.2 Recommended spare parts 42
13.3 Putting the vacuum cleaner out of service 42
14 SOUND EMISSION 42
15 IDEAL LOCATION OF THE VACUUM CLEANER TO REDUCE
SOUND EMISSION 42
16 VIBRATIONS 42
17 TROUBLESHOOTING 43
APPENDIX A - CONNECTION TO THE AUTOCLEANER APPLIANCE 45
A.1 Positioning of the Autocleaner 45
A.2 Pneumatic connection 46
A.3 Electric connection 46
INDEX

05/07/11 Rev:1.0.0 3
2
For the best results, we suggest to use SISTEM AIR original accessories and materials. The SISTEM AIR Trade-
mark is a registered trademark and is property of TECNOPLUS S.r.l.
English
INTRODUCTION
Dear Customer,
TECNOPLUS S.r.l., owner of the SISTEM AIR Trademark would first of all like to thank you for having
chosen to buy the new vacuum cleaner of the TECNO Star Dual Power. We are sure that the characte-
ristics described in this manual will satisfy your needs.
TECNO Star Dual Power has been designed and produced in strict compliance with the Machinery
Directive 2006/42/CE (transposed into Italian Legislation by Decree Law 17/10), Low Tension Directive
2006/95/ CE, and Electromagnetic Compatibility Directive 2004/108/CE. The system has been manu-
factured with top quality materials and with particular care paid to reducing as much as possible the risk
of injury.
We have therefore written this manual in order to provide adequate instructions for the correct use and
maintenance of the system which are crucial to ensure the user’s safety, the correct functioning and the
long working life of the vacuum cleaning unit.
Read the entire manual carefully, follow the instructions precisely, and above all, for safety rea-
sons, do not intervene in any way if not specifically indicated.

TECNO Star Dual Power instruction manual
405/07/11 Rev:1.0.0
1 - GENERAL INFORMATION
1. How to use the manual
The instruction manual has been written by the manufacturer and is an integral part of the vacuum
cleaner. If the system is resold, given or hired out to others, the manual must be handed over to the
new user or owner.
We recommend using and storing it carefully for the entire working life of the vacuum cleaner.
This manual explains how to use the equipment correctly in order to obtain the best performance
while maintaining optimal working and safety conditions.
It is strictly forbidden to reproduce, copy or disclose any part of this document by any means without
prior written consent of TECNOPLUS s.r.l. which is the owner of the SISTEM AIR Trademark.
TECNOPLUS s.r.l . reserves the right to upgrade or modify this manual or the vacuum cleaner itself at
anytime without giving any prior notice to third parties.
2. DESCRIPTION OF THE VACUUM CLEANER
Constant research applied to central vacuum cleaners and advanced electronic technology have
allowed TECNOPLUS S.r.l. to create TECNO Star Dual Power.
The central vacuum cleaner, suitable for any type of residential building (private houses, offices,
hotels, service sector), consists of a network of PVC trace pipes, housed in walls or in false ceilings
running through the various rooms; at the end of the pipes are positioned the suction sockets.
The SISTEM AIR vacuum cleaner is usually placed in a utility room, garage or other storeroom and
connected to the suction pipes network.
The system is switched on by inserting the sleeve coupling of the flexible vacuum cleaning hose in
any of the suction sockets.
If the pipe network doesn’t feature any electrical power supply, the system can be switched on and off
by means of a remote control
device (optional accessory).
The Tecno Star Dual Power
vacuum cleaner, yet equip-
ped with brush motors, featu-
res innovative characteristics
which make it more suitable
for professional applications.
The Tecno Star Dual Power
vacuum cleaner is run by a
second-generation electronic
system that Sistem Air ap-
plies to its vacuum cleaners
to allow a simplified manage-
ment of the cleaning unit.

5
2
05/07/11 Rev:1.0.0
English
Main features of the TECNO Star Dual Power vacuum cleaner:
- Possibility of contemporary use by two operators either with two separate micro lines or with one single
micro line.
- The Tecno Star Dual Power vacuum cleaner by Sistem Air adopts an innovative control and mainte-
nance system based on an electronic control board with microchip connected to pressure sensors
and programmed to easily and immediately interact with the user. Maintenance can be individually
programmed by the user who will receive messages about the machine status directly on a user-
friendly graphic display, as well as suggestions about actions to be taken in case of malfunctioning.
Thanks to the pressure sensor, the indications shown are not mere approximations but indicate the
real conditions of the system.
- With Tecno Star Dual Power, SistemAir has obtained a 10% consumption decrease, with no reduction
of the available vacuum cleaning power.
2.1 DISTINCTIVE PRODUCT FEATURES
- “TURBO” function by means two motors on a single micro line.
- Safety thermal sensor to protect the motor.
- Vacuum breaker valve to ensure the motor is not operating in critical conditions.
- Soft Start system to reduce the electric absorption during the starting phase of the vacuum suction.
- Control and routine maintenance system based on an electronic control board with microchip con-
nected to pressure sensors and programmed to easily and immediately interact with the user.
- Polyester L-Class filter cartridge, washable in water.
- Double protection electronic control board with fuse-holders and disconnecting switches both on the
primary and auxiliary circuit.
- Pressure transducer
- Class 1 isolation.
- Left or right connection to the pipe dust inlet and to the air exhaust.
- Wheeled machine body coated with epoxy-powders with large-capacity dustbin.
- Fastening and release of the dust bin with Soft-Touch-grip handle, reducing the effort when opening
the bin.
- Base coated with anti-choc material to protect the appliance.
- High-grade noiselessness thanks to the soundproofed motor housing.
- Further optional coupling of Autocleaner self-clean system (see page 45).

TECNO Star Dual Power instruction manual
605/07/11 Rev:1.0.0
Tecno Star Dual Power Model
A
E
H (recommended)
D
B
G
C
10
9
8
1
2
3
4
5
6
7
11
12
13
14
15
16
17
18
Cover
Electronic board
Pressure transducer
On-board computer
Bin release handle
Filter protection
Filter cartridge
Handle
Base
Wheels
Motors group
Air exhaust
Main switch
Thermal Sensor
Micro lines and contact
aux power supply output
cables
Dust inlet
Conveyor cone
Dust container
3- TECHNICAL FEATURES

7
2
05/07/11 Rev:1.0.0
English
TECNO Star Dual Power Line
Model
Item
TECNO Star
Dual Power
3116.2TS
Maintenance Computer YES
Dust inlet Ø mm 63
Air exhaust Ø mm 63
Protection degree IP 20
Power supply V ac
220/240
Frequency Hz 50/60
Motor power kW 1,3x2
Absorption A 12
Socket power supply V dc 12
Maximum air ow m3/h 390
Filtering surface cm217000
Dust bin capacity l 62
Air exhaust YES
Air exhaust silencer YES
Weight kg 55
A Size mm 615
B Size mm 633
C Size mm 1369
D Size mm 773
E Size mm 450
G Size mm 745
H Size mm 500
Sound level with 1 motor dB(A) 64
Sound level with 2 motors dB(A) 69

TECNO Star Dual Power instruction manual
805/07/11 Rev:1.0.0
4 - CONSTRUCTION FEATURES
TECNO Star Dual Power Line vacuum cleaners feature two motors with intervention modes depending
on the use of the vacuum cleaner itself and on the number of independent micro lines which have been
connected and started. It is actually possible to connect 2 micro lines to the unit to manage two sepa-
rate parts of the vacuum system (i.e. two areas of the same system, two floors or two individual flats). In
fact, the user can select through the on-board computer to vacuum clean with or without greater power
a single area covered by a single micro line (single operator) or share the maximum power to simulta-
neously vacuum clean two areas covered by two separate micro lines (with two operators), in civil or
small-size advanced civil applications.
IMPORTANT: Two operators cannot be considered when the maximum total surface exceeds
350 m2and when the piping network has not been suitably set up.
The vacuum systems of the Tecno Star Dual Power Line have been designed and manufactured in com-
pliance with all the criteria imposed by the current regulations and European directives while carefully
paying attention to crucial elements like performance, power and operating capacity.
The main technical features are as follows:
- Cylindrical body made of metal coated with epoxy powder.
- Base coated with anti-choc material to protect the unit.
- Metal bin for dust collection (62 litres capacity) equipped with wheels for handling.
- Dust bag and bag-stretcher for dust collection, to ensure quick and healthy disposal operations of the
material collected.
- Soundproofed motor compartment (unit sound level; 64 dB A with one operating motor, 69 dB A with
two operating motors)
- Optional left or right connection to the pipes.
- Motor-rotors group, equipped with direct-cooling single-phase electric brush motors
- Vacuum breaker valve to ensure the motor is not operating in critical conditions.
- Soft Start system to reduce the electric absorption during the start phase of the vacuum cleaning
system.
- Safety thermal switch to protect the motor group with automatic cut-off and reset.
- Double-protection electronic control board with disconnecting fuse-holders on the primary and auxiliary
circuit.
- Suction sockets supplied with 12 V dc voltage.
- Polyester L-Class filter cartridge, washable in water (filtering surface: 17000 cm²).
- Metal filter protection to prevent accidental breakage.
- On-board computer to control the maintenance cycles with warnings for full dust bag replacement,
filter cartridge cleaning, motor maintenance.
- Set up of the connection to a remote auxiliary maintenance warning signal (optional).
- Possibility to control two separate micro lines.
- “Turbo” function for a more powerful vacuum cleaning when activating a single micro line / operator.
Maximum
Surface
Model Item Max
suction
inlets
Max
Operators
Computer
programmable
maintenance
Dustbin
Capacity
(l)
Filtering
surface
(cm
2
)
Power supply
(Volt ac)
Motor
power
(kW)
Max air
ow
(m
3
/h)
*Max 350 m
**Max 450 m
TECNO STAR
Dual Power
3116.2TS
16 1+1 YES 62 17000 220/240 1,3x2 390
(*) for two separate micro lines. (**) for one single micro line.

9
2
05/07/11 Rev:1.0.0
English
5 - SAFETY FEATURES
In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into
the Italian Legislation by Decree Law 17/10), in the Low Voltage Directive 2006/95/CE, and in the Elec-
tromagnetic Compatibility Directive 2004/108/CE, the Tecno Star Dual Power vacuum cleaner complies
with the standard established for electrical appliances for household and similar purposes EN 60335-1
(2008) and with the Regulation C EN 60335-2-2 (2011), specially conceived for vacuum cleaners for
household and similar purposes with rated voltage not exceeding 250 V.
It is recommended to carefully read all the installation, use and maintenance instructions detai-
led in this manual.
Furthermore, the following WARNINGS should always be observed:
• Never use the machine for unauthorized purposes.
• Keep children away from the vacuum cleaner when functioning. Children should not play with the
machine nor with the suction sockets
• This equipment should not be used by persons (including children) with reduced psychic, sensory or
mental capacities or by persons with no experience or knowledge of the system, unless under the
guidance or instructed to use the machine by persons responsible for their safety.
• Children must always be supervised to ensure they do not play with the machine.
• Immediately disconnect from power supply if:
- the electric cable is damaged or worn.
- the vacuum cleaner has been exposed to rain or excessive humidity.
- the vacuum cleaner has been knocked or the outer body has been in any way damaged.
- you think the system requires maintenance or repair.
• Wear protective gloves and mask to carry out maintenance, to empty the dust bin or replace and clean
the filter.
• Only use original spare parts and accessories.
• Do not suction clean fabrics, heavy materials, ashes or hot embers.
• Never suction clean liquids.
• Do not use the system without a filter cartridge.
• Do not block the exhaust air pipes or the motor cooling intakes.
• No part of the body should come into contact with the suction accessories.
• Use only one suction socket at a time.
• Do not leave the system switched on when not using it and disconnect it from power supply when the
system is not to be used for a long period of time.
• Do not suction clean building materials (concrete, lime wastes, plaster dust, etc.) once the installation
is completed. This will quickly clog the filter cartridge.
• Do not vacuum any material which may cause electrostatic charges in the piping system, if not
previously communicated to the constructor.
Finally, remind that pictograms of danger and warning signals can be found on those parts of the
equipment where, if not strictly followed, potential risky situations may occur.
- Vacuum cleaning of liquids by means of optional accessory.
- Vacuum cleaning of the electrostatic material, provided that a metal pipe network connected to the
grounding has been set up.
- Further optional installation of the Autocleaner selfcleaning system.
N.B.: when replacing the fuse, check the correct fuse amperage and be sure to assemble a
motor-delay fuse. During installation procedures strictly follow regulations established by CEI
and by the national energy supplier.

TECNO Star Dual Power instruction manual
10 05/07/11 Rev:1.0.0
WARNING: TECNOPLUS S.R.L. declines any form of responsibility or guarantee if the purchaser,
or anyone in his stead, makes even the slightest modification or adjustment to the purchased product.
The unit has been designed to satisfy at best the present needs of the domestic central vacuum cleners
market, both in terms of quality and operating capacity.
All materials and components used to manufacture this product comply with CE safety regulations. All
relevant certifications are held at TECNOPLUS S.R.L. headquarters.
5.1 IP Protection Degree
IP 20: The appliance features a protection against solid objects having a size exceeding 12 mm. The
appliance is not protected against water penetration.
5.2 Electric insulation degree
CLASS I: the appliance features basic electric insulation.
It must be connected to the grounding circuit through the main electric wiring.
5.3 Declaration of absence of dangerous substances
TECNOPLUS S.r.l. declares that its products and appliances have been manufactured with materials
which comply with the restrictions established by the health and environment protection regulations in
force and do not contain SVHC-classified substances (Substance of Very High Concern) in compliance
with CE regulation 1907/2006 (REACH: i.e. Registration, Evaluation, Authorization and Restriction of
Chemical Substances).Although these substances have not been used during the processing cycles of
raw materials and during the manufacturing cycles of our products, their presence in p.p.m. (parts per
million) cannot be completely excluded due to micro-pollution of raw materials.
5.4 Fixed closure guards safety
The vacuum cleaner is delivered to the Customer with its main body completely assembled. Moving
parts (suction motor turbine blades) are protected by a protection grid directly assembled on the inlet of
the suction motor compartment. This protection grid cannot be accessed by the operator. The operator
also does not have access to the electrically-operated parts of the appliance which are protected by a
cover which can only be removed by unscrewing the Torsen screws used to fix the soundproofing dome
of the housing where the suction motors are assembled.
Every intervention on the control board and on the motors must be carried out by qualified personnel
only after disconnecting the electrical power supply and by removing the electric plug from the electric
socket.
IP20

11
2
05/07/11 Rev:1.0.0
English
5.5 Movable closure guards safety
There are no movable closure guards assembled on the appliance. Every guard assembled is conside-
red a fixed guard and is fastened with special screws. TECNOPLUS s.r.l. reminds you that it is absolu-
tely forbidden to replace the screws used to design and manufacture the appliances with screws that
feature different characteristics.
TECNOPLUS s.r.l. will immediately suspend the product guarantee in case of machine tampering car-
ried out by the Customer.
5.6 Identification plate
The CE identification plate is assembled on the side of the connection to the piping network.This should
not be removed or damaged.
Type of Central vacuum cleaner
Manufacturer Identification
CE conformity
marking
Technical data of the electric motor
Serial Number

TECNO Star Dual Power instruction manual
12 05/07/11 Rev:1.0.0
6 - AUTHORIZED USE OF THE VACUUM CLEANER
The TECNO Star Dual Power vacuum cleaner has been designed exclusively to vacuum clean dust,
very small-size solids and dry materials.
The use of the central vacuum cleaner is authorized for household and civil uses, and connected to a
PVC wall traced piping network and to a standard home electric wiring.
The Tecno Star Dual Power vacuum cleaner is the ideal choice to work out and meet the most
demanding needs; it is recommended for residential dwelling units with the characteristics detailed
below:
- recommended surface to be cleaned ranging from 100 and 450 m2
- pipe network set up with pipes with 50 mm diameter (1 operator) and 63 mm diameter (2 operators)
and Ø 63 mm inlet coupling to the vacuum cleaner
- 220/240 V ac single-phase power supply
- air exhaust conveyed to the outside
- the system can be used simultaneously by 2 operators (only if it has been suitably dimensioned).
7 - UNAUTHORIZED USE OF THE VACUUM CLEANER
It is extremely important NOT to use the system in the following circumstances which are conside-
red to be inappropriate and dangerous:
• The system must not be used to vacuum clean fabrics, heavy or hot/burning materials.
• The system must not be used to vacuum clean liquids.
Furthermore the system has not been designed for use in environments with risk of explosion,
and therefore:
• it is forbidden to suction clean materials with high explosion risk (gunpowder) or materials which are
individually inert but that, once collected and mixed in the dust bin, could provoke dangerous chemical
reactions.
• It is absolutely forbidden to use the vacuum cleaner in explosive atmosphere or outside the standard
temperature, pressure and humidity levels.
• Do not vacuum any material which may cause electrostatic charges in the piping system, if not
previously communicated to the constructor.
Any use of the appliance other than those specified above is forbidden.
Any change or modification made to the system in order to suction clean a particular type of
material must obtain the prior written approval of the manufacturer.
The use of the system for purposes other than those for which it was manufactured, represents
an irregular condition which can cause damage to the product and seriously compromise the
operator’s safety.

13
2
05/07/11 Rev:1.0.0
English
8 - EQUIPMENT AND ACCESSORIES
The packaging of the vacuum cleaner also includes a series of accessories as detailed below:
1) N°1 TECNO Star Dual Power vacuum cleaner
2) N°2 rubber sleeves for the connection to the suction pipe network
3) N°4 metal clamps to fix the sleeves
4) N°1 adhesive label detailing the system model
5) N°1 installation, use and maintenance manual
6) N°1 silencer
Check that the system, the accessories and the kit correspond to the products ordered and that they
have not been evidently damaged during transport.
In case of problems contact your Retailer immediately.
123
4
5
MANUALE TECNICO
www.sistemair.it
Domestic
TECNO Star
Dual Power
6

TECNO Star Dual Power instruction manual
14 05/07/11 Rev:1.0.0
9 - INSTALLATION
- WARNING -
THESE PROCEDURES MUST BE CARRIED OUT
BY QUALIFIED STAFF
9.1 RECOMMENDED INSTALLATION
The Tecno Star Dual Power vacuum cleaner must be connected to an exhaust air pipe, crucial for
discharging outside the micropowders that the filter cartridge cannot retain. The vacuum cleaner must
be installed in service rooms (e.g. garage, store room etc) protected from bad weather, dampness and
excessive temperature variations. Install the unit in a place far from heat sources such as stoves and
radiators. (N.B: the unit features IP 20 protection degree).
During the set up phase, we suggest to always carefully check that the unit is positioned in the most
suitable location selected for the system. Check also that sufficient space has been allowed for instal-
lation, use and maintenance purposes and for an optimal recirculation of the air around the vacuum
cleaner.
Construction features allow the vacuum cleaners to be connected to the pipe system with pipes co-
ming either from right or left sides. In case of multi-storey vacuum cleaning system, we suggest you to
install the unit on the lowest available floor.

15
2
05/07/11 Rev:1.0.0
English
9.2 Transport and unpacking
Remove the protective
cardboard box.
1
2
Use a transpallet or a fork-lift truck for transport and handling; always maintain the
system inside its own packaging until it reaches the place of installation.

TECNO Star Dual Power instruction manual
16 05/07/11 Rev:1.0.0
Remove the brackets that fix the
unit to the pallet.
If no suitable fork-lifts are available,
remove manually the unit from the
pallet (see picture).
In this case, at least two strong per-
sons are needed to slide the unit whi-
le a third person removes the pallet.
WARNING: do not tilt the unit more
than 15° so as to avoid dangerous
unbalances.
3
5
Remove the unit from the pallet.
Remove all the accessories and dispose the cardboard box
according to the regulations in force.
4
6
MAX 15°

17
2
05/07/11 Rev:1.0.0
English
9.3 Positioning of the vacuum cleaner
For a correct use and to facilitate maintenance it is advisable to keep a minimum distance of 60 cm on
three sides around the appliance (excluding the side on which it is fixed to the wall).
9.4 Transforming DX version (outlet pipes fitted on the right) into SX version
(outlet pipes fitted on the left)
Vacuum cleaners are generally supplied with suction and exhaust pipes on the right side (RIGHT ver-
sion). If needed, the system can be transformed so as to have both suction and exhaust pipe connec-
tions on the left side (LEFT version).
To do this:

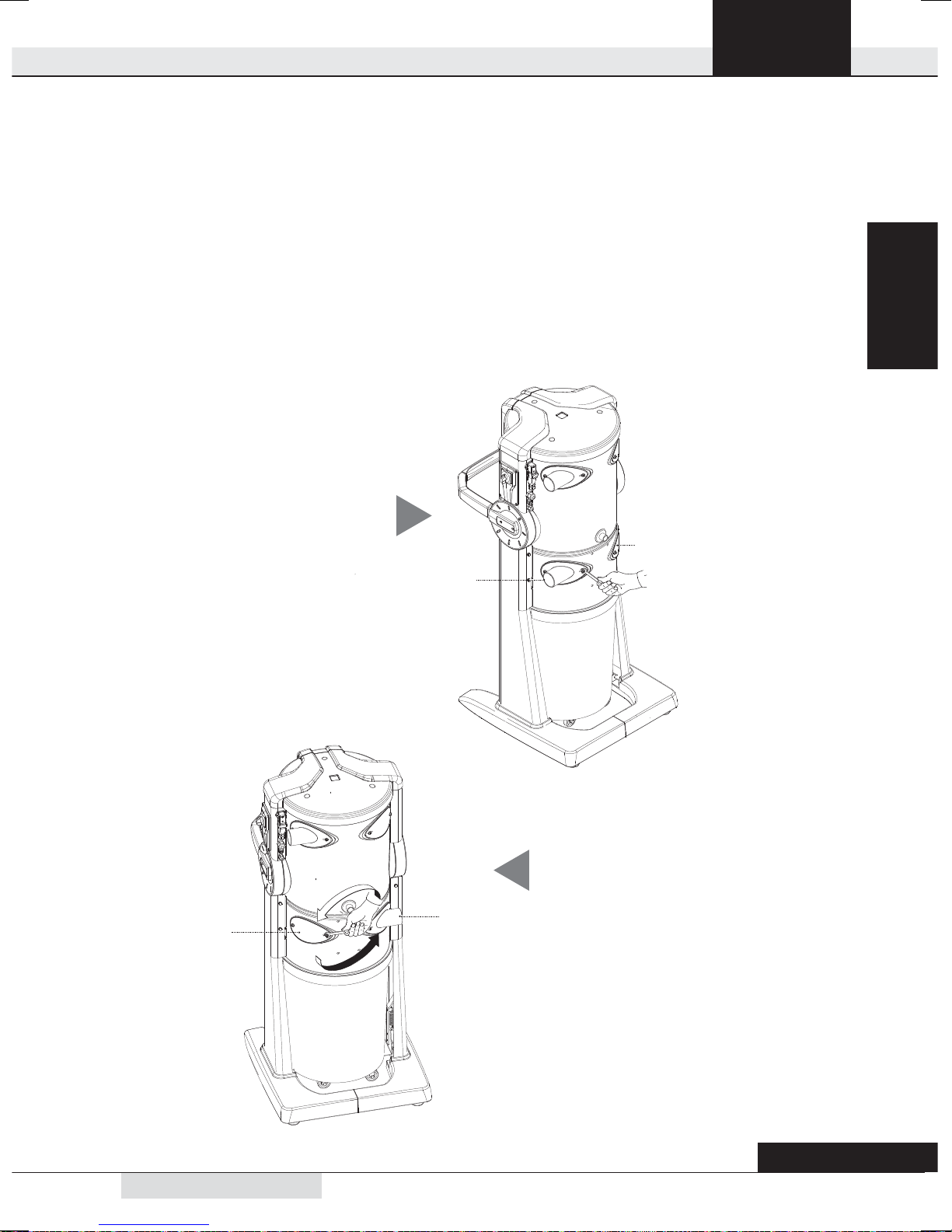

After exchanging their housings, re-
assemble the intake of the “A” suction
pipe and the “B” closing plate by faste-
ning the screws.
Now rotate by 180° the intake of the
suction pipe as shown in the picture.
Disassemble the intake of the “A”
suction pipe and the “B” closing
plate by removing the screws.
2
1
B
A
B
A

TECNO Star Dual Power instruction manual
18 05/07/11 Rev:1.0.0

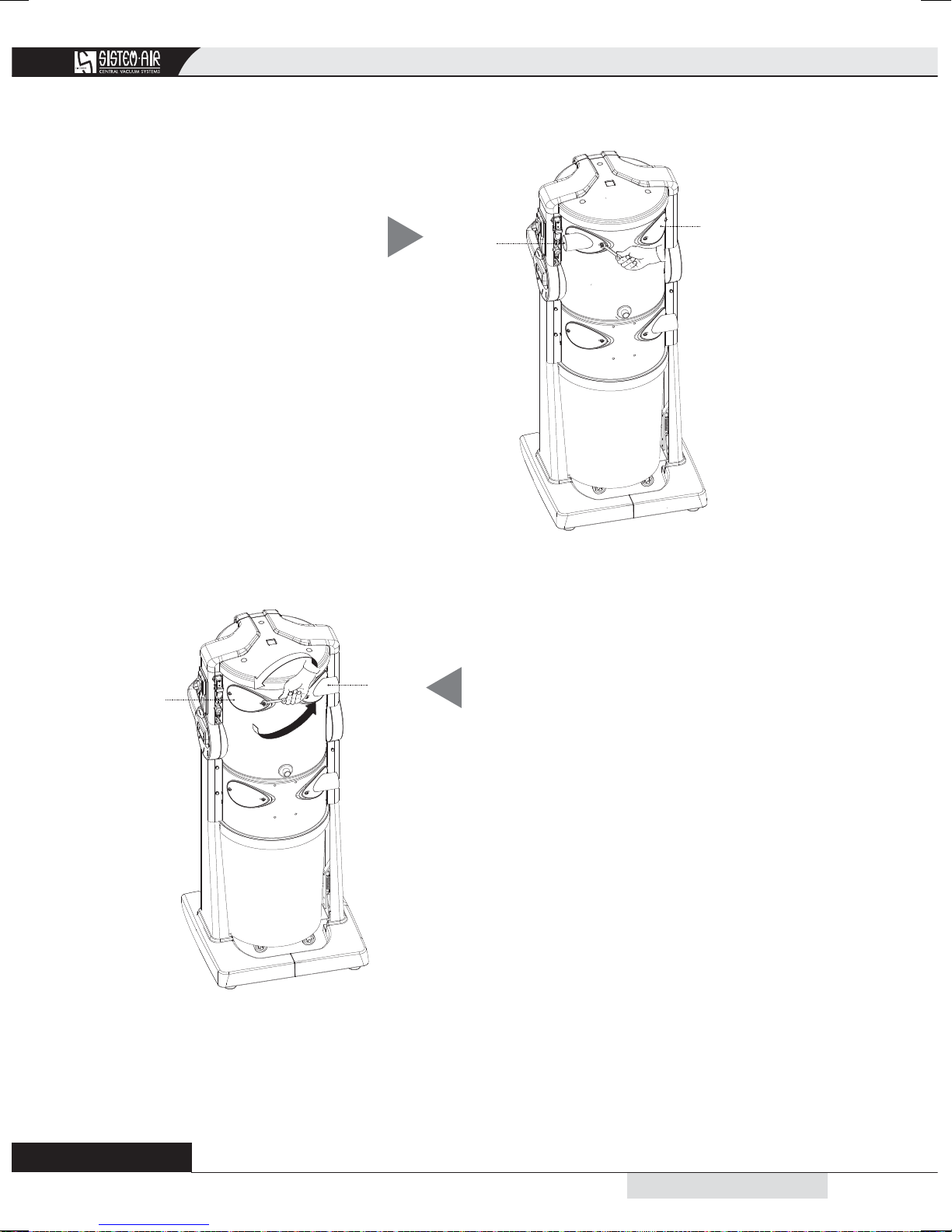

Disassemble the intake of the “C”
exhaust pipe and the “D” closing
sheet by removing the screws. 3
After exchanging their housings, reassemble
the intake of the “C” exhaust pipe and the “D”
closing sheet by fastening the screws.
Now rotate by 180° the intake of the exhaust
pipe as shown in the picture.
4
C
D
D
C

19
2
05/07/11 Rev:1.0.0
English
A
B
C
9.5 Fixing the vacuum cleaner
The unit does not need any special fixing device. For a correct and safe positioning, it is however neces-
sary to check that the location selected for installing the unit features the following min. requirements:
- a solid, perfectly flat and horizontal bearing surface;
- the surface must not vibrate. Furthermore it is of utmost importance to avoid any unevenness of the
bearing surface that could make the unit unstable.
9.5.1 Connection to the pipe network (see picture)
The intakes for the connection to the suction pipes network and to the pipes exhausting the air outside
can be assembled either on the right or left side of the unit.
10 STARTING THE VACUUM CLEANER
10.1 Control board
The TECNO Star Dual Power vacuum cleaner features a control board from which the appliance fun-
ctions can be programmed by means of a simple operator’s interface display with 6 function keys.
From the control board (display) it is possible to control and set the routine maintenance operations;
the vacuum-cleaning sockets are distributed in the various rooms and connected through the piping
network.
For this reason, the operator is never directly in contact with the appliance while the system is working,
apart from starting operations (see paragraph 11.3.1) and use of the vacuum cleaner (see paragraph 11).
Using the sleeve and the metal
clamps delivered with the vacu-
um cleaner, connect the unit to
the air suction pipe.
Using the sleeve and the metal
clamps delivered with vacuum
cleaner, connect the unit to the
exhaust pipe.
Assemble a silencer on the
exhaust pipe; position the silen-
cer near the exhaust grid. Use
glue for pipes to fix it.
Exhaust grid
Silencer
Suction pipe
Exhaust pipe
A
BC

TECNO Star Dual Power instruction manual
20 05/07/11 Rev:1.0.0
10.2 Electric connection
Before connecting the system to the electrical power supply check that the supply voltage corresponds
to that required by the vacuum cleaner (see the identification plate).
The manufacturer declines any responsibility for damages to persons and/or objects due to a connec-
tion to a non-complying electric wiring.
Follow the instructions (see picture) detailed below to carry out the operation:
• Connect the input signal cable (MICRO LINE) to the suction socket.
• Connect the output cable for the auxiliary maintenance warning signal. The use of this signal is OP-
TIONAL. N.B.: This signal is a normally open contact which supplies a voltage of 12 V dc - 0,03 A.
• Insert the plug of the power supply cable from the central system in the electric socket.
• Check that the electric wiring of the house has been set up in compliance with the electrical regulations
in force
• Do not supply the system with voltage from provisional or temporary switchboards (for example con-
struction sites switchboards) to avoid possible damages to the electronic parts.
WARNING: the electric connection must be carried out ONLY
by qualified personnel
Micro Line 1- 2/
Suction Sockets 12V
Auxiliary signal (optional connec-
tion) 12V, 30 mA
Power supply AC 230V
