SISTEMA JET CLEANER 1600TSS User manual

Table of contents
Pressure Washer
ART. 3920162
Safety guidelines......................................................2
Important safety instructions....................................2
Grounding instructions & Extension cords...............3
Starting up................................................................4-5
Parts Drawing & Parts List - Usage..........................5
Usage - Caution.......................................................6-7
Storage - Trouble shooting guide .............................7-8
REV.0 - 03.04
Carefully read and understand these instructions
before operating this pressure washer.
Only For Cold Water Application
Only Models Sold in the U.S.A. are equipped with
a GFCI (Ground Fault Circuit Interrupter) plug.
Sistema USA, LLC 1520 Yokel Rd - Evansville, IN 47711 - USA
General e-mail: [email protected] - Web: www.sistemausa.com
Customer Support: [email protected]
Toll Free Customer Support Line: 1-866-463-3000
Product Manual
JET CLEANER
1600TSS WASH MASTER
1600TSS CLEAN MASTER 1600TSS

This manual contains information that is important for you to know and understand.This
information relates to protectingYOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
To help you recognize this information, we use symbols to the right. Please read the manual and
pay attention to these sections.
URGENT SAFETY INFORMATION - A HAZARD THAT WILL
CAUSE SERIOUS INJURY OR LOSS OF LIFE
IMPORTANT SAFETY INFORMATION - A HAZARDTHAT COULD CAUSE
SERIOUS INJURY OR LOSS OF LIFE
A POTENTIAL HAZARD THAT MAY CAUSE MODERATE INJURY OR DAMAGE
TO EQUIPMENT
INFORMATIONTHATYOU SHOULD PAY SPECIAL ATTENTION TO.
Save these instructions
When using this product basic precautions should always be
followed including the following:
1. Read and understand all the instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when a product is
used near children.
3. ALWAYS disconnect power (electric units) before disassembling or repairing the unit.
4. Follow all safety codes as well as the Occupational Safety and Health Act (OSHA).
5. Ensure safety devices are operating properly before each use.DO NOT remove
or modify any part of the gun or unit.
6. Know how to stop the product and bleed pressures quickly. Be thoroughly
familiar with the controls.
7. Stay alert - watch what you are doing.
8. Do not operate the product when fatigued or under the influence of alcohol or drugs.
9. Keep operating area clear of all persons.
10. Do not overreach or stand on unstable support. Keep good footing and balance
at all times.
11. Follow the maintenance instructions specified in the manual.
12. If replacement of the plug or cord is needed, use only identical replacement parts.
13. WARNING Risk of injection or Injury - Do not direct discharge stream at persons.
14. This model is provided withTotal Stop System (TSS)
The pressure washer is equipped with a stop device which will sense when the trigger on the
gun is released. It will open the power circuit to the motor and cause the pressure washer to stop.
Remember not to use theTSS as a main switch.
15. Always wear safety glasses or goggles and protective clothing when operating or performing
maintenance.
16. Never put hand or fingers over the spray tip while operating the unit.
17. Never attempt to alter factory settings. Altering factory settings could damage the unit and will
void the warranty.
18. NEVER store the pressure washer outdoors or where it could freeze.The pump will be seriously
damaged.
Model Voltage Frequency Current Pressure max Operating pressure Cleaning power Max flow rate Inlet pressure max
V Hz. Amp psi psi gpm psi
CLEANMASTER 1600TSS 120 60 10.5 1600 1400 2100 1.6 100
JET CLEANER 1600TSS 120 60 10.5 1600 1400 2100 1.6 100
WASH MASTER 1600TSS 120 60 10.5 1600 1400 2100 1.6 100
SAFETY GUIDELINES - DEFINITION
IMPORTANT SAFETY INSTRUCTIONS
WARNING
DANGER
CAUTION
NOTE
WARNING
- 2 -

GROUNDING: This product must be grounded.If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug.The plug must
be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
Improper connection of the equipment-grounding conductor can resultin a risk of
electrocution.Check with a qualified electrician or service personnel if you are in doubt as to
whether the outlet is properly grounded.Do not modify the plug provided with the product-If it will
not fit the outlet,have a proper outlet installed by a qualified electrician. Do not use any type of
adaptor with this product.
Only Models Sold in the U.S.A. are equipped with a GFCI (Ground Fault Circuit
Interrupter) plug.
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION: Only for high pressure cleaners
provided with a ground fault circuit interrupter (GFCI) built into the plug of the power
supply cord. This device provides additional protection from the risk of electric shock. Should
replacement of the plug or cord become necessary, use only identical replacement parts that
include GFCI protection.
EXTENSION CORDS: Extension cords are NOT recommended to be used with product. If an
extension cord must be used, the following 3 requirements should be met:
1)14 guage minimum wire size up to 25 ft.(762 cm.) cord.
2)12 guage minimum wire size up to 50 ft.(1524 cm.) cord.
3) Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole cord
connectors that accept the plug from the product. Use only extension cords that are intended for
outdoor use.These extension cords are identified by a marking ”Acceptable for use with outdoor
appliances; store indoors while not in use.” Use only extension cords having an electrical rating
not less than the rating of the product.Do not use damaged extension cords.Examine extension
cord before using and replace if damaged.Do not abuse extension cord and do not yank on any cord
to disconnect. Keep cord away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground.
Do not touch plug with wet hands. Do not use if cord is damaged.

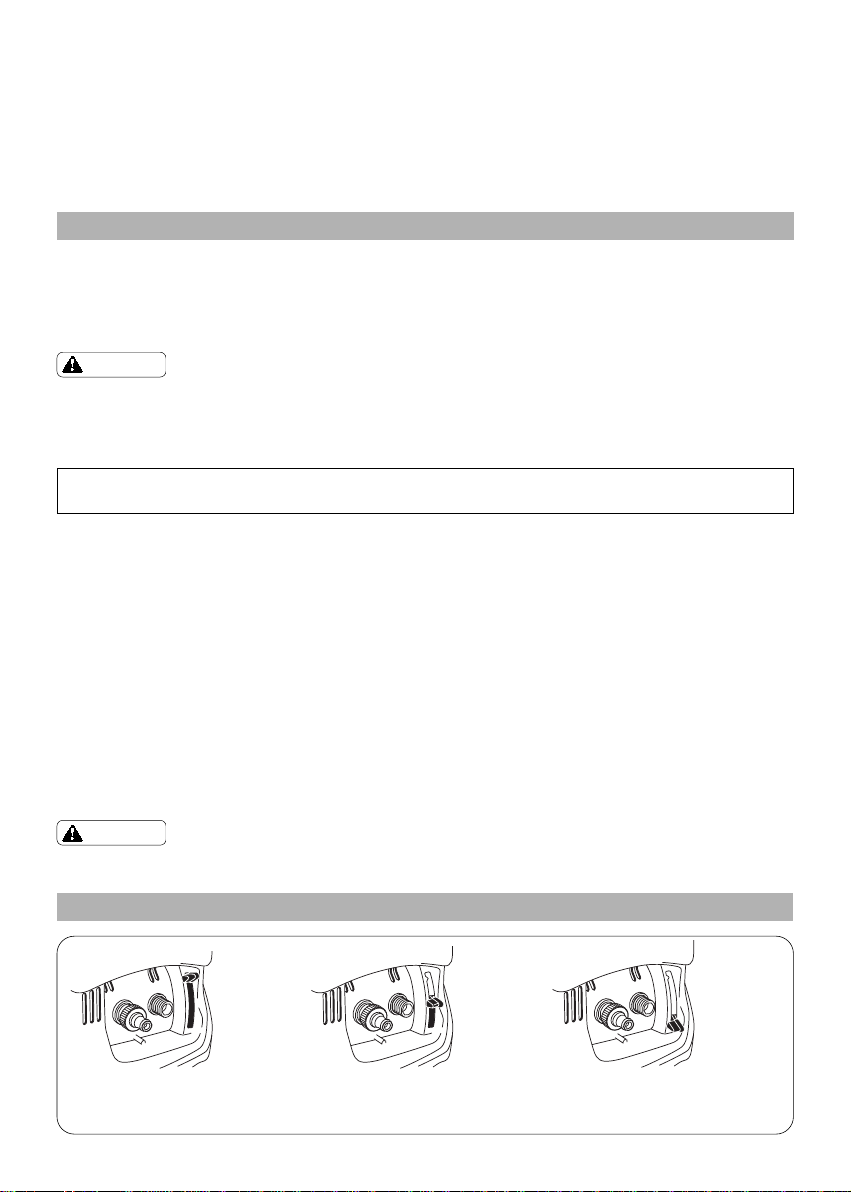

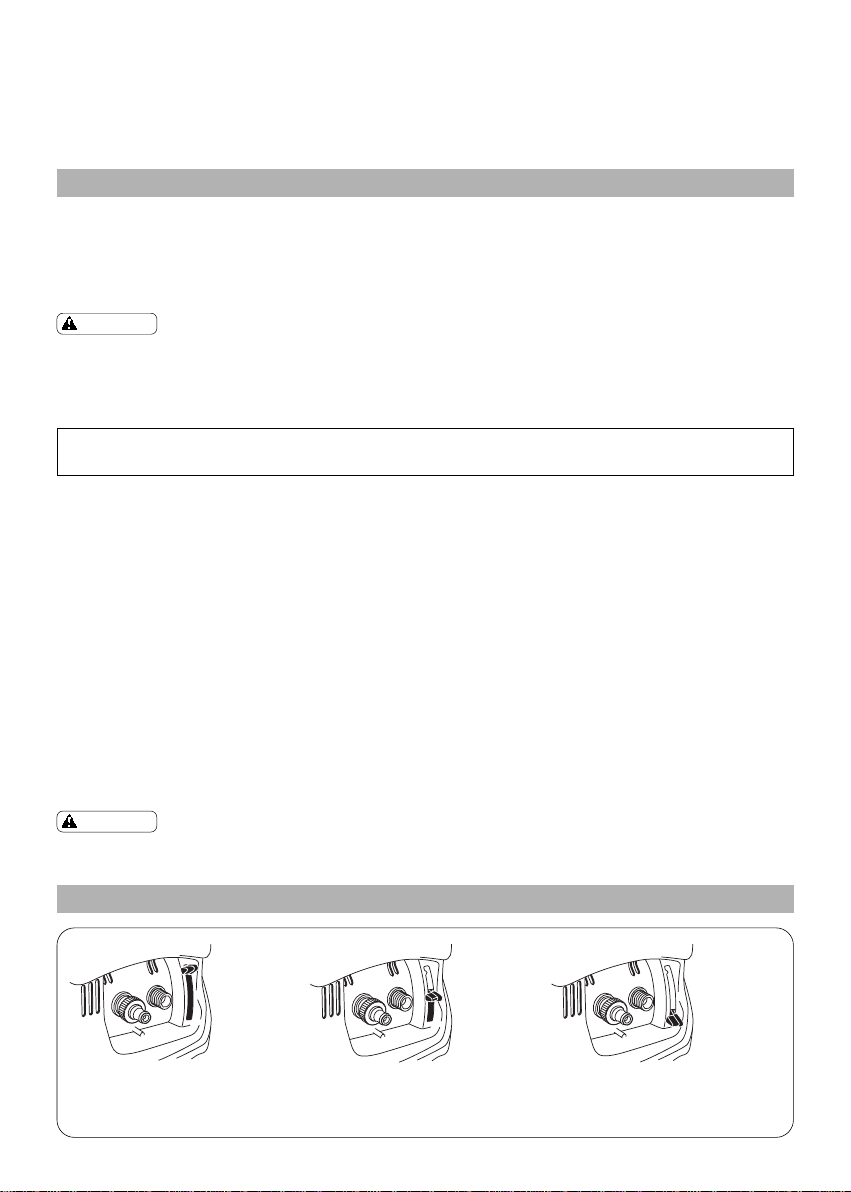

This model is equipped with a pressure adjustment device.See instructions on page 6.
19. Always follow detergent manufacturer’s label recommendations for proper use of detergents.
Always protect eyes, skin and respiratory system from detergent use.
20. Explosion hazard: NEVER spray flammable liquids or use pressure washer in areas containing
combustible dust, liquids or vapors.
21. Do not spray electrical apparatus and wiring.
GROUNDING INSTRUCTIONS & EXTENSION CORDS
DANGER
WARNING
INSTRUCTION FOR USE
MIN MEDIUM MAX
- 3 -

BEFORE START-UP PLEASE READ THE INSTRUCTIONS CAREFULLY.
NO!
MAX 40° C
MAX 104° F

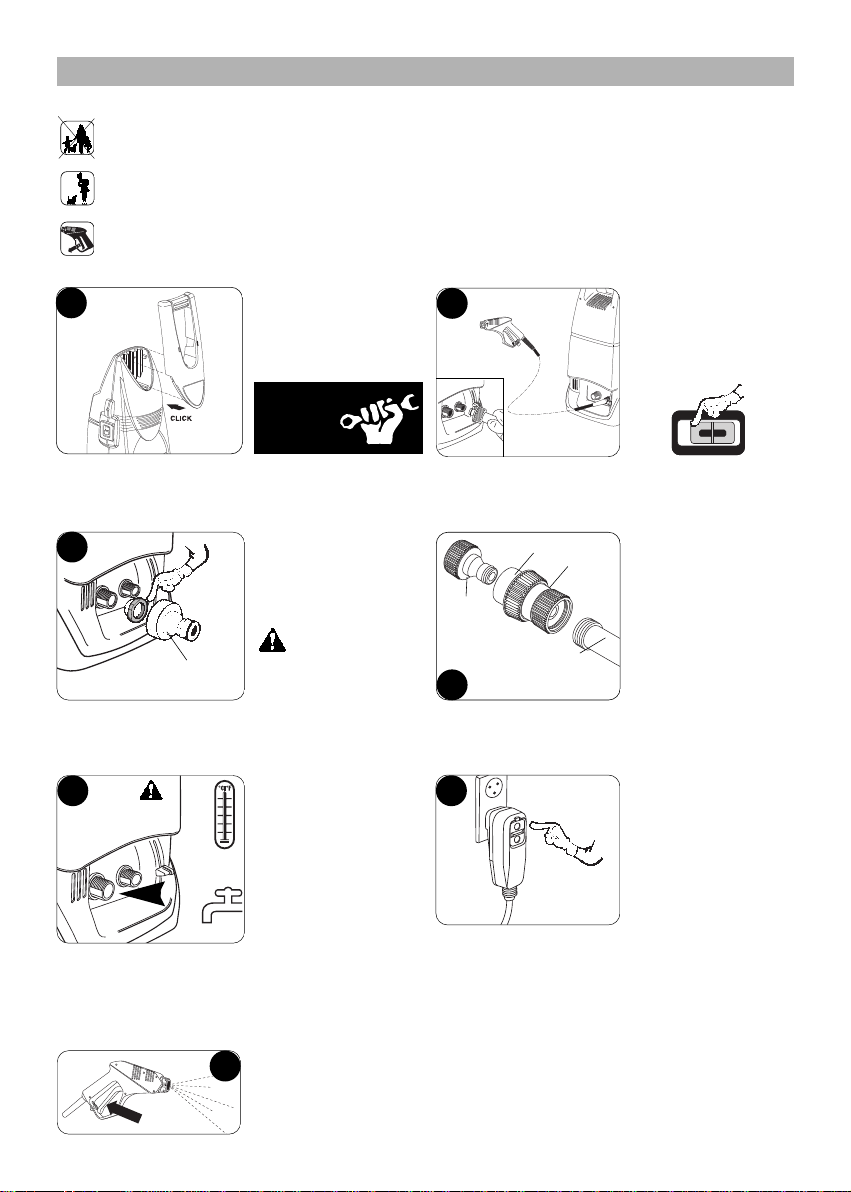

STARTING - UP
AQuick
Connect
Fitting
Nipple
Adapter
Garden Hose
The water jet can be dangerous if used incorrectly;never direct the water jet towards yourself or others, do not
use water jet to clean clothing or footwear, never direct the water jet towards animals or electrical appliances.
Do not let children or persons not familiar with these safety instructions use the unit.
Before start-up make sure that the lance is not unrestrained and free: the sudden jet of high pressure
water would turn the lance into a dangerous whip.
1
ON
OFF
1. Handle assembly.
Only for the Jet Cleaner
1600 TSS model.
2. Turn the starting switch
into the “OFF”position.
Connect the high pressure
hose to the delivery
pipe OUTLET.
3. Attach nipple adapter to
inlet fitting on the unit.
Make sure supplied filter is
installed.
Sand, limestone and
sediment damage the pump
valves.
Using soiled water
invalidates the warranty!
5. Open the water tap
completely.The maximum
temperature of the incoming
water can not exceed 104°F
(40°C).The maximum pressure
of the incoming water can not
exceed 100 psi (7 bar).
The minimum pressure of the
incoming water can not be less
than 30 psi (2 bar) to obtain the
best performances of the
machine
.
6. Plug into 120 Volt
15 Amp. circuit.
Only Models Sold in the
U.S.A. are equipped with a
GFCI (Ground Fault Circuit
Interrupter) plug.
Only for high pressure
cleaners provided with a
ground fault circuit
interrupter GFCI: push
“RESET” button on GFCI
plug.
4. GARDEN HOSE
CONNECTION
INSTRUCTIONS
1) Attach quick connect fitting
to garden hose.
2) Pull side “A”of quick
connect fitting toward garden
hose and push onto nipple
adapter.
3) Push side “A”of quick
connect fitting towards nipple
adapter and release.
7. Pull the gun trigger to
release the trapped air and
pressure.
2
3
4
5 6
7
- 4 -
ONOFF
Nipple
Adapter
IN

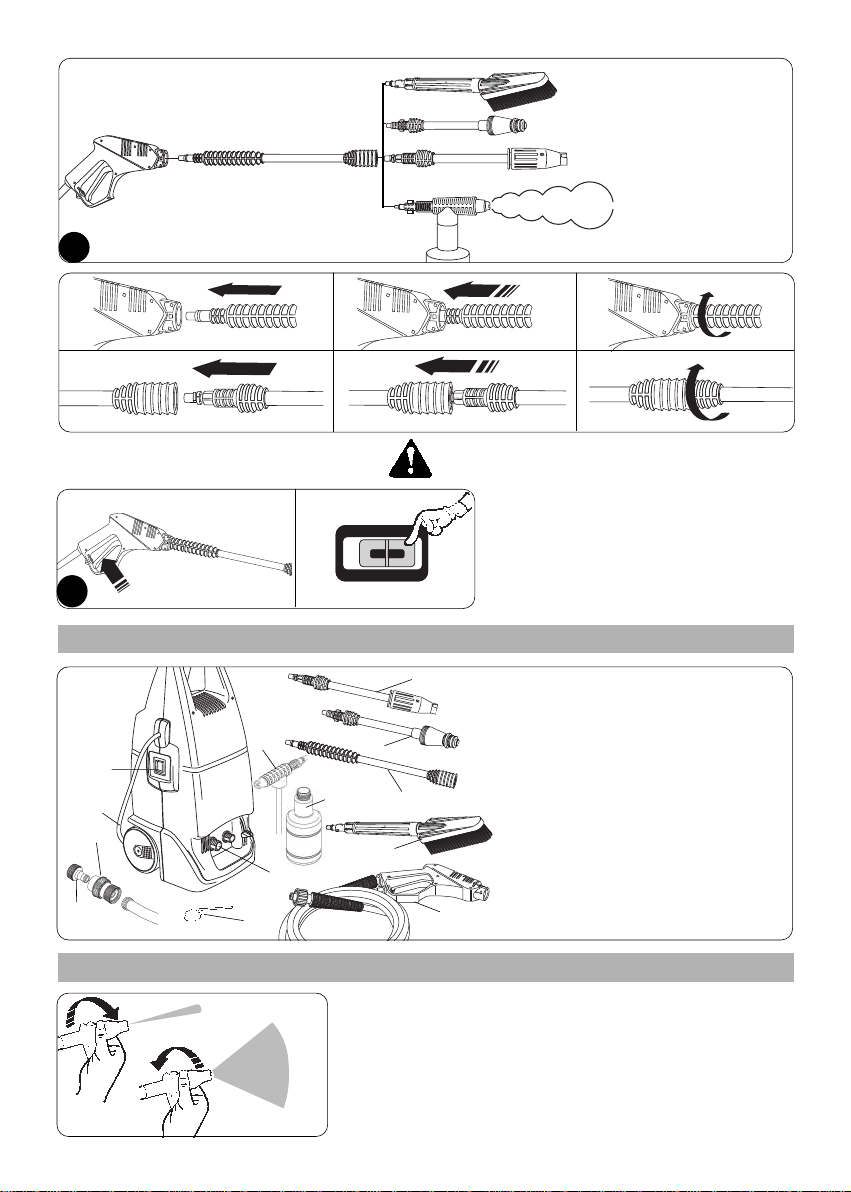

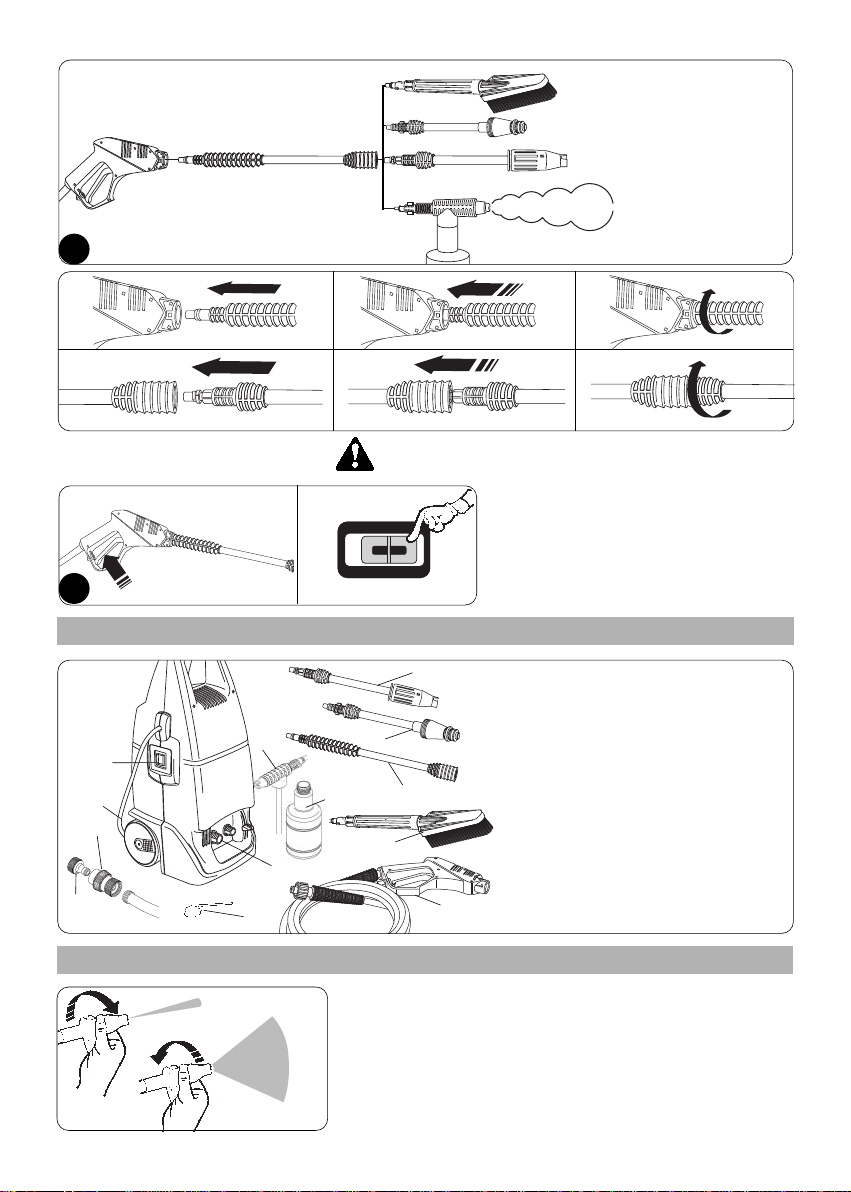

8. Assemble lance extension
and nozzle
1. 1410051 Adjustable lance
2. 1410056Turbo lance
3. 1410050 Extension
4. 8100001 Fixed brush, model with
fixed brush only
5. 1410059 Gun with hose
6. 2210004 Detergent bottle
7. 1410009 Detergent spraying attach.
8. 2410073 ON/OFF switch
9. Water inlet
10. 3350006Nozzle cleaning pin
11. 2440025 Power supply cord with
NEMA plug
2440018 Power supply cord with
GFCI plug
12. 2210019 Garden Hose Connection
13. 2210010 Nipple adapter
11
8
10
12
13
TWIST
CLACK
PUSH
TWIST
CLACK
PUSH
5
6
7
3
USAGE
PARTS DRAWING - PARTS LIST
- 5 -
8
2
4
1
ONOFF

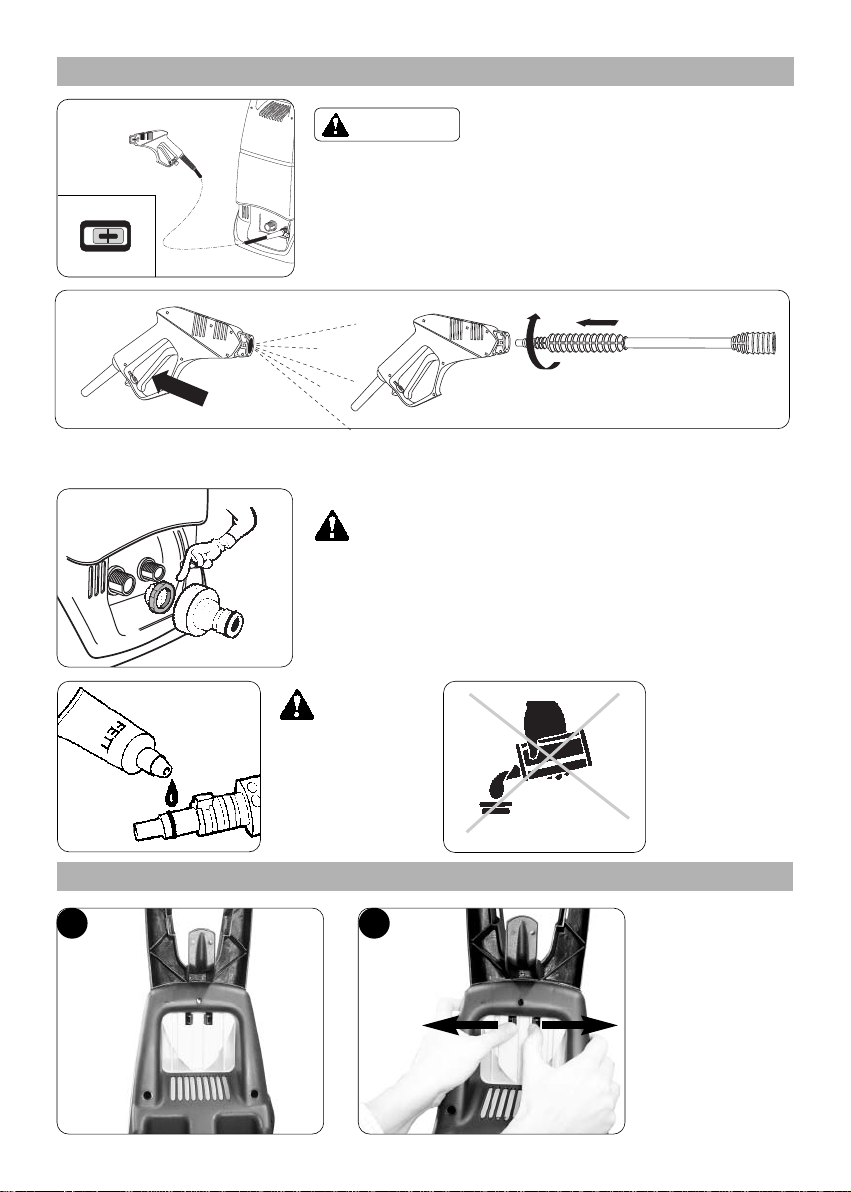

9. Keeping the gun trigger pressed,
turn the starting switch to the
“ON” position: the water WILL
shoot out of the gun.
ALWAYS USETHE LANCE EXTENSION
9

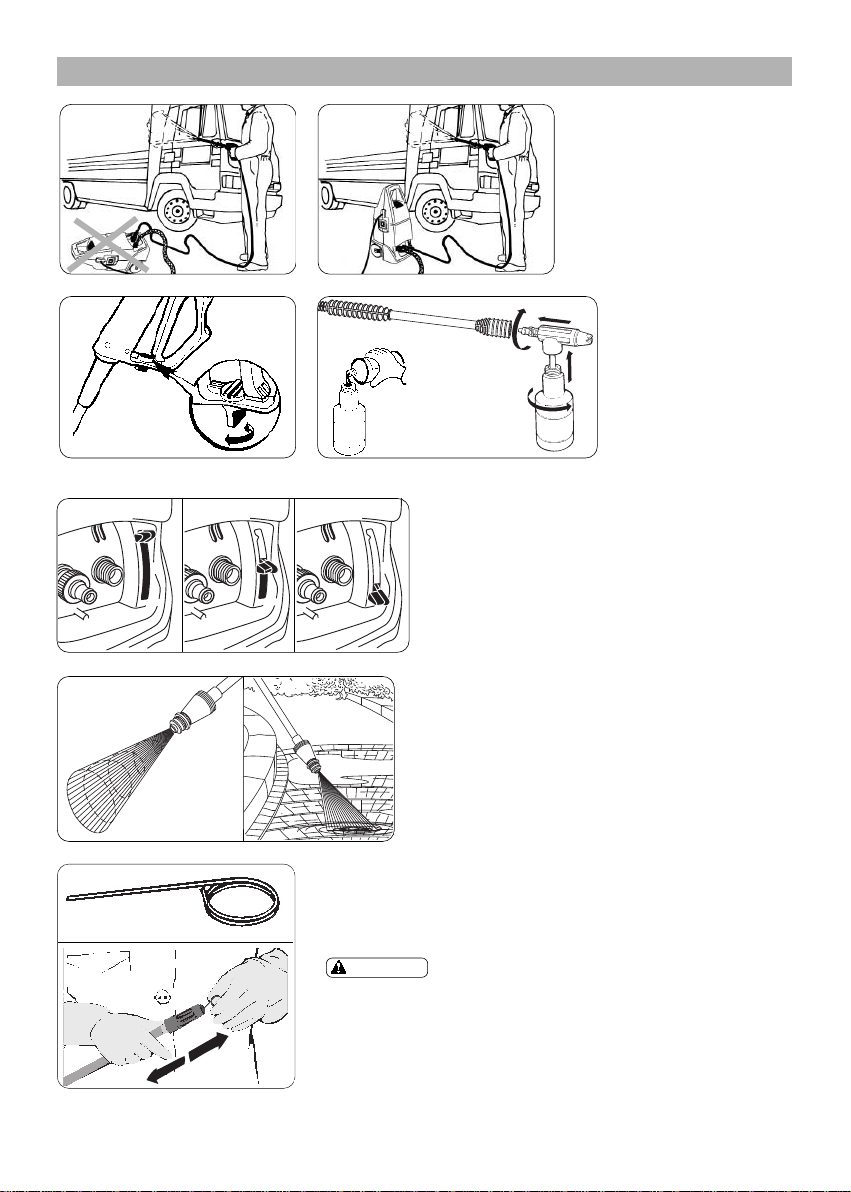

• To increase washing effect, increase spray pattern by rotating
nozzle counter-clockwise.
• To decrease spray pattern, rotate nozzle clockwise.
• Turbo lance is no adjustable.
Model with fixed brush only
9
