SITE DRAINER SD 400V User manual

INSTRUCTION MANUAL
SD PUMPS
MARCH 2020

WHAT IS THE SITE DRAINER 400V?
Site DrainerTM 400V is a 304 stainless steel, electric,
submersible dewatering pump system using patented
technology to remove water without clogging.
ü
It continues to perform when other pumps clog
and fail
ü
It has virtually limitless applications
ü
It is patented in USA, Japan, China, EU, Australia,
Canada, and Republic of South Africa; patents
pending in additional countries
ü
It is made in the USA
THE NON-CLOGGING SOLUTIONTM 2

HOW IT WORKS
§
Canister surrounding the pump diffuses
water suction pressure over a large area
§
Fine mesh openings allow particles
<6.35mm (.25 inch) to pass
§
Patented, free-flow design technology
allows water in, and leaves debris behind
THE NON-CLOGGING SOLUTIONTM 3
§
Integrated Internal Vertical float
guarantees operation despite debris
§
Optional burlap sack accessory
eliminates erosion concerns
§
Uses standard electric current – 110 Volt
@ 60Hz
§
Portable and easy to carry at 34 lbs.

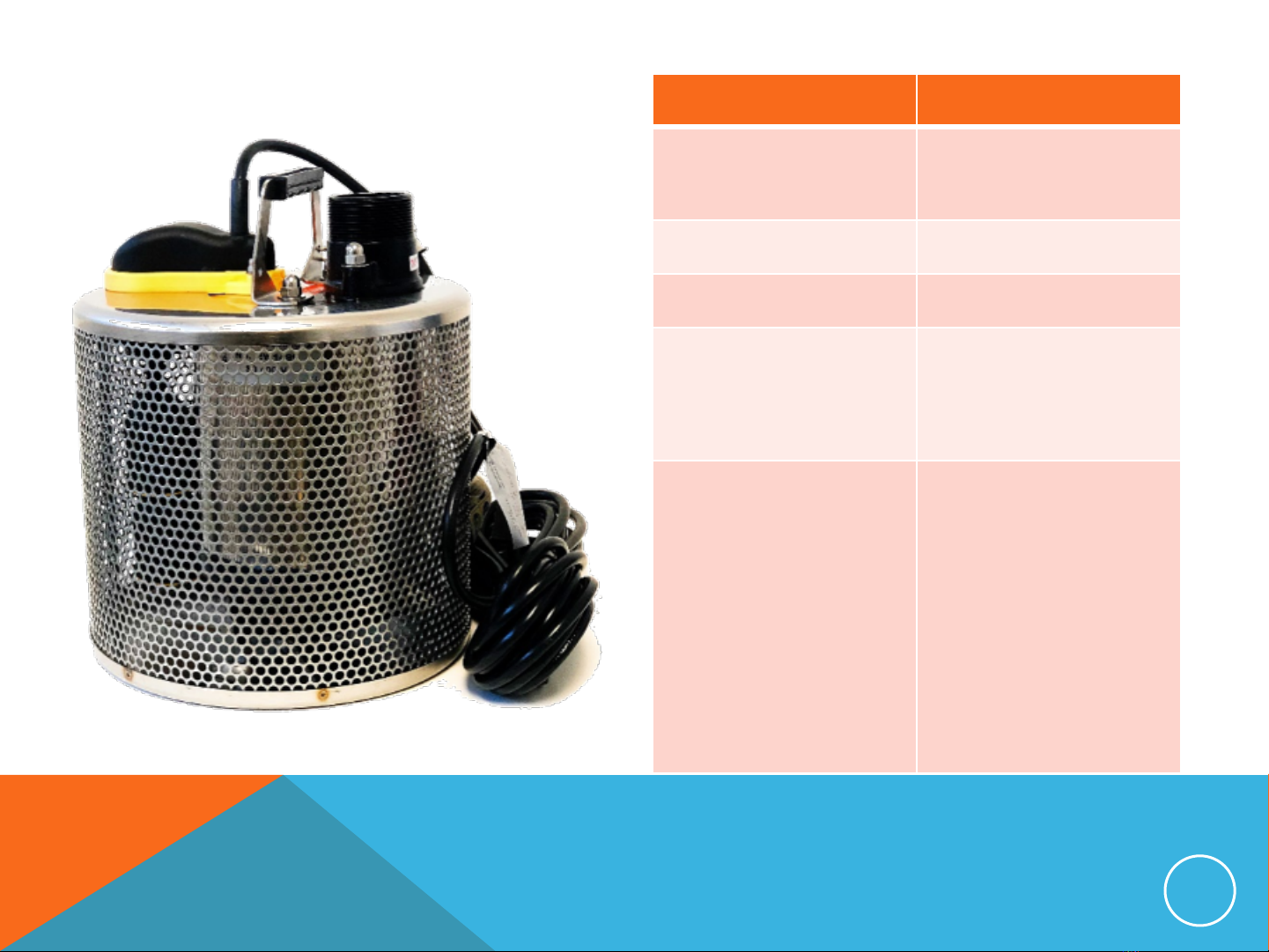

SPECIFICATIONS
THE NON-CLOGGING SOLUTIONTM 4
Model
SD 400V
Type
Submersible
Pump
Impeller
Polyurethane
Discharge Size
2”
Maximum
Pumping
Capacity
3685 gallons/
hr
61 gallons/min
Discharge Height
Above Pumping
Level
5’, 3685 gal/hr
10’, 3340 gal/
hr
15’, 2988 gal/
hr
20’, 2505 gal/
hr
25’, 1943 gal/
hr
30’, 1267 gal/
hr
36’, 0 gal/
hr

SPECIFICATIONS
Model
SD 400V
Power
0.5 HP
(.400 kW)
Voltage
110 v
Power
cable length
33’ one
-piece molded rubber
Running Amps
5.6 amps (capacitor start)
Thermal
Overload Protection
Yes
Dimensions
13.5”H, 11” D
Dry Net Weight
34.05 lbs.
Temperature
34
- 104 F
Intermittent usage to 140 F (max. 5
min)
Safety
Pump
motor is UL and CE listed
THE NON-CLOGGING SOLUTIONTM 5

THINGS TO KNOW
§
Internal integrated vertical float prevents debris from interfering with smooth
operation
§
2” male discharge port – at top of pump, accepts 2” NPT female hose
§
For greater versatility, can come with quick connect coupling
§
Powerful yet lightweight – only 34.05 lbs
§
Portable with durable carrying handle
§
Maneuverable into tight spaces, easily transported
§
304 stainless steel pump housing
§
304 stainless steel, 20 gauge thick screen
§
Debris larger than .25” remains outside of canister, not affecting water flow
§
Integrated internal float switch for worry-free operation
§
Turns on at 5.75 inches of water, turns off at 2.5 inch of water, automatically
§
If grit, sand, or silt is present: Can’t discharge into storm sewers? – use available
fitted Burlap Sack to filter and comply with local de-watering regulations
THE NON-CLOGGING SOLUTIONTM 6

THINGS TO KNOW
§
Pump and motor section form a pressure-tight encapsulated unit
§
Motor housing constructed from stainless steel
§
Shaft is made of stainless steel
§
Impeller made of Polyurethane (a very tough and corrosion resistant plastic)
§
Watertight cable inlet connection chamber with wick-free cover and and built-in
strain relief
§
Water being pumped flows around the motor housing for optimum heat
dissipation
§
Motor is dynamically balanced with temperature monitor in the stator, which
switches off the pump in the case of overheating and switches on again
automatically after cooling down
§
Environmentally safe oil-free motor with food-grade lubricant
§
Air filled capacitor start motor
THE NON-CLOGGING SOLUTIONTM 7

SAFETY INFORMATION
§
Pump water only
§
Never use worn or damaged cables. Inspect for cuts in the insulation.
§
Never attempt to use the power cord as a lifting or lowering device for
the pump
§
Always lift the pump by it’s carrying handle or attached rope to carrying
handle
§
Always make sure electrical connections are properly grounded, GFCI is
always recommended
§
Do not allow a partially submerged pump to freeze. The expansion of
water freezing in the volute may crack the pump. If there is danger of the
pump being subjected to freezing temperatures, lift the pump from the
water and allow it to drain thoroughly
THE NON-CLOGGING SOLUTIONTM 8

WARNING
§
Do not operate near potentially explosive environment
§
Do not use in presence of flammable liquids or gases
§
Make sure product is properly grounded and provided with leakage breaker
to prevent users from serious electric shock
§
Always turn off the power before inspection, maintenance, and adjustment
§
Never attempt to change the settings of all protective devices without
consulting with licensed electrician
§
The product is designed for moving water. The following shall not be handled
for the pump and your safety:
•
Flammable, toxic, abrasive, crystallizing, and polymerizing liquid
•
Liquid chemical and food, alkaline and corrosive liquid
•
High temperature, high viscosity, and high solid matter content liquid
THE NON-CLOGGING SOLUTIONTM 9

WARNING
§
Always protect the electric plug or end of power cable from invasive
moisture
§
Never touch the piping or electrical connections while the pump is
running
§
Never touch the water while the pump is connected to electricity
§
Never force the pump into operation if it has been partially
disassembled
§
Do not run the pump without water, do not operate the pump out of
water or insufficient water
§
Do not use the pump if the power cable is damaged
THE NON-CLOGGING SOLUTIONTM 10

PRODUCT WARRANTY
Site Drainer’s sole obligation under this warranty shall be limited to the repair or
replacement of any parts that the Seller determines, at its discretion, to be defective.
The warranty is void if the damage is caused by the following factors:
§Improper installation
§Deficient maintenance
§Damage caused by improper use, or abuse
§Third party modifications made or attempted to alter the pump
§Normal wear and tear
§The pump has been used for purposes other than those for which it is intended
Site Drainer assumes no liability for the following:
§Bodily injuries
§Material damages
§Economic losses
THE NON-CLOGGING SOLUTIONTM 11

PUMP INSTALLATION
Before installation, check you local electrical and plumbing regulations. These
regulations are for your safety
Use the pump dimensional drawing to ensure proper installation
Make sure the cables are not kinked or nipped
Ensure that hoses and valves are suitable for the pressure of the pump. Place the
pump on a flat base and make sure it cannot fall over or sink
Make sure that the pump cannot rotate at the startup or during operation
Should there be any problems that occur during installation, please contact a Site
Drainer representative
DO NOT dismantle the product before/during installation without any authorized
instructions from Site Drainer
THE NON-CLOGGING SOLUTIONTM 12

MAINTENANCE AND INSPECTION
Regular checkups and preventive maintenance will ensure a more reliable and safe
operation. An initial inspection of the pump within 3 to 4 months after installation is
recommended. Subsequent inspections/maintenance can be carried out every 6
months
Always disconnect the pump from the power supply before inspecting the pump
Make sure that the pump cannot roll or fall over to injure people and damage
property
Rinse the pump thoroughly with clean water before working on the pump
The pump should not be activated if it is partially dismantled
Worn impellers often have very sharp edges. Be very careful when replacing them.
THE NON-CLOGGING SOLUTIONTM 13

EU REGULATORY NOTICE AND UL LISTING
The product complies with the following EU directives:
§2006/42/EC Machinery Directive
§2014/35/EU Low Voltage Directive
§2014/30/EU Electromagnetic Compatibility Directive
UL 778 listing by May 1, 2020
THE NON-CLOGGING SOLUTIONTM 14

TROUBLESHOOTING
Problems
Possible Causes
Solutions
Pump fails to start
No electricity >
Check power source
Open circuit or poor connection >
Check if there is an open circuit
Impeller is clogged >
Inspect the impeller
Pump starts but stops
Impeller is clogged >
Inspect the impeller
immediately
Motor abnormal >
Repair the motor or replace
causing the motor
The pump is picking up too much
Place the pump on a concrete
protector to activate
sediment >
surface to prevent sediment
pickup
The pump's head and
Impeller is worn >
Replace impeller
pumping volume
Hose may be clogged >
Unclog hose, reduce # of bends
is low
Pump makes a noise
Motor bearings may be worn >
Replace bearings
or vibrates
THE NON-CLOGGING SOLUTIONTM 15

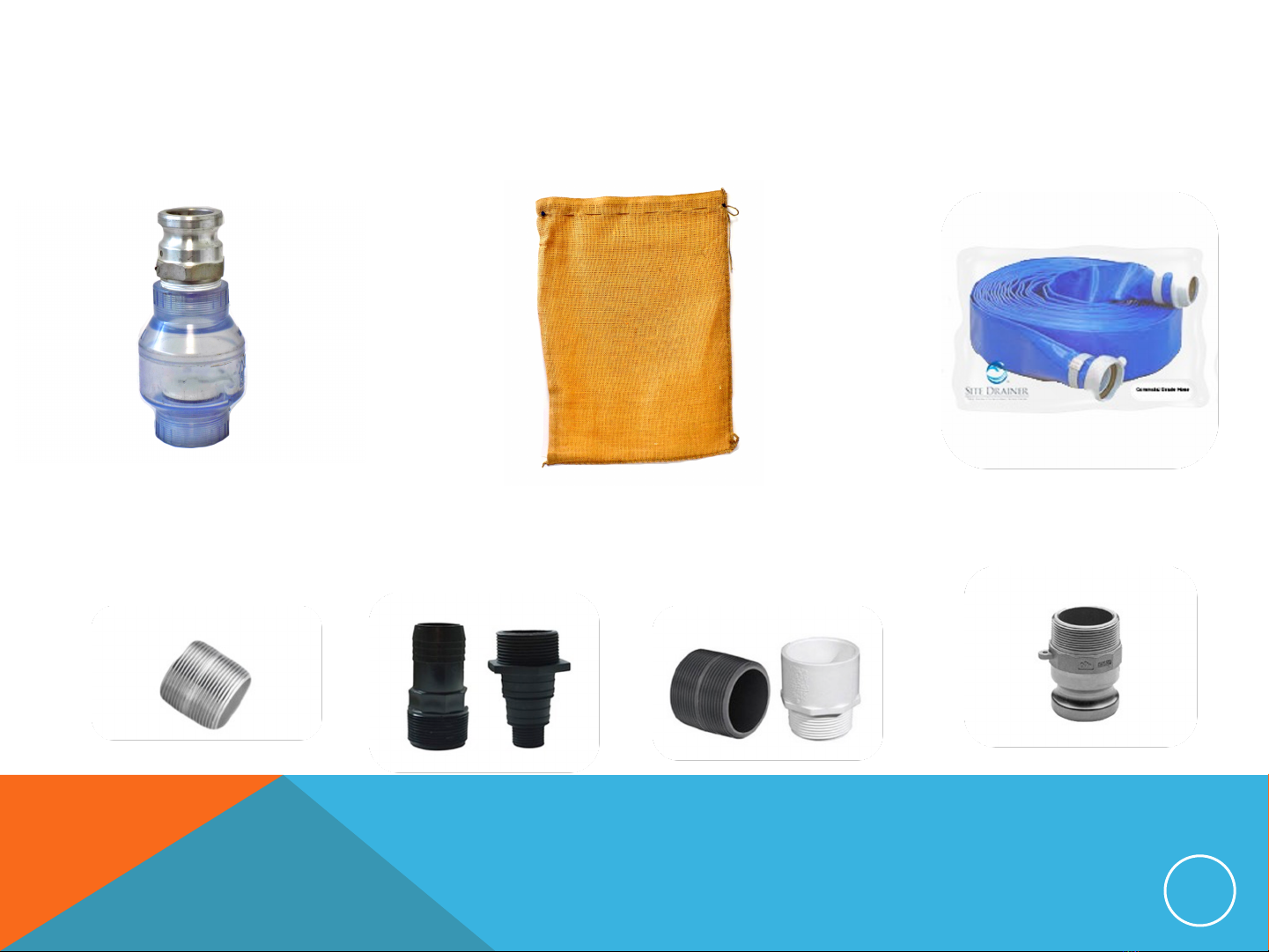

Check Valve with Quick Connect Burlap Sack Commercial Grade Discharge Hoses
1-1/2” Double Male Threaded
Aluminum Fittings
1-1/2” to 2” Threaded
Plastic Fittings 1-1/2” PVC Fittings 1-1/2” Quick Disconnect Fittings
OPTIONAL ACCESSORIES
