SiT6503EB Evaluation Board (EVB) HW User Manual
Contents
1 Introduction............................................................................................................................................. 1
2 SiT6503EB Features ................................................................................................................................. 2
3 SiT6503EB Support Collateral.................................................................................................................. 2
4 Connectors Descriptions.......................................................................................................................... 2
5 Test Points Descriptions .......................................................................................................................... 3
6 Jumpers Default List ................................................................................................................................ 4
7 Default Resistor Connection from FTDI to SiT95148............................................................................... 5
8 Status LEDs .............................................................................................................................................. 6
9 SiT6503EB Power Supplying .................................................................................................................... 7
10 I2C/SPI Mode Connection ........................................................................................................................ 9
11 Clock Inputs ...........................................................................................................................................10
12 Clock Outputs ........................................................................................................................................ 10
12.1 Output Differential Termination................................................................................................... 11
12.1.1 LVDS, CML..........................................................................................................................11
12.1.2 LVPECL ...............................................................................................................................12
12.1.3 HCSL...................................................................................................................................12
13 Quick Start ............................................................................................................................................. 12
Appendix A: EVB Schematic Diagrams........................................................................................................14
Appendix B: EVB Top View.......................................................................................................................... 34
1Introduction
The SiT6503EB Evaluation Board (EVB) is designed for evaluating the following Programmable clock
generator and jitter attenuating clock synthesizers:
-SiT95141
-SiT95145
-SiT95148

SiT6503EB HW UM Rev. 1.01
Page 2 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
2SiT6503EB Features
-Supports SiT95141, SiT95145, and SiT95148
-Powered from USB port or external power supply
-Programmable VDDO supplies for 11 outputs selectable from 3.3, 2.5, or 1.8 V
-Status LEDs for power supplies status signals of SiT6503EB
-Each of the 11 outputs accessible via edge mount high bandwidth SMA connectors
-4 pairs of edge mount SMA connectors for feeding external differential or single-ended clocks
inputs
-Supports full configuration flexibility of the device via standard I2C or SPI interface with a
Windows hosted Time Master for Clocks GUI
3SiT6503EB Support Collateral
The SiT6503EB Evaluation Board is provided with the following collateral:
-SiT6503EB EVB HW User Manual
-Time Master for Clocks SW
-Time Master for Clocks SW User Manual
4Connectors Descriptions
Table 1 lists the SiT6503EB EVB connectors.
Table 1. SiT6503EB connectors
Connector Designators
Description
Power + Control
USB Type B connectors (J3) for Device programming and
+5V supply
Power
USB Type B connectors (J4) for +5V supply, 2-pin connectors
(J80, J7) for external +5V power supply
Inputs
SMA connectors (J35 through J42) for receiving external
clock signals
Outputs
SMA connectors (J43 through J64) for synthesized clock
outputs
External FTDI supply
2-pin connector (H13)
External +3.3V (VDD Left)
Input receiver supply
2-pin connector (H1)
External +3.3V (VDD PLL)
supply
2-pin connector (H12)
External Output VDD Supply
2-pin connectors (H2 through H11)

SiT6503EB HW UM Rev. 1.01
Page 3 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Connector Designators
Description
Common Mode to GND
Headers in output
terminations
2-pin Headers (JSCL13 through JSCL23)
Output LDO Regulators Enable
Inputs to GND Headers
2-pin Headers (J2, JSCL3 through JSCL11), shorted by default
for LDO outputs enabling
Left Supply LDO Regulators
Enable Inputs to GND Headers
2-pin Headers (J1), shorted by default for LDO outputs
enabling
Header for internal use only
2-pin Header (JSCL 1), shorted by default
Headers for I2C bus Pull-up
2-pin Headers (JSCL 2, JSCL 12), shorted by default
Header
1-pin Header (J5)
Header for PLL supply LDO
regulator output Shut Down
2-pin Header (J12)
Header for configuring the
SiT6503EB into I2C and SPI Mode
(I2C Mode is default one)
10-pin Header (J76)
PullUp vs PullDown switch
Headers
3-pin Headers (J67 through J69, J72 through J74, J81,
JVDD1)
Signals switch Header
3-pin Header (J71)
PLL supply voltage source
switching Header
3-pin Header (J31)
PLL supply voltage levels
switching Header
3-pin Header (J32)
Left supply voltage source
switching Header
3-pin Header (J8)
Left supply voltage levels
switching Header
3-pin Header (J9)
FTDI supply voltages source
switching Header
3-pin Header (J78)
FTDI supply voltage levels
switching Header
3-pin Header (J30)
USB –External Power sources
switching Headers
3-pin Headers (J79, J6)
Outputs supply voltage source
switching Header
3-pin Headers (J10, J77, J14, J16, J18, J20, J22, J24, J26, J28)
Outputs supply voltage levels
switching Header
3-pin Headers (J11, J13, J15, J17, J19, J21, J23, J25, J27, J29)
5Test Points Descriptions
Table 2 describes all Test Point (TP)s on the EVB.

SiT6503EB HW UM Rev. 1.01
Page 4 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Table 2. SiR6503EB Test Points description
Connector Designators
Description
GND Test Points
1-pin Headers (TP3, TP4, TP5, TP9)
Test Points for internal use only
1-pin Headers (J82 through J86)
Reserved Test Points
1-pin Headers (TP6, TP8)
6Jumpers Default List
Table 3 lists the default positions of the Jumpers on the EVB.
Table 3. Jumper Default List
Jumper
Location
Type
I = Installed
O = Open
Jumper
Location
Type
I = Installed
O = Open
Jumper
Location
Type
I = Installed
O = Open
JSCL1
2-Pin
I
J1
2-Pin
I
J27
3-Pin
1 to 2
JSCL2
2-Pin
I
J2
2-Pin
I
J28
3-Pin
1 to 2
JSCL3
2-Pin
I
J6
3-Pin
2 to 3
J29
3-Pin
1 to 2
JSCL4
2-Pin
I
J8
3-Pin
1 to 2
J30
3-Pin
1 to 2
JSCL5
2-Pin
I
J9
3-Pin
1 to 2
J31
3-Pin
1 to 2
JSCL6
2-Pin
I
J10
3-Pin
1 to 2
J32
3-Pin
O
JSCL7
2-Pin
I
J11
3-Pin
1 to 2
J67
3-Pin
O
JSCL8
2-Pin
I
J12
2-Pin
O
J68
3-Pin
O
JSCL9
2-Pin
I
J13
3-Pin
1 to 2
J69
3-Pin
O
JSCL10
2-Pin
I
J14
3-Pin
1 to 2
J71
3-Pin
O
JSCL11
2-Pin
I
J15
3-Pin
1 to 2
J72
3-Pin
O
JSCL12
2-Pin
I
J16
3-Pin
1 to 2
J73
3-Pin
1 to 2
JSCL13
2-Pin
O
J17
3-Pin
1 to 2
J74
3-Pin
O
JSCL14
2-Pin
O
J18
3-Pin
1 to 2
J76
10-Pin
Header
1 to 2,
3 to 4,
7 to 8,
9 to 10
JSCL15
2-Pin
O
J19
3-Pin
1 to 2
J77
3-Pin
1 to 2
JSCL16
2-Pin
O
J20
3-Pin
1 to 2
J78
3-Pin
1 to 2
JSCL17
2-Pin
O
J21
3-Pin
1 to 2
J79
3-Pin
1 to 2
JSCL18
2-Pin
O
J22
3-Pin
1 to 2
J80
2Pin
O
JSCL19
2-Pin
O
J23
3-Pin
1 to 2
J81
3-Pin
O

SiT6503EB HW UM Rev. 1.01
Page 5 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Jumper
Location
Type
I = Installed
O = Open
Jumper
Location
Type
I = Installed
O = Open
Jumper
Location
Type
I = Installed
O = Open
JSCL20
2-Pin
O
J24
3-Pin
1 to 2
JVDD1
3-Pin
2 to 3
JSCL21
2-Pin
O
J25
3-Pin
1 to 2
JSCL22
2-Pin
O
J26
3-Pin
1 to 2
JSCL23
2-Pin
O
7Default Resistor Connection from FTDI to SiT95148
Table 4 lists the default resistor connection from FTDI to the SiT95148 Device on the EVB.
Table 4. Default Resistor connection from FTDI to DUT on the SiT6503EB
Signal name
Resistors
S = 0 ohm Short
O = DNP
Flexio1_dut
R150
S
Flexio2_dut
R152
S
Flexio3_dut
R154
S
Flexio4_dut
R156
S
Flexio5_dut
R158
S
Flexio8_dut
R160
S
Flexio12_dut
R162
S
Flexio13_dut
R164
S
Flexio14_dut
R166
S
Flexio15_dut
R168
S
I2C1_SPIO_DUT
R170
S
RSTB_DUT
R172
S
TEST_EN_DUT
R174
S
ACBUS0
R175
O
ADBUS4
R151
O
ACBUS1
R153
O
ACBUS2
R155
O
ADBUS5
R157
O
ADBUS6
R159
O

SiT6503EB HW UM Rev. 1.01
Page 6 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Signal name
Resistors
S = 0 ohm Short
O = DNP
ADBUS7
R161
O
ACBUS3
R163
O
ACBUS4
R165
O
I2C1_SPIO
R169
S
RSTB
R171
S
TEST_EN
R173
O
8Status LEDs
Table 5 lists the Status LEDs on the SiT6503EB EVB shown in Figure 1.
Table 5. SiT6503EB Status LEDs
Location
Color
Status Function indication
D5
Blue
Main USB +5V present
D6
Blue
Reserved USB +5V present (Is not populated normally)
D12
Green
FTDI VDD (+5V) present
D13
Green
+3.3V is present
*Note: All LEDs are illuminated when corresponding voltages are present.
Figure 1. Status LEDs

SiT6503EB HW UM Rev. 1.01
Page 7 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
9SiT6503EB Power Supplying
Device under Test (DUT) Analog supplying voltage (VDDIN) and DUT outputs supplying voltages (VDDOx)
on the SiT6503EB are configured to 3.3V by default, whereas DUT PLLs supplying voltage VDD supply is
configured to 1.8V. The on board supplies/LDO’s are configurable to 1.8V, 2.5V and 3.3V with the
Jumper option as shown in Figure 2. Please refer to SiT95148 datasheet for configuring the supply
voltages on the VDDIN/VDD and VDDOx pins and to the Table 6 for on board configuration options for
SiT95148:
Table 6. SiT6503EB Supply configuration
Variant
VDD
VDDIN
VDDOx
SiT95148
1.8V
2.5V / 3.3V
1.8V / 2.5V / 3.3V

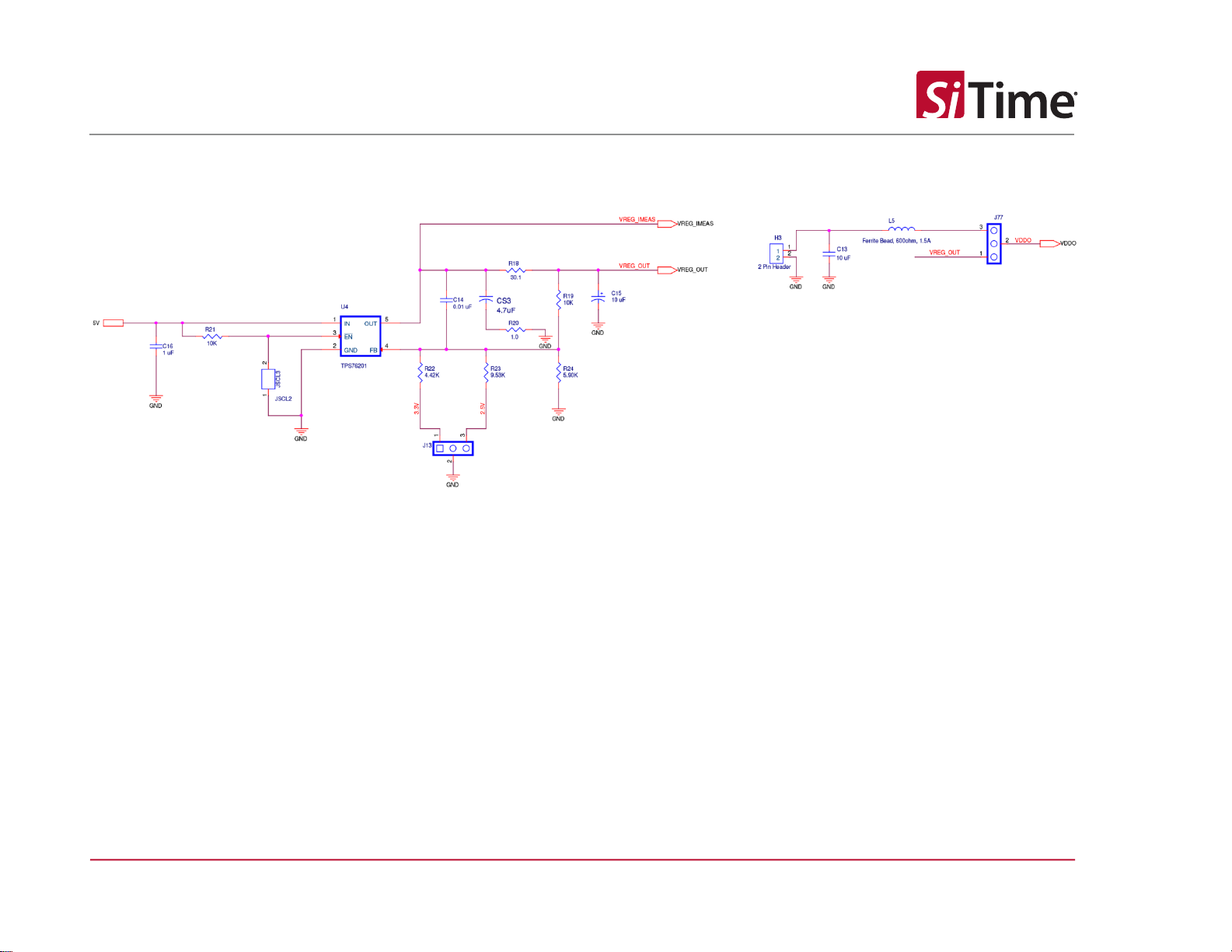

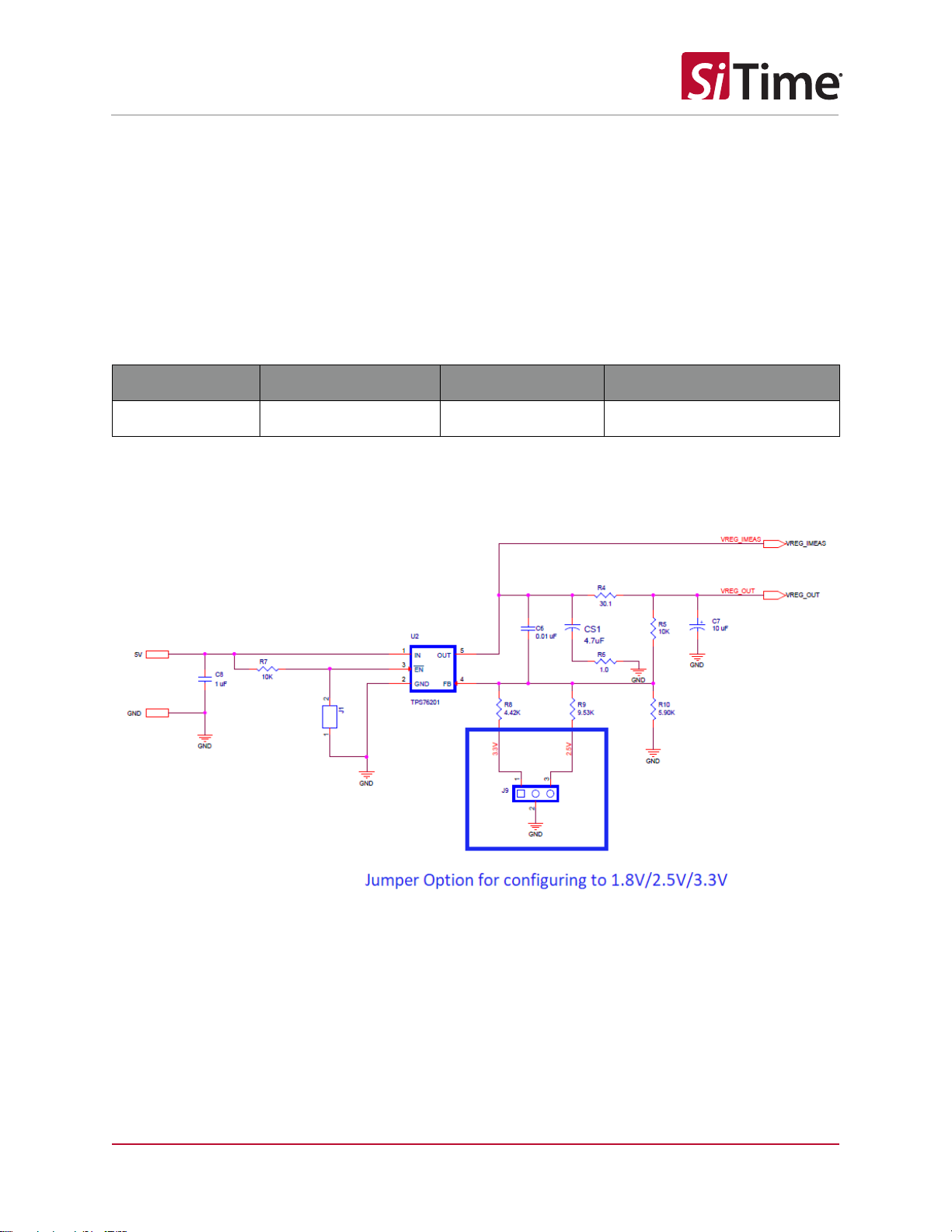

Figure 2. Supply Regulator for VDDIN/VDDOx
Note: For changing the VDDIN (J9) and VDDOx Supply, connect the corresponding Jumpers to below
settings:
1) 3.3V - Connect the 3-Pin Jumper from 1 to 2.
2) 2.5V - Connect the 3-Pin Jumper from 2 to 3.
3) 1.8V - Remove the Jumper.

SiT6503EB HW UM Rev. 1.01
Page 8 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
There is a provision for connecting external supplies after bypassing the on board regulators for all the
supplies as shown in Figure 3.

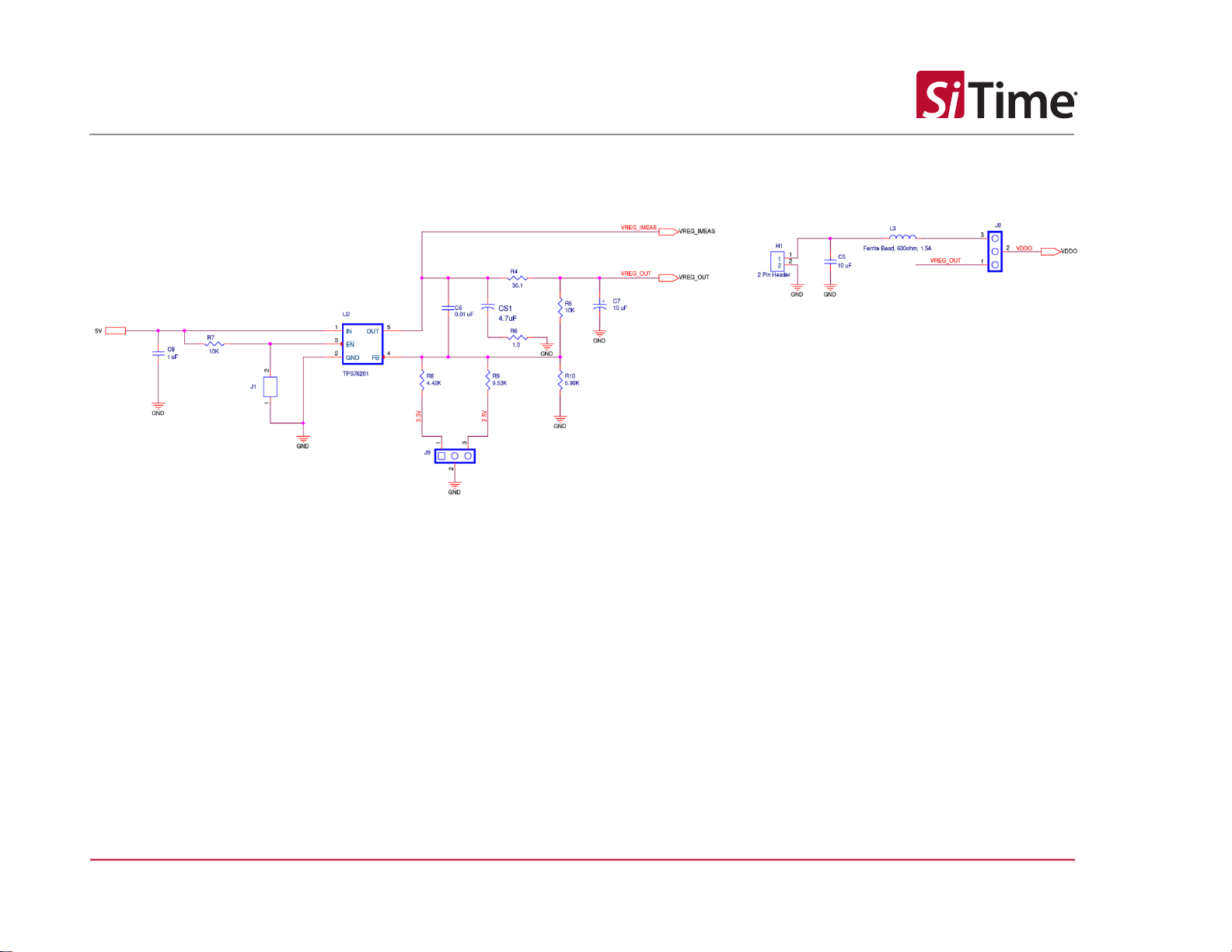

Figure 3. External Supply Connection Provision
PLLs supply circuitry is shown in Figure 4.

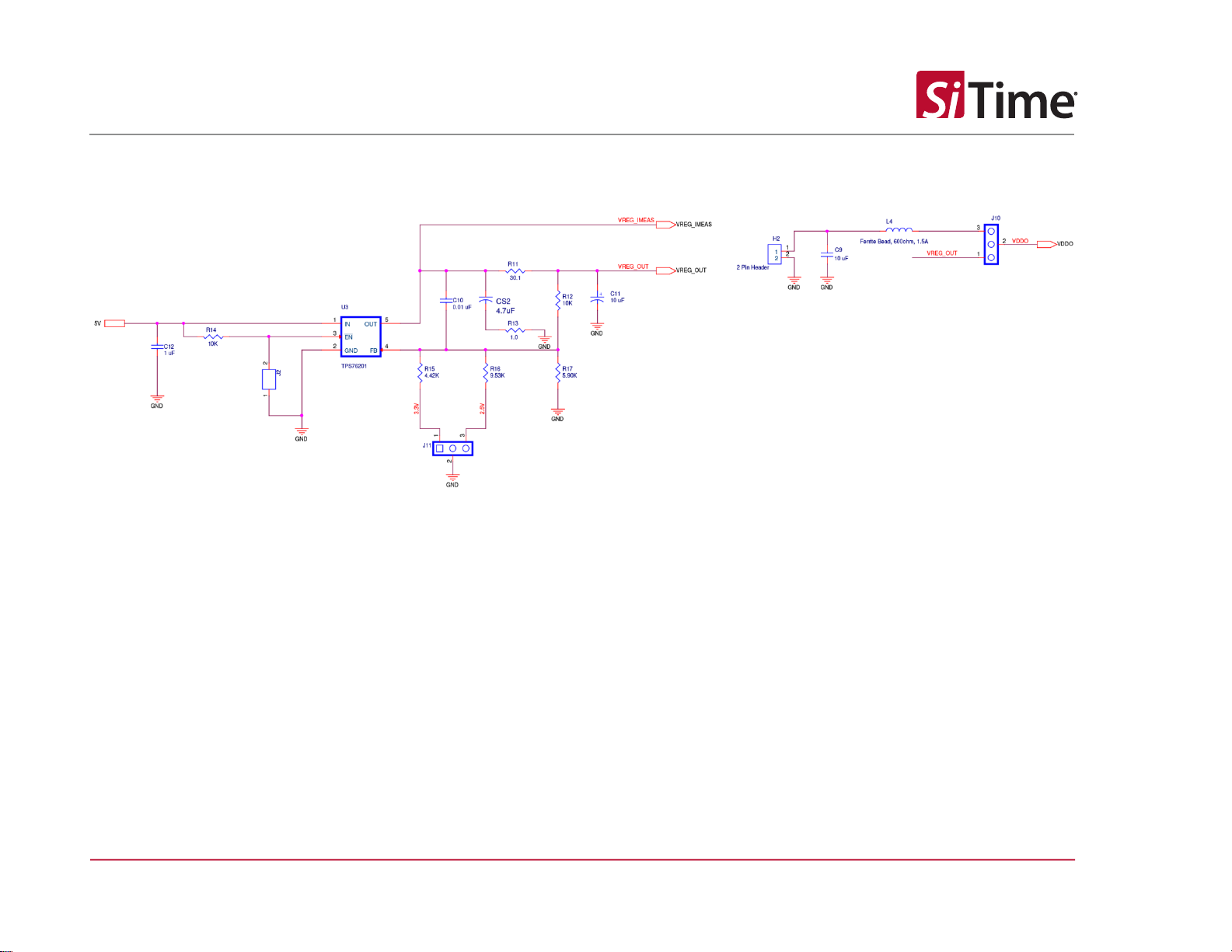

Figure 4. Supply Regulator for PLLs

SiT6503EB HW UM Rev. 1.01
Page 9 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Note: For changing the VDD (J32) Supply, connect the Jumper to below settings:
1) 3.3V - Connect the 3-Pin Jumper from 2 to 3.
2) 2.5V - Connect the 3-Pin Jumper from 1 to 2.
3) 1.8V - Remove the Jumper.
10 I2C/SPI Mode Connection
The 10 pin Header J76 (Figure 5) is mainly used for configuring the SiT6503EB into I2C and SPI Mode
(I2C Mode is default one)
For I2C Mode of Operation:
1) SCLK_OUT is shorted to SCLK in J76.
2) SDAIO_OUT is shorted to SDAIO in J76.
3) CSB_OUT is shorted to CSB in J76.

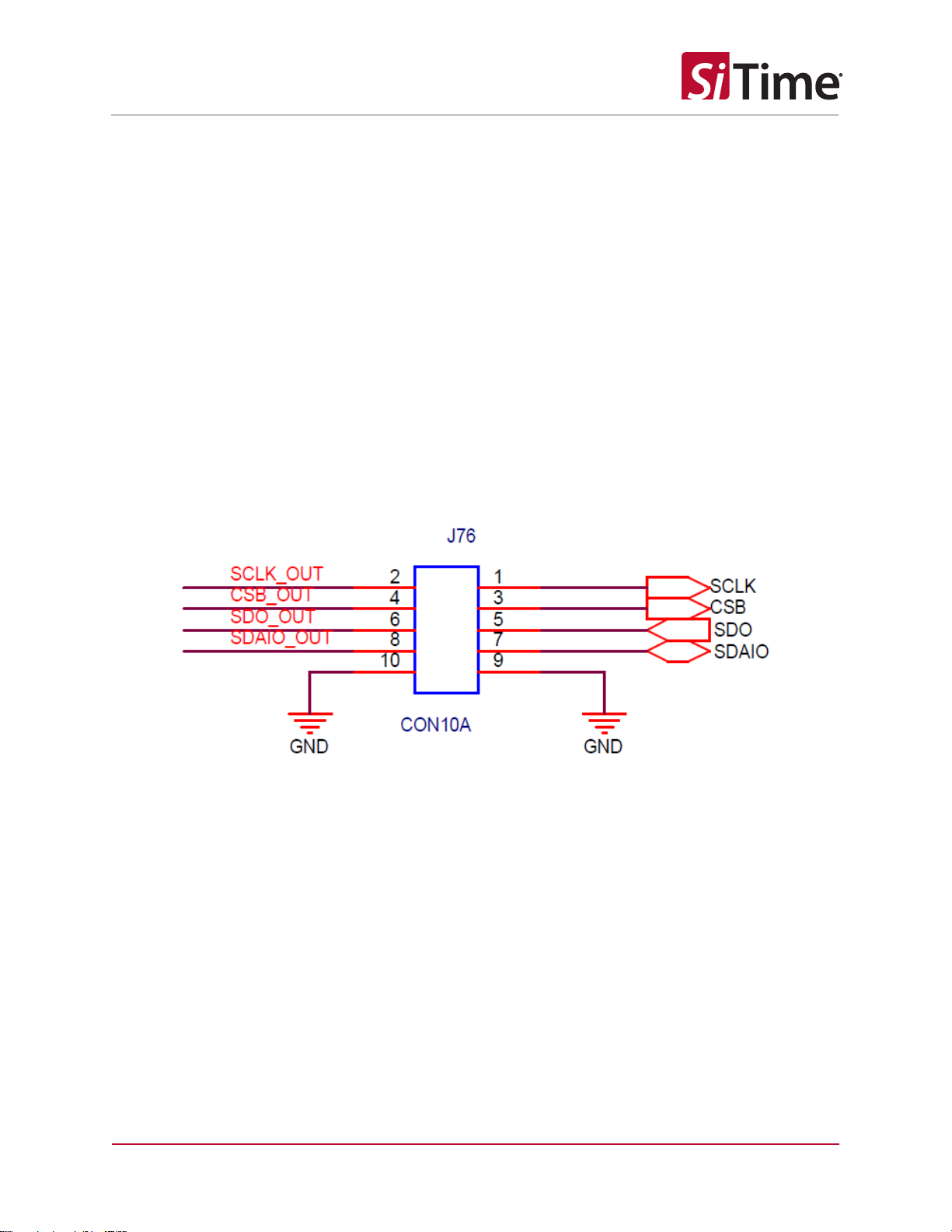

Figure 5. Supply Regulator for PLLs
For SPI Mode of Operation:
1) SCLK_OUT is shorted to SCLK in J76.
2) SDAIO_OUT is shorted to SDAIO in J76.
3) CSB_OUT is shorted to CSB in J76.
4) SDO_OUT is shorted to SDO in J76.
5) JSCL1 Jumper should be removed.
6) JVDD1 Jumper should be changed from (2 to 3) to (1 to 2).
7) J73 Jumper should be changed from (1 to 2) to (2 to 3).

SiT6503EB HW UM Rev. 1.01
Page 10 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
11 Clock Inputs
The SiT6503EB has eight inputs (4 differential pairs) with SMA connectors (IN0_P, IN0_N, IN1_P, IN1_N,
IN2_P, IN2_N, IN3_P, IN3_N) for receiving external clock signals. All input clocks are ac-coupled and
50 terminated as shown in Figure 6 below. This represents four differential input clock pairs. Single-
ended clocks can be used by driving the ‘P’ side of the differential pair with the ‘N’ input floating.

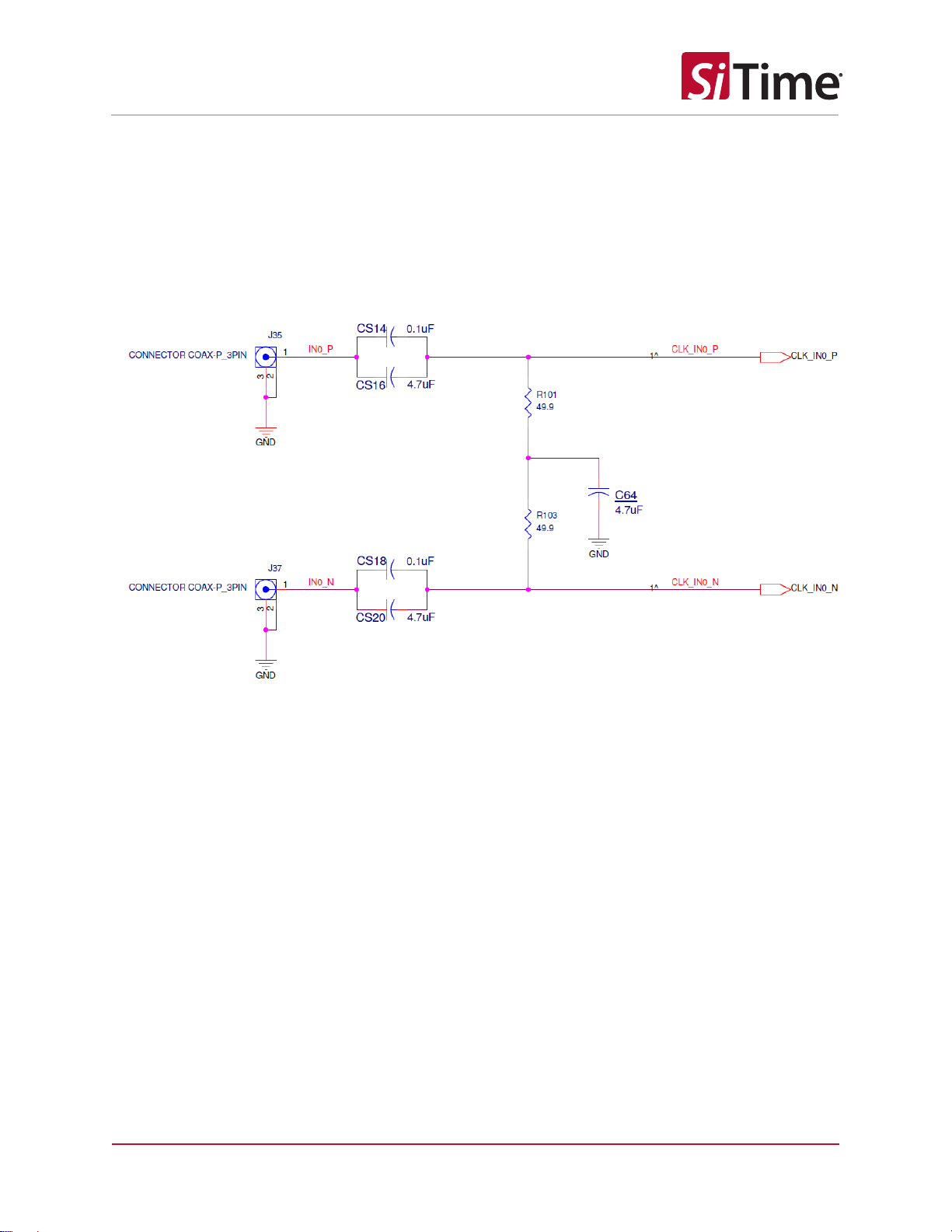

Figure 6 shows the Input Clock Termination Circuit for one of the 4 pairs.
Figure 6. Input Clock Termination Circuit
12 Clock Outputs
When shipped from factory, each of the twenty output drivers (10 differential pairs) is ac-coupled to its
respective SMA connector –this is the default configuration. The output clock termination circuit is
shown in Figure 7 below. If dc coupling is required, the corresponding 0.1 uF ac coupling capacitor can
be replaced with a zero resistor. Figure 7 shows Output Clock Termination Circuit for one of the 10
output pairs.

SiT6503EB HW UM Rev. 1.01
Page 11 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Figure 7. Output Clock Termination Circuit
12.1 Output Differential Termination
LVDS (default configuration), LVPECL, HCSL, and CML differential signaling types can be supported by
changing the output termination circuits.
12.1.1 LVDS, CML
The board is shipped to support LVDS, CML in its default differential. The signals are ac coupled with
ceramic 0.1 uF capacitors instead of the corresponding series resistors RSExx (Refer to Table 7) which
are not populated.
Table 7. Output Port RSExx Resistors
Output Port #
0
1
2
3
4
5
6
7
8
9
10
0.1 uF
capacitors
RSE21
RSE22
RSE17
RSE19
RSE1
RSE5
RSE2
RSE6
RSE4
RSE7
RSE3
RSE8
RSE10
RSE14
RSE9
RSE13
RSE11
RSE15
RSE12
RSE16
RSE18
RSE20
Output termination resistors as shown in Table 8 are not populated.

SiT6503EB HW UM Rev. 1.01
Page 12 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Table 8. Output Port Not Populated Resistors
Output Port #
0
1
2
3
4
5
6
7
8
9
10
Not Populated
Resistors
R176
R178
R143
R145
R113
R117
R114
R118
R115
R119
R116
R120
R129
R133
R130
R134
R131
R135
R132
R136
R144
R146
12.1.2 LVPECL
For LVPECL output configuration ceramic capacitors 0.1 uF are placed instead of correspondent series
resistors RSExx (Refer to Table 7). Termination resistor values depending on the output driver VDD level
are shown in Table 9.
Table 9. Output Port Termination Resistors for LVPECL
Output Port #
0
1
2
3
4
5
6
7
8
9
10
Resistors
R176
R178
R143
R145
R113
R117
R114
R118
R115
R119
R116
R120
R129
R133
R130
R134
R131
R135
R132
R136
R144
R146
VDD, 3.3V
150 
150 
150 
150 
150 
150 
150 
150 
150 
150 
150 
VDD, 2.5V
120 
120 
120 
120 
120 
120 
120 
120 
120 
120 
120 
Also, ensure that jumpers JSCLxx as per Table 10 are populated to allow path to GND.
Table 10. Output Port Jumpers to GND
Output Port #
0
1
2
3
4
5
6
7
8
9
10
Jumpers to
GND
JSCL23
JSCL21
JSCL13
JSCL14
JSCL15
JSAL16
JSCL17
JSCL18
JSCL19
JSCL20
JSCL22
12.1.3 HCSL
For HCSL output configuration series resistors RSExx (Refer to Table 7). 33 should be used for each
output port. Please note each lane per pair should be terminated by 50 to GND on the receiver side.
13 Quick Start
-Install SiT95148 Software GUI on your Windows PC
-Confirm jumpers are installed as shown in Table 3
-Connect a USB cable from SiT6503EB, J3 to your PC
-Launch the SiT95148 Software GUI
-Refer to the accompanying SiT95148 Software User Manual to configure your frequency plan on
the SiT6503EB
-Default Output Driver Configuration is LVDS and Output Driver Supplies are configured to 3.3V

SiT6503EB HW UM Rev. 1.01
Page 13 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
-Default VDD Supply on the EVB is configured to 1.8V and default VDDIN supply on the EVB is
configured to 3.3V
-The FTDI chip on the EVB is configured to I2C as the default communication protocol

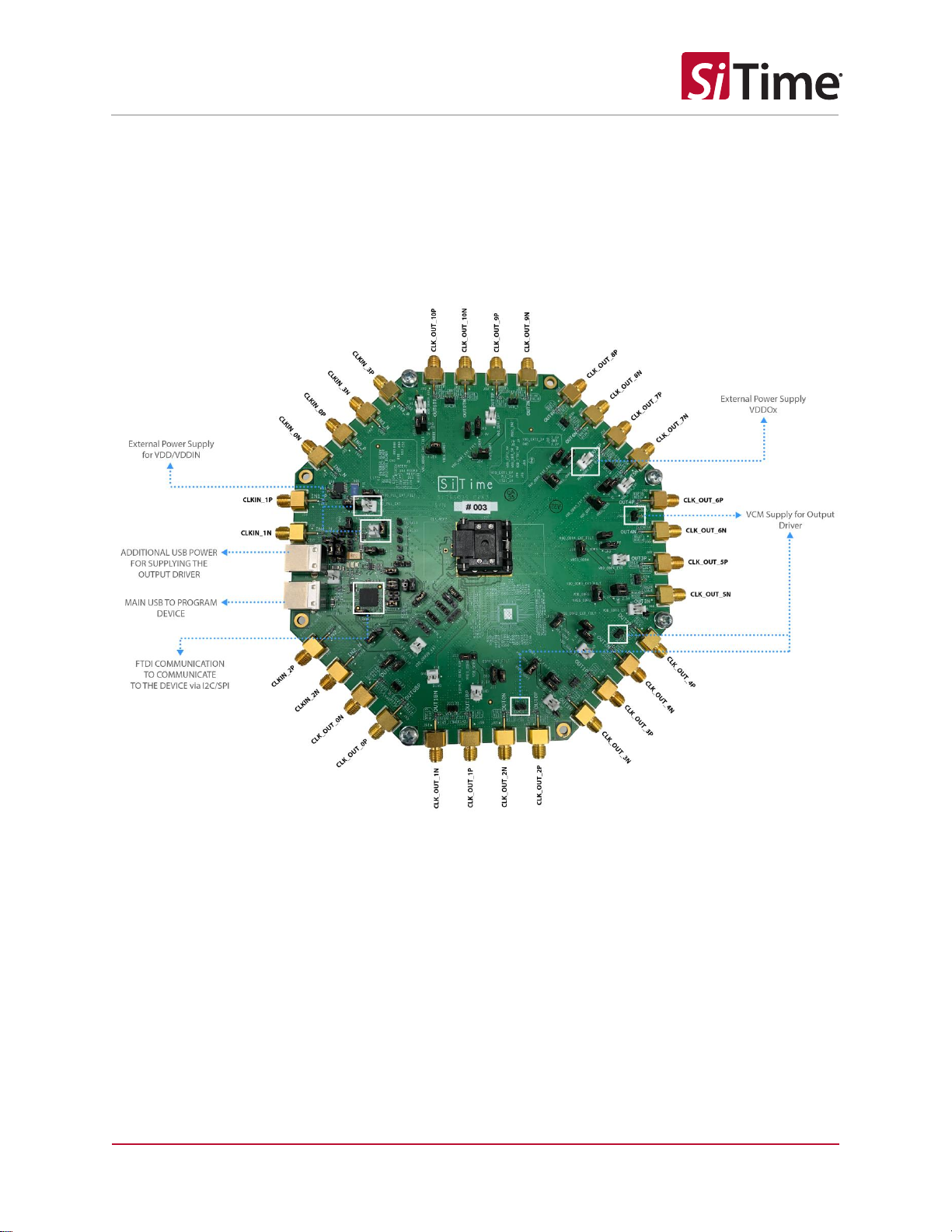

-EVB default configuration is shown in Figure 8.
Figure 8. SiT6503EB Starter Connection Diagram
The general guidelines for single USB power supply operation are listed below:
-Use either a USB 3.0 or USB 2.0 port. These ports are specified to supply 900 mA and 500 mA
respectively at +5V
-If you are working with a USB 2.0 port and you are current limited, turn off enough DUT output
voltage regulators to drop the total DUT current ≤470 mA.
Note: USB 2.0 ports may supply > 500 mA. Provided the nominal +5V drops gracefully by less
than 10%, the EVB will still work

SiT6503EB HW UM Rev. 1.01
Page 14 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Appendix A: EVB Schematic Diagrams

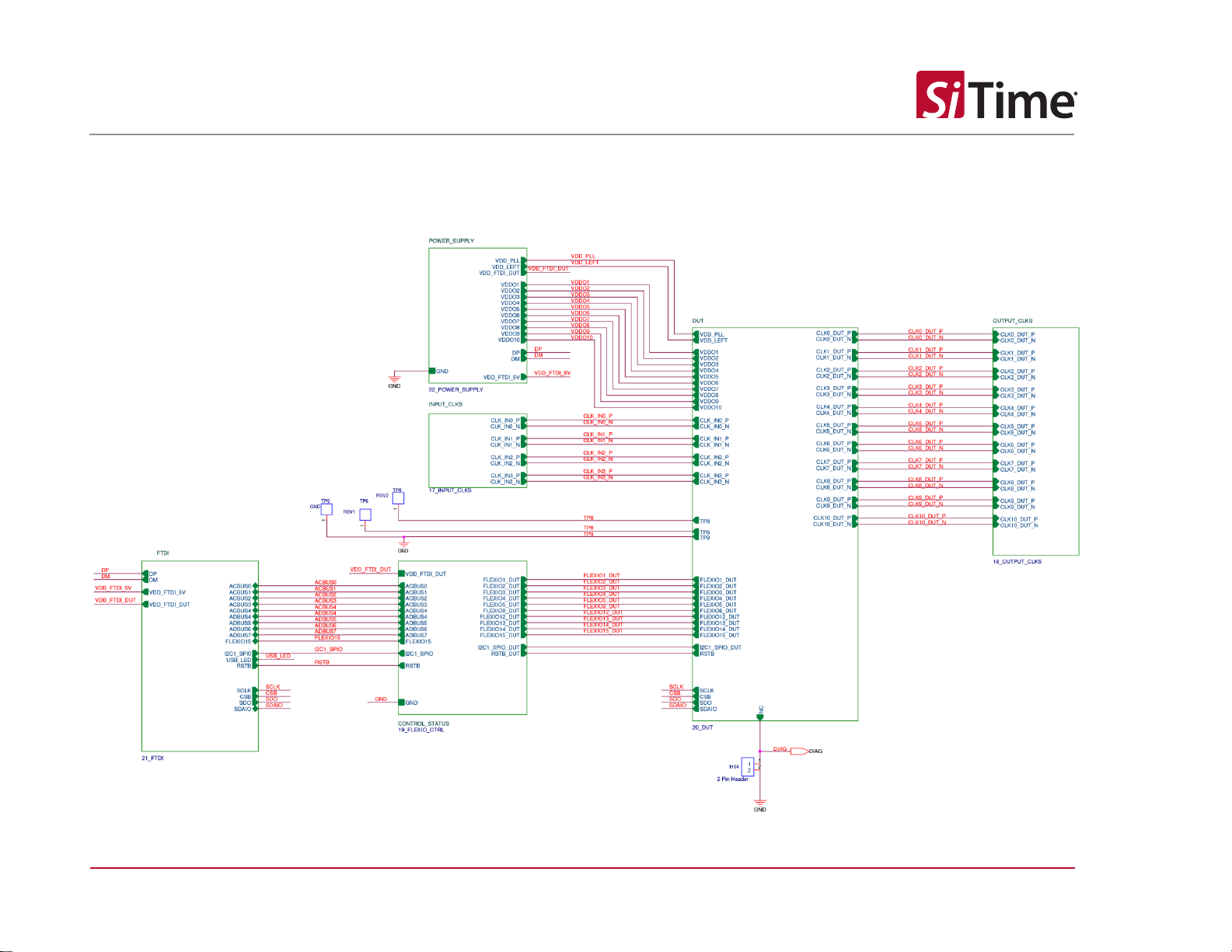

EVB Top Level Diagram
Figure A1. SiT6503EB Top Level Diagram

SiT6503EB HW UM Rev. 1.01
Page 15 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Power Supply
Figure A2. SiT6503EB Power Supply Diagram

SiT6503EB HW UM Rev. 1.01
Page 16 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
Left Supply
Figure A3. SiT6503EB Left Supply Diagram

SiT6503EB HW UM Rev. 1.01
Page 17 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
ODR1 Supply
Figure A4. SiT6503EB ODR10 Supply Diagram

SiT6503EB HW UM Rev. 1.01
Page 18 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
ODR2 Supply
Figure A5. SiT6503EB ODR0 Supply Diagram

SiT6503EB HW UM Rev. 1.01
Page 19 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
ODR3 Supply
Figure A6. SiT6503EB ODR1 Supply Diagram

SiT6503EB HW UM Rev. 1.01
Page 20 of 35
www.sitime.com
SiT6503EB Evaluation Board (EVB) HW User Manual
ODR4 Supply
Figure A7. SiT6503EB ODR2 Supply Diagram
