SJOBLOMS B1-230-1100-1005 User manual
Ver 200319
USER MANUAL
EMERGENCY & PATIENT TROLLEY
For models
B1-230-1100-1005, B1-230-1100-1010
NOTE!
The operator must read the user manual
carefully BEFORE the product is used,
to avoid unnecessary risks to the patient and operator.
Emergency patient trolley Table of contents
TABLE OF CONTENTS
Foreword
Warranty
Important information
1. Function Description
1.1 General description
2. Operation
2.1 Height adjustment
2.2 Adjusting the backrest
2.3 Adjusting the Trendelenburg position
2.4 The function of the castors
2.5 Side rails
2.6 IV stand
2.7 The handle and the basket
3. Maintenance & Cleaning
3.1 Routine checks
3.2 Cleaning
3.3 Lubrication
3.4 Spare parts
3.5 Accessories
3.6 Solutions for lubrication, cleaning and disinfecting
4. Technical specification
4.1 Dimensions
4.2 Labels on the product
5. EU-Declaration of Conformity
6. Contact details
Emergency patient trolley Foreword, warranty, information
FOREWORD
Welcome as the owner of a product manufactured by Sjöbloms Sjukvårdsutrustning
AB. We hope that you will be pleased and satisfied with our quality product.
If a problem should arise with this or any of our products, you are always welcome
to contact us, and our service department will assist you with the expertise needed
to solve the problem.
The user manual contains all the information needed to use, maintain and service
the product. The document is continuously updated as the products are modified.
Therefore we reserve against possible changes in the user manual.
WARRANTY
Sjöbloms provides a two-year warranty for material, design and manufacturing
defects, provided the products are not subjected to tampering or excessive wear.
For the guarantee to apply, the product must have been used in accordance with
the user manual, and the maintenance performed as specified.
IMPORTANT INFORMATION
This product is intended for professional medical use. The user manual should be
read carefully before using the product, to avoid unnecessary risks for the patient
and operator.
The user manual contains warnings where there is a risk of personal injury, which
should be noted. Improper handling can be fatal.
A warning triangle is shown where particularly important information can be found.
Warning Triangle
Emergency patient trolley Operation
General description
1. FUNCTIONAL DESCRIPTION
This emergency patient trolley is meant for professional use in health care, for
examination of the patient.
It is designed to be a functional and user-friendly tool for the operator and patient.
Note that the product must only be used by competent health professionals who
read the user manual, for correct handling.
General description

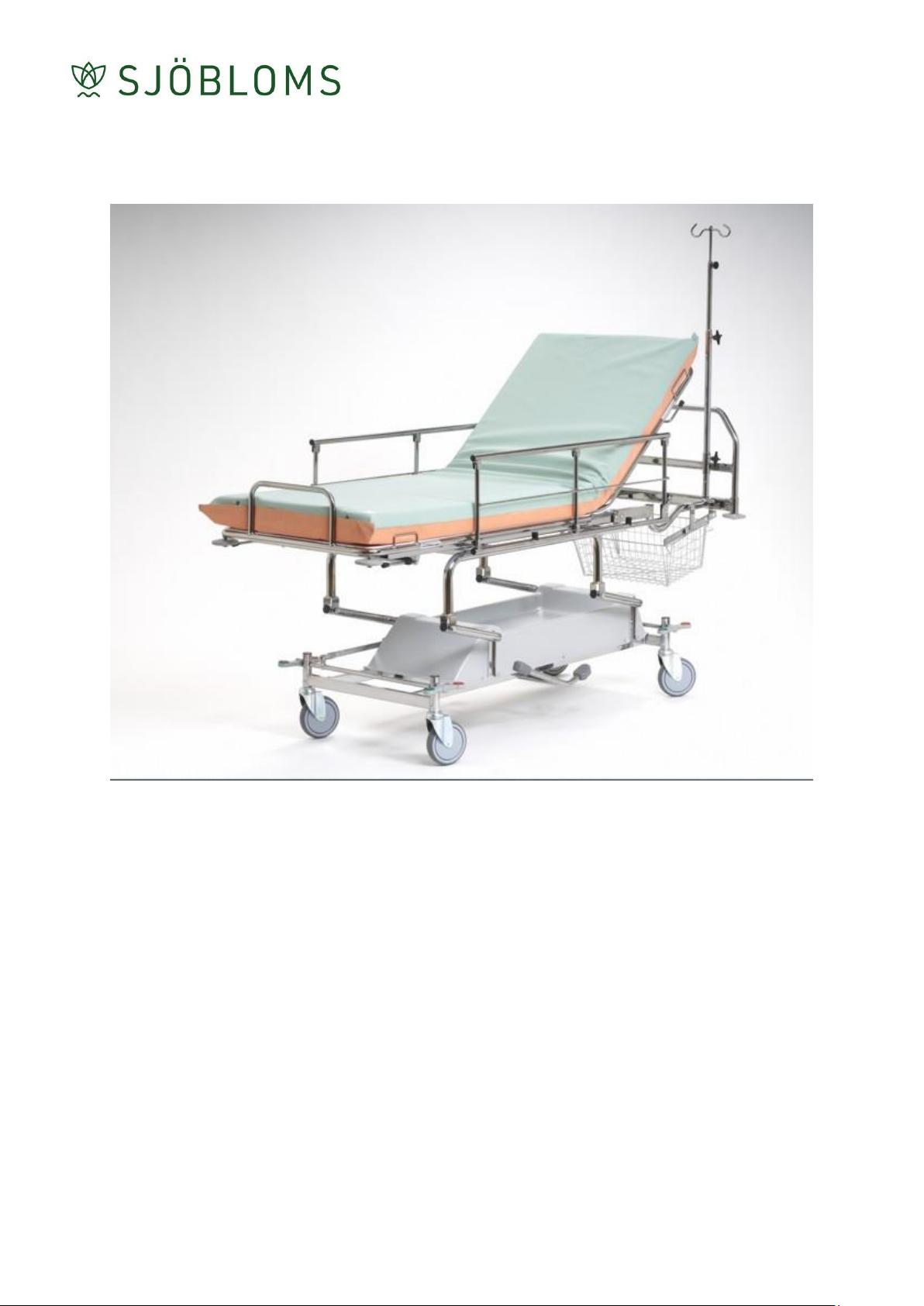

Emergency patient trolley hydraulically adjustable, chromium-plated all-welded
steel tube chassis. Backrest and Trendelenburg adjusted by gas spring.
Removable mattress without handles, available in 5 or 10 cm thickness. The 5 cm
model is padded with foam plastic. The 10 cm is filled with a mix of two materials,
half of which is a pressure-relief material.
Central locking easy roll 150 mm castors with one direction locking castor to
facilitate transfer.

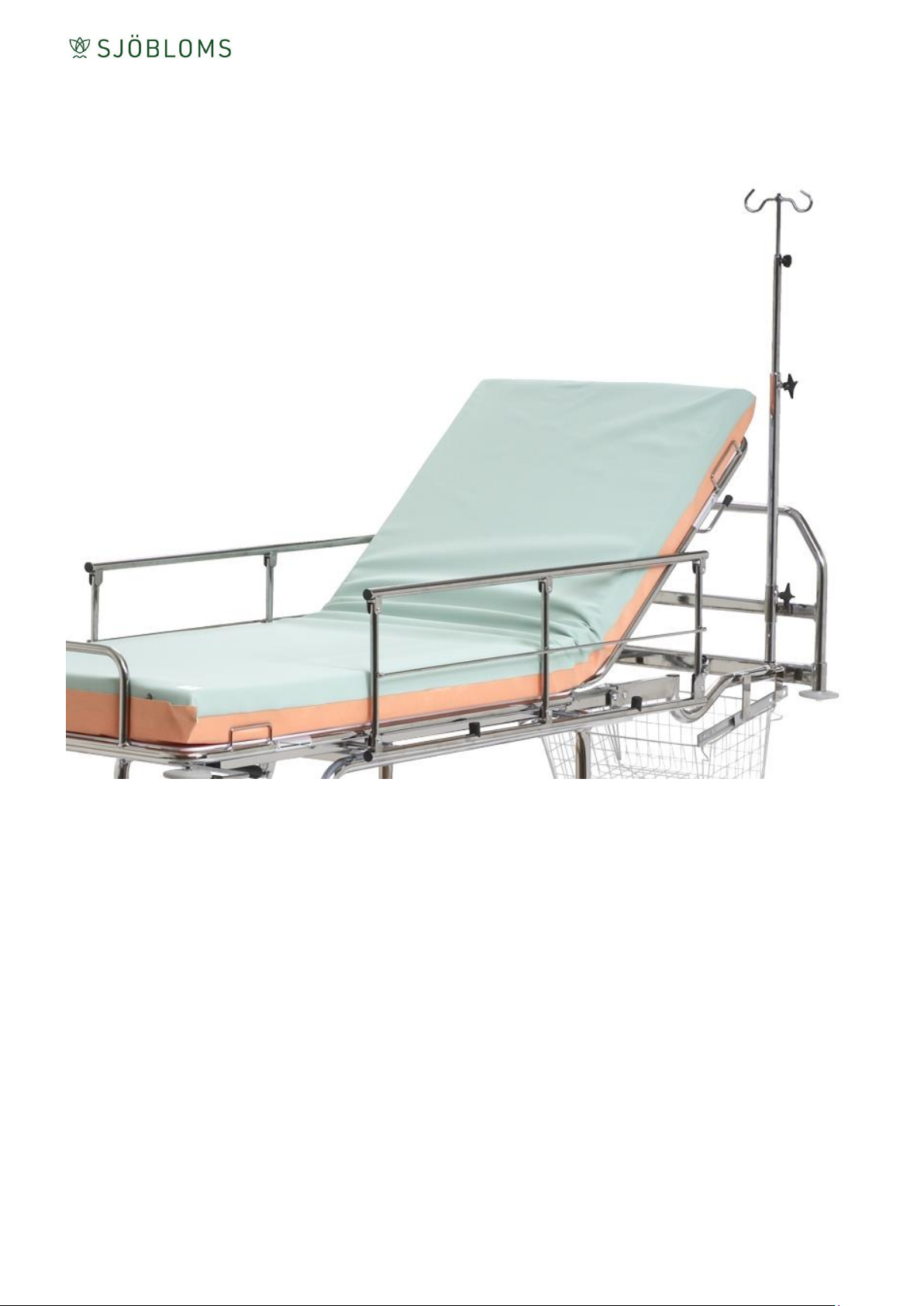

Accessories like IV stand and siderails are available.
Emergency patient trolley Operation
Height adjustment
2. OPERATION
2.1 Height adjustment

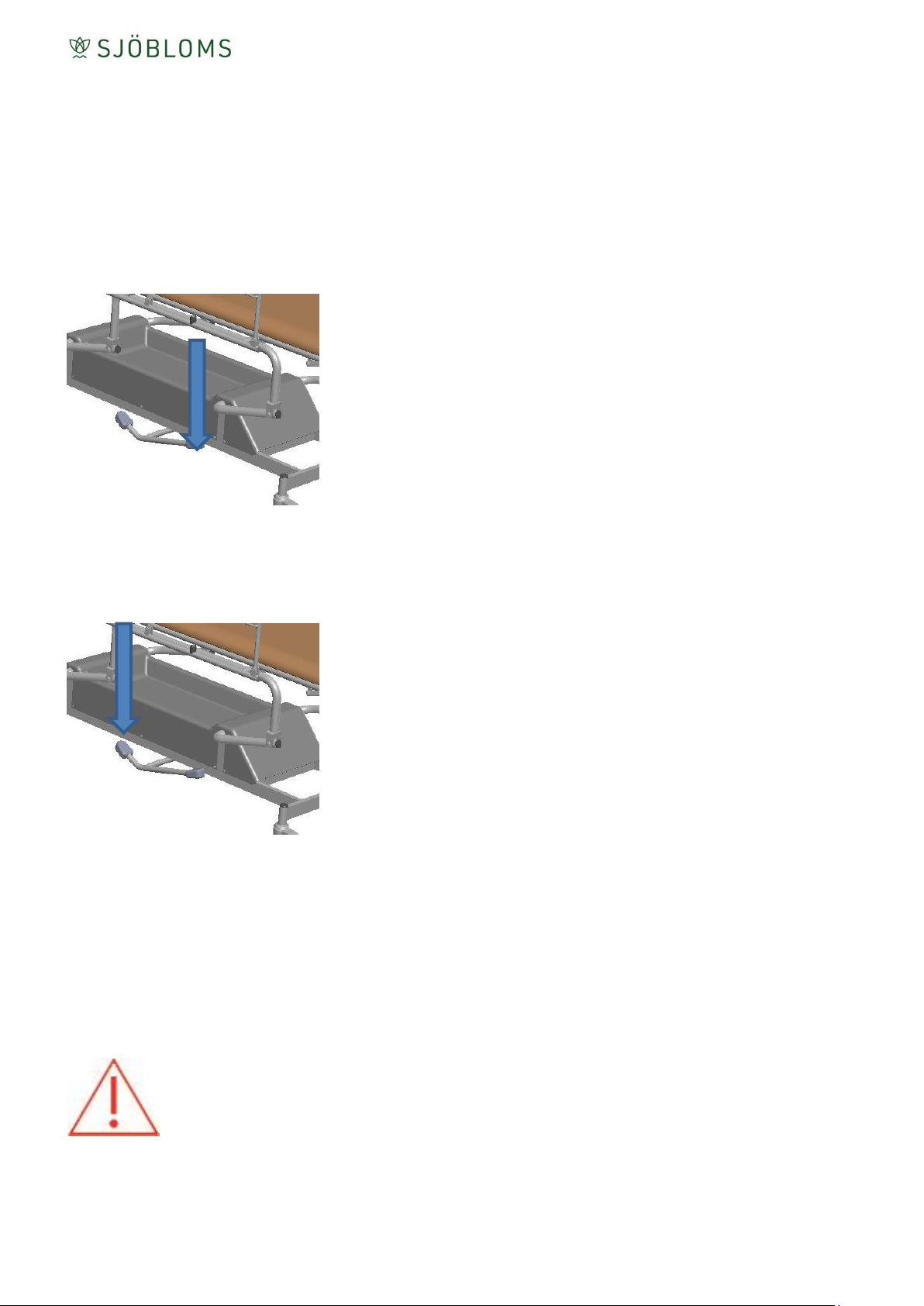

To raise the emergency trolley
Pump the longer part of the pedal to raise the chassis to the desired height.
To lower the emergency trolley
Press the shorter part of the pedal to lower the chassis to a desired height.
NOTE!
Ensure that no unauthorized persons are in the couch's working range, as a
pinch hazard exists when raising and lowering the product.
Emergency patient trolley Operation
Adjusting the backrest
2.2 Adjusting the backrest
Raising the backrest

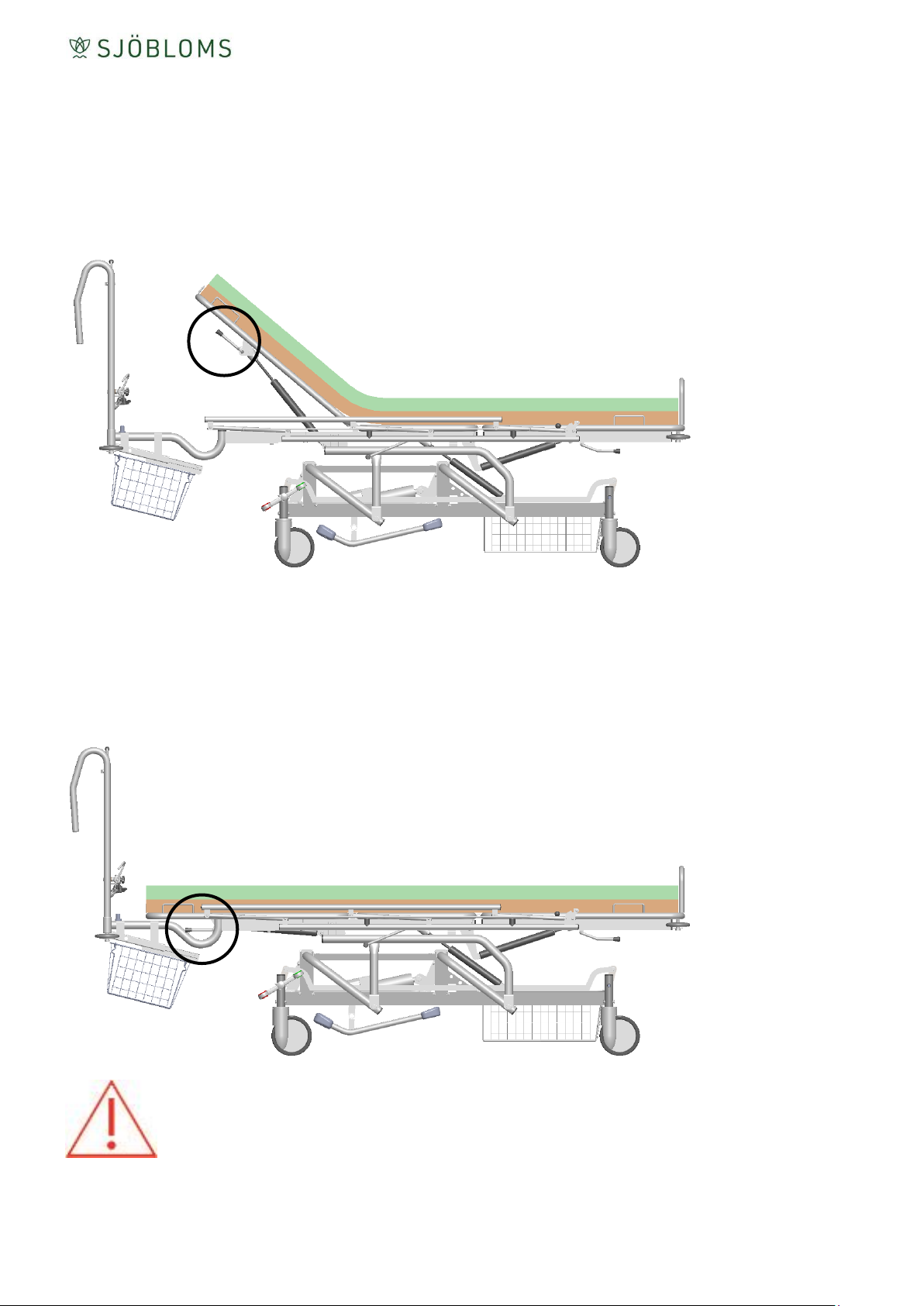

Press at least one of the handles that are positioned on the side of the back
rest.
Press the handle and the gas piston helps to raise the back rest (variably
adjustable).
Lowering the back rest
Push the handle in again and push the back rest down.
NOTE!
Ensure that no unauthorized persons are in the couch's working range, as a
pinch hazard exists when raising and lowering the product.
Emergency patient trolley Operation
Adjusting the Trendelenburg position
2.3 Adjusting the Trendelenburg position
Raising the Trendelenburg

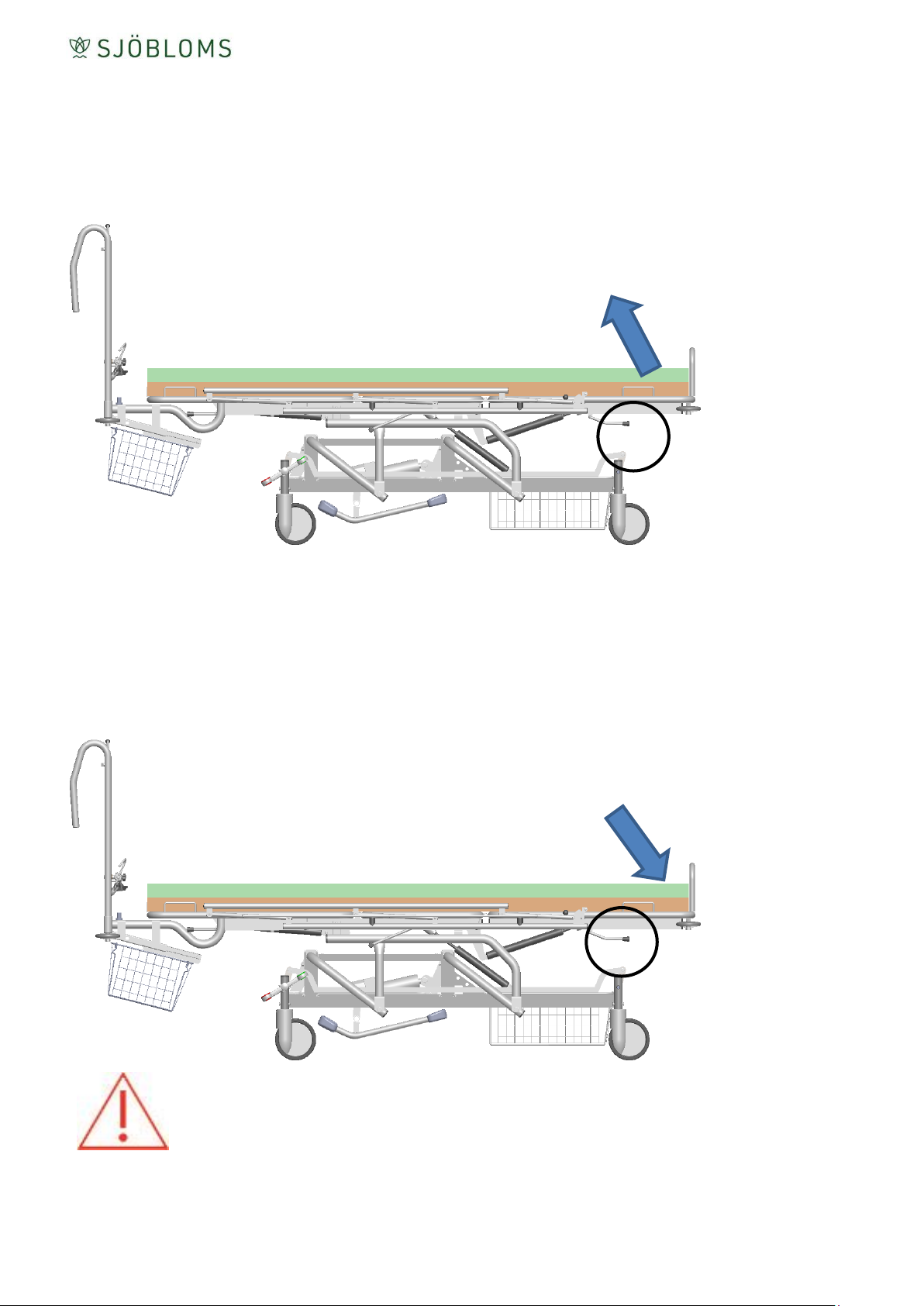

Stand at the foot-end side of the couch. Press one or both handles.
Press the handle and the gas piston helps to raise the Trendelenburg
position (variably adjustable).
Lowering the Trendelenburg
Press the handle while pushing the top downwards.
NOTE!
Ensure that no unauthorized persons are in the couch's working range, as a
pinch hazard exists when raising and lowering the product.
Emergency patient trolley Operation
The castors

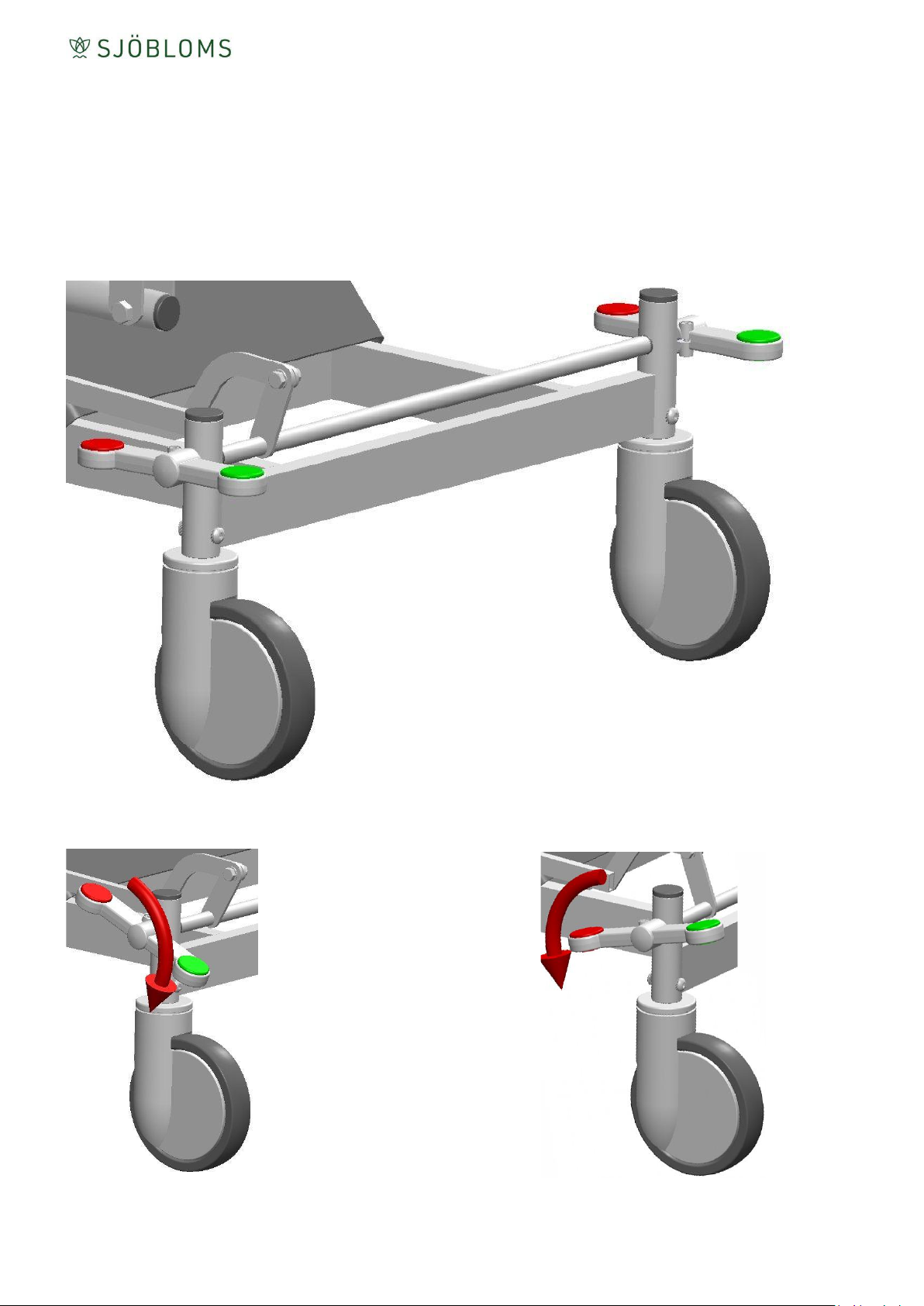

2.4 The function of the castors
The patient trolley is equipped with central locking castors and a directional-locking
function, which helps transporting the chassis straight in long corridors.
Unlocked castors
Directional locked mode
Braked mode
Emergency patient trolley Maintenance & cleaning
Routine checks, cleaning
2.5 Siderails
NOTE!
Pinch hazard exists when raising and lowering the side rails.

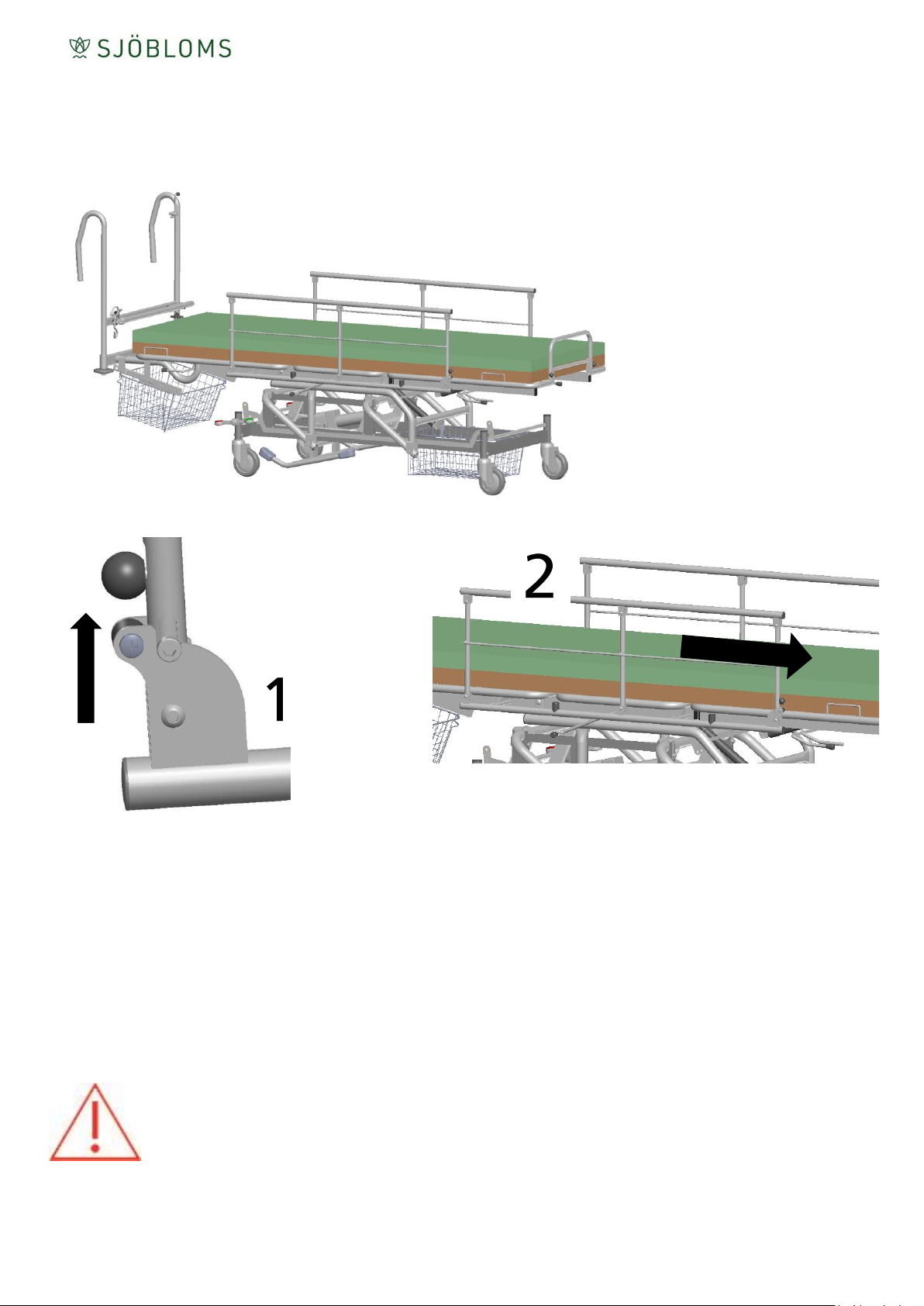

1. Lift the black ball.
2. Fold the siderails using the other hand in the direction of the arrow.
Done!
When raising the siderails, make sure its mechanic clicks into position indicating
it is fully raised.
Emergency patient trolley Operation
The IV stand
2.6 IV stand

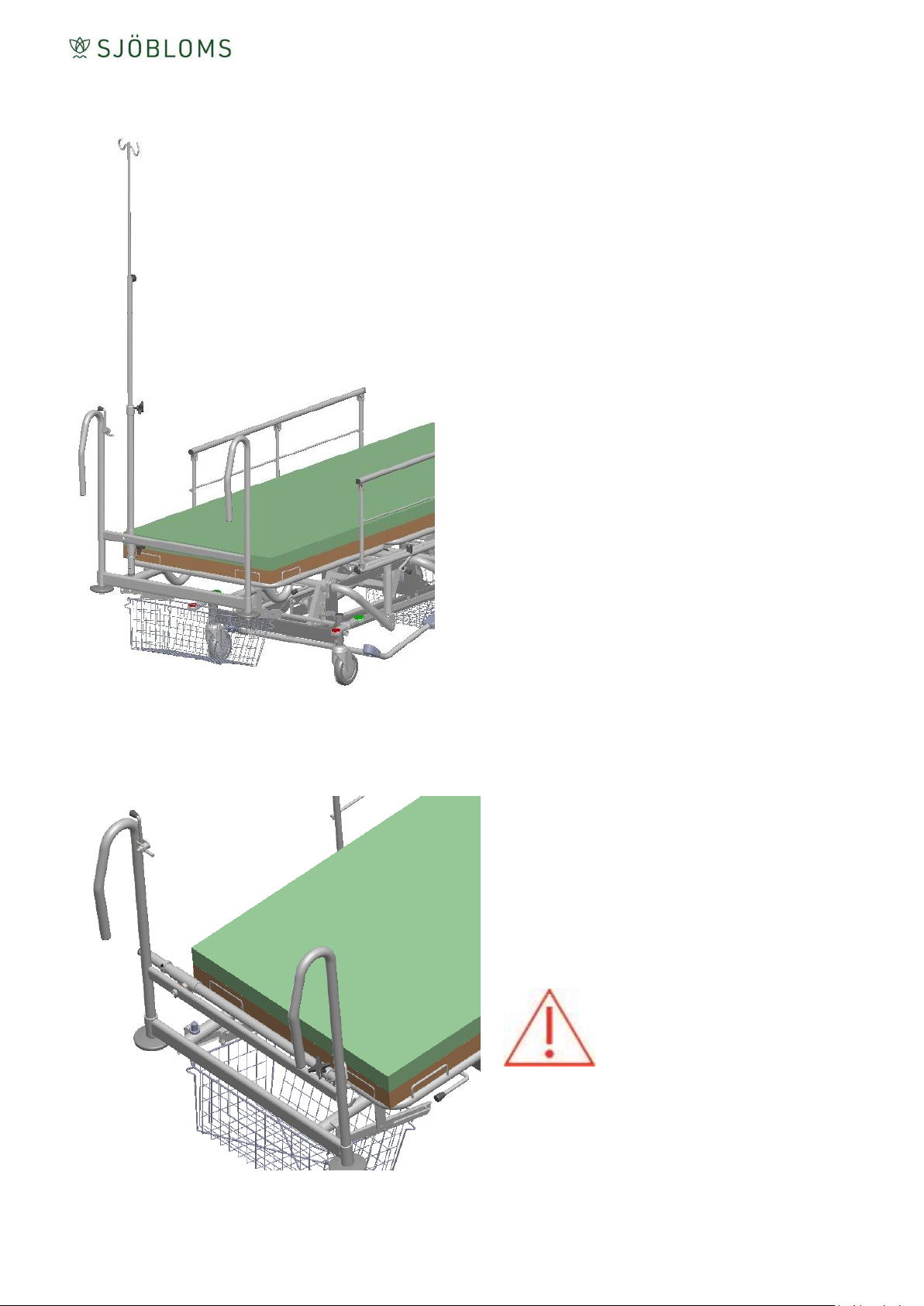

The IV stand may be adjusted in height. Lock/open the knob and adjust the height.
When the IV stand is folded, it may
be stored as shown left.
NOTE!
It is not permitted to use the IV stand
as a handle when pushing/pulling the
patient trolley. Doing so bends the
rod, so that the IV stand is impossible
to height adjust.
Emergency patient trolley Operation
The handle, the basket
2.7 The handle and basket

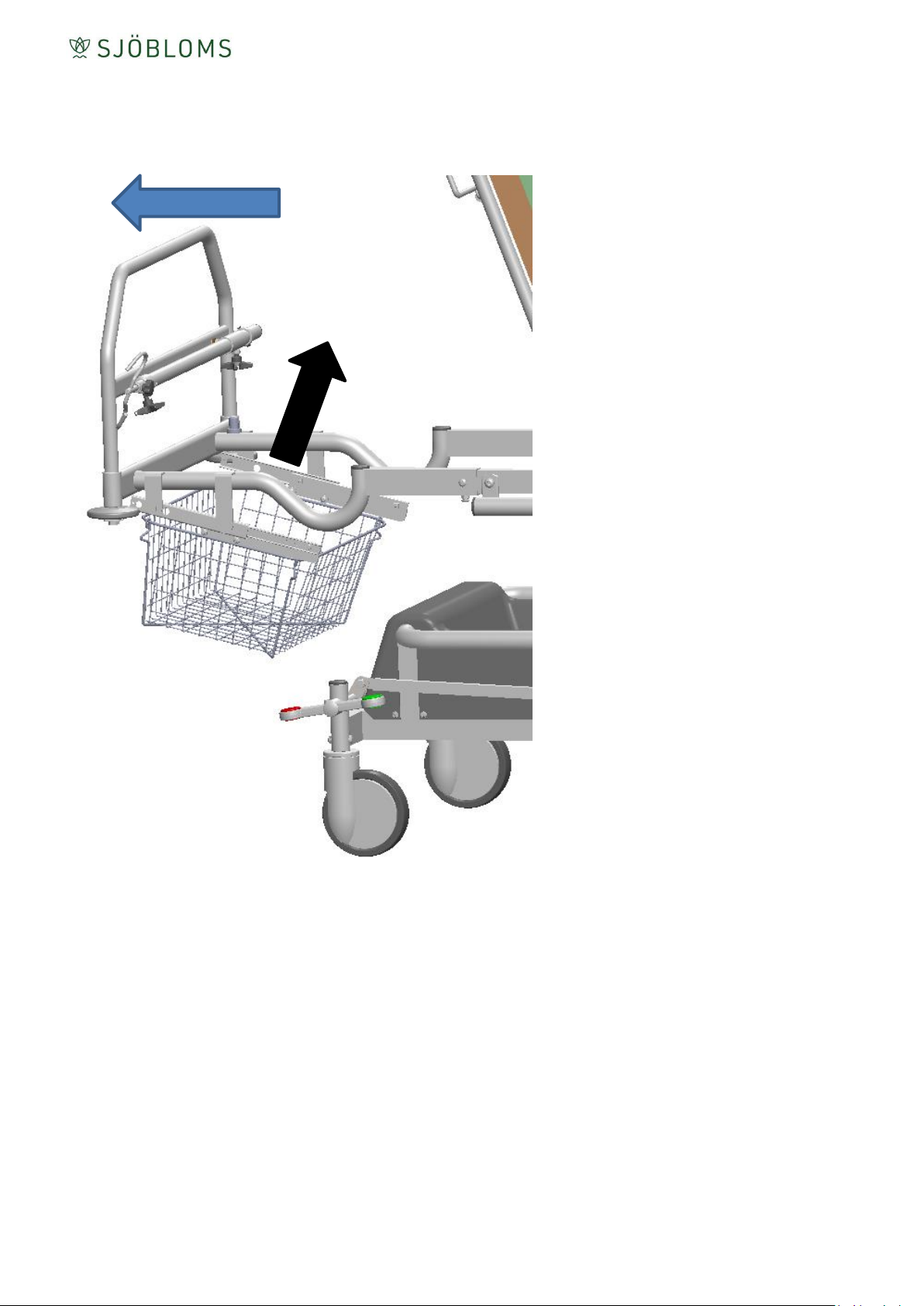

The handle may be moved backwards and the basket removed if needed.
Emergency patient trolley Maintenance and cleaning
Routine check-ups, cleaning
3. MAINTENANCE AND CLEANING
3.1 Routine check-ups
Routine inspections should be made to ensure proper functionality.
Important!
Failure to perform the following routine can cause the patient and/or operator to
be exposed to unnecessary risks and the couch may have a reduced life expectancy.
Please check all functions and parts on a regular basis.
Check the following:
Any unusual sounds.
Gas piston functions.
Castors and castor locking mechanism.
That joints and fittings are lubricated according to the lubrication chart.
3.2 Cleaning
Cleaning of imitation leather
During normal cleaning, warm water and a mild soap solution should be used.
Stronger cleaning agents should be avoided whenever possible.
If it nonetheless becomes necessary to use stronger agents, it is important to wipe
with a damp cloth.
Disinfection
If the product needs to be disinfected, use only solutions with low concentration of
alcohol. A solution with high concentration of alcohol can have a drying effect,
which means that the imitation leather's properties deteriorate and cracks can
form. The manufacturer of the artificial leather recommends DAX or similar, our
article no. C068.
Emergency patient trolley Maintenance & cleaning
Lubrication
3.3 Lubrication
Lubrication according to the schedule should be performed every 6 months or as needed.
1. First lock the castors.
2. Enlist the help of another person and tip the couch on the side, in order to
lubricate the moving joints.

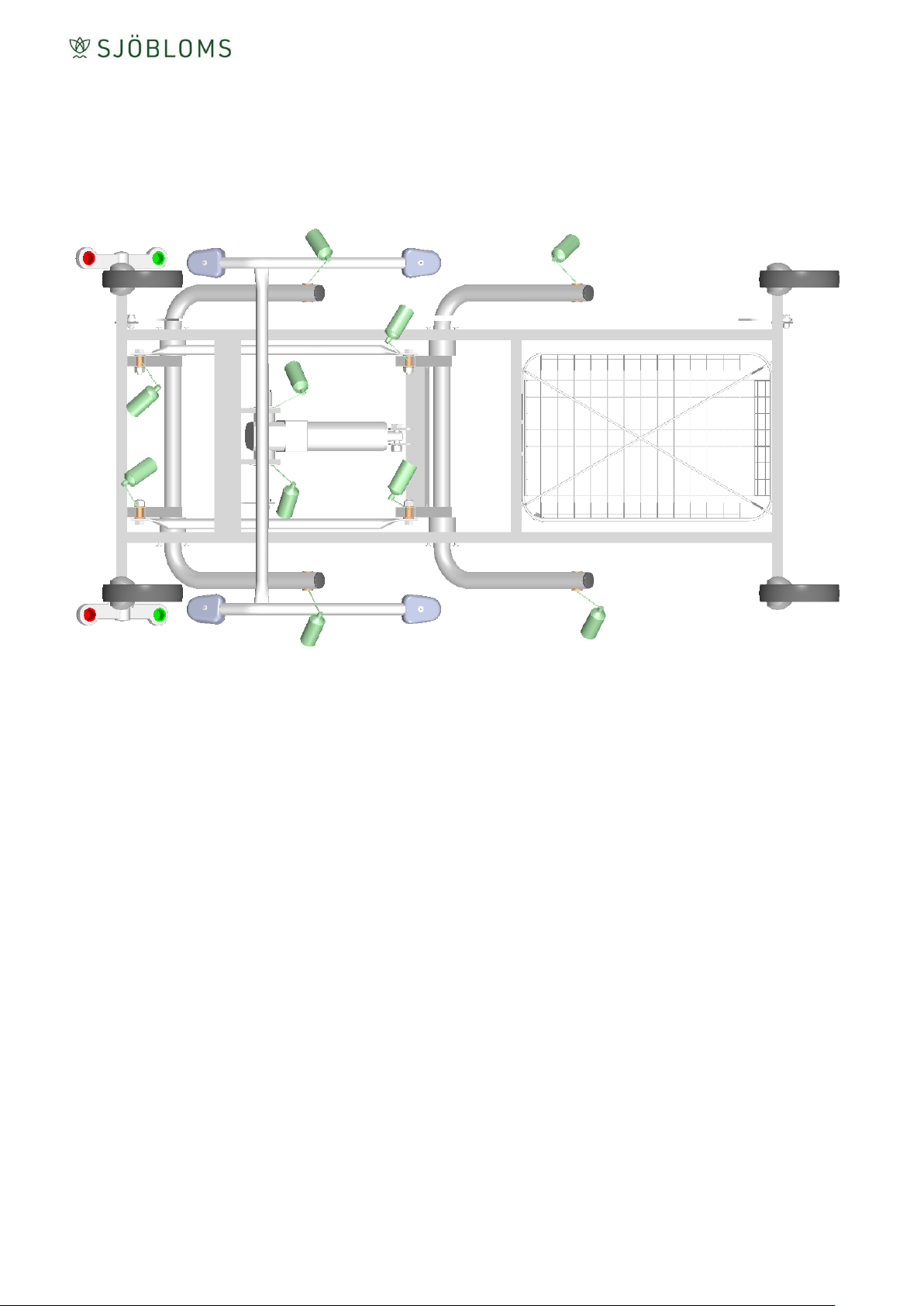

The spray can in the pictures above indicates where to lubricate.
Emergency patient trolley Maintenance & cleaning
Spare parts
3.4 Spare parts
1
No Art no Article
1 G0001-M Gas spring
2 00027848 Castor
3 00032427 Castor, directional locking
4 HY001 Hydraulic pump
5 040-5001 Basket
5
Emergency patient trolley Maintenance & cleaning
Accessories
3.5 Accessories
IV stand, siderails
Emergency patient trolley Maintenance & cleaning
Solutions

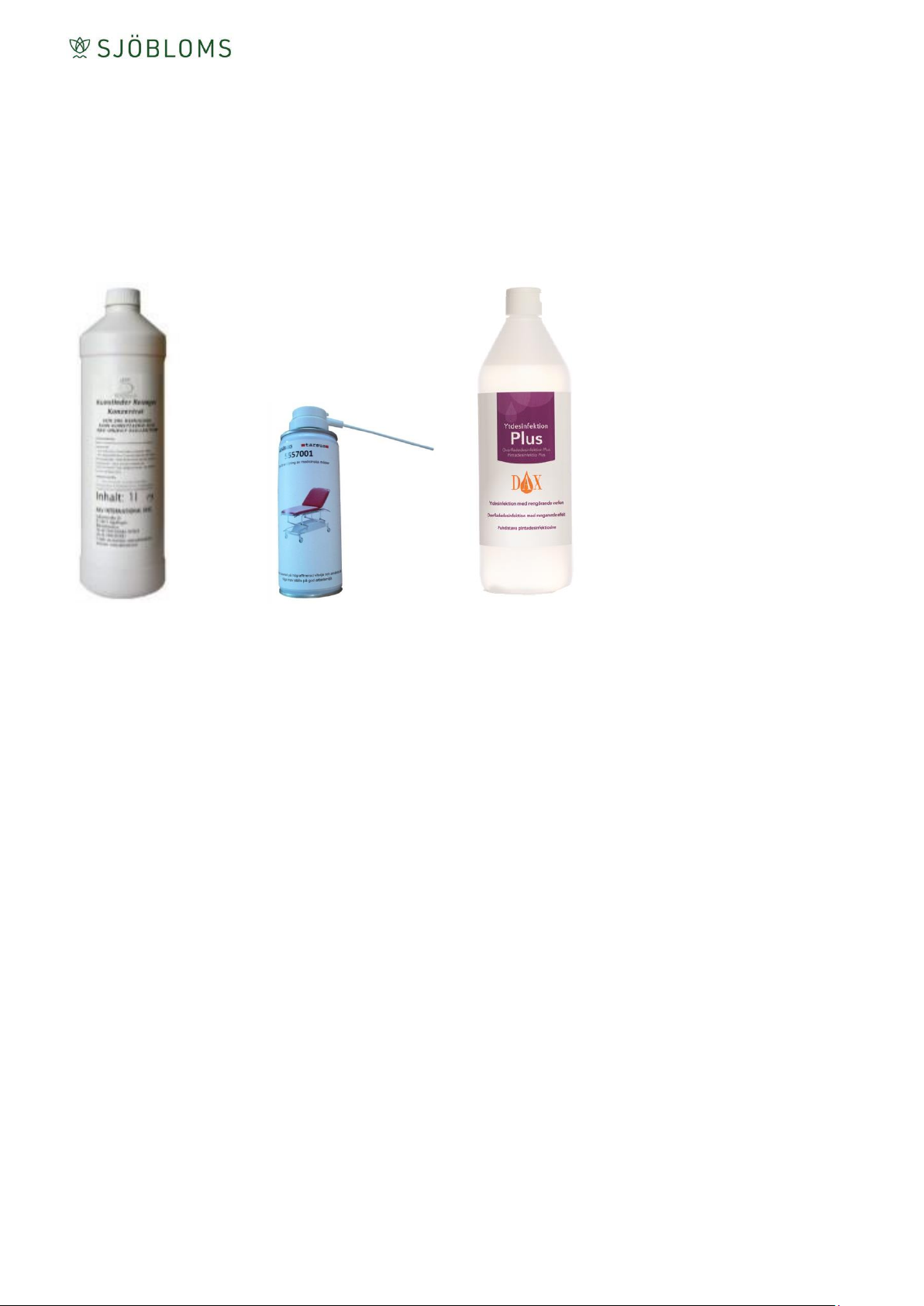

3.6 Solutions for lubrication, cleaning and disinfection
R-1, Cleaning solution for artificial leather
5557001, Lubrication
C068, Disinfection solution, DAX Plus
Cleaning solution Lubrication Disinfection
Emergency patient trolley Technical specification
Dimensions
4. Technical specification
4.1 Dimensions
Length: 200 cm (215 including bumper wheels)
Width: 70 cm
Width including bumper wheels: 73 cm
Width including siderails: ca 78 cm
Height: 53-91 cm
Length of backsupport: 75 cm
Angle of backsupport: +64°
Trendelenburg position angle 15 ° above the horizontal position, -10 ° below.
Weight: ca 68 kg
Max patient weight: 200 kg
SWL: 220 kg
Emergency patient trolley Technical specification
Labels
4.5 Labels on the product

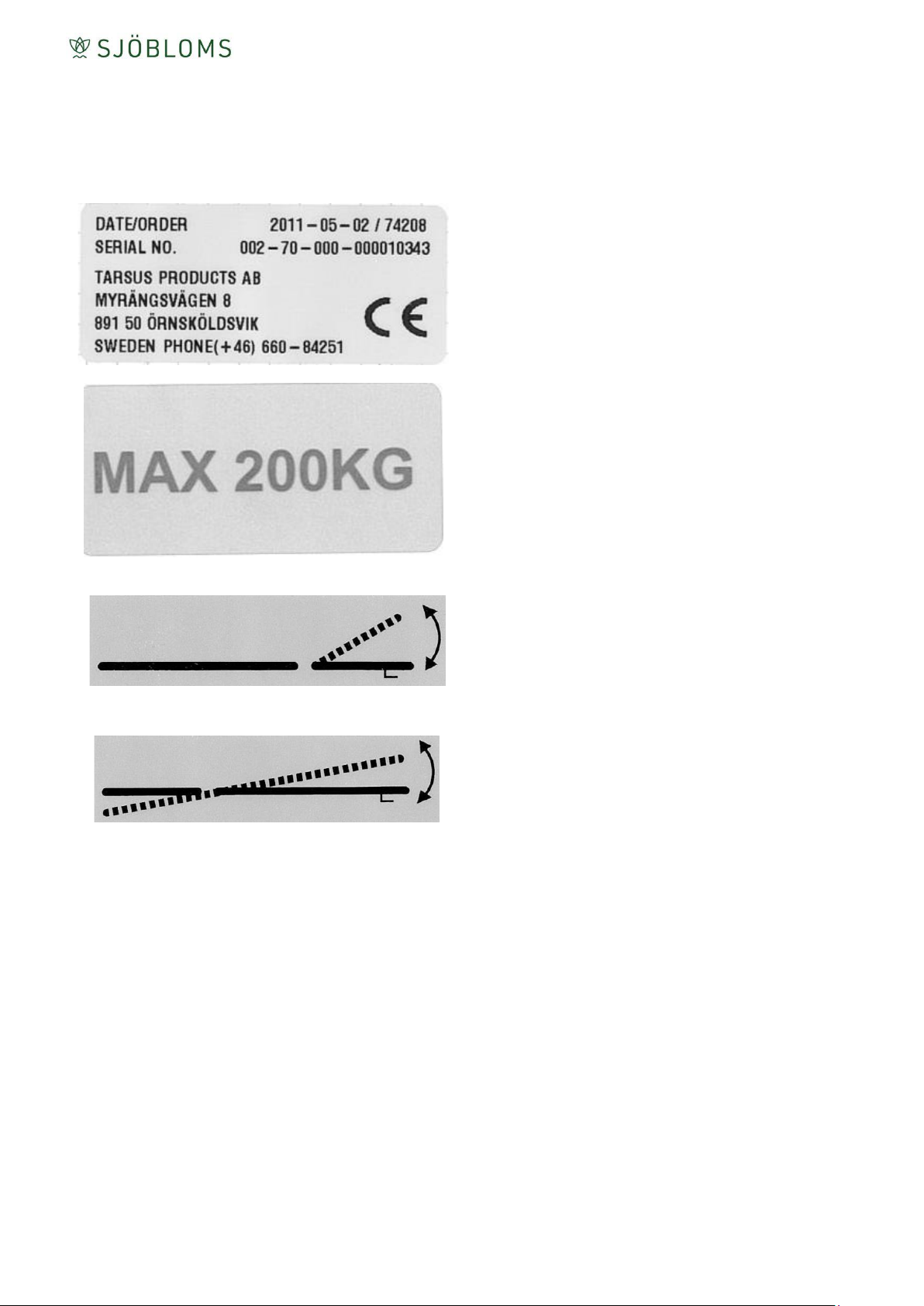

The CE label contains the date,
order number, serial number
and our contact information.
Max patient weight 200 kg.
Displays the adjustment of the
back rest. There is a label on
each side of the chair.
Displays the adjustment of the
Trendelenburg position. There
is a label on each side of the
chair.
Emergency patient trolley Declaration of conformity
5. EU-DECLARATION OF CONFORMITY
EU DECLARATION OF CONFORMITY
according to MDD 2007/42/EC including Appendix
and according to CE-marking Directive 93/68/EEC
Type of equipment: Patient trolley, hydraulically adjustable
Manufacturer: Sjöbloms Sjukvårdsutrustning AB
Model: B1-230-1100-1005 Product registration number: 13814
Model: B1-230-1100-1010 Product registration number: 13814
The appendix contains documents that have been applied for verification of
compliance.
Manufacturer
Sjöbloms Sjukvårdsutrustning AB
Myrängsvägen 8
S-891 50 Örnsköldsvik, SWEDEN
Additional Information Directive for Medical Technical Products
The product complies with the harmonized standards, other standards and
technical specifications listed in the appendix.
Sjöblom works in accordance with SS-EN ISO 9001:2000 and is second-party
certified for this standard, which ensures consistency between the manufactured
product and the technical documentation.
As a manufacturer we can ensure under our own responsibility that the product
complies with the directives listed above.
Örnsköldsvik 2011-06-22
Karl-Gunnar Sjöblom
Production Manager
Emergency patient trolley Maintenance & cleaning
Solutions
Appendix to
Declaration of Conformity
The following harmonized standards have been applied:
Standards Date Listing
SS-EN 60601-1 C1 2010-05-06
SS-EN 60601-1-2 C1 2010-05-06
The following company standards or other technical specifications have been
applied:
Standards Date Listing
LVFS 2009:18 2009-10-08 Relevant requirements of the law on
medical technical devices
