SKC 224-PCXR4 User manual

Form 37712 Rev 1702
Page 1 of 14
www.skcinc.com
Back view
Belt clip
Charging jack
Low flow regulator
(beneath cap screw) allows
pump to be switched from
high to low flow.
Durable RFI-shielded case
provides protection from
radio frequency interference
between 27 and 1000 MHz.
Rechargeable battery
Built-in particulate trap
in see-through housing
protects pump.
Built-in rotameter
provides a visible check of
relative flow rate during
sampling from 0.5 to 5 L/min.
Accessory mounting screws
allow sampling accessories
such as impinger holders to be
secured to pump.
Recessed flow adjustment screw
adjusts flow rate between
1000 and 5000 ml/min.
Tamper-resistant cover
prevents changes to
settings.
On/Off switch
Air discharge port
(beneath cap screw)
Inlet
PCXR4 Universal Sample Pump
Cat. No. 224-PCXR4
Operating Instructions
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: [phone] • e-mail: [email protected] • www.skcinc.com
Figure 1. Front and Back Views of PCXR4 Universal Sample Pump
Introduction
Description
The PCXR4 Universal Sample Pump (Figure 1) is a constant flow (from 5 to 5000 ml/min) air sampler suitable for a broad range of
applications. It is ideal for industrial hygiene studies as well as environmental testing.
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact SKC
at 800-752-8472 (U.S. only) or 724-941-9701.
If You Ordered Cat. No. Your Package Should Contain
224-PCXR4 Universal PCXR4 Sample Pump with NiMH battery pack and screwdriver set
224-PCXR4KD Single Universal PCXR4 Pump Kit with pump, NiMH battery, screwdriver set, 100-240 V single charger, filter cassette
holder, adjustable tube holder with Type A protective tube cover, exhaust port fitting, and nylon carry case
224-PCXR4KDH Single Universal PCXR4 Pump Kit with pump, NiMH battery, screwdriver set, 100-240 V single charger, filter cassette
holder, adjustable tube holder with Type A protective tube cover, exhaust port fitting, and Pelican carry case
Required Equipment/Media
;1/4-inch ID tubing
;PowerFlex®Charger
;Low flow accessories if sampling at 5 to 500 ml/min. See Accessories.
Inlet filter
housing
Digital LCD
Keypad

Form 37712 Rev 1702
Page 2 of 14
www.skcinc.com
Charging train with single PowerFlex charger
Power
cable
Charger
Getting Started
Install the Battery Pack
To enhance battery life, SKC ships battery packs separately from the pump. Once installed, completely charge the battery pack before
operating the pump.
1. Remove the two screws that secure the baery pack and loosen the
two case screws above and below the belt clip.
2. Carefully slide the baery pack out from under the belt clip. Ensure
that the baery is kept level.
3. Slip the front edge of the new baery pack under the belt clip and
position the baery pack to engage the grooves in the case.
4. Slide the baery pack toward the pump until it is flush with the
pump case on all sides.
5. Reinstall two baery screws and tighten the case screws loosened
in Step 1.
6. Charge the baery completely. See Charge the Baery Pack. Note:
For optimum charge, ensure the pump is not running during charging.
Charge the Battery Pack
1. Activate the charger. Follow PowerFlex Operating Instructions 37783.
For optimum charge, ensure that the pump is not running.
2. Insert the charging cable connector into the charging port on the charger.
3. Insert the charging plug end of the cable into the jack on the back of the pump’s
baery pack (Figure 1).
4. Charge the baery completely (the LED at the port connected to the pump is a
steady green) before using the pump.
5. Disconnect the charging cable from the back of the pump’s baery pack.
Notes and Cautions
• To comply with intrinsic safety regulations, do not charge or operate the pump from the charger in hazardous locations.
• Using a non-approved charger voids any warranty.
• Using a repaired or rebuilt battery pack voids any warranty and the UL Listing for intrinsic safety.
• Using any device other than the approved battery pack to power the pump voids the UL Listing for intrinsic safety and any
warranty.
• Ensure proper orientation of charging cable before plugging it into the charging jack. Improper orientation/contact will short-circuit
the battery and voids any warranty.
• Short-circuiting the battery pack will render it immediately inoperative.
• Failure to follow warnings and cautions voids any warranty.
• The battery pack may be kept on the SKC-approved charger for an indefinite time.
For more information on SKC pump battery packs, visit www.skcinc.com/catalog/pdf/instructions/1756.pdf.
Charging
cable
Back of pump
with battery pack
sliding out

Belt clip
Case screw
(not shown)
Battery pack
screws
Case screw Case grooves
Battery
connector

Form 37712 Rev 1702
Page 3 of 14
www.skcinc.com
Turn Pump Power On/Off (Figure 1)
Turn on: Remove the tamper-resistant cover. Move the on/offswitch to ON.
Turn off: Move the on/offswitch to OFF.
Use the Pump with AC Power (Power option in non-hazardous locations)
Do not use the pump with the Battery Eliminator in hazardous locations. UL Listing for intrinsic safety is not in effect during pump
operation with Battery Eliminator.
The Battery Eliminator is an accessory that converts alternating current (AC) to direct current (DC) from which the pump can be
operated for extended runs. The Battery Eliminator should be used in non-hazardous locations only. See Accessories.
1. Remove the baery pack from the pump (see Replace the Baery Pack).
2. The Baery Eliminator is comprised of two pieces, a wall cube and a power adapter: Plug the wall cube into a standard wall outlet
and insert its plug end into the power adapter.
3. Fit the power adapter on the pump in place of the baery pack.

Form 37712 Rev 1702
Page 4 of 14
www.skcinc.com
Operation
High Flow Applications (1000 to 5000 ml/min)
Deactivate the Regulator for High Flow
1. To ensure the pump is set for high flow, remove the cap screw (Figure 1) covering the regulator valve
and turn the exposed screw clockwise until it stops. Do not overtighten. See right.
2. Replace the cap screw. The pump is now set for high flow.
Set/Calibrate Flow Rate
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Charge pump battery completely before calibration and sampling.
1. Ensure that the baery is fully charged and that the pump has run for five minutes before calibrating. Leave the pump running.
2. Press Start/Hold and then press Flow and Baery Check.
3. Adjust flow using the flow adjustment screw until the built-in rotameter indicates 2 L/min. The LCD should show BATT OK in the
upper left corner. If it does not, recharge the baery.
4. Press the Flow and Baery Check again to place the pump in Hold.
5. Prepare the calibrator (see calibrator instructions). Using flexible tubing, connect the calibrator outlet (suction port) to the sampling
medium inlet.
6. Using 1/4-inch Tygon tubing, connect the sampling medium outlet to the pump inlet (Figure 2).
7. Set the flow rate using the flow adjustment screw (Figure 1) until the calibrator indicates the method-specified flow rate. Take a
minimum of three readings and record the average flow rate, as per OSHA/NIOSH instructions.
8. When calibration is complete, press Flow and Baery Check to place the pump in hold and disconnect the calibrator.
For high flow, turn regulator
valve screw clockwise.
Figure 2. Calibration Train with Filter Cassette
Flow adjustment screw
On/Off switch
Tubing
chek-mate Calibrator
Sampling medium

Form 37712 Rev 1702
Page 5 of 14
www.skcinc.com

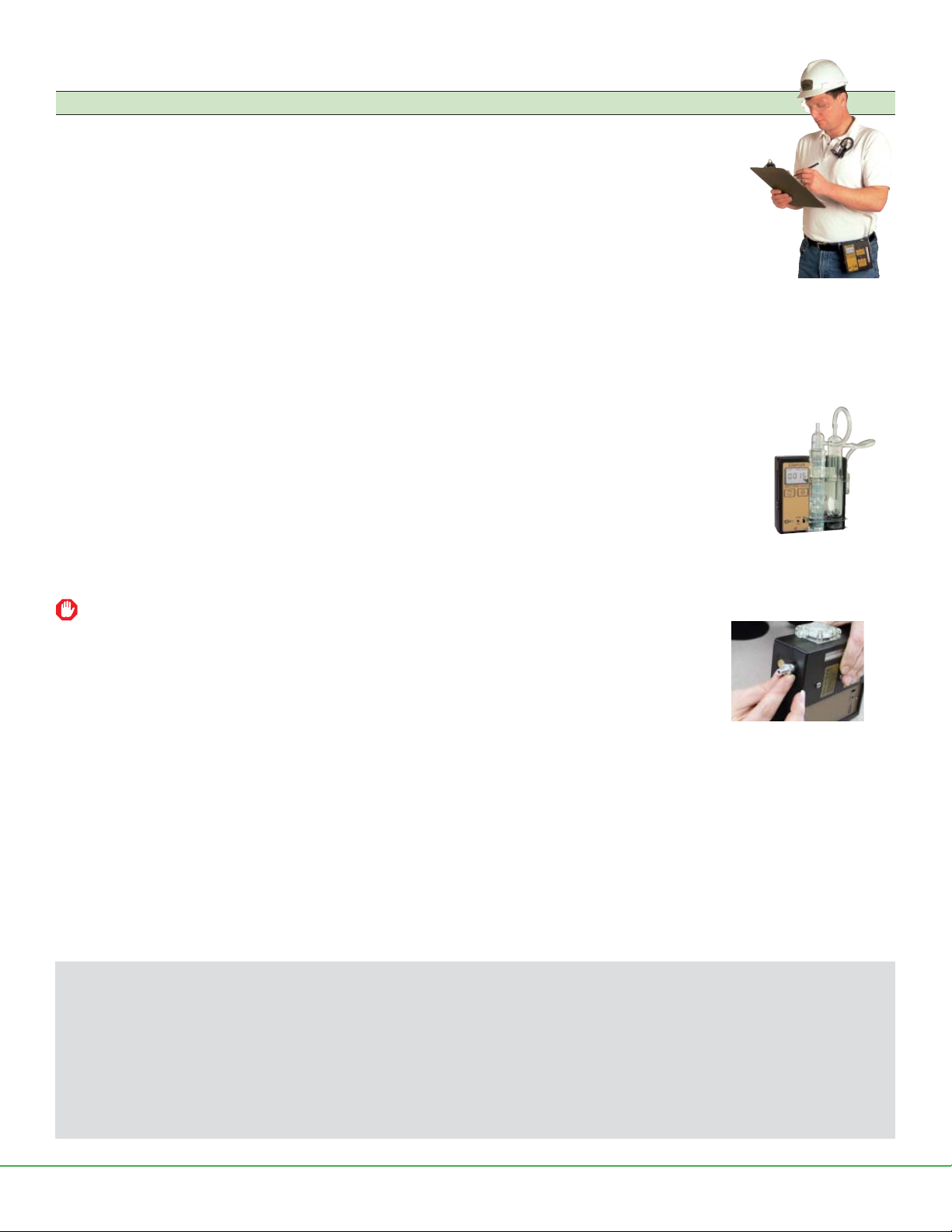

Impinger holder on pump with
impinger and trap
Clip sampling medium to worker
and pump to belt.
High Flow Applications (Cont)
Set Up/Sample
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Protect sample pump from weather when in use outdoors.
• Powering the pump with any device other than the approved battery pack voids the UL Listing for intrinsic
safety.
• Do not use the pump with the Battery Eliminator in hazardous locations. UL Listing for intrinsic safety is not in
effect during pump operation with Battery Eliminator.
• Use of any device other than the approved battery pack or Battery Eliminator to power the pump voids any warranty.
• Charge pump battery completely before calibration and sampling.
• See User Options During Sampling.
1. Replace the sampling medium used for calibration with an unexposed medium for sample collection.
2. Place the sampling medium where appropriate for sampling.
a. For personal sampling, clip the sampling medium to the worker in the breathing zone. See above
right.
b. When using impingers, an in-line trap (SKC Cat. No. 225-22 or 225-22-01) is required to prevent
fumes from accidentally being drawn into the sampler. Place the in-line trap between the pump and
the impinger. Mount the impinger and trap to the face of the sampler using the accessory mounting
screws (Figure 1) or place them in a holster at the worker’s waist.
Failure to use an appropriate in-line trap during impinger sampling voids any warranty.
c. When using the pump for pressure applications, such as bag sampling, thread the exhaust port
fiing supplied with the pump into the air discharge port on top of the pump; hand-tighten only.
Using PTFE tubing, connect the inlet of the sample medium (e.g., sample bag) to the exhaust port
fiing on the pump. Turn on the pump to collect the appropriate volume of air. Shut offthe pump
and close inlet on sample medium to stop sampling.
3. With the LCD displaying HOLD, start sampling by pressing Start/Hold (Figure 1). SAMPLE RUNNING
will be displayed. Record the start time. The elapsed sampling time will be shown on the LCD.
4. At the end of the sampling period, press Start/Hold and record the stop time.
5. Seal the sample and send it with blanks and pertinent sampling information to a laboratory for analysis.
6. Verify the flow.
a. Press Start/Hold to turn on the pump and reinstate the calibration train and sampling media.
b. Take three readings and record the average value as the post-sample flow rate. Do not adjust the pump flow rate during this step.
c. Compare the pre and post-sample flow rates. Note in sampling documentation if the values differ by more than ± 5%.
User Options During Sampling
Pause - Pause (shutdown) the pump by pressing Start/Hold. All timing data will freeze. To resume sampling, press Start/Hold;
timing data will resume.
Flow or Baery Fault Shutdown - If the pump is unable to compensate due to excessive back pressure or a low baery
condition exists, the sampler will shut down. HOLD will display on the LCD and timing functions will pause but continue to
display elapsed time. LO BATT or FLOW FAULT will display on the LCD depending on the cause of the shutdown. Fifteen
seconds after flow fault shut down, the pump will aempt to restart up to five times. To restart from flow fault, correct the
blockage and press Start/Hold. If LO BATT is displayed, recharge the baery before sampling.
Thread exhaust port fitting into air
discharge port on pump.

Form 37712 Rev 1702
Page 6 of 14
www.skcinc.com
For low flow, turn regulator
valve screw counterclockwise.

Airflow

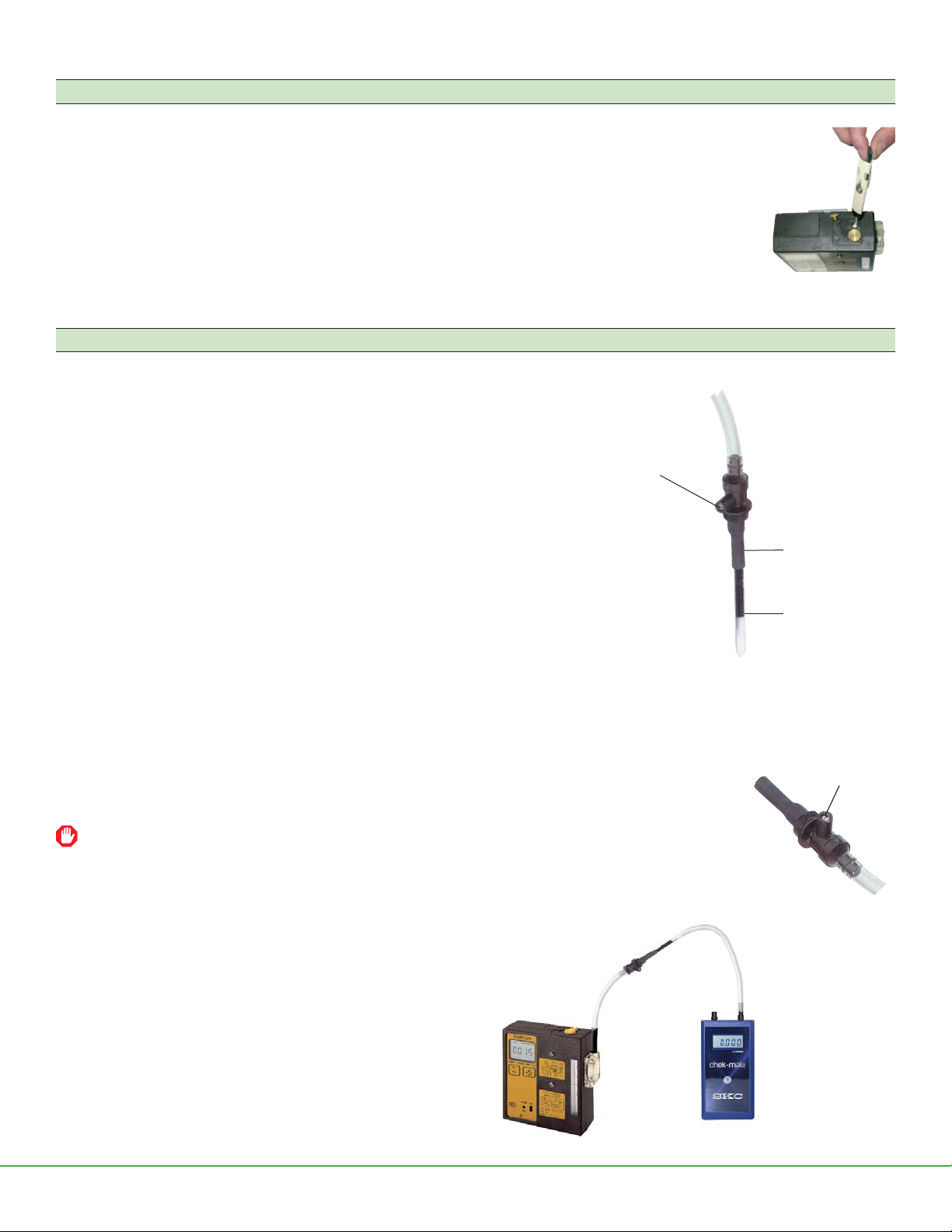

Figure 3. Single Adjustable
Tube Holder with Sample Tube
Low Flow Applications (5 to 500 ml/min)
Activate the Regulator for Low Flow
1. Start the pump using the on/offswitch (Figure 2). Press Start/Hold and then press Flow and Baery Check.
Adjust the flow rate by turning the flow adjustment screw (Figure 2) until the built-in rotameter reads
approximately 1.5 L/min. The LCD should show BATT OK in the upper left corner. If it does not, recharge
the baery. Press Flow and Baery Check to place the pump in Hold.
2. Remove the cap screw covering the regulator valve (Figure 2) and turn the exposed screw four to five turns
counterclockwise.
3. Replace the cap screw. The pump is now set for low flow.
Using Single Adjustable Tube Holder (Figure 3)
Set/Calibrate Flow Rate for Single Tube
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Charge pump battery completely before calibration and sampling.
• Calibrate/verify pump flow rate before and after each sampling operation using the
tube holder and pump to be used for sampling.
1. Ensure that the battery is fully charged and that the pump has run for
five minutes before calibrating. Leave the pump running.
2. Ensure that the regulator has been activated for low flow and the pump flow rate
is set at 1.5 L/min.
3. Connect the single adjustable tube holder to the pump inlet (see calibration train
below) using 1/4-inch Tygon tubing.
4. Insert an opened sorbent tube into the rubber sleeve (Figure 3) of the tube holder
with the arrow on the tube pointing toward the tube holder.
5. Prepare the calibrator. See calibrator instructions.
6. Using flexible tubing, connect the exposed end of the sorbent tube to the calibrator
outlet (suction port). Loosen the brass flow adjust screw (Figure 3) on the tube
holder. Adjust the flow rate by turning the flow adjust screw (counterclockwise
to increase, clockwise to decrease) until the calibrator indicates the desired flow. Take
a minimum of three readings and record the average flow rate, as per OSHA/NIOSH
instructions.
Do not adjust the flow on the pump. Adjust the flow only by using the flow adjust screw
on the tube holder. Observe the flow rate on the calibrator.
7. When calibration is complete, place the pump in hold by pressing Flow and Baery
Check and disconnect the calibration tubing from the sorbent tube. Turn screw to adjust flow.
Flow adjust
screw
Flow adjust
screw
Rubber sleeve
Sorbent tube
Calibration train with tube in tube holder

Form 37712 Rev 1702
Page 7 of 14
www.skcinc.com
Low Flow Applications, Single Tube (Cont)
Set Up/Sample
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Protect sample pump from weather when in use outdoors.
• Powering the pump with any device other than the approved battery pack voids the UL Listing for intrinsic safety.
• Do not use the pump with the Battery Eliminator in hazardous locations. UL Listing for intrinsic safety is not in
effect during pump operation with Battery Eliminator.
• Use of any device other than the approved battery pack or Battery Eliminator to power the pump voids any
warranty.
• Charge pump battery completely before calibration and sampling.
• Calibrate/verify pump flow rate before and after each sampling operation using the tube holder and pump to be used for sampling.
1. Replace the sorbent tube used to set the flow with a new unexposed sorbent tube for sample collection.
2. Place the appropriate size protective tube cover over the tube, and screw it into place on the tube holder.
For personal sampling, clip the tube holder to the worker in the breathing zone. See above right.
3. While the LCD displays HOLD, start sampling by pressing Start/Hold (SAMPLE RUNNING will be displayed) (Figure 2), and record
the start time.
4. At the end of the sampling period, press Start/Hold and record the stop time.
5. Seal the sample and send it with blanks and pertinent sampling information to a laboratory for analysis.
6. Verify the flow.
a. Press Start/Hold to activate the pump and reinstate the calibration train and sampling media.
b. Take three readings and record the average value as the post-sample flow rate. Do not adjust the pump flow rate during this step.
c. Compare the pre and post-sample flow rates. Note in sampling documentation if the values differ by more than ± 5%.
7. To return to high flow, remove the tube holder and deactivate the regulator. See Deactivate the Regulator for High Flow.
Note: See User Options During Sampling under High Flow Applications - Set Up/Sample.
Clip holder to worker and
pump to belt.

Form 37712 Rev 1702
Page 8 of 14
www.skcinc.com
Figure 4. Quad Adjustable Tube Holder
Rubber sleeve
Top view of flow
adjust screws
Connect tube holder to pump inlet
and tube inlet to calibrator outlet.
Low Flow Applications (5 to 500 ml/min)
Using Multiple-tube Adjustable Low Flow Tube Holder (Figure 4)
Activate the Regulator for Low Flow
1. Start the pump using the on/offswitch (Figure 1). Press Start/Hold and then press Flow and Baery Check. Adjust
the flow rate by turning the flow adjustment screw (Figure 1) until the built-in rotameter reads approximately
1.5 L/min. The LCD should show BATT OK in the upper left corner. If it does not, charge the baery. Press Flow
and Baery Check to place the pump in Hold.
2. Remove the cap screw covering the regulator valve (Figure 1) and turn the exposed screw four to five turns
counterclockwise. See right.
3. Replace the cap screw. The pump is now set for low flow.
Set/Calibrate Flow Rate for Multiple Tubes
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Charge pump battery completely before calibration and sampling.
• Calibrate/verify pump flow rate before and after each sampling operation using the tube holder and pump to be used for sampling.
Follow these important steps before proceeding:
1. Ensure that the baery is fully charged and that the pump has run for five minutes before calibrating. Leave pump running.
2. Ensure that the regulator has been activated for low flow and the pump flow rate is set at 1.5 L/min.
3. Calculate the sum of all tube flow rates. The maximum flow rate through any one tube is 500 ml/min.*
a. If the sum is ≤1000 ml/min, set the pump flow rate to 1.5 L/min.
b. If the sum is > 1000 ml/min, multiply that number by 0.15 and total the two numbers. Set the pump flow rate for the resulting
new sum. (Example: Sampling with three sorbent tubes, each with a flow rate of 500 ml/min.* The sum of the tube flow rates is
calculated as 3 x 500 = 1500. Determining a 15% higher flow rate is calculated as 1500 x 0.15 = 225. Calculating the final pump
flow seing would be 1500 + 225 = 1725 ml/min.)
* Back pressure across some sample tubes can be higher than average. In these instances, the maximum flow rate of 500 ml/min may not be achieved.
4. Connect the tube holder (Figure 4) to the pump inlet (Figure 1) using the aached 1/4-inch
Tygon tubing. See right.
5. Insert an opened sorbent tube into each rubber sleeve of the tube holder (Figure 4). Ensure
that the arrow on each tube points toward the tube holder.
If sampling with fewer tubes than number of ports, insert unopened sorbent tubes in the
empty ports to seal them.
For low flow, turn regulator
valve screw counterclockwise.
Flow adjust screws
Protective cover
Anti-tamper cover
Sorbent sample tube
Tube holder outlet

Form 37712 Rev 1702
Page 9 of 14
www.skcinc.com
Low Flow Applications, Multiple Tubes (Cont)
6. Prepare the calibrator. See calibrator instructions.
7. Using flexible tubing, connect the exposed end of the first sorbent tube to the calibrator outlet (suction port). Loosen and turn the brass
flow adjust screw (Figure 4) on the port of the appropriate tube holder (counterclockwise to increase, clockwise to decrease) until
the desired flow rate is achieved. Note:
For tri and quad models, first rotate each anti-tamper cover (Figures 4 and 5) to expose the flow adjust
screws, then adjust the appropriate one until the calibrator indicates the desired flow.
Do not adjust the flow on the pump. Adjust the flow only by using the flow adjust screw on the
tube holder.
Do not exceed 500 ml/min flow rate per tube.
8. Place the pump in Hold by pressing Flow and Baery Check. Disconnect the calibrator from the tube
and connect it to the next sorbent tube. Press Flow and Baery Check and repeat the flow adjustment
process until all tubes are flow-calibrated. Changing the flow on one tube will not affect the flow rate
through the remaining tubes.
9. When the flow rate is set for each tube, press Flow and Baery Check to place the pump in Hold and disconnect the calibrator.
Set Up/Sample
• Allow pump to equilibrate after moving it from one temperature extreme to another.
• Protect sample pump from weather when in use outdoors.
• Powering the pump with any device other than the approved battery pack voids the UL Listing for intrinsic safety.
• Do not use the pump with the Battery Eliminator in hazardous locations. UL Listing for intrinsic safety is not in effect
during pump operation with Battery Eliminator.
• Use of any device other than the approved battery pack or Battery Eliminator to power the pump voids any warranty.
• Charge pump battery completely before calibration and sampling.
• Calibrate/verify pump flow rate before and after each sampling operation using the tube holder and pump to be used
for sampling.
1. Replace the sampling media used for calibration with unexposed media for sample collection. Use protective
tube covers to prevent tube breakage.
2. Place the sampling medium where appropriate for sampling. For personal sampling, clip the tube holder to the worker in the breathing
zone. See above right.
3. While the LCD displays HOLD, start sampling by pressing Start/Hold (SAMPLE RUNNING will be displayed) (Figure 1). Record the
start time. The elapsed sampling time will be displayed on the LCD.
4. At the end of the sampling period, press Start/Hold and record the stop time.
5. Seal the sample(s) and send with blanks and pertinent sampling information to a laboratory for analysis.
6. Verify the flow.
a. Press Start/Hold and reinstate the calibration train and sampling media.
b. Take three readings and record the average value as the post-sample flow rate. Do not adjust the pump flow rate during this step.
c. Compare the pre and post-sample flow rates. Note in sampling documentation if the values differ by more than ± 5%.
7. To return to high flow, remove the tube holder and deactivate the regulator. See Deactivate the Regulator for High Flow.
Note: See user options during sampling under High Flow Applications - Set Up/Sample.
Clip holder to worker
and pump to belt.
Screw Screw
Figure 5
Cut-away of Tri/Quad
Tube Holder

Form 37712 Rev 1702
Page 10 of 14
www.skcinc.com
Maintenance
Clean the Pump Inlet Filter
The PCXR4 Universal Sample Pump is fitted with a filter/trap inside a clear plastic inlet port housing. This prevents particles from being
drawn into the pump mechanism. Visually check the filter to ensure that it does not become clogged. If maintenance is necessary, follow
this procedure:
1. Clean dust and debris from around the filter housing.
2. Remove the four screws and the front filter housing.
3. Remove the O-ring.
4. Remove and discard the filter membrane.
5. Clean the filter housing.
6. Insert a new filter membrane and the O-ring.* See Replacement Parts.
7. Reaach the front filter housing and cross-tighten the four screws.
* Replace with new O-ring only as needed.
Maintain the Battery Pack
For proper maintenance of battery packs, SKC offers chargers (see Accessories) that condition the battery for optimum performance in
6 to 8.5 hours. For optimum charge, ensure pump is not running during charging. Follow charger instructions.
Fully charge packs before use. See Charge the Battery Pack. For more information on SKC pump batteries, visit http://www.skcinc.com/
instructions/1756.pdf.
To comply with intrinsic safety regulations, battery packs should not be charged in hazardous locations.
Ensure proper orientation of charging cable before plugging it into the charging jack. Improper orientation/contact will short-circuit the
battery and voids any warranty.
Short-circuiting the battery pack will render it immediately inoperative.
Replace the Battery Pack
See Install the Battery Pack.
Notes and Cautions
• Use of a repaired or rebuilt battery pack voids any warranty and the UL Listing for intrinsic safety.
• Use only SKC-approved charger and battery pack designed for the Universal Sample Pump to ensure reliable performance. Failure to do so voids
any warranty and UL Listing for intrinsic safety.
• Use of any device other than the approved battery pack to power the pump voids the UL Listing for intrinsic safety and any warranty.
For more information on SKC pump batteries, visit http://www.skcinc.com/instructions/1756.pdf.
Pump Service
Pumps under warranty should be sent to SKC Inc. for servicing. See Limited Warranty and Return Policy.
Close-up of
inlet filter housing
Filter membrane
Screw (4)
O-ring
Inlet

Form 37712 Rev 1702
Page 11 of 14
www.skcinc.com
Protective
Nylon Pouch
Accessories/Replacement Parts
Accessories Cat. No.
check-mate Calibrator, 0.75 to 5 L/min, includes 9-volt alkaline battery and NIST-traceable calibration certificate 375-07550N
Low Flow (5 to 500 ml/min) applications
Adjustable Tube Holders
Single 224-26-01
Dual 224-26-02
Tri 224-26-03
Quad 224-26-04
Protective Sample Tube Covers
A - 70 mm, standard charcoal 224-29A
B - 110 mm, large charcoal 224-29B
C - 150 mm 224-29C
D - 220 mm 224-29D
Battery Maintenance
PowerFlex Charging System for SKC Personal Pumps
5 Stations, 100-240 V 223-1000
Single, 100-240 V 223-2000
PowerFlex Pump Cable, for Universal XR models 223-1002
Battery Eliminator,* connects pump to line power for extended sampling
115 V
230 V
223-325
223-325B
Pump Accessories
Screwdriver Set, included with pump 224-11
Protective Nylon Pouch with belt and shoulder strap
Black 224-87
Red 224-95A
* Not UL Listed for intrinsic safety
SKC Limited Warranty and Return Policy
SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive
remedy. To view the complete SKC Limited Warranty and Return Policy, go to hp://www.skcinc.com/warranty.asp.

Form 37712 Rev 1702
Page 12 of 14
www.skcinc.com
Accessories/Replacement Parts (Cont)
Replacement Parts
Pump Case Parts
P21411 Case Parts, excluding Battery Case
P21661MH Battery Pack Assembly, NiMH
P22417BC Belt Clip with screws
P22433N Keyboard Assembly
P22433U Control Board
P22433R Cap Screws, set of 2
P22433RS2 Replacement Stack, does not include flowmeter and filter housing assemblies or motor
P22417C Exhaust Port Fitting
Pump Stack Parts
P22417D Filter Housing Assembly
P22417E Pressure Switch Assembly
P22417F Valve Plate Assembly
P22417G Pump Body
P22417HC Diaphragm/Yoke Assembly
P22417J Regulator Assembly
P22417K Pulsation Dampener Assembly (2)
P22433L Flowmeter Assembly
Parts Not Shown in Illustration
P22433C Tamper-resistant Cover
P22433ES External Screw Kit
P72392 LCD
P22417M Motor/Eccentric Assembly
P5187 Foam Cover for control board, pk/5
Replacement Filters
P22409 Replacement Filter Set, 3 filters/3 O-rings
P2240901 Filters only, pk/10
P2240902 Filter/O-ring Set, 100 filters/10 O-rings
Pump Case Parts
Pump Stack (Cat. No. P22433RS2) Exploded
P22433R
P2243001
P22417BC
P21661MH
P22433U
P21411
P21411
P22433L
P22433RS2
(
does not include
flowmeter and
filter housing
assemblies or
motor )
P22433RS2
(
does not include
flowmeter and
filter housing
assemblies or
motor )
P22417F
P22417E
P22417HC
P22417G
P22417K
P22417J
P22417D
P22417C

Form 37712 Rev 1702
Page 13 of 14
www.skcinc.com
Appendix
Performance Profile
Flow Range 1000 to 5000 ml/min (UL Listed) (5 to 500 ml/min requires adjustable low flow holder)
Weight 34 oz (964 grams)
Dimensions 5.1 x 4.7 x 1.9 in (13 x 11.9 x 4.8 cm)
Compensation Range 1000 to 2500 ml/min at 40 inches water back pressure
3000 ml/min at 35 inches water back pressure
4000 ml/min at 20 inches water back pressure
5000 ml/min at 10 inches water back pressure
Typical Back Pressure of
Sampling Media (inches
water)
Flow Rate (L/min) 1 1.5 2 2.5
Filter/Pore Size (μm)
25-mm MCE/0.8 6 9 12 15
25-mm MCE/0.45 14 22 28 35
37-mm MCE/0.8 2 3 4 5
37-mm PVC/5.0 1 1 2 2
Compare the information in this table to pump compensation range to determine appropriate applications.
Flow Control Holds constant flow to ± 5% of the set point
Run Time NiMH Battery: 12 hrs minimum at 4000 ml/min and 20 inches water back pressure; dependent on
media used. See Table 1.
Battery Eliminator: Pump provides extended runs.
Flow Indicator Built-in rotameter with 250-ml division; scale marked at 1, 2, 3, 4, and 5 L/min
Power Supply 6.0-V plug-in NiMH battery pack, rechargeable, 3.5-Ah capacity
A Battery Eliminator is available (see Accessories); use voids the UL Listing for intrinsic safety.
Charging Time
(varies with capacity and
level of discharge)
6 to 8.5 hrs with PowerFlex charger
Intrinsic Safety UL Listed for: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G;
and Class III, Temperature Code T3C
ATEX-approved models available. Contact SKC.
Operating Temperature 32 to 104 F (0 to 40 C)
Storage Temperature -4 to 113 F (-20 to 45 C)
Charging Temperature 50 to 113 F (10 to 45 C)
Operating Humidity 0 to 95% non-condensing
Protect sample pump from weather when in use outdoors.
Multiple-tube Sampling Built-in constant pressure regulator allows user to take up to four simultaneous tube samples at
different flow rates up to 500 ml/min each using optional adjustable tube holder.
RFI/EMI Shielding Complies with requirements of EN 55022, FCC Part 15 Class B, EN 50082-1; frequency range of the
radiated susceptibility test was 27 to 1000 MHz
Tubing Requires 1/4-inch ID tubing
Flow Fault If the pump is unable to compensate for longer than 15 seconds due to excessive back pressure,
the pump enters flow fault. During flow fault, the pump stops, displays FLOW FAULT, pauses timing
functions, and displays elapsed time. Auto-restart is attempted up to five times.
Low Battery Fault Pump stops, displays LO BATT, pauses timing functions, and displays elapsed time.
Battery Test LCD shows battery condition prior to sampling.
Time Display LCD displays up to 9999 minutes (6.8 days) at which point the display rolls over to 0.
Timing Accuracy ± 0.05% (± 45 seconds per day)
Sampling Pause (Hold) Allows user to temporarily halt sampling without loss of timing data. Restart does not require
resetting time.
Certifications • UL Listed
• CE marked
• ATEX-approved models available

Form 37712 Rev 1702
Page 14 of 14
www.skcinc.com
Note: Increases in back pressure during sampling due to buildup of sample on the filter can decrease baery life.
Mixed Cellulose Ester (MCE) filter, 0.8-μm pore size
Flow Rate (L/min)
Filter Diameter
37 mm 25 mm
23733
2.5 34 26
33121
3.5 29 18
42515
4.5 20 14
Polyvinyl Chloride (PVC) filter, 5.0-μm pore size
Flow Rate (L/min)
Filter Diameter
37 mm 25 mm
24741
2.5 38 33
33530
3.5 26 27
42225
4.5 21 23
Table 1. Pump Run Time in Hours with NiMH Battery
Appendix (Cont)
Typical Run Times
Table 1 contains the typical run times achieved when using a fully charged nickel-metal hydride (NiMH) baery pack. Data is sorted
by type of sample media. All run times are listed in hours. Results obtained using a new pump and new fully charged baery. Pump
performance may vary.
