SKG A10 User manual

WIDE CHUTE SLOW
MASTICATING JUICER
INSTRUCTIONMANUAL
www.skgelectric.com
ModelA10
210.00 mm

Table of Contents
Product Part Name...............................................................................................................01
Accessory Description.........................................................................................................02
Product Specifications.........................................................................................02
Circuit Principle.....................................................................................................02
Instructions...........................................................................................................03
...............................................................................................03Safety Precautions
Assembling Method.............................................................................................05
Method of Usage..................................................................................................08
Disassembling Method........................................................................................09
Cleaning and Maintenance.................................................................................10
g.....................................................................11Exception Analysis and Handlin
●Thank you for your purchase. Please read the instruction book carefully before
using this product, and please use the machine according to the instruction book.
Please properly retained for reference because the continuous improvement of
products is subject to change without notice.
●The picture diagram only and could be similar to the product.
●The product is applicable to family use, and it is inapplicable to commercial use,
otherwise, the service life of the product becomes shorter.

Model Rated Voltage 120V~
A10
60Hz
250W
Rated Frequency
Rated Power
01
Product Part Name Accessory Description
Prouduct Specifications
Circuit Principle
Remark: The actual product may a little different to the illustration.
Name
Cup
Cleaning Brush
Instructions
Quantity
2
1
1
Name
Pusher
Juice Cap
Juice Strainer
Quantity
1
1
02
2
Switch
Body
Juice Cup
Pusher
Turnover Cap
Plate Hopper
Juicing Screw
Juice Strainer
Juice Outlet
Pulp Outlet
Juicing Bowl
Pulp Cup
Secondary
Filter Screen
Juice Cap
black
black
Magnetic switch
FU
Switch Start
(forward/reverse)
Juicer motor
M
L
N
Live wire
Neutral wire
PLUG
AC120V/60Hz

●Non-grinding juicing method featured by slow squeezing is adopted for the
product, so the natural flavor and nutrient elements of fruits and vegetables are
well retained. The product has multiple functions, including making vegetable
juice and fruit juice etc.
●The juice container can separate with the mainframe, and it is convenient for
cleaning.
●Dual-switch design makes the product safer(make the juice container installed
onto the mainframe; apply the juicer cap of squeezing body, and then turn on the
switch to make the product run).
Product Features
●In order to ensure the safety use of this product, avoiding any harm or property
damage to you or others, you must observe the following safety precautions; if
you fail to comply with the safety warnings and use the machine improperly, you
may cause accidents.
●This product does not take the following situations into consideration: when it is
used by unattended young children and disabled persons, or played by young
children.
The continuous time to use this product should be controlled within 20 minutes.
This product is strictly prohibited from running without load or overload.
When the product is working, do not move it or touch any moving parts in case of
accidental injuries.
The power wire is not allowed to be hung on sharp objects and cannot be
attached to movable objects.
Do not use this product on sloping or unstable surfaces.
All parts are strictly prohibited to be heated at high temperatures in a sterilizer or
oven. Please do not clean each part with the water over 40℃.
It is prohibited to put vegetables and fruits into the inlet with fingers, spoons,
chopsticks and so on; Only the pushing bar can be used to push the vegetables
and fruits into the inlet.
If the plug or other parts are damaged, do not use the product. Please go to the
designated repair site and ask professionals to replace or repair in case of
possible damages.
Please ensure that the power is cut before cleaning and dismounting the
product.
If the power wire is damaged, it must be replaced by professionals from its
manufacturer, maintenance department or similar department to avoid the risk of
danger.
Please do not use attachments or fittings not attached with this product so as to
avoid fire and personal injuries.
Please do not use this product unattended.
For safety’s sake, before use, please make sure that the voltage is consistent
with that of this product (120V~, 60Hz), so as not to cause danger and damages.
After use, please clean where the food is placed in case that the residues may
emit bad smell if the product is not used for a long time.
If the rotating strainer is damaged, please do not use it. After use, please unplug
the power wire and clean the product in time.
When the product cannot be started, please refer to the “Exception analysis and
handling” guidance on the back page. If the product still cannot be started, send
it to the designated repair site of our company for repair, and please do not
disassemble yourself.
This product is not suitable for crushing hard food such as cereals, ice cubes,
crystal sugar, sugar cane, nuts and so on (which is easily to jam the machine and
cause mechanical failures ).
Do not use or store this product near any heating appliances.
Please do not put anything into this product except for normal foods.
Icon Meanings:
The content of
【Prohibition】
The content of
【Compulsion】
Items associated with
minor injuries or losses.
Items associated
with casualties
This product is only used for families and is prohibited for commercial use.
Please do not allow children to use it themselves, ensure that this product will
not be treated as a toy, and keep it out of the reach of babies. Elderly or
handicapped persons, as well as those without any experience to use this
product, should use it under supervision and guidance.
03 04
Instructions
Safety Precautions

1.Before installing the juice cup assembly, please ensure that the sealing ring of
the pulp outlet has been installed correctly on the base of bowl.
① Please insert the sealing ring of the pulp outlet into the rectangular narrow hole.
② Make sure the sealing ring plugs up the hole tightly.
05 06
Squeezing
rubber pad
① ②
2.Install the bowl on the main body.
Please insert it into the fixed point of
the main body.
When installing the bowl downwards,
the sign “▼”on it and “▲”on the main
body should be kept in line.
4.Connect the auger to the fine strainer.
With the small head of fine strainer
upwards, insert the auger and turn
clockwise until you hear sound of
“click”.
Assembling Method
5.Then insert the bottom of the
assembled auger into the hole of the
bowl.
6.Install the plate hopper.
When installing the plate hopper, the
unlocking label and “▲”on it should be
kept in line.
Then rotate it to make sure that the
locking pattern keeps in alignment with
the “▲”.
7.Place two cups. One is used to
contain juice and the other is used to
contain pulp. And put a filter into the
juice cup to separate the foam and pulp.
3.Assembling method of the juice cap
The juice cap is packaged separately.
Before use, align the bayonet of the
juice cap with the fixed columns on
the juice outlet and gently snap in.

08
8.How to use the Material Inlet:
Put the fruit of suitable size in the Material Inlet, and then turn the turnover cap,
the fruit will fall into the Squeezing Tank, as shown in Figure ① and
Figure ②.
How to use small Material Inlet: Irregular fruit and vegetables or fruit and
vegetables that are much more harder should be firstly cut into small strips and
then put them into the small Material Inlet, as shown in Figure③ .
① ②
07
1.Turn on the switch (Forward)
Forward: push down fruits and vegetables for juicing.
Reverse: fruits and vegetables up return, to avoid stuck phenomenon occurs
when it is working.
Warning:
1) Do not touch the switch with wet hands.
2) Prohibit idling before putting fruits and vegetables.
2. Put the clean fruits and vegetables (size of fruits and vegetables should be cut
into appropriate size) into the inlet, push with the pusher.
Warning：
1) Please choose the fresh fruits and vegetables.
2) Fruits and vegetables stored in the refrigerator for a long time should soak in
cold water for 10 minutes before use.
3) Fruits with hardcore nucleus must be removed.
Method of Usage
Assembling Method
Pusher
Inlet
③

3. If the machine shutdowns suddenly when it is running, press the “OFF” button
first and then press the “REVERSE” button. To make the food in the squeezing
screw can up release and then press the “FORWARD” button (Repeated 3 times).
When the machine is in reverse, gently press the lid with your hand(to prevent the
lid loose).
If the machine still not work, disassembling the machine and then wash before
use. Please be sure to cut the food into thin strips like carrots and other hard
materials, otherwise it may cause stuck, and even damage to the product (stuck
and mechanical failure).
Step1: Power off the machine, unplug the power
cord.
Attention: When finished juicing, please press the
button of "REVERS'' for easy to cleaning.
Step2: Catch hopper in one hand and the other
one in the bowl and counterclockwise rotate, then
it can be isolated.
Step3: Catch the juice mouth of the bowl and
counterclockwise rotate then it can be isolated.
Step1-2
Step3
Step4: Take out the squeezing screw, fine strainer.
Step5: Disperse the auger, rotation squeezing screw and fine strainer.
Step4 Step5
10
09
4.Click the “OFF” button and unplug the power after juicing.
Warning：
1) Please drink the juice immediately.
2) Must not apply to crush grain, sugar cane and hard fruit (easily cause motor
stuck and mechanical failure).
Cleaning
1.Wash the disassembled parts with flowing water, if the meshes are blocked up
by dreg, please use the cleaning brush for the cleaning.
Attention：
Please do not use the iron wire brush, abrading or sharp cleaning tool for the
cleaning.
Disassembling Method
Cleaning and Maintenance

2. Do not make the mainframe put into water for
cleaning and be sure to use wrung soft cloth to
clean it.
3. After cleaning, please dry the cleaned parts and
store them in a clean and ventilating place.
Attention：
① Please wash the machine in time after use,
otherwise the dreg will attach to the container,
which will affect the assembly and cleaning, and
even result in performance reduction.
② The rubber pad at the bottom of the machine
can be washed.
11
Maintenance
1. This product should be regularly used so as to keep the motor dry.
2. If the product is not used for a long time, please keep it in a dry and ventilated
place in case that the motor gets damp and mildewed.
12

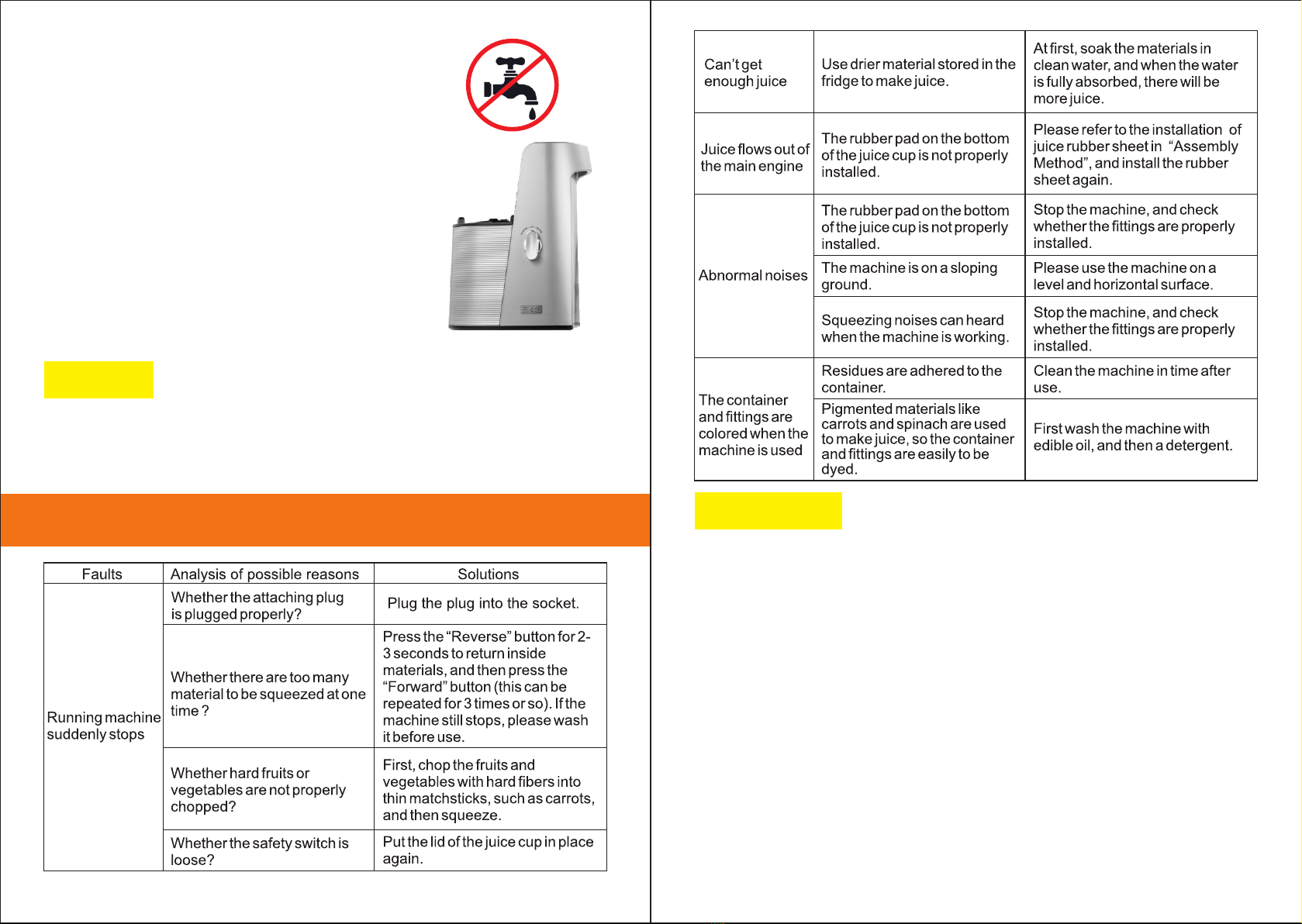

Exception handling
●Please immediately cut off the power and stop using the machine if any of the
following exceptions occurs: abnormal noise, smell, smoke and so on.
●If the machine does not work: please check whether the power is properly
connected, whether the switch is on, and whether the lid of the juice cup is
installed in place.
●If the machine still doesn’t work after the above inspections, please go to the
designated repair center for maintenance and consultation.
Exception Analysis and Handling
