SKG 4098 User manual

1
Smart Neck Massager
Model: 4098, 4098(RED), 4353
User Manal
Document No.: 4098-IFU-001
Version: A0

2
Content
1. PRODUCT INFORMATION..............................................................................................................3
2. LIST OF ACCESSORIES AND DETACHABLE PARTS ............................................................3
3. PRODUCT DIAGRAM ........................................................................................................................4
4. OPERATION METHOD .....................................................................................................................6
5. SAFETY PRECAUTIONS...................................................................................................................9
6. FEATURES.......................................................................................................................................... 18
7. CLEANING, MAINTENANCE AND DISPOSAL...................................................................... 18
8. TECHNICAL PARAMETERS AND SPECIFICATIONS......................................................... 19
9. TROUBLESHOOTING..................................................................................................................... 20
10. SYMBOLS AND SAFETY SIGN ................................................................................................ 23
11. EMC GUIDANCE........................................................................................................................... 24
12. USER WARRANTY CERTIFICATE ........................................................................................ 28
13. CONTACT INFORMATION....................................................................................................... 29

3
Smart Neck Massager
(Model: 4098, 4098 (RED), 4353)
1. PRODUCT INFORMATION
Intended use: this Smart Neck Massager has 3 kinds of electric pulse mode, 15
gear electric pulse force, electrical stimulation in the neck to relieve neck pain. It
can also provide a constant temperature of 37oC to 43oC to relieve neck
discomfort.
Frequently used functions: it is suitable for the adjuvant treatment of cervical pain,
numbness, headache and dizziness caused by cervical spondylosis.
Applicable range: Fully charged state can promote local blood circulation, relax
local muscles, achieve anti-inflammatory, swelling, analgesia, fatigue elimination.
The Smart Neck Massager adopts a streamlined ring-shaped therapeutic device
conforming to the physiological curvature of the human cervical vertebra, which
is mainly composed of a host (ring type), a conductive skin electrode {conductive
plate), a hot moxibustion device, and adopts low frequency electrotherapy,
magnetic effect, enthalpy, and circular traction. Four-in-one synchronous multi-
channel therapy magnet, remote control and USB cable.
The main structure and components of the product are shown in the following
figure in chapter 3, A composite energy field is formed, which reaches the deep
tissue and the pelvis of the body. Throughout the treatment process, the
performance of the correct physiological posture posture has always provided a
platform for the correct treatment of cervical spondylosis. Let your home's easy
and enjoyable multi-functional system treatment, so that you can enjoy more
value!
2. LIST OF ACCESSORIES AND DETACHABLE PARTS
Smart Neck Massager (host, Model:4098(or 4098 (RED), or 4353));
User manual (including the warranty card);
Remote control;
Conforming Certificate;
Button battery (for remote control, CR2032);
USB cable

4
Note: Model 4098 (RED), Model 4353 and Model 4098 are the identical except
for the colour of enclosure.

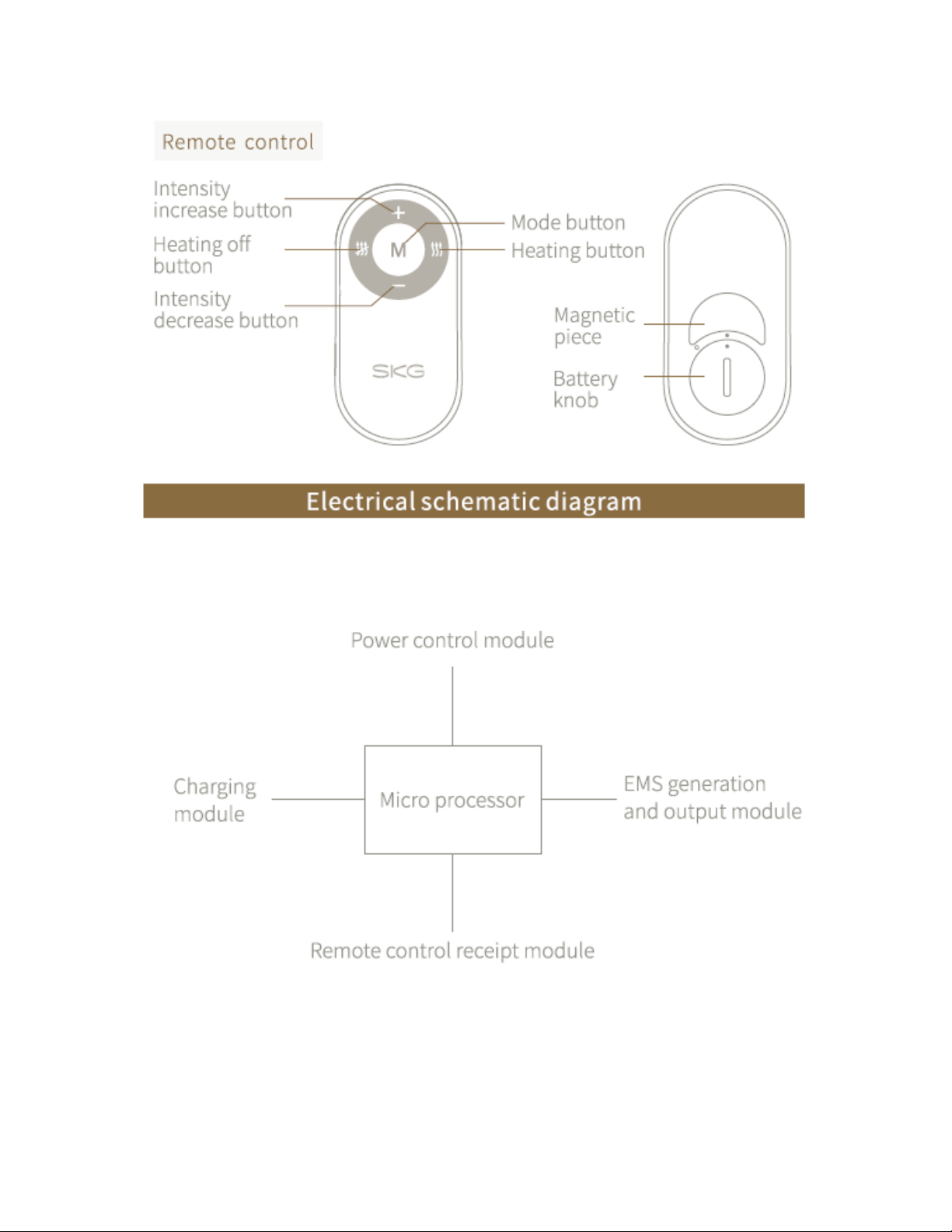

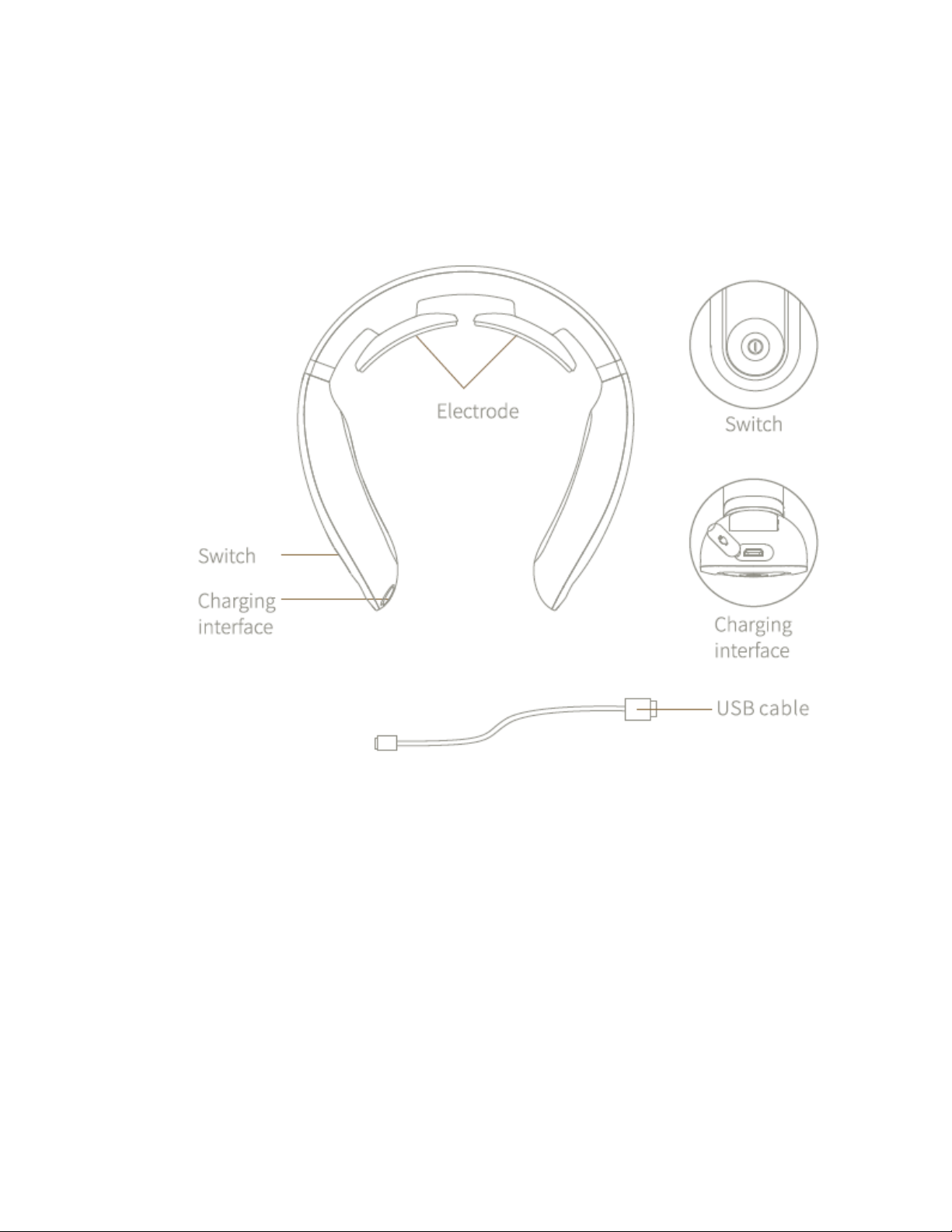

3. PRODUCT DIAGRAM

5

6

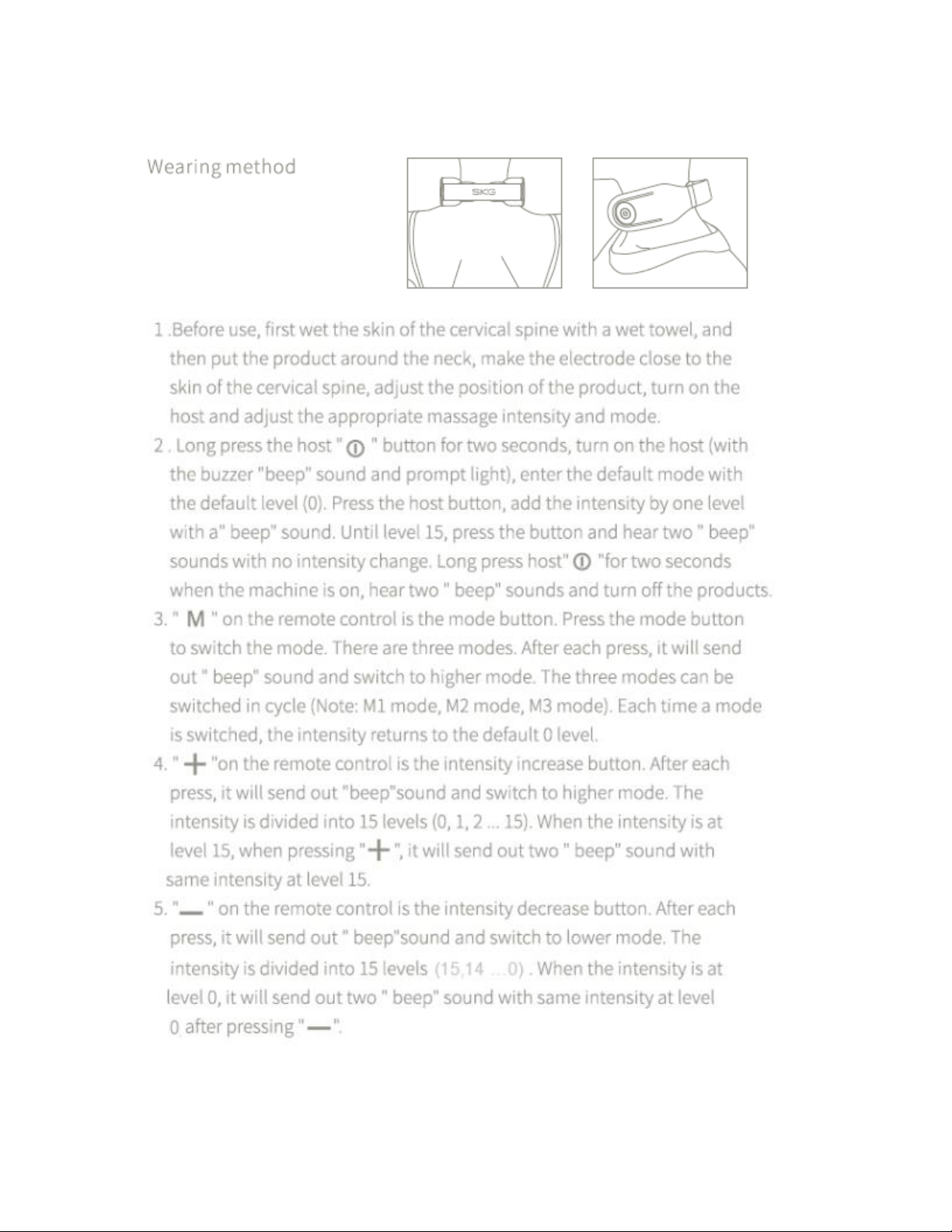

4. OPERATION METHOD

7

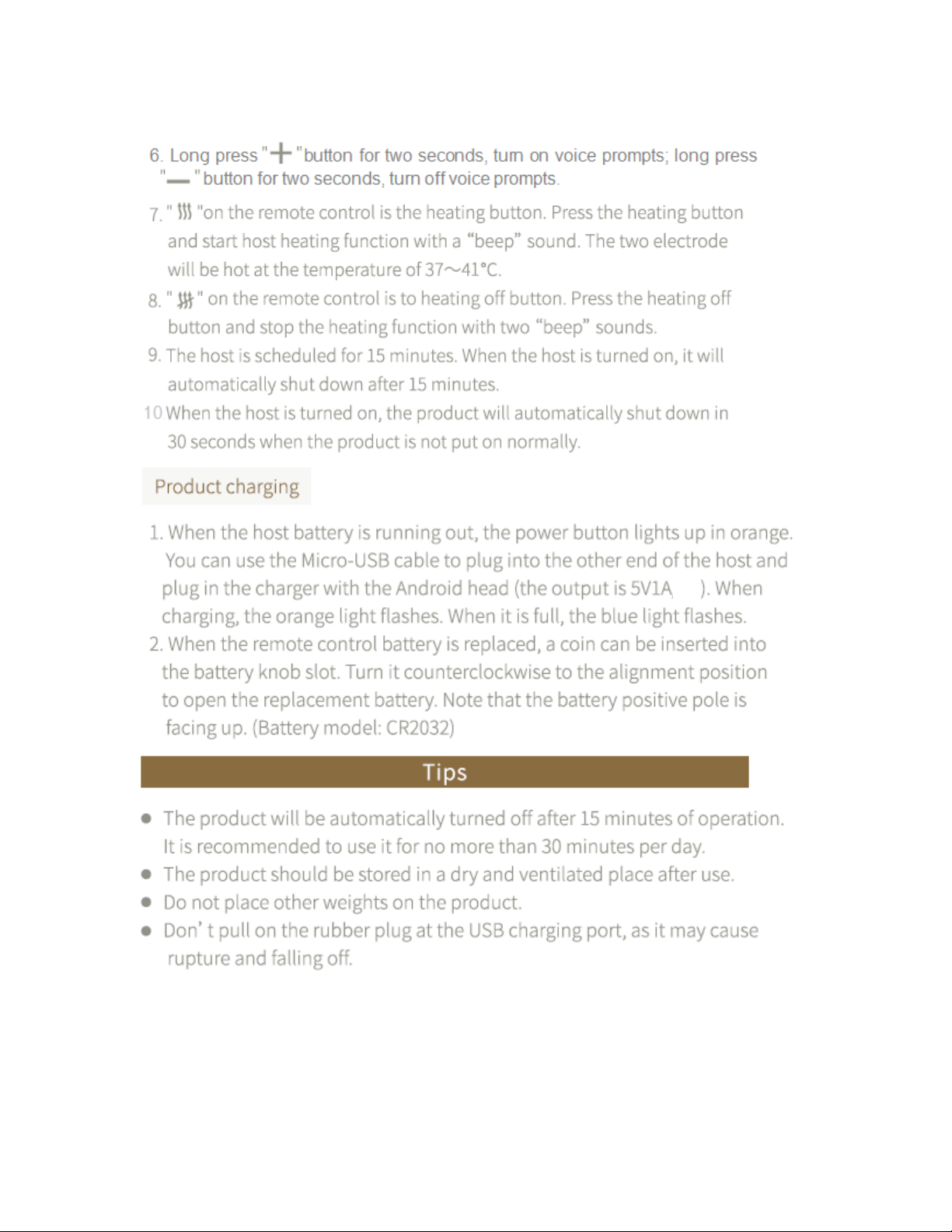

At least 30 min required for ME equipment to warm from the minimum
storage temperature between uses until it is ready for intended use. At least
30 min required for ME equipment to cool from the maximum storage
temperature between uses until it is ready for intended use.
Recommended adapter specifications

8
- Output: DC 5 V; 1 A
- Rated input voltage shall not exceed 250 V
- Classification of protection against electric shock: Class II
- The adapter need to comply with IEC 60601-1, and provide 2 MOPP (two
means of patient protection) between primary circuit and secondary circuit.
Lithium Battery
Rechargeable Lithium Battery for Massager:
1) During the use of the therapy device, when the beep is “spit” for 3 consecutive
times, it means that the built-in lithium battery is low, you can use the adapter to
charge, put the toggle switch to “charge position, the power indicator flashes
green. When the battery is fully charged, the power indicator indicates that the
green light is always on, and it takes about 3 - 4 hours to fully charge.
2) It can be used for 5 - 7 days after full charge (30 minutes every 4 days).
3) Under normal use, the life of the rechargeable battery is > 500 charge and
discharge, it can be used for about 2 - 3 years (by 30 minutes per day).
4) When the rechargeable battery is not used for a long time, the life of the
rechargeable battery will be shortened. It is recommended to charge the battery
at least once a month.
5) The rechargeable battery can only be replaced by a service person. Internally
Lithium battery, DC 3.7 V, 1500 mAh. (Manufacture: Shenzhen EPT Battery Co.,
Ltd, Model:103048PH)
Battery for Remote Control:
1) The remote control uses the “CR2032” button battery (Lithium battery, DC 3 V,
the battery need to comply with IEC 60086-4), which can be used for about 60
days. (by 30 minutes per day).
2) When the button is not working, it indicates that the battery is low. Please
replace it with a new one.
3) When not using the product for a long time, remove the battery. Otherwise, it
may cause the battery to leak and cause the machine to malfunction.
4) Do not use the machine in an environment exceeding 40oC, otherwise it will
affect the performance and life of the battery.
Warning:
Do not use batteries other than the specified type. Incorrect replacement of
lithium batteries would result in an unacceptable risk.

9

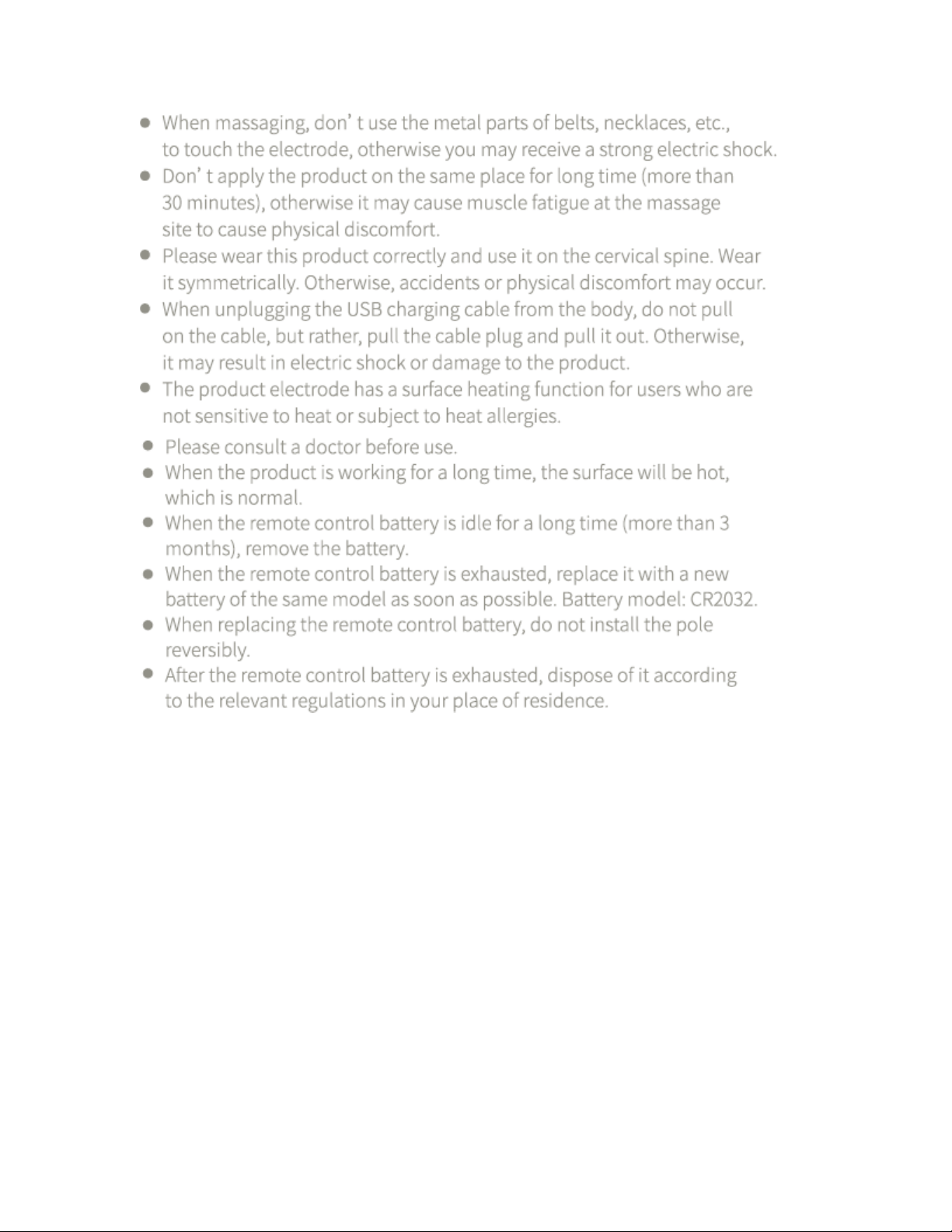

5. SAFETY PRECAUTIONS
5.1 Precautions
The warning signs, warnings, and illustrations shown in this manual are intended
to enable you to use the product safely and correctly and to prevent injury to you
and others.

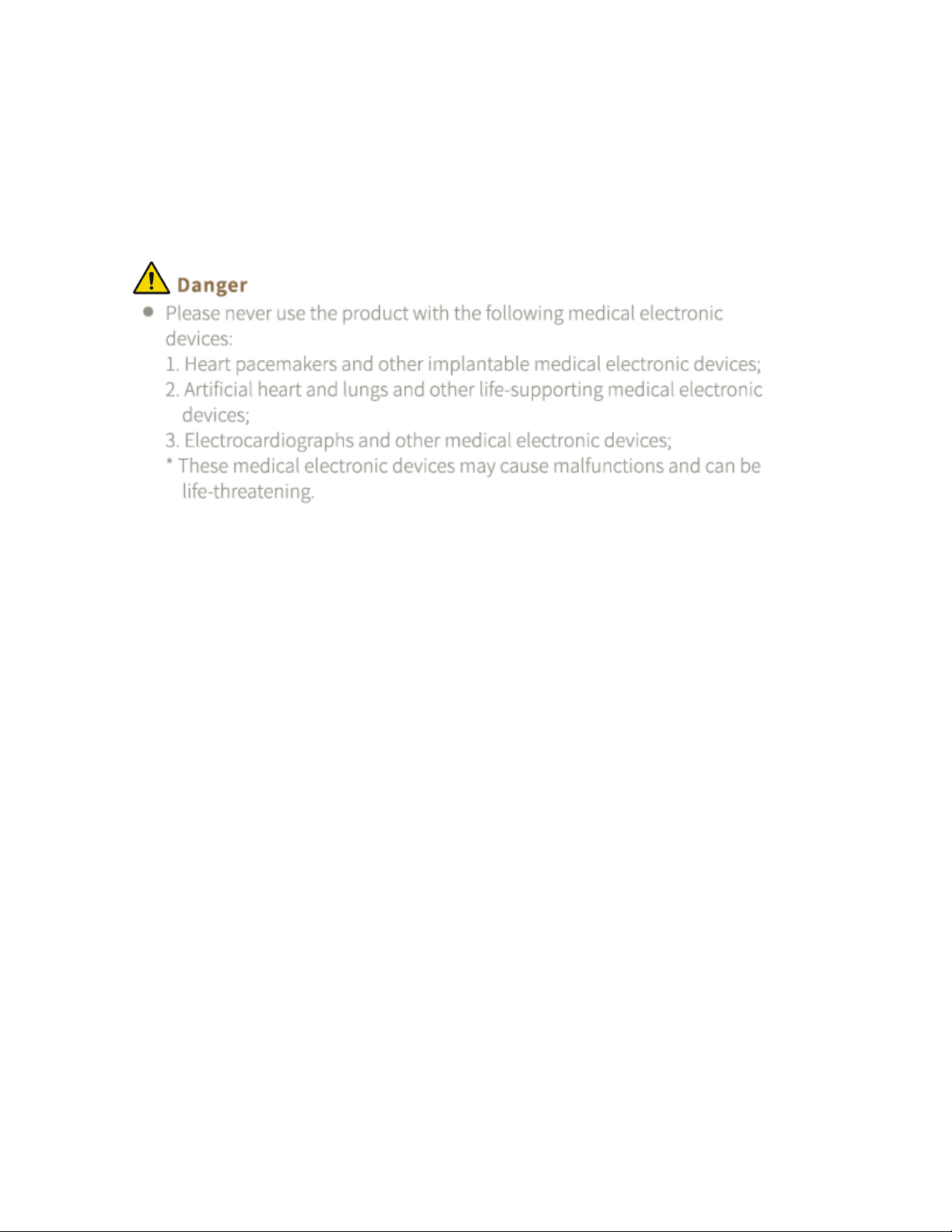

The device can’t be used with other medical electronic instruments, such as
cardiac arresters, artificial heart and lungs, medical electronic devices such
as medical electronic devices, electrocardiographs, etc., otherwise it will
cause danger.
Women with menstrual period, sensitive skin, heart disease, abnormal blood
pressure, sub-sexual drip, cerebrovascular patients, acute patients or other
doctors who are being treated by a doctor must consult a doctor before using
this product.
Do not use it for children or people who do not have the ability to express
themselves.
It is forbidden to use when bathing, sweating or sleeping.
Patients with skin sensory impairment or those who are not sensitive to heat
are prohibited from using it.
Do not use this product in places with high heat, flammable, electromagnetic
radiation or humidity.
Do not use this product beyond the scope.

10

11
Do not applied the stimulation across or through the head, directly on the
eyes, covering the mouth, on the front of the neck, (especially the carotid
sinus) or from electrodes placed on the chest and the upper back or crossing
over the heart, etc.
Be careful to strangulation due to cables and hoses, particularly due to
excessive length.
Do not posit the adapter to make it difficult to operate the power plug which
uses to isolate the equipment circuits electrically form the supply mains.
Please use accessories and detachable parts specified or authorized by
manufacture. Otherwise, it may cause damage to the unit or danger to the
user or patients.
Don’t connect this equipment to other equipment not described in the
instructions for use.

12

13
If cause allergic reactions due to the use of this product, or the performance
of ME equipment has changed, stop using it immediately and consult a
doctor.
The patient is an intended operator. The patient can perform electronic
treatment, change battery of remote control and charging the rechargeable
battery under normal circumstances. The patient can clean and maintain the
device and its accessories according to the user manual when the device not
in use.

14
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

15
Keep out of reach of children

16
5.2 Product and component recycling instructions

17
5.3 Precaution of scrapped product

18
6. FEATURES
According to ergonomic design, aesthetic science, in line with neck curve,
with hot moxibustion, low frequency electric pulse, electromagnetic effect,
circular traction, four-in-one synchronous treatment to form a high using the
latest 3D smart fit technology, according to your neck. The curve is easy to
adjust the electrode for more comfortable use;
It can be used for ventilation, phlegm and dampness, and adopts low
temperature and high temperature second gear, which can be selected
according to its own needs and ambient temperature;
2 kinds of automatic combination therapy mode, 4 kinds of manual treatment
modes, can be selected according to different needs, applicable to a wider
range of people; using remote control operation, simple operation, clear and
clear, more humane.
7. CLEANING, MAINTENANCE AND DISPOSAL
7.1 Cleaning and maintenance
After each use, please clean the electrode. But don’t clean and maintain the
ME equipment and accessories while the ME equipment in use.
7.2 Disposal
In order to avoid environmental pollution, when this product and accessories are
aging and cannot be used, please do not discard them at random. Dispose of
them according to local environmental protection requirements.

19
8. TECHNICAL PARAMETERS AND SPECIFICATIONS
8.1 Product specifications
Model
4098
Product No.
30152
Item Code
1105050001
Rated Voltage
5V ⎓
Rated Power
5W
Battery
Capacity
1500mAh
Executive
Standard
IEC60601-1:2012
Model
4098(RED)
Product No.
34167
Item Code
1105070004
Rated Voltage
5V ⎓
Rated Power
5W
Battery
Capacity
1500mAh
Executive
Standard
IEC60601-1:2012
Model
4353
Product No.
34174
Item Code
1105070005
Rated Voltage
5V ⎓
Rated Power
5W
Battery
Capacity
1500mAh
Executive
Standard
IEC60601-1:2012

20
8.2 Technical parameters
Rated load resistance: 500 Ω
Mode
Rated pulse
duration (µs)
Rated pulse repetition
frequencies (Hz)
Maximum amplitude
of output voltage (V)
1
40 ‒ 130
12 ‒ 67
62
2
74 ‒ 120
10
62
3
70 ‒ 138
33
62
Output Waveform: see table above
DC component: none
Single pulses energy: <10 mJ (@ 1000 Ω)
Output r.m.s: <10 mA or 10 mV (@ 500 Ω)
No-load output: <500 V peak
Adjustment of output amplitude: continuous uniformity, minimum output is not
more than 2% of maximum output.
Surface magnetic field strength: ≥ 0.01T
Heart therapy temperature: 37oC ~ 43oC
Manufacturer will provide circuit diagrams, component part lists, descriptions,
calibration instructions to assist to service personnel in parts repair.

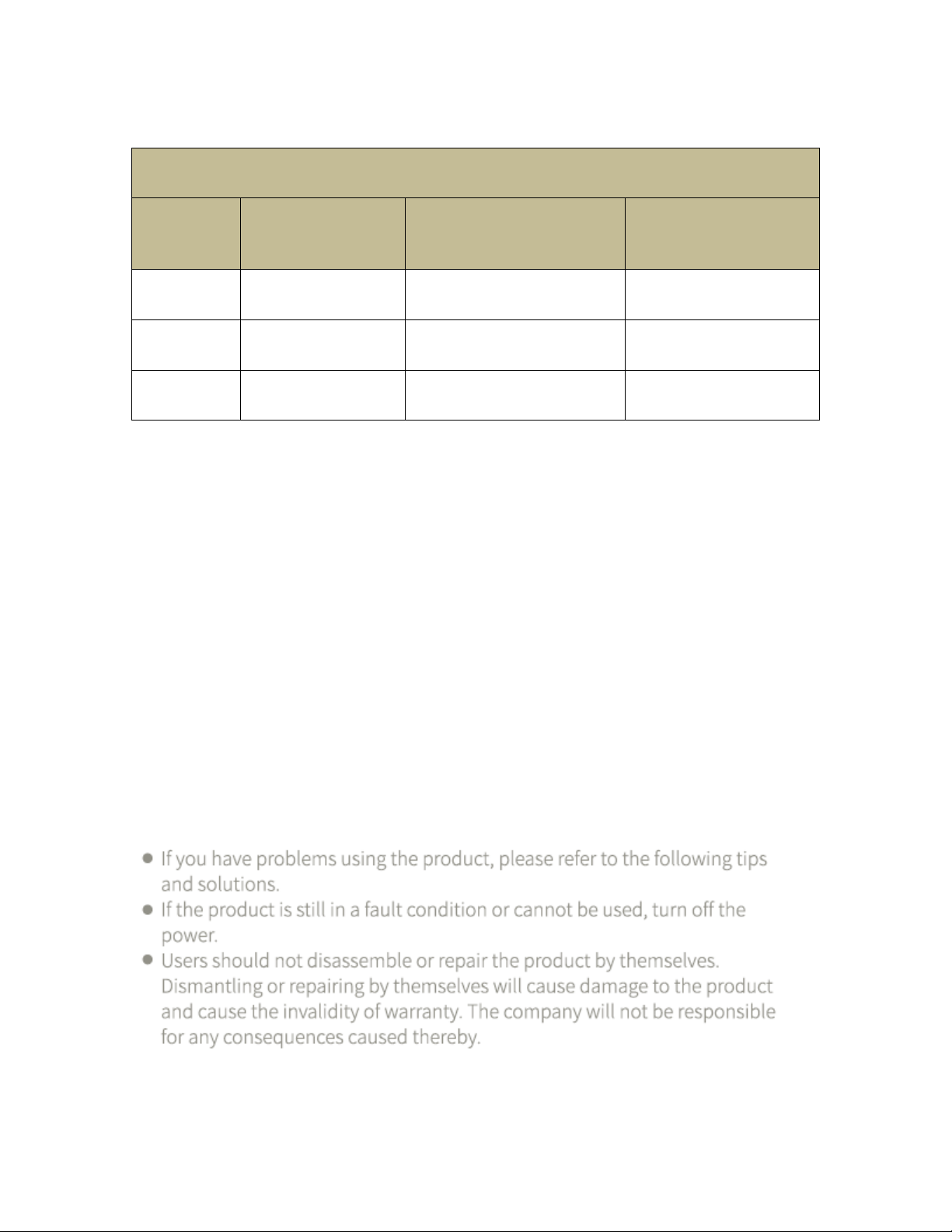

9. TROUBLESHOOTING
