SKG KB-2012 User manual

Thank yoJ for 1o:r cfrice S(G 2fTr-re. Pht Ed t? user n}a.H.lal belore use.
Muhifunctional fuarn Oeaner user manual
KB-2012
src

PLEASE READ CAREFULLY FAILURE TO FOLLOW INSTRUCTION WILLVOID
YOURWARMNry.
READALL INSTRUCTIONS BEFORE USING CLEANER.
when using an electric appliance, basic precautions should always be followed,
including the following:
WARNING!
1. verify that the main voltage indicated on the product conesponds with the voltage of
your electrical outlet.
Rated voltage: 220V-240V-, 50/60H2, 1 500W
2. To provide continued protection against risk of electric shock, connect to properly
grounded outlets only.
3. This product is designed for domestic use only.
4. Do not use outdoors.
5. Do not leave the unft unattended while plugged in. Unplug the electrical cord when not
in use and before servicing.
6. Do not allow to be used as a toy. close attention is necessary when used near
children, pets or plants.
7. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they are under supervision or had instruction conceming use of the appliance by a
person responsible for their safety.
8. Young children should be supervised to ensure that they do not play with the
appliance.
9. Never direct steam towards people, animals or plants.
10. Do not immerse the unit into water or other liquids.
11. Do not use with damaged cord or plug. lf the unit is not working as it should, has
been dropped, damaged, left outdoors, or immersed in water, return it to the distributor. lf
the supply cord is damaged, it must be replaced by the manufacturer or a similarly
qualified person to avoid hazard.
12. Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or
pull the cord around sharp edges or corners. Keep the cord away ftom heated surfaces.
011rru
13. Neverforce the plug into an ou0et,
14. Do not use extension corde or ou0eb wlth lnadequate curent carrying capacity.
1 5. Unplug after each use. To safely unplug, grasp the plug and genfly pull, do not unplug
by pulling on the cord.
16. Do not handle plug or unit wlth wet hands or operate without shoes.
17. Do not insert any objects into openlnga. Do not use with any opening blocked.
18. Do not use without floor cloth in place.
19. Do not'use without water in the water tank.
20. When using on stiairc use extra cautlon.
21. Store your unit indoors in a cool, dry area.
22. Keep your work area well lit.
23. Never put hot water or any other liquids such as aromatic, alcoholic, or detergent
products into the unit water tank. This will make the operation unsafe and damage he unit.
24.Nways keep the outputforthe steam clear.Avoid placing the steam opening on soft
surfaces which may block the flow of steim.
Keep the openings fee ftom lint, hairand other potential obstuc'tions to ensure properflow.
25. Use only as directed in his manual. Use only manuhdurer's recommended accessories.
Use of attachments not provided or sold by the manufacturer or authorized resellers may
cause fire, electric shock or injury.
26. The liquid orsteam should not be directed towards equipment containing eleclrical
components, such as the interior of ovens.
27. Do not expose to rain.
28. Stop using the Mop if there is leakage of water and contact a qualifled technlolan,
29. Do not use the unit in enclosed spaces that are filled with f,ammable, exploclrlc or hxlo
vapor such as paint thinner, oil-based paint or certain moth proollng oubatrncu,
30, Do not use on leatrer, wax polished tumiture orfloons, unsoalcd hrrcturcod or unubd
parquet floors, synthetic fabrics, velvet or other dellcato stcam{tndUfl mfhdala,
31. Do not use forspace heating purposeg.
32. Unplug appliance from outlot b€6r€ ccMdne,
33. Do nottouch hotsurtsce,
34. Do not let cord hang owr dg. of [Ua tr eunhf, of hufi lEbuffrila,
35. Do not place on or ncrr a hot fla 0t aLoblo fuimt, or ln I htlhd anti,
36. To dlsconnpc,t hr unll, trm tht po$or $rltoh to * olf ' podllon, hon nman flug lltm
wall ouflet,
37. Do not ulo rppllrnil for othcr than lntended use.
38. Caru $ould bo hkcn when uslng appliance due to emission of steam.
02iF ,

O
[Ei
Measuring cup
eN
M,
\)'
Cleaning board cloth
Y'
Orrmnl.bamar
AO
Mop cloth Funnel
ry
Copper brush
ry
Round brush
F
Curved nozzle
J_____)
Straight Nozzle
W
winoow ctealntne ctoffi I
w
ll <E
t__l
Wndow cleaning tool
Extension hose forthe
hand-held steamer
Square head cloth
Rubber
WARNING DANGER OF SCALDING!
HOUSEHOLD USE ONLY
Commercial use of this unit voids the manufacturer's waranty.
Upper Cord Warp
Lower Cord Warp
Main body
WaterTank Cap
Power lndicator
Slip ring
-
Garment steamer cloth
Longbrudi
Squrn hmd
03ler'r

WARNING!
Please make sure that the unit is unplugged from an electrical outlet
1. Attach the mop head to the main body as follows: insert the swivel joint into
deiignated hole in the main body, and then use the screw to fix well. Make sure that the
mop head is securely locked in place before usage. (Fig. l)
2. lnsert the extension handle into the designated opening in the main body until it gets
locked in place by the extension handle lock button. (Fig.2)
3. lnsert the power supply cord into the cord holder located at the top of the extension
handle as illustrated in Fig. 3 and then insert to power supply cord into
the upper cord wrap as illustrated in Fig. 4.
4. Place the microfiber cloth on the bottom of the mop head and make sure all the loops
on the cloth are aligned with the gripping hooks on the bottom of the mop head (Refer to
Fig. 5), then press the cloth against the mop head so the loops on the cloth catch the
gripping strips on the mop head and hold the pieces together.
5. When dean carpet, cover cloth on mop head, then put on slip ring.
NOTICE:
Never use the carpet glider on surfaces that are prone to scratching.
Caution:
Never assemble or remove the accessories while the unit is in operation.
Fig.1
The unit is designed to thoroughly clean lloor surfaces, such as marble, ceramic, carpet,
stone, linoleum, sealed hardwood floor and parquet. Not all floors types are suitable for
steam cleaning.
on surfaces that have been treated with wax, the wax may be removed by the heat and
steam action. Do not use on unsealed flooring or let unit stand on any wood or heat
sensitive floor for an extended period of time. This could cause the wood grain to rise.
when using on vinyl, linoleum or any other heat sensitive floors, use extra caution. Too
much heat can melt down glue in the flooring. when using the appliance on laminated
floor, the laminated floor should have been laid professionally and not have any gaps or
cracks in which humidity could enter.
Test the unit on a small isolated area of your flooring prior to over- all use on any floor
surface.
Always check the use and care instructions of your flooring manufacturer before using
the unit.
lf any doubt, please consult a specialist. Only use the carpet glider on carpeting & rugs.
use of the carpet glider on other floor surfaces will cause streaking and can posslbly
scratch the surface.
Fill the water tank with water.
Make sure that the unit is unplugged.
Tum the water tank cap counter+lockwlaa b ha opan , oft, poaHon and ilno\o 0tt
cap as illustrated in Flg, 1a, 1b&10, 1d,
05leN

Hold the mop at a 45 angle as illustrated in fig.ld, and add water in the tank up to the
MAX level by using the measuring cup. Do not overfill. The maximum tank capacity is
450m|.
ReplaceWater
Turn water tank cap clockwise
approximately 90 to the ' CLOSE "
position untilthe cap is tightened securely.

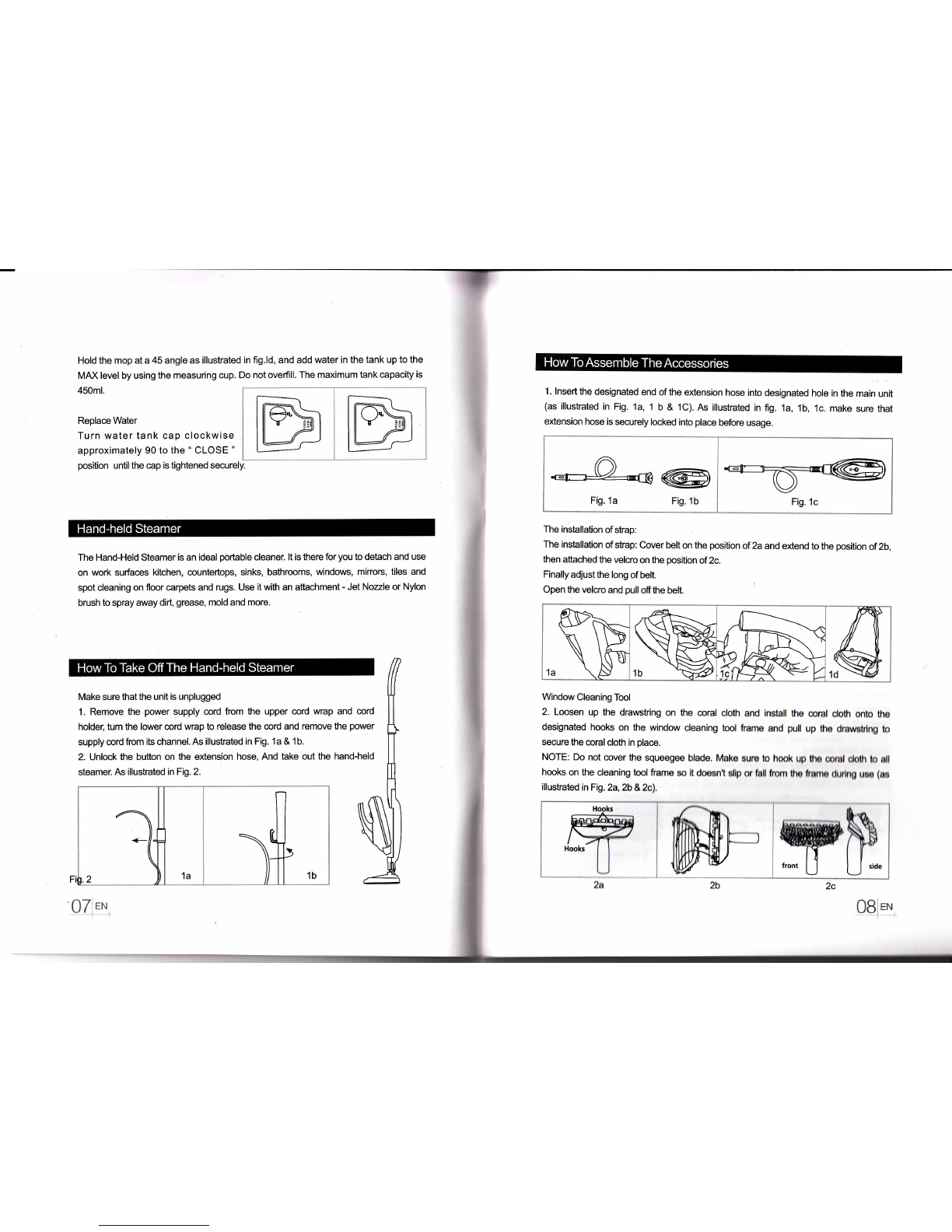

The Hand-Held Steamer is an ideal pi:rtable cleaner. lt is there for you to detach and use
on work surfaces kitchen, countertops, sinks, bathrooms, windows, minors, tiles and
spot cleaning on floor carpets and rugs. Use it with an attachment - Jet Nozzle or Nylon
brush to spray away dirt, grease, mold and more.
Make sure that the unit is unplugged
1. Remove the power supply cord from the upper cord wrap and cord
holder, tum the lower cord wrap to release the cord and remove the power
supply cord ftom its channel. As illustrated in Fig. 1a & 1 b.
2. Unlock the button on the extension hose, And take out the hand-held
steamer. As illustrated in Fig.2.
Fig. 1a Fig. 1b I Fig. 1c
1 . lnsert the designated end of the extension hose into designated hole in the main unit
(as illustrated in Fig. 1a, 1 b & 1C). As illustrated in fig. 1a, 1b, 1c. make sure that
extension hose is securely locked into place before usage.
The installation of strap:
The installation of strap: cover belt on the position of 2a and extend to the position of 2b,
then attached the velcro on the position of 2c.
Finally adjust the long of belt.
Open the velcro and pull ofithe belt.
Window Cleaning Tool
2. Loosen up the drawstring on the coral cloth and inetall the coral cloth onto he
designated hooks on the window cleaning tool frame and pull up trre drawrtrlng b
secure the coral cloth in place.
NorE: Do not @ver the squeegee blade. Make surc to hook up ha eill olofrr b rll
hooks on the cleaning tool frame eo lt do€ent rllp or hll lhom tlr fnmr durlng ur (m
illustrated in Fig. 2a, 2b &2c),
07ler'r

3. Attrach the window deaning tool to the extension hose as follows: aligning the lock
button on the extension hose with the designated hole on the window cleaning tool
ftame and the push in the extension hose until its locks in place (as illustrated in Fig.3a &
3b)
GARMENTSTEAMER
4.Garment steamer. lnstall the microfiber cloth or the lint cloth over the garment steamer
tool (as illustrated in Fig.4a,4b & 4c).
Fig.4a Fig.4b Fig.4c
r=ll----lr
-
Square head cleaning
6. lnstall the square head cloth onto the square head ftame (as illustrated in Fig. 6a & 6b)
ffi Fig.7b
5. Attach garment steamer to the eXension pipe as
follows: Aligning the lock button on the extension
hose with the designated hole on the garment
steaming tool frame and then push the extension
hose until it locks in place (as illustrated in Fig. 5a)
7. Attach the square head ftame to the extension hose as follows: Aligning the lock
button on the extension hose with he designated hole on the square head frame and
then push in the extension hose until it locks in place (as illustrated in Fig. 7a&7b).
Cleaning board
8. Attached the main steamer to the square brush, until it locks in place
(as illustrated in Fig. 8a & 8b), then place the square cloth on the bottom of square head
and make sure all the loops on the cloth are aligned with the gripping hooks on the
bottom of square head (Referto Fig.8c).
Cleaning board
8. Attached the main steamerto the square brush, until it locks in place
(as illustrated in Fig. 8a & 8b), then place the square cloth on the bottrrm of square head
and make sure all the loops on the cloth are aligned with the gripping hooks on the
bottom ofsquare head (Referto Fig. 8c).
Note: Press the two buttons on cleaning board to attached h6 maln lbtmar
Straight Nozzle
9. To attach the straight nozzle: lnsert hc rfdght no*dr lnb drdgndad holr ln hr
extension hose, as illustrated ln Flg. 9r & 9b, Un{l lt gol bdcd ln pho,
----->
ffiN-% Fig.9a I Fig.9b
.10ie*
- l---r
B}: fl",,.
09]eru

Fig. 10a I Fig. 10b

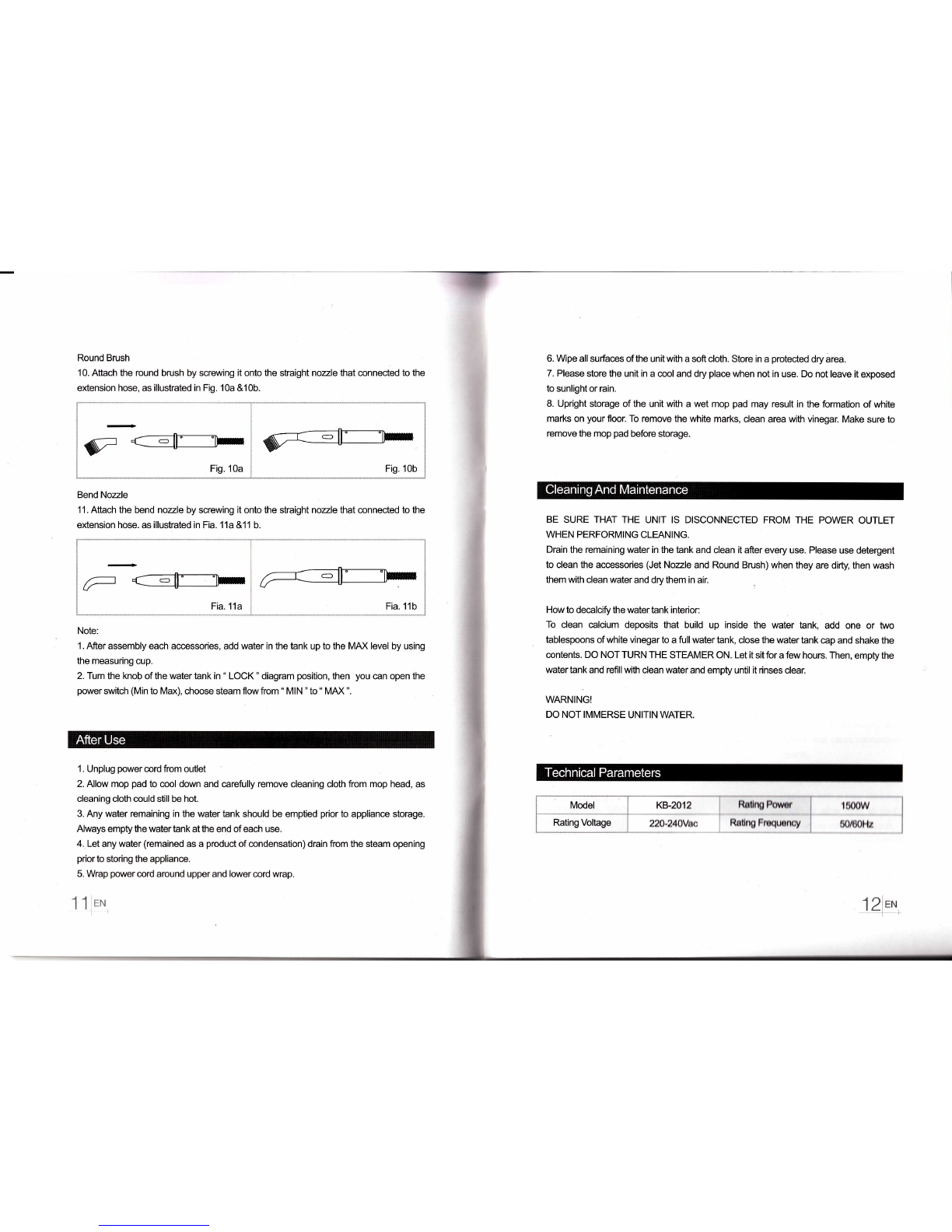

Round Brush
10. Attach the round brush by screwing it onto the straight nozzle that connected to the
extension hose, as illuskated in Fig. 10a &10b.
Bend Nozzle
11 . Attach the bend nozle by screwing it onto the straight nozzle that connected to the
extension hose. as illustrated in Fia. 11a &11 b.
6. Wipe all surfaces of the unit with a soft cloth. Store in a protected dry area.
7. Please store the unit in a cool and dry place when not in use. Do not leave it exposed
to sunlight or rain.
8. Upright storage of the unit with a wet mop pad may result in the formation of white
marks on your floor. To remove the white marks, clean area with vinegar. Make sure to
remove the mop pad before storage.
BE SURE THAT THE UNIT IS DISCONNECTED FROM THE POWER OUTLET
WHEN PERFORMING CLEANING.
Drain the remaining water in the tank and clean it after every use. Please use detergent
to clean the accessories (Jet Nozzle and Round Brush) when they are dirty, then wash
them with clean water and dry them in air.
How to decalcifu the water tiank interior:
To clean calcium deposits that build up inside the water tank, add one or two
tablespoons of white vinegar to a full water tank, close the water tiank cap and shake the
contents. DO NOT TURN THE STEAMER ON. Let it sit for a few hours. Then, empty the
water tiank and refill with clean water and empty until it rinses clear.
WARNING!
DO NOT IMMERSE UNITIN WATER.
Jq'M Fia. 11a I Fia. 11b
Note:
1. After assembly each accessories, add water ln the tank up to the MAX level by using
the measuring cup.
2. Tum the knob of the water tank in ' LOCK' diagram position, then you can open the
power srvitch (Min to Max), choose steam flow from ' MIN ' to ' MAX'.
1 . Unplug power cord from outlet
2. Allow mop pad to cool down and carefully remove cleaning cloth from mop head, as
cleaning cloth could still be hot.
3. Any water remaining in the water tank should be emptied prior to appliance storage.
Always empty the water tiank at the end of each use.
4, Let any water (remained as a product of condensation) drain from the steam opening
priorto storing the appliance.
5. Wrap power cord arcund upper and lower cord wrap.
1 '1 rr.r
rt 12 eru
1--.1
Model KB-2012 RrttFomr r{qry-
t0t0Hz
Rating Voltage 22G24CtV|/c RrtmFrqtnnoy

lf your unit begins to produce steam more slowly than usual or stops producing steam
you may need to remove lime scale. Lime scale can develop over time on the metal
parts and greatly affectthe mop performance. We recommend removing lime scale on a
regular basis, at least once a month, especially in areas with hard water. The frequency
of lime scale removal depends upon the hardness of your tap water and how often you
use the steam mop. The unit uses tiap water. however, in areas with hard.
To remove lime scale from the unit please follow these procedures
By using cleaning solution
1 . Prepare a solution of l/3 white vinegar and ?3 tap water and add to the water tank.
2. Secure and position the unit to ensure steam released is aimed away from the floor or
sunounding objects and surfaces. Plug the unit in, tum the unit ON by pressing the
power switch and allow the unit to produce steam until the vinegar/\rvater solution is used
up.
3. Repeat the above procedure as many times as necessary until a normal steam flow
rate is achieved.
4. Fill the water tank with fresh water and rinse out
5. Fill the water tank with fresh water, attach to the unit and release steam through the
system until the watertanks is empty.
WARNING!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY UNPLUG
APPLIANCE FROM OUTLET BEFORE SERVICING.
rHE UNIT DOES NOT
POWERON The unit is not plugged in Or
tumed ON. Make sure the unit is plugged into a proper outlet
and the switch is ON.
REDUCED STEAM OR NO
STEAM
Watertankempty. Fillwatertank.
Blocked steam nozzle. Remove mop head and
Clean the nozzle.
Limes cale de posit. Follow cleaning procedure to
remove lime scale in this
user's guide to remove lime
scale.
STEAM ESCAPES FROM
CONNECTIONS
Attachment is not connected
properly. Tum the unit OFF, allow it to
cool down, disconnect the
accessories and reattach
them prcpedy,
Remove the acceacory and
check and clcan oonncc{on
ri9
Rrmovr w.l olgth rnd
ilpLilu,lttrn woL.nl,rg
do0r fi allow doh b €ol,
hrn wlng ut rnd il.thfi,
Debris or obstructions at the
connection points.
THE CLEANING CLOTH
THE CLOTH GETS
SATURATED BECOMES
WET
The cloth gsE ratuiltrd ydh
water.
13]er'r 14ler.,
