Skil SD561802E User manual
1300-017-545 OR www.skil.com.au
For Customer Service
WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
Rechargeable Screwdriver
Model: SD561802E
2

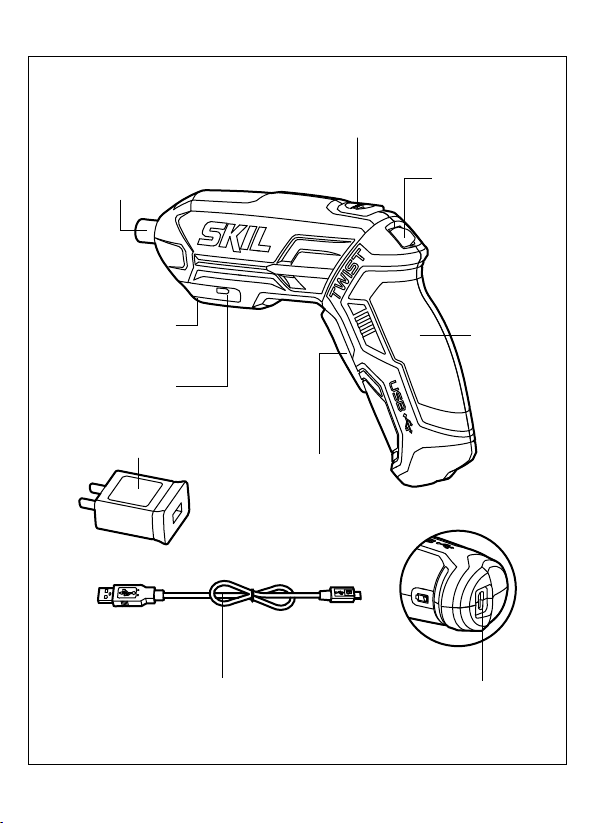

Magnetic
Bit Holder
LED Worklight
Magnetic Bit
Storage (X2)
Power Supply (included
with some models)
USB Charging Cable Charging Port
Trigger Switch
Direction-
of-Rotation
(forward/
center-lock/
reverse)
Selector
Handle
Pivot-Unlock Knob
1
3
3
8
7
456

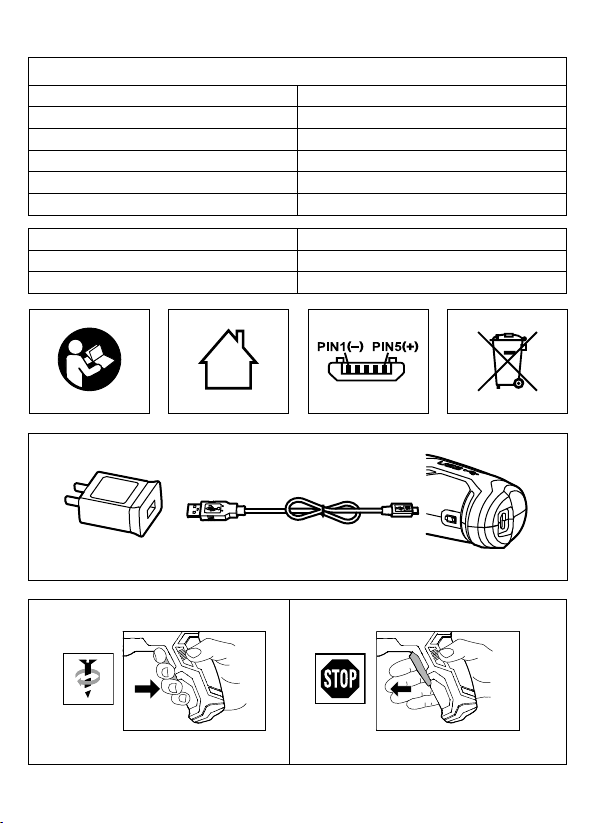

2 SPECIFICATIONS
Battery Voltage 3.6V d.c. (4V max) Lithium
Battery capacity 1.5Ah (5.4Wh)
Collet size 1/4” (Hex)
Recommended working temperature 10~35oC
Recommended charging temperature 5~40oC
Recommended storage temperature 0~40oC
Charger Model S005ANS0500100
Input 100-240V~ 50-60HZ 200mA
Output 5.0V 1000mA
(included with
some models)
4
q
w e
H
9
5
r
PHILLIPS
POZIDRIV
SLOTTED
TORX
t
y
6
INTRODUCTION
• This tool with left/right rotation is intended
for screwdriving and predrilling in wood
• This tool is not intended for professional use
• Read this instruction manual carefully before
use and save it for future reference 3
SAFETY
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow
all instructions listed below may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers
to your mainsoperated (corded) power tool or
battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence
of ammable liquids, gases or dust.
Power tools create sparks which may ignite
the dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodied
plugs and matching outlets will reduce risk
of electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric
shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power
tool while you are tired or under
the inuence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your nger
on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
7
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from
frequent use of tools allow you to
become complacent and ignore tool
safety principles. A careless action can
cause severe injury within a fraction of a
second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch
does not turn it on and o. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery
pack, if detachable, from the power
tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may aect the
power tool’s operation. If damaged,
have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and
tool bits etc., in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations dierent from those intended
could result in a hazardous situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do
not allow for safe handling and control of the
tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger
specied by the manufacturer. A charger
that is suitable for one type of battery pack
may create a risk of re when used with
another battery pack.
b) Use power tools only with specically
designated battery packs. Use of any
other battery packs may create a risk of
injury and re.
c) When battery pack is not in use, keep
it away from other metal objects like
paper clips, coins, keys, nails, screws,
or other small metal objects that can
make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a re.
d) Under abusive conditions, liquid may
be ejected from the battery; avoid
contact. If contact accidentally occurs,
ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery may cause irritation
or burns.
e) Do not use a battery pack or tool that
is damaged or modied. Damaged or
modied batteries may exhibit unpredictable
behaviour resulting in re, explosion or risk
of injury.
f) Do not expose a battery pack or tool to
re or excessive temperature. Exposure
to re or temperature above 130°C may
cause explosion.
8
g) Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specied
in the instructions. Charging improperly or
at temperatures outside the specied range
may damage the battery and increase the
risk of re.
6) SERVICE
a) Have your power tool serviced by a
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs.
Service of battery packs should only
be performed by the manufacturer or
authorized service providers.
SAFETY INSTRUCTIONS FOR CORDLESS
SCREWDRIVERS
GENERAL
• Do not work materials containing
asbestos (asbestos is considered
carcinogenic)
• Dust from material such as paintcontaining
lead, some wood species, minerals and
metal may be harmful (contact with or
inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the
operator or bystanders); wear a dust mask
and work with a dust extraction device
when connectable
• Certain kinds of dust are classied as
carcinogenic (such as oak and beech dust)
especially in conjunction with additives for
wood conditioning; wear a dust mask and
work with a dust extraction device when
connectable
• Follow the dust-related national
requirements for the materials you want to
work with
• Do not expose tool/charger to rain
• Do not disassemble charger or tool Ensure
not to activate the forward/reverse selector
before making any adjustments or changing
accessories as well as when carrying or
storing the tool
• This charger can be used by children
aged 8 and above and by persons
who have physical, sensory or mental
limitations or a lack of experience or
knowledge if a person responsible for
their safety supervises them or has
instructed them in the safe operation
of the charger and they understand the
associated dangers (otherwise, there is a
danger of operating errors and injuries)
• Supervise children (this will ensure that
children do not play with the charger)
• Cleaning and user maintenance of the
battery charger shall not be made by
children without supervision
• Do not use charger when damaged
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualied persons in order
to avoid a hazard.
ACCESSORIES
• SKIL can assure awless functioning of the
tool only when original accessories are used
BEFORE USE
• Always check that the supply voltage is
the same as the voltage indicated on the
nameplate of the charger
• Avoid damage that can be caused by
screws, nails and other elements in your
workpiece; remove them before you start
working
• Secure the workpiece (a workpiece
clamped with clamping devices or in a vice
is held more securely than by hand)
• Use suitable detectors to nd hidden
utility lines or call the local utility
company for assistance (contact with
electric lines can lead to re or electrical
shock; damaging a gas line can result in
an explosion; penetrating a water pipe will
cause property damage or an electrical
shock)
DURING USE
• Hold the power tool by insulated
gripping surfaces, when performing an
operation where the cutting accessory
or fastener may contact hidden wiring
(cutting accessory and fasteners contacting
a “live” wire may make exposed metal parts
of the power tool “live” and could give the
operator an electric shock)
9
• In case of electrical or mechanical
malfunction, immediately switch o the tool
or unplug charger from power source
EXPLANATION OF SYMBOLS ON TOOL/
CHARGER
3Read the instruction manual beforeuse
4Only use the charger indoors
5Incorrect polarity of the charger connection
could cause a hazard (only charge the
battery with the charger supplied)
6Do not dispose of electric tools and
batteries together with household waste
material
USE
• Charging battery 7
! a battery that is new or has not been
used for a longer period does not
develop its full capacity until after
approximately 5 charging/discharging
cycles
-connect charger with both wall socket
and contact
-indicator lights up GREEN indicating that
the battery is being charged
-when the battery is fully charged, indicator
turns o
-the lithium-ion battery can be charged
at any time (interrupting the charging
procedure does not damage the battery)
-the lithium-ion battery does not have to
be empty before charging (no “memory-
eect” as with nickelcadmium batteries)
-the tool cannot be used during the
charging procedure; it is not defective
when inoperative during the charging
procedure
-if you anticipate long periods of nonuse
for the tool, it is best to unplug the charger
from its power source
• On/o 8
• Changing direction of rotation 9
-when not properly set in left/right position,
switch cannot be activated
! change direction of rotation only
when tool is at a complete standstill
• Changing bits q
-push bit to end position in bitholder
! do not use bits with a damaged shank
• Automatic spindle-lock
Allows you to manually tighten or loosen
screws, when necessary w
• LED-light e
LED-light automatically lights on when
activating switch, even when selector is in
the middle (locking) position
• Bit storage 1
Oers storage for 2 bits at the front
• Battery level indicator
When indicator lights up RED while switch
is depressed half way, then the battery has
less than 30% of its capacity and should be
charged
• Two handle positions r
• Battery protection
Switches o the tool automatically when the
battery temperature gets too high (> +65°C)
the lithium-ion battery is nearly empty (to
protect against deep discharge)
APPLICATION ADVICE
• Use the appropriate bits t
! do not use damaged bits
! only use bits with hexagon shaft
• When turning in a screw at/near the cross
cut end or an edge of wood, predrill a hole
in order to avoid cracking of the wood
• For an optimal use of the tool a steady
pressure on the screw is required,
especially while removing
• When screwdriving in hard wood one should
pre-drill a hole
MAINTENANCE
• This tool is not intended for professional use
• Keep tool and charger clean
! unplug charger from power source
before cleaning
ENVIRONMENT
• Do not dispose of electric tools,
accessories and packaging together
with household waste material (only for
EU countries)
-in observance of European Directive
2012/19/EC on waste of electric
and electronic equipment and its
implementation in accordance with
national law, electric tools that have
reached the end of their life must be
collected separately and returned to an
environmentally compatible recycling
facility
10
-symbol 6will remind you of this when the
need for disposing occurs
! remove the batteries before disposal
of the tool
• Removing/disposing of batteries y
! only remove the batteries if they are
completely empty
-protect battery terminals with heavy tape
to prevent short-circuit
-dispose of the batteries at an ocial
collection point for batteries
! batteries may explode when disposed
of in re, so do not burn battery for
any reason
WARRANTY
SKIL WARRANTY POLICY
For all SKIL warranty & enquiries, please contact
1300 01 SKIL (1300 01 7545) Monday to Friday
9:00am to 5:00pm EST
Chervon Australia Pty Ltd ABN 36 165 077 501
(“Chervon”) warrants to the original domestic
purchaser that this product will be free from
defects in materials and workmanship for 5
years from date of purchase, and any battery or
charger will be free from defects in materials and
workmanship for 3 years from date of purchase.
Please note SKIL products are intended for
DIY (Do It Yourself) use only. Accessories &
Consumables will be covered by a 3 month
warranty and a complete list can be found inside
the manual. To make a claim, return the faulty
item together with proof of purchase directly
to your closest service agent or to the place of
purchase. Any handling and transportation costs
(and other expenses incurred in claiming this
warranty) are not covered by this warranty and
will not be borne by Chervon. The replacement
product or part or repaired product will be made
available for your collection at an address
nominated by Chervon. Where a valid warranty
claim is made, Chervon will replace the defective
product or repair the fault.Where the product is
repaired, Chervon may use refurbished parts.
This warranty does not cover normal wear
and tear, misuse or abuse. This warranty may
also be further limited or voided as specically
detailed in the product Manual. Chervon has no
other liability under this warranty. The benets
to you given by this warranty are in addition to
other rights and remedies imposed by State and
Federal legislation that cannot be excluded. Our
goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for
a major failure and compensation for any other
reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure. Chervon Australia Pty Ltd, Unit 14,
5 Kelletts Road, Rowville, VIC. 3178. Ph; 1300
01 SKIL (1300 01 7545). Email: support@skil.
com.au
11
The following accessories have a 3-month
warranty period:
Brushes Collets
O-rings, seals &
bearings Angle grinder anges
Allen keys Chucks
Table of contents
Other Skil Power Screwdriver manuals
