Skil 1320 User manual

SLIDING MITRE SAW
1320 (BT1*1320**)
SKIL BV - Konijnenberg 62 10/20 2610S01094
4825 BD Breda - The Netherlands
www.skil.com
ORIGINAL INSTRUCTIONS
NOTICE ORIGINALE
ORIGINALBETRIEBSANLEITUNG
ORIGINELE GEBRUIKSAANWIJZING
BRUKSANVISNING I ORIGINAL
ORIGINAL BRUGSANVISNING
ORIGINAL BRUKSANVISNING
ALKUPERÄISET OHJEET
MANUAL ORIGINAL
MANUAL ORIGINAL
ISTRUZIONI ORIGINALI
EREDETI HASZNÁLATI UTASÍTÁS
PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ
ORİJİNAL İŞLETME TALİMATI
INSTRUKCJA ORYGINALNA
ПОДЛИННИК РУКОВОДСТВА ПО
ЭКСПЛУАТАЦИИ
ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ
ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ
INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE
ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ
PÔVODNÝ NÁVOD NA POUŽITIE
ORIGINALNE UPUTE ZA RAD
ORIGINALNO UPUTSTVO ZA RAD
IZVIRNA NAVODILA
ALGUPÄRANE KASUTUSJUHEND
ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA
ORIGINALI INSTRUKCIJA
ИЗВОРНО УПАТСТВО ЗА РАБОТА
UDHËZIMET ORIGJINALE
15
21
28
35
43
49
56
62
68
76
83
90
97
103
110
118
126
134
142
149
157
164
171
177
183
190
197
204
211
232
227

2
1320
EU Declaration of conformity
Sliding mitre saw Article number
We declare under our sole responsibility that the stated products comply with all
applicable provisions of the directives and regulations listed below and are in
conformity with the following standards.
Technical le at:*
Déclaration de conformité UE
Scie à onglets radiale Numéro d’article
Nous déclarons sous notre propre responsabilité que les produits décrits sont en
conformité avec les directives, règlements normatifs et normes énumérés
ci-dessous.
Dossier technique auprès de:*
EU-Konformitätserklärung
Paneelsäge Sachnummer
Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen
einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und
Verordnungen entsprechen und mit folgenden Normen übereinstimmen.
Technische Unterlagen bei:*
EU-conformiteitsverklaring
Telescopische verstekzaag Productnummer
Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen
aan alle desbetreende bepalingen van de hierna genoemde richtlijnen en
verordeningen en overeenstemmen met de volgende normen.
Technisch dossier bij:*
EU-konformitetsförklaring
Utdragbar kap- och gersåg Produktnummer
Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla
gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att
de stämmer överens med följande normer.
Teknisk dokumentation:*
EU-overensstemmelseserklæring
Kap- og geringsav Typenummer
Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse
med alle gældende bestemmelser i følgende direktiver og forordninger og
opfylder følgende standarder.
Tekniske bilag ved:*
EU-samsvarserklæring
Kapp- og gjæringssag
med glideskinne Produktnummer
Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med
alle relevante bestemmelser i direktivene og forordningene nedenfor og med
følgende standarder.
Teknisk dokumentasjon hos:*
EU-vaatimustenmukaisuusvakuutus
Katkaisu- ja jiirisaha Tuotenumero
Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien
ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien
vaatimusten mukaisia.
Tekniset asiakirjat saatavana:*
Declaración de conformidad UE
Ingletadora telescópica Número de artículo
Declaramos bajo nuestra exclusiva responsabilidad, que los productos
nombrados cumplen con todas las disposiciones correspondientes de las
directivas y los reglamentos mencionados a continuación y están en conformidad
con las siguientes normas.
Documentos técnicos de:*
Declaração de conformidade CE
Serra de esquadria deslizante
Número do produto
Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados
cumprem todas as disposições e os regulamentos indicados e estão em
conformidade com as seguintes normas.
Documentação técnica pertencente à:*
Dichiarazione di conformità UE
Troncatrice radiale Codice prodotto
Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono
conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati
di seguito, nonché alle seguenti normative.
Documentazione tecnica presso:*
EU konformitási nyilatkozat
Cikkszám
Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az
alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó
előírásainak és megfelelnek a következő szabványoknak.
Műszaki dokumentumok megőrzési pontja:*
Pokosová pila se zákluzem Objednací číslo
Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna
příslušná ustanovení níže uvedených směrnic a nařízení a je v souladu s
následujícími normami.
Technické podklady u:*
Ürün kodu
Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin
geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan
ederiz.
Teknik belgelerin bulunduğu yer:*
Numer katalogowy
Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają
wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń,
oraz że są zgodne z następującymi normami.
Dokumentacja techniczna:*
Товарный номер
Мы заявляем под нашу единоличную ответственность, что названные
продукты соответствуют всем действующим предписаниям нижеуказанных
директив и распоряжений, а также нижеуказанных норм.
Техническая документация хранится у:*
Товарний номер
Мизаявляємо під нашу одноособову відповідальність, що названі вироби
відповідають усім чинним положенням нищеозначених директив і
розпоряджень, а також нижчеозначеним нормам.
Технічна документація зберігається у:*

3
1320
Αριθμός ευρετηρίου
Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα
αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων
οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.
Τεχνικά έγγραφα στη:*
Număr de identificare
Declarăm pe proprie răspundere că produsele menţionate corespund tuturor
dispoziţiilor relevante ale directivelor şi reglementărilor enumerate în cele ce
urmează şi sunt în conformitate cu următoarele standarde.
Documentaţie tehnică la:*
Каталожен номер
С пълна отговорност ние декларираме, че посочените продукти отговарят
на всички валидни изисквания на директивите и разпоредбите по-долу и
съответства на следните стандарти.
Техническа документация при:*
Pôvodnej EU vyhlásenie o zhode
Pokosová pila se zákluzem Vecné číslo
Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok spĺňa všetky
príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s
nasledujúcimi normami.
Technické podklady má spoločnosť:*
EU izjava o sukladnosti
Potezna kutna pila Kataloški broj
Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim
relevantnim odredbama direktiva i propisima navedenima u nastavku i da su
sukladni sa sljedećim normama.
Tehnička dokumentacija se može dobiti kod:*
EU-izjava o usaglašenosti
Klizna ugaona testera Broj predmeta
Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim
dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu
sa sledećim standardima.
Tehnička dokumentacija kod:*
Izjava o skladnosti ES
Številka artikla
Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi
relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.
Tehnična dokumentacija pri:*
EL-vastavusdeklaratsioon
Liugsiinidega järkamissaag Tootenumber
Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide
ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.
Tehnilised dokumendid saadaval:*
Izstrādājuma numurs
Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk
minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī
sekojošiem standartiem.
Tehniskā dokumentācija no:*
ES atitikties deklaracija
Gaminio numeris
Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau
nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.
Techninė dokumentacija saugoma:*
EU-
Број на артикл
Со целосна одговорност изјавуваме, дека опишаните производи се во
согласност со сите релевантни одредби на следните регулативи и прописи
и се во согласност со следните норми.
Техничка документација кај:*
EU Deklarata e konformitetit
Sharrë kornizash teleskopike Numri i nenit
Ne deklarojmë me përgjegjësinë tonë të vetme se produktet e paraqitura janë në
përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të
listuara më poshtë dhe janë në përputhje me standardet si më poshtë.
Dosja teknike në:*
1320 BT1*1320**
2006/42/EC
2014/30/EU
2011/65/EU
EN 62841-1:2015
EN 62841-3-9:2015 + A11:2017
EN 60825-1:2014
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013 + A1:2019
EN 50581:2012
* Skil BV
Konijnenberg 62
4825 BD Breda
The Netherlands
ÃÁÄƓÇÆÁÂÆ½Æº½Ê¿˃ʿƓˁ˅ʿ˂ʽ¼¹Ɠ
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιĹƹ¿½Ê
13.10.2020

ʿʿʽ
Ƙ
ʿˁʽ
ʿ˂ˁÅÅ
ˀʽÅÅ
ˁ˂ͳ
ˁ˂ͳ
ʿʾʽ
ˁʽ
ʾ˅ÿ
ˀʽʽ
ˁʽ
˂ʽʽʽ
ʻʼ
ʷ
ʺʷʷ
ʹʼ
ʿʽʽʽ
¹ÌÌ
˃Ƽʿʽ˂ÅÁÆƽ
ʾ˅ʽʽ
¹ÌÌ
ʾ
ʿʾʽ
ˆʽ
1320
ʿƓʽƘˀƓʿÅÅ
ˀʽʽ
ˆʽ
ˁ˂ͳ
ˁ˂ͳ
ʿʾʽ
ʿ˂
1
4

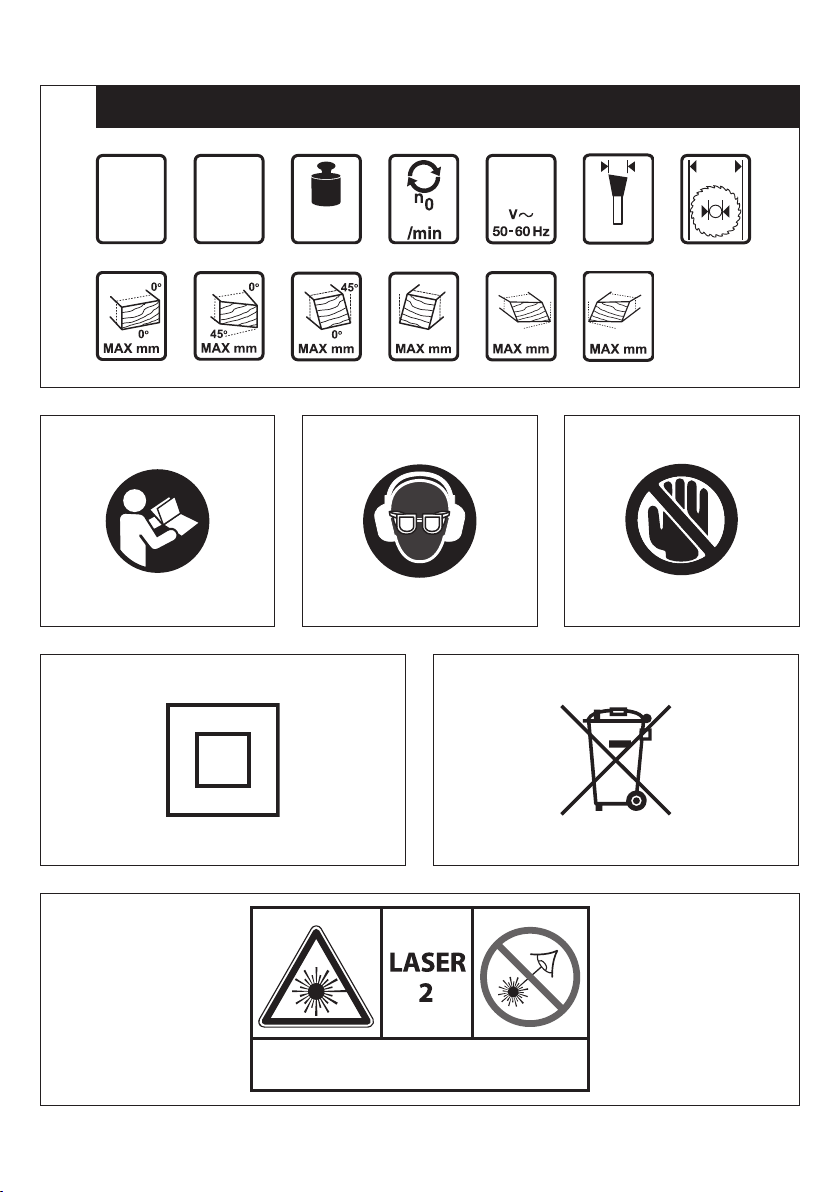

P max <1mW , λ=635nm
IEC/EN 60825-1:2014
2
5
7
6
3 4

8
5
W
AF
H
GAG
YL P VK AO
AH
AV
C
J
AK
AN
AI
F (4x)
S
M
X
D
E
AD
AP
AU
AL
AJ
AE
AT
U
AB
AC
A
B

~5 cm
9 q
w
w w w
w
a
c d e
6
E
C
AE
AH

<5 cm
>5 cm
e
r
y
t
7
Q
F
H
F
J
K
R
P
L
*
*
NOT STANDARD INCLUDED
*
1
2
3
N

Max A x Max B
90 x 300 mm
0° 0°
45° 0°
0° 45°
45° 45°
40 x 300 mm
90 x 210 mm
40 x 210 mm
0°
0°
45° 45°
45° 45°
B
A0°
0°
B
A45°
0°
B
A0°
45°
B
A45°
45°
45° 0°
45° 45°
25 x 300 mm
25 x 210 mm
B
B
A
45°
45°
45°
0°
A
0º
50º 50º
u i
ii
a
cb
a b
o o
0°
48° 45°
45° 48°
8
1
1
4
2
2
3
AF
AE
W
Z
AA

c d
0°
48° 45°
0º
50º 50º
+
o o
p
a
90°
90°
60°
60°
9
1
2
3
U
X
AB
AH

s
d f
f f
a
ba
10
AD
AJ
A
AC
AI
1
2

g
h
ja
11
AK
AM
AQ
AL
1
1
2
2
3

j
j
k l
b
c
12
AP
AS
AN
AN
X
AT
6x
AR
AS
*
*
AR
1
3
2
1
2
NOT STANDARD INCLUDED
*

z
x x
x
a b
c
13
AG
T
T
Z
*
*
NOT STANDARD INCLUDED
*
NOT STANDARD INCLUDED
*

ACCESSORIES ➞WWW.SKIL.COM
b
n m
c v
AV
14

15
AS Flange
AT Table insert
AU Dust deector
AV Cable clip
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
-WARNING Read all safety warnings, instructions,
power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
a
Sliding mitre saw 1320
INTRODUCTION
• This tool is intended as a stationary machine for
lengthways and crossways cutting of wood with straight
cuts as well as angle cuts (horizontal mitre angles of -50°
to +50° as well as vertical bevel angles of -48° to +45°
are possible)
• Read and save this instruction manual 2
• This tool is not intended for professional use
• Only use the tool when correctly and completely
assembled (be aware that Skil cannot be hold
responsible for tool damage and/or personal injuries
resulting from the incorrect assembly of the tool)
TECHNICAL DATA 1

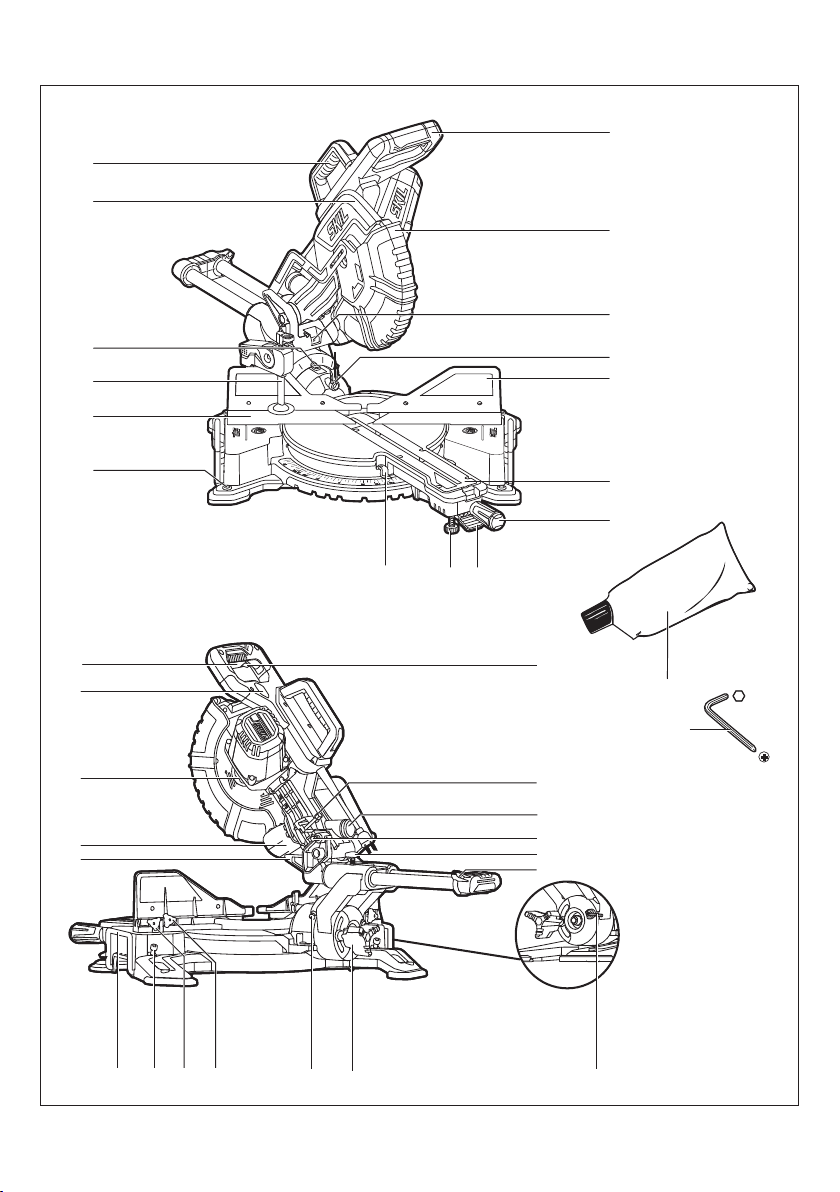

TOOL ELEMENTS 8
ALower guard
BSwitch handle
CLocking pin for transport
DUpper guard
ETransport handle
FMounting holes
GSupport foot
HDust bag
JDust port
KExtension bars
LKnobs for locking extension bars
MClamp for mounting workpiece
NSupport hole
PKnob for fastening clamp
QKnob for adjusting clamp
RClamping lever
SFence
THex screws for adjusting fence (4x)
USliding fence
VKnob for fastening sliding fence
WLocking knob (bevel angles)
XBevel angle indicator
YScrew for adjusting bevel angle (right)
ZScrew for adjusting bevel angle (left)
AA Adjustable end stop
AB Right bevel release lever
AC Laser light
AD On/o switch laser
AE Locking handle (mitre angles)
AF Mitre detent release lever
AG Mitre angle indicator
AH Locking knob for slide device
AI On/o switch
AJ Safety lever
AK Cutting depth limiter
AL Depth stop
AM Depth stop nut
AN Hex key
AO Storage for hex key
AP Spindle-lock button
AQ Cover plate screw
AR Blade bolt

16
SERVICE
a)
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR MITRE SAWS
• Mitre saws are intended to cut wood or wood-like
wheels for cutting ferrous materials such as bars,
rods, studs, etc Abrasive dust causes moving parts
such as lower guard to jam. Sparks from abrasive cutting
will burn the lower guard, the kerf insert and other plastic
parts.
• Use clamps to support workpiece whenever
possible. If supporting the workpiece by hand, you
must always keep hand at least 100 mm from either
side of the saw blade. Do not use this saw to cut
pieces that are too small to be securely clamped
or held by hand If your hand is placed too close to the
saw blade, there is an increased risk of injury from blade
contact.
• The workpiece must be stationary and clamped or
held against both the fence and the table. Do not
feed the workpiece into the blade or cut “freehand”
in any way Unrestrained or moving workpieces could be
thrown at high speeds, causing injury.

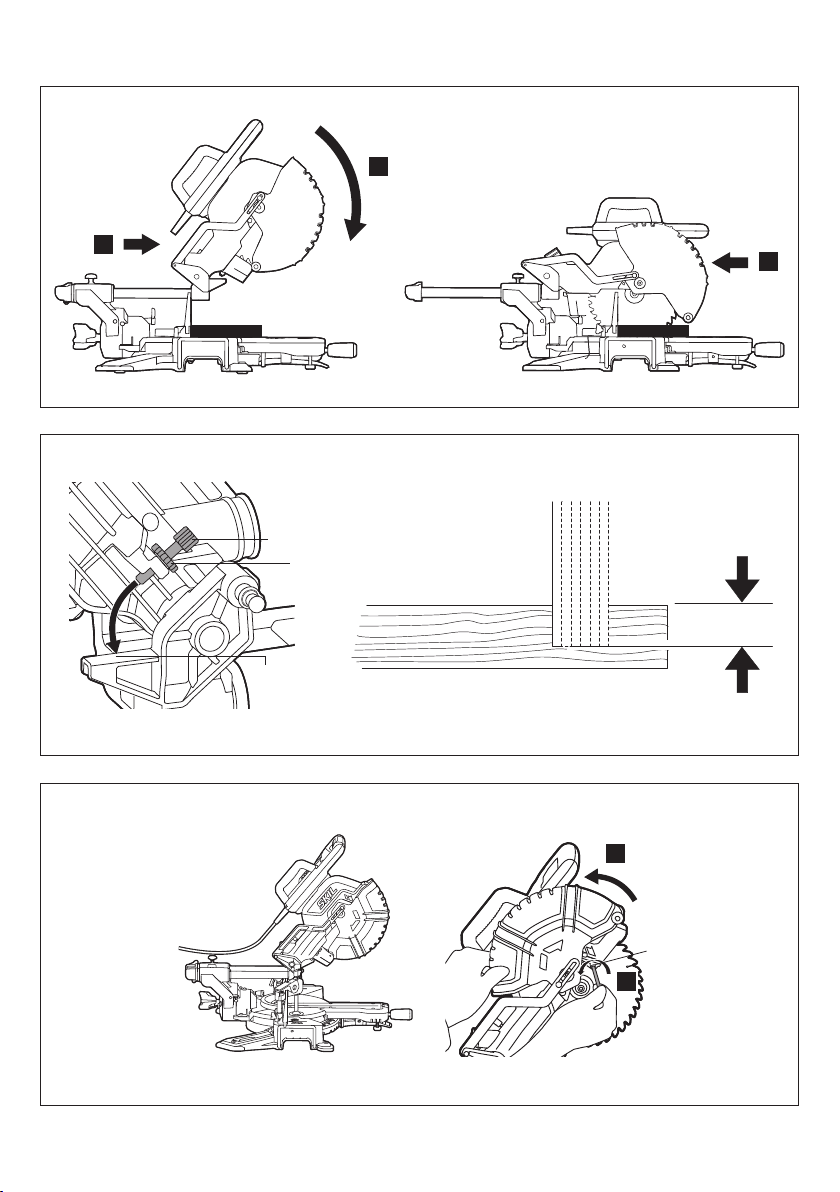

• Push the saw through the workpiece. Do not pull the
saw through the workpiece. To make a cut, raise the
saw head and pull it out over the workpiece without
cutting, start the motor, press the saw head down
and push the saw through the workpiece Cutting on
the pull stroke is likely to cause the saw blade to climb
on top of the workpiece and violently throw the blade
assembly towards the operator.
• Never cross your hand over the intended line of
cutting either in front or behind the saw blade
Supporting the workpiece “cross handed” i.e. holding the
workpiece to the right of the saw blade with your left hand
or vice versa is very dangerous.
• Do not reach behind the fence with either hand
closer than 100 mm from either side of the saw
blade, to remove wood scraps, or for any other
reason while the blade is spinning The proximity of
the spinning saw blade to your hand may not be obvious
and you may be seriously injured.
• Inspect your workpiece before cutting If the
workpiece is bowed or warped, clamp it with the
outside bowed face toward the fence. Always make
certain that there is no gap between the workpiece,
fence and table along the line of the cut Bent or
warped workpieces can twist or shift and may cause
binding on the spinning saw blade while cutting.There
should be no nails or foreign objects in the workpiece.
• Do not use the saw until the table is clear of all
tools, wood scraps, etc , except for the workpiece
Small debris or loose pieces of wood or other objects
that contact the revolving blade can be thrown with high
speed.
• Cut only one workpiece at a time Stacked multiple
workpieces cannot be adequately clamped or braced
and may bind on the blade or shift during cutting.

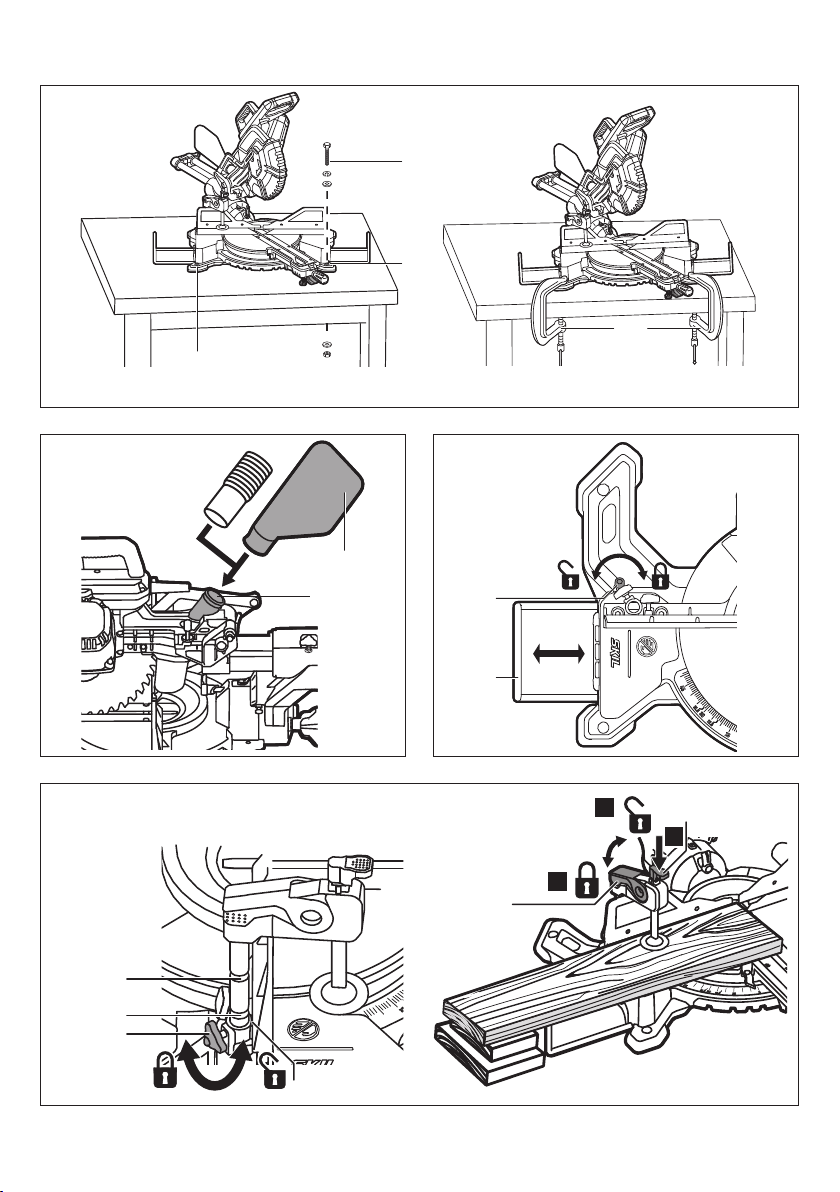

• Ensure the mitre saw is mounted or placed on a
A level and rm
work surface reduces the risk of the mitre saw becoming
unstable.
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.

17
• Always disconnect plug from power source before
making any adjustment or changing any accessory
• Always disconnect plug from power source before

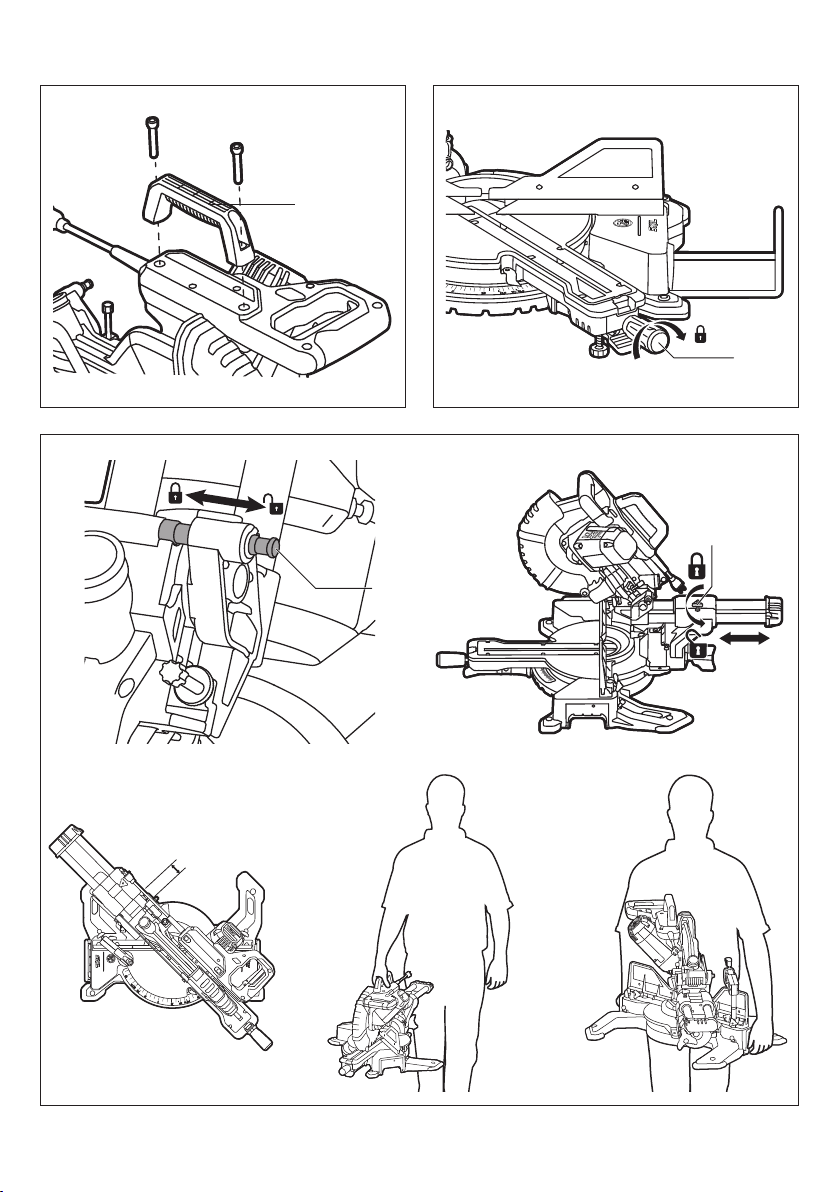

transporting the mitre saw Unplug, lower head
assembly and lock into position, use the carry handle
and one of the hand indentations in the saw base.
• Do not leave tool until it comes to a complete stop
• When cutting irregularly shaped workpieces, plan
your work so it will not slip and pinch the blade and
be torn from your hand
• This tool should not be used by people under the age of
16 years
• This tool is not suitable for wet cutting
OUTDOOR USE
• When used outdoors, connect the tool via a fault
current (FI) circuit breaker with a triggering current
of 30 mA maximum, and only use an extension cord
which is intended for outdoor use and equipped with a
splashproof coupling-socket
BEFORE USE
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• Wear protective glasses, hearing protection, and
protective gloves
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic
(such as oak and beech dust) especially in conjunction
with additives for wood conditioning; wear a dust
mask and work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Never use the tool without the original protection guard
system
• Check the protective guard for proper closing before
each use
• Do not operate the saw if the protective guard does not
move freely and close instantly
• Never clamp or tie the protective guard into the open
position
• Never use the tool without the table insert; replace a
defective or worn table insert
• Remove all obstacles on top of as well as underneath the
cutting path before you start cutting
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
ACCESSORIES
• Never use grinding/cutting discs with this tool
• SKIL can assure awless functioning of the tool only
when the correct accessories are used which can be
obtained from your SKIL dealer
• For mounting/using non-SKIL accessories observe the
instructions of the manufacturer concerned
• Use only saw blades that correspond with the
characteristic data given in these operation instructions
and that are tested and marked in accordance with EN
847-1
• Plan your work! Every time you change the bevel
or mitre angle setting, make sure the adjustable
fence is set correctly to support the workpiece and
will not interfere with blade or the guarding system
Without turning the tool “ON” and with no workpiece
on the table, move the saw blade through a complete
simulated cut to assure there will be no interference or
danger of cutting the fence.
• Provide adequate support such as table extensions,
saw horses, etc. for a workpiece that is wider or
longer than the table top.Workpieces longer or wider
than the mitre saw table can tip if not securely supported.
If the cut-o piece or workpiece tips, it can lift the lower
guard or be thrown by the spinning blade.
• Do not use another person as a substitute for a
table extension or as additional support Unstable
support for the workpiece can cause the blade to bind or
the workpiece to shift during the cutting operation pulling
you and the helper into the spinning blade.
•
by any means against the spinning saw blade If
conned, i.e. using length stops, the cut-o piece could
get wedged against the blade and thrown violently.
•
properly support round material such as rods or
tubing Rods have a tendency to roll while being cut,
causing the blade to “bite” and pull the work with your
hand into the blade.
• Let the blade reach full speed before contacting the
workpiece This will reduce the risk of the workpiece
being thrown.
• If the workpiece or blade becomes jammed, turn
and disconnect the plug from the power source
and/or remove the battery pack. Then work to free
the jammed material Continued sawing with a jammed
workpiece could cause loss of control or damage to the
mitre saw.
•
saw head down and wait for the blade to stop before
Reaching with your hand
near the coasting blade is dangerous.
•
cut or when releasing the switch before the saw
head is completely in the down position The
braking action of the saw may cause the saw head to be
suddenly pulled downward, causing a risk of injury.
ADDITIONAL SAFETY INSTRUCTIONS
• Inrush currents cause short-time voltage drops; under
unfavourable power supply conditions, other equipment
may be aected (if the system impedance of the power
supply is lower than 0.219 Ohm, disturbances are
unlikely to occur); if you need further clarication, you
may contact your local power supply authority
GENERAL
• Only use the tool for cutting wood
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool
• Do not stand on tool or its stand Serious injury
may occur if the tool is tipped or if the cutting tool is
accidentally contacted. Do not store materials on or near
the tool such that it is necessary to stand on the tool or its
stand to reach them.

18
•If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
USE
• Assembly
-assemble the transport handle E with 2 bolts using hex
key AN9
-assemble the mitre lock knob AE into the front of the
table q
-assemble the sliding fence U (see Adjusting sliding
fence(s))
• Transport/working position
For releasing the tool (working position)
-press handle B8downward with one hand while
pulling out locking pin C with the other hand wa
-guide the head assembly slowly upward
For securing the tool (transport position)
-slide the head assembly to the stop in the direction
of fence S (keep approx. 5 cm distance) and tighten
locking knob AH wb
-set the bevel angle to 0° (see Setting bevel angle)
-set the mitre angle to 45° left or right (see Setting mitre
angle)
-press handle B downward with one hand while pushing
locking pin C with the other hand
-wind up the power cord
-use transport handle E 8for carrying the tool wd
-alternatively, use the side handles for carrying the tool
we
! never lift the tool by holding the main handle, or
the power cord
• Mounting tool on working surface e
!
-use 4 mounting holes F for attaching the tool with
suitable screws to the working surface
-you may also clamp the tool to the working surface with
commercially available screw clamps
-for stabilizing the tool the height of support foot G can
be adjusted
-alternatively, the tool can be mounted onto a mitre saw
stand
! read all the warnings and instructions included
with the saw stand
• Dust/chip extraction r
-mount dustbag H/vacuum cleaner as illustrated
-empty dust bag regularly for optimal dust pick-up
performance
! never let the vacuum cleaner hose interfere with
the lower guard or the cutting operation
• Saw table extension t
-use knobs L to fasten extension bars K (on either side
of the tool)
-the length of extension bars K is steplessly adjustable
from minimum to maximum
• Clamping the workpiece y
!
the workpiece with the adjustable clamp supplied
-do not work with workpieces that are too small to clamp
-for maximal workpiece dimensions use table uas
reference
-fasten workpiece clamp into support hole N with knob P
(on either side of the tool)
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• Never use saw blades made of high speed steel (HSS)
• Do not use a saw blade which is cracked, deformed or
dull
• Only use saw blades with a hole diameter which ts the
tool spindle without play; never use reducors or adaptors
to t large-hole saw blades
• Protect accessories from impact, shock and grease
DURING USE
• Do not force the tool (apply light and continuous
pressure in order to avoid overheating the blade tips and,
in case of cutting plastics, melting the plastic material)
• Keep ngers, hands and arms away from the rotating
saw blade
• If the saw blade becomes blocked, switch o the tool
immediately and disconnect the plug; only then remove
the wedged workpiece
• In case of jamming or electrical or mechanical
malfunction, immediately switch o the tool and
disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• Never use the tool when the cord is damaged; it must be
replaced by a specially prepared cord available through
the service organization.
LASER RADIATION
• Do not direct the laser beam at persons or animals
beam yourself, not even from a distance (you could
blind somebody, cause accidents or damage your eyes)
• If laser radiation strikes your eye, you must deliberately
close your eyes and immediately turn your head away
from the beam
• Do not make any modications to the laser equipment
• Do not look into the laser beam (laser radiation)
• Do not use any magnifying optical tools (such as
magnifying glasses, telescopes, or binoculars) to view
the laser beam
• Do not operate the tool in the presence of ammable
liquids, gases or dust
• Do not operate the tool with children around
• Do not replace the installed laser with another laser type
AFTER USE
• After switching o the tool, never stop the rotation of the
accessory by a lateral force applied against it
• Only remove cut-os or other parts of the workpiece from
the cutting area when all moving parts have come to a
complete standstill
• The saw blade becomes very hot during use; do not
touch it before it has cooled down
• Store the tool indoors in a dry and locked-up place, out
of reach of children
EXPLANATION OF SYMBOLS ON TOOL
2Read the instruction manual before use
3Wear protective glasses and hearing protection
4
arms away from this area.
5Double insulation (no earth wire required)
6Do not dispose of electric tools and batteries together
with household waste material
7Laser radiation / Do not stare into beam / Class 2
laser product
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug

19
-switch on/o laser line by pressing switch AD
! before starting a job, check the alignment of the
laser line with the actual line of cut by making a
trial cut on a piece of waste material
• Sawing without slide movement (small workpieces)
-loosen locking knob AH in case it is tightened
-slide the saw head to the stop in the direction of fence
S and retighten locking knob AH
! failure to lock the mechanism can cause the blade
to suddenly climb up on the top of the workpiece
and force itself toward you
-set tool into working position
!
against the saw table and fence S
-switch on the tool by releasing the lock-o AJ and
pulling the main switch AI
! do not cross your arms when operating the saw
head fa
-saw through the workpiece with uniform advancing
! the tool should run at full speed before the blade
enters into the workpiece
-switch o the tool by releasing switch AI
-wait until the sawblade has come to a complete
standstill before guiding the saw head slowly upward
• Sawing with slide movement (wide workpieces)
! be aware that the method described below is the
only safe one
-do not pull the saw through the workpiece
-loosen locking knob AH in case it is tightened
!
against the saw table and fence S
-pull the saw head away from fence S far enough so that
the saw blade is in front of the workpiece g
-switch on the tool by releasing the lock-o dand
pulling the main switch
! do not cross your arms when operating the saw
head fa
-push the saw head in the direction of fence S and saw
through the workpiece with uniform advancing g
! the tool should run at full speed before the blade
enters into the workpiece
! if the lower guard does not automatically open
which can happen under certain conditions (e.g.
a workpiece which is very close to the maximum
fb
-switch o the tool by releasing switch AI
-wait until the sawblade has come to a complete
standstill before guiding the saw head slowly upward
• Sawing grooves h
-set the desired depth with depth stop AK and lock it in
place by tightening nut AM
-a wooden spacer shall be placed between the
workpiece and the fence for a consistent depth over the
full length of the groove
! ensure that the saw blade does not get jammed in
the workpiece
!
• Changing saw blade j
! disconnect the plug
-take hex key AN from storage AO
-hold protective guard A in open position
-loosen cover plate screw AQ (do not unscrew the
screw completely) ja
-the workpiece clamp has 2 grooves for easy locking;
1 for thin workpieces (up to 5cm) and 1 for larger
workpieces (over 5cm)
-press the workpiece rmly against fence S
-unlock lever R
-adapt clamp to the workpiece
-rmly clamp the workpiece by locking lever R
! for some mitre and bevel combinations, or
depending on the size of the workpiece, it may be
necessary to use commercially available screw
clamps instead of the workpiece clamp
• Setting mitre angles i
-loosen locking handle AE
-pull mitre detent release lever AF
-rotate the saw table to the left or right and set the
desired mitre angle (from 0° to 50°) by using indicator
AG
-release lever AF
-tighten locking handle AE (do not tighten the handle
)
-for quick and precise setting of often used mitre angles
(0°, 15°, 22.5°, 31.6°, 45°) the mitre detent lever
AF clicks into place at the corresponding positions;
to prevent this, lever AF can be locked in released
position ib
• Setting bevel angles o
-loosen three-legged knob W
-swing the saw head to the left until bevel angle indicator
X points to the desired bevel angle
-adjustable bevel end stop AA (45°) can be used to stop
at 45° or continue until 48° ob
-hold the saw head in this position and tighten knob W
-for beveling to the right rst tilt the saw head slightly
to the left, rotate right bevel release knob AB (approx.
60°), then swing the saw head to the desired right bevel
angle oc
-when you swing back the saw head to the left the right
bevel release knob AB will automatically reset to 0°
end stop; this can be prevented by rotating the knob to
approx. 90° instead of 60° od
• Compound cuts p
-compound cuts require both a mitre angle setting and a
bevel angle setting
! do not operate the saw in certain of the mitre
and bevel combinations which may result in
interference between the sliding and stationary
parts of the saw or between the sliding parts and
the workpiece – to make the cut remove sliding
fence, sliding fence lock knob and work clamp
knob as required.
!
• Adjusting the sliding fences a
-loosen knob V to allow sliding of the fence(s) U
-loosen knob V further to allow removal / assembly of
the fence(s)
-tighten knob V to secure the desired position
! make sure that the sliding fences are secured
! for some mitre and bevel combinations it may also
be necessary to remove the knob
• Laser line s
-for guiding tool along desired line of cut marked on the
workpiece

20
-lower the saw head and lock in place
-check for a 90° angle between blade and fence S with
a square (ensure the square contacts the saw blade
body and not its teeth)
-if necessary, adjust the 90° fence alignment as follows:
1. loosen 4 hex screws T
2. adjust fence until blade and fence have full contact
with the square
3. tighten 4 hex screws T
4. reset the mitre indicator to 0° xc
• Cable clip c
-use the cable clip AV to prevent the power cord to get
clamped between the moving and stationary parts of
the tool
APPLICATION ADVICE
• Special workpieces
-always support the free ends of a long workpiece
-ensure that curved or round workpieces are especially
secured against slipping b
-at the cutting line no gap may exist between the
workpiece and the fence or saw table
-if necessary, fabricate an auxiliary fence; the holes in
the sliding fence shall be used to secure the auxiliary
fence n
! the auxiliary fence can only be used at 0° bevel
• For working with oor mouldings illustration mcan be
used as reference
• Always face the good side of the workpiece down to
ensure minimum splintering
• Only use sharp saw blades of the correct type
-quality of cut improves by the number of teeth
-carbide tipped blades stay sharp up to 30 times longer
than ordinary blades
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially the
ventilation slots at the back-end of the motor housing)
• Develop a regular check to make sure the lower guard is
working properly. Clean the lower guard of any sawdust
build up with a damp cloth.
-disconnect the plug before cleaning
-lift the lower guard to the fully open position and
release it; if it does not immediately and fully close it
should be checked by an after-sales service centre for
SKIL power tools
• Clean saw blade immediately after use (especially from
resin and glue)
-the saw blade becomes very hot during use; do not
touch it before it has cooled down
• Clean the laser light AC with a soft brush after each use
to keep a good visibility of the laser line (make sure that
you do not change the setting of the laser)
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should
be carried out by an after-sales service centre for SKIL
power tools
-send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of the
tool are listed on www.skil.com)
• Be aware that damage due to overload or improper
handling of the tool will be excluded from the warranty
-rotate protective guard A completely backwards jb
-push spindle-lock button AP and hold it while
you remove blade bolt AR by turning hex key AN
CLOCKWISE (= in same direction as arrow printed on
saw blade)
! push spindle-lock button AP only when tool is at
a standstill
-release spindle-lock button AP
-remove ange AS and saw blade
! change saw blade with saw teeth and arrow
printed on saw blade pointing in same direction as
arrow on protective guard A
-mount ange AS jc
-push spindle-lock button AP and hold it while you
tighten blade bolt by turning hex key AN COUNTER
CLOCKWISE 1/8 turn past nger tight (ensures
slippage of saw blade when it encounters excessive
resistance thus reducing motor overload and saw
kickback)
-tighten cover plate screw AQ
• Replacing table insert AT j
Replace a defective or worn table insert as follows:
! disconnect the plug
-take hex key AN from storage AO
-remove all 6 screws as illustrated
-remove old table insert by rst lifting it at the front and
then pulling it out completely
-place new table insert
!
• Checking/adjusting of 90° blade alignment l
! disconnect the plug
-rotate the saw table to the 0° mitre position and lock in
place
-swing the saw head to 0° bevel position
-lower the saw head and lock in place
-check for a 90° angle between blade and table with a
square
-if necessary, adjust the 90° blade alignment as follows:
1. loosen three-legged knob W
2. adjust screwY with a 4 mm hex key (not standard
included) lb
3. re-check with square
4. reset the bevel indicator to 0° lc
• Checking/adjusting of 45° blade alignment z
! disconnect the plug
-rotate the saw table to the 0° mitre position and lock in
place
-loosen three-legged knob W
-set adjustable bevel end stop AA to 45° zb
-swing the saw head to the left
-check for a 45° angle between blade and table with a
mitre square za
-check that bevel indicator X is on the 45° mark
-if necessary, adjust the 45° blade alignment as follows:
1. adjust screw Z with a blade wrench 10 (not standard
included)
2. re-check with mitre square
-if necessary, repeat for the 45° setting to the right
-lower the saw head and lock in place
• Checking/adjusting of 90° fence alignment x
! disconnect the plug
-rotate the saw table to the 0° mitre position and lock in
place
