Skil 5830 User manual


ORIGINAL INSTRUCTIONS 10
www.skil.com
CIRCULAR SAW
5820 (SW1*5820**)
5830 (SW1*5830**)
SKIL BV - Rithmeesterpark 22 A1 - 4838GZ - Breda - NL 11/22 2610S01551
UK: Chervon Europe Ltd. - 34 Bridge Street- Reading - RG1 2LU

2

EU Declaration of conformity
Circular saw Article number
We declare under our sole responsibility that the stated products comply with all
applicable provisions of the directives and regulations listed below and are in
conformity with the following standards.
Technical le at:*
5820 SW1*5820**
5830 SW1*5830**
2006/42/EC
2014/30/EU
2011/65/EU
EN 62841-1:2015
EN 62841-2-5:2014
EN 55014-1:2021
EN 55014-2:2021
EN 61000-3-2:2019+A1:2021
EN 61000-3-11:2000
EN 63000: 2018
*Skil BV
Rithmeesterpark 22 A1
4838 GZ Breda
The Netherlands
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιÄ¹Æ¹¿½Ê
ÃÁÄƓÁÌÀŽ½Ë̽ÊȹÊÃʿʿʾƓˁ˅ˀ˅ʽ¼¹Ɠ
09.11.2022
5820/5830

3
5820/5830
Declaration of Conformity
Circular saw Article number
We declare under our sole responsibility that the stated products comply with all
applicable provisions of the directives and regulations listed below and are in
conformity with the following standards
Technical le at:
Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom
5820 SW1*5820**
5830 SW1*5830**
Supply of Machinery (Safety) Regulations 2008 (SI 2008/1597)
Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)
The Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032)
EN 62841-1:2015
EN 62841-2-5:2014
EN 55014-1:2021
EN 55014-2:2021
EN 61000-3-2:2019+A1:2021
EN 61000-3-11:2000
EN IEC 63000:2018
Chervon Europe Ltd., 34 Bridge Street,
Reading, RG1 2LU, United Kingdom, as
authorized representative (in terms of above
regulations) acting on behalf of
Skil BV, Rithmeesterpark 22 A1, 4838GZ
Breda, The Netherlands
James McCrory
Technical Service Manager
Place of issue: Reading
Date of issue: 09/11/2022

4
ʾʿ˂ʽ
¹ÌÌ
˂ˀʽʽ
˂ˀʽʽ
ʾ˅ˁÅÅ
ʾ˃ÅÅ
ʾˆʽÅÅ
ʾ˃ÅÅ
ˆʽͳ
˃ˀÅÅ
ˆʽͳ
˃˃ÅÅ
ˀƓ˅ÿ
ˀƓ˅ÿ
ʾˁʽʽ
¹ÌÌ
5820
5830
1
ˁ˂ͳ
ˁ˃ÅÅ
ˁ˂ͳ
ˁ˅ÅÅ
ʿʿʽ
Ƙ
ʿˁʽ
ʿʿʽ
Ƙ
ʿˁʽ
2
YWFR B A
S
AB
C
M
AA
Z
Q
G
L
J
V
TE
H
DK

5
345
3 mm
J
L
K
6
7
N
M
P
M
1
2
3

6
J
Q
63mm (5820)
66mm (5830)
≥66mm
90�
8
0�

7
q
9
Ø34.5-36mm
S
Y
R
A
B
W
G
F

8
w
Q
ZAA
e
Q
F
G

9
ACCESSORIES ➞WWW.SKIL.COM
r

10
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the o-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
a
Circular saw 5820/5830
INTRODUCTION
• This tool is intended for lengthways and crossways
cutting of wood with straight cuts as well as angle cuts up
to 50°; with the appropriate saw blades also non-ferrous
metals, light building materials and plastics can be cut
• This tool is not intended for professional use
• Read and save this instruction manual 3

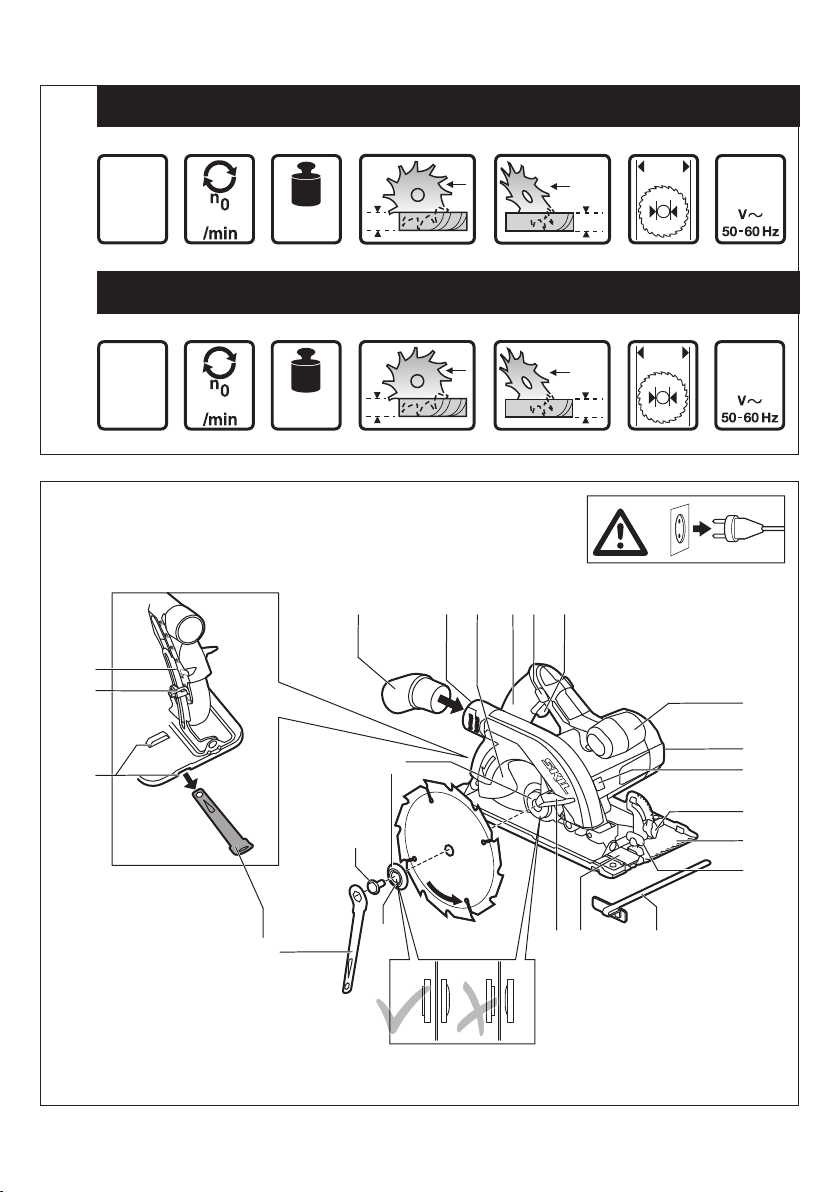

TECHNICAL DATA 1
TOOL ELEMENTS 2
A Trigger switch
B Safety switch
C Spindle-lock button
D Blade bolt
E Flange
F Lower guard
G Lever for opening lower guard
H Clamping surface
J Knob for setting sawing depth
K Foot plate
L Cutting depth indicator
M Knob for adjusting cutting angle
N Cutting angle indicator
P Screw for adjusting 90° end stop
Q Saw line visor
R Rear handle
S Front handle
T Blade wrench
V Storage for blade wrench
W Chip outlet
Y Vacuum cleaner adapter
Z Parallel guide
AA Knob for adjusting parallel guide
AB Ventilation slots
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
-WARNING Read all safety warnings, instructions,
illustrations and specications provided with this
power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which

11
contact hidden wiring or its own cord (cutting blades
contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an
electric shock)
f) When ripping always use a parallel guide or straight
edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
g) Always use blades with correct size and shape
(diamond versus round) of arbour holes. Blades that
do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers
or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and
safety of operation.
2) KICKBACK CAUSES AND RELATED WARNINGS
• Kickback is a sudden reaction to a pinched, bound or
misaligned saw blade, causing an uncontrolled saw to lift
up and out of the workpiece toward the operator
• When the blade is pinched or bound tightly by the kerf
closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator
• If the blade becomes twisted or misaligned in the cut, the
teeth at the back edge of the blade can dig into the top
surface of the wood causing the blade to climb out of the
kerf and jump back towards operator
• Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a rm grip with both hands on the saw
and position your arms to resist kickback forces.
Position your body to either side of the blade, but
not in line with the blade. Kickback could cause the
saw to jump backwards, but kickback forces can be
controlled by the operator, if proper precautions are
taken.
b) When blade is binding, or when interrupting a cut
for any reason, release the trigger and hold the saw
motionless in the material until the blade comes to
a complete stop. Never attempt to remove the saw
from the work or pull the saw backwards while the
blade is in motion or kickback may occur. Investigate
and take corrective actions to eliminate the cause of
blade binding. Avoid cutting nails or screws.
c) When restarting a saw in the workpiece, centre the
saw blade in the kerf and check that saw teeth are
not engaged into the material. If saw blade is binding,
it may walk up or kickback from the workpiece as the saw
is restarted.
d) Support large panels to minimise the risk of blade
pinching and kickback. Large panels tend to sag under
their own weight. Supports must be placed under the
panel on both sides, near the line of cut and near the
edge of the panel.
e) Do not use dull or damaged blades. Unsharpened
or improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers
must be tight and secure before making cut. If blade
adjustment shifts while cutting, it may cause binding and
kickback.
g) Use extra caution when sawing into existing walls or
other blind areas. The protruding blade may cut objects
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may aect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5) SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY WARNINGS FOR CIRCULAR SAWS
1) CUTTING PROCEDURES
a) DANGER : Keep hands away from cutting area and
the blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are holding the
saw, they can not be cut by the blade.
b) Do not reach underneath the workpiece. The guard
cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
d) Never hold the workpiece being cut in your hands
or across your leg. Secure the workpiece to a stable
platform. It is important to support the work properly to
minimize body exposure, blade binding, or loss of control.
e) Hold the power tool by the insulated gripping
surfaces only, because the cutting blades may

12
ACCESSORIES
• SKIL can assure awless functioning of the tool only
when original accessories are used
• Use only saw blades that correspond with the
characteristic data given in these operation instructions
and that are tested and marked in accordance with EN
847-1
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• Use only saw blades with a minimum diameter of 184
mm, a maximum diameter of 184 mm and a spindle hole
of 16 mm (5820)
• Use only saw blades with a minimum diameter of 190
mm, a maximum diameter of 190 mm and a spindle hole
of 16 mm (5830)
• Never use saw blades made of high speed steel (HSS)
• Never use grinding/cutting discs with this tool
BEFORE USE
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Remove all obstacles on top of as well as underneath the
cutting path before you start cutting
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• Use suitable detectors to nd hidden utility lines
or call the local utility company for assistance
(contact with electric lines can lead to re or electrical
shock; damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
DURING USE
• The noise level when working can exceed 85 dB(A); wear
ear protection
• Never use the tool without the original protection guard
system
• Do not attempt to cut extremely small workpieces
• Do not work overhead with the tool
• In case of jamming or electrical or mechanical
malfunction, immediately switch o the tool and
disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
AFTER USE
• When you put away the tool, switch o the motor and
ensure that all moving parts have come to a complete
standstill
• After switching o your circular saw, never stop the
rotation of the saw blade by a lateral force applied
against it

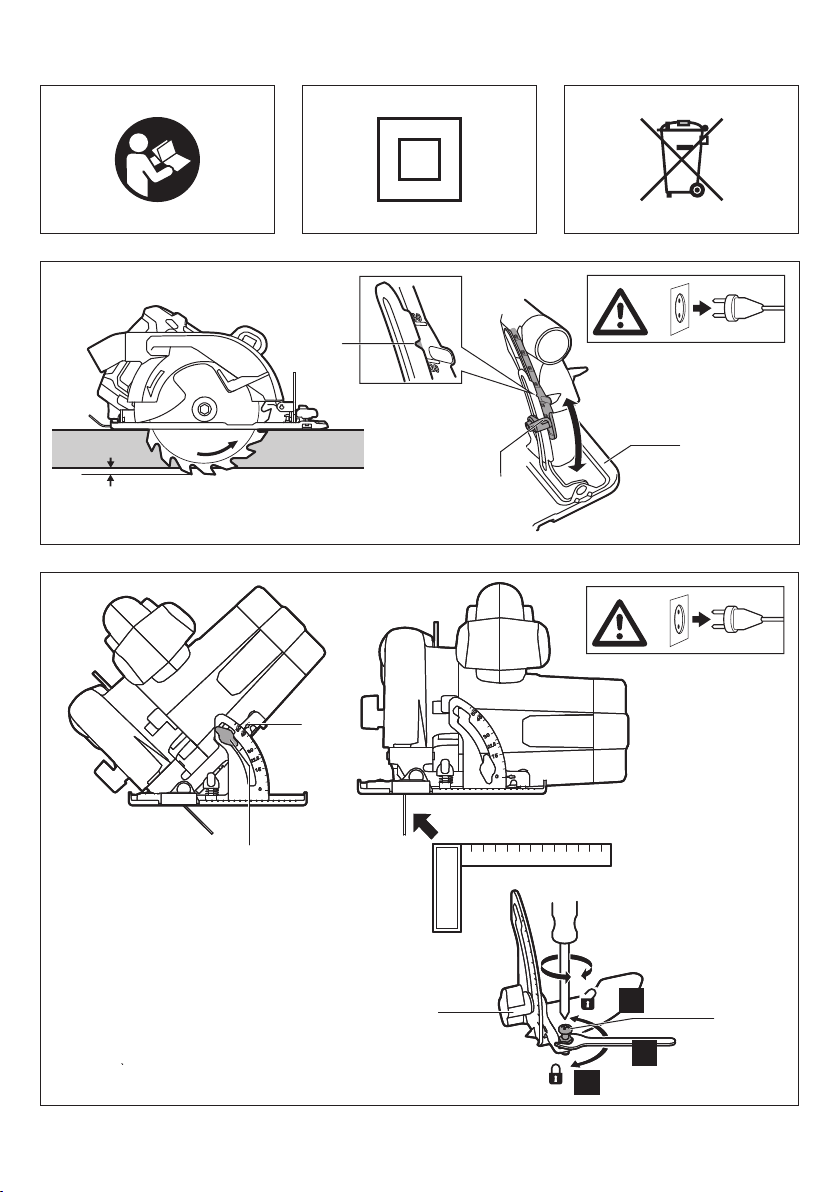

EXPLANATION OF SYMBOLS ON TOOL
3Read the instruction manual before use
4Double insulation (no earth wire required)
5Do not dispose of the tool together with household waste
material
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
•If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
that can cause kickback.
1) LOWER GUARD FUNCTION
a) Check lower guard for proper closing before each
use. Do not operate the saw if lower guard does
not move freely and close instantly. Never clamp
or tie the lower guard into the open position. If
saw is accidentally dropped, lower guard may be bent.
Disconnect the plug, raise the lower guard with the
retracting handle and make sure it moves freely and does
not touch the blade or any other part, in all angles and
depths of cut.
b) Check the operation of the lower guard spring. If
the guard and the spring are not operating properly,
they must be serviced before use. Lower guard
may operate sluggishly due to damaged parts, gummy
deposits, or a build-up of debris.
c) Lower guard should be retracted manually only for
special cuts such as plunge cuts and compound
cuts. Raise lower guard by retracting handle and as
soon as blade enters the material, the lower guard
must be released. For all other sawing, the lower guard
should operate automatically.
d) Always observe that the lower guard is covering the
blade before placing saw down on bench or oor.
An unprotected, coasting blade will cause the saw to
walk backwards, cutting whatever is in its path. Be aware
of the time it takes for the blade to stop after switch is
released.
ADDITIONAL SAFETY WARNINGS
• Inrush currents cause short-time voltage drops; under
unfavourable power supply conditions, other equipment
may be aected (if the system impedance of the power
supply is lower than 0.468 Ohm, disturbances are
unlikely to occur); if you need further clarication, you
may contact your local power supply authority
GENERAL
• This tool should not be used by people under the age of
16 years
• This tool is not suitable for wet cutting
• Always disconnect plug from power source before
making any adjustment or changing any accessory
• Never use the tool when the cord is damaged; it must be
replaced by a specially prepared cord available through
the service organization.
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic
(such as oak and beech dust) especially in conjunction
with additives for wood conditioning; wear a dust
mask and work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Only use a saw table provided with a switch that prevents
restarting of the motor after interruption of voltage
• Only use a saw table provided with a kerf guide

13
! never let the vacuum cleaner hose interfere with
the lower guard or the cutting operation

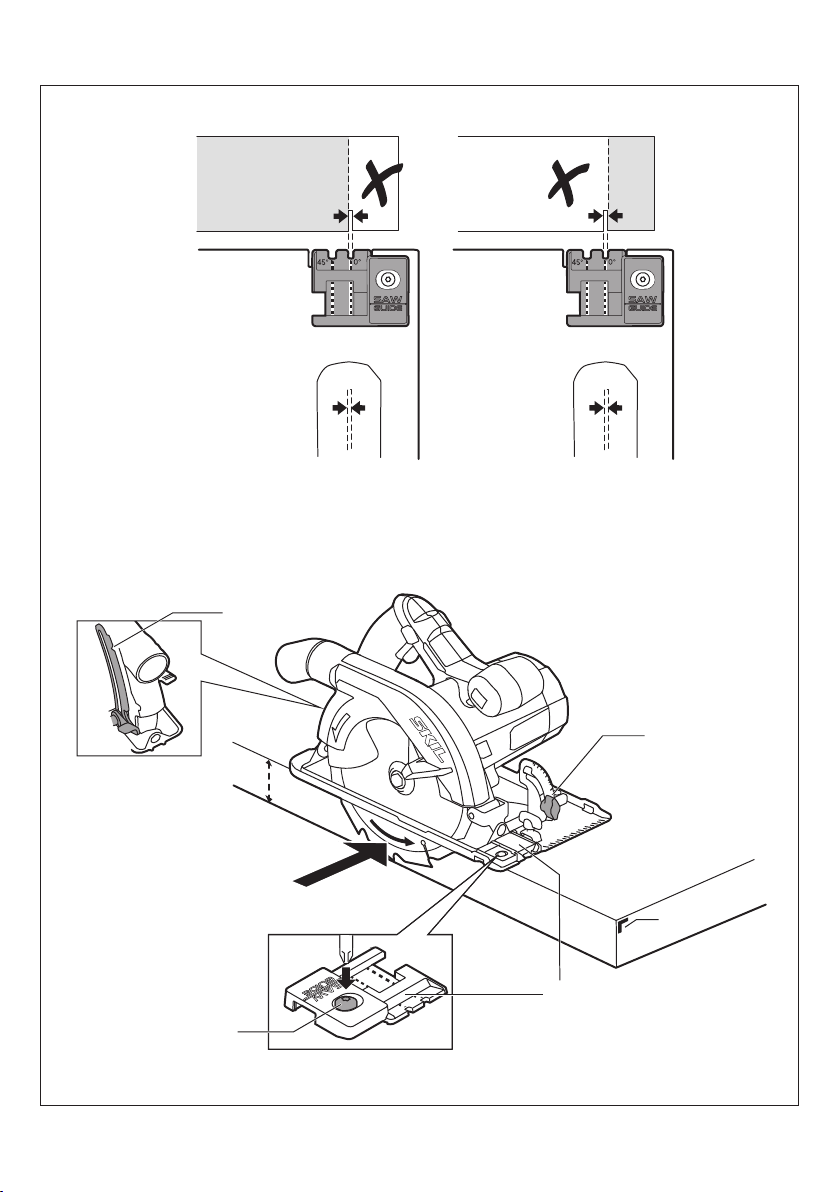

• Operating the tool 9
-connect plug to power source
-always hold handle R rmly with one hand and handle
S rmly with the other hand
-place tool with front end of foot at on workpiece
! ensure that the saw teeth are not engaged into the
workpiece
-switch on tool by rst pressing knob B (= safety switch
which cannot be locked) and then pulling trigger A
! the tool should run at full speed before the blade
enters into the workpiece
-lower guard F opens automatically when saw blade
enters the workpiece (open lower guard manually by
using lever G only for special cuts such as plunge cuts)
! do not force the tool (apply light and continuous
pressure in order to avoid overheating the blade
tips and, in case of cutting plastics, melting the
plastic material)
! while working, always hold the tool at the grey-
coloured grip area(s)
-after completing the cut switch o tool by releasing
trigger A
! ensure that the blade has come to a complete
standstill, before you lift the tool from the
workpiece
APPLICATION ADVICE
• Always face the good side of the workpiece down to
ensure minimum splintering

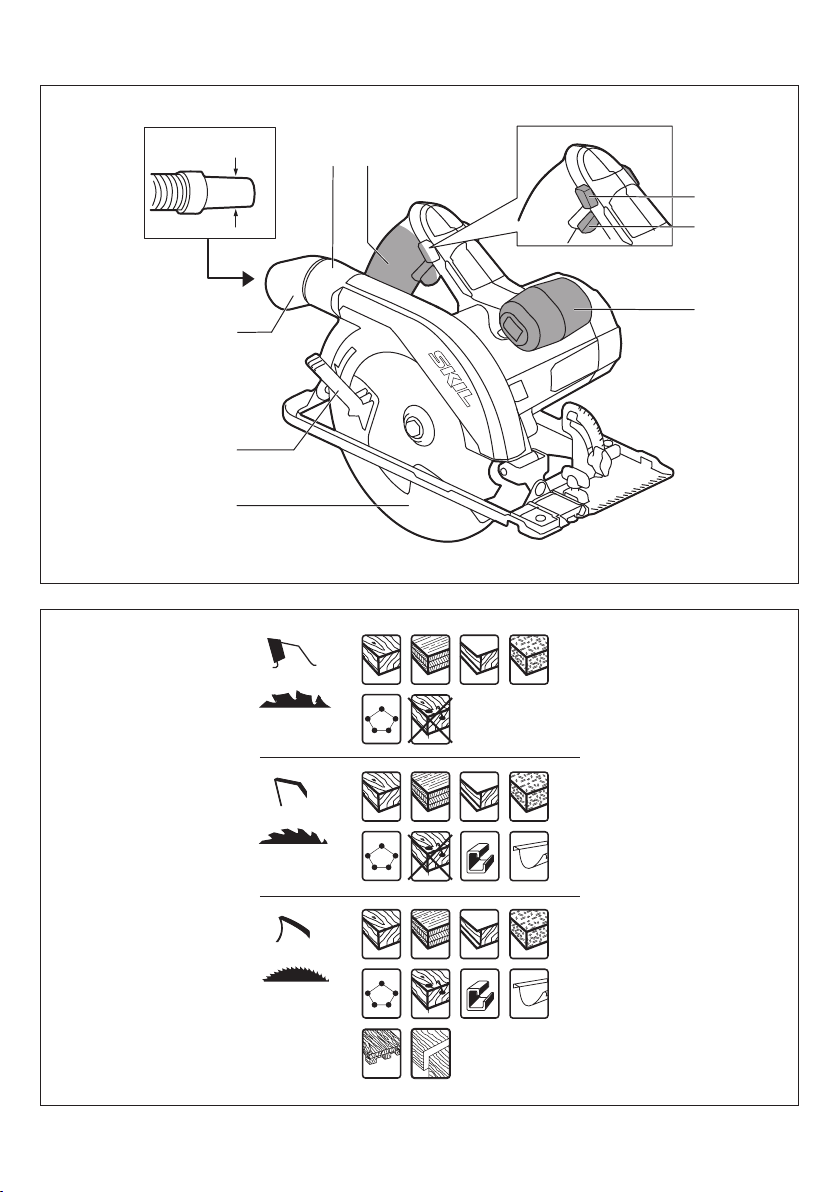

• Only use sharp saw blades of the correct type q
-quality of cut improves by the number of teeth
-carbide tipped blades stay sharp up to 30 times longer
than ordinary blades
• Parallel guide Z w
-for making exact cuts along a workpiece edge
-can be inserted in either side of foot
Adjusting parallel guide
-loosen knob AA
-adjust to desired cutting width by using parallel guide
scale (use saw line visor Q as 0-reference)
-tighten knob AA
• Plunge cutting e
-set desired cutting depth
-tilt tool forward with saw line visor Q lined up with
desired line of cut marked on the workpiece
-open lower guard F with lever G
-just before blade enters workpiece, switch on tool and
gradually lower back end of tool using front end of foot
as hinge-point
-gradually move tool downward as well as forward
-as soon as blade enters the material, release lever G
! never pull tool backwards
• Cutting large panels r
-support panel close to the cut either on oor, table or
workbench
! set cutting depth so that you cut through panel
and not through support
-in case parallel guide does not allow desired width of
cut, clamp or nail straight piece of wood to workpiece
as a guide, and use the right side of the foot against
this guide
USE
• Mounting saw blade 2
! disconnect the plug
-take blade wrench T from storage V
-push spindle-lock button C and hold it while you
remove blade bolt D with blade wrench T
! push spindle-lock button C only when tool is at a
standstill
-release spindle-lock button C
-remove ange E
! make sure that clamping surfaces H of anges are
perfectly clean and face the blade
-open lower guard F with lever G and hold it while you
mount saw blade with saw teeth and arrow printed on
saw blade pointing in same direction as arrow on upper
guard
-release lower guard F
-mount ange E
-push spindle-lock button C and hold it while you tighten
blade bolt with blade wrench 1/8 turn past nger tight
(ensures slippage of saw blade when it encounters
excessive resistance thus reducing motor overload and
saw kickback)
-release spindle-lock button C
• Adjusting cutting depth 6
-for an optimal quality cut the saw blade should not
extend more than 3 mm below the workpiece
-loosen knob J
-raise/lower foot K until desired cutting depth is set on
scale using indicator L
-tighten knob J
• Adjusting cutting angle (0-50°) 7
-loosen knob M
-tilt tool until desired cutting angle is set on scale using
indicator N
-tighten knob M
! when bevel cutting, cutting depth does not
correspond with value on cutting depth scale
• 90° Cutting angle check 7
-adjust and tighten foot K to maximum cutting depth 6
-adjust and tighten cutting angle to 0°
-check for a 90° angle between the blade and bottom of
foot with a square
-if adjustment is needed, loosen knob M and use
adjustment screw P as illustrated
• Adjustable saw line visor Q 8
-for guiding tool along desired line of cut marked on the
workpiece
-for a straight 0° cut or a 45° bevel cut use the indicator
line concerned
! the wide part of the foot should rest on the
supported part of the workpiece
-can be adjusted to align with dierent sawblade widths,
however it may be that one side of the saw blade does
not align, then choose whether waste material is on
inner or outer side of blade 8
! cutting width is determined by width of blade teeth
and not by width of blade body
! always make trial cuts rst to verify actual line of
cut
• Dust suction
-connect vacuum cleaner to extension Y 9

14
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the eects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
patterns
MAINTENANCE / SERVICE
• This tool is not intended for professional use
• Always keep tool and cord clean (especially ventilation
slots AB)
! disconnect the plug before cleaning
• Always keep the area around lower guard F 2clean
(remove dust and chips by blowing out with compressed
air or with a brush)
• Clean saw blade immediately after use (especially from
resin and glue)
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should
be carried out by an after-sales service centre for SKIL
power tools
-send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of the
tool are listed on www.skil.com)
• Be aware that damage due to overload or improper
handling of the tool will be excluded from the warranty
(for the SKIL warranty conditions see www.skil.com or
ask your dealer)
ENVIRONMENT
Only for EU countries
• Do not dispose of electric tools, accessories and
packaging together with household waste material
-in observance of European Directive 2012/19/EC
on waste of electric and electronic equipment and
its implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
-symbol 5will remind you of this when the need for
disposing occurs
Only for UK
• Do not dispose of electric tools, accessories and
packaging together with household waste material
-in observance of on Waste Electric and Electronic
Equipment Regulations 2013 (SI 2013/3113), electric
tools that have reached the end of their life must be
collected separately and returned to an environmentally
compatible recycling facility
-symbol 5will remind you of this when the need for
disposing occurs
NOISE / VIBRATION
• Measured in accordance with EN 62841 the sound
pressure level of this tool is 97.0 dB(A) and the sound
power level 108.0 dB(A) (uncertainty K = 3 dB), and the
vibration ✱(triax vector sum; uncertainty K = 1.5 m/s²)
✱cutting wood 4.0 m/s²
✱cutting metal 2.8 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 62841;
it may be used to compare one tool with another and as
a preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
-using the tool for dierent applications, or with dierent
or poorly maintained accessories, may signicantly
increase the exposure level
-the times when the tool is switched o or when it is

15

16
