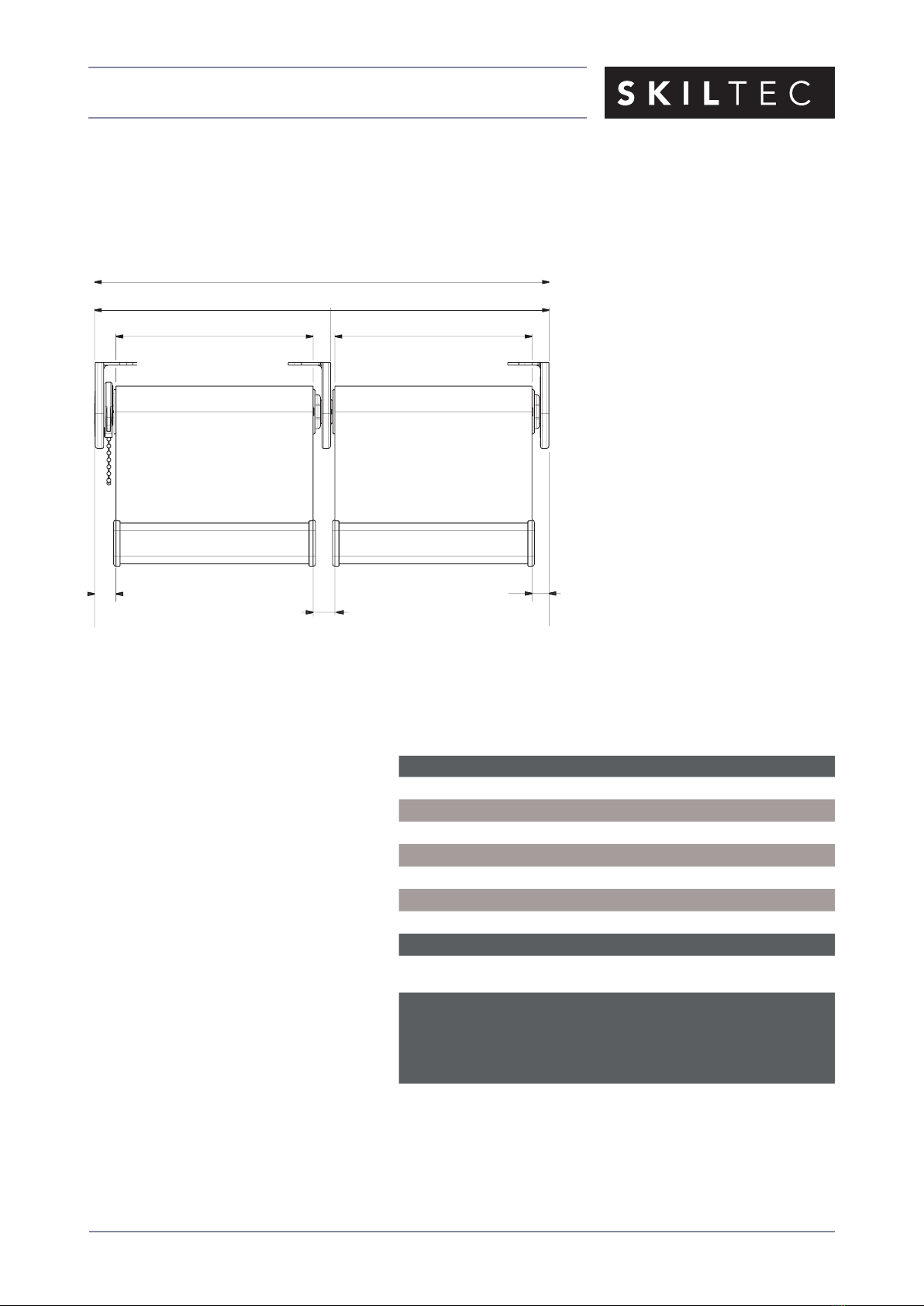

SKILTEC 5A Dimensional drawing

ROLLER BLINDS
WITH EDGE
TECHNOLOGY
PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 3 OF 50
HUNTER DOUGLAS ROLLER BLINDS WITH EDGE TECHNOLOGY
INTRODUCTION
Introducing Hunter Douglas Roller Blinds with patented EDGE Technology, our roller blind hardware system
developed by an international design team specifically for our requirements.
Featuring a sleek architectural design with smooth operation and unrivalled inner strength, EDGE technology
allows you to span even the largest window beautifully. Highly durable hardware delivers smooth and reliable
operation.

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 4 OF 50
EDGE FEATURES & BENEFITS
Can be operated using either standard
chain drive or motorised technology.
The durable standard chain drive is
available in two ratio mechanism 1:1 and
1:1.75. The standard 1:1.75 ratio enables
a heavier blind to be lifted without the
need for a spring booster. However, you
can nominate to use the optional 1:1 ratio.
It is also aesthetically pleasing in one size
format for a consistent look throughout
the home.

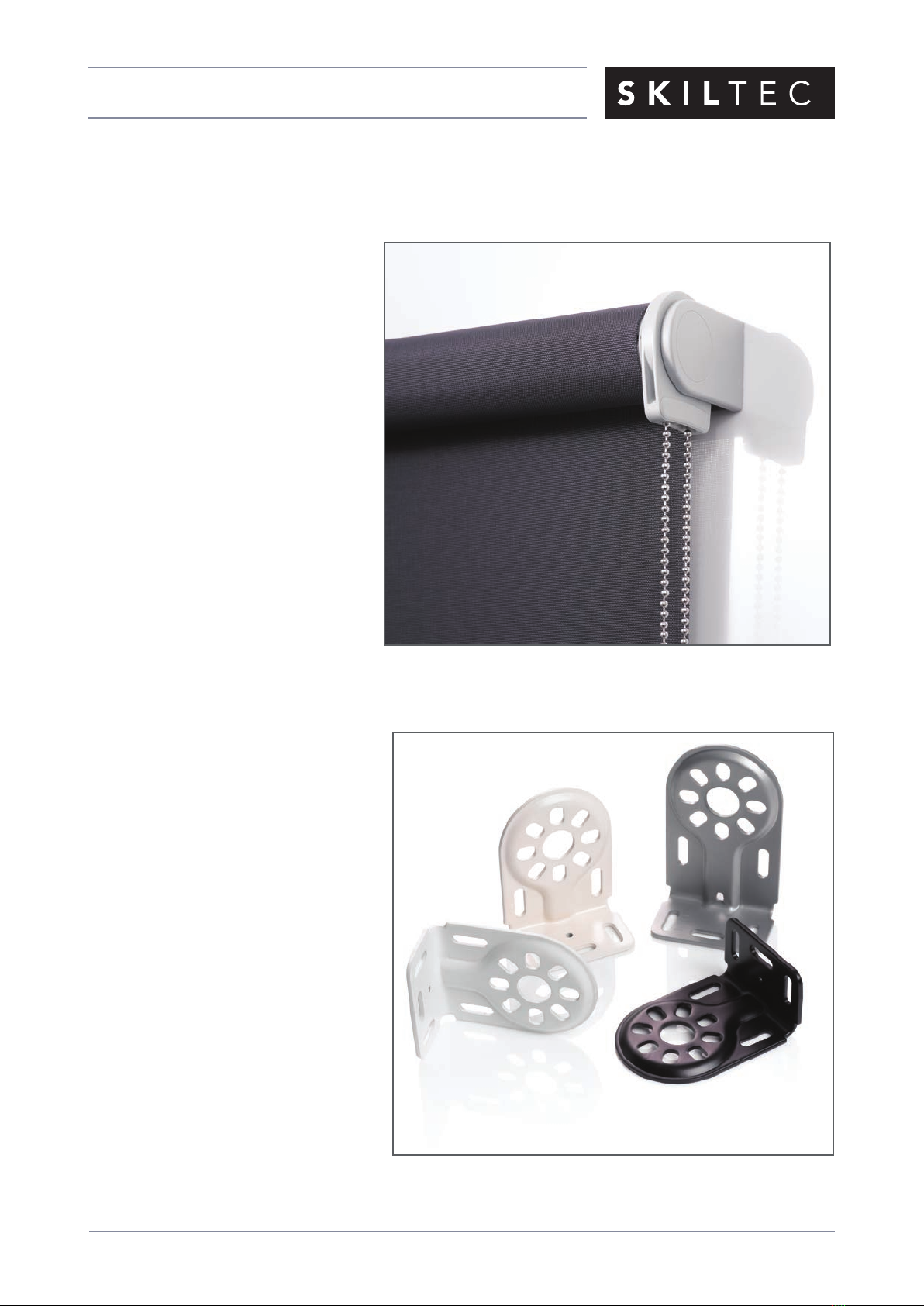

Universal spring loaded idle ends provide
for smooth and easy installation.
The aluminium tube has been engineered
to perform well with minimal deflection
over large expanses.
SMOOTH AND LIGHT OPERATION
• Hardware components are available
in four colour options – White, Black,
Grey and Magnolia.
• All brackets are universal in design
which means the operating side
can be changed simply on site if
required.
• Two bracket sizes are available,
38mm and 55mm which ensures
the correct bracket can be selected
for challenging installations and
maximises the drop capacity.
• Brackets are available with slim line
end caps which are recommended
for all face fit installations.
OUTER BEAUTY

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 5 OF 50
LIVING WITH INNOVATION
• Two compact dual bracket designs are available:
- The standard (under) roll configuration ensures the
blind skin can be fitted close to the window.
- The reverse (over) roll configuration provides a self
pelmet effect. Both dual brackets can be installed
with either same side or opposite end controls and
have universal mounting options.
• An optional patented integrated levelling device
makes it easy to adjust shades after mounting.
• Two standard linking systems are available:
- The standard connector set minimises the
intermediate gap on linked configurations.
- The optional aligner link maximises flexibility during
installation with a fine adjustment option for aligning
the level of the blinds.
• Both linking options have 15 degree play. This
provides an allowance for slightly misaligned
installations.
• An independent linking option is available for
configurations that require multiple operation.
• A 45 and 90 degree linking mechanism is also
available for bay and corner windows.
• A sleek (84mm projection) and contemporary head
box and fascia system are available in both an
anodised and powder coated finish (white, black or
magnolia) with colour coded endcaps.
• Both the head box and fascia system can be installed
in both reveal and face fit positions and have a snap
lock cover and plastic outlets for easy installation and
quiet operation.
• To obtain room darkening, the head box system can
be installed with side channels, available in matching
powder coated colours (white, black or magnolia) or
anodised finish.

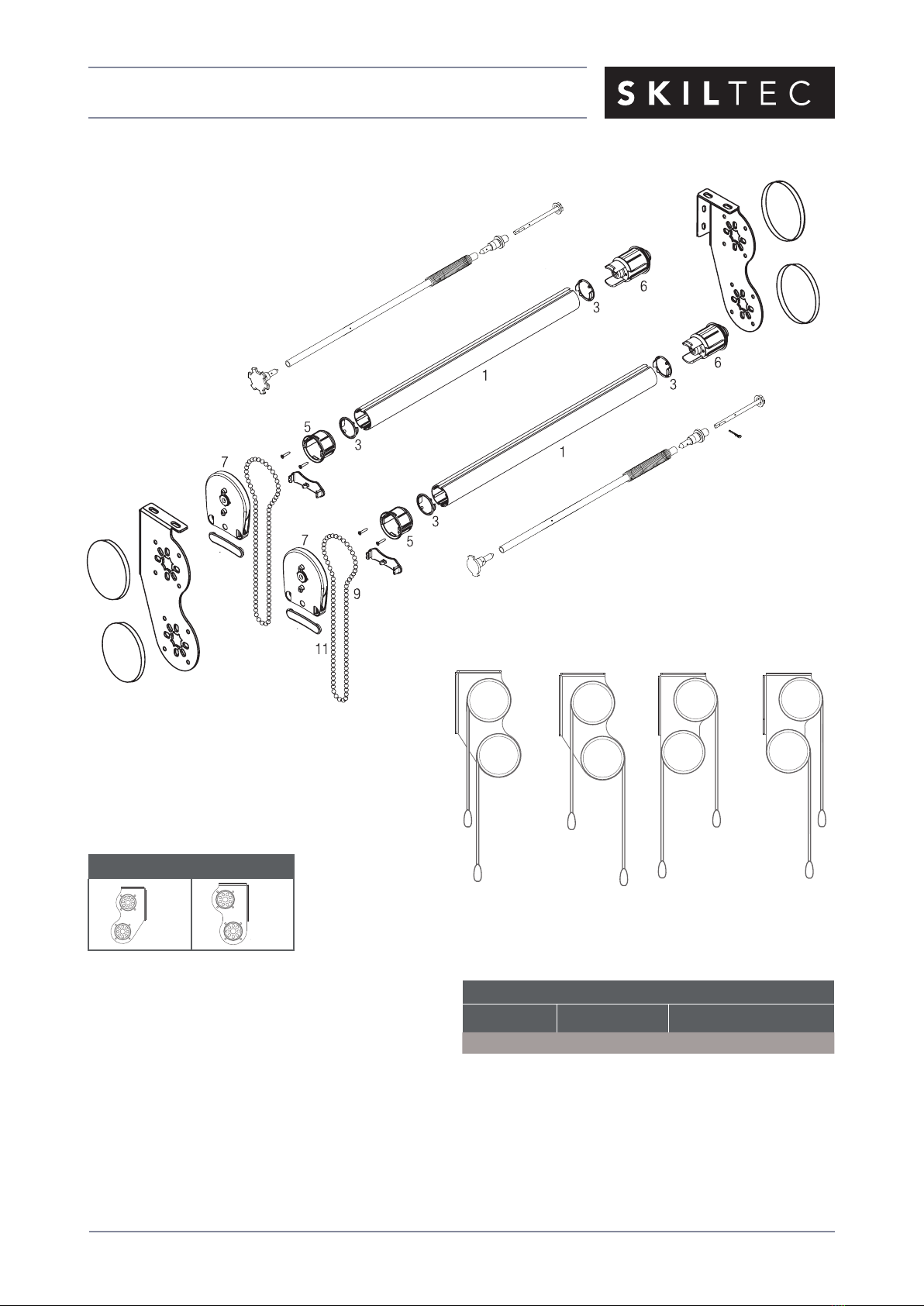

Standard Dual Roller
Linked Blinds
Headbox System

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 6 OF 50

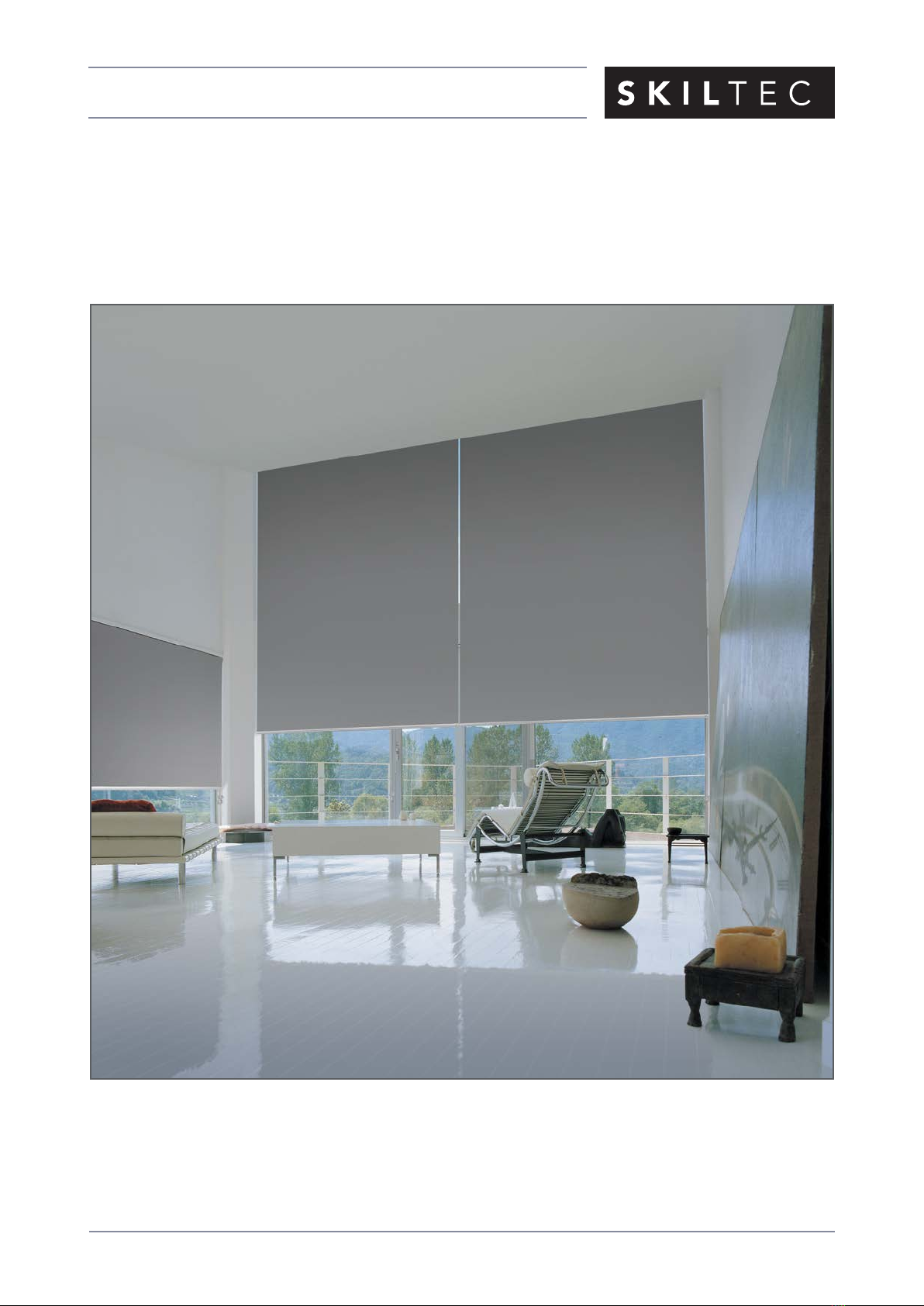

SUPERIOR DESIGN
Introducing Hunter Douglas Heavy Duty Roller Blinds with patented EDGE technology, a new heavy duty roller
blind hardware system developed by Hunter Douglas.
The new modular system is designed to allow for larger blind widths, featuring a 65 mm tube with the strength to
allow for widths up to 3.8 metres and drops up to 5.5 metres.

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 7 OF 50
EDGE LiteRise Roller Blinds
Cordless operating system for clean aesthetics and Child Safe Solution
Hunter Douglas are continuously at the forefront of innovative technology, child safety and on-trend designs, providing the ideal
balance between style and functionality. The new Edge LiteRise Roller Blind is the latest introduction into the existing array of cordless,
child safe options in the Hunter Douglas range of window coverings.
The Edge LiteRise Roller Blind operating system features a unique spring mechanism that allows for integrated and granular control of
the shade, allowing you to raise and lower the shade stopping at any desired position.
Unlike traditional Spring Operated Roller Blinds, the intuitive Edge LiteRise Roller Blind is raised and lowered by hand at the bottom rail
for smooth light operation.
Similar to Duette®LiteRise Shades, the patented design means no cords, ease of operation and instinctive control.
EDGE LiteRise Roller Blinds are available across the range of fabrics and Sunscreens.

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 8 OF 50
Ease Of Operation
Unlike traditional spring operated roller blinds, the
Edge LiteRise Roller Blind does not require a pull
to engage the spring when raising of the shade is
required. Traditional spring operated roller blinds
are known for their tricky engagement and potential
to accelerate away during operation.
The Edge LiteRise Roller Blind provides the
consumer with a precise method of operation
allowing for the ultimate in light and privacy control.
The patented spring mechanism allows for intuitive
operation. This means that the Roller Blind can be
precisely positioned anywhere along the drop and
hold its position.
Simply push up to raise and pull down to lower.
Clean aesthetics and
balanced light gap
The Edge LiteRise Roller Blind has an even and
balanced light gap of approx 11mm providing
improved aesthetics, minimising light streaming in
from the outside.
The absence of a chain and chain tensioner
provides a clean and uncluttered appearance at
the window.
Ideal Child Safety Solution
The patented design eliminates the cords
providing increased safety for children and pets
whilst creating an uncluttered look at the window.
EDGE LiteRise Roller Blinds - continued

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 9 OF 50
ARCHITRAVE & REVEAL
OUTSIDE FACE
WIDTH -0
DROP -0
TO
SILL
-0
PAST
SILL
-0
TO
FLOOR
-0
WIDTH -0
MIN WIDTH +130
90mm
+90
EDGE ROLLER BLINDS - measuring guide

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 10 OF 50
NOTE: FOR WINDOWS IN REVEAL BRACKETS
MUST BE CEILING FIXED.
FRONT EDGE
ON FACE
BACK EDGE
Corners in Reveal- Front Edge Deductions
Through Blind +50mm(from corner)
Butt Blind - 0mm
Corners in Reveal- Back edge Deductions
Through Blind - 0mm
Butt Blind - 60mm
Corners on Face Deductions (Butt Blinds)
38mm Projection bracket - 75mm
55mm Projection Bracket - 90mm
FACE FIT
CEILING FIT FRONT EDGE OF REVEAL
Angled Link Corners on Face
Measure Blinds into the corner and deduct 76mm from each blind.
Angled Link Corners in reveal
Measure from the front edge of reveal and deduct 10mm from each blind.
In all corner linked situations we strongly recommend that the brackets are fixed in
exact location first and then measured outside edge to outside edge of the bracket
to ensure the gap is minimised.
MEASURE WALL
Brackets to be fixed to wall
CEILING FIT FRONT EDGE
OF REVEAL
FACE FIT
Angled Link Bay on Face Deductions
38mm Projection Bracket - 38mm - 76mm - 38mm
55mm Projection Bracket - 43mm - 86mm - 43mm
Angled Link Bay in Reveal Deductions
Front Edge of Reveal - 10mm - 20mm - 10mm
Corners
ON FACE
TOP FIX FRONT EDGE
TOP FIX BACK EDGE
Bays in Reveal Deductions
Front Edge of Reveal - 0mm - 0mm - 0mm
Back Edge of Reveal - 22mm - 44mm - 22mm
Bays on Face Deductions
38mm Projection Bracket - 28mm - 56mm - 28mm
55mm Projection Bracket - 33mm - 66mm - 33mm
Bays
Angled Linked Blinds - Bay Window
Angled Linked Blinds - 90° Corners
EDGE ROLLER BLINDS - measuring guide

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 11 OF 50
• Two bracket sizes available – 55mm and 75mm which ensures the correct bracket can be selected to
maximise the drop capacity.
• The aluminium tube has been engineered to perform well with minimal deflection over large expanses.
• Universal bracket system allows for simple installation.
• The idle end plug has a 30mm play to provide for incorrect measurements.
• Components are available in two colour options: black and white.
• Can link up to 3 blinds with 30m2combined sq area.
• Straight linked blinds work smoothly up to an angle of 15 degrees to compensate for installation errors and
allows for arches with a large radius to be installed without a universal joint.
SMOOTH AND LIGHT OPERATION
A range of durable hardware options are now available to span widths up to 3.8m and drops up to 5.5m with
smooth and reliable operation every time. Chain operated rollers are now available with extended limitations to
cater for longer drops, while motorisation has flourished with a wide selection of motor options. Now you can
select from the most superior motorised solutions to link blinds up to 30m² or simply motorise a single heavy
duty blind with a simple offordable solution.
FABRIC RANGE
A range of new fabric options that were never offered before in the heavy duty program are now available,
Please check the new price list for more information.
INNER STRENGTH
The system is available with a 50mm or 65mm aluminium tube. Both tubes have been engineered with
symmetrical keyways to reduce deflection over large expanses. Chain operated blinds will be supplied with the
50mm tube while motorised blinds will be supplied with the 65mm tube as standard.
EASE OF ASSEMBLY AND INSTALLATION
Ease of assembly and installation has been the main focus point of the new system. Introducing two new heavy
duty universal brackets that can maximise the limitation of the overall blind capacity and ensures the correct
selection can be made for challenging installations. For all face fit installations, bracket and screw covers will be
supplied as standard.
An Aligner Set is available for linked blinds which will allow fine adjustments to be made to align bottom rails
during installation. For windows that are not square, an integrated leveller can be used to adjust the height on
the idle end to ensure the lateral opening is parallel. This is particularly important for linked blinds with long
drops.
EDGE HEAVY DUTY FEATURES & BENEFITS

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 12 OF 50
EDGE METAL CHAIN DRIVE
LEADING DESIGN
Introducing the new premium metal chain drive with a unique design statement that will complement the
modern home. A highly durable hardware and operating system that allows for high sound absorption whilst
delivering smooth and reliable operation.
• Award Winning Design – “Furniture and Home Textiles” product design award at the 2012 iF design awards
ceremony.
• Made from ZAMAC (Zinc, Aluminium, Magnesium, Alloy, Copper) with a high quality finish.
• Heavy-duty 1:1 ratio mechanism with a patented technique providing smooth and easy lift capabilities.
• Aluminium designer bracketing system provides unique aesthetics and strong mounting platform for any
home. The plastic cover is available in Black or Grey.
• The stylish designer bracket can also be paired with the standard chain drive available in both 1:1 and
1.75:1 ratio for easier raising and lowering of larger blinds.

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 13 OF 50
EDGE ACCESSORIES
CHAIN TENSIONER
A new chain tensioner has been designed to complement the current offerings within the EDGE System.
Designed in collaboration with installers to provide an easy installation process and to meet child safety
regulations. The chain tensioner comprises high quality plastic components to reduce noise generated from the
chain without compromising on quality.
• A rubber wheel is used to ensure quieter operation and reduce the overall noise generated from the
system.
• Easy clipping action minimises the use of screws to give a stylish appearance.
• Two kit options are available for face fit or reveal fit installation.
• Available in four colour options- Black, White, Grey and Magnolia.
• The EDGE Technology Hardware System is available with the Ellipse Balance Rail which features a sound
proofing bumper and has been designed with perfect weight distribution in mind to ensure fabrics hang
very flat.
• The Ellipse Balance Rail is now available in 10 colours, which includes the original Black, White, Magnolia
and Anodized.
The new colour options are Gunmetal, Granite, Limestone, Bronze and two exclusive Australian Window
Furnishing colours; Dune and Shoji White.
• Four new end caps have been introduced to stylishly co-ordinate with the Ellipse rail.
• The internal design of the Ellipse Balance Rail has been re-engineered to improve the finished blind quality.
This reduces fabric reworks caused by scratching and stretching as the fabric runs through the balance rail
during fabrication.
IMPROVED ELLIPSE BALANCE RAIL
Face Reveal
Note: The new chain tensioners will be available from January 2014.

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 14 OF 50
EDGE COMPONENTS AND DIMENSIONS
STANDARD ROLLER SYSTEM
COMPONENTS
The Luxaflex Roller Blind Hardware
System can be operated with either
a chain drive or motor. Each chain
operated blind will be supplied with a
plastic chain loop however metal or
stainless steel chains are available on
request.
An Ellipse Rail comes standard on
all blinds and is available in either
anodised finish or you can choose
from a selection of popular powder
coated colours.
1
4
5
2
3
7
8
8
6
4
7
System options
14
15
16
20
22
21 27
26
25
17
4
4
19
19
18
29
28
Chain Drive and Idle Components
No Code Description
1 24.7125.XXXX* Chain Drive 1:1
1 24.7124.XXXX* Chain Drive 1.75:1
2 24.7127.XXXX* Chain Drive Cover Plate
3 24.7122.XXXX* 31mm Tube Plug
14 24.7300.7060 Metal Chain Drive 1:1
15 24.7308.XXXX
#
Metal Chain Drive Cover Plate
16 24.7307.XXXX
#
Metal Chain Drive Tube Plug
4 24.7121.XXXX* 37mm Tube Adapter
19 24.7128.XXXXA* 50mm Tube Adapter
6 24.7120.XXXX* Idle End
Bracket and Tensioner Components
No Code Description
7 24.7100.XXXX* Bracket 38mm
7 24.7102.XXXX* Bracket 55mm
8 24.7110.XXXX* Bracket Cover 38mm
8 24.7114.XXXX* Bracket Cover 55mm
20 24.7106.7060 Chrome Bracket 38mm
20 24.7108.7060 Chrome Bracket 55mm
21 24.7116.XXXX
#
Chrome Bracket Cover
22 24.7118.XXXX
#
Chrome Bracket Screw Cover
25 24.7193.XXXXA Levelling Bracket 38mm
25 24.7195.XXXXA Levelling Bracket 55mm
26 24.7190.7060A Chrome Levelling Bracket 38mm
26 24.7192.7060A Chrome Levelling Bracket 55mm
27 24.7196.7060A Integrated Leveller
Not Shown 24.7197.0000A Integrated Leveller Key
Aluminium Tubes and Springs
No Code Description
5 24.7200.0000 37mm Tube
17 24.7002.0000 HD 37mm Tube
18 24.7201.0000 50mm Tube
28 24.7202.XXXX^ 37mm Spring
29 24.7203.XXXX^ 50mm Spring
XXXX = Available in different options
* = Available in White (0155,0199), Grey (0952), Black (1858), Magnolia (4459)
# = Available in Grey (0952) and Black (1858)
^ = Available in Right Hand Control (0000) and Left Hand Control (0001)

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 15 OF 50
STANDARD ROLLER SYSTEM
Minimum width single blind 500mm
Minimum width single blind with booster spring 750mm
Minimum width single motorised blind (switch) 650mm
Minimum width single motorised blind (RTS) 690mm
Maximum width single blind Please refer to the pricing guide as this is fabric
dependent.
Minimum drop single blind 300mm
Maximum drop single blind Please refer to the pricing guide as this is fabric
dependent.
NOTE:
Allow an extra
2mm for each
end cap.
LIMITATIONS
EDGE COMPONENTS AND DIMENSIONS
STANDARD ROLLER SYSTEM
21mm 11mm
Cloth Width
Blind Width 38mm Bracket Dimensions
55mm Bracket Dimensions
75mm
75mm
68mm
86mm

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 16 OF 50
COMPONENTS
Linked Rollers are available with either a
straight connector or an aligner connector.
Unless otherwise nominated, the blind
will always be supplied with the straight
connector which ensures the light gap
between the linking blinds is minimised
(17mm).
The optional aligner connector has been
designed with special patented technology
to assist when installing blinds that may be
trickier to line up.
5
8
7
7
31
4
37
3
4
36
4
4
5
8
39
2
1
6
XXXX = Available in White (0155), Grey (0952), Black (1858), Magnolia (4459).
# = Available in Grey (0952) and Black (1858) only.
Linked Blind Components
No Code Description
30 24.7134.XXXXA Connector Set (120mm)
31 24.7133.XXXXA Aligner Set (120mm)
32 24.7138.XXXXA Aligner Set (300mm)
33 24.7135.0000 Independent Link Component
34 24.7130.0000A Uni-Joint Component - 90 degree angle
35 24.7131.0000A Uni-Joint Component - 45 degree angle
36 24.7123.XXXXA Tube Plug Connector
37 24.7111.XXXXA Linked Bracket Cover 38mm
37 24.7115.XXXXA Linked Bracket Cover 55mm
Not Shown 24.7117.XXXX
#
Linked Chrome Bracket Cover
39 24.7129.XXXXA Idle End (Locking Ring)
System options
33 30 32 34 35
EDGE COMPONENTS AND DIMENSIONS
LINKED ROLLER SYSTEM

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 17 OF 50
LIGHT GAPS & LIMITATIONS
LINK OPTIONS FIRST LINK 2ND LINK
Straight connector 17mm 22mm
Straight connector w/Spring 22mm 22mm
Aligner Connector 24mm 28mm
Aligner Connector w/Spring 28mm 28mm
Independant Link 24mm 32mm
Independant Link w/Spring 32mm 36mm
Note: Braket cover will increase light gap by 2mm on each end.
LIMITATIONS
Maximum number of linked blinds 3
Note: For Bay windows there is also a 45 and 90 degree angle
linking system. We recommend that the brackets for these blinds
are installed before measuring the opening width for an order.
21mm
*See Below
11mm
Tube/Cloth Width
Blind Width Blind Width
S
ystem Width
Tube/Cloth Width
* Please refer to table below for light gap variations based on different options.
EDGE COMPONENTS AND DIMENSIONS
LINKED ROLLER SYSTEM

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 18 OF 50
COMPONENTS
The contemporary headbox system has been
designed to provide a simple slim line profile
whilst at the same time maximising the drop
capacity for your roller. The headbox is available
in both anodised finish or a choice of powder
coated colours (white, black or magnolia).
In situations where you require additional light
control, a matching one piece side channel
system is available and easy to install.
955_1.dxf
42
48
4
6
44
10
11
11
40
43
3
4
5
41
42 48
45
47
44
46
1
9
System options
49 50
XXXX = Available in White (0155), Grey (0952), Black (1858), Magnolia (4459).
XXX = Available in Clear (155), Black (855), Granite (460),
Limestone/Dune (461), Gunmetal (462) Bronze (465).
#= Available in ten different colour options.
HEADBOX COMPONENTS
No Code Description
40 24.7209.XXXX H-Box Front Plate
41 24.7208.XXXX H-Box Back Plate
42 24.7212.XXXX H-Box Endcaps Square
43 24.7146.XXXXA Chain Outlet Set
44 24.7207.XXXX Side Channel
45 24.7168.XXXXA Side Channel Top Insert
46 24.7169.XXXXA Side Channel Bottom Set
47 24.7163.0000A Side Channel Fixing Set (Metal)
48 24.7362.1858 H-Box Bracket
Fascia Components
49 24.7008.XXXX Fascia Plate
50 24.7210.XXXX Fascia Bracket
42 24.7212.XXXX H-Box Endcaps Square
48 24.7362.1858 H-Box Bracket
Ellipse Bottom Rail Components
9 32.379.200 Double Sided Bottom Rail Spline
10 24.7218.XXXX
#
Ellipse Bottom Rail
11 32.455.XXX Bottom Rail End Caps
EDGE COMPONENTS AND DIMENSIONS
HEADBOX SYSTEM

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 19 OF 50
PRODUCT INFORMATION MANUAL
SECTION: 2A TIMBER SHUTTERS
EDGE COMPONENTS AND DIMENSIONS
HEADBOX SYSTEM
HEADBOX CAPACITY
37mm Tube (Blind Width < 2600) Fabric Thickness < 0.55mm 3.3m drop
Fabric Thickness < 0.75mm 2.8m drop
50mm Tube (Blind Width > 2600) Fabric Thickness < 0.55mm 2.4m drop
Fabric Thickness < 0.75mm 1.9m drop
LIMITATIONS
21mm
Blind Width
Tube/Cloth Width
15mm
88.2mm
3.00mm
84mm
89mm
Side Channel Dimensions
26.8mm
16.8mm
63.5mm
26.8mm
Headbox Dimensions

PRODUCT INFORMATION MANUAL
SECTION: 5A ROLLER BLINDS WITH EDGE TECHNOLOGY
ISSUE DATE: JANUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2016 APPROVED BY: K.FUESSEL PAGE 20 OF 50
29
12
9
8
12
29
STANDARD BRACKET OPTIONS
REVERSE BRACKET OPTIONS
STANDARD BRACKET OPTIONS
REVERSE BRACKET OPTIONS
COMPONENTS
Two Dual Bracket systems are available. The standard roll
bracket has been designed to keep your blind skins as close
to the window as possible, whilst the reverse roll bracket
provides a self pelmet effect and is ideal for use with fabrics
that have a neutral toned backing.
Blinds can be installed using either same side or opposite
end controls.
System options
51 52
21mm 10mm
2mm2mm
Cloth Width
Blind Width
(-35mm with endcaps) & (-31mm without endcaps)
Reverse Roll Bracket
Standard Roll Bracket
18mm
Blind Width
Tube Width
12mm
21mm 10mm
2mm2mm
Cloth Width
Blind Width
(-35mm with endcaps) & (-31mm without endcaps)
Reverse Roll Bracket
Standard Roll Bracket
18mm
Blind Width
Tube Width
12mm
Dual Bracket Components
No Code Description
51 24.7363.XXXX Std Roll Dual Bracket
52 24.7364.XXXX Rev Roll Dual Bracket
XXXX = Available in White (0155), Grey (0952), Black (1858), Magnolia (4459).
EDGE COMPONENTS AND DIMENSIONS
DUAL ROLLER SYSTEM
