SKYRC D100neo Instruction Manual
1. SKYRC D100neo
Introduction
Package
Introducing the SkyRC D100neo AC/DC Multi-Function Smart Charger, an enhanced version of the
D100.
With dual independent ports and compatibility with various RC batteries, it adapts to different
chemistries. It can act as a dual-output digital power, offering adjustable voltage (2V-27V), and
current (0.2A-10A) per output. The 20W USB-C PD 3.0 charging port allows rapid charging of
smartphones, tablets, and the 2020 MacBook Air.
Connect effortlessly via Type-C, and control it with Charger Master on PC, or Mac.
Before using it for the first time, it is crucial to carefully read through the instructions, warnings, and
safety tips provided. Improperly charging a battery or misusing the charger can lead to potentially
hazardous situations such as fire or explosion.
SkyRC D100neo charger*1 User Manual*1 AC power Cord*1

SKYRC D100neo Instruction Manual
SKYRC D100neo 2.
Meet D100neo
LCD Display Switch Between
Port A,B,C, and D
Scroll to select the
parameters and conrm
PD/QC3.0 Charge &
Data Port
AC Input 100-240V
DC Input 10-30V
Smart Ventilation Fan
XT60 Output Socket
Balance Port

SKYRC D100neo Instruction Manual
3. SKYRC D100neo
Switch Between
Port A,B,C, and D
Scroll to select the
parameters and conrm
Specification
Item Option Specication
Model D100neo
Input Voltage
AC 100-240V (50/60Hz)
DC 10V-30V
Input Current DC 18A
Charge Power
AC A: 0-100W B: 0-100W A+B=100W
DC A: 0-100W B: 0-100W A+B=200W
Discharge Power
Main Port 5W
Main Port+Balance Port 30W Max (LiPo/6S)
Charge Current LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 0.2-10.0A
Discharge Current LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 0.1-2.0A
Balance Current LiPo/LiFe/LiIon/LiHV 1000mA Max
Trickle Charge
Current NiMH/NiCd 200mA & OFF
Battery Types
LiPo/LiFe/LiIon/LiHV 1-6S
NiMH/NiCd 1-15S
Pb 3S/6S/12S
Working Modes
LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Discharge, Storage
NiMH/NiCd Normal, Discharge, Re-Peak, CYCLE_D_C, CYCLE_C_D
Pb Charge, AGM Charge, Cold Charge, Discharge

SKYRC D100neo Instruction Manual
SKYRC D100neo 4.
Item Option Specication
DC Power Supply
Voltage 5.0-27.0V
Current 1.0-10.0A
Power 100W Max
USB Type-C Output
QC3.0 5V 3A, 9V 2A, 12V 1.5A 18W
PD 5V 3A, 9V 2.2A, 12V 1.67A 20W
Size Length*Width*Height 116*110*79mm
Weight Net Weight 470g
Working
Environment
Working Temperature 0°C-40°C
Working Humidity 0-80%
Storage
Environment
Storage Temperature -10°C-60°C
Storage Humidity 20%-70%

SKYRC D100neo Instruction Manual
5. SKYRC D100neo
Warning
D100neo is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the charger by a person responsible for their safety.
Failure to exercise caution while using this product and comply with the following warnings
could result in a product malfunction, electrical issues, excessive heat, FIRE, and ultimately
injury and property damage.
Never leave charging batteries unattended during use.
Never charge batteries overnight.
Never attempt to charge dead, damaged, or wet battery packs.
Never attempt to charge a battery pack containing different types of batteries.
Never charge batteries in extremely hot or cold places or place in direct sunlight.
Never charge a battery if the cable has been pinched or shorted.
Never connect the charger if the power cord has been pinched or shorted.
Never attempt to dismantle the charger or use a damaged charger.
Never attach your charger to both an AC and a DC power source at the same time.
Always use the charger with the correct charging and discharging program.
Always use only rechargeable batteries designed for use with this type of charger.
Never use the charger on car seats, carpets, or similar surfaces.
Always operate the charger away from flammable and explosive materials.

SKYRC D100neo Instruction Manual
SKYRC D100neo 6.
Standard Battery Parameters
Select the correct operating procedure in accordance with the battery parameters.
Incorrect settings may cause the battery to burn or even explode.
LiPo Lilon LiFe LiHV NiMH NiCd Pb
Nominal voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max. charge
voltage 4.2V/cell 4.1V/cell 3.65V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell
Storage voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell N/A N/A N/A
Allowable fast
charge current ≦1C ≦1C ≦4C ≦1C 1C-2C 1C-2C ≦0.4C
Min. discharge
voltage
3.0-3.4V/
cell
2.9-3.3V/
cell
2.6-3.0V/
cell
3.1-3.5V/
cell
0.6-1.0V/
cell
0.6-1.0V/
cell
1.8-2.0V/
cell

SKYRC D100neo Instruction Manual
7. SKYRC D100neo
Explanation of Buttons

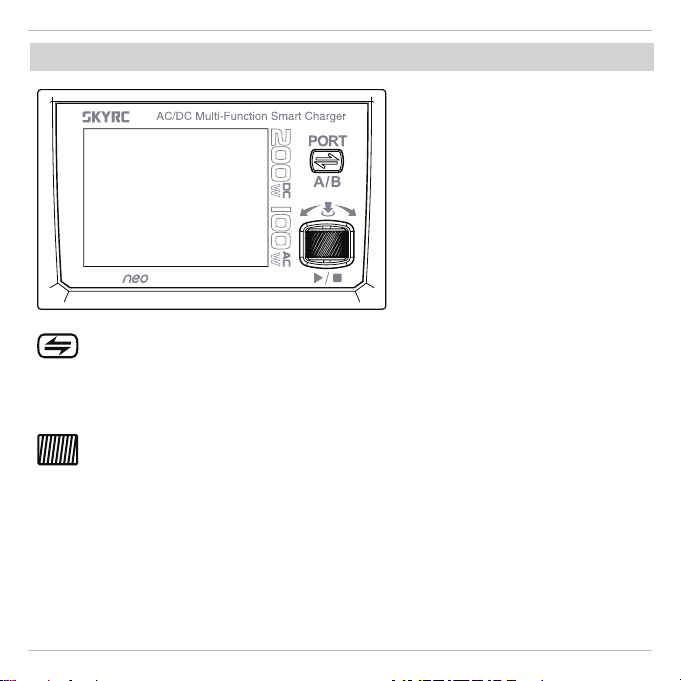

Switch Between Ports A and B
Navigate through Ports A and B in the home menu
Short-press to enter into parameters setting and confirm your selection.
Scroll the wheel to select different menus or adjust parameters.
Press and hold the scroll wheel for two seconds to access the system setting menu.
Port Switch Button
Scroll Button
D100

SKYRC D100neo Instruction Manual
SKYRC D100neo 8.

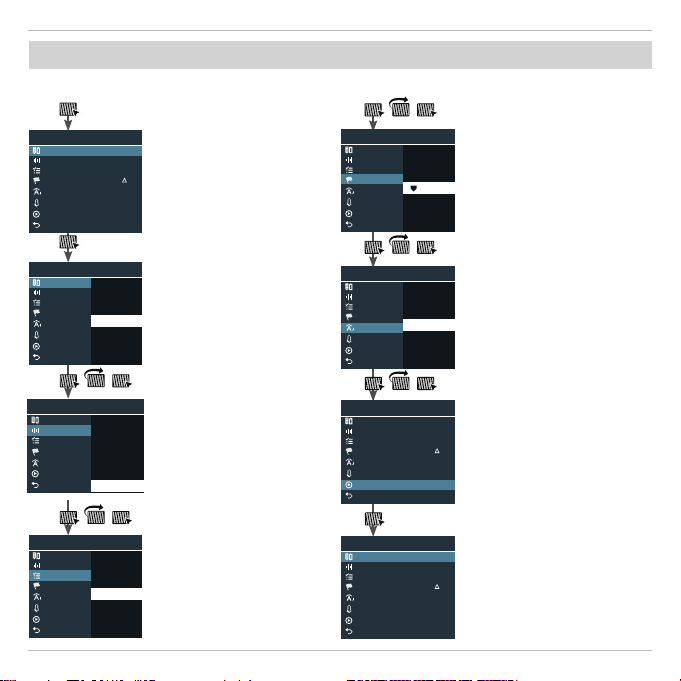

Program Flow Chart
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH B
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
A
759 mAh
00:12:54
LiPo / 6S / Balance CHG
4.137V
1
4.138V
2
4.136V
3
4.143V
4
4.137V
5
4.142V
6
24.75 V
4.20A
100W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
B
1170mAh
01:33:48
LiPo / 6S / Discharge
4.175V
1
4.173V
2
4.173V
3
4.174V
4
4.168V
5
4.172V
6
25.08 V
0.85 A
24W Pb AGM
LiPo
Lilo
LiFe
LiHV
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
Balance CHG
Charge
Storage
Discharge
4.21V
4.22V
4.19V
4.18V
4.23V
4.24V
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
10.0A
9.9A
9.8A
596mAh
100W 00:30:25
4.05V
4.05V
4.05V
4.05V
4.05V
4.05V
ALiPo/6S/Balance CHG
22.42 V
4.43 A
1
2
3
4
5
6
2S
3S
1S
4S
6S
5S
Language
Min. Input Voltage
LCD Backlight
Volume
Completion Signal
Back
> System Settings
English
11.0V
Low
Low
Once
Data
USB
!Warning OFF
Safety Timer
Max. Capacity
Trickle Charge
Back
> Task Parameters
240 Minute
12000 mAh
Li VoltHold OFF
OFF
> Factory Settings
Restore Factory Settings?
YES NO
> System Upgrade
System Upgrade?
YES NO
> System Info
Hardware Version: 1.00
Firmware Version: 1.59
SN:3130303138320100001000013b010086
> Regulatory
Voltage
Current
Start
Back
20.0V
5.0A
> DC Power A
1
2
3
4
5
4.15V
4.17V
4.18V
4.20V
4.19V
4.15V
6
5 m
6 m
10 m
8 m
11
m
12 m
25.13V 28m
Total
> Battery Meter A
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
Pb AGM
ADC Power
14.57 64
Set
Vw
cv
V
20.00
5.00 A
4.43 A

SKYRC D100neo Instruction Manual
9. SKYRC D100neo

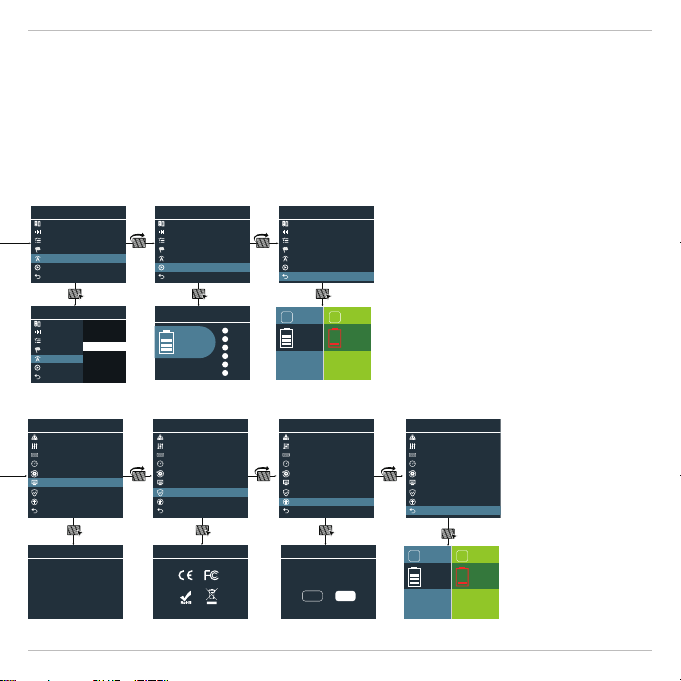

Note: This flow chart provides an example for one port, and the charts for the four ports (Ports A
and B) are identical
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH B
Current 10.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
A
759 mAh
00:12:54
LiPo / 6S / Balance CHG
4.137V
1
4.138V
2
4.136V
3
4.143V
4
4.137V
5
4.142V
6
24.75 V
4.20A
100W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
ALiPo / 6S /
Balance CHG
00:12:54
24.75 V
4.20A
25.08V
0.85A
BLiPo / 6S /
Discharge
759mAh
100 W
01:33:48
1170mAh
24 W
B
1170mAh
01:33:48
LiPo / 6S / Discharge
4.175V
1
4.173V
2
4.173V
3
4.174V
4
4.168V
5
4.172V
6
25.08 V
0.85 A
24W Pb AGM
LiPo
Lilo
LiFe
LiHV
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
Balance CHG
Charge
Storage
Discharge
4.21V
4.22V
4.19V
4.18V
4.23V
4.24V
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
10.0A
9.9A
9.8A
596mAh
100W 00:30:25
4.05V
4.05V
4.05V
4.05V
4.05V
4.05V
ALiPo/6S/Balance CHG
22.42 V
4.43 A
1
2
3
4
5
6
2S
3S
1S
4S
6S
5S
Language
Min. Input Voltage
LCD Backlight
Volume
Completion Signal
Back
> System Settings
English
11.0V
Low
Low
Once
Data
USB
!Warning OFF
Safety Timer
Max. Capacity
Trickle Charge
Back
> Task Parameters
240 Minute
12000 mAh
Li VoltHold OFF
OFF
> Factory Settings
Restore Factory Settings?
YES NO
> System Upgrade
System Upgrade?
YES NO
> System Info
Hardware Version: 1.00
Firmware Version: 1.59
SN:3130303138320100001000013b010086
> Regulatory
Voltage
Current
Start
Back
20.0V
5.0A
> DC Power A
1
2
3
4
5
4.15V
4.17V
4.18V
4.20V
4.19V
4.15V
6
5 m
6 m
10 m
8 m
11
m
12 m
25.13V 28m
Total
> Battery Meter A
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
SYSTEM SETTING
>
>
>
>
>
>
>
>
Task Parameters
System Settings
DC Power
Battery Meter
Factory Settings
System Info
Regulatory
System Upgrade
Back
Pb AGM
ADC Power
14.57 64
Set
Vw
cv
V
20.00
5.00 A
4.43 A

SKYRC D100neo Instruction Manual
SKYRC D100neo 10.
Power and Battery Connection
1. Connect to power source
There are two options of inputs for SKYRC D100neo: AC 100-240V or DC 10-30V.
*12V DC Battery or
10-30V DC Power Supply
AC 100-240V 12V DC Battery
2. Connect the battery
For safety reasons, it is highly recommended to charge Lithium batteries
(LiPo, Lilon, LiFe and LiHV) using Balance CHG mode unless the
battery comes without a balance connector.
The battery balance connector must connect to the charger with the
black wire aligned with the negative marking. Ensure correct polarity!
1) LiPo Battery Connection with Balance Adapter
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS
TO THE CHARGER FIRST AND THEN TO THE BATTERY. REVERSE THE
SEQUENCE WHEN DISCONNECTING.

SKYRC D100neo Instruction Manual
11. SKYRC D100neo
Charging
Various operations are applicable depending on the battery type. This chart illustrates which
operations are relevant for different types of batteries.
Battery
Type
Working
Mode Description
LiPo
Lilon
LiFe
LiHV
Balance
CHG
This mode is to balance charge the lithium battery based on the charging rate
the user set. It can balance each cells of the battery.
Charge This mode is to charge the lithium battery based on the charging rate selected.
Storage This mode is to store the battery via charging or discharging its votlage to a
specic storage value.
Discharge This mode is to dishcarge the lithium battery based on the discharging rate
selected.
2) NiMH/NiCd or Pb Battery Connection

SKYRC D100neo Instruction Manual
SKYRC D100neo 12.
Battery
Type
Working
Mode Description
NiMH
NiCd
Charge This mode is to charge the NiMH/NiCd battery based on the charging rate
selected.
Discharge This mode is to discharge the NiMH/NiCd battery based on the discharging rate
selected.
Re-Peak In re-peak charge mode, the charger can peak charge the battery twice in a row
automatically. This is good for conrming the battery is fully charged.
Cycle_D_C 1 to 3 cyclic and continuous process of discharge>charge is operable for
refreshing and restoring the performance of NiMH/NiCd batteries.
Cycle_C_D 1 to 3 cyclic and continuous process of charge>discharge is operable for
refreshing and restoring the performance of NiMH/NiCd batteries.
Pb
Normal This mode is to charge the Pb battery based on the charging rate selected.
AGM
Charge This mode is to charge the AGM battery based on the charging rate selected.
Cold
Charge
This mode is to charge the Pb battery under a low temperature based on the
charging rate selected.
Discharge This mode is to discharge the Pb battery based on the discharging rate selected.

SKYRC D100neo Instruction Manual
13. SKYRC D100neo
Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
LiPo
Lilo
LiFe
LiHV
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
Balance CHG
Charge
Storage
Discharge
The following flowchart is a reference to set the program manually.
Enter CHARGE
SETTING
Short-press the Scroll Wheel
to enter the CHARGE
SETTING.
Select Condition
Scroll to Condition, call out the
menu and select the terminal
charging voltage.
Select Battery Type
Short-press the Scroll Wheel to
call out the Battery Type menu,
and scroll to select LiPo.
Set Charge/Discharge
Current
Scroll to Charge/Discharge
Current, call out the menu and
scroll to select the current.
Select Battery Cell
Scroll to Battery Cell to call out
the menu and scroll to select
the correct battery cells.
Start
Short-press the Scroll Wheel
to confirm and initiate the
program.
Stop
Short-press the Scroll Wheel
to stop the program. If confirm
to stop, short-press the Scroll
Wheel again to confirm. If
not stop, short-press the Port
button to back.
Select Task
Scroll to Task, call out the
menu and scroll to select the
working mode.
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
4.21V
4.22V
4.19V
4.18V
4.23V
4.24V
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
6S(22.2V)
Balance CHG
CH A
Current 10.0A
Scroll to select the port and short-press to confirm.
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
2S(7.4V)
Balance CHG
CH A
Current 20.0A
10.0A
9.9A
9.8A
596mAh
100W 00:30:25
4.05V
4.05V
4.05V
4.05V
4.05V
4.05V
AL iPo/6S/Balance CHG
22.42V
4.43A
1
2
3
4
5
6
596mAh
100W 00:30:25
4.05V
4.05V
4.05V
4.05V
4.05V
4.05V
AL iPo/6S/Balance CHG
22.42 V
4.43A
1
2
3
4
5
6
5
96mA
h
100
W
00
:
30
:
25
4
.
0
5
V
4
.
05V
4
.
05V
4
.
0
5
V
4
.
05V
4
.05
V
A
L
iPo
/
6
S/
Balance
C
H
G
22
.4
2
V
4
.4
3
A
1
2
3
4
5
6
Stop Working?
PORT
Press Back
OK
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
2S
3S
1S
4S
6S
5S

SKYRC D100neo Instruction Manual
SKYRC D100neo 14.
NiMH/NiCd Battery Program
ENTER CHARGE
SETTING
Short-press the Scroll Wheel to
enter the CHARGE SETTING.
Select Condition
Scroll to Condition, call out
the menu and set the delta
voltage.
Select Battery Type
Short-press the Scroll Wheel
to call out the Battery Type
menu, and scroll to select
NiMH.
Set Charge/Discharge
Current
Scroll to Charge/Discharge
Current, call out the menu and
scroll to select the current
Select Battery Cell
Scroll to Battery Cell, call out
the menu and scroll to select
the correct battery cells.
Start
Short-press the Scroll Wheel
to confirm and initiate the
program.
Stop
Short-press the Scroll
Wheel to stop the program.
If prompted to stop, short-
press the Scroll Wheel again
to confirm, or short-press the
Port button to return.
Select Task
Scroll to Task, call out the
menu and scroll to select the
working mode.
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
LiHV
LiFe
Lilo
NiMH
NiCd
PB
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
Charge
Re-Peak
CYCLE_C_D
CYCLE_D_C
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
-5mV
-4mV
-3mV
-6mV
-7mV
-8mV
-9mV
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
2.9A
2.8A
2.7A
3.0A
3.1A
3.2A
3.3A
Battery Type
Condition
Battery Cell
Task
Charge Current
Temp Cut-off
Start
Back
CHARGE SETTING
NiMH
-6 mV
6S(7.2V)
Charge
3.0A
50°C
CH A
Scroll to select the port and short-press to confirm.
Battery Type
Condition
Battery Cell
Task
Start
Back
CHARGE SETTING
LiPo
4.2V
3S(11.1V)
Balance CHG
CH A
Current 20.0A
2S
3S
1S
4S
6S
5S

SKYRC D100neo Instruction Manual
15. SKYRC D100neo
Pb Lead-Acid Battery Program
ENTER CHARGE
SETTING
On the main interface, press the
Scroll Wheel to enter CHARGE
SETTING.
Select Condition
Scroll to Condition, call out the
menu and set the delta voltage.
Select Battery Type
Short-press the Scroll Wheel to
call out the Battery Type menu,
and scroll to select Pb.
Set Charge/Discharge
Current
Scroll to Charge/Discharge
Current, call out the menu and
scroll to select the current.
Select Battery Cell
Scroll to Battery Cell, call out
the menu and scroll to select
the correct battery cells.
Start
Short-press the Scroll Wheel
to confirm and initiate the
program.
Stop
Short-press the Scroll Wheel to
stop the program. If prompted
to stop, short-press the Scroll
Wheel again to confirm, or
short-press the Port button to
return.
Task Select
Scroll to Task, call out the
menu and scroll to select the
working mode.
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
PB
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
PB
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
NiMH
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
LiHV
LiFe
Lilo
NiMH
NiCd
PB
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
NiMH
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
Normal
AGM Charge
Cold Charge
Discharge
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
NiMH
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
1.80V
1.90V
2.00V
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
NiMH
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
4.9A
4.8A
4.7A
5.0A
5.1A
5.2A
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
PB
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
Scroll to select the port and short-press to confirm.
Battery Type
Condition
Battery Cell
Task
Current
Start
Back
CHARGE SETTING
NiMH
2.45V
6S(12.0V)
AGM Charge
5.0A
CH A
3S(6.0V)
6S(12.0V)
12S(24.0V)

SKYRC D100neo Instruction Manual
SKYRC D100neo 16.
Charger Master
The D100neo offers the convenience of charging and discharging directly from your computer,
whether you're using Windows or MacOS. It provides a visual display of various parameters, such
as charge time, capacity, charge current, and voltage, presented in a curve format.
1. Download the latest Charger Master onto your desktop. Unzip and open it;
2. Choose Data for USB work mode in System Setting>USB;
3. Connect D100neo to your computer via a USB type-C cable;
On the top left panel, choose the expected work mode to initiate the program.
4.
PC Interface

SKYRC D100neo Instruction Manual
17. SKYRC D100neo

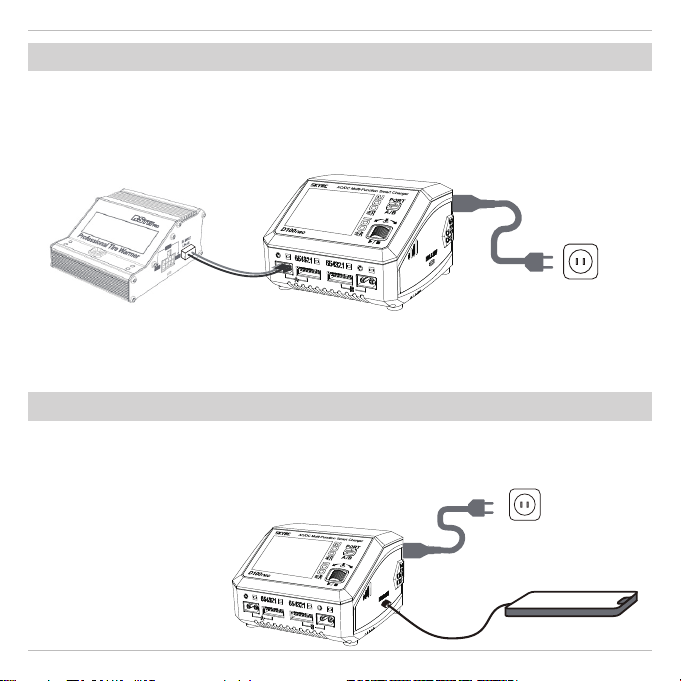

DC Power
1. On the main menu, hold the Scroll Wheel for two seconds to enter Charger Setting>DC Power.
2. Select the options of DC Power: adjust the output voltage and current.
3. Select Start to activate the DC Power working mode.
USB Type-C PD/QC3.0 Output
With the 20W USB-C PD 3.0 charging port, our RC players can enjoy rapid
charging speeds like never before. Whether you're charging your smartphones,
tablets, or 2020 MacBook Airs, this powerful port ensures that you can fuel up
your devices in a fraction of the time.

SKYRC D100neo Instruction Manual
SKYRC D100neo 18.
Voltage Calibration (For expert user only)
You can calibrate the voltage directly on the charger with a 6S LiPo battery. For more information,
please contact us at [email protected]
Charge Settings
On the main interface, press the Scroll Wheel to enter Charge Setting: switch between ports A,B,C
and D by pressing the Port button, or set parameters as below:
Menu Denition
Battery Type Select the desired battery type. (LiPo, LiIon, LiFe, LiHV, Pb, NiMH,
NiCd)
Battery Cell Select the number of battery cells by di󰀨erent battery type. (Li-xx: 1-6S,
Ni-xx: 1-15S, Pb: 3S/6S/12S)
Task Select the work mode to be performed. (Balance CHG, Charge,
Storage, Discharge, etc.)
Condition Set the cut-o󰀨 voltage.
Current Set the charge or discharge current.
Start Start the program.
Back Back to the main interface.
