Skyrc e3 User manual

WARRANTYANDSERVICE
We guarantee this product to be free of manufacturing and assembly defects for a period of one
year from the time of purchase. The warranty only applies to material or operational defects,
which are present at the time of purchase. During that period, we will repair or replace free of
service charge for products deemed defective due to those causes. For any repair or replace
service, please contact your dealer in the first instance, who is responsible for processing
guarantee claims.
Thiswarrantyisnotvalidforanydamageorsubsequentdamagearisingasaresultofmisuse,
modificationorasaresultoffailuretoobservetheproceduresoutlinedinthismanual.
WARNING AND SAFETY NOTES
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similar qualified persons in order to avoid a hazard.
This charger is suitable for charging rechargeable LiPo batteries. Do not attempt to
recharge non-rechargeable batteries. Charging other types of batteries may cause fire or
explosion.
Never leave the charger unattended when it is connected to its power supply.
The allowable AC input voltage is 100-240V AC. Never connect it to any other voltage.
Protect charger from dust, dirt and damp.
Never place the charger and batteries connected to it on any form of flammable surface.
Never operate the charger in the vicinity of inflammable material or gas.
During charging, the battery must be placed in a well ventilated area . Never place the
charger on a carpet or similar surface.
Take great care to maintain correct battery polarity, and avoid shot-circuit. Read the battery
manufacturer's instructions and adhere to them strictly.
The charger must only be plugged into an earthed socket-outlet (for portable class 1
battery chargers for outdoor use)
The connection to the supply mains is to be in accordance with the national wiring rules
when battery chargers for installation in caravans and similar vehicles.
INSTRUCTION MANUAL
SK-100081
Thank you for your choice of the SKYRC e3, 100-240V AC balance charger. This unit is simple to
use but its operation does require some knowledge on the part of the user. Please read this entire
operating manual completely and attentively before using this product, as it covers a wide range of
information on operating and safety.
SKYRC e3 Charger is an economic, high quality 100-240V AC balance charger, designed for
charging LiPo batteries from 2-3 cells in balance mode. The circuit power is 11W and max charge
current can reach to 1.2A.
INTRODUCTION
CHARGE PROCEDURES
SKYRC e3 comes with the built in power supply. You can connect the AC power cord to the
AC socket (100-240V AC) directly.
Insert the AC power cord into the charger.
Insert the AC cord into a wall socket (100-240V). All LEDs will light green and flash red to
indicate the charger is ready to charge.
Connect battery balance wire to balance port which is in front side of the charger, after 2
seconds, the charger detects the voltage of the battery and starts to charge.
The charger starts charging. The LEDs will glow constant red. If the battery pack is 2-cell, Cell 1
and Cell 2 LEDs will glow constant red; if the battery pack is 3-cell, Cell 1, Cell 2 and Cell 3
LEDs will glow constant red.
When a cell is completely charged, its corresponding LED will glow constant green. A 2-cell
pack is fully charged when LEDs 1 and 2 are constant green. For 3-cell pack, all LEDs will glow
constant green to indicate the pack is fully charged.
Unplug the battery from the charger and the charge status LED will stay green and flash red
which indicates the charger is ready to charge another battery.
Please refer to following steps to charge the battery,
1)
2)
3)
4)
5)
6)

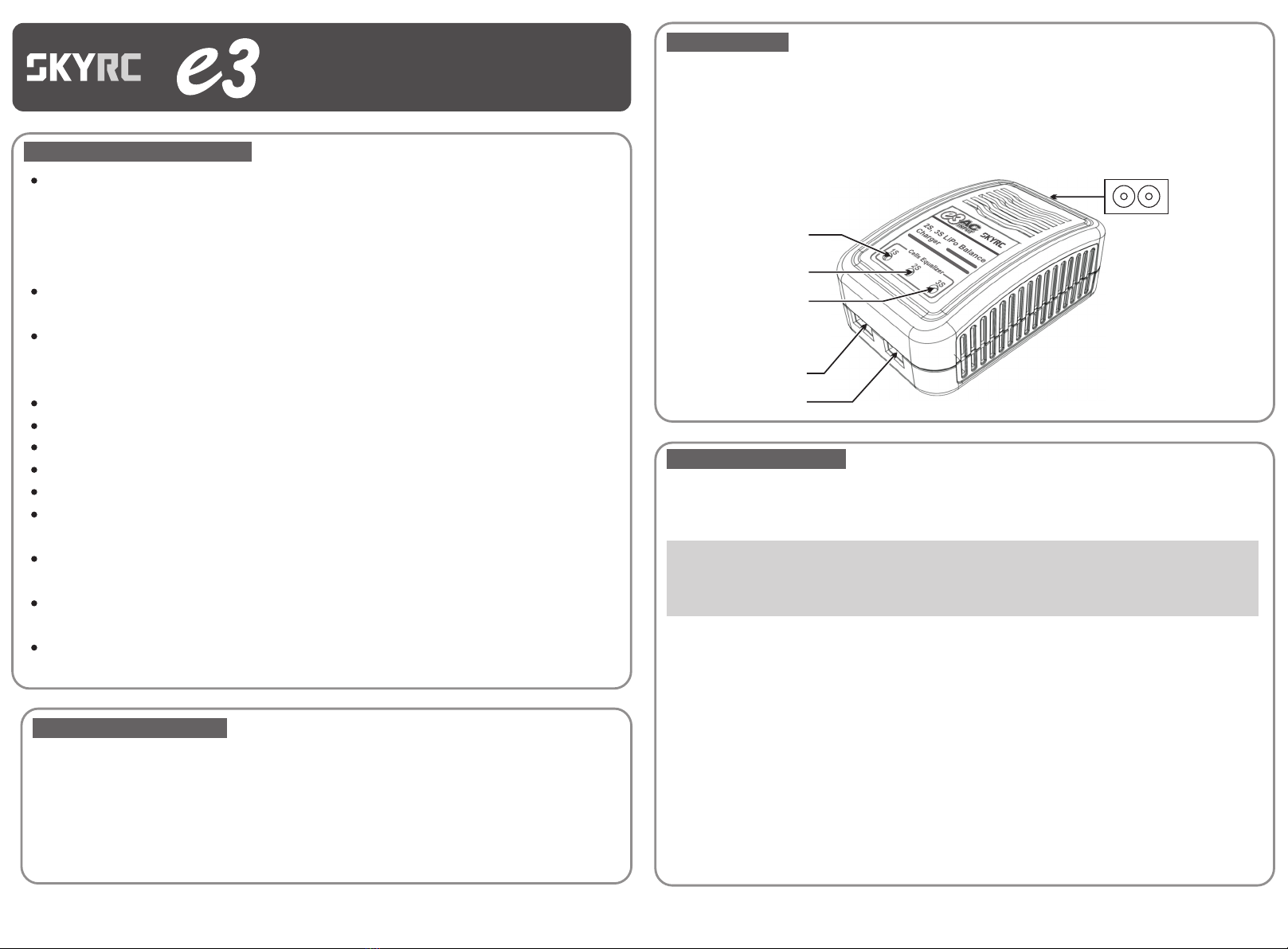

2-Cell Balance Port
3-Cell Balance Port
Cell 1 LED Indicator
Cell 2 LED Indicator
Cell 3 LED Indicator
AC 100-240V
Power Jack
Ver. 2
Note: Please DON'T connect more than one battery to the balance ports
simultaneously. ONE battery is allowed to connect to the balance port at a
time and this charger can charge ONE battery at a time.
- 1 - - 2 -

This diagram shows the correct way to connect your
battery to the e3 charger while charging in balance
mode.
Failure to connect as shown in this diagram will
damage this charger.
CAUTION:
If you unplug the battery while charging, the
charger will stop charging automatically and
enter into standby status.
If the charger encounters overload or short
circuit while charging, the charger will stop
charging and three LEDs will flash red.
1
2
Remark:
CONNECTION DIAGRAM
Battery
Charger
7504-0382-07
Manufacturedby
SKYRCTECHNOLOGYCO.,LTD.
www.skyrc.com
CONFORMITY DECLARATION
SKYRC e3 satisfies all relevant and mandatory EC directives and FCC Part 15 Subpart B: 2008.
The product has been tested to meet the following technical standards:
This marking indicates that this product should not be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Conform
Conform
Conform
CE-EMC
FCC-VOC FCC Part 15B
Electromagnetic compatibility - Requirements for
household appliances, electric tools and similar
apparatus - Immunity - Product family standard
Electromagnetic compatibility - Requirements for
household appliances, electric tools and similar
apparatus -- Part 1: Emission
EN 55014-1:2006
EN 55014-2:1997+A1
2001+A2 2008
Test Standards Title Result
Electromagnetic compatibility (EMC), Conduction Emission
& Radiation Emission.
Conform
EN 61000-3-2:2006
+A1:2009+A2:2009
Electromagnetic compatibility (EMC) -- Part 3-2: Limits -
Limits for harmonic current emissions (equipment input
current up to and including 16A per phase).
EN 61000-3-3:2013
Electromagnetic compatibility (EMC) -- Part 3-3: Limits -
Limitation of voltage changes, voltage fluctuations and
flicker in public low - voltage supply systems, for
equipment with rated current ≤16A per phase and not
subject to conditional connection.
Conform
EN60335-2-29
CE-LVD
Household and similar electrical appliances –. Safety –.
Part 2-29: Particular requirements for battery chargers.
Conform
LIABILITY EXCLUSION
This charger is designed and approved exclusively for use with the types of battery stated in these
Instruction Manual. SKYRC accepts no liability of any kind if the charger is used for any purpose other
than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and
we have no control over the methods you employ for using, operating and maintaining the device. For this
reason we are obliged to deny all liability for loss, damage or costs which are incurred due to the
incompetent or incorrect use and operation of our products, or which are connected with such operation
in any way. Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the
legal argument employed, is limited to the invoice value of those SKYRC products which were
immediately and directly involved in the event in which the damage occurred.
EN62233
EN60335-1 Household and similar electrical appliances - Safety -
Measurement methods for electromagnetic fields
of household appliances and similar apparatus
with regard to human exposure.
Conform
Conform
SPECIFICATION
AC Input
Battery Type
Cell Count
Charge Current
Cell Terminate Voltage
Circuit Power
Dimension
Weight
Charger/Cell Status
100-240V, 50/60Hz
LiPo(100-5000mAh)
2-3 cells
1.2A Max
4.2V ± 0.02V
11W ± 10%
88x57x35mm
103g
EXPLANATION OF LED STATUS
If the charger encounters a problem, all LEDs will flash red to alert you the errors. In this case,
please disconnect the power cord from the wall socket and unplug the battery from the charger.
* Error Message
All LEDs flashes red once and stop 1 second in cycle.
All LEDs flashes red four times and stop 1 second in cycle.
All LEDs flashes red six times and stop 1 second in cycle.
All LEDs flashes red twice and stop 1 second in cycle.
The battery connects incorrectly.
The voltage of single cell is too high or too low.
There is a 300mv difference of voltage
between battery pack.
The charger encounters overload or short circuit.
LED Indicator
LED stays green and flashes red.
LED glows constant red.
LED glows constant green.
The charger is ready to charge.
The charger is charging.
The charging process finishes.
Charger Status
Cause of ErrorLED Indicator
- 3 - - 4 -
The manual is subject to change without notice;
please refer to our website for the latest version!
